Density of Iron Explained: Values, Factors & Uses

Iron is the backbone of modern infrastructure but knowing its precise density is critical for accurate material selection and structural integrity.

Whether you’re designing heavy machinery or sourcing raw materials, it helps to know how temperature, alloying elements and microstructure can shift this value.

In this blog post we outline the standard density values of iron, the key factors that influence them and the measurement methods you need to understand.

Density of Iron_ Standard Values

Pure Iron Density Value

The standard density of pure iron at room temperature (around 20°C) is about 7.87 g/cm³ or 7,870 kg/m³. This value reflects the mass per unit volume of solid iron under normal conditions and is widely used in engineering and materials science.

Density of Iron compared to Other Substances

Iron is significantly heavier than many common substances. It is nearly eight times denser as compared to water (1 g/cm³) and roughly three times denser than aluminum (2.7 g/cm³). This high value results principally from its tightly packed atomic structure.

Variations by Form

Iron’s density is not a single constant; it changes based on its form.

• Pure iron’s density = ~7.87 g/cm³ at 20°C — the baseline value for calculations.
• Wrought iron’s density = ~7.75 g/cm³, slightly lower due to microstructural features.
• Cast iron’s density= ~7.1–7.3 g/cm³ depending on carbon and silicon content.
• Iron alloys: Density can vary with alloy composition; many steels (alloy of iron) cluster around 7.7–8.1 g/cm³.

Standard vs Actual

The textbook value of 7.87 g/cm³ is for pure iron. In the real world, impurities and manufacturing processes alter this figure. The presence of carbon in cast iron, for example, creates voids that lower its overall density. Manufacturing methods also have a role; forged iron is often denser than cast iron because the process reduces internal voids.

This is why, at Richconn we often recommend CNC machining from solid stock for critical parts. It guarantees a consistent density that casting can’t always promise.

Factors That Affect Iron’s Density

Several factors, from atomic arrangement to manufacturing, alter iron’s standard density.

Crystal Structure & Phase Transitions

Iron’s density is linked to its crystal structure. At room temperature, α-iron has a Body Centered Cubic (BCC) structure. When heated above 912°C, it becomes γ-iron, adopting a more compact Face Centered Cubic (FCC) structure. This efficient packing makes γ-iron denser than α-iron and this causes a significant volume change.

Temperature Effects

Heating causes iron to expand which decreases its density as atoms vibrate and move apart. For example, pure iron’s density falls from 7.87 g/cm³ at 20°C to roughly 7.52 g/cm³ at 700°C. This decrease is linear until a phase transition.

Alloying Elements & Impurities

Adding lighter elements like carbon to create cast iron or steel alters density. Carbon’s addition typically lowers the alloy’s density. For example, high carbon steel has a density of about 7.84 g/cm³ while cast iron having more carbon (2-4%) has a lower density of 6.8 to 7.8 g/cm³.

Microstructure & Porosity

The manufacturing process also impacts final density. For example, cast iron’s porous internal structure reduces its overall density. Conversely, forging compresses the metal which minimizes these defects and creates a denser, stronger material. Heat treatment also modifies the microstructure and this influences the final density as well.

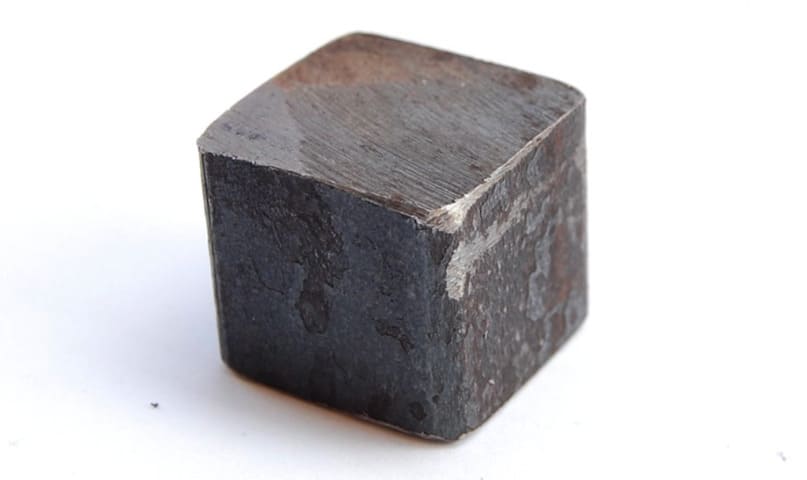

How Iron’s Density is Measured

Determining iron’s density can be done through several well‐established methods. It ranges from simple classical techniques to highly precise modern approaches.

Classical Methods

For basic measurements, classical methods are often sufficient.

Water Displacement Method (Archimedes’ Principle)

Based on Archimedes’ principle the water displacement method is a common technique. It involves submerging an iron sample in water and measuring the volume of displaced liquid to determine the sample’s volume.

Geometric Measurement for Regular Shapes

For regularly shaped objects like cubes or cylinders, a simpler approach is to measure their dimensions using calipers and calculate the volume with geometric formulas. The density is then found by dividing the object’s mass by its calculated volume.

Precision Methods

When high accuracy is needed, more advanced methods are used.

Gas Pycnometry

Gas pycnometry is a highly reliable technique that measures the volume of a solid by displacing an inert gas, like helium, in a sealed chamber of a known volume. This method is particularly effective for powders or porous materials.

X-ray Crystallography

For the highest precision, X-ray crystallography can determine the theoretical density by analyzing the atomic arrangement within the iron’s crystal structure. This technique provides a detailed picture of the electron density and this allows for highly accurate calculations of the unit cell volume.

Importance & Uses of Density of Iron in Real World Applications

Construction & Engineering

In construction and engineering, iron’s high density is fundamental to structural stability. Steel beams and frames in bridges and skyscrapers rely on this density for their load-bearing capacity. This property ensures that structures can support immense weight and withstand environmental stresses.

Automotive Industry

The automotive industry uses iron’s density in manufacturing robust components. Dense cast iron is best for brake rotors and engine blocks. It offers durability and effective heat absorption. However, this high density also increases vehicle weight which can impact fuel efficiency.

Heavy Machinery & Industrial Equipment

For heavy machinery, iron’s density provides the necessary weight and stability. It is the best material for counterweights in bulldozers and cranes. Its density also contributes to the strength and durability of critical parts like gears and shafts which must withstand significant stress.

Material Selection for Manufacturing

Density is a key consideration when choosing between iron, steel and other metals. While steel, an iron alloy, offers an extraordinary strength-to-weight ratio, cast iron’s lower density can be advantageous for particular applications. The choice often depends on balancing strength, weight and cost for the intended purpose.

If you’re weighing different iron or steel options for a particular part, our engineering team can look over your design and help you choose an alloy that meets your strength needs without adding unnecessary cost or weight.

Miscellaneous Uses

Iron’s density is also vital in shipbuilding and the railway industry. In shipbuilding, it provides the mass needed for the stability of large vessels. For railways, the high density of steel rails lets them endure heavy train loads which contribute to the reliability and safety of rail transport.

To Sum Up

Iron’s density is a defining trait that makes it indispensable across numerous sectors. This property, influenced by temperature, crystal structure and alloying, is necessary for everything from construction to automotive manufacturing. Understanding its density is key to leveraging iron’s full potential.

For precision manufacturing of iron components, contact Richconn for your custom CNC machining needs.
