Every stamped part, from car hoods to the lids of a soda can, gets its shape from dies. Quality of these parts depends on the quality of dies used. Follow along and see what it takes to make reliable and high quality dies in this blog post.

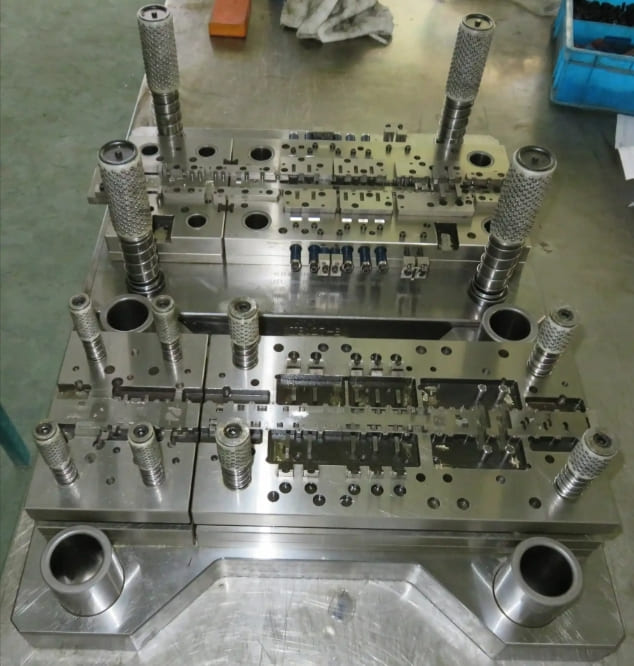

What is Die in Manufacturing?
In simple terms, a die is a precision tool that is used to cut, form or shape materials. Most often these are metals. Dies create specific parts or profiles with high precision.
Types of Dies Used in Manufacturing
1. Simple Die
This die does basic cutting or forming in one operation. It is best for simple shapes.
2. Compound Die
This die does multiple cutting and forming in one press stroke. It’s best for flat parts that need precision.
3. Transfer Die
Procedure starts with blanking and then the blank goes through several stages for more operations. It is best for large or complicated parts like automotive & appliance parts.
4. Progressive Die
This die does multiple cutting steps in one stroke but at different stages. It is best for high volume intricate parts like brackets or connectors.
5. Multiple Die
Several dies are set up together in one arrangement. So it’s best for making several identical parts at the same time.
6. Combination Die
Both cutting & forming happens in one stroke with this die. It is mostly used for parts that need several features created at once.
7. Round Split/ Adjustable Die
Size of this die can be changed to cut different diameters. It’s ideal for shaping or threading round pipes and rods.
8. Pipe Die
This die is used for threading or shaping the ends of pipes. It is best for construction and plumbing work.
9. Acron Die
For small scale and high precision forming, this die is used in electronics and fine metalwork.

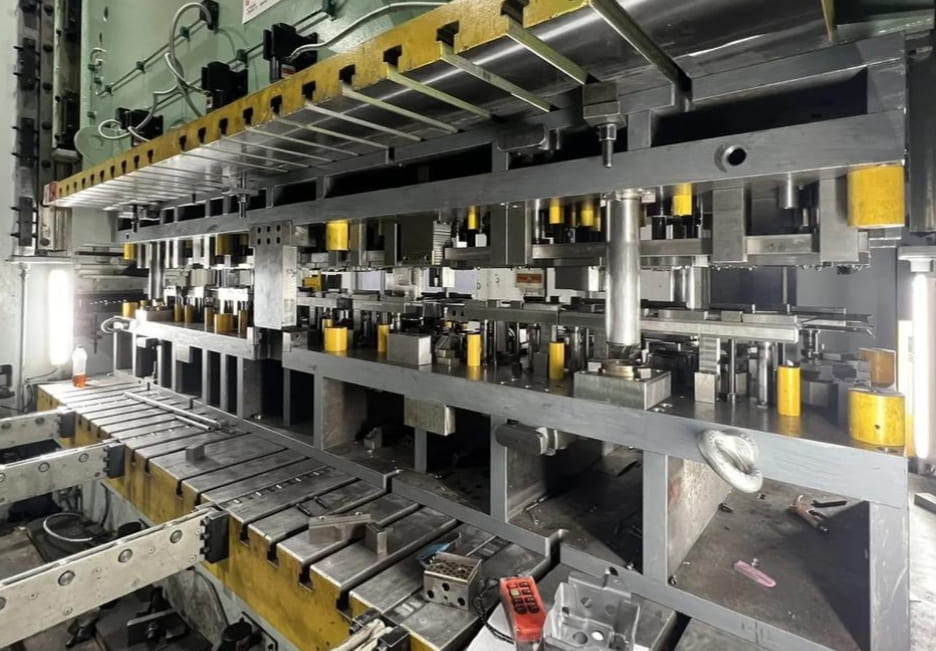

Die Design and Engineering
Good planning and engineering are key to building dies that work effectively and last longer.
1. Part Design and Requirements
First outline the geometry, tolerances and surface finish of your part. How many cycles will the part withstand? Specify it, whether it is 10,000 or up to 1 million.
Select material according to your particular needs. Aluminum for lightness, steel for strength or specialized alloys for custom needs. This step is the foundation for rest of the procedure.
2. Die Design Principles
Use simulation tools and CAD modeling at this stage. These tools let you model the die before any metal is cut and helps in finding issues early. Check die clearance, draft angles and radii so the part releases easily and defects are low. Also include shrinkage allowances for molded or cast parts. Simulations like FEA will show stress points and help you improve the design for longer life.
At RICHCONN our engineers often work with clients from the start. They use advanced CAD/CAE tools to co‐create designs that meet goals for cost, durability and manufacturability.
3. Type Specific Considerations
Adjust your design for the die type.
- For stamping & cutting, set punch and die clearances carefully for clean edges.
- For die casting, pay attention to gating, cooling channels (keep them 10 to 15 mm from the surface) and venting. These prevent defects and control temperature.
- For drawing & extrusion dies, control material strain and use blank holding to stop wrinkling or tearing.
Material Selection and Preparation for Die Manufacturing
Die Block & Punch Materials
Die blocks and punches mostly use carbide, tool steels or high-speed steel (HSS). HSS stays sharp even at high temperatures so it’s good for high speed stamping. Carbide is very hard, up to 90 HRC, and resists wear during high volume production.
Raw Workpiece Materials
Workpiece material, i.e., aluminum, copper or steel, affects both die wear & design. Tougher die materials are needed for harder metals. Softer alloys support a broader range of die materials.
Heat Treatment and Coating
Carburizing or nitriding heat treatments increase wear resistance and surface hardness. Nitrides or chrome coatings make dies last longer. These coatings protect the die from corrosion and reduce friction.

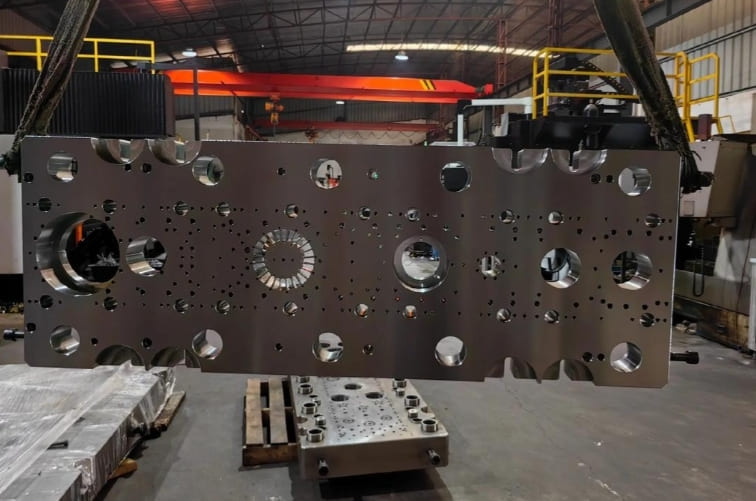

Machining and Fabrication Methods for Die Production
Machining Procedures
CNC Milling
CNC milling gives tighter tolerances, often around ±0.005 inches. It can complete a die in hours and is good for roughing & finishing die surfaces.
Related Blogpost: A Complete Guide to CNC Milling
EDM (Sinker, Wire)
EDM is used when you are working with hard materials or detailed features. Sinker EDM forms deep cavities and sharp corners with ease. Wire EDM can create complex profiles to ±0.001 inches.
Waterjet
Waterjets can cut almost any material with around ±0.005 inches accuracy. No heat affected zones are created, therefore it’s good for pre shaping of die blanks or handling delicate parts.
Grinding
Grinding sharpens die surfaces and edges. It is important for high surface quality and exact dimensions especially after EDM or milling.
Related Blogpost: What is Precision Grinding
Feature‐specific Tooling
Some die features require special tools for operation and shaping.
- Core pins form cavities or holes.
- Ejector systems remove finished parts.
- Side cams and lifters create angled or undercut features.
Sub‐assemblies and Alignment
Alignment is key for correct die function. Bushings and guide pillars keep lower and upper die shoes aligned in every press cycle. Retainer plates and die shoes hold all parts together so forming is consistent and precise.
Assembly and Validation Testing
Once machining is complete, each die goes through rigorous testing and careful assembly.

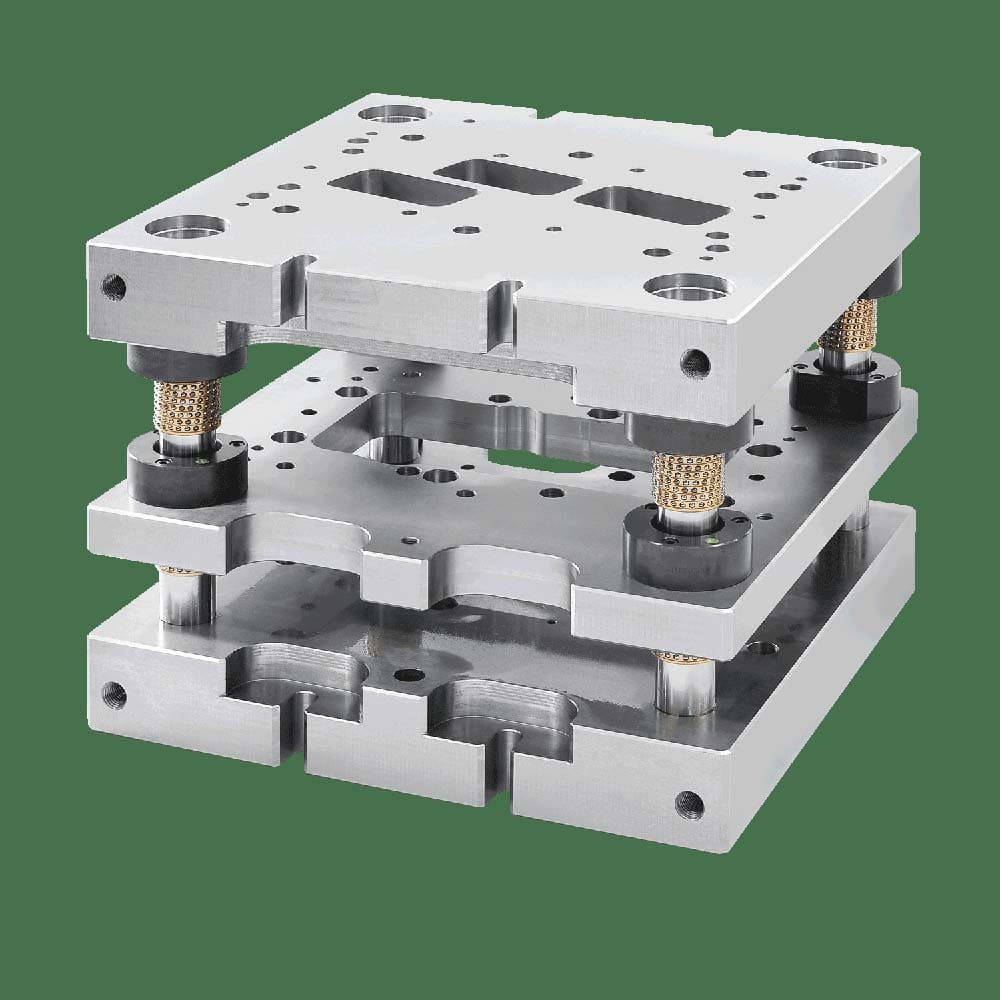

Die‐set Assembly
Technicians attach guide pillars, shoe plates and strip feeders to build the die set. They check that all moving parts line up correctly. This is critical for smooth operation.
Trial Runs
Die goes into press for test cycles. Technicians adjust cooling, clearances and venting as needed. This step finds and fixes problems before production.

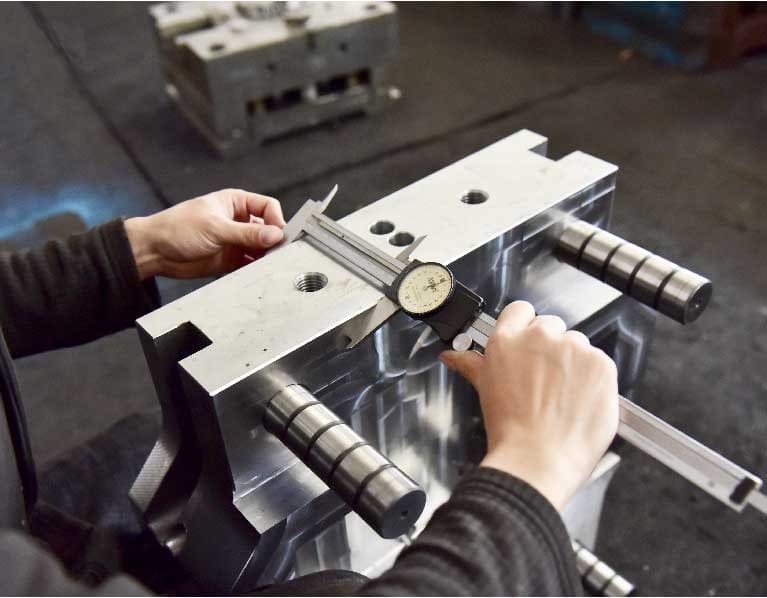

Measurement and Inspection
Some precision tools such as CMMs measure dimensions. Metallographic & visual inspection focuses on wear areas. This step verifies that the die meets tight tolerances and quality standards.
At RICHCONN automated CMM inspection is part of every die’s manufacturing process under our ISO 9001:2015 quality system. This step checks even the smallest features against your specifications. It prevents rework and production delays.
Considerations and Quality Control
Quality and precision must be maintained at every step of die production. From design to inspection, each phase must meet strict standards to assure performance and reliability.
Die specific Considerations
Different dies require different checks.
- Stamping dies need a tight control of punch‐to‐die clearance.
- Die casting molds need to have their cooling channels and vents checked regularly to prevent defects.
- Progressive dies need sensors to detect jams or misfeeds to reduce downtime.
- Hydroforming dies need precise fluid pressure and blank holding.
Process Parameters
Operators must monitor key parameters such as shot speed, press tonnage and cycle time. Press tonnage should fit both the die size and the material. If the tonnage is too low, parts may not form completely; if too high, the die could be damaged. Proper cooling and lubrication are also necessary to stop wear and overheating.
Monitoring and Control
Modern dies have SPC systems and sensors to monitor cycle counts and catch issues early. Ultrasonic testing (UT) & non‐destructive testing (NDT) can reveal internal cracks before failures occur.
Maintenance Strategy
A balanced approach using preventive and predictive maintenance is key. Regular cleaning, lubrication as well as dimensional checks help avoid sudden failures. Predictive tools such as thermal imaging and vibration analysis identify problems before breakdowns happen. This approach reduces downtime and extends die life.
Finishing and Post Processing for Die
Finishing and post processing steps follow die manufacturing to get final quality.
1. Surface Treatments
Surface treatments extend die life and provide protection. Several methods are used:
- Polishing: Creates a smooth, mirror‐like surface. This finish improves parts release & reduces friction.
- Deburring: Removes burrs and sharp edges that result from casting or machining.
- Coating: coating procedures such as plating, anodizing or nitriding add resistance to wear and corrosion
We at RICHCONN offer in‐house surface finishing options – from mirror polishing to advanced coatings. We test our treatments and coatings to make dies last longer and assure less maintenance.
Related Blogpost: A Complete Guide to Surface Finish in CNC Machining

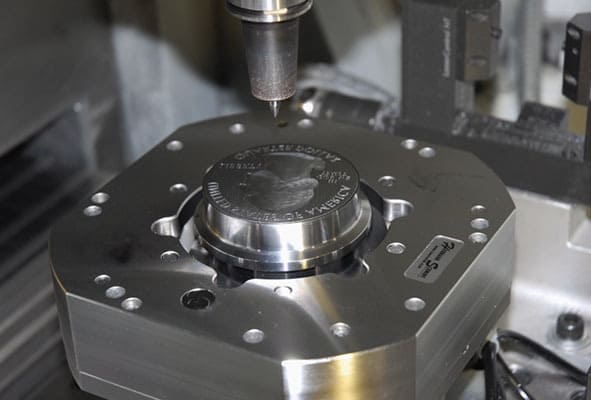

2. Secondary Machining
After surface treatment, secondary machining brings all holes, features and slots within tight tolerances. CNC machines often do this work for high accuracy. Trimming, shaving or drilling may be used to reach precise dimensions.
3. Validation
Inspection is the final step. Surface integrity tests, dimensional checks and mechanical property evaluations confirm the die’s quality. The die goes to production only after passing all these tests.
Die Failure Modes and Remediation
Common Failure

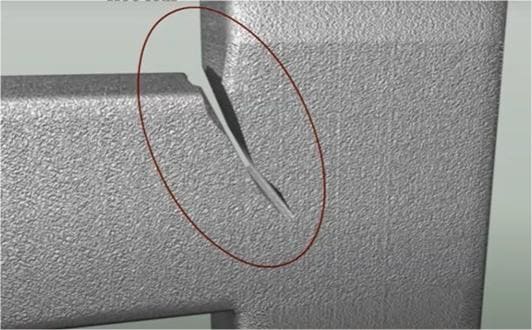

Dies mostly fail from cracking, wear, chipping and deformation. Abrasion & wear reduce die precision. Chips and cracks come from too much stress or sudden impacts. High volume production can cause heat checking and erosion which shortens die life. Fatigue failures are less common but can occur at stress points or sharp corners.
Root Causes

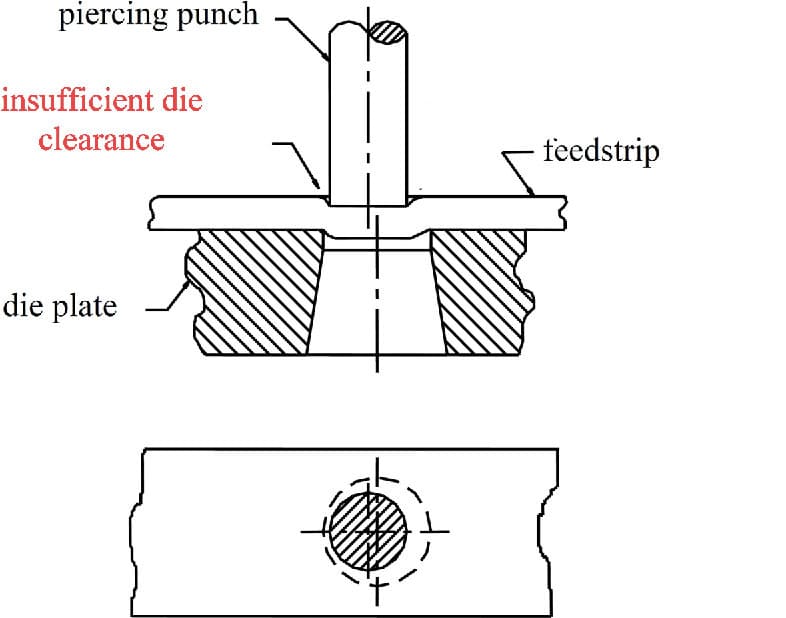

Bad die design (sharp corners or insufficient clearance) is the main cause of failure. Inadequate heat treatment is another. Overloading, misalignment, poor lubrication and using the wrong material also contribute to early die failure. Service issues (incorrect assembly or bad maintenance) increase the risk.
Mitigation Tactics

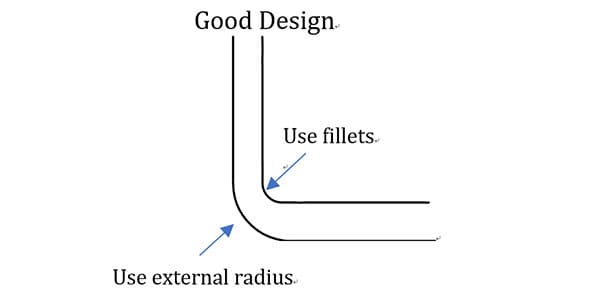

Preventing die failure starts with good design (correct radii and clearances). Choose the right material and heat treatment for the application. Assure proper lubrication and cooling during use. To fix failures, analyze the failed dies, compare to good ones and update the procedure as needed.
