Diamond like carbon (DLC) is a modern coating material that combines the properties of diamond and graphite. This amorphous carbon structure has sp3 (diamond like) and sp2 (graphite like) hybridized bonds. DLC coatings give outstanding chemical inertness, hardness and low friction. Through different deposition methods and doping, engineers can customize these coatings for many industrial applications from plastic injection molds to aerospace fasteners.
Properties of DLC Coating
DLC coatings possess distinct characteristics that make them desirable for different operations. Let’s go into the details and see why they are so valuable.
Exceptional Hardness
DLC coatings have extraordinary hardness values up to 80 GPa due to the distinct atomic structure of the coating. This hardness provides better durability and wear resistance to coated components. So components coated with DLC will have better wear resistance and increased lifespan of mechanical parts, tools and precision instruments in harsh industrial environments.
Low friction coefficient
The most impressive feature of DLC coatings is their low friction coefficient which is between 0.01 and 0.2 in dry conditions. This decreases energy and wear loss in sliding contacts. The mechanism behind this low friction is the formation of a graphite-like transfer layer during sliding. This layer acts as a solid lubricant.
Chemical inertness
DLC coatings are very resistant to chemical attacks and remain stable in alkaline, acidic and organic solvents. This is due to their strong covalent bonds and dense amorphous structure. Because of this chemical inertness, DLC coatings are used in biomedical applications and corrosive environments.
Optical and electrical properties
These coatings have a broad tunable bandgap and infrared transparency. This makes DLC coatings appropriate for many optical devices. Their electrical resistivity ranges from over 10^2 to 10^16 Ω·cm which can be adjusted over 6 to 8 orders of magnitude. It allows DLC coatings to be used as conductive or insulating electrodes. Their high refractive index (1.8 to 2.4) also increases optical performance of many components.
Methods of Applying DLC Coatings
The performance of DLC coatings is dependent on the applied methods. Some main methods used in industry are.
1. Physical Vapor Deposition (PVD)
In PVD, carbon is vaporized in a vacuum chamber to apply the DLC coating. The arc evaporation or sputtering process is normally used to create carbon plasma which is then directed at the substrate. When it hits the substrate, the plasma condenses and forms a dense, adherent DLC film. This process gives accurate control over coating thickness and composition while operating at temperatures below 200 °C.

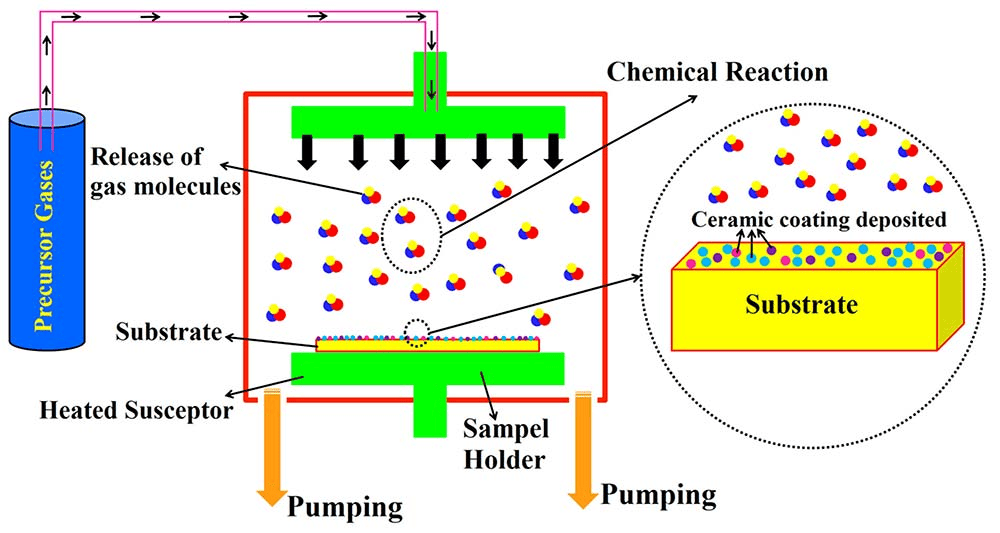

2. Chemical Vapor Deposition (CVD)
CVD methods apply DLC coatings by decomposing hydrocarbon gases in a vacuum chamber. A popular variant is plasma-enhanced CVD (PECVD) which operates at temperatures below 200 °C. The process ionizes the gas and creates reactive carbon species that adhere to the substrate. This produces dense, uniform DLC coating on intricate geometries. PECVD method is used on both insulating and conductive substrates.
3. Lon Beam and Cathodic Arc Deposition
Lon Beam process uses carbon ions to form a DLC coating with accurate control over film properties. Whereas cathodic arc deposition uses high current, low voltage arcs to produce carbon plasma. This method creates highly ionized plasma with energies from 20 to 100 eV and results in strong and dense adherent DLC films. Both methods produce coatings with high hardness and low friction. Ion beam deposition is good for uniformity, while cathodic arc has faster deposition rates.
4. Surface Preparation and Adhesion
Good DLC coating adhesion needs careful surface preparation through mechanical abrasion, plasma etching and chemical cleaning. Interlayers of materials like chromium or titanium are usually used to improve bonding while keeping an optimal surface roughness (Ra) of 0.1-0.3 μm. Plasma pre-treatment with oxygen or nitrogen makes nitrides or oxides which improve adhesion. Scratch tests are used to determine adhesion strength with loads more than 30 N.
Performance Advantages of DLC Coating
Diamond-like carbon (DLC) coatings provide a notable combination of properties that can substantially increase the performance of components for different industries. Here are the important benefits of DLC coatings:
- These coatings show impressive hardness of 80 GPa and wear resistance as low as 10^-7 mm³/Nm. These characteristics facilitate DLC coated parts to withstand extreme adhesive and abrasive wear in tough tribological situations.
- During sliding, DLC coatings form a graphite like transfer layer for self lubrication. This mechanism with reduced surface energy acquires friction coefficients as low as 0.001 under particular conditions. This performs better than traditional lubricants particularly in aggressive environments.
- DLC coating has outstanding resistance against corrosion and chemical attacks. The strong covalent bonds and dense, amorphous structure of DLC coatings provide a barrier against acidic, alkaline and organic solvents. It increases component life in marine and industrial environments.
- In medical field, DLC coatings are used due to their better biocompatibility. These coatings support cell growth without cytotoxicity, minimize ion release, increase implant durability and prevent allergic reactions. The sp3 rich structure of DLC promotes tissue integration and inhibits bacterial colonization in implants and medical devices.
- DLC coatings provide good thermal stability up to 450 °C. With thermal conductivity of 100-150 W/(m·K), these coatings allow proficient dissipation of heat in high temperature applications. This combination guarantees performance in extreme temperature conditions while keeping coating integrity.
Applications of DLC Coatings
DLC coatings excel in diverse industries due to their exceptional properties. Let’s explore their key applications across different sectors.
Automotive Industry
DLC coatings improve engine components like fuel injectors, piston rings and valve train parts. They improve wear resistance, increase fuel proficiency and minimize friction in high-performance engines.
Aerospace
For bearings, fasteners and gears, it is used to protect these parts from atomic oxygen erosion in low earth orbit and increase their component lifespan.
Medical Devices
This coating increases wear resistance and biocompatibility in surgical instruments, stents, endoscopes and medical implants. It also decreases friction in joint replacements and minimize infection risks in medical devices.
Optical and Electronic Components
With 88% transmission in 8-12µm range, DLC coatings improve IR optics. They provide anti-reflective properties and scratch resistance for lenses, while improving durability of electronic components in tough environments.
Durability of DLC Coatings
DLC coatings have impressive characteristics but their longevity depends on many factors. Let’s look at the durability aspects that are.
Factors that Influence Durability
DLC coating durability depends on substrate material, coating thickness, sp3/sp2 ratio and environmental conditions. More sp3 content means higher hardness but less adhesion, while coating thickness of 2-4 μm mostly provides a balance between internal stress and wear resistance.
Wear and Reapplication
DLC coatings have to face different wear mechanisms in many ways like abrasive and adhesive wear due to environmental factors like load and temperature. This can cause delamination and micro cracking in applications with high friction.
When coating thickness decreases down to 0.5-1 μm, it is important to reapply the coating. This process applies a new coating and removes the worn layer which restores original properties and guarantees adhesion to avoid failure.
Limitations of DLC Coatings
DLC coatings are very hard normally but they can be brittle. This brittleness makes them vulnerable to cracking under excessive stress as it can compromise their protective properties. Their performance is heavily dependent on adhesion to the substrate. Incompatible materials or poor surface preparation can cause delamination or failure of the coating. This can decrease its strength and durability.
Conclusion
DLC coatings have many performance advantages for multiple industries. Their combination of hardness, chemical inertness and low friction makes them appropriate for demanding applications. As deposition techniques continue to improve, DLC coatings will play an even bigger role in increasing component proficiency and durability in aerospace, medical, electronic and automotive industries.
FAQ’s about DLC Coatings
How does the deposition process affect the quality and characteristics of DLC coatings?
PVD, CVD and PECVD deposition methods impact hydrogen content, coating density and sp3/sp2 ratio of coating. These factors mostly decide friction coefficient, wear resistance and hardness of DLC coatings.
What industries are increasingly adopting DLC coatings, and why?
Automotive, aerospace and medical industries are using DLC coatings for low friction, better wear resistance and biocompatibility.
How does DLC Coating compare to other protective coatings like PVD and CVD?
DLC coating provides extraordinary hardness, lower friction and is more inert than PVD/CVD coatings. They give improved wear resistance and can be adjusted for peculiar applications. specific.
