Are you having trouble choosing the right drill bushing for your project? Making the wrong choice can lead to misaligned holes, increased tool wear & wasted time. In this blogpost we will cover what drill bushing is and its types. We will also see different materials and important selection factors for drill bushing so you can make the best decision for your project.

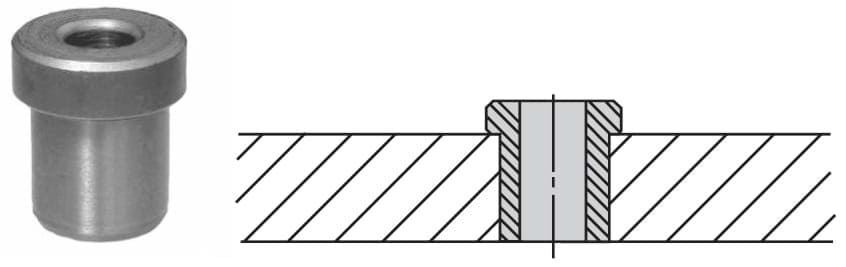

What Are Drill Bushings?
Basically drill bushings are cylindrical inserts that fit into fixtures and jigs. Their purpose is to guide, support and locate shank mounted tools such as reamers, drills and taps. Manufacturers use hardened steel (RC 60-63) to make them so that these bushings last as long as possible.
The Function of the Drill Bushings
Locating
Bushings place the holes in the exact location, thus eliminating the need for measuring or marking. Due to this process, human errors in repetitive drilling operations are prevented.
Protecting
By cutting down on chatter and preventing drill breakage, they help your tools last longer. In addition they shield the workpiece from damage that tool deflection can cause.
Guiding and Supporting
Bushing holds the drill bit steady. This helps you avoid off center holes and reduces tool runout.
How Drill Bushings Are Produced
1. Material Selection
First the correct raw material is selected. Mostly 1144 Stressproof steel, 52100 or durable tool steels such as A2 and M2 are used to make drill bushings.
If your work requires more wear resistance, carbide is chosen because its hardness is up to 80 HRC. For light work or where lubrication is important, soft metals such as brass and bronze are used.
Also See: HSS vs Carbide Tools
2. Hardening and Precision Grinding
In the next step steel bushings are heat treated to reach a hardness of RC 62 – 64. Manufacturers then grind the inner and outer diameters to tight tolerances of 0.01 mm. This makes the fitting stronger and tool movement smooth.
Also See: A Complete Guide to Precision Grinding
3. Machining Features
Special features are afterwards added which improve the performance of bushing. They may include coolant passages to control heat, chip-break notches to help with chip evacuation and oil grooves for better lubrication. To improve grip in softer materials, some bushings get a knurled outer surface.
4. Quality Control
In the last step it is checked that every bushing meets strict requirements. At this step quality technicians measure ground tolerances and confirm that concentricity stays within 0.01 mm. To ensure ANSI/ASME or DIN standards, each bushing also goes through dimensional checks.
Types of Drill Bushings – Grouped by Functions
A. Permanent Bushings
Permanent bushings are designed to be pressed directly into jig plates and they remain fixed in place. These bushings become a permanent part of your setup after installation.
1. Headless press fit (P/PC)
Headless bushings do not have a flange. They mount flush with the surface of jig. A tight press fit is used to keep them secure during operation. For light drilling tasks, these bushings work best but they are not suitable for heavy pressure. If your jig plates are thin or you want a smooth, clean appearance then these bushings are best option.
Also See: Mastering Tolerance Press Fit_ Complete Guide
2. Headed press fit (H/HC)
Headed bushings include a flange that prevents them from being pushed through the jig. If necessary, the flange can be countersink to keep the surface even. Compared to headless ones, these bushings can better withstand heavy drilling forces. For demanding drilling jobs or when you need added strength and stability, these bushings are used.

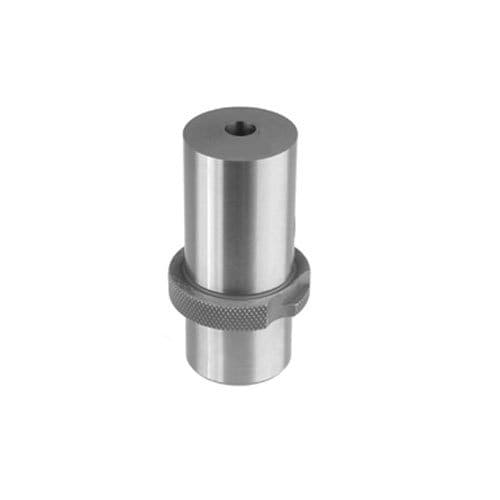

3. Gun drill
Available in single piece (GD) or two pieces (GDL/GDI), gun drill bushings are used for drilling very deep holes. They have built in coolant channels and extra length to improve accuracy. When you need precise tool guidance and effective coolant flow, choose these bushings.
B. Renewable Bushings
Renewable bushings are designed to be replaced easily during long production runs. When you need to perform several operations on the same hole, these bushings are used.
1. Fixed renewable bushings (FM)
For single step processes such as drilling or reaming, these bushings can be locked in place. Replacement happens only after they wear out. A clamp or screw holds each fixed bushing securely so you can rely on them for high precision or repetitive work.
2. Slip renewable bushings (SF)
When you need to change tools quickly, for example when drilling and then reaming the same hole, slip bushings work well. By rotating and lifting them out of the liner, you can remove them quickly. They have a knurled head which helps you grip and remove the bushing easily. That’s why they best suit multi step or high mix operations.
3. Liner bushings (L/HL)
Liner bushings act as permanent sleeves that are pressed into the jig plate. They secure the renewable bushings in place and protect the jig from wear. When a bushing wears out, only the bushing requires replacement, rather than the whole fixture. If you expect to change bushings often or want your jig to last longer, choose these bushings.

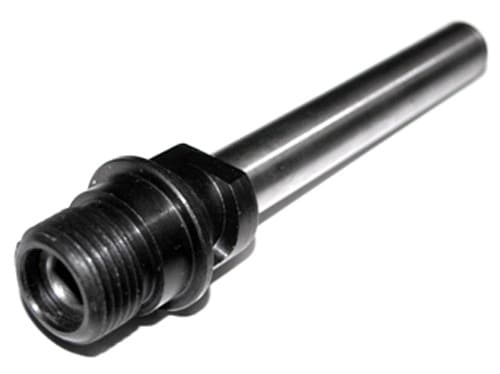

C. Air Feed Drill Bushings
Air feed drill bushings come as two piece assemblies which are used with pneumatic self feeding drills in automated setups. In these bushings, each assembly has a shank and collar which automatically controls the advancement of drill. Coolant versions are also available which have internal passages. These help in removing chips and cool the tool during high speed drilling.
D. Special Purpose Bushings

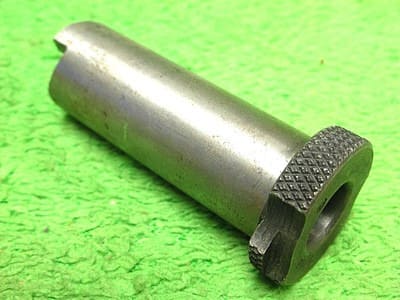

1. Chip break bushings
In chip break bushings, there are notches or grooves at the exit. These features break chips apart. As a result chips do not clog the hole and chip removal during drilling improves.
2. Castable bushings
Castable bushings can be embedded directly into cast fixtures or composite. For non metallic assemblies and custom jigs where standard bushings cannot be used, these bushings work very well.

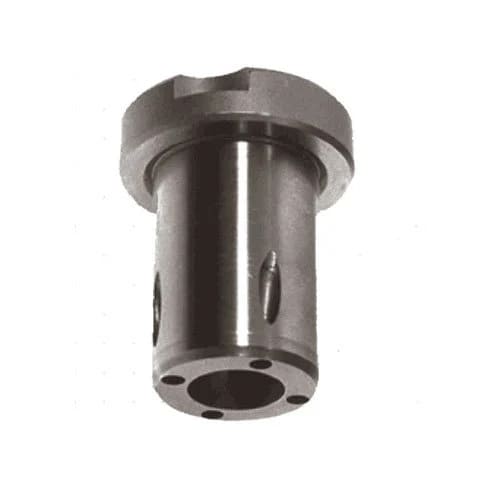

3. Directed coolant bushings
In directed coolant bushings, there are internal channels for oil or coolant. These channels send fluid straight to the cutting edge. This helps flush chips away and reduces heat, thus making drilling smoother & lasts longer.
4. Template and threaded template bushings
Template bushings are thin and lightweight. For template and PCB drilling applications, these bushings are used. They use a retainer ring for secure placement and easy replacement.

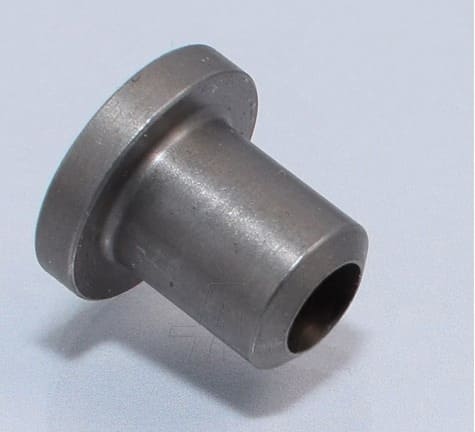

5. Circuit board bushings
In circuit board bushings there is a large bore that fits PCB drill shanks. For drilling tiny, precise holes in circuit boards, these bushings are used.
Understanding Drill Bushing Sizes
For making accurate and repeatable holes, you must know the right size for your drill bushing. In this section you will find the main sizing standards and available options explained.
ID Standards
For drill bushings’ inside diameters (ID), B94.33.1 and ANSI/ASME B94.33 standards are followed. IDs can be selected in decimal, fractional, letter or number sizes. In general drilling work, IDs from 0.0135″ (#80) up to 3.5″ are used which covers a wide range of needs.
OD and Length Designation
Generally the outside diameter (OD) is measured in 1/64 inch increments. Lengths are set in 1/16 inch steps. Use bushing length about twice the ID for best results. This ratio keeps drills aligned and limits wobble.
Customizer Options
Custom bushings can be ordered with features like thin walls, ground flats or special shapes. For unique jig setups, extra long bushings, special clearances and non standard IDs or ODs are also available.
Companies such as RICHCONN focus on making custom drill bushings for unique jig designs. They provide options like thin walls, ground flats and non standard ODs or IDs.
Factors to Consider When Choosing
You need to look closely at your drilling needs to pick the right drill bushing. The following factors will help you make the best choice.
Project Requirements
First think about your production volume and how your machining setup works. If you are doing single operations, basic permanent bushings are enough. Use renewable bushings for high volume production because they can be replaced when worn. For CNC machines, special bushings, distinct from those used in manual drilling, are needed.
Guidance Accuracy
For optimal guidance, pick bushings that are at least twice as long as their inner diameter. This 2:1 length to diameter ratio helps keep the drill steady and improves the quality of the hole. For tight tolerances work, keep the concentricity between 0.013 to 0.026 mm as recommended by ANSI standards.
Material and Wear Resistance
Select the bushing material according to the requirements of your workpiece. For hard materials like steel, carbide or hardened steel bushings are used. However for softer materials bronze bushings work very well. In abrasive conditions, you need bushings with high wear resistance.
Loading and Fixturing
Use headed bushings if your application involves high axial loads. In cases of multiple machining processes or regular tool changes, renewable bushings with liners are used as they make it easier to maintain and swap out bushings.
Installation and Maintenance
You should consider the ease of installation and replacement of bushings. For press fit bushings, less money is needed initially. However when they wear out, you have to replace the entire jig. Whereas the investment needed for renewable bushings is higher but they let you swap out worn bushings easily.
RICHCONN’s jig design team sets interference fits between 0.0005 and 0.0008 inches. Due to this approach retrofits became easier and the need for extra work reduces during bushing changes.
Chip and Fluid Management
If chips accumulate, they can damage your tools and affect precision. For materials that produce long chips, use chip break bushings with special notches. Select bushings with coolant passages or oil grooves for high speed or multi pass drilling as they help clear chips and lower heat.
Standards Compliance
Select bushing standards which are appropriate for your application and location. If you are working with an American manufacturing company or using US customary measurements, use ANSI/ASME standards. For European production or metric application, select DIN 172/179 standards.
Which Drill Bushing Should I Choose
Align your project’s requirements with the bushing’s size, type and material when selecting the drill bushing. Think about the forces created by your tools, your production volume and how frequently you will need to replace bushings. For both accuracy and durability, always make sure that your selection meets industry standards.
To Sum Up
In short, the right drill bushing choice gives you less tool wear, precise drilling and a longer lasting jig. When you select the right size, type, material and features for your job, you work more efficiently and cut down on both downtime and costs.
If you want expert advice or high quality drill bushings then Richconn is the best option. You can contact us anytime.
Related Questions
Does bushing length really matter?
Yes longer bushings give your drill better guidance. You will see less wandering and your assembly will last longer because long bushing wears out more slowly and supports more load.
What is the right length to diameter ratio for a bushing?
Length to diameter (L/D) ratio between 1.0 and 2.0 is optimal. For best results, use a minimum ratio of 1.6. This keeps bushings steady during use and extends their life.
What material should I choose for the best wear resistance in steel fabrication?
Carbide bushings work best for steel fabrication. Compared to steel bushing they last up to 50 times longer. For tough jobs, tool steels like D2 and M2 are also great choices.
Where can I find reliable drill bushings?
You can easily find reliable drill bushing at Richconn. They manufacture high quality custom drill bushings according to customers’ needs.
