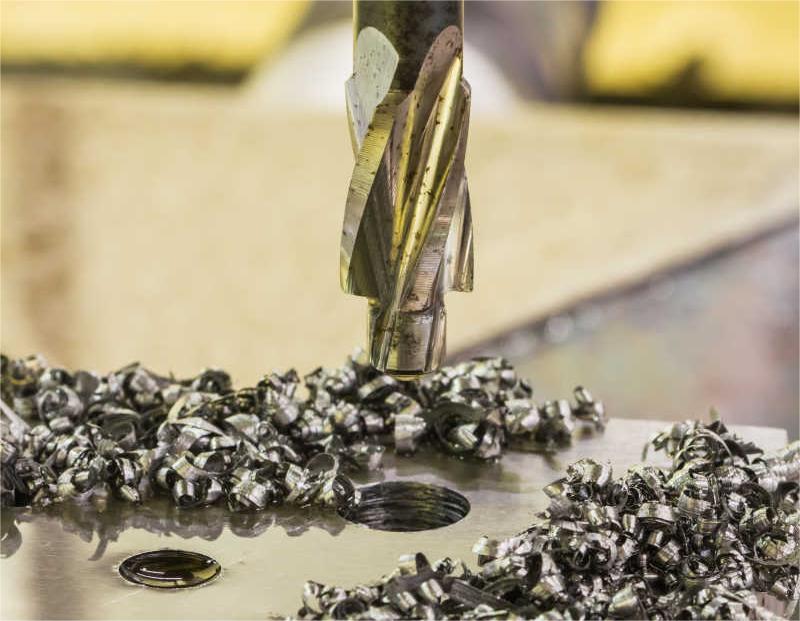

Sometimes CNC machining faces errors in drilling position. These errors affect quality standards and part alignment. They slow down production speeds and increase rework.
In this blog post we will cover causes of these errors, step by step troubleshooting as well as modern techniques of diagnosing these errors. In the end we will also see how to prevent them.

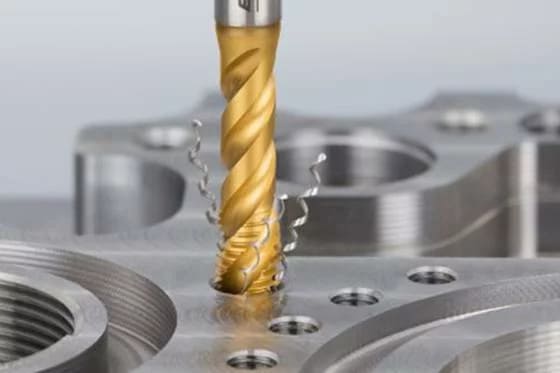

What is Drilling Position Deviation in CNC Machining
In CNC machining, drilling position deviation is when a drilled hole appears at a location which is different from its intended coordinates. It can be measured by calculating distance between programmed coordinates and actual hole position on your workpiece. These deviations are important in medical device manufacturing as well as in aerospace as they need extreme precision.
Causes of Drilling Position Deviation
Machine Calibration Errors
Machine calibration errors occur because of some misalignments in transmission chains, spindles and guide rails.
Misalignment of spindle can cause radial runout which may reduce dimensional accuracy and give uneven cutting.
Guide rails can wear unevenly or get defects in manufacturing. These issues affect moveable reference points of the machine which in turn causes inaccurate drilling positions.

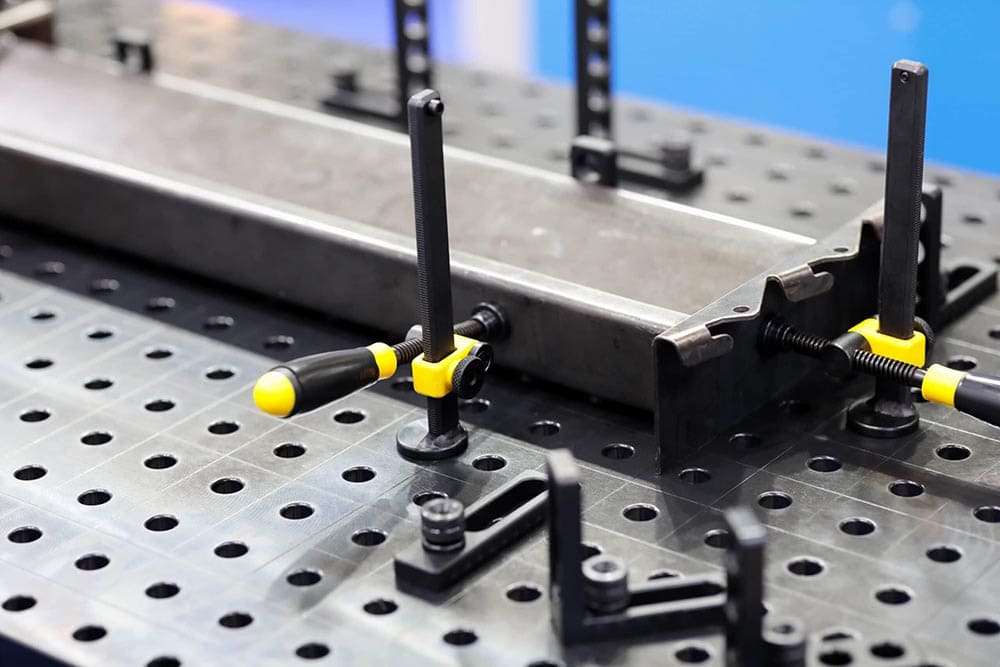

Workpiece Fixturing & Alignment
Workpiece might move during machining if your fixtures are poorly designed or clamping forces are insufficient.
Also if support planes are incorrect, locating pins are misaligned or datum references are inaccurate then it can cause positional errors and angular discrepancies. Thus CNC machines can’t continue to give precise tool paths under these circumstances.

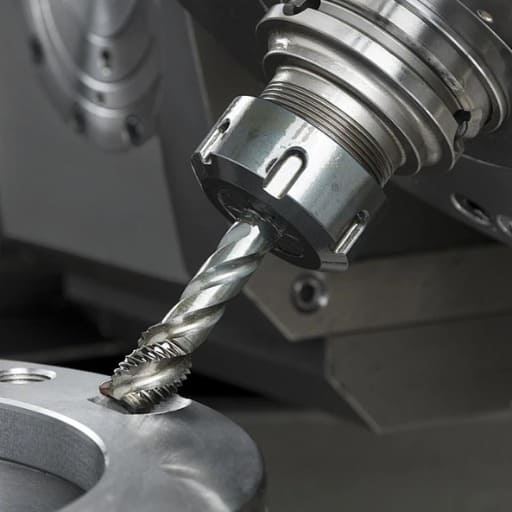

Tool Wear & Deflection
Geometry of cutting edges changes as tools wearout. This change forces the drill to deviate from its planned position and give off‐center holes.
Cutting forces can also bend drill thus causing deflection. This bending produces non perpendicular holes and positional errors. Your accuracy in drilling will continue to decrease as these problems get worse over time.

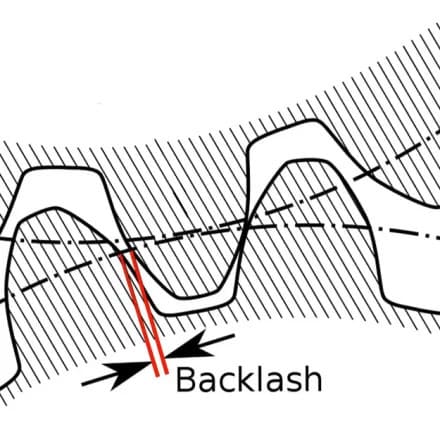

Backlash in Machine Parts
Mechanical play between mating parts in ball screw‐nut assemblies and gear drives may cause backlash. This mechanical slack then affects positioning accuracy amid axis‐reversal. Actual position of drill bit is not at its commanded position. This will cause you to see differences between programmed hole locations and their actual positions.

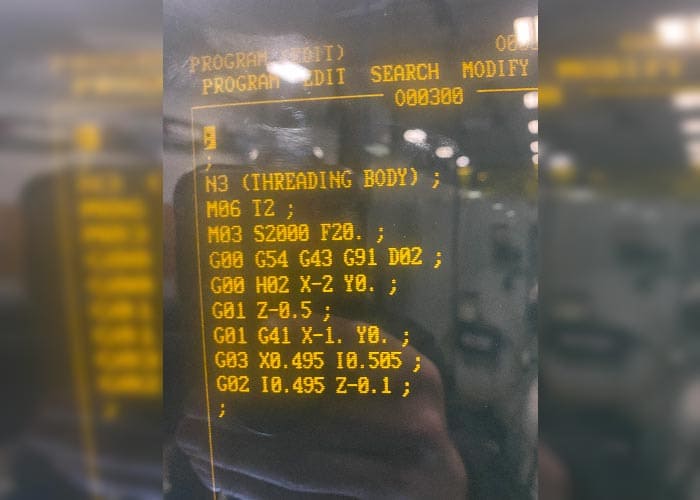

Software Errors & Programming
Missing decimal points or incorrect coordinates in programming can cause holes to be misplaced. For example if you omit the decimal point, the machine may misunderstand the values and shift the drill position.
Moreover software issues can also cause problems. Incorrect parameter or corrupted CAD‐to‐CAM data can corrupt toolpath settings and machining instructions, which cause position errors.
Step by Step Troubleshooting Guide
Step 1_ Check Machine Calibration
First use micrometers and dial indicators to measure component alignment and axis travel. Run ballbar testing to check circularity and detect any issues. Laser interferometry is the most accurate way to measure axis alignment as well as linear displacement.
Calibration needs multiple adjustments. For backlash compensation you need to adjust lead screws. Recalibrate servo motors for positional accuracy. Spindle needs to be realigned to get rid of angular issues. Use CNC controller compensation as the last step to fix remaining geometric errors if any.
Step 2_ Inspect & Replace Worn Tools
Inspect tools in multiple ways. Use microscopes to visually check for chipping, dulling or wear. Use tactile methods to check for sharpness & smoothness. Laser scanning is precise for wear measurement. Use automated monitoring systems with sensors for tracking tool conditions instantaneously.
Tools need to be replaced under two conditions- when machining quality drops or wear exceeds manufacturer’s given limits. Your maintenance schedule should have daily checks, weekly detailed inspections and comprehensive checks after a month or 500 operational hours.
Step 3_ Check Workpiece Fixturing
Use precision indicators to check fixture alignment and stability. Make sure locators touch reference surfaces. Use load cells or pressure sensitive film to verify equal distributions of clamping force. You can use modal analysis or tap testing to know fixture rigidity.
Some complicated parts need special attention for fixturing. For them choose a modular fixturing system with adjustable elements. Add a poka‐yoke designing feature to overcome loading errors. Use CAD/CAM simulation first to reduce risks of tooling interference and maximize fixture design.
See Also: What is Computer Aided Manufacturing (CAD)
Step 4_ Measure & Compensate for Backlash
Backlash measurement uses a laser interferometer or dial indicator. Start running a program with small bidirectional movement of 0.05″ in and out and note differences in readings of indicators. Finally enter the backlash value in your CNC control system parameter.
System compensates by adding additional movement to calculate slack through software. Advanced CNC systems have some dynamic features to compensate. They automatically regulate values based on continuous measurement.
Step 5_ CNC Programming Review
Start by reviewing G code for logical and syntax errors. Run simulation software to detect collisions and test toolpaths. Verify accuracy of all offsets and coordinate systems. Inspect subprograms and canned cycles for proper execution.
Error correction is a multi-step process. Use program verification tools for validating your work. Check accuracy of cutting parameters and feeds. Assure proper tool compensation settings and keep your CNC software up to date to fix bugs and improve usability. Test and simulate your program multiple times for best results.
Also See: Feed Rate and Cutting Speed in CNC Machining
Modern Diagnostic Methods

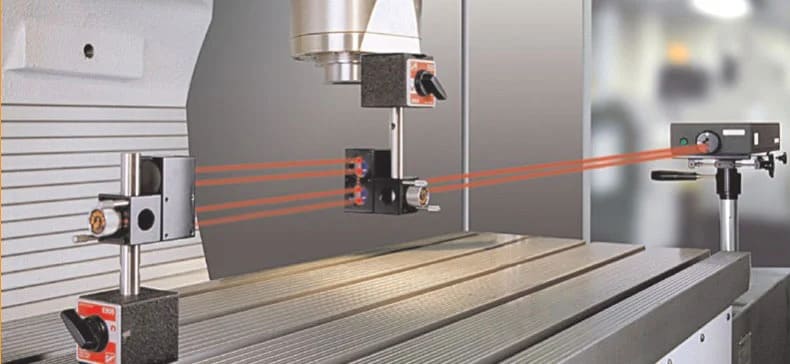

Laser Calibration System Implementation
Two modern methods to detect drilling position deviations are dual frequency laser systems and laser interferometry. First method uses polarization shifts to assure accurate detection of geometric errors for all axes of your machine tool. Second method uses interference patterns to detect position errors down to sub-micron level.
Use of Precision Tools
Advanced precision tools such as spindle analyzers and ballbar systems are the backbone of CNC diagnostics. Ballbar systems calculate variations in circular toolpaths to check accuracy in machine circularity. These systems detect servo lag, backlash and geometric misalignments. Moreover spindle analyzers give necessary data on vibration and dynamic run out. This data is necessary for assuring accuracy when drilling at high‐speeds.
Thermal Imaging for Machine Part Analysis
Thermal imaging cameras like FLIR SC 640 can detect heat induced deviations with high sensitivity. These cameras work without contact to show heat patterns on axes, bearings and spindles. You can track errors in drilling position by means of special software’s which generate heat maps in detail. This gives real time diagnosis of errors which are induced by heat.
Prevention
Training & Certification of Operator
CNC operators should have particular skills in blueprint reading, precision measurement and G code programming. They should use VR based simulators to detect errors and get practical experience. Moreover they should have industry certifications such as Mastercam Multiaxis and NIMS as these certifications assure a high level of accuracy in machining. All these qualifications help increase productivity and minimize programming errors.
Regular Maintenance
Your CNC machines need a structured maintenance method. Remove chips and check coolant levels daily; inspect hydraulic and belts once a week; calibrate axes monthly and do full machine overhauls semiannually. You can use CMMS software for this. This software tracks all maintenance tasks, sends notifications and inspects usability data.
Control of Environment in Machining Areas
Machining environment needs to be controlled. Thermal insulation and HVAC systems regulate humidity as well as temperature and air filtration systems minimize dust contamination. These controls reduce positioning errors and prolong machine life and accuracy.
To Sum Up
Drilling position deviation is all about focusing on regular maintenance, accurate calibration and advanced methods of diagnostics. Once you apply preventive measures as well as troubleshooting steps we’ve shared, your quality of manufacturing will improve dramatically and you’ll get better machining results, accuracy in drilling and minimized waste.
If you need expert CNC drilling service without any positional deviation then RICHCONN is best. You can contact us anytime.
Related Questions
Can a workshop environment affect drilling accuracy?
Yes it can. Open windows and doors generate air currents and change temperature. This can cause thermal distortion in the axes of machine and thus reducing your drilling accuracy.
Can tool wear cause drilling position deviation?
Yes it can. As drill bits wear out, they generate more heat and friction. This causes vibration. Due to this, holes deviate from their intended position.
Can machine wear and tear cause drilling position deviations?
Yes, machine condition affects drilling accuracy. Misaligned or worn out parts and mechanical issues will reduce your machine’s precision.
Can software errors cause drilling position deviations?
Yes they can. Errors like defective G code, incorrect program inputs and wrong settings of parameters in your CNC software gives misaligned cuts and produces faulty workpieces.
Can electrical issues cause drilling inaccuracies in CNC machines?
Yes these can. CNC machine gives inaccurate results because of broken wires, controller issues or motor malfunction which disrupt normal operation.
