Nowadays industries are using drones for different operations, from agriculture to logistics. They not only improve data collection but decrease labor costs too. In this blogpost we are going to see how drones are manufactured, their types, their main components and their applications.

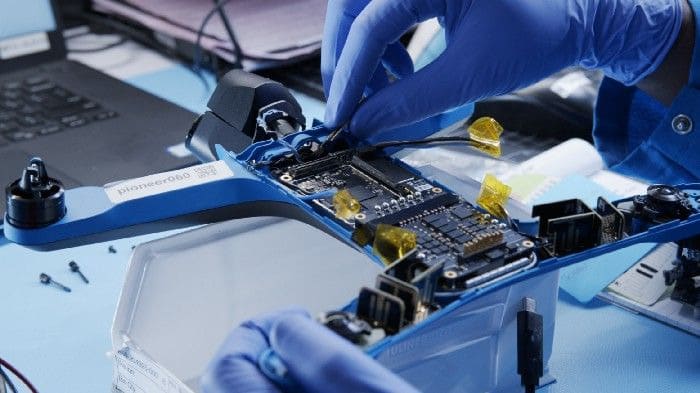

What is Drone Manufacturing？
In simple terms drone manufacturing is a process of combining several advanced engineering methods to make drones. Each component is built using 3D printing, precision CNC machining and composite materials by manufacturers. Then they integrate these parts into complicated electronic systems to assure optimum flight performance.
Main Components of a Drone

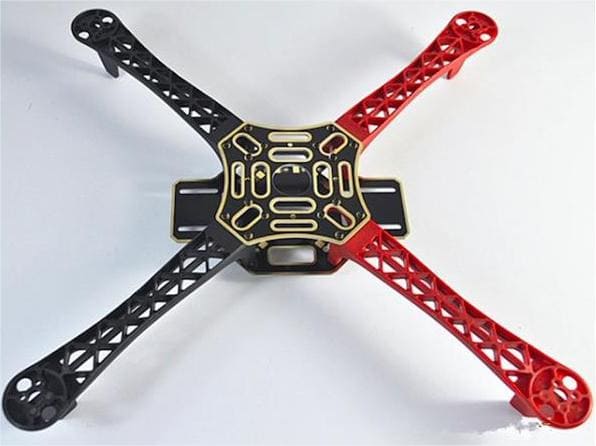

Frame or chassis
Normally, the frame or chassis is made from an aluminum alloy or carbon fiber. This structure offers the physical structure and support and holds all components in place – from motors to propellers.

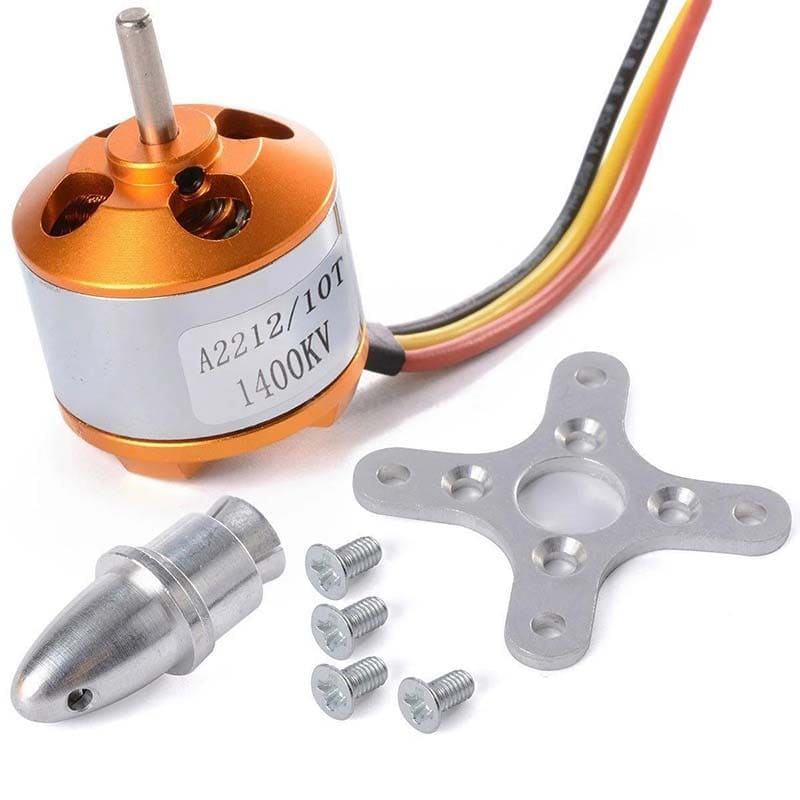

Motors
A brushless DC motor converts electric energy into mechanical thrust by electromagnetic commutation. These constituent parts then develop the torque necessary for propellers of the drone.

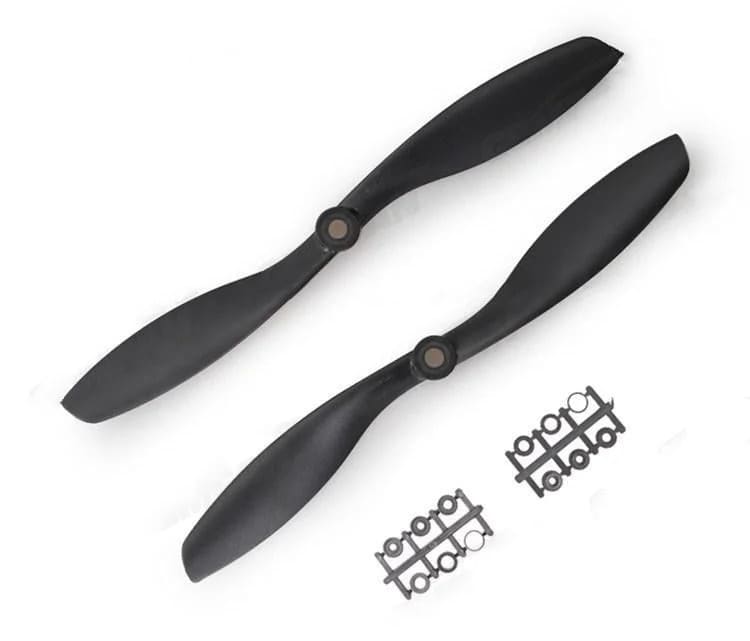

Propellers
In propellers⸴ aerodynamic lift converts motor rotation into thrust. The blades which are made from plastic or carbon fiber create lift that balances the drone in the airspace.

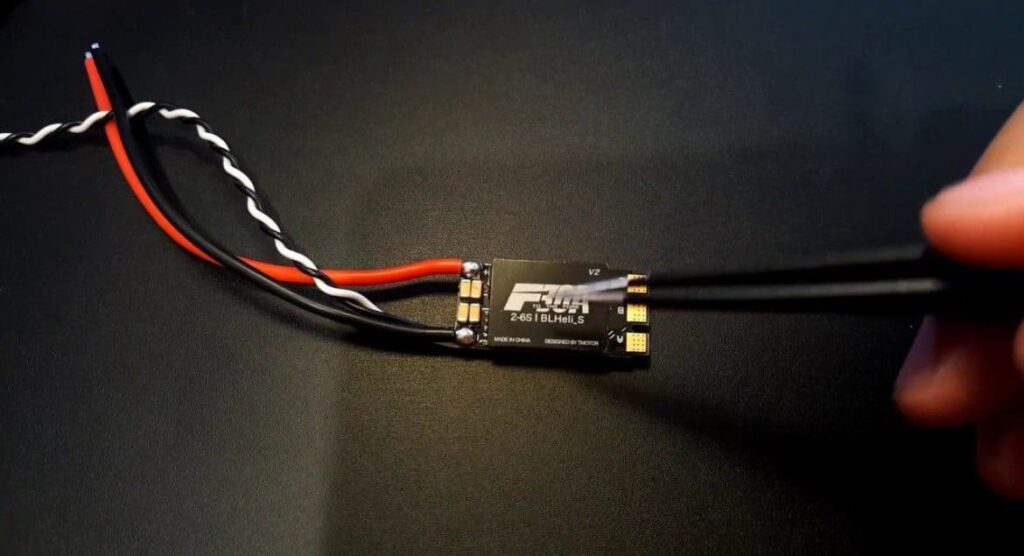

Electronic Speed Controllers (ESC)
ESCs convert the flight controller orders into the exact motor instruction by PWM signals. These microprocessor-controlled devices decide how fast a motor should spin and which direction it should spin in.

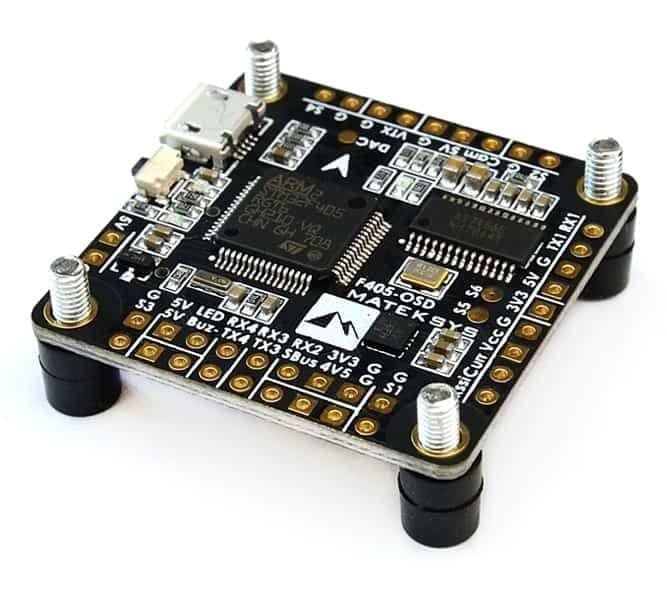

Flight Controller
The drone’s command center is its flight controller. It is built around STM32 microprocessors, processes data from different sensors and guides the motors. It uses integrated accelerometers and gyroscopes which help maintain steady flight.
Sensors
The drone maintains its stability and course with multiple sensors working together. Among these are GPS units, barometers, magnetometers, accelerometers and gyroscopes; all of which are important to navigation.

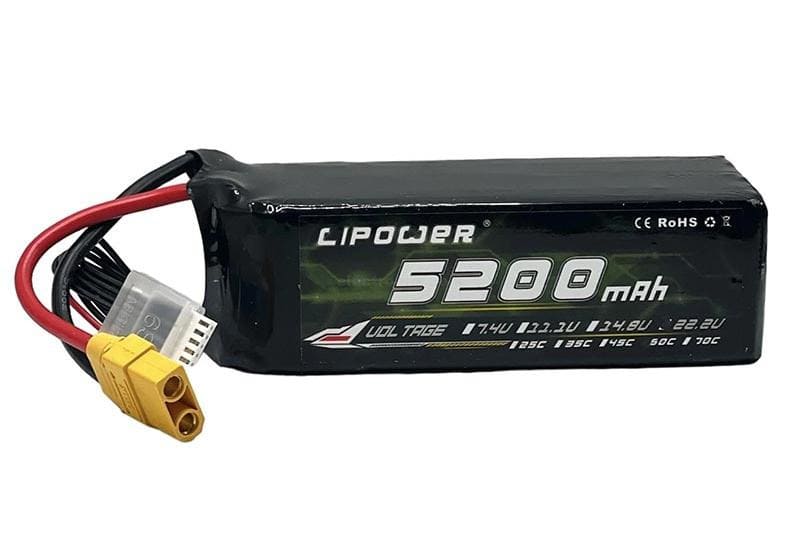

Battery
Lithium polymer (LiPo) batteries with discharge rates near about 70C are used by most drones. The batteries in these compact but powerful units offer the right thrust weight balance for longer flights.

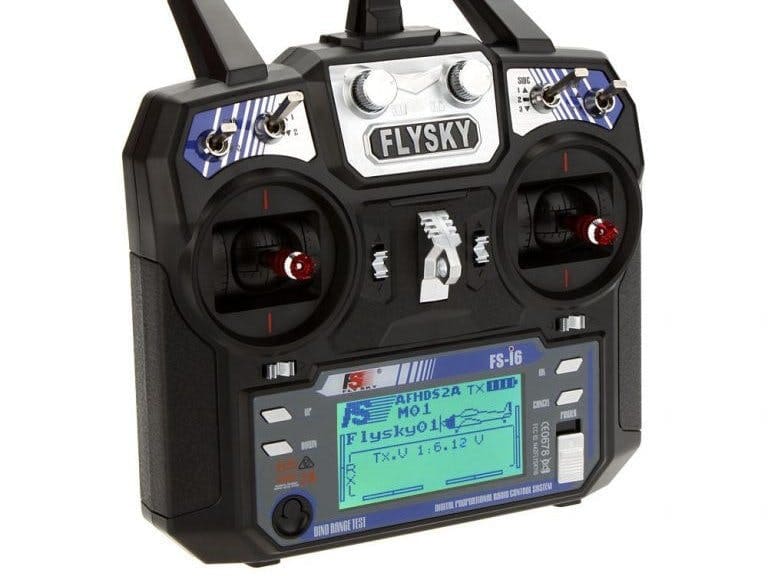

Transmitter and Receiver
The pilot inputs are converted by a radio transmitter into wireless signal. These signals are interpreted by the receiver which communicates with the flight controller for accurate drone movement.

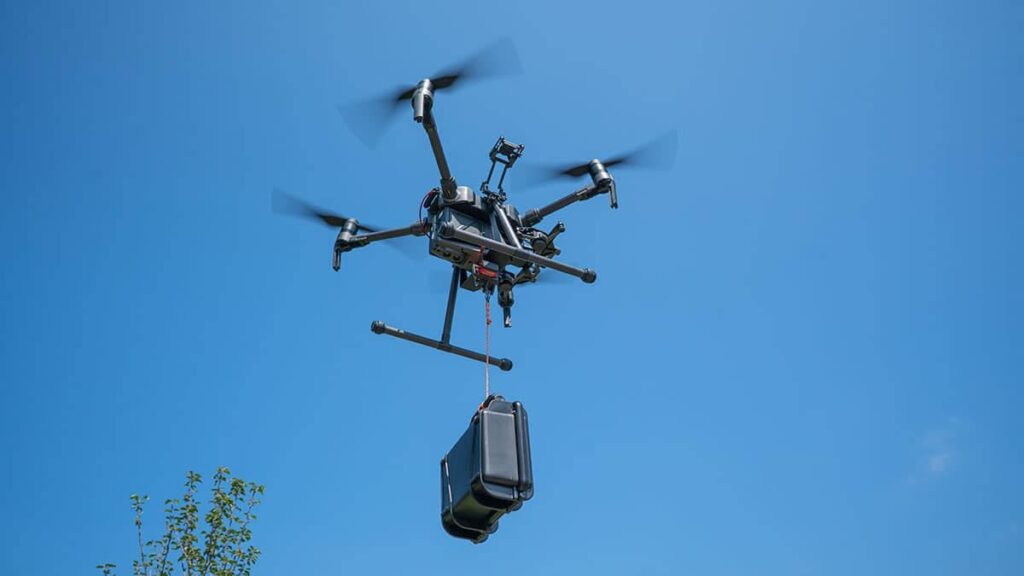

Payload
Payload systems are specialized equipment that drones carry, such as LiDAR sensors, cameras or delivery mechanisms. Commercial models usually handle a load of 5-25 kg but specialized heavy lift versions are often able to lift over 50 kg.

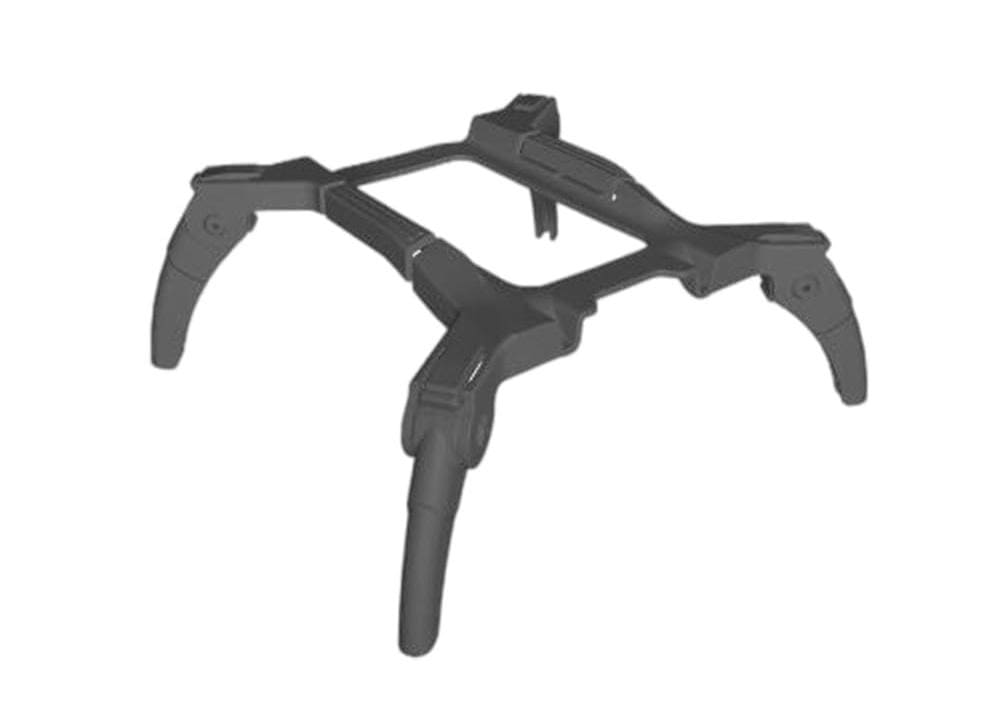

Landing Gear
The drone’s landing gear protects the drone during takeoff and landing. It absorbs landing impact, and keeps sensitive components safe.
Different Types of Drones

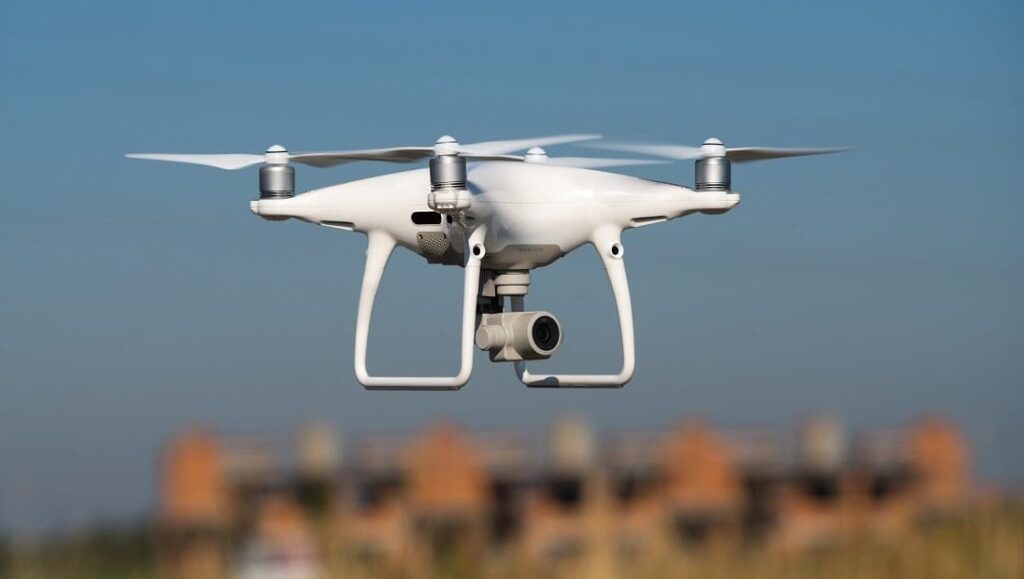

Consumer Drones
The consumer drones are built for recreational use as well as personal photography. The design of these UAVs includes autonomous flight systems with AI integration, light weight construction and vertical takeoff capabilities. The majority of consumer drone parts -propellers, motor housings, frames, etc- are made by injection molding. Companies can quickly and with the same quality make many parts using this method.

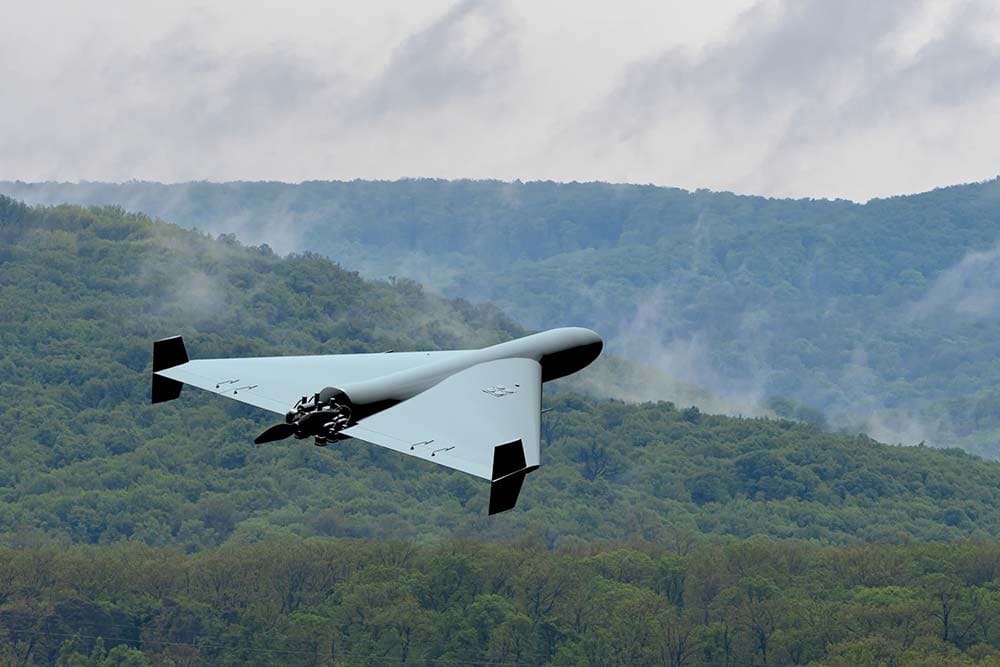

Military Drones
In these drones, software defined radio setups along with 256 bit AES encryption are used for safe operation. So they are made from titanium and composites that are not only lightweight but also extremely strong. Their manufacturing procedure integrates latest electronic setups (avionics) and sensors for communications and navigation. Such features make them invisible to radar.

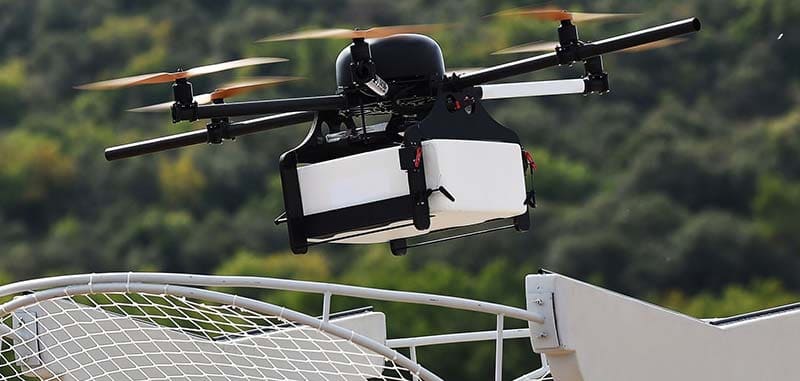

Commercial Drones
Commercial UAVs are used for professional tasks, for example, logistics and infrastructure maintenance. They are made by strong materials like aluminum alloy or carbon fiber. Manufacturers use special procedures to make them, such as resin transformer molding and vacuum resin infusion. Besides that they have strong frames and modular payload setups which are made of advanced thermoset composite.
Drone Manufacturing Process
1. Design and Prototyping
First engineers develop detailed three dimensional drone model with CAD software. They then quickly make prototypes of drone parts using 3D printing. Next the stress points and flight dynamics of these prototypes are tested virtually. This step is basically done to find problems before full production starts.
2. Material selection
After the design, it’s important to pick right materials. The modern drone makers prefer to make their drones with advanced composites. So main structures are fabricated using carbon fiber reinforced polymer (CFRP); glass fiber composites (GFRP) are used for the less expensive parts and aramid fibers for improved impact resistance. These materials offer outstanding strength to weight ratios and reduce airframe weight by 20–30%.
3. Manufacturing Methods
After materials have been decided, drone production starts. Different methods are used by manufacturers such as CNC machining, 3D printing, laser cutting and injection molding. It takes into account, the required accuracy, volume of production and the intricacy of component. Therefore 3D printing is often used for small production runs or prototypes.
4. Assembly and Integration
The next step is assembly and integration of manufactured parts. Here automated assembly lines carefully install drone parts using robots. The assembly is done in certain order—first the frame is made, then the power setup is connected, followed by the installation of flight controller and lastly all the electronics are connected. Quality checks are performed at each stage to guarantee optimal component interaction.
5. Testing and Quality Control
Finally each drone has to meet strict regulatory and safety standards. First, the testing is done according to ISO 17025 criteria that is a well recognized set of parameters to determine performance metrics. After that, strict ASTM F3389-21 flight tests are done for each drone. The tests test the drone’s impact resistance and reliability.
Applications of Drones in Different Industries

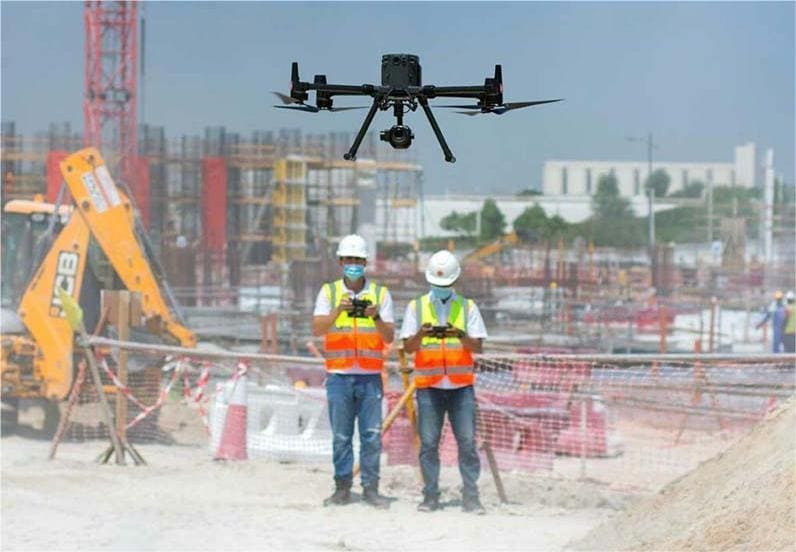

Infrastructure and Construction
The construction industry benefits from drones in number of ways. These drones help in monitoring the progress of building, 3D model making, site surveying and building inspection. And drones that have LIDAR sensors are mostly used for topographical surveys.

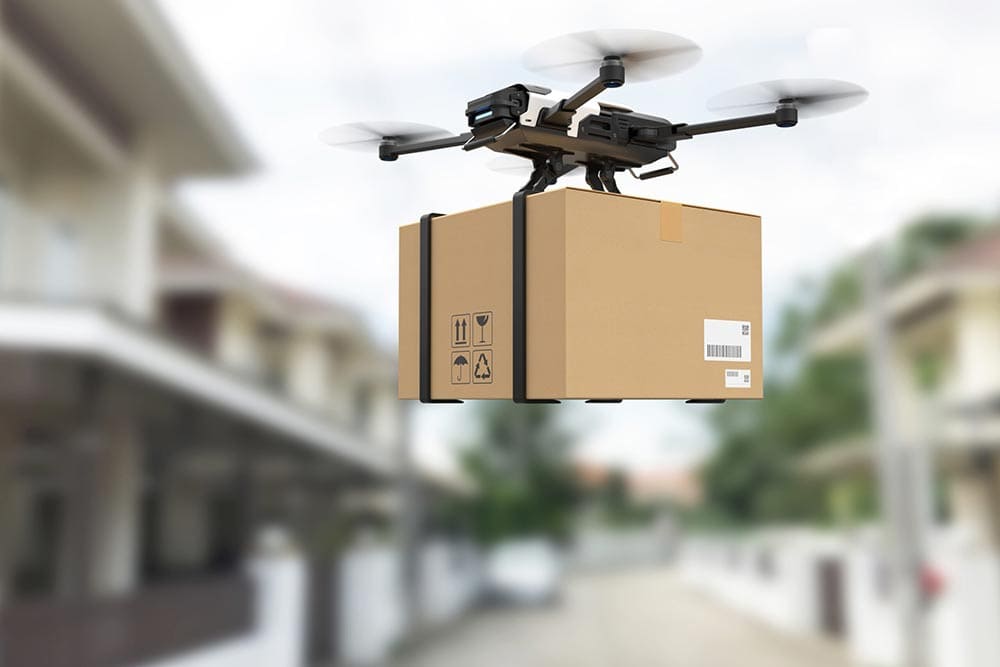

Delivery and Logistics
In remote and urban locations drones are now used for last mile product deliveries with the help of GPS-guided navigation systems. And these electric drones decrease operational costs by almost 70 percent. Apart from this, these drones deliver small parcels to customers’ doorsteps in very short time.

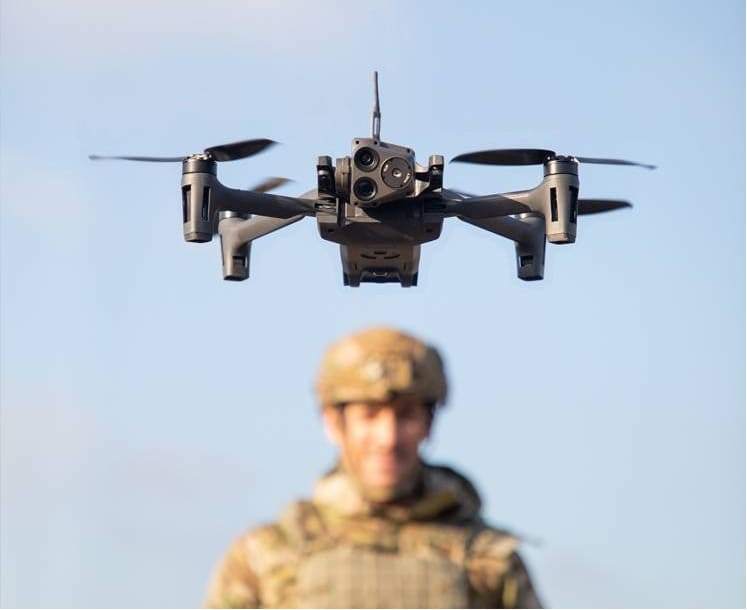

Defense and Military
Drones play an important role in different military operations. These include search and rescue, combat and surveillance etc. They not only share real time video of strategic locations but capture infrared images too for intelligence gathering.

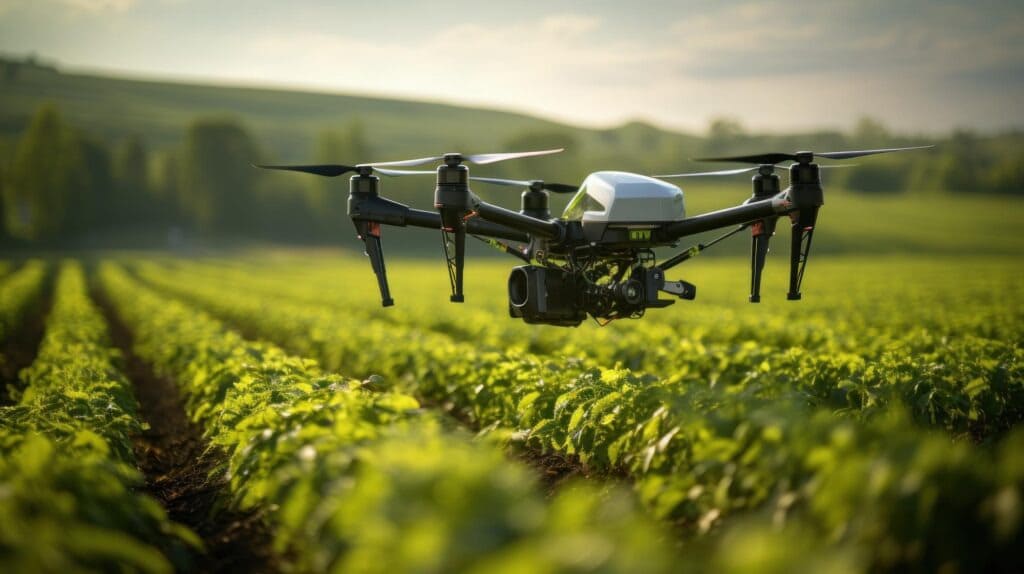

Agriculture
Drones are broadly used in agriculture for a variety of tasks including processes such as targeted pesticide spraying, crop health assessment and automated seed sowing. Some advanced models can also perform real time soil analysis. And make field operation efficient with payload capacities of up to 40 grams.

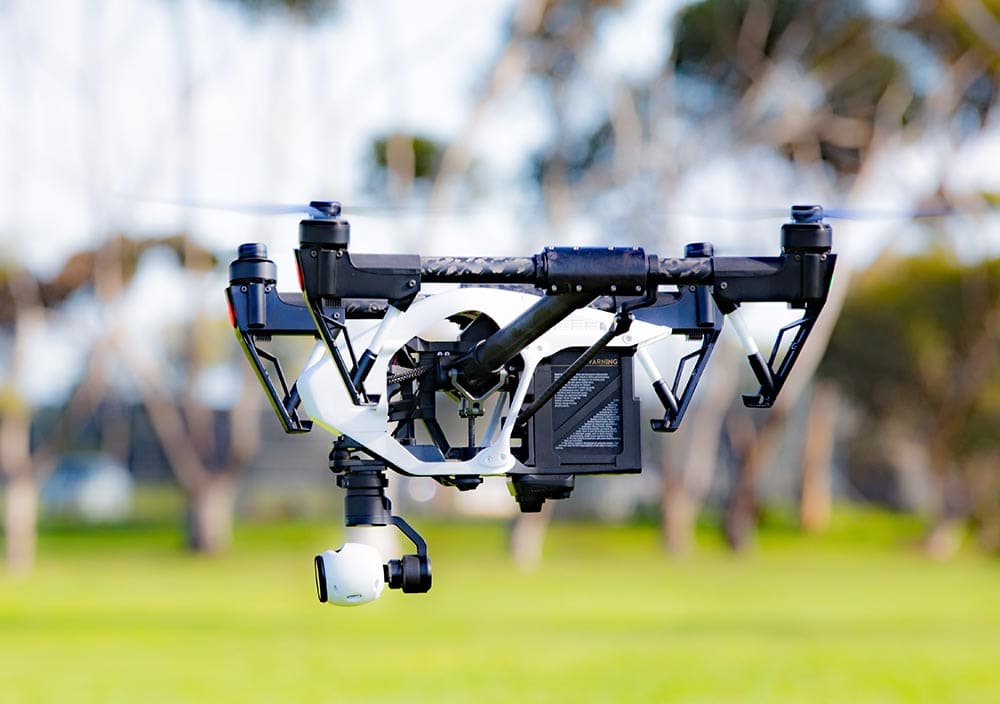

Media & Entertainment
Commercial media relies on drones for live event coverage, photography and aerial cinematography. These drones can perform complicated flight patterns with the help of viewpoint navigation. Moreover these drones also provide particular viewing angles for concerts, festival and sports broadcasts.
To Sum Up
Drone manufacturing is integration of precision engineering, advanced materials and setups to make adaptable aerial platforms. Rapid technological evolution of the industry promotes innovation in commercial, consumer and military sectors.
If you require machining of any drone component, then Richconn is best option. You can contact us at any time.
Related Questions
What are the ethical considerations in the use of drones？
These are privacy concerns like safety protocols⸴ airspace regulations and others. So operators should follow FAA guidelines, and keep an appropriate distance from populated areas.
How difficult is it to scale up drone production？
There are many challenges manufacturers have to face like maintaining quality control of automated assembly lines⸴ fulfilling regulatory needs and keeping tight tolerances in composite materials.
How much does it cost to make a drone？
Production costs vary greatly. Consumer drones will cost anywhere from $200 to $2000, commercial drones from $5000 to $25000 and military/industrial special variants can even cost over $100,000.
What advancements are being made in drone battery technology？
New lithium polymer batteries are now giving improved power density and have discharge rates of up to 70C. These batteries have smart charging features⸴ which support longer flight operations.
