Machining can indeed be cleaner and more profitable when you use the right approach. Traditional machining methods rely on coolants but these fluids create waste as well as raise costs. What dry machining does is remove coolants from the process. This leads to safer operations and lower expenses.
In this guide, you will learn how dry machining works, what its main benefits are and also the situations where it offers the greatest value.

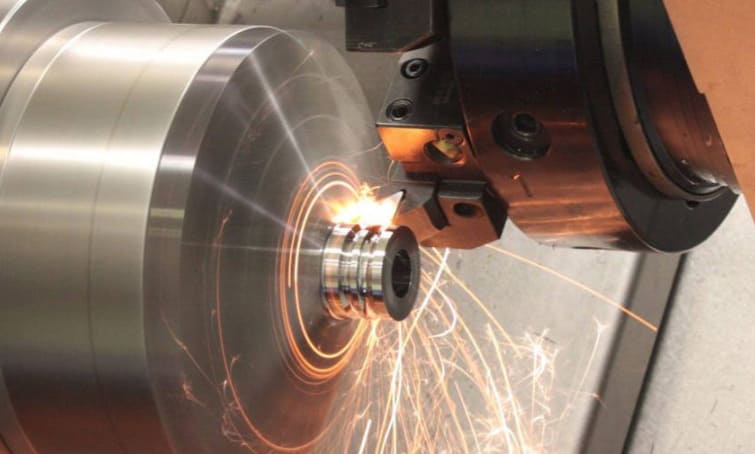

What Is Dry Machining
Dry machining essentially means cutting materials without using any traditional lubricants or liquid coolants. Instead, what the process depends on are advanced tool coatings as well as special tool designs to handle high friction and heat. By reducing fluid use and also cutting down on maintenance, this method can lower machining costs by up to 15%.
Process Strategies
Success in dry machining comes from using the right strategies to control efficiency, speed and heat. With proven methods, you can both keep the tool wear low as well as maintain performance.
- Compressed air assistance: Aim pressurized air directly at the cutting area so that it clears chips and also cools the tool. Some processes use micro-lubrication systems that deliver less than 5 ml/hour of oil mist.
- High Speed Machining: Use cutting speeds above 300 m/min and also reduce the depth of cut. This approach lowers the heat that is produced per removed volume.
- Advanced tool path optimization: Apply climb milling and also make sure that tool entry and exit points are chosen carefully. These specific steps help to avoid thermal shock . Moreover intermittent cutting gives the tool time to cool between passes.
- Self protective tool methods: Allow a built-up layer to form naturally on the tool surface when cutting tough materials. This protective layer acts as a natural shield and also turns normal wear into a helpful cutting aid.

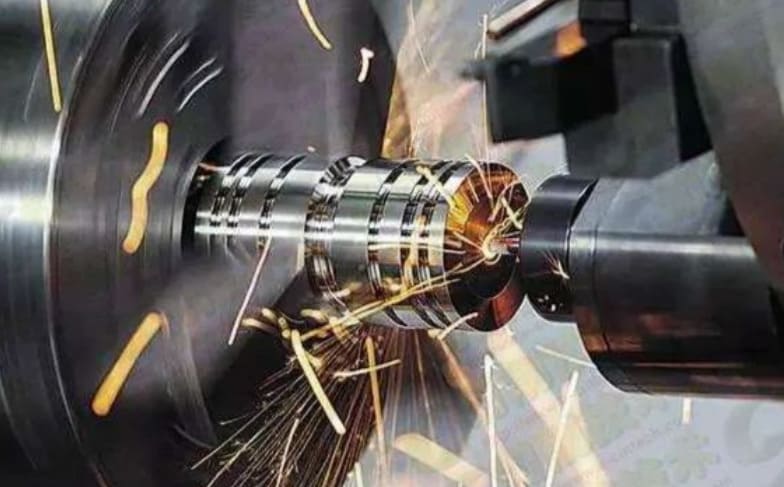

Mechanisms in Dry Machining
To fully understand dry machining, it is very important to look closely at how cutting works without any coolants.
Heat Generation & Dissipation
It is friction in both the primary and secondary shear zones that creates heat during dry machining. Chips absorb about 60 to 80% of this heat. The workpiece receives 10 to 20%, and the cutting tool gets the remaining 10%. Without coolants, the heat leaves the system through convection into the air and also by radiation from hot surfaces.
Chip Formation
Chip shapes differ markedly between dry and wet cutting. At higher dry-cutting speeds, chips emerge shorter and thicker. Raising the feed rate, however, creates longer, tangled ribbon-like chips because lubrication is absent.
Related Link: Feed Rate and Cutting Speed in CNC Machining
Chip Flow
Tool geometry as well as its cutting parameters play a key role in chip flow during dry machining. Without coolant, chips can jam or form long ribbons, especially at higher feed rates. To avoid blockages and to keep material removal smooth, shops need both well-chosen tool angles and good chip evacuation systems.
Chip Cooling
With no coolant present, chips lose heat mainly by radiating it into the air or into the chip tray. Some chips can reach temperatures above 600°C and then act as radiators, carrying heat away from the cutting area. Certain workshops use streams of cold air that lower the temperature at the cut by 50°F (28°C) and this in turn helps cool both the chips and tools.
Roles of Tool Coatings
Modern coatings like TiAlN can handle temperatures over 800°C in dry machining. These advanced coatings act as thermal barriers between the tool and also the workpiece. DLC and AlTiN coatings also lower friction at the tool-chip contact points. The right coatings both improve cutting results and make tools last longer.
At RICHCONN, what we continually do is test and implement the latest coated tools in our in-house CNC and turning cells, so that customers receive durable parts even under dry, high-speed conditions.
Tool Geometry
Tool geometry directly affects how both heat and chips move during dry machining.
Tools with sharp cutting edges and positive rake angles lower cutting forces. They also help to remove chips more easily. Similarly textured or micro-grooved tool-surfaces can spread heat more effectively and reduce friction.
These combined features both improve the surface finish and help the tool last longer.
Substrate
The substrate material of the cutting tool determines exactly how it performs at high temperatures. Solid carbide substrates with a sub-micron grain structure keep their edge sharp even when temperatures rise. Cermets, ceramics and also polycrystalline diamonds (PCD) offer high hardness and resist wear. These materials work well for dry machining tough materials.
Auxiliary Methods & Enhancements
Auxiliary methods help to control both chip flow and heat. Minimum Quantity Lubrication(MQL), compressed air and mist cooling systems are common options. MQL uses less than 50 ml/hour of lubricant which lowers the impact on the environment. Advanced systems for chip removal and vibration control also raise the efficiency of dry machining and improve overall part quality.

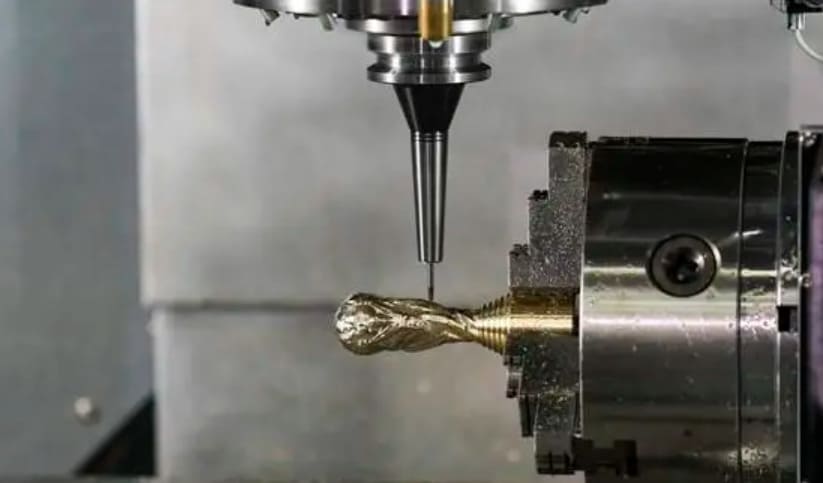

Benefits of Dry Machining
Cost Savings
Dry machining cut costs by removing the need for both coolants and their disposal.
Environmental & Health Benefits
Because water and chemicals are scarcely used, the process is more sustainable. Operators avoid exposure to hazardous fumes or mists and zero coolant waste means nothing is left to pollute the surroundings.
Less Contamination
Dry machining stops both chemical spills and coolant leaks. This directly reduces contamination in the workplace. Hazardous fumes and bacterial growth from fluids also do not occur.
Improved Tool Life
Tool life can also increase under the right conditions. Dry machining prevents thermal shock on hot carbide tools which coolants might otherwise cause. This then helps to avoid cracking and early tool failure.
Cleanliness
Parts and machines avoid sticky coolant residue so they both stay clean. Consequently cleaning time dropped by up to 50%. Finished parts face less risk of both staining and corrosion.
At RICHCONN, we often choose dry machining for parts that will be painted or anodized in-house. This approach ensures that the substrate is perfectly clean which in turn leads to a higher-quality finish.
Simpler Machine Maintenance
Because no coolant is introduced, the equipment stays cleaner and needs far less upkeep.
Enhanced Process Visibility
Operators can clearly see the cutting process because there are no coolant sprays to block their view. Better visibility does help them monitor the process and also spot problems quickly.
Suitability
Dry machining works very well with materials like aluminum, cast iron and also plastics. Industries that require high cleanliness such as medical device manufacturing often prefer this method.
Cleaning Operations
The need for post-machining cleaning drop sharply with dry machining. Parts come off the machine both dry and clean. Often they are ready for the next step without any washing.
Challenges, Risks & Limitations
Dry machining brings several benefits but it also introduces unique risks and challenges. Knowing these issues both helps with better planning and prevents expensive errors.
- Heat buildup: Because coolants are not present, the tool-chip interface can reach temperatures above 800°C. High heat causes tools to wear out faster and can also make parts less accurate.
- Material limitations: Certain alloys such as aluminum and also tough steels, are harder to machine without coolant. These materials might need both specific substrates and special coatings to avoid rapid wear and poor surface quality.
- Chip evacuation issues: Chips sometimes jam or harm the tool particularly in narrow areas and deep holes. If chips do not flow well, tool life may drop by up to 30%.
- Burr and finish risks: Softer materials like aluminum can form extra burrs or rougher surfaces during dry machining. This sometimes means more deburring or finishing is needed.
Key Enablers & Technologies
New technologies have expanded dry machining to more applications. These advances focus on better surface features, tool material and also cooling approaches.
Advanced Tool Coatings
Modern coatings, including multilayer PVD and TiAlN, act as barriers to heat and keep it away from the tool. TiAlN coatings can handle temperatures up to 800 °C and can boost tool life by as much as 40% in dry cutting. Thin PVD coatings also resist cracks and stick well to sharp tool edges.
Solid Lubricants
Manufacturers use solid lubricants like molybdenum disulfide (MoS₂), graphite and also hexagonal boron nitride (hBN) on tool surfaces or at workpiece interfaces. These materials create a thin, protective layer that lowers friction and also helps remove chips. By using solid lubricants, cutting forces can drop by up to 20%. They also help to keep temperatures lower during machining.
Textured and Patterned Tool Surfaces
Micro-textured and patterned surfaces on tools help chips move away easily and thus lowers heat buildup. As a result tool wear drops and dry machining stay stable particularly in high-speed turning and milling.
Self-lubricating Inserts
Self-lubricating inserts have many small chambers filled with solid lubricant particles inside the tool material. As machining progresses, the tool releases these particles slowly, forming a lubricating film at the cutting edge. This approach removes the need for external lubrication and still keeps cutting performance high.
Use of External Energy
External energy sources including ultrasonic vibration, laser heating and also cryogenic cooling can further enhance dry machining. Laser-assisted machining heats the workpiece before cutting which can lower cutting forces by up to 50% in hard materials. Ultrasonic vibration causes the cutting action to become intermittent, thereby reducing heat and improving the surface finish.
Hybrid Methods
Hybrid methods combine dry machining with other techniques such as Minimum Quantity Lubrication (MQL) or air cooling. MQL applies less than 50 ml/hour of lubricant which reduces environmental impact. It also improves both chip removal and surface finish. These combined approaches allow dry machining to work successfully with tougher materials and also with more complex shapes.
Simulation
Engineers use simulation software like DEFORM 3D and ANSYS to predict dry machining results virtually. These tools model cutting forces, heat generation and also tool wear before any real machining starts. By testing parameters digitally, engineers can both optimize setups and save time while also avoiding expensive machine collisions.
Main Applications in Various Industries
Aerospace Industry
Dry machining performs an important part in the aerospace industry. Manufacturers drill composite materials such as titanium parts and CFRP/aluminum stacks without using coolant. Both Boeing and Airbus rely on dry machining to avoid coolant contamination during aircraft assembly. They use this method specifically for rivet holes and also for structural components.
Electronics & Electrical Industry
The electronics industry uses dry machining to make connectors, heat sinks and also printed circuit boards (PCBs). This approach delivers the precision that is needed for custom enclosures and detailed pathways in today’s electronic devices.
At richconn, we often use dry CNC machining to create aluminum heat sinks without residue. This ensures top performance for our clients’ sensitive electronics.
Automotive Industry
Automotive companies apply dry machining to aluminum transmission cases, cast iron engine blocks and also brake parts. Both BMW and Ford have adopted dry machining to reduce coolant disposal expenses and to improve safety in the workplace.
Comparisons– Dry vs Wet vs MQL
Choosing between dry machining, wet machining and MQL requires careful comparison. Each process affects tool life, cost, part quality and also sustainability in different ways. The table below highlights the main differences and helps users make clear decisions.
| Aspect | Dry Machining | Wet Machining | MQL (Minimal Quantity Lubrication) |
|---|---|---|---|
| Cooling & Lubrication | No coolant, relies on air or none | Uses flood coolant (water/oil mix) | Tiny mist of lubricant (5 to 50 ml/hr) |
| Environmental Impact | Best (no chemicals/waste) | Poor (chemical use and waste) | Better than wet, less fluid use |
| Cost | $ lowest (no fluid purchase/storage) | $ highest (fluid purchase/storage/disposal) | $ medium, less than wet but more than dry |
| Chip Removal | Challenging, needs good chip control | Better due to fluid flushing | Good chip control, easier than dry |
| Tool Life | Good with advanced coatings and tools | Good but chemicals may wear tools | Better than dry, close to wet |
To Sum Up
In short dry machining provides a cleaner workflow and significant cost savings, making it a sound, eco-friendly alternative. By using advanced tools and methods to control both wear and heat, dry machining becomes a sustainable and practical choice.
If you need any kind of dry CNC machining services then Richconn is your best option. You can contact us anytime.
Related Questions
In dry machining, no coolant or cutting fluids are used at all during metal cutting. Instead of traditional liquid coolants, what the process does is rely on compressed air or very limited lubrication for material removal.
Dry machining often leads to higher temperatures which can cause tools to wear out faster. It can also make chip removal harder and is not suitable for very hard or heat-sensitive materials.
Dry machining works well with aluminum alloys, cast iron, plastics such as PVC and PEEK and also certain steels.
Dry machining avoids all fluids completely. On the other hand wet machining uses coolant to flood the cutting area. MQL (Minimum Quantity Lubrication) applies a fine-air-and-oil mist that provides lubrication.
Drilling and internal machining can indeed be done dry. However removing chips and managing heat become more difficult particularly for deep holes and tight internal spaces.
Dry machining cuts out the need to buy and dispose of coolant which can save up to 15% in costs. It also reduces water use, chemical waste and health hazards from coolant exposure.
Shops direct high-pressure compressed air at the cut, use optimized tool paths such as trochoidal milling and select flute geometries that push chips out of the zone.
