Engineering drawings are the universal language engineers use to share design intent accurately and clearly. Supported by standards such as ASME and ISO, these drawings guide everything from early concept design to manufacturing and final inspection.
In this guide you’ll understand the fundamentals, views, symbols, tools and advanced practices that are needed to read and create engineering drawings correctly.

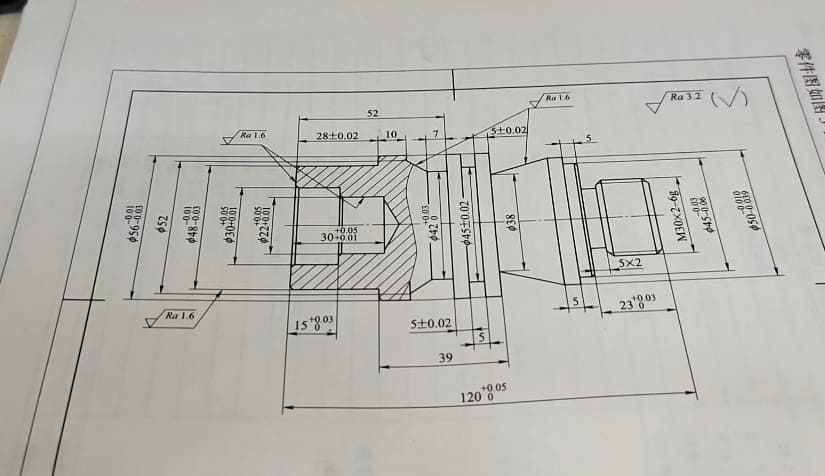

What Is Engineering Drawing?
In simple terms, an engineering drawing is a graphical language that communicates the information needed to manufacture a product. This technical document details an object’s dimensions, geometry and material specifications. Its purpose is to provide a standardized blueprint so that everyone from production to inspection can clearly understand the design intent.
Engineering Drawing vs 3D CAD Models
| Aspect | Engineering Drawing | CAD Model |
| Main role | Shows how to manufacture, inspect and apply tolerances to an assembly or part. | Represents 3D geometry for visualization and simulation. |
| Content | Contains multiple views, dimensions, GD&T and notes as the official specification. | Provide a single digital file with material info and parametric features. |
| Main Advantages | Best suited for shop-floor reference, controlled records. and inspection routines. | Useful for clash detection, CAM, FEA and minimizing geometry changes. |
| Limitations | 3D visualization is limited and complex parts may need several views. | May not include all tolerances or notes; so drawings are still needed. |
Basics of Engineering Drawing
Before you can interpret engineering drawings you need to learn about their basic building blocks. These basic elements create a shared language that helps turn design ideas into real products.
Main Concepts
Engineering drawings deliver essential manufacturing details in four main areas.
Geometry Representation
This defines a part’s shape using various views. The standard is orthographic projection which presents multiple 2D views (typically front, side and top) of a 3D object. This approach gives a complete and accurate picture of the geometry.
Dimensions & Annotations
Dimensions are numerical values defining the size and location of features. Annotations, on the other hand, provide non-geometric information like thread notes, hole specifications and other manufacturing instructions.
Tolerances
Tolerances define the permissible variation for a dimension. By indicating acceptable upper and lower limits for each size, they ensure parts fit and function correctly.
Material & Surface Finish
Drawings must specify the part’s material. Surface finish symbols are also included to indicate the required texture of finished surfaces. This information affects both how the part performs and how it looks.
Standards & Conventions (ASME, ISO, ANSI)
All drawing elements are governed by standards bodies like ASME (American) and ISO (International). They establish rules for everything from line types to symbols. These guidelines keep drawings consistent everywhere.
Importance of Standardization
Standardization stops confusion and errors between design and production teams around the world. The USA mainly uses ASME (Third Angle Projection) whereas most other countries use ISO (First Angle Projection). By following these standards, manufacturers can build a blueprint for any country without mistakes.
At RICHCONN, our engineers can understand and work with both ASME and ISO standards. This approach lets us turn designs from any region into accurate parts on our shop floor.
Engineering Drawing Views & Lines
To accurately represent a three-dimensional object on a 2D surface, engineers rely on standardized drawing lines and views.
Main Types of Views
Orthographic Projection
Orthographic projection represents a 3D object with several 2D views such as the front, side and top. This approach prevents any distortion in length. The way views are arranged depends on the projection method; that is first-angle projection which is common in India and Europe and third-angle projection, used mainly in the United States. These two methods differ in view placement relative to the front view.
Isometric & Pictorial Views
Isometric views show an object in three dimensions from a single viewpoint. All vertical lines are drawn vertically whereas horizontal lines are drawn at a 30-degree angle to the baseline. This provides a realistic look without the distortion of a perspective view.
Section Views
Section views reveal internal features by showing the part as if it were cut. This technique clarifies complex interior details that would be confusing with hidden lines.
Auxiliary Views
Standard orthographic views distort inclined surfaces which causes dimension inaccuracies. Auxiliary views solve this by projecting angled faces at a right angle so the true size and shape appear without distortion.
Exploded Views (for assemblies)
These diagrams separate components along an axis to demonstrate the correct assembly order. They are very important for technical manuals and cross-referencing specific items with the Bill of Materials (BOM).
Line Types & Their Meaning
Visible Lines
Visible lines are thick, continuous lines that represent all the edges and outlines of an object that are directly visible from a particular view. They are the most prominent lines on a drawing and clearly define the object’s form.
Hidden Lines
Hidden lines are medium-thick dashed lines used to show features of an object that are not visible from the current view. These lines help to clarify the internal geometry and hidden surfaces of a part.
Centerlines
Centerlines consist of alternating long and short thin dashes. These lines mark the centers of arcs, holes and objects with symmetry. They help set references for both dimensioning and alignment.
Phantom Lines
Phantom lines are thin lines made of one long dash followed by two short dashes. They are used to show alternative positions of adjacent parts, moving parts or repeated details.
Dimension, Extension Lines
These are thin, continuous lines used to specify the size of an object. Dimension lines have arrowheads at each end and show the measurement. Extension lines, on the other hand, extend from the object to the dimension line and indicate the measured feature.
Engineering Drawing Symbols & Parameters
Symbols in engineering drawings form a standard visual language. They communicate detailed manufacturing needs without using long written notes.
Essential Symbol Types
1. Dimensioning Symbols
Dimensioning symbols clarify the measurement of features. The diameter of a hole is shown with ⌀ whereas a radius is indicated by R. A spherical diameter uses S⌀ and a spherical radius is SR.
Other symbols like countersink (⌵) and counterbore (⌴) specify hole treatments whereas depth is indicated by a downward arrow (↓). These symbols ensure parts are dimensionally accurate.
2. Surface Finish & Texture Symbols
These symbols, often a checkmark-like shape (√), specify the required smoothness of a surface. They define characteristics like waviness, roughness (Ra) and lay (the direction of surface patterns). This is essential for parts that need a specific smoothness for proper function (like sealing surfaces).
3. Welding Symbols
Welding symbols give exact instructions for joining parts. Each symbol has a reference line, a tail and an arrow that points to the weld location. The reference line holds symbols (for example, a triangle for a fillet weld) to show the weld type. Numbers on the symbol tell the weld’s size and length. The tail is used for extra notes about the welding process.
4. Datum & GD&T Symbols (Geometric Dimensioning & Tolerancing)
GD&T symbols define the allowable variation in form, orientation, location, and runout. These are shown in a feature control frame. Symbols like flatness (▱) and circularity (○) control shape, while perpendicularity (⊥) and parallelism (∥) control orientation. Position is indicated by a crosshair symbol (⨁). Datums are reference points that are identified by a capital letter in a square frame.
Meaning & Usage
Together, these symbols replace lengthy text with standardized icons and values that skilled inspectors and machinists worldwide interpret reliably. They ensure drawings communicate precise engineering intent directly to the quality and production teams.

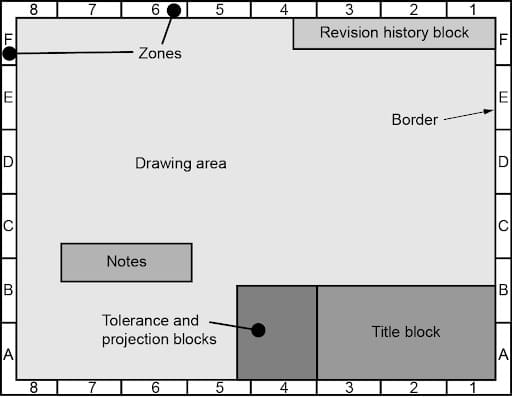

Engineering Drawing Sheet Components
Each engineering drawing sheet contains several defined areas and each area holds important information.
Title Block and Metadata
The title block identifies the drawing and usually sits in the bottom-right corner. It lists the drawing and part or assembly name, a unique drawing number as well as units and scale. You will also find projection method (first or third angle), material and signatures from the drafter and approver. For sets with more than one sheet, the block shows sheet number and revision level to prevent mistakes.
Other Sheet Areas
Beyond the title block, other sections of the drawing provide additional important details.
Revision Table
Usually located in the upper right corner, the revision table tracks all changes made to the drawing. Each entry includes a revision symbol, a description of the change, approver’s initials and the date.
Bill of Materials (BOM)
For assembly drawings, the Bill of Materials lists all the components required. The BOM typically includes part numbers, item numbers, descriptions and quantities for each component.
Notes Section
This area provides general information not shown elsewhere such as standard tolerances, specific manufacturing processes, finishing requirements.
Grid & Zoning for Large Sheets
Large drawings often feature a grid system with numbers and letters along the borders. This zoning helps to easily locate specific views, details or revisions referenced in notes or other documents.
Basics of Reading an Engineering Drawing
Reading an engineering drawing is a systematic process that unlocks the design’s intent.
Step By Step Reading Approach
Start with Title Block
Always begin in the bottom right corner with the title block. Here you will find the drawing’s foundation– the part name, material, drawing number, scale and the company that owns the design. This block serves as the context for the entire drawing.
Identify Projection & View Types
Next understand how the object is represented. Look for the projection symbol which indicates whether it’s a first-angle or third-angle projection. This tells you how the views are laid out. Moreover identify the different orthographic views (front, top, side) and any special views like section or detail views.
Study Dimensions & Tolerances
Carefully examine the dimensions to understand the size and location of features. Pay close attention to the tolerances because these define the acceptable range of variation for each dimension.
Interpret Symbols
Decode the various symbols on the drawing. This includes symbols for welding, surface finish and Geometric Dimensioning and Tolerancing (GD&T). These symbols provide important manufacturing instructions that go beyond simple dimensions.
Cross-reference BOM & Notes
For assembly drawings, review the Bill of Materials (BOM) to see the complete list of parts. Moreover, read every note on the drawing. These notes often include information about finishes, materials or manufacturing steps that are not shown elsewhere.
Tips to Avoid Misinterpretation
Check Standard Indicators
Always confirm the projection standard (first or third angle) and the measurement units listed in the title block. This step helps you avoid basic interpretation mistakes.
Compare Multiple Views
Do not depend on just one view to identify a feature’s shape. Always check the front, side and isometric views together to determine if a feature is a boss, hole or flat surface.
Tools Used for Engineering Drawings
Traditional (Manual) Tools
Before computers, drawings were created by hand using specialized instruments.
- Drawing Board: This provided a large, smooth surface to hold the drawing paper securely
- T-square, Scale, Templates, Compasses: These instruments helped draw straight lines, make standard shapes, measure distances and create arcs or circles with accuracy.
Modern CAD Tools
Today, most engineering drawings are made with computer-aided design (CAD) software.
- AutoCAD: This software is widely used for both 3D modeling and 2D drafting.
- SolidWorks: Many engineers use it for its strong 3D modeling and simulation features.
- CATIA: Aerospace and automotive industries often choose this advanced software.
- Inventor: This tool is well-known for 3D mechanical design, documentation and simulation.
- Benefits of CAD over Manual Drawings: CAD makes revisions faster, provide higher accuracy and makes it easier to share and collaborate. It also connects design work directly to manufacturing steps.
Tips To Make An Efficient Engineering Drawing
Creating a professional engineering drawing requires a balance of precision and simplicity to ensure seamless manufacturing.
Use Proper Standards & Templates
Start every drawing with an approved template. This template sets up the title block, projection angle and units according to ASME and ISO standards. Using these standards keeps scaling and layer settings consistent. It also helps global manufacturing teams avoid confusion by following the same protocols.
Keep Clarity Above All
Maintain a clean layout by ensuring dimension lines never cross or obscure the part’s visible geometry. Group related details together and maintain uniform spacing between dimension rows to help the machinist scan the drawing quickly.
Choose Minimum Views Required
Include only the views necessary to define the part’s geometry. Too many views make the sheet crowded and hide important features. Usually, a front, top and right view are enough. Add section or auxiliary views only if they show details not visible in the main views.
Avoid Redundant Information
Never repeat a dimension in multiple views. Each dimension should appear only once to prevent contradictions if a change is made. Likewise keep notes specific and concise. Redundant information increases the chance of errors and makes the drawing harder to interpret.
Dimension Only What’s Needed
Include only those dimensions that are necessary for manufacturing or inspection. Each dimension should have a clear purpose. Avoid adding extra dimensions as too many can clutter the drawing and create conflicts. If a feature’s size can be determined from the 3D model and is not important for inspection, do not add a separate dimension for it.
Review & Validation
A rigorous review and validation process prevents costly errors before a drawing reaches the production floor.
Self-Audit Worksheets
Use a detailed checklist to systematically review your own work. This ensures all tolerances, dimensions and title block data are correct and complete. Using a checklist can help you catch simple mistakes early.
Peer Reviews
Ask a colleague to review your drawing. Another person can spot mistakes or unclear areas that you might miss. This step improves the drawing’s clarity and accuracy.
Manufacturing Checkpoints
Involve manufacturing experts in the final review. They provide critical feedback on whether the design is practical and cost-effective to produce with available equipment.
For instance, when you send a drawing to RICHCONN, our team quickly performs a DFM review. We point out any changes that could lower costs or make machining easier. This step confirms the part is ready for production before work begins.
Importance of Engineering Drawing in Mechanical Engineering
Design to Manufacturing Link
- Blueprint for Production: These drawings provide all the necessary technical details such as materials, dimensions and tolerances that guide the manufacturing process.
- Source of Quality Control: These documents establish the exact specifications against which finished parts are inspected. This ensures that all parts meet the required standards.
Legal & Contractual Importance
- Drawings as Specification Documents When included in a contract, an engineering drawing becomes a legally binding document that defines the exact requirements of the project.
- Revision Control and Versioning The revision block on a drawing provides a legal record of all changes. This record ensures everyone works from the correct version.
Advanced Concepts (Pro Level)
Moving beyond the basics, several advanced concepts enable engineers to handle complex design challenges.
Geometric Dimensioning & Tolerancing (GD&T)
GD&T is a symbolic language on drawings that defines the allowable variation in part geometry. It precisely controls a feature’s form, location and orientation. Instead of just plus or minus tolerances, GD&T relates features to datums for a clearer functional context. This standardized system reduces ambiguity and improves communication between design, manufacturing and inspection.
Complex Assembly Drawings
For multi-component products, assembly drawings are essential. Exploded views are used to show how individual parts fit together. These views are coordinated with a Bill of Materials (BOM) that lists every component. For large assemblies, simplified configurations and subassemblies help manage performance and complexity. Using display states instead of multiple configurations can also enhance efficiency.
Automation & Future Trends
The future of engineering drawings is automated and digital. A key trend is Model-Based Definition (MBD) where the 3D model is the single source of truth. MBD embeds all Product and Manufacturing Information (PMI) such as GD&T, directly into the model. This approach reduces the need for 2D drawings. Artificial intelligence is also emerging to automate drawing interpretation and creation.
To Sum Up
In short, engineering drawings act as the standard communication tool in manufacturing. They turn design concepts into real products. By following these standards, engineers avoid expensive mistakes, achieve accuracy and keep production running smoothly.
Do you want to turn your ideas into real products? Send your drawings to Richconn now to receive a quick quote and get advice from experienced engineers.
Related Questions
No, they both complement each other. While 3D models excel at visualization, 2D drawings remain essential for legal contracts, quality inspection and defining critical tolerances.
Engineering drawing standards vary globally, with the most common being ANSI and ISO. ANSI (USA) typically uses Third Angle projection with inch units whereas ISO (International) uses First Angle projection with metric units. These two standards differ in how dimensions and symbols are presented.
GD&T sets clear rules for geometric variation. It helps ensure that parts from different sources fit together. This reduces waste and prevents mistakes in interpretation.
Engineers use these drawings to clearly show materials, dimensions and assembly steps. This helps manufacturers build products that meet the designer’s exact requirements.
