Face milling is an important machining process to produce complicated designs and flat geometry. The process gives great dimensional accuracy, outstanding surface finish and has the capacity to hold large workpieces. Today we will see what this face milling is, its types, process and best practices.

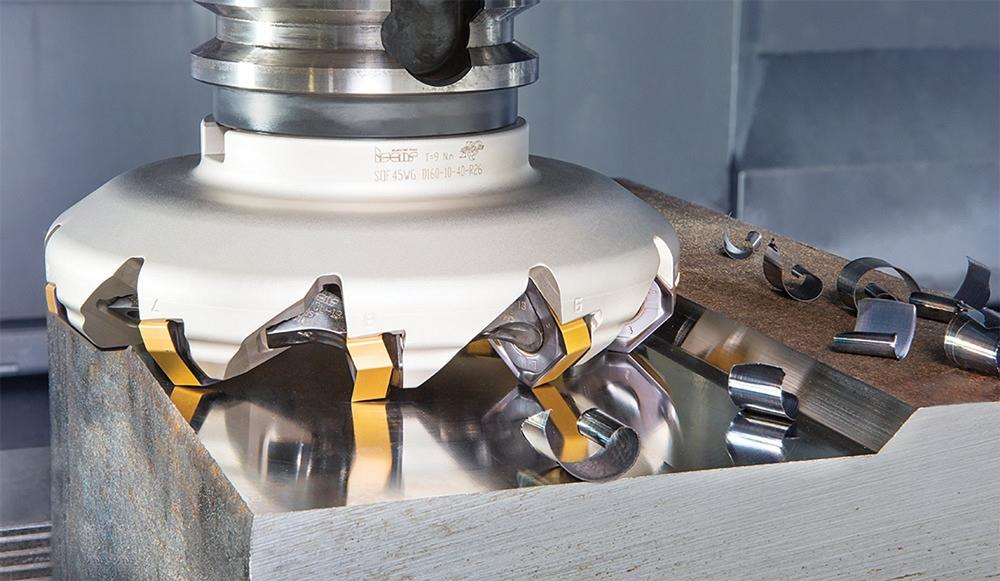

What is Face Milling?
Face milling cuts materials with accuracy to create smooth and flat surface finishes. It utilizes a rotating cutter that removes material perpendicular to the workpiece. The process features specialized cutting tools with many inserts on face which makes it suitable for making pockets, flattening of surfaces and doing material removal.
How Does Face Milling Work?
1st Step: Workpiece Positioning
The first step in face milling is to put the workpiece in correct position on the machine table. Usually you have to use fixtures, clamps or a vice to secure the workpiece. This will help produce a uniform and precise cut during milling. It can be done manually or automatically with the use of CNC machine controls.
2nd Step: Machine Alignment and Tool Selection
Once the workpiece is set the machine is aligned and the right cutting tool is selected. For best results the workpiece surface should be perpendicular to the spindle axis. Selection of the tool is also very important. This selection depends upon the material of the work piece and the finish required. Therefore, a suitable milling cutter e.g. a shell mill or face mill should be selected.
3rd Step: Adjusting Cutting Parameters
Next is to modify the cutting parameters. The depth of cut, cutting speed and feed rate are these parameters. For high feed operations, use a cutting speed of 1,000 m/min and depth of cut of 0.5 – 2 mm for precision work and feed rate of 0.2 – 0.6 mm for medium duty cuts.
Final Step: Machining
At last after changing the cutting parameters the milling process begins. During machining the rotating cutter removes material from the workpiece and gives the produced surface a smooth and flat finish. At this point the coolant is generally utilized to decrease friction, control heat and remove the chips from the cutting area.
Top 5 Types of Face Milling Operations
1. Conventional Face Milling
To achieve better cutting force control, conventional face milling rotates the cutter against the feed direction. For finishing and semi‐finishing operations, this technique uses a 45° leading angle cutter. And radial cutting motion moves from center to the periphery in this milling method. This is to guarantee extraordinary surface quality and high dimensional accuracy.
2. General Face Milling
This is a broader milling operation to machine flat surfaces. Cutters with diameters greater than the width of the workpiece and an entering angle of 45° are employed in general face milling process. This basic operation makes uniform surfaces for further machining operations.
3. Partial Face Milling
The cutter’s diameter used in partial face milling is less than the width of work piece which necessitates multiple passes to complete the surfaces. By using this milling technique, localized areas can be precisely controlled and recesses or pockets can be generated with clear boundaries. The process is also outstanding for selective material removal to create complicated geometries along with retaining strict dimensional tolerances.
4. High-Feed Face Milling
This milling combines shallow depth of cut with very high feed rates -up to 2.0mm per tooth- and cutting speed up to or more than 1000 m/min. Specialized cutters are used in this with 10 degree entering angles to direct the cutting forces axially to decrease vibration and increase stability. This is an operation well suited for the processing of large quantities of material quickly.
5. Heavy-Duty Face Milling
Robust cutters with 60 degree entering angles are used in heavy duty face milling for heavy material removal. Up to 18mm cutting depths and 0.4 – 0.7mm per tooth feed rates can be handled by this process. This technique is best at machining large castings and forgings. Heavy-duty milling usually needs carbide tipped tools and high power spindles to work at its best.
Face Milling Cutters and Tools
Face Mills Cutters
Face mills consist of large diameter cutter bodies with inserts that are mechanically fastened to the cutter body. These robust tools shine at heavy material removal which they do by making radially deep cuts along with maintaining dimensional accuracy. The selection of cutter diameter is based on machine clearance specification and workpiece length.

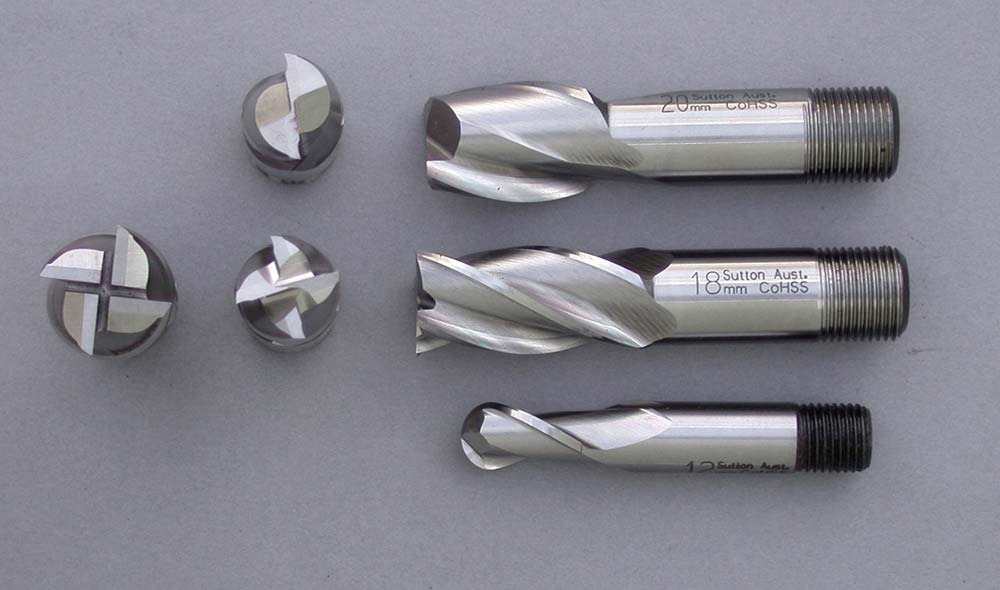

End Mills Cutters
Cutting edges are found on both the face and periphery of an end mill which is available in a 2 to 4 flute configuration. Slotting, profile milling and some face milling is where they shine but their cutting edges aren’t designed to remove large amounts of material so they aren’t the best tool for heavy duty work.

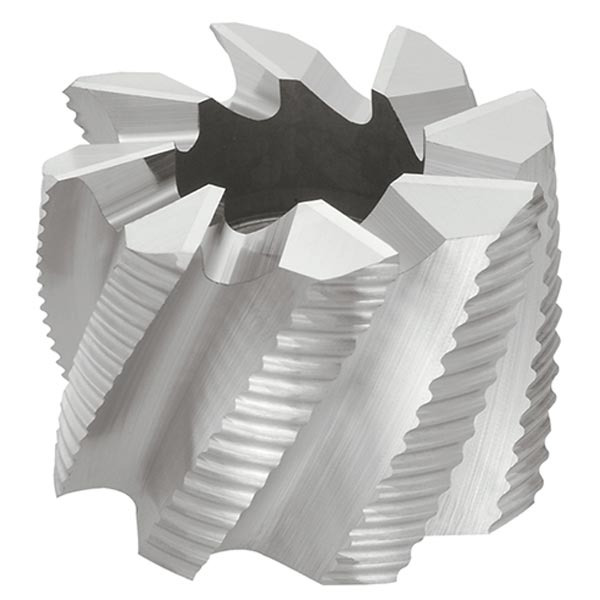

Shell Mills Cutters
In shell mills, the cutting force is balanced by using multiple cutting teeth with replaceable inserts on their outer edges. For larger workpieces, they are a good option and wear management is more flexible through these, because the inserts can be replaced without having to replace the whole tool.

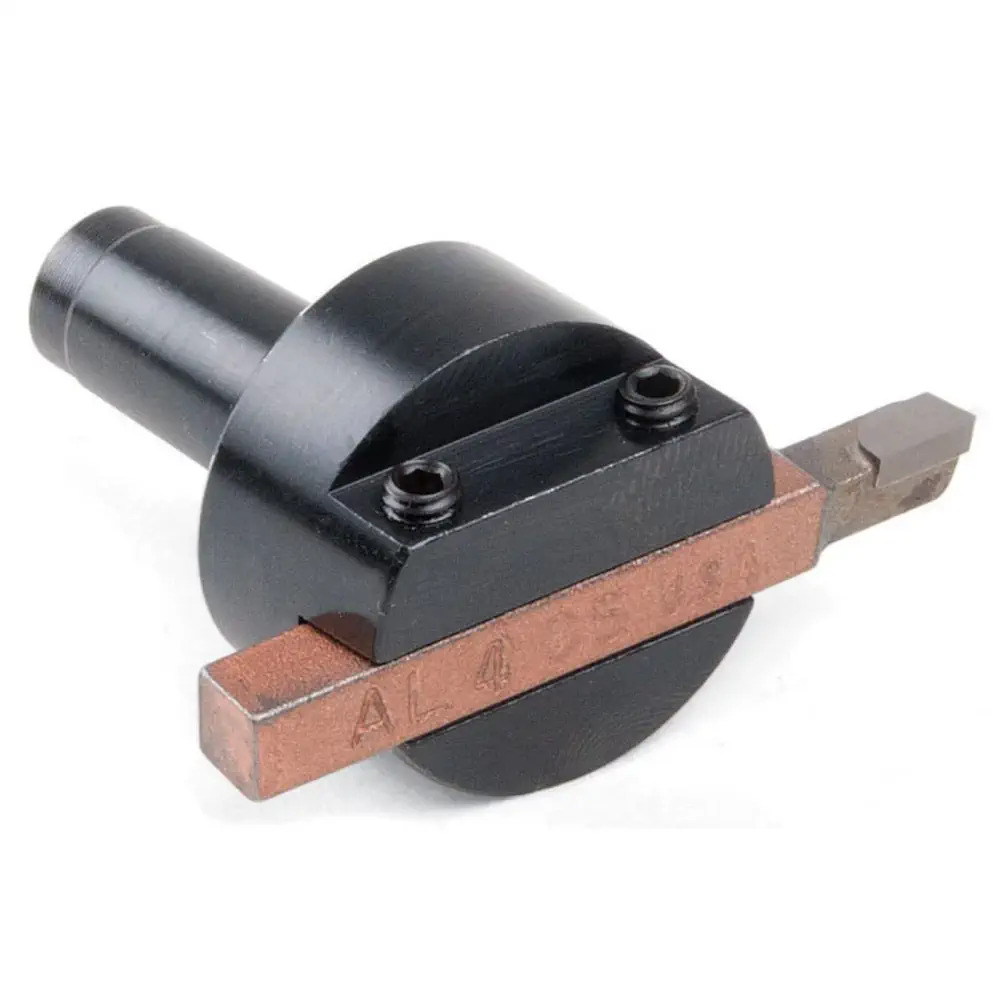

Fly Cutters
These are single point tools that consist of a large rotating body and one cutting insert. They cut accurate and light cuts on flat surfaces. They may be slower than multi tooth cutters but they do give a smooth finish and are used for high precision and fine work.

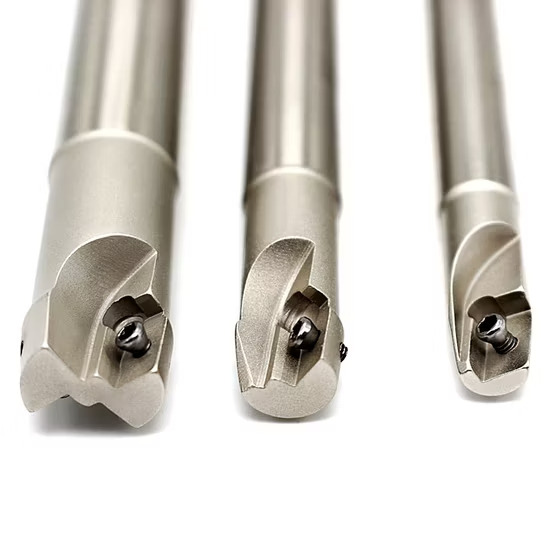

Indexable Insert Cutters
Indexable cutters are multi corner and have replaceable carbide inserts with specialized geometries for different materials. Available in diameters from 40 to 250 mm, they mostly have CVD coatings and positive cutting angles for increased wear resistance.
Key Parameters in Face Milling
Depth of Cut
Thickness of material removed in one pass is the depth of cut. For roughing, a depth of cut is usually 2 to 5 mm and for finishing operations it is 0.2 to 1 mm depending on material.

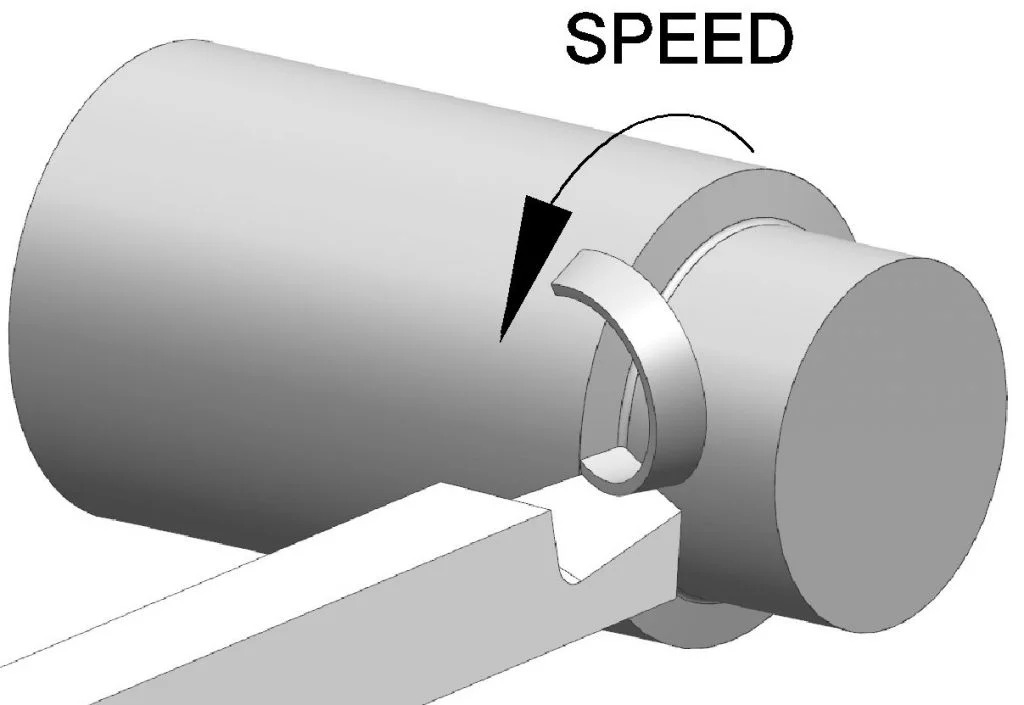

Cutting Speed
The material being machined determines cutting speed. Aluminum can reach up to 1,000 m/min, standard steels have around 500 SFM and the hardened materials have lower speed usually.
Feed Rate
A tool’s advancement velocity against the workpiece is dependent on the feed rate. Use 0.005 – 0.020 inches / revolution for roughing; use 0.002 – 0.004 inches for finishing.

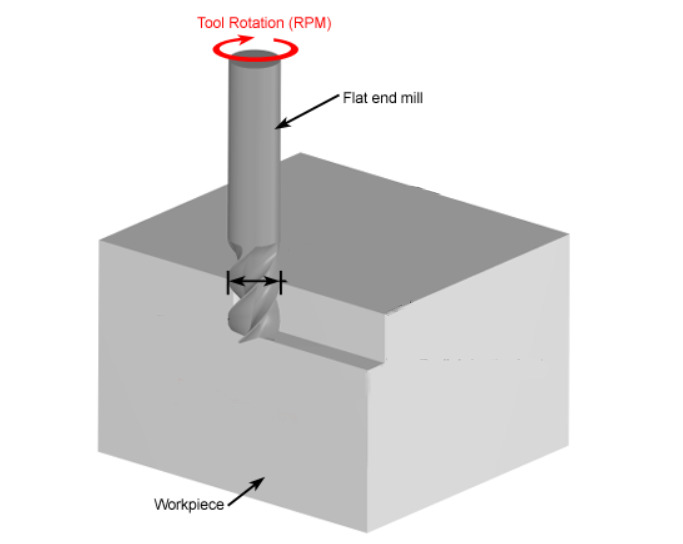

Spindle Speed
The rate at which the cutter rotates is spindle speed. Spindle speed is mostly between 500 and 3,000 RPM depending on the cutting speed, material being machined and tool diameter.
Tool Geometry
Cutting efficiency is influenced by the tool geometry. It includes clearance angle, rake angle and tool radius. For softer materials, positive 5–10° rake angle is common whereas for tougher materials like steel negative rake angle of 0–5° get utilized.
Machine Tool Rigidity
Machine tool rigidity means stiffness of the machine that influences cutting precision and vibration. For high precision operations, the stiffness values of rigid machines range from 10,000 to 50,000 N/μm.
Advanced Face Milling Techniques
High-feed face milling techniques
High feed milling offers substantial productivity gain through shallow depths of cut and rapid feed rates. This milling depends on specialized cutters with very low entering angles (10–12 degrees) which transform radial forces into axial loads. As a result, vibration is reduced and speeds up to 1000 m/min become possible. High–feed face milling is a more stable process with a higher throughput in hard-to–machine materials.
Climb Milling Vs Conventional Milling
The only difference between climb milling and conventional milling is how the cutter rotates relative to the feed. Climb milling moves cutter in the same direction of feed. This helps get better surface finish and lessen tool wear. In contrast, in conventional milling, the feed rotates against the cutter causing more heat buildup and more tool stress.
Advanced Cutter Designs
In newer face mill designs, carbide inserts processed with powder metallurgy and having integrated wiper-flats and complicated geometries are now used. These advanced designs attain fine surface finishes down to 0.1 μm by staggering radial and axial displacement. And more consistent results (with micron level precision of cutting edges) can be enabled by multi tooth configurations with adjustable positioning mechanisms.
Integration of Digital Technologies
The application of digital twin technology is to enable continuous monitoring of tool wear through the use of IoT links and smart sensors. And new CNC systems use machine learning algorithms to predict about maintenance needs and adjust cutting parameters at the same time. These systems are able to achieve up to 96% predictive accuracy in less than 0.1 seconds.
Optimized Tool Materials and Coatings
Improving face milling results requires appropriate coatings and optimizing tool materials. TiN, DLC and TiAlN coatings increase wear resistance, lessen friction and prolong tool life. The minimal thermal distortion of diamond coated carbide tools also makes them effective for machining abrasive materials.
Best Practices for Successful Face Milling
Tips for Optimizing Surface Finish
A high quality finish is obtained using sharp ground inserts with positive rake angles and 45° lead angles. Also maintain light finishing cuts in between 0.003 to 0.010 inches and make sure of the right chip evacuation. Wiper inserts should be incorporated to smooth the surface as they pass over it and accurate holders should be selected to reduce tool runout.
Importance of Proper Workpiece Clamping
Secure workpiece firmly at the same height as the material with the help of position clamps to prevent deflection and movement during machining. You should also use adjustable step blocks to put the correct clamping pressure. And put bolts close to the workpiece to share the force evenly.
Strategies to Minimize Tool Wear
You should choose suitable feeds and speeds to optimize cutting parameters. Also provide effective coolant delivery. TiN or TiAlN coated tools will enhance tool longevity, so use them. And employ programmed tool paths to distribute the wear across the cutting edges and use a real time monitoring system to detect the wear pattern.
Role of Lubrication and Coolants
To provide the best heat dissipation, deliver high pressure coolant at 1000 PSI to the cutting zone. High speed operations are mostly cooled using water-soluble emulsions with 5-7% concentration and semi-synthetic fluids are used to improve lubricity. In addition, dual nozzle positioning ensures effective chip evacuation as well as prevents thermal damage to workpiece surfaces.
Conclusion
In short new-generation tool technologies and digital integration are advancing face milling. Modern methods use smart coatings and optimized tool shapes to produce extraordinary surface finishes. Right parameters and high-feed techniques can also be adopted to maximize productivity in operations.
If you need any kind of cnc milling service, then RICHCONN is your best choice. We are always here for you —so feel free to contact us at any time.
Related Questions
What is the difference between peripheral and face milling?
The tool in face milling cuts perpendicular to the surface using its tip whereas peripheral milling cuts parallel to the surface with the use of tool’s sides.
Is face milling important for putters?
Yes, it is important because it changes how the putter performs, feels and sounds. It gives consistent feedback and controls ball roll too.
What is the difference between face milling and end milling?
Face milling creates flat surfaces with the cutter perpendicular to the surface and end milling does slotting, profiling and contouring with tool working parallel to the material.
In which industries is the face milling process used?
The face milling is used in the aerospace, heavy equipment manufacturing and automotive industries for creating accurate flat surfaces on components with high surface quality requirements.
In what ways can face milling reduce production costs?
Face milling reduces production cost by reducing tool wear, increasing material removal rate, simplifying the operation and increasing precision. These help reduce labor cost, machine time and rework.
