In CNC machining, knowing feed rate and cutting speed is key for top machining efficiency. These two important machining parameters are the foundation for making precise parts and boosting productivity. In this guide, I’ll explore what they are, why they matter, and how they work together. By getting better at these, I hope to improve my CNC skills and get consistent, high-quality results.

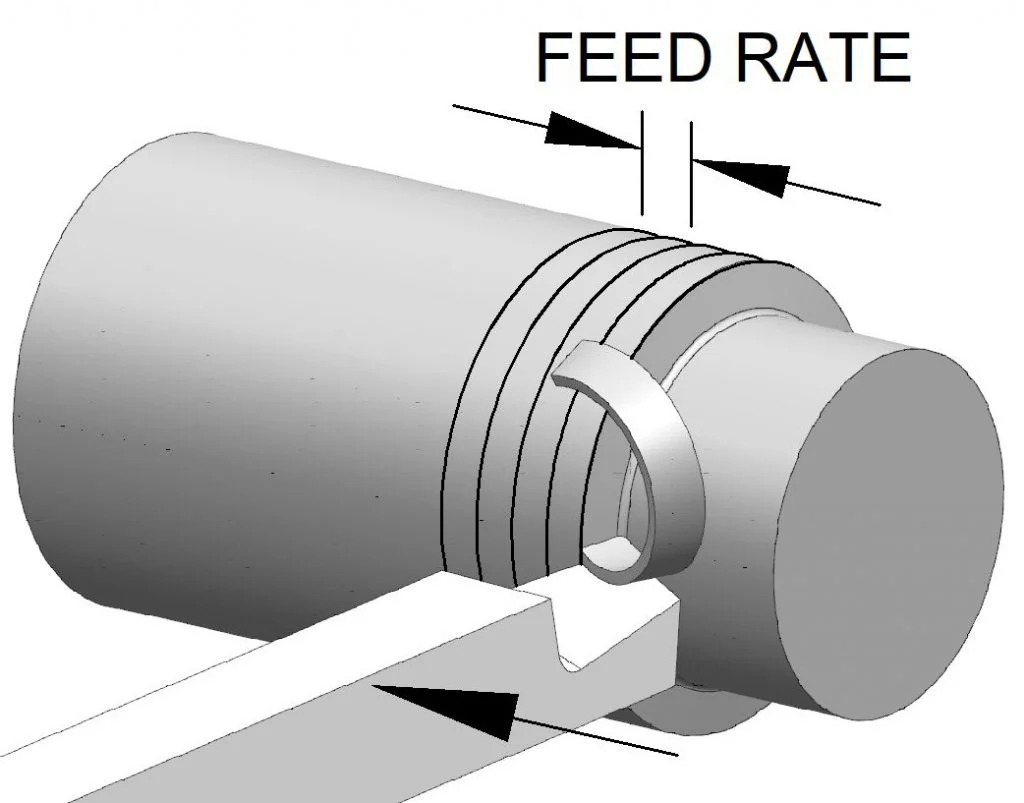

What is Feed Rate?
Feed rate shows how fast a cutting tool moves through the material during machining. Machinists measure it in millimeters per minute (mm/min) or inches per minute (IPM). This speed affects the quality of the finished surface and removal rate of material as well.

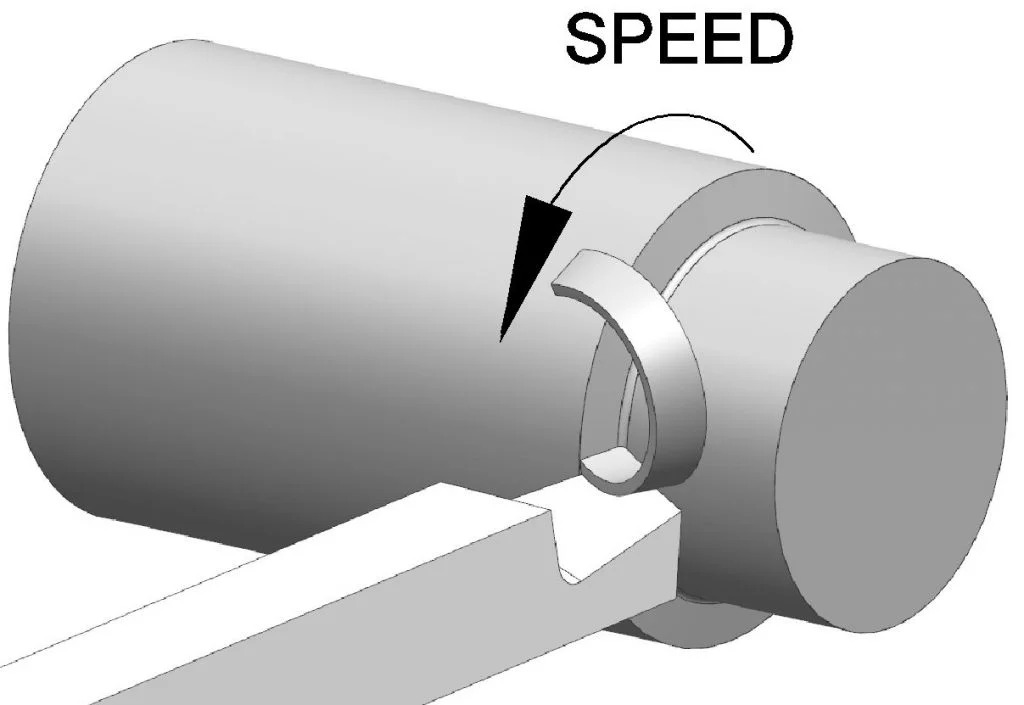

What is Cutting Speed?
Cutting speed tells us how fast the workpiece and tool move relative to each other during machining. It is measured in feet per minute (ft/min) or meters per minute (m/min). It affects how hot the process gets, how long tools last and how smooth the final surface becomes.
Main Factors for Machinists in Determining the Best Feed Rate:
A number of important factors should be considered when you have to select the right feed rate.
1. Surface Finish
The feed rate you choose will directly affect the smoothness of your final surface. Slower feed rates between 0.01 to 0.05 mm/rev create smoother surfaces which are perfect for finishing work. Faster rates leave more visible marks on the surface.
2. Productivity
Higher feed rates increase output and remove material faster. For normal rough cutting, feed rates of 0.05 to 0.5 mm/rev will work best to increase output and tools will also remain in good condition. But remember that faster rates are not always better as you need to balance speed with tool wear and surface quality.
3. Feed rate limit
Every machine has its limit on how fast it can operate. Because of this, basic lathes give you less speed options. On the other hand, CNC machines have adjustable speeds between 20 to 200 m/min which depends on what you’re making.
4. Cut Width
If feed rate changes then the width of your cut also changes. You can increase feed rates when you have to cut the workpiece less than half the tool’s diameter. Cuts with greater width need less feed rates to save your tools and to remove material completely.
5. Machine Tool Capability
Greater feed rates will cause more vibration while cutting. Every machine has certain limits on how much vibration it can handle. You must match your feed rate to what your machine can safely handle to avoid problems.
6. Cutting Tool Geometry
Design and shape of cutting tool affects the feed rate. Tools made from harder materials such as carbide can handle higher feed rates. Number of cutting edges also matters as it decides the quantity of material you can easily remove.
How to Decide On the Optimum Cutting Speed?
Picking the right cutting speed is important in machining operations. Many aspects work together to find the best cutting speed for your particular workpiece
Strength of cutting tool
Material strength of your cutting tool sets the maximum speed limit for safe operation. Modern tools such as Cubic Boron Nitride (CBN) and Polycrystalline Diamond (PCD) can work 5 times faster than High Speed Steel (HSS). Carbide tools also work 3 times faster than the speed of HSS tools. Your tools need extraordinary heat resistance and hardness to last longer as fast speed will result in more heat and vibration.
Workpiece Hardness
Hardness of your workpiece material also affects speed selection. You will need to cut hard materials such as titanium at slower speeds usually under 60 m/min. Soft materials such as aluminum can handle up to 500 m/min of speeds. This indicates that hard materials need slow cutting speeds to save your tools from wear too quickly.
Tool Life
Your choice of cutting speed directly affects the longevity of the tool. Heat builds up faster at high speed which results in tool wear more quickly. Too slow cutting can also damage tools or make the cutting process less productive. The best approach is to find a speed that gives you good productivity and makes your tools last longer.
Cutting tool Material
Different tool materials can handle different maximum speeds. HSS tools work best between 20 to 40 m/min while Carbide tools can work much faster i.e., up to 200 m/min. For production on a large scale, modern materials such as diamond tools and cubic boron are useful as they can handle speeds of about 500 m/min.
Differences between Feed Rate and Cutting Speed
Feed rate and cutting speed are used for different purposes and they affect machining operations in distinct ways.
- Measurement Units: Units for feed rates are millimeters per minute (mm/min) or inches per minute (IPM) and while for cutting speed, they are meters per minute (m/min) or surface feet per minute (SFM).
- Motion Type: Tool’s spinning movement defines the cutting speed. On the other side feed rate is the movement of workpiece in a straight line.
- Impact on Material: Feed rate affects the quality of finished surface and how chips form. Cutting speed wears down tools because of heat generation.
- Operation Type: In turning, feed rate changes based on what stage of machining you’re in but cutting speed stays the same
- Surface Quality: Feed rate makes particular patterns on the finished surface. On contrary, cutting speed’s heat affects how smooth the surface becomes.
- Process Control: Feed rate sets how much material the tool takes off in every pass. And the speed at which material gets removed depends on cutting speed.
- Parameter Adjustment: Feed rate is controlled by changing the axis movement. Whereas in case of cutting speed, spindle speed adjusts it.
- Tool Life: High feed rates can break tools through mechanical stress. Fast cutting speeds lead to heat damage in tools.
- Productivity Balance: Feed rate controls the amount of material removed and cutting speed decides how fast the machine works.
- Machine Limitations: Ability of machine to move along its axis restricts feed rate. And the power of spindle limits cutting speed.
| Parameter | Feed Rate | Cutting Speed |
|---|---|---|
| Measurement Units | IPM or mm/min | SFM or m/min |
| Motion Type | Linear workpiece movement | Tool spinning motion |
| Operation Type | Varies by stage | Remains constant |
| Impact of Material | Affects surface finish | Generates tool wear |
| Surface Quality | Creates surface patterns | Affects surface smoothness |
| Process Control | Material per pass | Material removal rate |
| Parameter Adjustment | Axis movement control | Spindle speed adjustment |
| Tool Life | Mechanical stress damage | Heat related wear |
| Productivity Balance | Material volume control | Machining productivity |
| Machine Limitations | Axis movement capacity | Spindle power limit |
How Do You Calculate the Feed Rate in Machining Operations?
The feed rate calculation uses a straightforward formula: Feed Rate = (Spindle Speed × Number of Flutes) / 1000. For turning operations, we measure feed rate in millimeters per revolution or inches per revolution. Your final calculation must consider three main aspects i.e., tool type, the workpiece material and demanded surface finish.
What is the Formula to Calculate Cutting Speed?
Cutting speed calculations differ based on your measurement system. For metric units, use:
Vc = (π × D × N) / 1000
Where: Vc = Cutting speed (m/min),
π = Pi (approximately 3.14159),
D = Workpiece diameter (mm),
N = Spindle speed (rpm)
For imperial measurements, this formula changes to:
Vc = (π × D × N) / 12
Where: Vc = Cutting speed (SFM),
D = Workpiece diameter (inches)
Note: Use the tool diameter instead of workpiece diameter in these calculations during milling.
Determining the Cutting Speed vs Feed Rate
Right balance between cutting speed and feed rate determination starts with the selection of adequate depth of cut. This choice depends on your tool qualities and material. Set your feed rate based on your machine stability and desired surface finish. The cutting speed should be changed after it so that material can be removed in the best way and the tool life can be maximized. Remember, hard materials need low settings for these parameters and soft materials can handle higher values. These changes help to control heat and proper chip formation.
Feed Rate and Cutting Velocity Interaction
There are two main movements in the cutting process. Cutting velocity initiates the main motion which removes material through compressive force. Feed rate controls motion of the tool on the workpiece surface. These movements unite to form continuing chips. Every type of machining operation needs different feed motion intensities to get the best results.
Non Linear Path
Feed rates usually move in straight lines during machining, but in case of circular or arc cuts the tool follows curved paths instead. This change in trajectory increases as cutting depth increases. The contact angle of the tool with material becomes larger, in particular for cutting inside corners. Tool gets in touch more with the material here as compared to outside corners. These variations directly affect surface finish quality and cutting precision.
Conclusion
Right balance between cutting speed and feed rate leads to a successful machining. You should know many aspects such as the workpiece material, design of cutting tool and your ability of machine to handle material. You can do the best machining when you truly know how these two work together.
FAQ’s
How do cutting speed and feed rate affect the quality and productivity of CNC machining?
The combination of cutting speed and feed rate determines how quickly you can remove material and the type of surface finish you will get. Fast speed can increase production rates but this can wear out tools more quickly. To get the best results, choose feed rates which balance surface quality and speed within your machine’s capabilities.
How is chip thickness affected by changes in feed rate?
Feed rate directly affects the chip thickness as fast feed rates create more rigid and thicker chips which will break more easily. Chips become elastic and thinner when you slow down the feed rate. This makes them harder to break cleanly. These changes will affect your final surface quality and rate of removal.
Which material supports the fastest cutting speed for best machining output?
In common materials, aluminum allows the fastest cutting speeds. You can machine it at 100 to 500 SFM because it is easy to cut and is soft.
What are the consequences of using very high cutting speed?
Running your machine too fast can cause excess heat. This can initiate many problems such as your workpiece can get damaged by heat, your tools can wear out quickly and surface finish will also suffer. This will increase your expenses.
