When deciding between forging, casting or CNC machining, you need a complete knowledge of each method, its distinct characteristics, design flexibility, strength as well as its preciseness.
In this blogpost you will know about the benefits, limitations as well as common uses of each method.

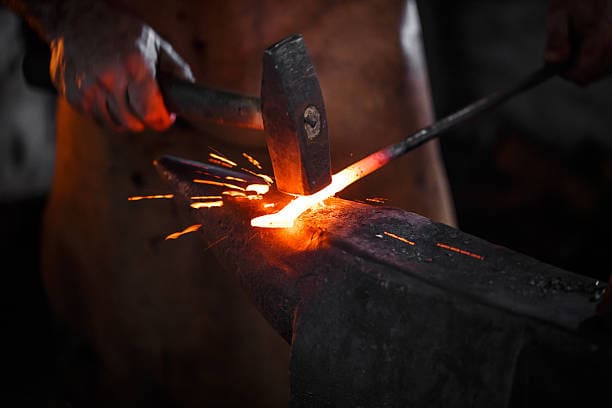

Understanding Forging
Forging is the process of shaping metal that is done mainly by heating it and then hammering or pressing it into the intended shape. This process arranges the grain structure, compresses the metal and maximizes its mechanical properties. Forging increases durability & strength which makes it perfect for demanding applications in industries such as automotive, aerospace and heavy machinery.
Types of Forging
1. Closed‐Die Forging (Impression‐Die Forging)
In impression die forging, manufacturers place hot metal into a die cavity and then apply pressure until the metal completely fills the space. This method creates accurate and complex parts while reducing waste and using materials efficiently.
2. Open‐Die Forging
In open die forging the metal piece is not completely surrounded by dies; rather the metal is held between shaped or smooth dies during shaping. This flexibility of this process permits the creation of larger parts such as cylinders & shafts.
3. Cold Forging
The cold forging does not involve heating. Instead high pressure is applied to shape the metal at room temperature which results in accurate dimensions, good surface quality as well as great material strength.
4. Press Forging
Press forging makes accurate parts by applying constant pressure to the metal. This guarantees structural integrity & consistent shape which makes this method particularly good for large‐scale parts in automotive & industrial equipment production.
5. Seamless Rolled Ring Forging
In the manufacturing of seamless rings a piece of metal is first punched and then rolled to the required ring size. The resulting rings show better durability & strength which usually serve important applications such as power generation, aerospace and heavy tools.
Advantages
Excellent Impact Resistance
Forging increases the durability & hardness of the metal, which increases its ability to withstand impact. Construction machinery, mining tools as well as performance‐critical components usually depend on forged parts.
Improved Structural Integrity & Strength
When compressive forces in forging change the shape of a metal, its grain structure gets aligned in an orderly manner which greatly increases metal’s durability & strength. This makes forged parts dependable under heavy stresses and loads.
Better Fatigue Resistance
Due to the enhanced grain structure, forged components can withstand continuous stress greatly. This is why aerospace, automotive as well as heavy machinery industries prefer forging for parts that undergo cyclic stress loads.
Less Defects
Compared to casting, forging greatly decreases the presence of internal defects such as inclusions & porosity. As a result forged parts generally last longer under harsh operating environments.
Refined Grain Structure
By guaranteeing grain uniformity & continuity, forging strengthens the mechanical properties of metals. Properties such as toughness, crack resistance and strength are greatly increased which makes forged products valuable in critical situations.
Disadvantages
Considerable Tooling Costs
Forging involves huge initial costs for tooling equipment & dies. Although these tools last a long time, the small production runs make this method less budget‐friendly for your manufacturing process.
Limited to Simpler Shapes
Forging is usually good for solid and simple designs. If your project demands a complex shape then secondary machining may be needed which will increase production time and cost.
Size Restrictions Based on Equipment Capacity
The size limitations of a forging hammer or press limit the weight and size of parts that can be produced by forging. Heavier and larger items may need advanced machinery which can increase your total production cost.

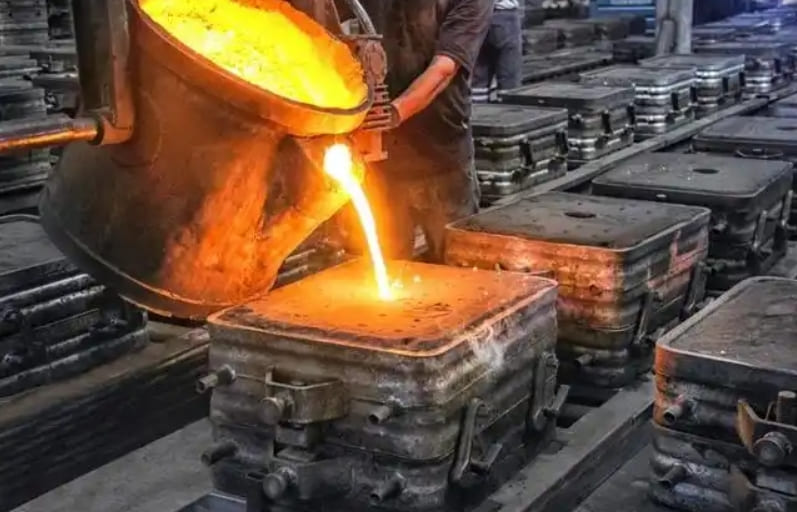

Understanding Casting
Casting is a process of shaping molten metal by putting it into a mold and allowing it to solidify. This method enables you to create intricate shapes with great accuracy which makes it particularly cost‐effective for large‐scale manufacturing.
Types
Investment Casting
Investment casting－also known as lost‐wax casting－starts with a wax pattern, around which ceramic molds are created. By using this type of casting you can get highly detailed parts with precise & smooth surfaces. It is perfect for intricate mechanical parts that need tight tolerances as well as a high level of quality.
Sand Casting
Sand casting heavily depends on molds made of sand to shape liquid metal. It enables you to effortlessly produce highly complex & big parts. The industrial and automotive industry usually pick sand casting as it is cost‐effective, flexible and compatible with different materials.
Die Casting
In die casting, molten metal is poured into reinforced steel molds under extreme pressure. This technique gives durable and uniformly accurate parts. The electronics, automotive and consumer goods industries often use it to manufacture lightweight parts.
Advantages
Material Versatility
Through casting you have access to a broad range of materials that include brass, steel as well as aluminum. This advantage permits you to pick a material based on your particular technical requirement such as thermal capabilities, corrosion resistance or mechanical strength.
Design Flexibility
You can easily produce highly complex shapes with the help of casting, even if it is impossible or difficult to produce by other methods. Because of this flexibility casting works well for multiple industrial use cases.
Weight & Size Range
Casting methods permit the production of parts of different weights & sizes. You can make anything from small precision parts to large commercial structures.
Cost‐Effectiveness
The casting process decreases extra machining operations as well as the amount of wasted material. As a result you can have great cost savings particularly during large‐scale production.
Scalability and Rapid Production
Once molds are ready, casting gives you the ability to start continuous production immediately. Due to the fact that turnaround time is short, it is better for industries that need consistent & high‐volume manufacturing and also need scalable manufacturing methods.
Disadvantages
Possibility for Casting Defects
Casting sometimes creates defects in products such as inclusions, shrinkage or porosity. By conducting strict quality inspections you can effectively eliminate these problems.
High Production and Tooling Costs
In some casting methods－specially die casting－the initial cost of mold manufacturing can be very high. Although large‐scale production offsets the cost, such a big initial investment may not be justified in small runs.
Lower Surface Finish and Dimensional Accuracy
Parts made by different casting methods have variable dimensional quality & rough surfaces. Therefore extra machining is usually needed to attain good surface quality and precise dimensions.

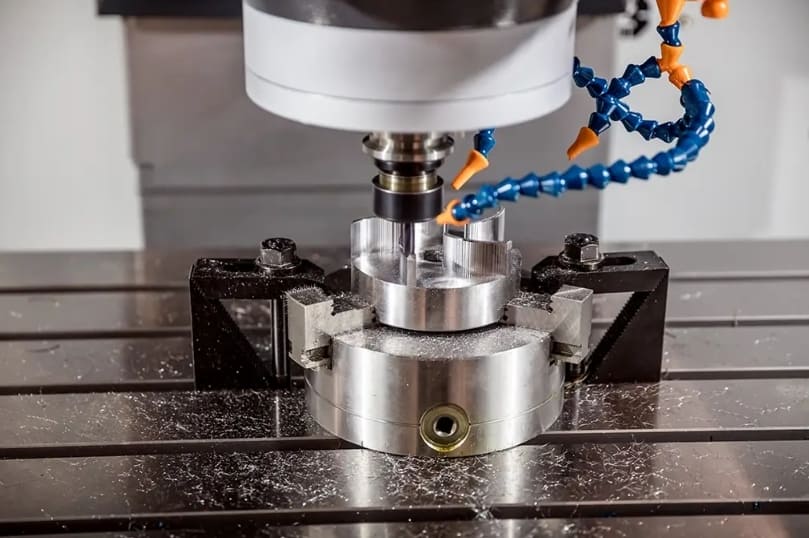

Understanding CNC Machining
CNC machining is a manufacturing technique where computer‐guided cutting tools create parts by cutting material from a solid block. This process provides highly complicated and detailed parts and give extraordinary accuracy. In addition it has greater versatility, precision and repeatability in contrast to casting or forging methods.
Advantages
Increased Production Efficiency & Speed
CNC machines decrease the requirement for hand‐operated work through automated production. They decrease lead times and increase production rates which meet your needs for high‐speed production.
Safety
CNC machines need very little human intervention during operation. This decreases workplace accidents which guarantees a safe production environment for your workers.
High Accuracy and Precision
With CNC machining, complex & detailed parts with strict tolerances can be attained. Thus it is perfectly suited for accuracy‐demanding sectors.
Adaptability in Manufacturing
CNC machines need minor adjustments to switch between different materials & designs. This permits your manufacturing to shift quickly & easily to changing requirements.
Repeatability
Due to its automated control, CNC machining guarantees delivery of uniform & consistent parts in every production run. As a result it facilitates large‐scale production where consistency is necessary and quality standards are strict.
Disadvantages
Big Initial Investment
The purchase of necessary software and CNC equipment needs a big initial investment. Because of this, entry costs can be challenging for low‐scale producers or small businesses.
Risk of Job Displacement
Due to automation, industries may see a decrease in demand for practical labor jobs. Although operational efficiency increases, you may need fewer employees which could possibly affect job availability.
Decrease in Traditional Skills
The shift to automated solutions often decreases hand‐operated machine skills among workers. This can limit your team’s ability to directly do problem‐solving tasks.

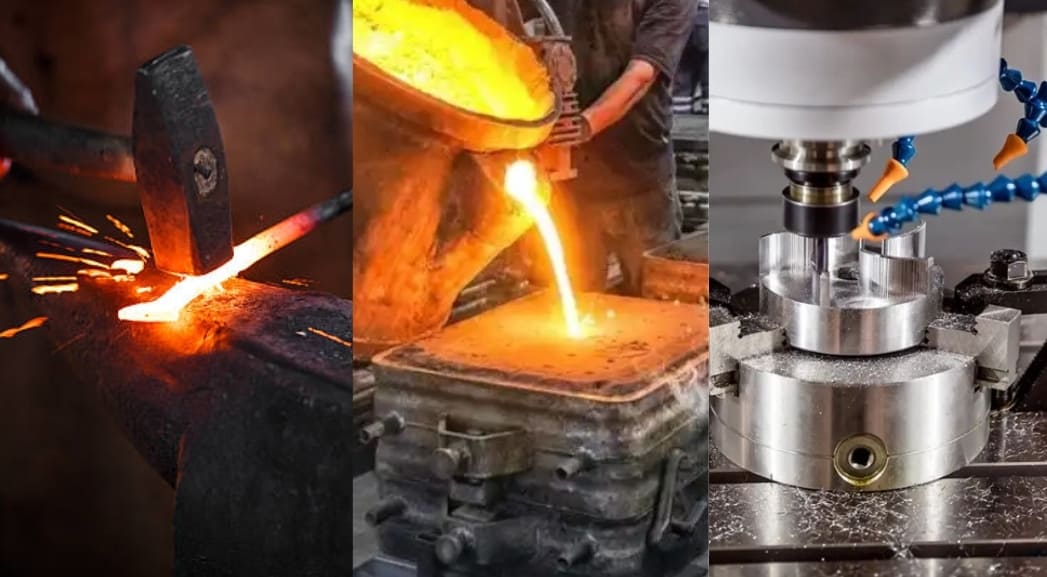

Differences between Forging, Casting and CNC Machining
Design Flexibility and Complexity
- Forging: Mainly suitable for simple designs that need great strength.
- Casting: Best for more detailed parts that demand maximum flexibility.
- CNC Machining: Supports intricate designs with high accuracy but the properties of selected material may set restrictions.
Durability & Strength
- Forging: Resists impact & fatigue and gives strength to parts.
- Casting: Permits flexibility in design; although potential material porosity sometimes decreases strength.
- CNC Machining: The material maintains its natural strength with added preciseness and dependability.
Use Cases
- Forging: Due to its durability & strength it is broadly used in heavy machinery and aerospace sectors.
- Casting: Commonly used in industrial or automotive sectors where complex designs are required.
- CNC Machining: Preference is given to precision‐dependent sectors such as electronics, medical as well as personalized production industries.
Production Volume
- Forging: Effective for large‐production of robust items. Even so, initial setup steps can slow down the process.
- Casting: Can handle mass production batches which give moderate turnaround times and setup.
- CNC Machining: It is perfect for small to medium volume production that needs rapid turnaround.
Cost Implications
- Forging: Decreases material waste but usually needs expensive tooling.
- Casting: Cost‐effective for mass manufacturing.
- CNC Machining: Higher cost per unit because of cutting of material.
| Factors | Forging | Casting | CNC Machining |
|---|---|---|---|
| Flexibility & Complexity | Strong, simple shapes | Complicate designs | Material limits, High precision |
| Durability & Strength | Impact‐resistant, superior | Risk of porosity, lower | Material‐based, Dependable |
| Use cases | Heavy machinery, aerospace | Industrial, automotive | Electronics, medical aerospace |
| Production Volume | Best for mass production runs | Best for high volume | Efficient for small‐to‐mid runs |
| Cost Implications | Costly tooling | Affordable for large‐scale | Costly per unit |
Forging vs. Casting vs. CNC Machining: Which Is Best?
The best method for your intended project depends on several factors such as production cost, component strength, complexity and desired volume.
- Forging: Heavy machinery components or aerospace parts usually require impact resistance and durability. Forging successfully meets these demands.
- Casting: When industrial or automotive components need to be manufactured in large quantities then casting becomes a better option because of its ability to efficiently handle highly detailed shapes.
- CNC Machining: Uniformity & accuracy are very important in the fields of aerospace, medical devices as well as electronics. CNC machining meets these strict accuracy requirements.
If you need maximum part strength, pick forging. For highly detailed shapes, use casting. CNC machining works perfect when your primary goal is to get accurate dimensions. To make the right choice, clearly specify the goals & characteristics of your intended project.
To Sum Up
Casting, forging as well as CNC machining have their own distinct characteristics that can meet your particular demands. Casting is best for complex geometries. Forging guarantees best durability. CNC machining maintains dimensional preciseness. Richconn gives high‐quality electronics, aerospace and personalized parts while following ISO‐certified manufacturing practices.
Related Questions
Which materials are best‐suited for different manufacturing methods?
Titanium & steel are best for forging procedures since they increase strength. Bronze and aluminum are usually good metals for casting. CNC machining offers a broad range of flexibility which allows it to process a variety of materials such as metal alloys, plastics as well as composite materials.
Does CNC machining perform a role in complementing forging or casting?
CNC machining is often used after casting or forging processes. By using CNC machining after forging, you can get smoother surfaces, better dimensional accuracy as well as greater precision.
Can prototyping utilize forging, casting and CNC machining?
Prototyping can utilize all of these methods. CNC machining creates prototypes rapidly which makes it the swiftest option. Casting is generally suitable for prototypes used in functional tests. However forging has limited use in prototyping due to less design flexibility & costly tooling.
Which production method permits easier design changes?
Within these manufacturing processes CNC machining gives the easiest way to make design changes. Design modifications through casting need the creation of new molds, on the other hand forging demands costly changes to the dies. Thus both methods give more notable challenges for design updates.
Are there any restrictions on part size in casting, forging or CNC machining processes?
Yes, each & every method has its own built‐in size restrictions. The dimensions of mold determine the size capacities of casting. Press capacity & power limit the size of forged parts. For CNC machining the maximum part size depends on the dimensions of the machine bed.
