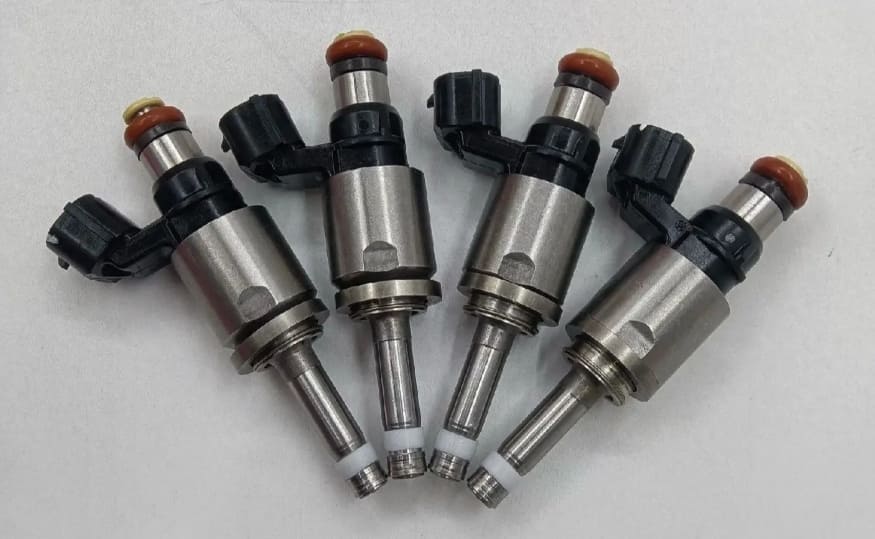

Manufacturing fuel nozzles to strict standards is tough. These parts have to deliver fuel with precision. So small mistakes can lead to poor atomization, leaks or even engine failure (in case of vehicles). In this blog post we will cover the steps, materials & inspections which produce high performance and reliable fuel nozzles for any application.

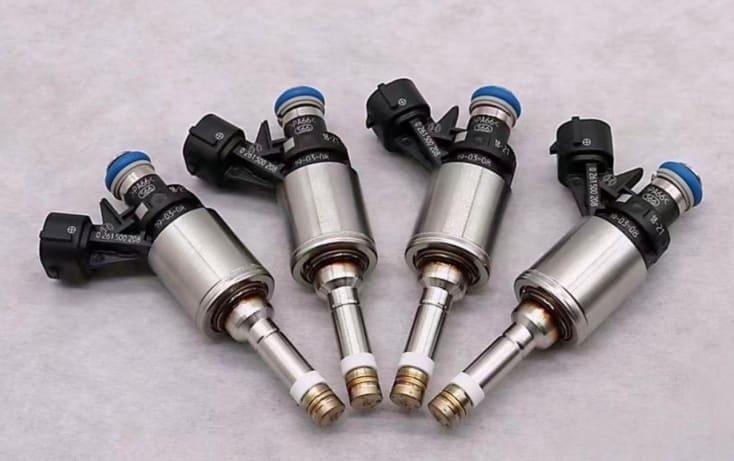

What is a Fuel Nozzle?
In simple terms it is a fuel controlling device which directs fuel into combustion chambers or engines. It turns fuel into a fine mist or atomizes it so it can burn better by mixing with air.

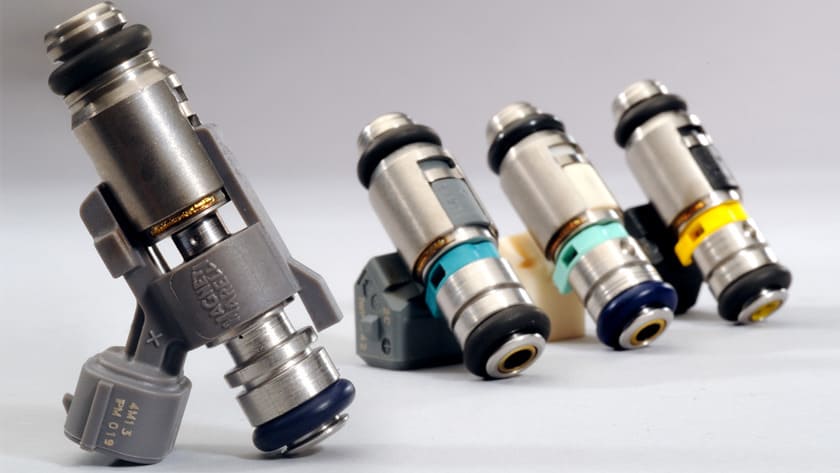

Fuel Nozzle Types and Applications
There are different types of fuel nozzles and every nozzle has a different purpose.
Automotive Fuel Injectors
Advanced cars use multi hole injectors and basic rail systems. These injectors can spray fuel through as many as 12 small holes. This design increases atomization & supports combustion.
Industrial Burners
Boilers & furnaces use these nozzles to atomize fuel oil into controlled spray patterns. It is important for combustion and flame temperature control.
Aerospace Fuel Nozzles
Aerospace nozzles have to handle extreme pressure and heat. They mostly use modern designs for fuel flow. These features stop fuel coking and help reduce thermal stress.
Key Performance Metrics
Atomization quality, flow rate and spray pattern are key measurements. These affect fuel emissions & its efficiency.
Fuel Nozzle Manufacturing Procedures
Manufacturers use advanced processes to produce fuel nozzles which meet exacting standards for durability & precision. Every process has its own advantages. By using these processes manufacturers can get high performance & quality.

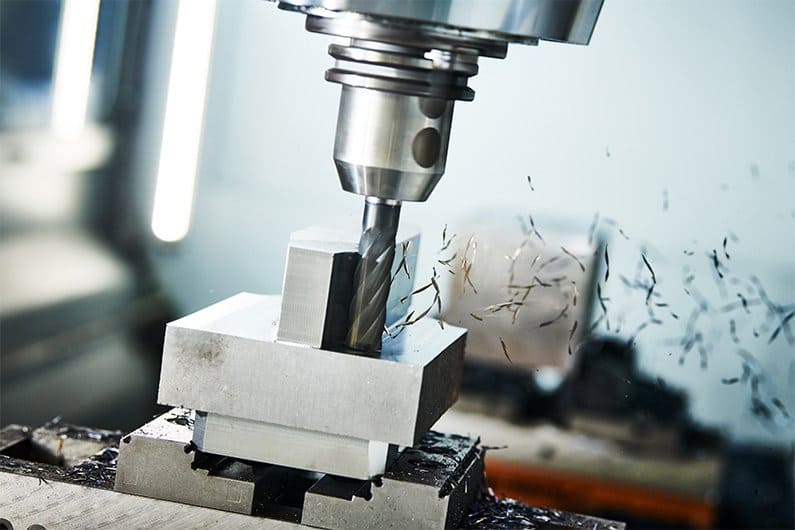

Precision Machining
CNC machining shapes nozzle components to tight tolerances and high accuracy. It is mostly in microns. This level of precision is very important in automotive and aerospace industrial fields. As small mistakes can be catastrophic in these fields.
Laser drilling works alongside CNC machining to make micro orifices as small as 20 microns. These tiny holes facilitate better combustion and precise fuel atomization. So these procedures are combined to produce nozzles that are reliable and high quality.
Must Read: A Complete Guide to Precision CNC Machining

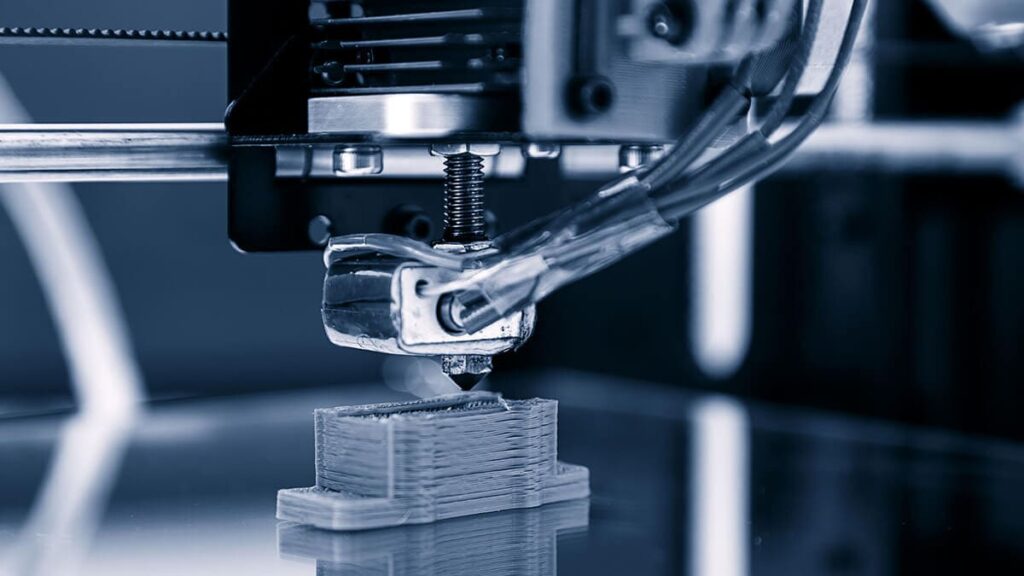

Additive Manufacturing (3D Printing)
Additive manufacturing forms nozzles by building up layers of metal powder. This makes it possible to make complicated internal channels and combines multiple features into one part. As a result the nozzle becomes lighter and has fewer failure points. This procedure allows rapid prototyping, material savings as well as design flexibility.
At Richconn we use both SLM and DMLS metal 3D printing to manufacture fuel nozzles. These methods let us improve internal flow paths, support low volume production and fast prototyping for aerospace and industrial customers.

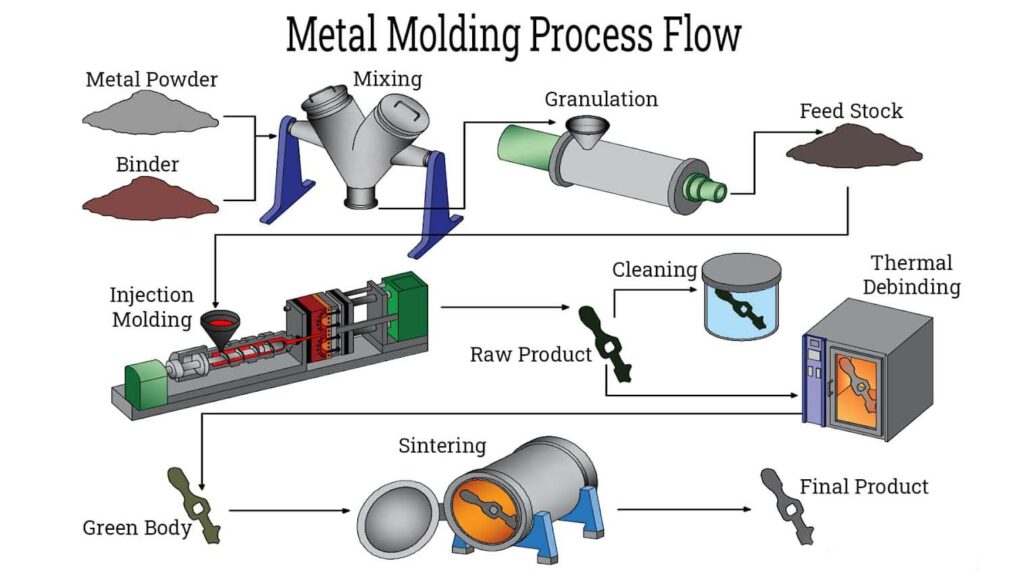

Metal Injection Molding (MIM)
MIM starts with mixing binders and fine metal powders. This mixture is then molded into complicated shapes. After molding, the parts go through debinding & sintering. During sintering the metal fuses and part shrinks to its final size. This procedure not only makes internal passages but reduces the need for extra machining too. So MIM is perfect for mass producing intricate nozzle inserts.
Investment Casting
Investment casting forms nozzle components which are nearly finished in shape and have complicated geometries. This procedure starts with ceramic shells and wax molds to form detailed parts. After casting precision machining brings the parts to final tolerances. This method works with many types of alloys and produces smooth surfaces which reduces the amount of finishing needed after casting.
Inspection and Quality Control
Fuel nozzle manufacturing needs strict quality control and inspection. These steps assure every nozzle gives accurate fuel flow and meets demanding safety & performance criteria.
Dimensional Accuracy

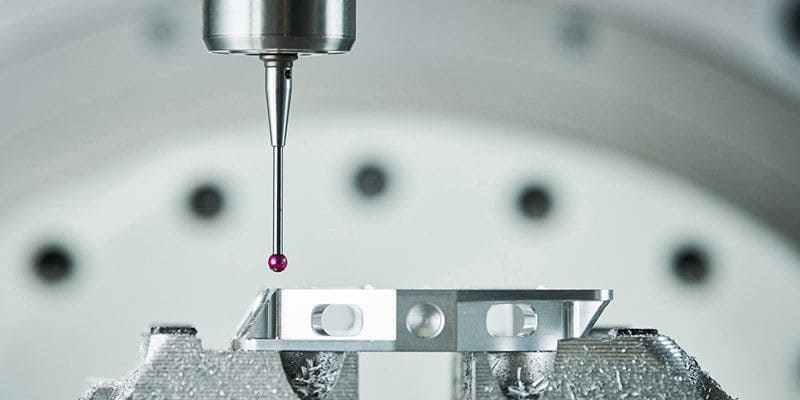

Every dimension must be exact. Manufacturers use advanced equipment such as CMM to inspect all key measurements. This assures the nozzle fits and functions as intended. By maintaining these standards they not only get consistent spray patterns but reliable fuel delivery too.
Inspection lab at Richconn uses ZEISS CMMs and real time data analysis. This assures every nozzle meets traceability standards and high tolerances.

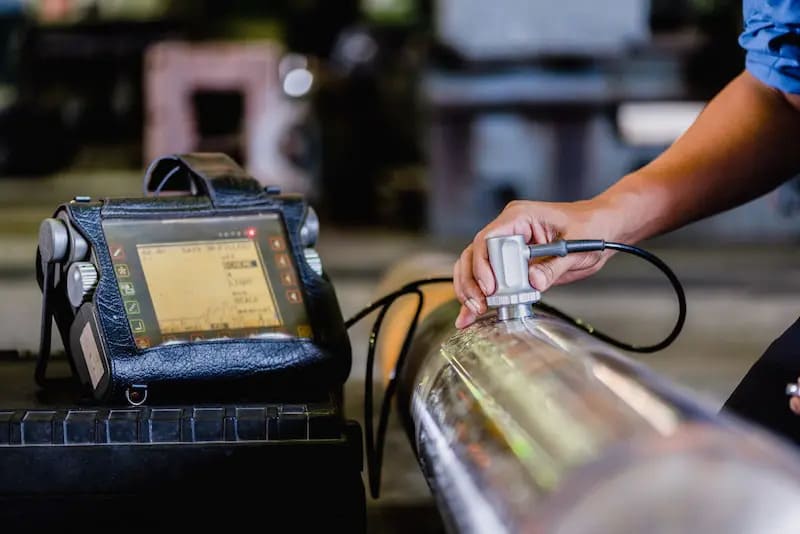

Non Destructive Testing (NDT)
Finding hidden defects is also very important. Tests like CT scans and X-ray can detect voids or cracks inside the nozzle without damaging it. Similarly Ultrasonic testing can also detect problems below the surface. These methods limit failures or leaks during work.
Must Read: A Complete Guide to Non-Destructive Testing
Surface Finish
Surface of the nozzle must be smooth for correct fuel flow and fitting. Surface roughness is usually kept around 125 RMS or 63 Ra but it depends on the nozzle’s application. Inspectors use stereoscopic microscopes or profilometers to check the finish and find any flaws or burrs.
RICHCONN gives a full range of surface finishing services. Bead blasting, custom plating and passivation are some of them. These options get every nozzle to the needed roughness and corrosion resistance specified.
Must Read: What is Surface Roughness
Functional Testing
Every nozzle must pass tests which simulate real world use.

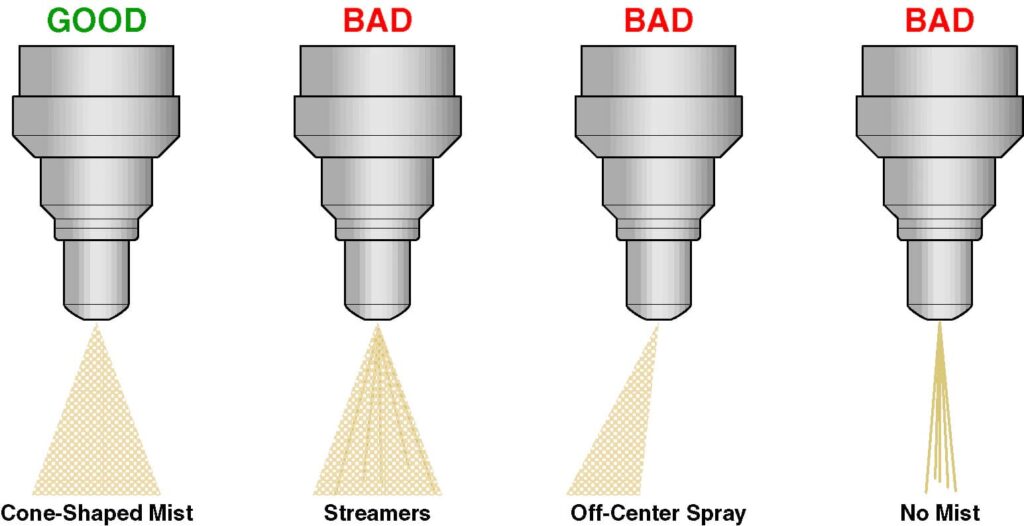

- Spray pattern analysis verifies that the atomization is even.
- Flow rate tests check that nozzle delivers the right amount of fuel.
- Finally leak tests verify all seals are secure and have no hazardous leaks.
Fuel Nozzle Material Selection
It is important to choose the right material for a fuel nozzle’s life and performance. Many factors come into play like temperature, corrosion, pressure and wear. Here are some main materials and reasons for their importance.
High Temperature Alloys
Gas turbine and aerospace fuel nozzles work in high heat. Manufacturers should use nickel based super alloys like Hastelloy and Inconel 718. These materials retain their strength and resist oxidation above 700°C.
Corrosion Resistant Materials
Some environments expose fuel nozzles to corrosive substances. At such places, metals like Hastelloy or 316L stainless steel resist chemical damage and retain their structure over time. It is particularly important when additives or aggressive fuels are present.
Composite and Ceramic Materials
Harshest conditions need advanced materials. Ceramics like carbon matrix composites (CMCs) and alumina (92% purity) give outstanding corrosion and wear resistance. Moreover ceramic nozzles can last 3 times longer as compared to stainless steel even in abrasive environments.
RICHCONN’s metallurgy experts will guide you in selecting and certifying the right alloy for your nozzle’s environment; whether you need Hastelloy, Inconel or modern ceramics.
Wear Resistant Materials
Wear resistance is key in automotive & industrial applications. Hardened stainless steels such as M2 and 100Cr6 (GCr15) tool steel are affordable and strong. And for abrasive particles or fuels, tungsten carbide and cobalt alloys are better. These options not only make nozzles last longer but reduce their maintenance too.
Design Considerations for Fuel Nozzle Manufacturing
Designing fuel nozzles need durability, performance and manufacturability. These parts not only control combustion efficiency but manage emissions too. Below are main design factors to consider.
Spray Characteristics
Increase droplet size and spray angle for proficient combustion and emissions. These are mostly measured by SMD (Sauter Mean Diameter). A good spray pattern lets fuel mix with air. This improves engine efficiency & reduces pollutants.
Integration with Systems
The nozzle must connect to the rest of the combustion system and fuel delivery. Designers need to match connection types, design seal surfaces as well as plan for servicing or replacement. So proper integration planning is key to reliability.
Mechanical and Thermal Stresses
Fuel nozzles work at high temperatures and experience sudden pressure changes. So choose the right shapes and materials to stop cracking and fatigue. This assures the nozzle is reliable in demanding applications like industrial burners or jet engines.
Manufacturability and Assembly
Production friendly designs are also important. Avoid complicated shapes which make machining and assembly difficult. Details such as multi hole patterns or swirler vanes should not make maintenance or manufacturing hard. This balance helps control cost and quality when producing in high volume.
Flow Dynamics and Aerodynamics
Internal flow paths must be designed carefully. Using CFD (Computational Fluid Dynamics) lets engineers reduce pressure loss and get even fuel distribution. It is important for steady engine work.

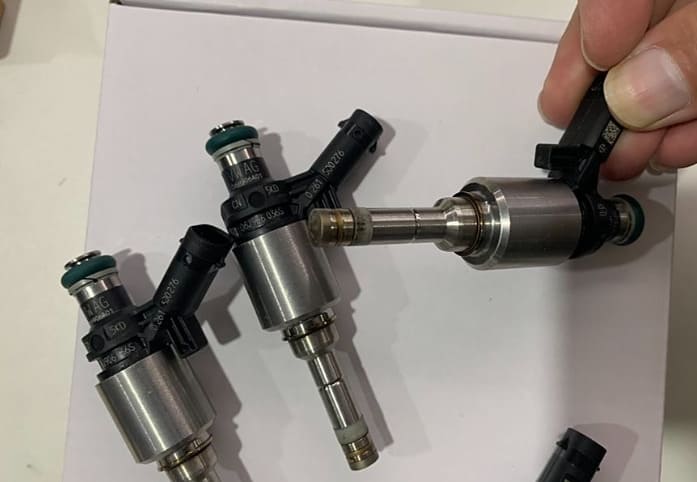

Challenges and Solutions in Fuel Nozzle Manufacturing
Material Defects
Fuel nozzles can wear out faster and become weaker if inclusions, porosity or grain structure problems are present. Manufacturers minimize the risk of these defects by selecting materials carefully and controlled heat treatment. As a result, parts become stronger and more reliable.
Micro Drilling Precision
Manufacturers struggle to get consistent hole sizes and positions because of their tiny dimensions. To address this, they use modern laser drilling and monitor the process in real time. These methods produce micro orifices with high accuracy which is needed for fuel atomization.
Assembly Integrity
Making seals and joints that don’t leak is a big challenge. So manufacturers use advanced welding techniques like electron beam welding to improve sealing and make joints stronger. These steps limit leaks and keep nozzle integrity at high pressure.
For example by adjusting laser welding settings and adding a particular electro polishing step we solved a customer’s problem of brazing residue which reduced leak rates by over 90%.
To Sum Up
Different detail oriented procedures are needed to manufacture fuel nozzles. Selection of material and quality checks are also important in this case. You have to follow these steps to get a high performance & durable nozzle. These nozzles also work to improve engine emissions and their efficiency.
If you need precision engineered fuel nozzles or any other CNC machined part then Richconn is your best option. You can contact us anytime.
Related Questions
How do changing environmental regulations affect fuel nozzle design and material selection?
Manufacturers must follow new environmental rules by choosing eco‐friendly designs and materials. These changes lower vapor emissions, reduce fuel spills and meet tough emission limits.
How does a standard like UL 2586 impact fuel nozzle manufacturing and compliance?
UL 2586 sets higher testing standards, needs approved materials as well as demands clear labeling. These rules make nozzles longer‐lasting, safer and appropriate for advanced fuels.
What to look for when choosing a fuel nozzle supplier for large industrial use?
Check fuel compatibility, pressure limits, flow rates, safety protocols and the supplier’s track record. Also make sure the nozzle meets industry standards and fits your equipment.
