Everything You Need to Know About Gear Machining

Gears are machine components that transfer motion and power across different parts. They are found in everything from watches to large industrial machinery. The method of making these complex parts is known as gear machining.

Precision engineering and innovative production processes are integrated into this process. So, it molds metal or other materials into precise gear forms.

Gear machining ensures proper specifications for gear mesh and performance in diverse applications. Gear machining technique improves the accuracy and durability of gears for different machinery. This guide covers information about gear machining and its techniques.

What is Gear Machining?

Gear machining is a process that uses specialized technology to make gears from raw materials. It involves cutting teeth into gear blanks, which are round metal or other materials. The aim is to produce gears that meet exact size, shape, and performance requirements.

Engineers use computer-aided design (CAD) tools to make thorough gear design plans. These plans tell the machine how to do its job. The teeth are cut in various ways after putting the gear blank on a machine tool. It could be hobbing, shaping, and grinding.

In hobbing, a spinning cutting tool makes spur and helical gears. While the hob cuts the teeth, the gear blank and the hob turns at the same speed. In shaping, a revolving cutter is used to make gear teeth. Then, grinding often comes in as a final step to make things more accurate.

Gear manufacturing requires precision since slight errors can cause malfunction or early breakage. Modern gear machining often uses computer numerical control (CNC) tools. These tools are more accurate than manual methods.

What Are Different Types of Gears Used in Industries?

Companies need a variety of gear. Each variety has distinct properties that suit specific purposes. Below are the different gears and their use in multiple fields:

1. Spur gears

Simple and popular, spur gears are the best way to go. Their teeth are straight and line up with the gear’s axis of movement. Making these gears is simple, and they work well in many situations. They’re often used in clocks, toys, and simple tools.

Spur gears are well-known for how well they transfer power. They can be noisy when going fast, so it is better to go slow. In industry, spur gears are used in lifts, conveyor systems, and some pumps.

2. Helical gears

Helical gear teeth are angled to the gear face. Its curved design makes it quieter and simpler to use than spur gears. They can handle more weight and faster speeds. Helical gears are ideal for high-speed uses, heavy tools, and car transmissions.

One benefit of helix gears is that they can move power between wheels that are not parallel to each other. It makes them useful in a wide range of complicated machines. They create vertical thrust, and thus, their supporting joints must be stronger.

3. Bevel gears

The teeth on bevel gears are shaped like cones. They transfer motion between shafts at an angle to each other, often at 90 degrees. It has several applications, from hand tools to disc gears in car wheels. Straight, spiral, and hypoid are some bevel gear types.

Each kind is good at different things. Straight bevel gears are louder and less smooth. On the other hand, spiral bevel gears are more quiet and smooth. They are often used in tasks that need to be fast.

4. Worm gears

A worm, screw-like gear, and worm wheel make up worm gears. They are used to move things between lines that are not parallel. Worm gears can fit a lot of reduction ratios into a small place. In other words, they can greatly slow down while raising torque.

Worm gears lock, making them handy when a reversal is unwanted. Elevators, conveyor belts, and some kinds of heavy machinery use them. Their high sliding contact makes them less efficient than other gear types.

5. Rack and pinion gears

Rack and pinion gears change motion from turning to moving in a straight line. Pinned to the rack is a round gear, and the rack is a straight bar with gear teeth on it. The pinion goes along the rack as it turns, making a straight motion.

This type of gear system is often found in car steering systems and machine tools. Other places it is used are railroads and industrial lifting tools. Rack and pinion gears are easy to produce and give precise control.

What Is the Importance of Gears in Machinery?

Gears are essential to machinery operation in many industries. The following are critical importance of gears in machinery:

1. Rotational Speed Adjustment

Adjusting the rotational speed of a machinery is one of the main jobs of gears. When two gears mesh, they can make the spinning speed faster or slower. If a smaller gear turns into a bigger gear, the bigger gear will turn more slowly than the smaller one. This speed change is significant for machines that need to move very precisely.

Using gears, engineers can make tools that work at the best speeds for specific jobs. This feature keeps machines running efficiently and lowers wear and tear. Eventually, this makes them last longer.

2. Torque Adjustments

Gears are essential to adjust torque, which is the force that makes something spin. Gears can increase the force that is put on them when they mesh. When a smaller gear moves a bigger gear, the bigger gear feels more force.

It is beneficial when heavy pulling or moving resistance is needed. Proper torque-changing gear systems may help machines function well in many conditions. So, it improves total performance and efficiency.

3. Power Transmission

Power transmission is another important job of gears. They transfer power between machine parts to keep energy efficient. To function, engine or motor power needs to be transferred to perform work. Gears convert rotational energy into job-specific movement, making this transfer easier.

Gears make sure that power is sent regularly and reliably throughout a machine. This level of efficiency is essential for cutting down on energy loss. Also, it is crucial for making mechanical systems work better overall.

4. Adjusting the Power Direction

Gears also enable the adjustment of power direction. In many situations, there’s a need to change the direction of movement to get the desired outcome. Gears can connect at different angles and change the power direction.

This ability is crucial for precise technologies like robots and automated manufacturing lines. Moving parts called gears make machines more flexible by letting them change directions. It allows them to do many jobs more quickly and easily.

What Are Different Gear Manufacturing Processes?

Different processes go into making gears, each with benefits and uses. Here are the different gear manufacturing processes:

1. Gear hobbing

Gear hobbing is a common way to make external gears. It cuts with a hob, a unique tool that looks like a worm gear. When the hob cuts the teeth, it moves in sync with the gear blank. Since this process never stops, it works well for making many things simultaneously.

Hobbling creates spur, helical, and worm gears. It is famous for being accurate and making gears with complicated tooth shapes. But it can’t make gears inside each other or with shoulders close to the teeth.

2. Gear shaping

Gear shaping is versatile and can create internal and external gears. It uses a cutting tool shaped like a pinion gear. As it turns, this tool moves up and down and cuts teeth into the gear blank. The gear blank also turns slowly.

There are places where other tools can’t reach when making gears with this method. This type of gear is often used for cluster gears and internal gears. It is also ideal for gears with teeth close to the shoulders. Gear shape takes longer than hobbing, but it gives more flexibility in gear design.

3. Gear milling

The gear blank is cut down with a spinning tool in gear milling. One tooth space is made at a time as the cutter goes across the blank. It is done repeatedly until all the teeth are gone. Gear milling is adaptable and can manufacture spur, helix, and bevel gears.

Milling takes longer but is more versatile than hobbing. It can be used to make big gears or gears with teeth that don’t have regular shapes. It doesn’t need different tools for each gear size. So, gear cutting is also suitable for small production runs.

4. Gear Broaching

A broach is a cutting tool with many teeth used for broaching. Pushing or pulling the broach through a gear blank hole cuts all teeth at once. This method works quickly and makes gears of good quality with a smooth surface.

Broaching is mainly used for making keyways, splines, and internal gears. It works well for making many things, but each size and type of gear needs its pin. Since broaching tools are expensive, it’s best to use them for big production runs.

5. Gear Grinding

Gear grinding is a finishing step that improves accuracy and smoothness. It has a rough wheel that looks like the space between gear teeth. The wheel grinds off tiny bits of metal to get the final shape of the gear.

This method can fix mistakes during heat treatment and make accurate gears. High-performance gears are often made by grinding them. They are used in aircraft, cars, and precision machinery. It takes longer and costs more than other ways, but the gears it makes are the best.

6. Powder Metallurgy

Metal powders are pressed together in a die with powder metallurgy and then heated to make gears. Near-net-shape gears can be made with this method. Notably, they don’t need much or any further cutting. It works well for making a lot of minor to medium-sized gears.

Powder metallurgy makes gears with a regular density. They can add unique materials to make them more resistant to wear. This method cuts down on waste and energy use. But it can only make gears of a specific size and level of complexity.

7. Casting

This process includes pouring molten metal into a mold shaped like the final gear. The gear forms when the metal cools and hardens. This method works well for big gears or challenging to machine complex gears.

Cast gears aren’t always as accurate as machined gears. Also, they may need more work to make them smooth. Casting is more cost-effective for large gears or short runs, though. It can work with many metals and alloys, making gears with exceptional qualities.

8. Forging

Forging is shaping gears by beating or pushing hot metal into a mold. Forged gears align metal grains, making them stronger than cast or polished ones. It is often used for gears that need strength, like those in big tools or cars.

Forging can make gears with a form similar to a net, so they don’t need to be machined. However, it needs expensive dies and works best for middle to large production runs. Finish cutting is often required on forged gears to get them to their final sizes and tooth shapes.

9. Rolling

Teeth are made when a gear blank is pressed between carefully shaped rolls. The rolls slowly shape the teeth as the blank turns. This method works quickly and makes gears with a robust and wear-resistant base. Rolling is mainly used when creating a lot of gears, for small to medium-sized ones.

Rolled gears are robust and don’t wear down quickly. The process works very well and doesn’t lose much. Rolling, on the other hand, can only make certain types and sizes of gears. Most of the time, spur and helix gears are made with it.

10. Planing and Slotting

A single-point cutting tool is used for both planning and fitting to make gear teeth. One tooth at a time is cut as the tool goes back and forth. These ways are slow, but they can make giant gears or gears with strange forms.

Straight-toothed gears are made by planning, and internal gears can be made by cutting. These methods can be used with different sizes of gear without the need for special tools. It’s useful for small jobs or repairs when specialized equipment isn’t worth the cost.

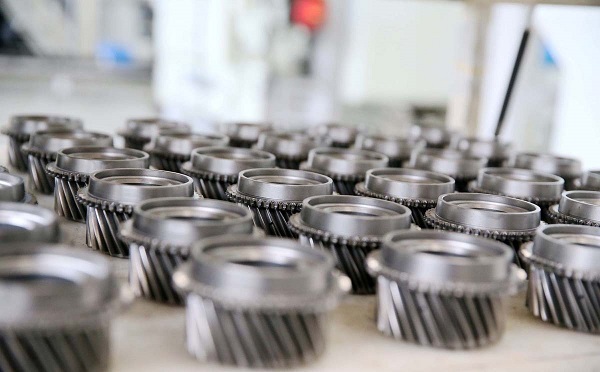

What Are the Materials Used in Gear Manufacturing?

Gear production materials significantly affect how well they work and their durability. Below are the materials used in gear manufacturing:

Metals (steel, brass, aluminum)

Metals are popular for gearmaking since they’re solid and durable. Specific metals here include steel, brass, and aluminum. Steel can handle hefty duties due to its high tensile strength. Steel gears hold much weight and don’t wear down quickly. Hence, it is vital in high-stress conditions like factories and cars.

Brass is another metal ideal in situations where rust protection is essential. Brass gears are often used in smaller, less demanding tasks. They are easy to work with and can be machined well. Thus making them a popular choice for precision parts.

Aluminum is lightweight and rust-resistant, making it useful in weight-reduction applications. It’s also easy to make aluminum gears, which can be coated to protect them even more.

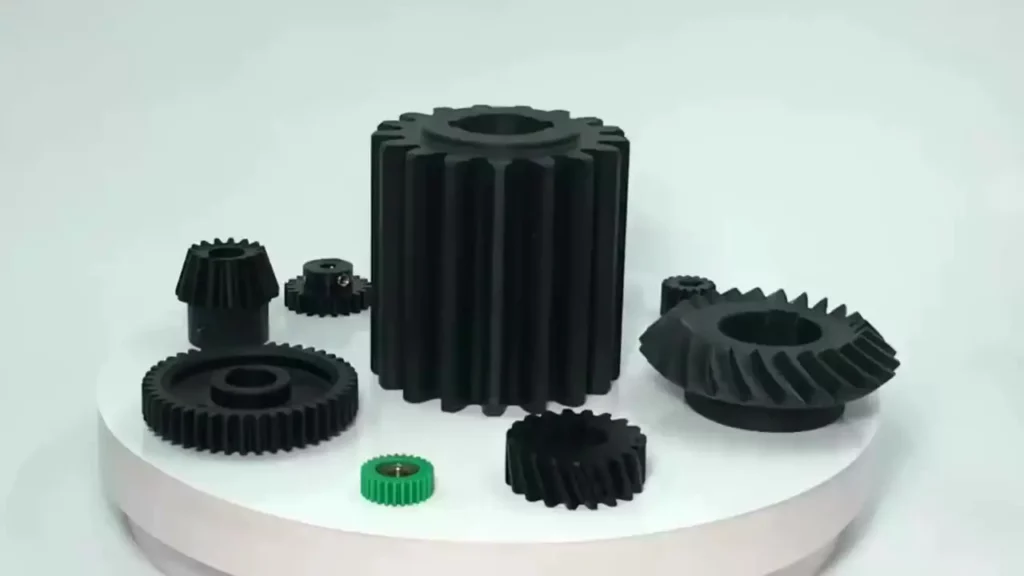

Plastics (nylon, acetal, PEEK)

Gear machining uses plastics increasingly since they’re light and rust-resistant. Wheels are commonly made of nylon. It doesn’t wear down quickly and can run quietly. Thus making it useful for things like home tools and office supplies.

Also, nylon gears can absorb shock and lower noise. It makes them suitable for applications that need smooth operation.

Another type of plastic that is often used for gears is acetal. It is firm and stiff, which makes it perfect for creating precise parts. Acetal gears work well in many industrial settings because they don’t change shape. They also don’t shift performance with temperature changes.

Polyether ether ketone is a high-performance plastic. It’s chemical- and heat-resistant and employed in specific situations. Though more expensive than other plastics, its exceptional qualities make it worthwhile.

Advanced materials (composites, ceramics)

Advanced materials have become suitable for making gears in the past few years. Composite gears can be as strong as metals while still being as light as plastics. They work exceptionally well when weight reduction is vital without losing efficiency.

Composite gears could have better resistance to wear or higher stiffness. This makes them useful for high-performance uses in the aircraft and automobile industries.

Ceramics are another high-tech material used to make gears. Ceramic gears are great for harsh or acidic settings. They can handle high or low temperatures and don’t wear down quickly. Ceramic gears aren’t as strong as metal or plastic and can break easily when hit. However, their unique qualities make them suitable for some high-tech uses.

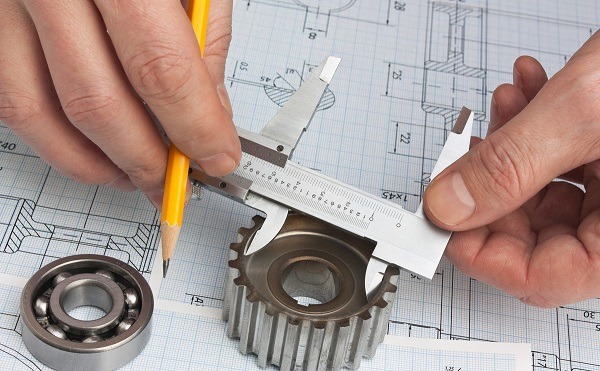

How to Perform Quality Control in Gear Machining?

Quality control ensures gears work well and meet design criteria after gear machining. Here’s how to perform quality control in gear machining:

1. Visual inspection

The first step in quality control for gear machining is to look at the work. Trained inspectors check gears for visible flaws, like cracks, chips, or surface flaws. They use solid lights and magnifying glasses to spot things the naked eye might miss.

This method can quickly find evident problems. Inspectors look for rough surfaces or uneven tooth spacing, showing improper cutting. They also look for damage that could have happened during handling or heating. An eye check is a quick and cheap way to find significant problems, but it can’t detect all the issues.

2. Dimensional measurement

For dimensional measurement, the size and form of the gear are compared to the design specs. This technique requires precise tools like micrometers, calipers, and coordinate measuring machines (CMMs). Inspectors assess gear parts like the outer diameter, root diameter, and tooth width.

They also look at the gear’s general shape, such as how round or flat it is. These measures ensure the gear will fit appropriately in the job it was made for. CMMs are very helpful for complicated gears. They can quickly and easily measure many points on a gear.

3. Gear tooth vernier method

The gear tooth vernier method is a unique way to determine how thick a gear tooth is. It has something on it called a gear tooth vernier measure. There are two anvils on this tool that fit over a gear tooth. The tester sets up the caliper so that both anvils touch the sides of the tooth. The measure then reveals how thick the tooth is.

This way of checking tooth size is more accurate than visual inspection. Most of the time, inspectors measure a few teeth around the gear to ensure consistency. This process finds incorrect tooth wear or mistakes in the machine work that only affect a few teeth.

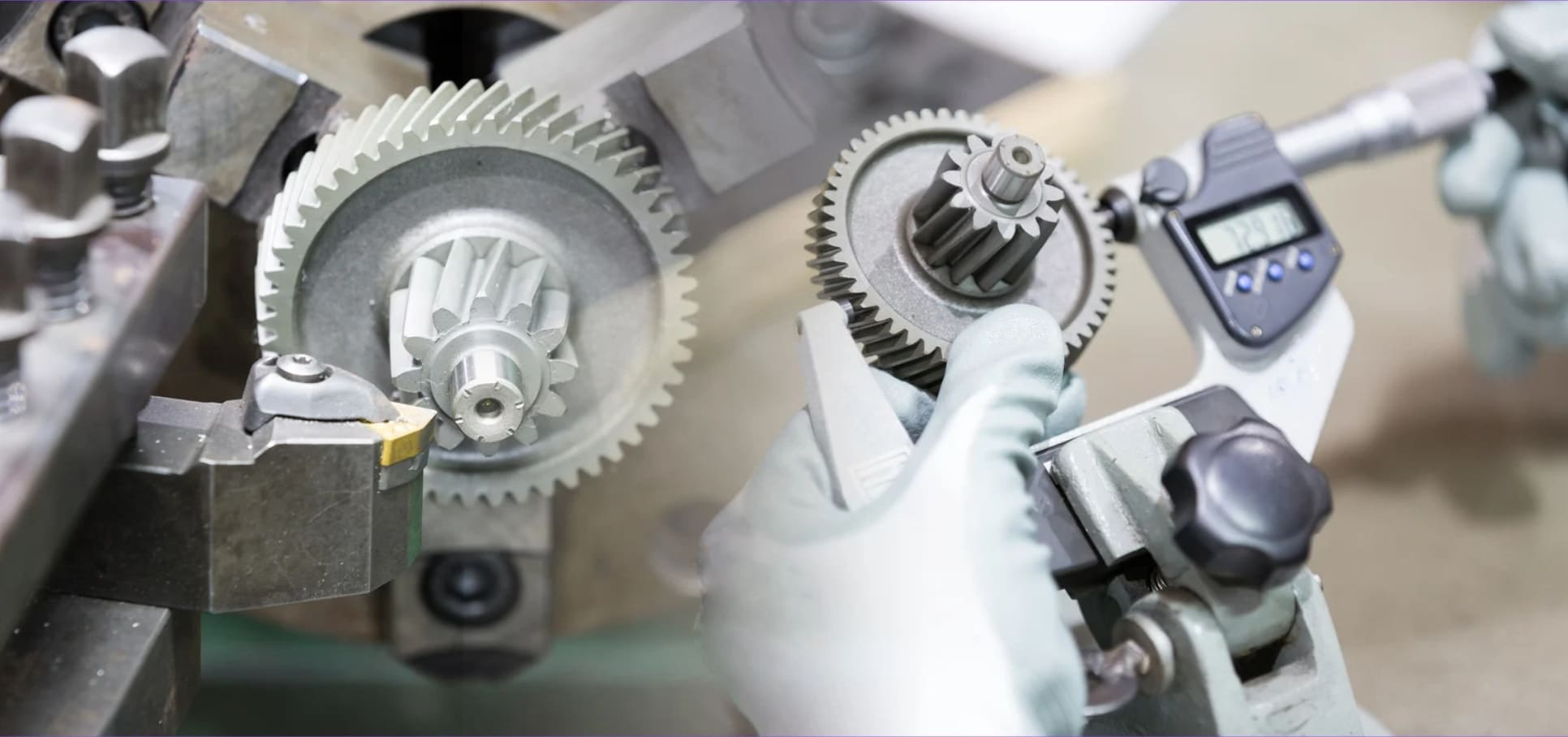

4. Span measurement

Another way to check the size and spacing of gear teeth is to measure their span. A special micrometer or regular micrometer pins measure multiple teeth. With this method, the tester counts how far apart the teeth are over a certain number of teeth.

This number changes based on the size and number of teeth on the gear. The number is then compared to values that have been worked out to be correct for a gear.

This method is helpful because it checks both teeth’ width and spacing simultaneously. The machine can find mistakes in cutting gears that a single-tooth check might miss.

5. In-process inspection

Gears are checked during the machining process, not just at the end. It is called “in-process inspection.” This method helps find problems early, reduce waste, and boost productivity. A lot of modern gear machining tools have measuring systems built right in. These can measure the gears while they are still on the machine.

If a problem is found, the machine can fix itself or alert an operator. As tools get better, in-process checking is becoming more common. It helps ensure quality is always the same and can reduce the need for lengthy final checks.

FAQs

1. What Materials Are Best for Gear Machining?

What gears are used determines the best gear machining materials. Steel is popular since it’s robust and durable. It’s great for industry and car gears because it can hold big loads and not wear down.

Another good choice is brass, especially for smaller gears. It doesn’t rust, and it is effortless to work with. Brass gears are often used in applications like clocks and electronic devices.

Plastics like nylon and acetal are lightweight and can operate quietly. They absorb stress and reduce noise, making them ideal for smooth operations. Composites and ceramics are advanced materials that can be used for specialized tasks.

2. What Are the Advantages of CNC Machining for Gear Production?

CNC (Computer Numerical Control) machining has some benefits in gear production. Precision is one of the main benefits. CNC tools can make gears with very tight tolerances. It means they will fit ideally in the jobs they were made for. High-performance machines need this precision since even slight errors might break them.

CNC machines can work nonstop and can handle complicated machining tasks. This speeds up productivity compared to traditional cutting procedures requiring more labor.

CNC machining also makes it possible to produce complex shapes and designs. These are procedures that might not be possible with other methods. This adaptability helps produce gears with specific features that meet specific needs.

3. Can 3D Printing Replace Traditional Gear Machining Methods?

3D printing has made notable strides in recent years. Whether it can replace traditional gear machining varies on the job. This process is excellent for prototyping and small batches. Rapid design modifications and customization are possible without expensive tooling. However, traditional machining processes are still the most common for large-scale output.

CNC machining produces gears that are stronger and more accurate. It is important for high-stress uses like aircraft and car parts. Standard-machining metals and other materials have better mechanical properties than 3D-printed ones.

In harsh conditions, 3D-printed gears often struggle with durability and wear. They might be unable to match the performance of gears cut the old-fashioned way.

4. Does Heat Treatment Affect Machined Gears?

Yes, heat treatment does have a significant effect on finished gears. In this process, the gears are heated to a specific temperature. Then, they are cooled down to alter their mechanical properties. Gears are harder and more potent after being heated. Hence, they are less likely to wear out or become worn out.

One popular way to heat-treat steel gears is by carburizing them. It is done by heating the gear and adding carbon to its surface. This process makes the outside tough while keeping the inside stronger. Therefore, it gives it the right mix of strength and toughness.

The gear may also better handle high temperatures and loads if heated. It is very important in places like car engines, where gears are under a lot of stress. When adequately treated, gears can make mechanical systems much more reliable.

Final Thoughts

Gear machining is integral to modern industry and is used in many fields. Gears are necessary for everything from small watches to huge industrial machinery. They make the transfer of motion and power work smoothly. Gear making is challenging; thus, modern manufacturing and quality control are essential.

Gear machining has distinct methods for different gear types and output needs. The field is constantly changing as technology gets better. It previously used standard cutting methods like hobbing and shaping. But now, it uses more modern techniques like powder metallurgy.

Gear machining will become increasingly crucial as industries want better, longer-lasting machinery. Its growth may inspire new ideas, from robots and renewable energy to cars and space travel.
