Picking the right plating type is very important for any project. Hard chrome plating and decorative chrome plating are two very famous plating types. Each of them has specific uses and benefits.
Today we will see the major differences between these two plating methods. We will look at the traits, pros and cons of each plating method and how to choose the right one according to your project’s needs.
What is Chrome Plating?
Chrome plating is an electrochemical process that deposits a layer of chromium onto a metal surface. This method improves the properties of a substrate and provides better corrosion resistance, aesthetic appeal and wear protection.
The process comprises sinking the object in a chromic acid electrolyte solution and applying an electric current. As a result, chromium ions stick to the surface and form a coating usually 0.05 to 0.5 μm thick based on the exact application requirements.

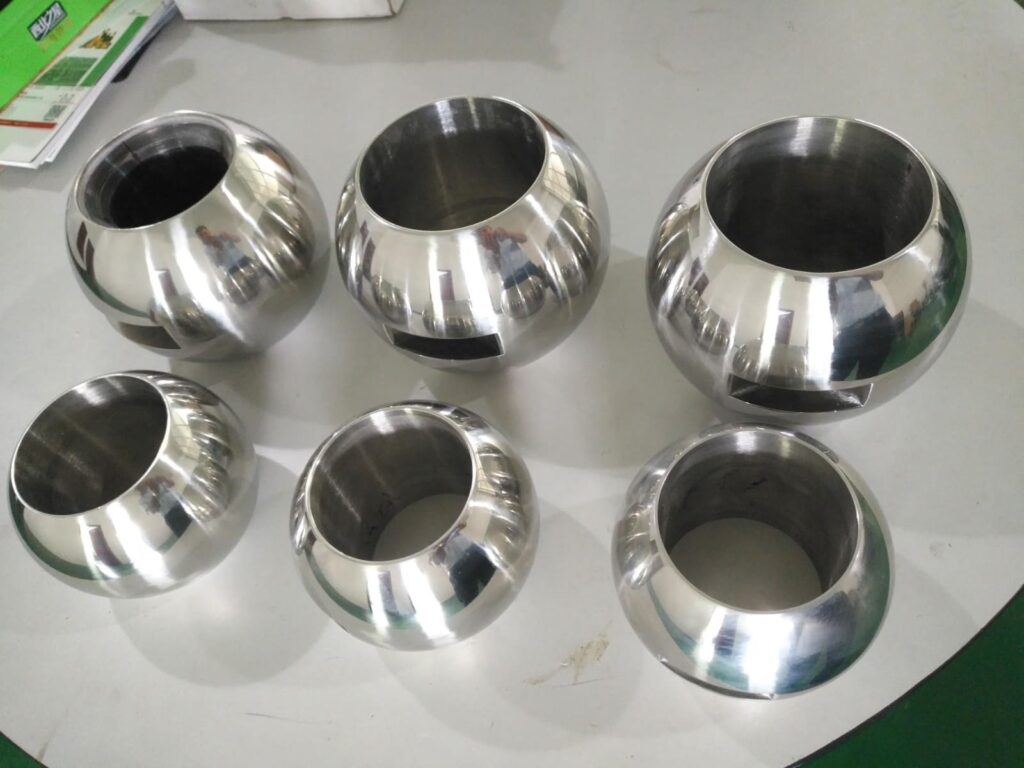

What is Hard Chrome Plating
Industries benefit from hard chrome electroplating which is a particular crafted plating method. This process applies a thick chromium layer to metal surfaces which increases their function and toughness. The resulting coating significantly decreases friction, gives better corrosion resistance and increases wear protection. These attributes make them best for parts used in demanding fields such as automotive and aerospace.
To get this sturdy coating, technicians sink the metal part in an electrolyte bath with chromic acid and catalysts. An electric current is then introduced that causes an electrochemical reaction. At 50 to 60 °C, the process bonds chromium ions to the substrate’s surface to form a hard and durable layer.
Properties
Hard chrome plating is notable for its extraordinary hardness which generally ranges from 68 to 72 HRC. Its low coefficient of friction (about 0.15) improves wear protection in different uses such as automotive engine parts and hydraulic cylinders. Its thickness is 0.020 to 0.127 mm that gives outstanding corrosion protection and it can withstand temperatures up to 400 °C. This makes it appropriate for industrial dies and molds.
Advantages of Hard Chrome Plating
Hard chrome plating provides many advantages for industrial uses:
- Dimensional restoration: Hard chrome can rebuild worn surfaces by up to 0.5 mm per side which allows for the refurbishment of expensive components like large industrial dies and molds.
- Low coefficient of friction: With a minimal friction coefficient, hard chrome reduces wear on moving parts like camshafts and engine valves, boosting overall efficiency.
- Exceptional wear resistance: The coating endures up to 150 hours in salt spray tests. This makes it perfect for components such as piston rods and hydraulic cylinders in heavy machinery.
Disadvantages of Hard Chrome Plating
Despite its many upsides, hard chrome plating has some limitations:
- Limited thickness: With a max thickness of 0.020 to 0.127 mm, this coating may not be enough for extreme wear scenarios in earth-moving machinery or mining gear.
- Environmental concerns: This method uses a hexavalent chromium that’s a popular carcinogen. It needs waste treatment and strict emission controls in plating setups.

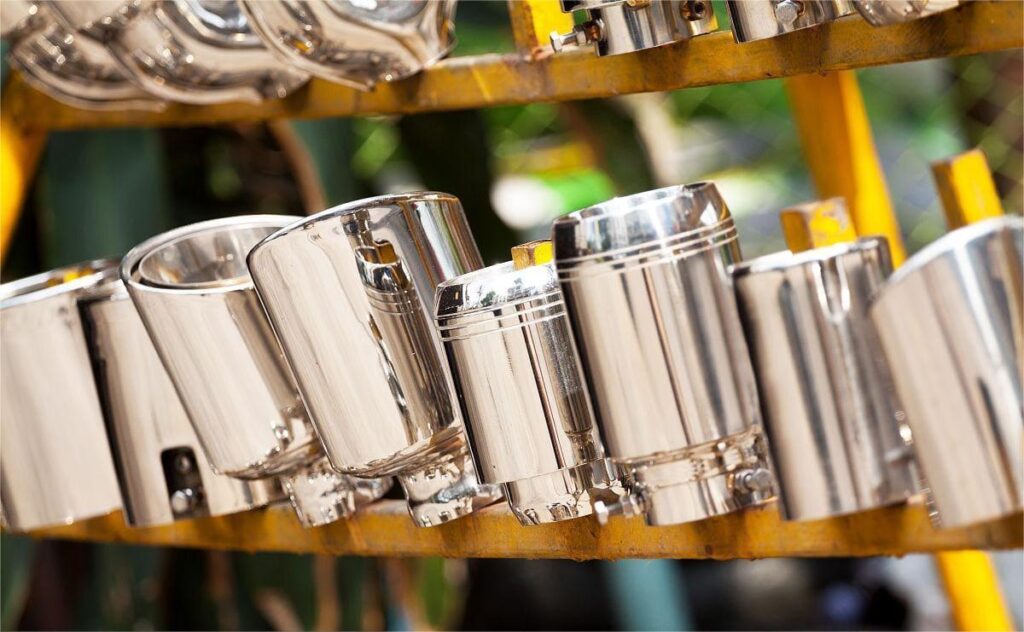

What is Decorative Chrome Plating?
An electroplating method that puts a thin layer of chromium over nickel plated substrates is called decorative chrome plating. After the application of coating, the visual appeal of parts increases. This coating also gives corrosion protection and wear resistance for user products, household items and car components.
The decorative chrome plating procedure usually comprises several steps: cleaning, copper plating, nickel plating and finally chrome plating. Every layer is electrodeposited one by one with the chrome layer measuring 0.020 to 0.127 mm thick. The nickel underneath helps in the reflectivity and smoothness of the final look.
Properties
Decorative chrome plating has a shiny mirror-like finish. Its thickness gives decent corrosion protection. The low coefficient of friction of coating improves durability of bathroom fixtures and car trim. Its reflectivity is more than 75% which makes it perfect for decorative operations in consumer jewelry and electronics.
Advantages of Decorative Chrome Plating
Now let’s discuss the benefits of decorative chrome plating.
- Corrosion resistance: The thin chromium layer protects underlying metals from oxidizing which extends the lifespan of things such as marine hardware and outdoor signs.
- Aesthetics: It gives a mirror like look which makes it best for car trim, device bezels and bathroom fixtures.
- Easy maintenance: The smooth surface and low coefficient of friction of decorative coating keep dirt from sticking. This makes the cleaning of plumbing and kitchen appliances easy.
Disadvantages of Decorative Chrome Plating
Decorative chrome plating also has some disadvantages:
- Environmental concerns: The plating process mostly uses carcinogenic chemicals which require strict controls and waste treatment in production setups.
- Limited durability: The thin coating (0.002-0.02 mil) can wear and chip. This occurs particularly in high stress applications such as frequently used door handles or car bumpers.
Key Differences between Hard Chrome Plating and Decorative Chrome Plating
Hard chrome plating and decorative chrome plating have different purposes. Let’s explore these contrasts, starting with the purpose and application.
1. Purpose and Application

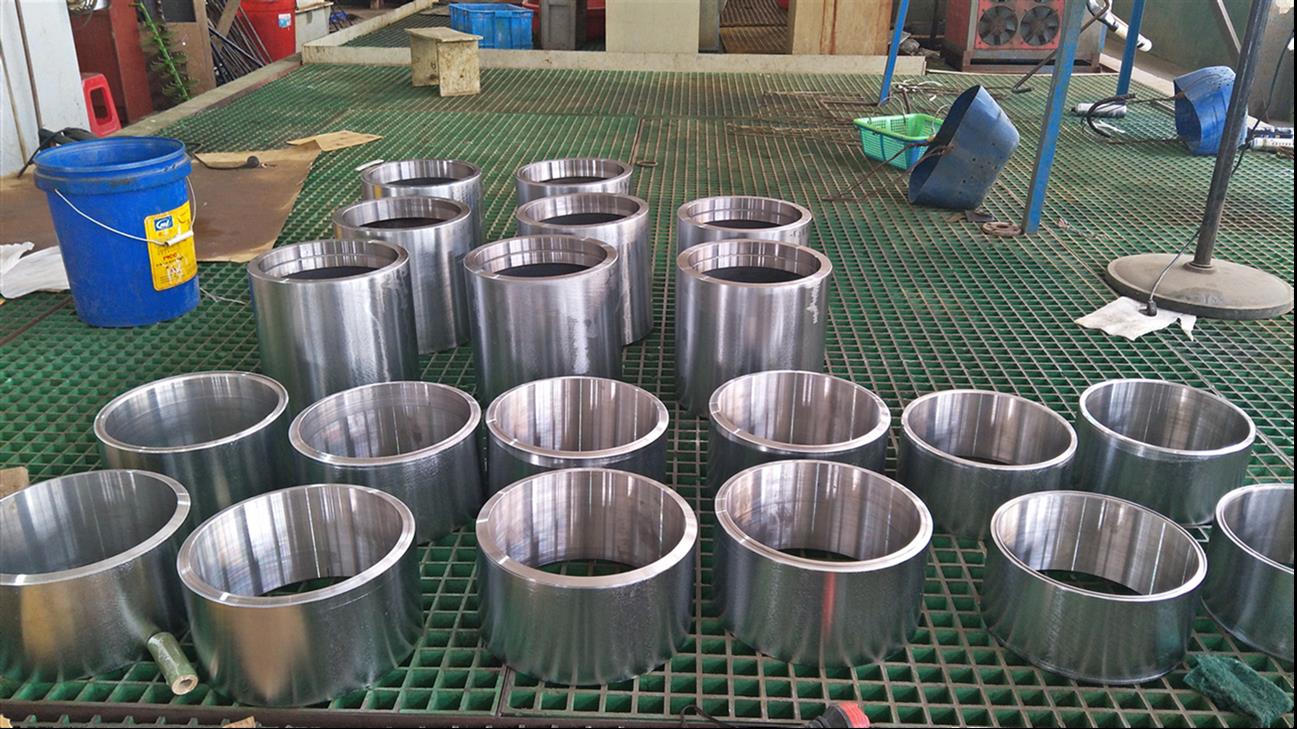

Industrial fields use hard chrome plating to increase durability and wear resistance. Its high Vickers hardness makes it best for parts such as hydraulic cylinders, engine parts and piston rods that experience high friction and stress.

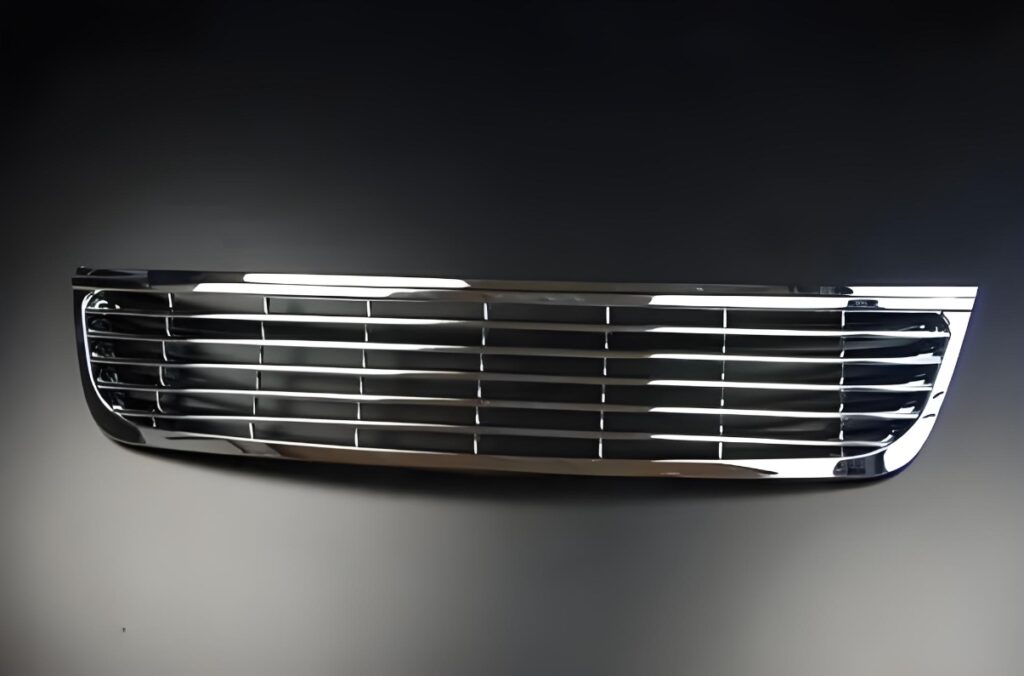

On the other side, decorative chrome plating focuses on aesthetic appeal. It gives a mirror like finish with over 75% reflectivity which makes it perfect for improving the look of different products. You’ll find decorative chrome coating on bathroom fixtures, consumer electronics bezels and automotive trim where visual appeal and moderate corrosion resistance matter.
2. Process and Thickness
The hard chrome plating process involves direct chromium deposition. This method generally uses higher 30 to 60 A/dm2 current densities and longer plating times. The result is a thick and durable 0.020 to 0.127 mm coating appropriate for industrial parts that need extreme wear resistance.
On the other hand, decorative chrome plating uses a multi-layer approach. Technicians first apply copper or nickel undercoats before adding a thin chromium layer. This process uses lower 5 to 15 A/dm2 current densities and produces a much thinner overall coating. The reduced thickness works for situations where looks matter more than durability such as bathroom fixtures and automotive trim.
3. Characteristics and Performance
Hard chrome plating has extraordinary hardness and wear resistance that makes it the top choice for industrial parts. Its low friction level promotes longevity in high stress conditions. On the other hand, decorative chrome shines with its attractive surface finish which gives corrosion protection and moderate hardness (66 to 70 on the Rockwell C scale).
On the basis of performance, hard chrome proves its strength in extreme circumstances. It can work at temperatures up to 400°C and withstand up to 150 hours in salt spray tests. While less strong, decorative chrome provides good surface beauty and gives adequate protection which makes it suitable for consumer goods where visual appeal is necessary.
4. Expense and Upkeep
The intricate process and thicker layers of hard chrome plating cost more, which is generally between $275.00 and $1500.00. However, its durability means low maintenance needs. Occasional checks are enough for high stakes uses such as hydraulic cylinders or engine parts.
Decorative chrome is a more budget friendly option and usually costs $1-$10 per square foot. But it needs more frequent maintenance. Users must clean it regularly and protect it from harsh chemicals to keep its attractive finish.
Choosing the Right Type of Chrome Plating
After looking at the differences between decorative chrome and hard plating, it’s very important to decide which option is best for your particular needs.
Application requirements
The main use of your part should guide your choice. Hard chrome plating is great for high stakes industrial settings such as engine parts or hydraulic cylinders where you need better durability and wear resistance. For aesthetic uses like car trim or bathroom fixtures, decorative chrome plating is appropriate.
Environmental conditions
Consider what conditions your plated part will work in. Hard chrome holds up in harsh environments. These can withstand higher temperatures and corrosive chemicals usually found in production setups. However, decorative chrome is suitable for moderate environmental conditions generally encountered in consumer products.
Cost Considerations
Consider both long-term costs and budget. While hard chrome plating requires a bigger investment initially, its longevity can save money for industrial uses over time. The more affordable decorative chrome is mainly the recommended option for broad scale consumer goods manufacturing where visual representation is very important.

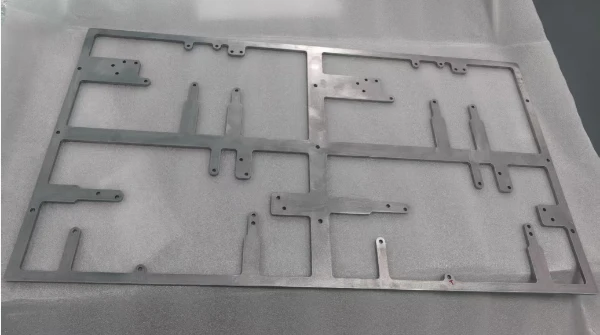

Case Study: Chrome-Plated SS400 Bracket
The article above establishes a clear division between hard and decorative chrome plating: hard chrome plating is great for high-stakes industrial settings such as engine parts or hydraulic cylinders where you need better durability and wear resistance, while decorative chrome plating is appropriate for aesthetic uses like car trim or bathroom fixtures. What that comparison does not fully address is the manufacturing challenge that arises when chrome plating is applied to a thin, dimensionally critical component — where the plating process itself can undo the flatness that was achieved during machining. The following case from Richconn’s engineering team documents exactly that situation.
- Part: Bracket
- Industry: Automation Equipment
- Material: SS400 Steel with Chrome Plating
- Process: Laser Cutting + CNC Gantry Milling + Manual Straightening + Post-Plate Correction
- Quantity: 3 pieces
The Challenge
This automation bracket had a wall thickness of just 5 mm — thin enough that cutting forces during machining caused the part to flex and distort under the tool. The customer’s requirement was a surface flatness of 0.05 mm across the machined faces, which is a tight specification for a part this thin.
The distortion mechanism is straightforward: when a thin plate is clamped and milled, the tool exerts lateral and downward forces on the workpiece. In a thick section, the material’s own stiffness resists these forces and the part holds its geometry. In a 5 mm section, the material deflects under the tool, springs back when the cut is complete, and the finished surface reflects that deflection as a flatness error. The thinner the part, the more pronounced this effect.
Chrome plating adds a second challenge on top of the machining one. The electroplating process involves immersing the part in an acid bath and passing current through it, which introduces heat and internal stress into the substrate. On a thin part that has already been carefully straightened to 0.05 mm flatness, the thermal and stress effects of plating can cause the part to move again after plating — potentially pushing it back outside tolerance after all the machining work has been done.
The Solution: Four-Stage Process Sequencing Distortion Before and After Plating
- Laser cutting of the outer profile, leaving 0.5 mm internal cavity stock — The outer profile was cut by laser rather than machined, which avoids introducing cutting forces into the part during contour formation. The internal cavities were left with 0.5 mm stock for subsequent CNC finishing. Starting the process with laser cutting gives the part its near-net shape with minimal mechanical stress applied to the thin walls before any precision machining begins.
- CNC gantry milling of outer profile and internal cavities to final dimensions — A gantry-format CNC mill was selected for its rigidity and its ability to support the part across a large work envelope without introducing additional setup-transfer error. Both the outer profile and internal cavity features were machined to finished dimensions in this operation, with toolpaths and cutting parameters selected to minimize lateral cutting force on the thin walls.
- Manual straightening to achieve flatness within 0.05 mm — After CNC milling, the part was manually straightened using press correction to bring flatness within the 0.05 mm requirement. This step acknowledges that CNC machining alone, on a 5 mm thick part, will not reliably deliver 0.05 mm flatness in a single operation. Manual straightening provides the final geometric correction before the part goes to plating.
- Post-plate straightening correction — After chrome plating was applied, the part was straightened again. This post-plate correction step is the key process insight in this case: the team anticipated that plating would introduce additional distortion and planned a correction step after plating as a standard part of the process, rather than treating post-plate distortion as an unexpected failure. By building this step into the sequence, the final delivered flatness was reliably within 0.05 mm regardless of what the plating process contributed.
The Result
All three brackets were delivered with smooth tool marks on both the outer profiles and internal cavities, and flatness within 0.05 mm on all required surfaces. The chrome plating was applied successfully and the dimensional requirements were fully met after post-plate correction.
What This Case Illustrates
Chrome plating — whether hard or decorative — is not a neutral finishing step on thin parts. It introduces heat and stress that can distort a part that has already been brought into tolerance. For a bracket at 5 mm thickness with a 0.05 mm flatness requirement, treating plating as the final step and expecting the pre-plate geometry to survive unchanged is not a reliable process strategy.
The solution here is not a new material or a more capable machine — it is a process designed around the reality of how thin steel and chrome plating interact. Laser cutting minimizes early-stage stress. Gantry milling provides rigidity. Manual straightening corrects what machining cannot fully control. And post-plate correction fixes what plating undoes. Each step addresses a specific, known source of geometric error in sequence. For engineers specifying chrome plating on thin structural components, the lesson is direct: plan for post-plate dimensional correction before the part goes into production, not after the first batch comes back distorted.
Conclusion
In short, the choice between hard chrome and decorative chrome plating is based on your particular needs. Hard chrome plating is best for industrial uses that require durability and wear protection. On the other side, decorative chrome plating is outstanding in improving visual appeal.
Select hard chrome for demanding settings and decorative chrome when visual appeal matters most. Think about your particular requirements, budget and environment when choosing a chrome plating method for your project.
FAQ’s
1. How does decorative chrome plating enhance the appearance of consumer products?
Decorative chrome plating gives consumer products a mirror-like, smooth finish. It makes them super reflective and shiny.
2. Are there significant cost differences between hard chrome plating and decorative chrome plating?
Yes, hard chrome plating costs way more than decorative one. It’ll cost you about $275 to $1500. Decorative chrome plating is way cheaper generally $1-$10 per square foot. The price gap comes from differences in thickness and how complex each process is.
3. How do the durability and maintenance needs of hard chrome plating compare to those of decorative chrome plating?
Hard chrome plating shines in durability. It can endure many years even in rough industrial conditions. And it requires minimal upkeep beyond occasional checks. Conversely, decorative chrome plating is less durable and needs more regular care which includes routine cleaning and reapplying protective coatings every 1-2 years to preserve its glossy look.
