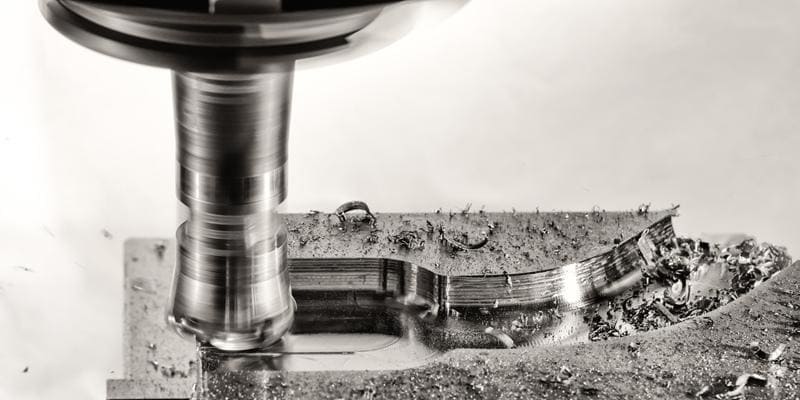

High‐speed CNC machining has completely changed advanced manufacturing. It permits you to make parts faster without compromising accuracy. Industries depend on advanced cutting tools & techniques to get better surface finishes, precise tolerances as well as excellent performance. That is why this method is now important in today’s competitive manufacturing environment.
What is High‐Speed CNC Machining?
In high‐speed CNC machining you operate CNC machines at higher feed rates & spindle speeds. This improves quality and decreases cycle times of finished surfaces. You obtain accurate & fast machining of complex components by using precise programming, better tool paths as well as high‐quality tooling.
High‐Speed CNC Machining Methods
Radial Chip Thinning
Radial chip thinning involves reducing the depth of the radial cut. This allows you to increase feed rates without putting additional load on cutting tool. As a result the chip load remains even & perfectly distributed.
Trochoidal Milling
Trochoidal milling uses a looping tool motion with small radial depth cuts. This technique allows you to maintain high feed rates and generates less heat. It works well for machining rigid materials & deep pocketing as it decreases cutting forces and enhances chip evacuation.

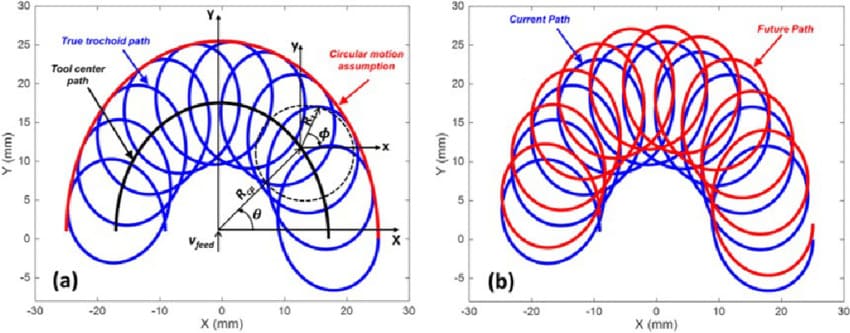

(a) True trochoidal path of the tool tip and comparison of the outer manifold with conventional trochoidal milling; (b) tool tip path of the current and future trochoid.
Plunge Milling (Z‐Axis Milling)
Plunge milling cuts vertically into the intended workpiece material. It is especially useful for machining hard materials or deep cavities. Since lateral forces are reduced, your cutting tools last longer and remain stable.
Cornering Techniques
Cornering techniques involve rounding inside corners & managing tool paths. Doing so decreases sudden changes in direction during machining. As a result you maintain tool durability, reduce vibration as well as guarantee smooth movements at great speeds.
Adaptive Clearing (High‐Efficiency Milling)
In Adaptive Clearance the CAM software constantly keeps track of tool engagement. It adjusts tool paths as needed to keep cutting forces uniform. You will see longer tool life and lesser cycle times particularly during rough machining of complex components.
Advantages of High‐Speed CNC Machining
Increased Accuracy and Precision
High‐speed machining uses stable cutting forces along with accurately configured software algorithms. This combination guarantees good dimensional stability. This accuracy is very important in industries such as medical & aerospace where consistent accuracy and tight tolerances are essential.
Enhanced Productivity
With properly refined feed rates and higher spindle speeds, machining times are greatly reduced. You can make more parts in less time which improves delivery schedules and enhances total productivity.
Prolonged Tool Life
Techniques like adaptive clearing & radial chip thinning keep chip loads uniform. This uniformity decreases wear on your cutting tools. By increasing life of expensive tools you reduce your overall tooling costs with time.
Better Surface Finish
Greater operating speeds result in a smoother finish on machined surfaces. Burrs & Tool marks are minimized which decrease the need for extra processes such as polishing or grinding to save valuable production time & labor.
Minimizes Material Waste
Accurate cutting methods reduce the danger of defective parts & errors. This decreases scrap production. Better utilization of unprocessed materials helps you reduce material expense and increase manufacturing efficiency.
Energy Efficiency
Even though high‐speed machining increases spindle rotation speed, it greatly reduces overall machining time. As a result energy consumption per component is reduced. This decreases operational costs and matches sustainability goals.

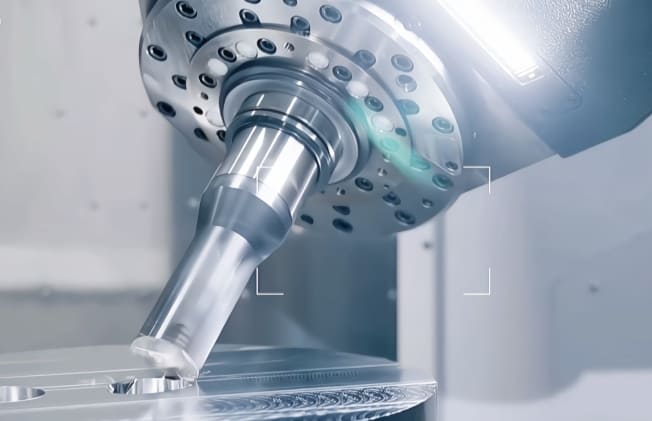

Limitations in High‐Speed CNC Machining
Machine Tool System Response
Machines that perform high‐speed CNC machining must have excellent structural rigidity and stability. Without proper damping, backlash & vibrations can badly affect your surface finish and dimensional accuracy.
To guarantee uniform performance at high speeds, manufacturers use vibration damping materials, linear motors as well as high‐resolution feedback systems in high‐speed CNC Machines.
Heat Generation and Management
When cutting speeds become too high then considerable heat builds up between your workpiece & tool. If this heat is not correctly managed it can lead to deformation in workpiece, thermal expansion as well as increased tool wear.
To properly handle this problem you require a better cooling system. Minimum quantity lubrication (MQL) systems as well as high‐pressure coolants are useful for managing heat formation during machining operations.
Tool Wear and Selection
Tools encounter harsh frictional forces & fast engagement during high‐speed machining.
To face these situations your tool choice should contain high‐grade materials such as coated carbide, ceramics as well as polycrystalline diamond (PCD).

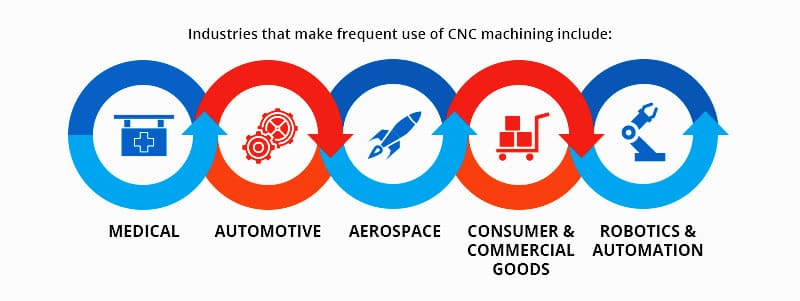

Applications of High-Speed CNC Machining in Various Industries
Automotive
In automotive manufacturing, mass production relies largely on repeatability and speed. High‐speed CNC machining lets you quickly make dies, molds as well as engine components such as cylinder blocks & heads. Better surface finishes & short machining cycles decrease post‐processing labor which reduces time‐to‐market and increases your factory’s productivity.
Aerospace
Employing lightweight materials & accuracy is necessary in aerospace production which makes high‐speed CNC machining particularly crucial.
Aerospace parts like wing ribs, engine housings, ball bearings as well as brackets usually need tight tolerances and intricate geometries. High‐speed machining smoothly processes difficult alloys such as Inconel & titanium that give you the ability to speed up aircraft manufacturing cycles.
Electronics
Miniaturization is a fundamental demand in electronics production. High‐speed CNC machining fulfills this requirement by manufacturing enclosures, connectors, sensor housings as well as cooling parts with micron‐level precision. It supports manufacturing of personalized components and rapid prototyping using materials such as copper, aluminum & engineering plastics.
Medical Devices
The medical field focuses on improved surface quality and accuracy in manufacturing procedures. High‐speed machining gives you the ability to create surgical instruments, detailed implants, dental devices as well as orthopedic tools with cleanliness and great accuracy.

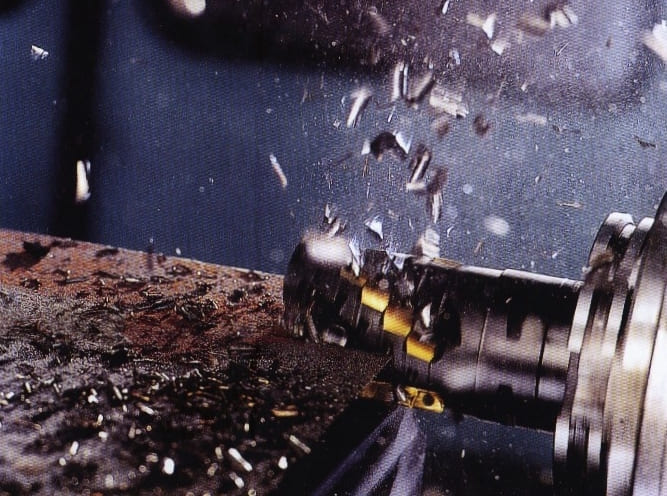

Best Practices for Using High‐Speed Machining
Tooling Requirements
The performance of high‐speed machining relies largely on picking appropriate tooling.
Pick cutting tools made from ceramic, carbide or polycrystalline diamond (PCD). They resist abrasion & heat easily.
Tool geometry should also be calibrated for high‐speed tasks. Precise helix angles and sharp cutting edges help to remove chips with ease. This increases cutting accuracy, decreases cutting forces and thus increases tool life.
Machine Selection and Maintenance
The CNC machine you use directly affects the performance of high‐speed machining.
Give your first preference to those machines whose spindles can operate at 2000 RPM or more. Low backlash and thermally stable frames are also important. These features make sure of smooth and precise movements at high speeds. Moreover right maintenance of the chosen machine guarantees continuous high‐speed operation.
Software & Programming
Latest CAM software is important for productive high‐speed machining. Software features such as radial chip thinning, adaptive clearing as well as tool path simulation are necessary. These capabilities reduce instant load changes and preserve uniform engagement of cutting tools. As a result productivity is enhanced and machining time is improved.
To Sum Up
By pairing speed with accuracy, high‐speed CNC machining has a big effect on industrial production. The right integration of it decreases material waste and lessens manufacturing cycles. It also increases quality of finished surfaces. High‐speed machining encourages continuous advancement and allows manufacturers to remain competitive in main industries such as automotive, aerospace, electronics, medical, etc.
Related Questions
Are special machine tools needed for high‐speed CNC machining?
Yes. High‐speed machining needs special machine for getting accurate mechanical tolerances, high speeds as well as modern control systems.
How is high‐speed CNC machining not similar to traditional CNC machining?
High‐speed CNC machining uses greater feed rates & higher spindle speeds. This results in better surface finishes, lesser cycle times and greater accuracy.
What is the relationship between chip load & high‐speed machining?
Maintaining proper chip load is very important to cutting performance & tool life. Techniques such as chip thinning help to properly control chip formation at high feed rates.
Is high‐speed CNC machining good for prototyping?
Yes. High‐speed machining permits detailed prototyping as well as fast iteration cycles which is necessary for prototyping.
Is it possible to upgrade present CNC machines for high‐speed machining?
Little upgrades –such as better control software or spindle replacement – are possible. However complete machine renewal is usually recommended.
