In different manufacturing processes, high speed machining has made many improvements. The process provides better dimensional precision and increased MRR (material removal rates). In this blogpost we will cover primary techniques, practical uses, and critical considerations for high-speed machining. But at first we will tell you what high speed machining is.

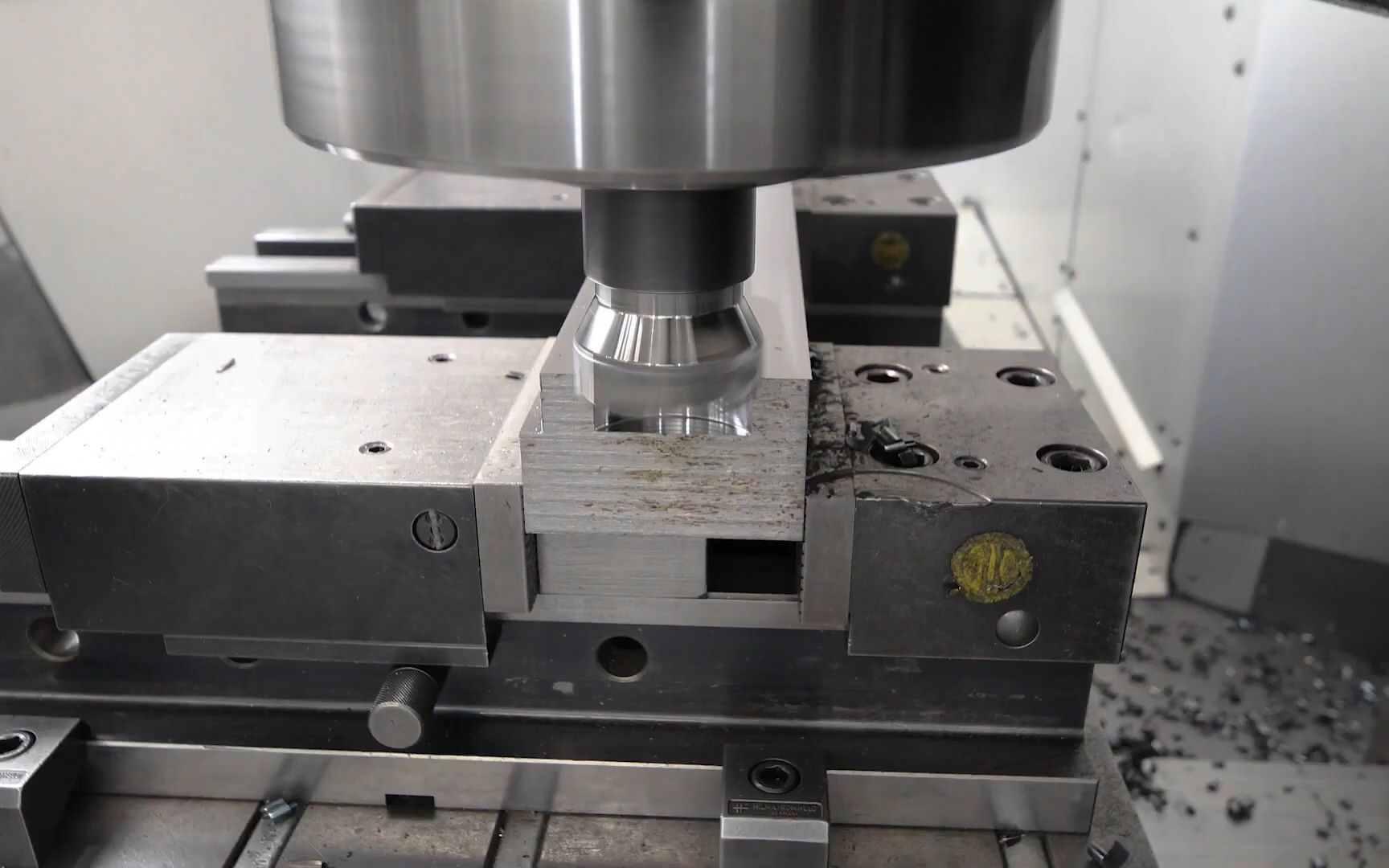

What is High Speed Machining (HSM)?

High speed machining is a modern production method which removes material very quickly through fast and light cutting. It uses special cutting tools and speeds of up to 15,000 rpm. Also, for this machining we have to plan the toolpath very carefully.

Core CNC High-Speed Machining Techniques

Adaptive Clearing

This is a machining procedure that provides maximum material removal while keeping tool load balanced. The cutting path of the system is changed based on thickness of the material. In thinner areas, it cuts deeper and in thicker cases, it reduces depth. This approach prolongs tool life and accelerates the machining process.

Constant Scallop Height Machining

Constant Scallop height machining usually aims to achieve uniform surface finish by keeping the same step over between passes. The method computes tool paths that guarantee equal scallop heights which in turn leads to uniform and smooth finishes independent of part geometry. It adapts automatically to surface curvatures and removes over machining in steep regions.

Trochoidal Milling

In this technique, circular tool paths with simultaneous forward movement are used to mill slots wider than the cutter diameter. It offers outstanding MRR because of minimum radial engagement and high axial depth. The method is particularly effective with tough materials such as Inconel and titanium.

Optimization of Feed Rate and Spindle Speed

Optimal Parameters Determination

Two critical formulas are used to calculate optimal parameters. First is the feed rate (IPM) = RPM × Number of Teeth × Chip Load. Second is spindle speed (RPM) = (cutting speed × 3.82)/Tool diameter. Besides that specific cutting speeds also depend on material properties—aluminum needs 300–1000 SFM and for titanium it’s between 30 and 60 SFM.

Impact on Surface Finish and Tool Life

Both surface quality and tool longevity are affected by the feed rates and speed. A faster cut will produce a larger amount of heat and thus, the cutting tool will wear out quickly. On the other side, lower feed rates result in smoother surfaces but they can cause too much tool friction and heat buildup.

Application of High Speed Machining

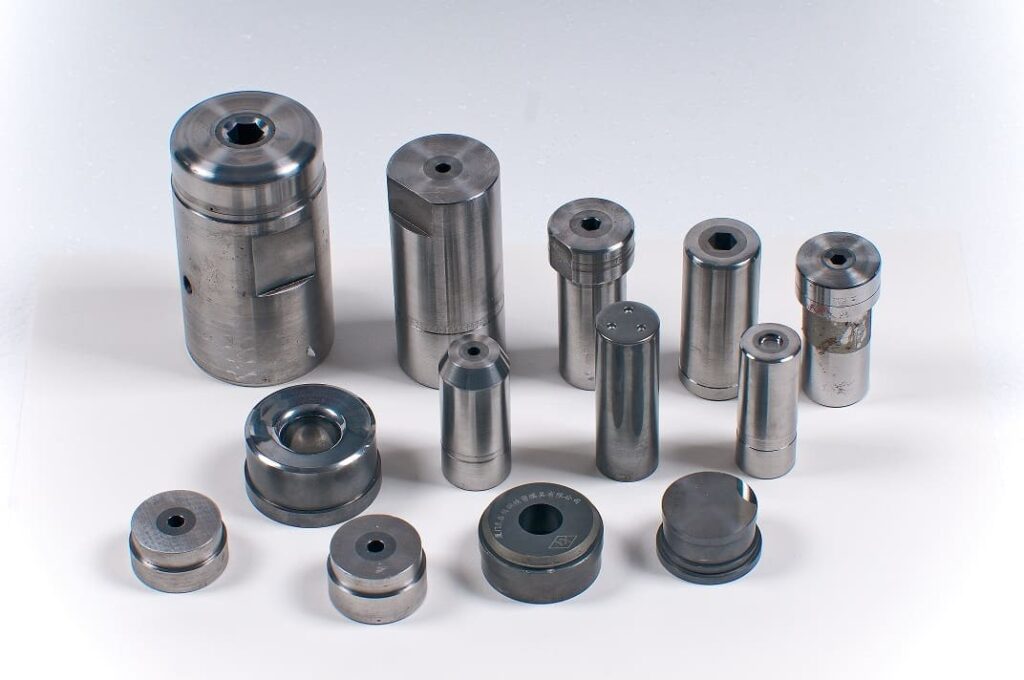

Die and Mold Making

High speed machining is used in die and mold making for manufacturing mold cavities, core inserts, prototype tooling and hardened tool steel products. High spindle speeds and small radial cuts allow the process to produce excellent surface finishes. Besides this it also eliminates the need for EDM operations and manual polishing.

Medical Devices Manufacturing

Surgical instruments, orthopedic devices, microsurgical tools, medical device prototypes and implants are produced using high speed machining. The process allows smooth surfaces as well as strict tolerances for implants. It is necessary for device functionality, and patient protection.

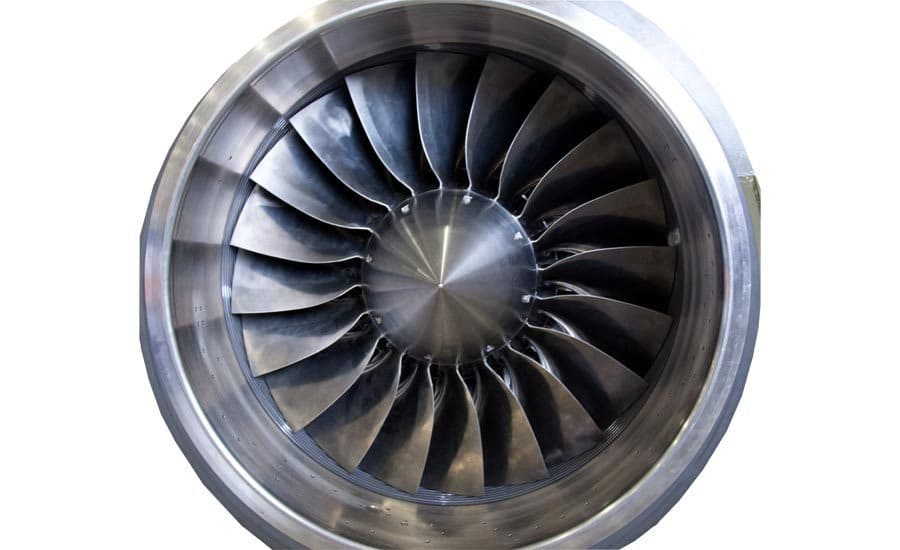

Aerospace Industry

High speed machining is crucial for fabrication of critical components in aerospace sector. Wing skins, bulkheads, landing gears, casings of engine and turbine blades are all made by using high speed machining. This method is great at dealing with difficult metals such as Inconel and titanium. It reduces heat buildup, tool wear and thus helps to maintain the structural integrity of these important parts.

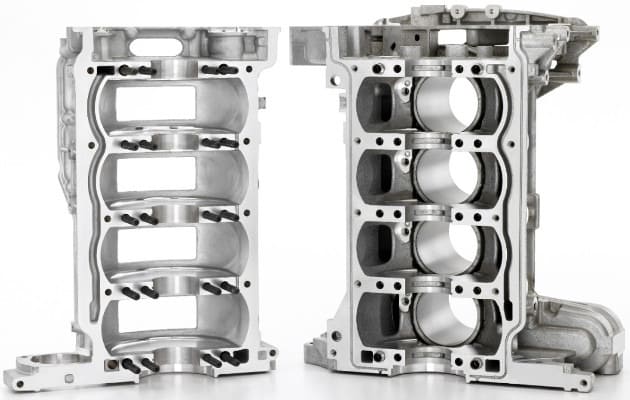

Automotive Industry

Transmission parts, engine blocks, cylinder heads, turbocharger parts and suspension components are made by high speed machining. The fast and accurate material removal results in better part’s quality and shorter production cycles.

Considerations for Implementing High-Speed Machining

Machine Tool Selection

The first thing you have to look at is what machine tool you want to choose. For ideal performance, your tool must provide stability, retain precise control and offer high spindle speeds.

Machine Rigidity and Damping

You need a stable, rigid machine with dynamic stiffness of >50 N/μm if you want to avoid inaccuracies in the final part. In addition, damping systems are also important to eliminate vibrations. So pick machines made of reinforced joints and hybrid composite materials in order to decrease vibration at high speeds.

Spindle Capabilities

You have to choose a spindle, which spins fast at high rotational speeds and will not compromise accuracy. So choose direct drive spindles because they spin faster and more proficiently. Furthermore, you can also use hybrid ceramic bearings and oil air lubrication setups for best HSM performance.

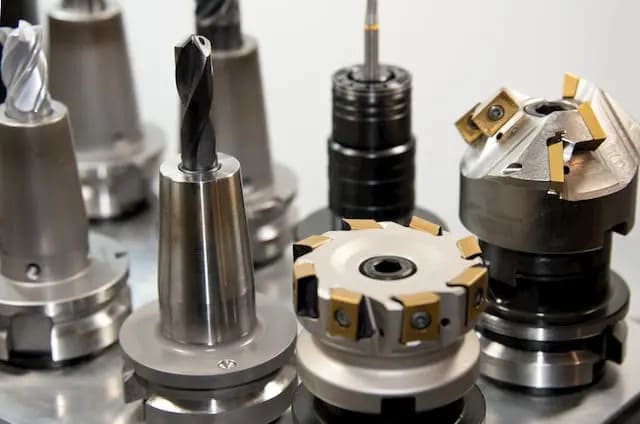

Tool Material and Geometry

For high speed machining tasks you should choose right tool material and geometry. Carbide or ceramic are the kinds of material which can endure high cutting rates even if they exceed 15,000 RPM. The machining results depend directly on tool design features such as rake angle and flute count.

Thermal Management

The heat generated in high speed machining can damage tools and workpieces. You should therefore incorporate cryogenic cooling, or high pressure coolant setups operating at pressures of 1000+ PSI to the cutting zone. These systems remove chips from the cutting zone very promptly, reduce tool wear and avoid overheating.

CAM Software and Programming

You should use advanced CAM software that works on surface based calculation instead of triangular mesh. This software will allow you to make toolpaths as proficient as possible depending on the tool and material you use. Automatic feature recognition should be implemented to automatically find a given type of feature on a part, for example a pocket or a hole. It makes the programming phase shorter as manual input is no longer required.

Vibration and Chatter Control

You need to install hydraulic expansion toolholders and hydrostatic guideways to keep the tool fixed in place and absorb the vibrations. Moreover, the accelerometers in real time monitoring systems can detect the chatter at speeds above 20,000 RPM. Afterwards, they modify the spindle speeds and keep the tool engagement paths constant.

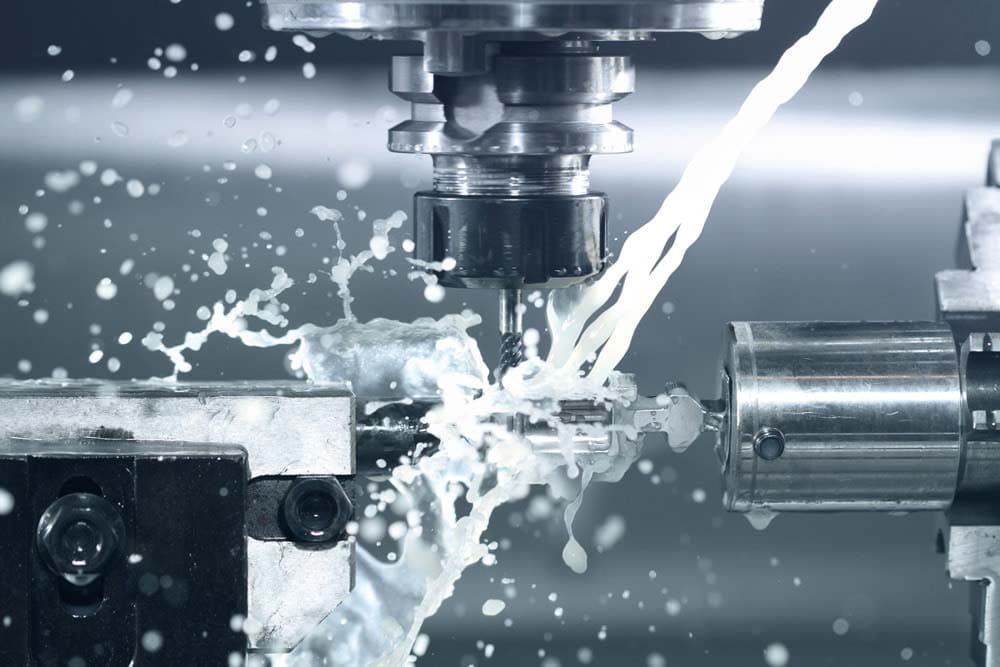

Cutting Fluid and Lubrication

The choice of cutting fluid you use is very important to cool both the workpiece and the tool. For speeds above 100 m/min, water based emulsions give excellent cooling. You need to use high-pressure delivery systems to guarantee constant coolant flow. So it can work properly to lubricate and cool the cutting zone.

Benefits of High Speed Machining

High-speed machining mainly reduces cutting forces, which prevents tool wear. It increases the lifetime of the tools and decreases the number of tool changes.
It produces outstanding surface finishes with Ra values down to 0.2μm. This is due to the combination of minimum tool contact and lower chip loads. The fast spindle speeds decrease cutting forces and generate lesser chips. So there is no need for secondary finishing operations.
HSM improves production by removing materials quickly and decreasing the cycle time of the process at speeds beyond 15,000 RPM. This way, it not only improves total output but operational proficiency too.

Challenges of High Speed Machining

HSM has large initial costs associated with dedicated specialized equipment—i.e. fast speed spindles, precision tooling and latest CNC controls. Sometimes that initial financial burden is a barrier.
Machines and tools used in the high speed machining experience high rate of stress. Because of this, they need frequent monitoring and maintenance to assure lasting performance.

To Sum Up

High speed machining (HSM) is big step forward in industrial technology. Complicated control systems, advanced tooling and optimized cutting settings are integrated together in order to provide outstanding productivity and precision. The initial costs are high but the benefits it gives are even better like better surface finishes, longer tool lifespan and shorter production cycles.
