Modern CNC machines rely heavily on high-speed motor spindles to achieve superior part quality and greater productivity. Knowing how these spindles operate and where they belong in the machining process can give you an edge in a competitive field. Therefore in this guide we will cover the main types of spindles, highlight their top benefits and explain what tasks they handle best.
What is a Motor Spindle and what makes it “High Speed”
A motor spindle is the part that rotates, and holds either a cutting tool or a workpiece in a machine tool. It combines both the motor and the spindle shaft into a single, compact assembly. This design increases precision and efficiency.
When a spindle is called “high speed,” it usually means it can spin at 10,000 RPM or more. Some high-speed models can reach up to 100,000 RPM for tasks that need extreme precision.Manufacturers design high-speed spindles for excellent dynamic balance and low inertia. They use advanced bearings such as hybrid or ceramic types and add features like improved cooling and precise balancing. These choices help reduce vibration. As a result high-speed spindles deliver faster, smoother cuts and are crucial for machining that demands high accuracy.
Main Types of High Speed Motor Spindles
No single high-speed motor spindle suits every situation. Manufacturers classify these spindles according to drive design, bearing system and target speed range. Knowing these categories makes it easier to match a spindle to particular production requirements.
By Drive & Construction Method
Belt-Driven Spindles
This type uses an external motor that connects to the spindle with a belt. It delivers high torque, making it suitable for heavy cutting. The initial cost is often lower. However the belt can restrict both precision and speed.
Direct-Drive or Motor-Integrated Spindles
In this type, the motor sits inside the spindle housing. There are no gears or belts involved. This arrangement allows for greater precision, higher speeds, with less vibration. The compact build also enables a faster dynamic response.
Hybrid Types & Modular Spindles
Hybrid versions pair an integral motor with gear reduction to balance speed and torque. Such units can reach 24,000 RPM and still keep oscillation low.
Modular spindles can be adjusted or reconfigured to fit particular tasks.
By Bearing & Support Technology

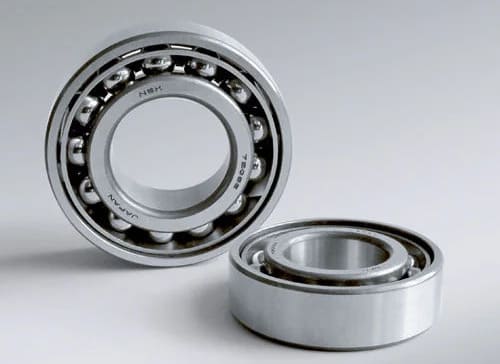

Angular Contact Ball Bearings
Angular contact ball bearings (mostly hybrid or ceramic types) appear in many high speed CNC spindles. Their geometry accommodates speeds beyond 20,000 RPM while maintaining high accuracy and quiet operation.
Liquid or Hydrostatic Bearings
Hydrostatic design of these bearings float the spindle shaft on a pressurized oil film. This way no metal surfaces touch each other and therefore damping and stiffness rise dramatically. This is why manufacturers pick them for ultra-precision grinding and similar work.

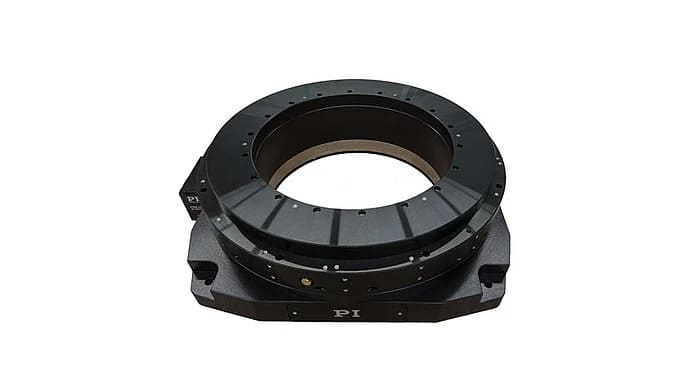

Air Bearings
A thin layer of pressurized air supports the spindle in air bearings. This allows for very high speeds and keeps vibration to a minimum. These bearings provide high stiffness and low error motion which is needed for precision scanning and diamond turning.

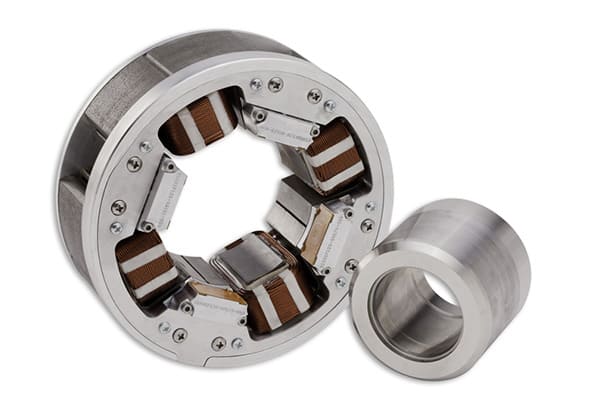

Magnetic Bearings
In this type, strong electromagnetic fields support the spindle shaft without any physical contact. These bearings perform well for micro-milling at speeds above 60,000 RPM and for machining advanced composites. They also reduce wear and decrease maintenance requirements.
By Application / Speed Band
Standard High-Speed
These spindles run at speeds from 10,000 to 30,000 RPM. They work well for general machining including drilling, milling and finishing. You will find them handling common CNC tasks in industries like automotive, aerospace and mold making. They support small tools and help achieve faster cycle times.
Also See: Difference between CNC Milling and Turning
Ultra-High Speed / Micro-Machining
Ultra-high speed spindles operate between 30,000 and 60,000 RPM and sometimes even higher. They are best for micro-drilling, mold finishing as well as for medical devices and dental manufacturing. With these spindles, you can get sub-micron detail and they reduce the need for manual polishing as well.
By Drive Motor Type
AC Induction Motor Spindles
AC induction motor spindles rely on a traditional asynchronous motor. The rotor moves because of an induced magnetic field, not permanent magnets. This design makes them cost effective and common for general machining tasks.

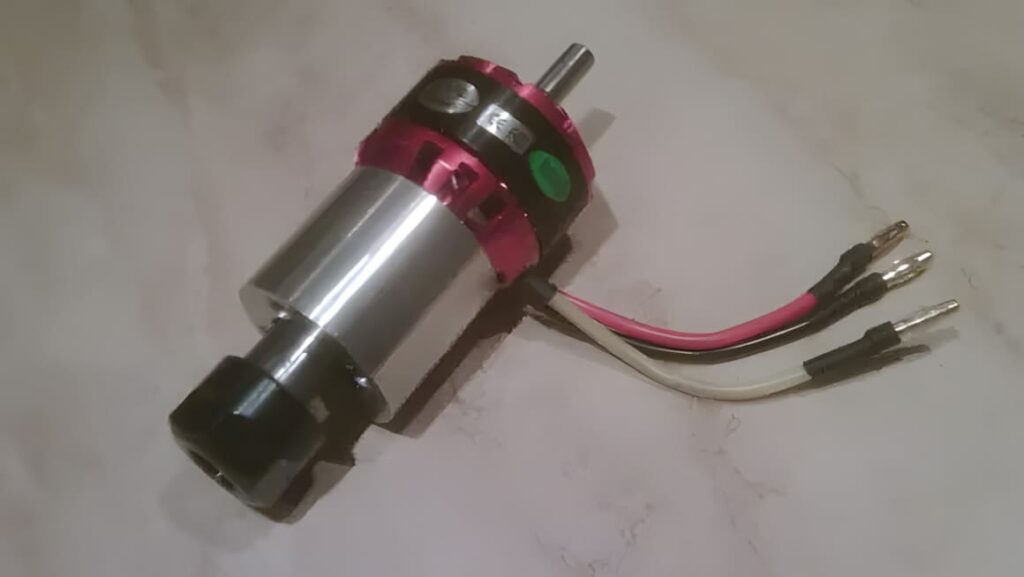

Brushless DC or Permanent Magnet Motor Spindles
These spindles use permanent magnets on the rotor and do not need brushes. The design allows higher speeds, better efficiency and provides more precise control. They are well-suited for ultra-precision and dynamic cutting applications.
Summary Table & Comparison
The following summary table compares the main types of high-speed motor spindles. It lists their main features, typical applications and relative costs.
| Spindle Type | Main Features | Best Uses | Cost & Complexity |
|---|---|---|---|
| Belt-Driven | High torque at low speeds and external motor. | Heavy cutting & general machining. | Low & Simple. |
| Direct-Drive | High RPM & stability; integrated motor. | High-speed finishing & precision work. | High & Moderate. |
| Angular Contact Bearing | Good speed and rigidity | General high-speed machining. | Moderate & Moderate |
| Hydrostatic/Liquid Bearing | Outstanding damping & load capacity and fluid film support. | Micro-machining & precision grinding. | High & High |
| Air Bearing | Near-frictionless, extreme RPM and non-contact air cushion. | Extreme RPM & precision applications. | High & High. |
| Magnetic Bearing | Zero-contact levitation; highest precision and speeds. | General purpose applications. | Very High & Very High. |
Main Benefits of High Speed Motor Spindles
Faster Cycle Times and Higher Metal-Removal Rates
When a spindle runs at high speed, cutting happens very fast—sometimes reducing cycle time by 60%. Tasks that formerly lasted hours can therefore wrap up in minutes. This raises throughput and helps teams satisfy tight delivery targets.
Better Surface Finish & Accuracy
With higher spindle speeds, you can get surface finishes as fine as 0.8μm Ra. Often, this removes the need for extra polishing steps. Similarly, good spindle balance and less vibration also help keep tolerances within ±0.005mm during detailed machining.At RICHCONN, our CNC processes often reach Ra 0.6-0.8μm on aluminum using spindles above 20,000 RPM. Most applications do not need secondary finishing.
Also See: A Complete Guide to Surface Finish in Manufacturing
Flexibility & Capability to Handle Different Materials
With high-speed capability, operators can tackle intricate geometries and brittle or hardened materials without difficulty. Jobs can shift quickly—from plastics and aluminum to toughened steel—yet quality and accuracy remain unchanged.
Reduced Tool Wear & Improved Tool Life
These spindles apply less force during cutting and move heat away with the chips. As a result tools wear out more slowly. When spindles and tools are properly balanced, tool life can improve by 30 to 60%. This leads to fewer tool changes and less machine downtime.
Less Energy, Lower Operating Costs
Permanent magnet high-speed spindles use less energy than asynchronous models for the same output. Faster cycle times and lower power consumption combine to reduce the cost per part. This improves overall profitability for manufacturers.
Compact Machines & a Smaller Shop Footprint
Motor-integrated spindles remove the need for external belts and motors. This results in a more compact machine design. Builders can consequently create smaller, more flexible machines that take up less space and offer better layout options.
Easier Upkeep & Steadier Dynamics
High-speed spindles that are well designed need less maintenance. They provide better uptime. With lower vibration and improved dynamic response, these spindles stay productive and reliable even in tough environments.
Main Applications of High Speed Motor Spindles
CNC Milling & Machining Centers
Modern machining centers, particularly in aerospace and automotive production, rely heavily on high-speed spindles. With them, operators can easily mill lightweight aluminum aircraft-frames and finish intricate molds for car components.
At Richconn, we use multi-axis CNC machines equipped with high-speed spindles. This setup keeps tolerances within ±0.005mm for automotive transmission housings and aerospace brackets.
Robotics & Automated Machining
Robotic arms use motor spindles for flexible machining operations. These systems can perform different tasks like deburring, drilling, milling and light cutting. Factories that process composites, plastics and electronics rely on these automated setups for fast and accurate production.
Tool & Die Industry, Mold Making
Tool and die makers use high-speed spindles to machine core inserts, cavities and prototype tools. These spindles produce fine surface finishes and reduce manual polishing. They also shorten production cycles and perform well in semi-finishing and finishing of complex molds and hardened tool steels.
High Precision Grinding & Optical Molding
Precision grinding for tools, dies and bearings also depends on high-speed spindles. These units power semiconductor wafer processing, optical mold making and grinders that reach 60,000 RPM. At such speeds, machines achieve micron-level accuracy while keeping runout almost negligible.
Micro-Machining & Precision Machining
Micro-machining relies on ultra-high-speed spindles to achieve the highest levels of precision. In the medical sector, these spindles produce detailed parts such as surgical tools and dental implants. Moreover electronics manufacturers use them to make micro-components and to drill very small holes in circuit boards.
Composite & Hard Material Machining
Machining titanium, carbon fiber and advanced composites would be difficult without high-speed spindles. Their high RPM enables shallow, accurate passes that minimize tool wear.
Other / Specialized Uses
Industries ranging from stone cutting to food processing rely on high-speed spindles for their daily operations. When applied to stone, the spindle enables precise engraving, carving and shaping of granite or marble surfaces. Inside food-production lines, they deliver uniform cuts while upholding the strict hygiene requirements.
Key Selection & Design Considerations
Selecting the right high-speed spindle is essential for getting reliable and high level performance. The spindle you choose will impact your machine’s accuracy, efficiency and cost-effectiveness during production.
Speed & RPM Capability
Match the spindle’s RPM to your materials and tooling. Aluminum and other soft metals need speeds above 20,000 RPM. For harder materials like steel, use 6,000 to 12,000 RPM. Higher speeds lead to better surface finishes and faster cycle times.
Power & Torque
Balance torque power and speed based on your application. High-speed spindles usually provide less torque which works well for finishing operations. If you need to remove a lot of material, select a spindle that provides more torque at lower speeds.
Bearing & Support System
Base your bearing selection on the precision level and speed range you require.
- Angular contact bearings serve as a versatile default option.
- For applications needing extreme accuracy and RPM, non-contact systems—magnetic or air bearings—provide superior performance, though they raise overall costs.
Dynamic Balance & Run-out
Even minor imbalances at very high RPM can generate significant vibration, reducing both tool life and accuracy. Therefore insist on a spindle balanced to a stringent grade such as ISO 1940 G0.4. Doing so minimizes run-out and keeps cutting action smooth and chatter-free.
Thermal Management & Heat Control
Operating at high speeds produces a lot of heat which can cause thermal expansion and reduce accuracy. Choose spindles with strong cooling features like air/oil mist lubrication or internal cooling channels. These systems keep temperatures stable and help prevent thermal errors.
Tooling Interface & Taper / Collet System
You need to match the spindle’s tool interface with your tool holders. BT and HSK tapers are common choices for high-speed applications. HSK provides dual contact which increases rigidity. BT works well for general tasks and provides reliability. Select the system that allows quick tool changes and keeps runout to a minimum.
Machine Compatibility & Controller Requirements
Verify that the spindle matches the machine’s mechanical interface, control architecture and power rating. Controllers for high-speed units must supply rapid feedback along with closed-loop speed regulation. Before you approve the purchase, double-check compatibility for cooling circuits, electricity and tooling.
Maintenance & Monitoring
Regular, methodical care is critical if you want a high-speed spindle to last. Implementing predictive maintenance that tracks bearing health, vibration and temperature is wise. By spotting anomalies early, such a program minimizes unexpected stoppages and extensive repairs.
Cost vs Benefit Analysis
Because a high-speed spindle demands notable capital, compare its expense with the expected gains. Although the initial price is higher, shops usually recoup it via quicker cycles, longer tool life and finer finishes.
Partnering with experts such as Richconn, who regularly handle spindle selection, can help you avoid expensive missteps. We have already assisted dozens of clients on this path.
Future-proofing
Plan for your future production needs when choosing a spindle. Pick a system that can handle tooling advancements and new materials. Modular designs or spindles with smart features such as Industry 4.0 connectivity, help you stay competitive as manufacturing changes.
To Sum Up
High speed motor spindles increase machining speed and produce smoother surface finishes. They can also handle hard materials with less tool wear. By choosing the right spindle, you can improve product quality and raise your return on investment in advanced manufacturing.
