Are you having trouble making small & high precision parts in large quantities? Swiss machining is the solution here. It’s precise & proficient. In this blog post you will learn how Swiss machines work, what are its main techniques and main benefits for high volume manufacturing.

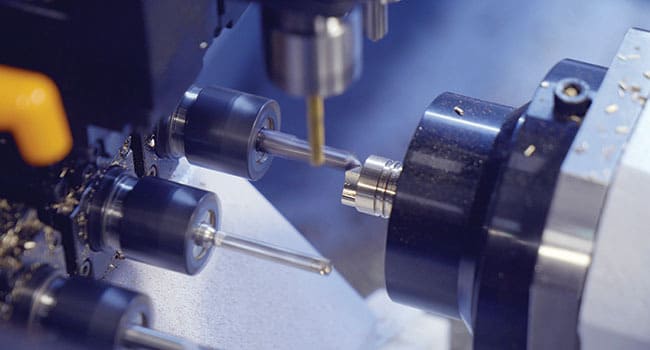

What is Swiss Machining
A precision manufacturing procedure known as Swiss machining, makes small, intricate parts with high precision. This procedure uses a sliding headstock lathe which can hold tolerances within a few microns. This idea started from Swiss watchmaking. Today manufacturers in electronics, medical and aerospace industrial fields use it for production on large scale.
Main Qualities of Swiss Machining:
- It can machine slender and long parts without deflection – even with diameters as small as 1 mm.
- It can achieve repeatability and precision at micron level.
- Swiss machines have multiple axes. This lets them perform multiple tasks at the same time which is best for complicated shapes.
- It is perfect for large production runs.
Comparison with Traditional CNC Turning
| Feature | Traditional CNC Turning | Swiss Machining |
|---|---|---|
| Headstock Design | Fixed headstock & no guide bushing | Sliding headstock with guide bushing |
| Precision | Tolerances up to ±0.001” | Tolerances up to ±0.0002” |
| Best For | Larger diameter or simpler parts | Long, slender & complex parts |
| Operations | Fewer axes & sequential operations | Multi‐axis & simultaneous operations |

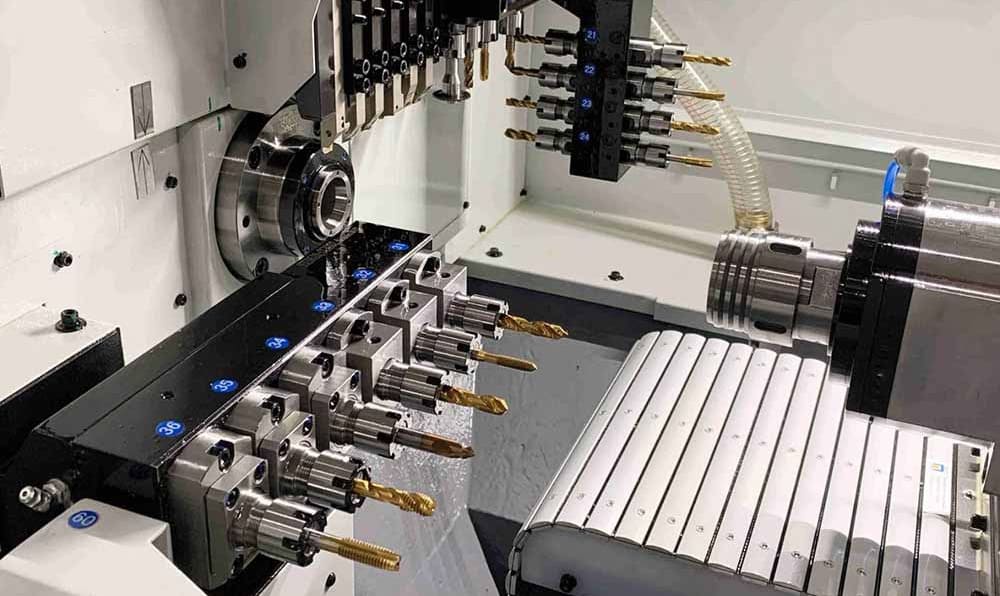

Methods for High Volume Swiss Machining
Several specialized methods make Swiss machining appropriate for producing large quantities of parts. These techniques work together to deliver accuracy and proficiency.

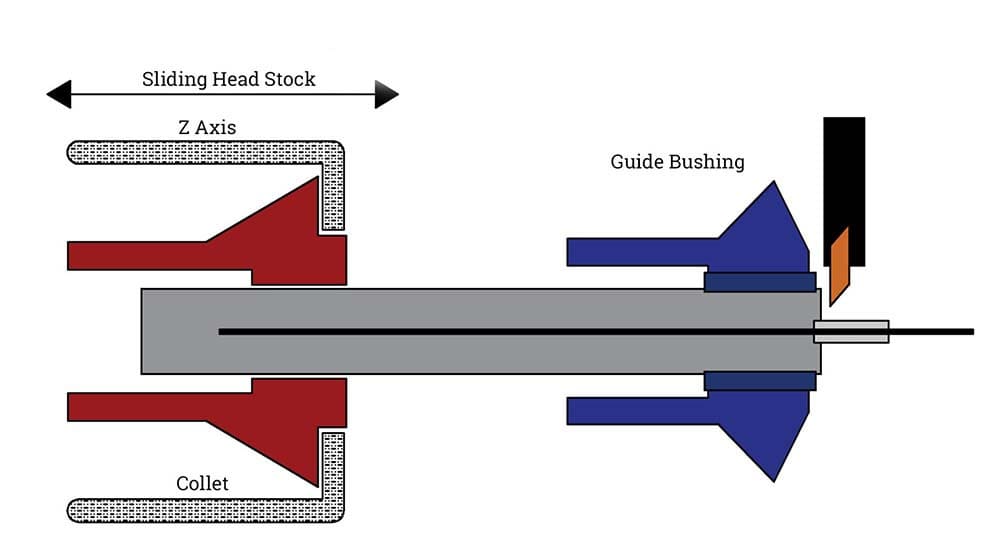

1. Sliding Headstock and Guide Bushing
A guide bushing supports the bar stock as the sliding headstock moves it forward. Material is kept close to the cutting tool so that the system reduces vibration and keeps stability. This setup lets you machine thin and long parts and keeps tolerances as tight as ±0.002”. High surface finish results from this guide bushing’s precise control.
2. Live Tooling
Live tooling makes the machine multipurpose. This machine can drill, mill and tap parts without removing the workpiece. This improves proficiency and saves time – in particular for those parts which need multiple machining works.
3. Multi Axis Machining
Swiss machines can have 7 or more axes. So it can turn, drill, mill and thread parts at the same time. All these works are combined which lets the machines complete complicated tasks in one cycle and increase processing speed.
Also See: A Complete Guide to Multi Axis Machining
4. Rotary Broaching
Rotary broaching forms non circular shapes such as hexagons on the outside or inside of a part. It is good for producing connectors and fasteners because of its accuracy and speed.
5. Sub Spindle Operations
Sub spindle does secondary work on back side of the part during the same cycle. With this quality, you can machine the part in one setup. So no extra handling is needed. Thus it reduced production time.
Benefits of Swiss Machining for High Volume Processing
Precision and Consistency
Swiss machines can hold tolerances as close as ±0.0002 inches. Every part meets the required specifications. This is the reason Swiss machining is very important in industrial fields such as aerospace and medical where a little amount of deviation also matters.
Also See: A Complete Guide to CNC Machining Tolerances
Material Utilization
Accurate cutting and bar‐fed design of Swiss machines reduces material waste. It is important when using expensive materials like specialty alloys or titanium.
Efficiency
Automated bar feeders and multi axis operations reduce cycle times. And fewer secondary works are needed. So more parts per hour can be produced with less operator involvement on the production line.
Automation Potential
Modern Swiss machines have advanced CNC controls and automated bar feeders. This permits continuous unattended production. It also decreases the need for manual work & increases throughput.
Tooling Considerations for Swiss Machining
Swiss machining in high volume production is all about the right tooling. Most of them use coated tools or high quality carbide. These tools last longer and stay in tolerance even when cutting hard materials such as titanium or stainless steel.
A greater tool life prevents downtime and has a direct impact on productivity. So inspect and maintain tools regularly. At RICHCONN we use quick change systems and predictive tool life monitoring. This keeps downtime low and your high volume orders running without costly delays.
Advanced CNC controls also have a role. They increase precision and support repeatable results even on complicated parts.
Material Considerations for Swiss Machining
Material choice directly affects Swiss machining results. Both quality & functionality of finished parts depend on this decision.
1. Main Materials used in Swiss Machining
Swiss machines can work with many plastics and metals. For example stainless steel, which is popular for corrosion resistance. Copper and Brass are also chosen for their machinability and electrical conductivity. Whereas titanium is chosen for strength‐to‐weight ratio and aluminum for low weight. Engineering plastics like nylon and PEEK are used for their chemical resistance and stability.
Our team at RICHCONN has experience machining not only for standard alloys but for exotic materials like titanium, Inconel and high performance plastics too. This helps our customers meet their custom needs in different industrial fields.
2. Criteria for Material Selection
Machinability is a big consideration when you have to select a material type. Softer materials like aluminum and brass can machine faster. On the other hand harder materials like titanium machine slower and need more coolant.
Application’s needs like electrical conductivity for connectors or biocompatibility for medical devices also come into play. Right material choice will lead to less waste & better machining.
Use of Swiss Machined Parts in Different Industries
Aerospace

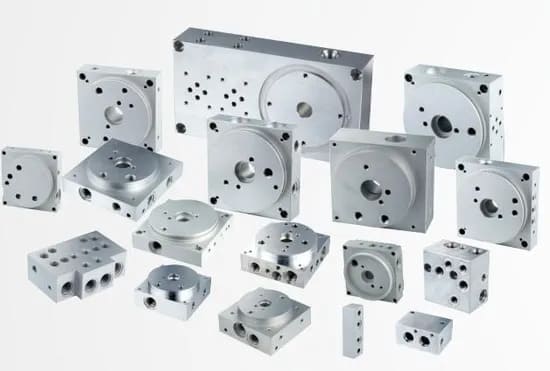

Aerospace companies use Swiss machining to make fasteners, connectors, hydraulic manifolds as well as control valve housings. These parts have to meet strict functionality and safety standards. These machines also give them consistency & precision they need.
For example RICHCONN recently supplied an aerospace client with over 50,000 precision hydraulic fittings. This project was fulfilled with zero rejections and it was completed on time. That’s the reliability of Swiss machining.
Medical

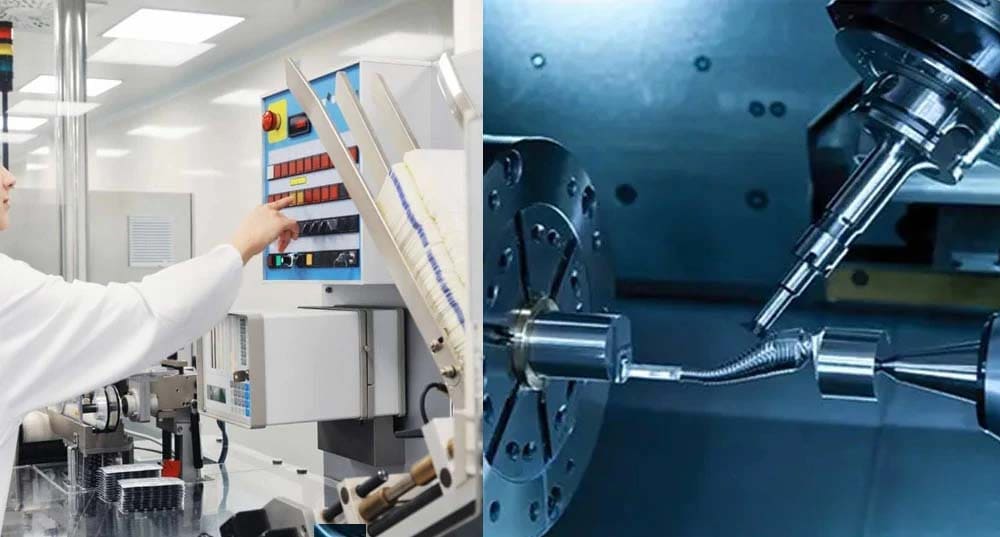

Medical devices need parts which are precise & reliable. Device performance & patient safety depends on this level of quality. Swiss machining making surgical tools, orthopedic screws as well as dental implants. Because of Swiss machining these parts can have tolerances of about ±0.0002 inches.
Electronics

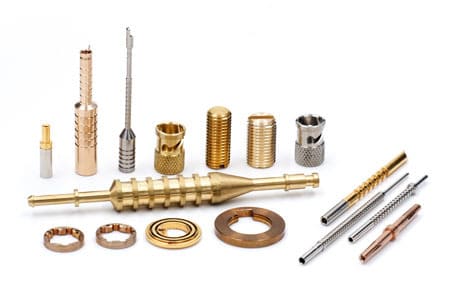

In electronics, Swiss machining lets us make sensor pins, micro connectors and high density terminals. Accuracy of this technology supports the trend towards smaller devices. Moreover its connections in compact electronics are reliable.
Automotive

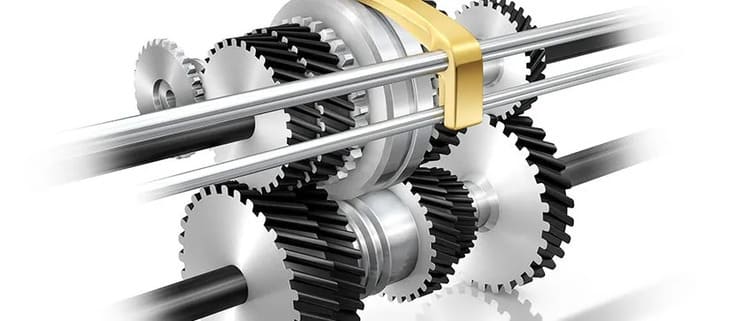

Automotive parts need speed and uniformity. Swiss machining gives it by making sensors, fuel system parts as well as transmission parts. It works at micron level precision so every part fits and prevents vehicle malfunction.
Luxury Watchmaking

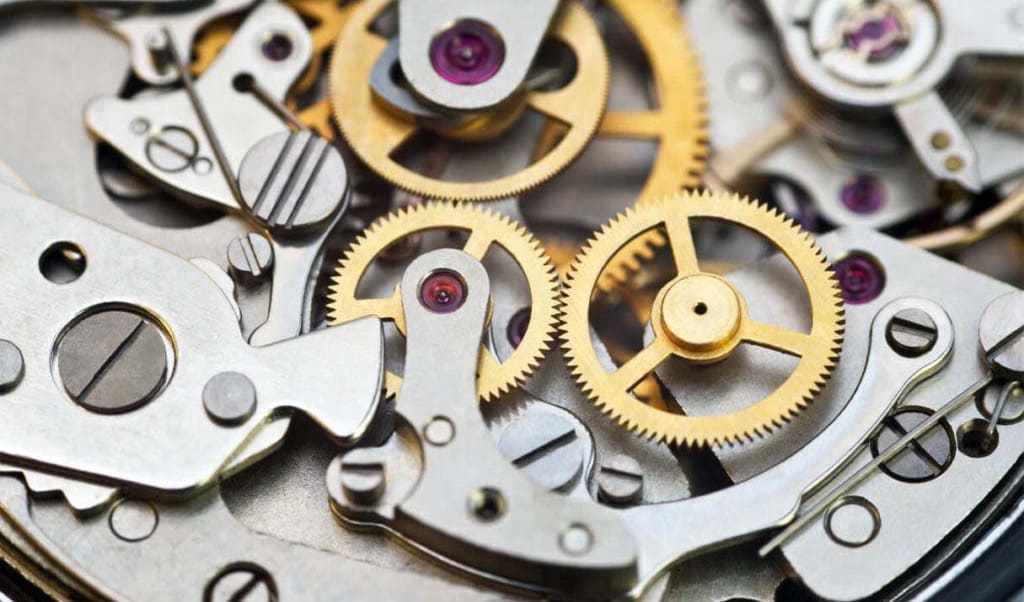

Luxury watchmaking demands visual perfection and mechanical accuracy. Swiss machining makes pinions, gears and escapements with precision. This is what’s expected in high end timepieces.
Pneumatic and Hydraulic Systems

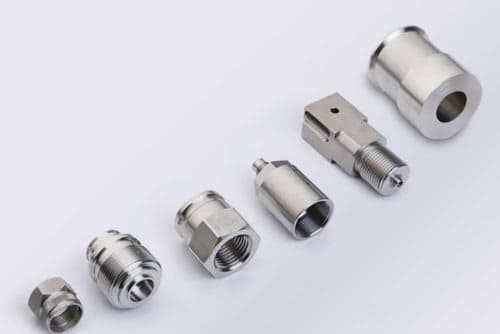

Pneumatic and hydraulic systems rely on Swiss machined valves, precision fittings and pump shafts. These parts can hold tight tolerances and are homogenous. That’s what stops leaks and keeps equipment working under pressure.
Challenges and Solutions
1. Tool Wear and Maintenance
Tools wear down fast when used continuously which can cause machine downtime and lower part quality. So RICHCONN uses real time monitoring for tool wear and follows preventive maintenance protocols. This helps to detect wear early, reduces unexpected blockages & scrap rates.
2. Complex Setup Procedure
Setting up Swiss machines needs skilled operators. If calibration is incorrect then material waste increases. Operator training and simulation software help streamline the setup process. This reduces lead times and increases productivity.
3. Thermal Management
Swiss machining generates heat which can cause parts to distort and lose accuracy. To address this thermal compensation models and modern cooling systems are used. These can reduce thermal errors by up to 90%. Moreover tolerances remain constant during l
To Sum Up
Swiss machining gives high proficiency, precision as well as capability to manage large scale processing. It meets the strict needs of industries such as aerospace, medical and electronics by holding tight tolerances and quality.
If you need Swiss machining or any other kind of CNC machining services then RICHCONN is your best option. You can contact us anytime.
Related Questions
How does Swiss machining accommodate tight tolerances and complicated geometries in high volume manufacturing?
A sliding headstock and guide bushing provides stability in Swiss machining. This setup allows accurate and repeatable processing of complicated shapes which can hold tolerances as close as ±0.0001 inches.
What are standards of quality assurance in Swiss machining?
Standard quality assurance covers in‐process inspections, CMM, ISO 9001 certification and procedure controls.
What are the lead times and setup needs for a new part in Swiss machining procedure?
Lead times are usually 2‐6 weeks. It depends on order size and part complexity. Initial setup covers CAD programming, preparation of bar stock, tool selection & bushing adjustment.
Is Swiss machining expensive?
Swiss machining has higher initial and setup costs as compared to standard CNC. But for high volume and complicated parts it becomes affordable because of its reduced material waste & efficiency.
