When designing precision CNC parts you need to specify surface roughness. Demanding tighter roughness can quickly increase both cost and complexity of the process. In this blog post we will show how surface roughness affects CNC machining costs and give you practical tips to control these factors.
What is Surface Roughness?
Surface roughness is the tiny texture left on the surface of a machined part. Cutting tools create valleys and microscopic peaks during machining. This texture is measured in micrometers (µm) and Ra (average roughness) is the most common metric. Smoother surfaces mostly have lower Ra numbers.

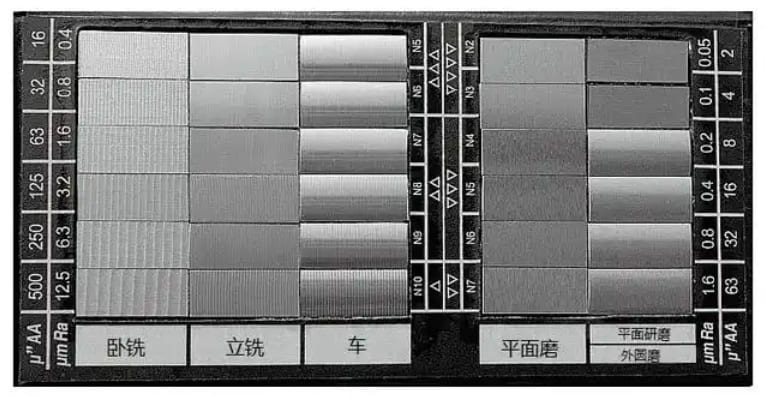

Why Surface Roughness Matters
Surface roughness affects more than just appearance. It has a direct role in how a part performs, how long it lasts and how much it costs to manufacture.
Functional Performance
Moving parts benefit from smoother surfaces because wear and friction decrease. This is particularly important for joints and bearings. If a surface is rough it can create points where stress builds up. These points can weaken seals and lower fatigue strength; and make parts fail sooner under repeated use.
Aesthetic and Coating Adherence
Surface texture changes how a part looks, how it reflects light as well as how well coatings stick. If you want a mirror like finish then it usually means you have to keep roughness at Ra 0.8 µm or lower. On the other hand some applications need a slightly rougher surface to help paint bond more effectively.
Industrial Case Studies
Many industrial fields need strict control over surface roughness. For example in aerospace, maintaining precise roughness is critical for the safety and reliability of parts that face high stress; for example compressor scroll plates need an Ra of 0.4 µm or lower to work efficiently.
How Roughness Drives Machining Costs
Machining costs increase in a number of ways when you demand smoother surface finishes.
Machining Time and Tool Path
Machines can’t achieve smoother surfaces with a single quick pass. Therefore to get finishes like Ra 0.8 µm or lower, you need to do multiple light passes and set slower feed rates. These adjustments increase labor cost and extend cycle time.
Post Processing and Secondary Operations
Machining alone can’t deliver the smoothest surfaces. To get finishes below Ra 0.4 µm you need extra finishing steps. Grinding, polishing or lapping are common secondary processes. These need specialized equipment and lots of manual labor which adds to the cost of each part.
Tool Wear and Replacement
Finishing at slow speeds with high precision wears out cutting tools faster. Dull cutters need to be replaced more often. Moreover the cost of new tools plus labor and downtime for each changeover adds up quickly.
Cost Multipliers
If surface roughness decreases then costs increase rapidly. For example 1.6 µm Ra adds 2.5% to the base cost; 0.8 µm Ra adds 5% and 0.4 µm Ra adds 11 to 15%. This increment in cost is mainly because of extra labor and tooling.
Hidden costs
Unexpected costs can arise for critical part features. For example if a sealing surface needs to be hand polished to meet requirements then this one step can double or triple the part cost. Hand finishing tasks like these are big hidden costs in precision manufacturing.
Other Factors That Increase Roughness Costs
1. Part Complexity and Multi‐axis Setups
Parts with complicated shapes often need multi‐axis machining. Moreover multiple setups are required for these intricate geometries. Every time an operator has to reposition a part therefore the chance of error increases and setup time also increases. These factors make it harder and more expensive to maintain roughness.
2. Material Selection
Material choice has a big role in cost. Machining harder materials like titanium or stainless steel takes more time and effort as compared to carbon steel or aluminum. Achieving a smooth surface on these tough materials costs more, takes more time and also wears out tools faster.
Our team at RICHCONN has worked with many plastics, metals and carbon fiber composites. Therefore we are able to recommend materials that offer the right balance between performance, overall cost and surface finish quality.
3. Batch Size and Economies of Scale
When production runs are small, setup costs get spread across fewer parts. This raises the cost per part. If a situation arises where only a few parts need a fine finish then the cost per part increases faster as compared to the costs for larger batches.
Also See: What is Small Batch CNC Machining
4. Machine and Vibration Control
Fine finishes need those machines that are stable and rigid. Vibration, also known as chatter, can damage the part surface and prevent the desired roughness. To control vibration, operators use advanced software, precise machine calibration as well as high‐quality tool holders. These add to the total operational cost.

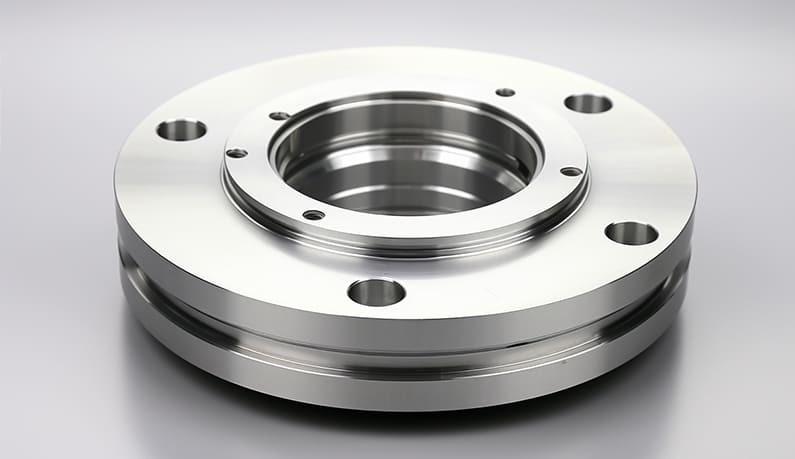

Cost Saving Strategies
Cost Saving Strategies
Specifying only what’s needed helps prevent unnecessary costs. Most non‐critical surfaces don’t need more than a standard commercial finish like Ra 3.2 µm which doesn’t add cost. Reserve tighter finishes for areas where they are critical to function. Moreover you can manage costs by aligning the part’s required performance with the available budget early on.
Richconn’s engineering team can review your design and recommend the right roughness for each feature so you only pay for what impacts performance.
Design for Manufacturability (DFM)
Simplifying part design means less machining time and cost. DFM principles suggest eliminating features like sharp internal corners, thin walls and deep pockets when possible. Reducing the number of setups is also crucial. Parts designed for easy manufacturing need fewer complicated tool paths and shorter operations. This means lower cost per part.
Advanced Predictive Tooling
AI and machine learning tools now monitor cutting parameters during machining. These technologies predict roughness results and help avoid tool changes or extra passes which saves costs.
Process and Machining Optimization
Adjusting speeds & feeds helps balance machining speed and surface finish. Choice of optimized tool paths and right tool holders can reduce vibration which not only improves consistency but reduces tool wear too. These steps keep roughness stable and also keeps labor & tooling costs under control.
Alternative Finishing Methods
Some parts need extremely fine finishes or complicated shapes. For this purpose magnetic abrasive finishing is used to get sub‐micrometer roughness (Ra ≤ 0.05 μm) on difficult surfaces and do so at lower labor cost than manual finishing.
RICHCONN offers a wide range of surface finishing options – from standard polishing & bead blasting to advanced processes. Therefore even complicated geometries get the desired finish they need.
To Sum Up
Finer surface finishes cost more in CNC machining. Increased tool wear, longer machining cycles and extra post‐processing all add up to the cost. Limiting tight tolerances to where they are needed helps control cost while maintaining part performance.
For precision CNC machining services that balance your surface finish needs according to your budget, contact Richconn today.
Related Questions
Yes lowering Ra to get a smoother finish usually makes production more expensive. The process often requires extra steps, more labor and slower machining speeds.
Yes. Post processing can change part dimensions. Techniques like sanding, grinding or polishing remove material which can affect accuracy.
Yes harder materials produce rougher finishes. Their resistance to cutting causes more friction and vibration which damages the surface.
Coarser surfaces allow fewer tool passes and faster machining which increases throughput. Getting a smoother finish means more precise tool movements and slower speeds which reduces throughput.
No. The best surface roughness depends on how the part will be used. Some parts need a certain roughness for reasons like holding lubricant or helping coatings stick.
