Machinists often face the challenge of warping or bending in aluminum parts after CNC milling. This problem is very common and discouraging. It wastes both material and time and also causes parts to fall out of tolerance.
In this guide we will explain the main causes of deformation and provide clear, practical steps to manage residual stress. By following these methods you can protect your parts and get better results.

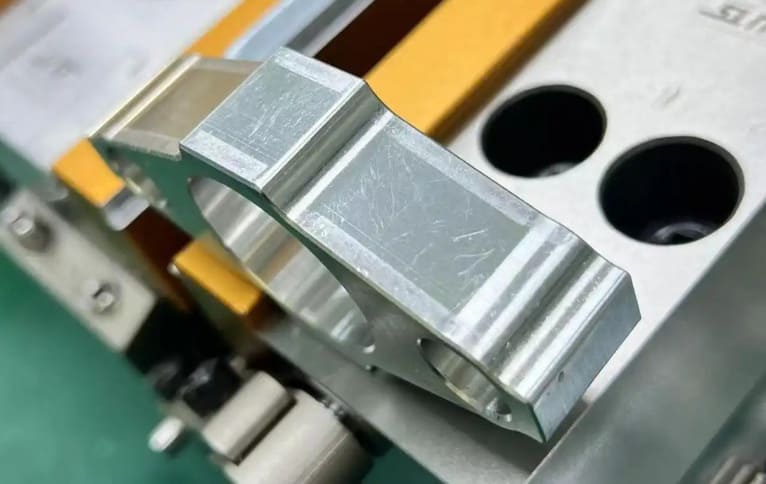

What Are Deformation & Residual Stress in Aluminium CNC Milling
Deformation means that the size or shape of aluminium parts changes because of mechanical and thermal stresses during CNC milling. Residual stress by contrast, refers to the internal stress that stays in the material after machining even when outside forces are gone. Both of these problems can cause dimensional errors. Thin-walled parts for example, may warp by as much as 0.5 mm after milling.
Why Does Aluminium Warp & Accumulate Residual Stress During Milling?
Before you can solve distortion problems, it is important to know why aluminium reacts the way it does during machining.
Intrinsic Material Properties of Aluminium Alloys
Aluminium alloys have a high coefficient of thermal expansion, about 23 µm/m·K. Therefore even small temperature shifts can cause them to expand or contract quickly.
Their modulus of elasticity is also low only about one-third that of steel so they are less stiff and more likely to bend under force.
These basic properties, along with stresses left from rolling or casting, mean the material is already unstable before any machining begins.
What Cutter Does to the Metal—Machining Related Triggers
The milling cutter creates strong heat and friction in the cutting zone. Local temperatures can quickly rise above 100°C. This sudden heating makes the surface expand right away. At the same time, the tool’s force stretches and compresses the metal’s surface. These effects together cause “machining-induced residual stress” (MIRS).
MIRS upsets the internal structure of the material. And once the clamps are removed, this stress can make the part twist or bend.
Thin walls, Tricky Geometries– Why These Parts Suffer Most
Thin-walled parts cannot absorb vibration well or get rid of cutting heat easily. As the walls become thinner, the part’s rigidity drops sharply. These parts behave more like flexible springs than solid blocks during machining. Even small releases of internal stress can cause clear “spring-back” or warping, often between 0.05–0.1 mm. This warping destroys the dimensional accuracy that is needed for medical or aerospace components.

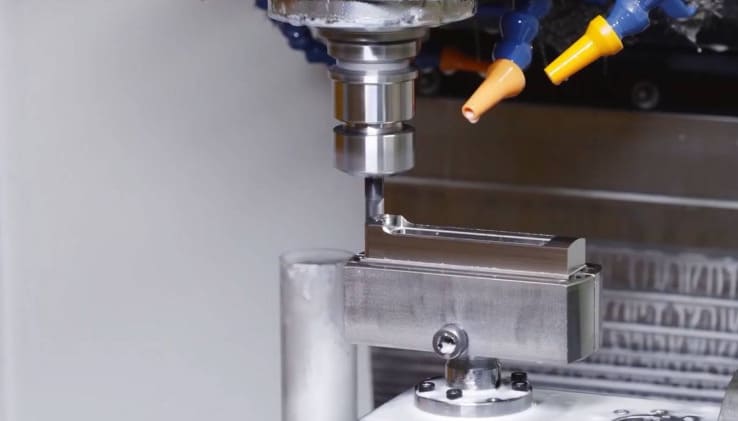

Field Proven Strategies to Keep Deformation & Residual Stress in Check
Prep the Stock Before You Cut
Begin by stabilizing the raw material with a stress-relief heat treatment. Anneal the aluminium blank at 300 to 400°C for two to four hours. This process relaxes much of the internal bulk stress left from manufacturing. For parts that need high precision, add aging treatments. These extra steps help the material stay stable and reduce unexpected movement.
Pick the Right Tool & Dial-in Feeds & Speeds
Next select razor-sharp aluminum cutters that typically provide a 15° rake and a 45° helix. Run a high-speed program that pairs shallow cuts with aggressive feed rates. Doing so keeps cutting forces low and limits heat flow into the workpiece. When performing dynamic milling, aim for a radial engagement of only 5–20 % of the tool diameter.
Choose a Stress-Friendly Toolpath Strategy
- When milling thin walls, remove stock alternately from each side so stresses stay balanced.
- Instead of plunging deep, cut cavities in several shallow layers; doing so limits heat and stress.
- Finish by selecting dynamic paths such as trochoidal milling that hold tool load steady and keep movements smooth.
These steps help prevent distortion and thermal spikes.
Smarter Fixturing & Clamping Techniques
Stability depends on using the right workholding. Select fixtures that spread clamping force across the part like soft jaws or vacuum chucks to avoid putting too much pressure in one spot. For thin-walled components, unclamp the part after roughing so it can recover elastically. Then re-clamp it with low, steady force for finishing passes.
If you have very delicate parts, RICHCONN’s fixturing experts can design custom soft jaws and modular supports. These supports options help control spring-back and keep thin walls within tolerance.
Thermal Management & Cooling Strategies
Aluminum expands quickly with heat so temperature control is very important. Use through-spindle coolant or high-pressure flood coolant to clear chips right away and keep the workpiece close to 20°C. For high-speed finishing, Minimum Quantity Lubrication (MQL) helps reduce thermal shock and keeps the surface lubricated. This approach prevents heat from causing dimensional changes.
Post Machining Stress Relief & Stabilization
After roughing, run a stress-relief cycle. This step stabilizes the grain structure before final machining. For parts that need high precision such as those in aerospace, advanced options like cryogenic treatment can further stabilize the microstructure. These methods greatly lower the risk of future deformation.
Verification, Measurement & Compensation Techniques
Use “on-machine probing” to check parts between roughing and finishing cycles. This inspection happens without removing the part from the fixture. When probing finds distortion, modern CNC controllers can correct it by applying dynamic offsets during the final pass. For batch runs, you can use First Article Inspection (FAI) to confirm process stability before starting full production.
At Richconn, we use dynamic offset control, on-machine probing and regular FAI as part of our standard process for tight-tolerance aluminum parts. These steps help every batch meet specifications and reduce the customer’s need for extra measurement.
Advanced Techniques & Best Practices
Manufacturers now use several advanced methods to achieve top precision for lightweight and complex parts.
Dynamic & Adaptive machining
Modern CNC machines gather real-time data from sensors that track temperature, force and vibration. The system uses this feedback to adjust speeds and feeds automatically. By doing so it keeps cutting conditions stable and stops machining-induced residual stress from forming.
Cryogenic Deep-Cooling Treatments
Cryogenic treatment cools materials down to -184°C. This process refines the microstructure of metals and improves its dimensional stability. It is often applied to blanks or semi-finished parts that need very high precision, providing strong relief from internal stresses.
Cutting Both Sides in Balance—Quasi-Symmetric Strategies
When parts lack symmetry or have complex shapes, using a quasi-symmetric machining approach can help. This technique alternates toolpaths in a planned sequence, balancing how internal stresses are released. As a result thin-walled parts experience much less distortion after machining.
Process Standardization & Quality Control Systems
Repeatability is very important in high-volume production. Standardizing the process flow and using Statistical Process Control (SPC) ensures each part is machined under the same conditions. This approach tracks and controls variation so quality stays consistent and scrap from deformation stays low.
Costly Mistakes That Warp Parts and How to Avoid Them
Precision in aluminum parts can suffer if you overlook these basic process errors—even when using advanced machining strategies.
Aggressive One Pass Heavy Cuts
Removing a large amount of material in a single, deep cut generates too much heat and releases internal stresses unevenly. Consequently, parts often warp and lose dimensional accuracy. Divide the machining into several lighter passes to keep thermal stress under control.
Cranking the Clamps Too Tight—Or Unevenly
Too much clamping force bends thin-walled aluminum parts. When you release the fixture, the parts spring back and move out of tolerance. Use vacuum plates or flexible clamps with multiple contact points to spread the holding force. This approach helps prevent spring-back.
Using Dull or Wrong Cutters
Dull cutters raise friction and trap heat which upsets the balance of internal stress during machining. Therefore, always select sharp, polished tools with enough chip space. This lowers cutting resistance and helps keep stress under control.
Skipping the Stress Relief Step
If you skip stress relief after roughing, internal tensions stay in the material. These tensions can cause warping during final finishing. Use a stabilization cycle or allow the part to age naturally before making high-precision cuts to release these forces.
Skipping Test Part Measurement or Not Verifying Residual Stress
If you move to batch production without checking for stress, you risk mass failures from hidden problems. Always carry out First Article Inspection (FAI) on a test part. Adjust fixtures or toolpaths if you find distortion before starting the full production run.
At RICHCONN we always start by machining a test part and reviewing it with you. This step lets us refine toolpaths or fixtures before full production. By checking early we greatly decrease the chance of distortion and reduce scrap risk as well.
Conclusion
You need to use a complete strategy in order to prevent deformation during aluminum milling. When you understand how aluminum reacts to heat and how to manage residual stress, you can get tight tolerances for each part.
If you want distortion free aluminum CNC machining services then Richconn is your best option. You can contact us anytime.
FAQs
Both thin and thick parts can have residual stress. Thin walls however, bend more easily since they do not have enough stiffness to resist internal forces.
Aluminium faces these issues more because it is less stiff, expands more with heat and often has high strength tempers. These tempers can lock in large internal stresses from earlier processing.
They play a major role. High spindle speeds raise temperature and introduce tensile stress, whereas heavy feeds apply pressure that builds compressive stress. Machinists must balance these settings to minimize warping.
Yes. You can use analytical beam/plate models, finite element models and hybrid cutting–distortion simulations. These tools help forecast residual stress and deformation before you start machining.
MIRS causes parts to bend or move as they try to reach a stable state. But not all MIRS is negative though. If controlled, compressive MIRS can actually make parts stronger and help them last longer.
