Oil stains are a well-known problem in CNC machining work. These stains can interfere with later processes like welding, coating or inspection. To produce clean parts you need to know why oil residues stay on surfaces and how to remove them. If you solve this issue then your parts will meet strict cleanliness standards.

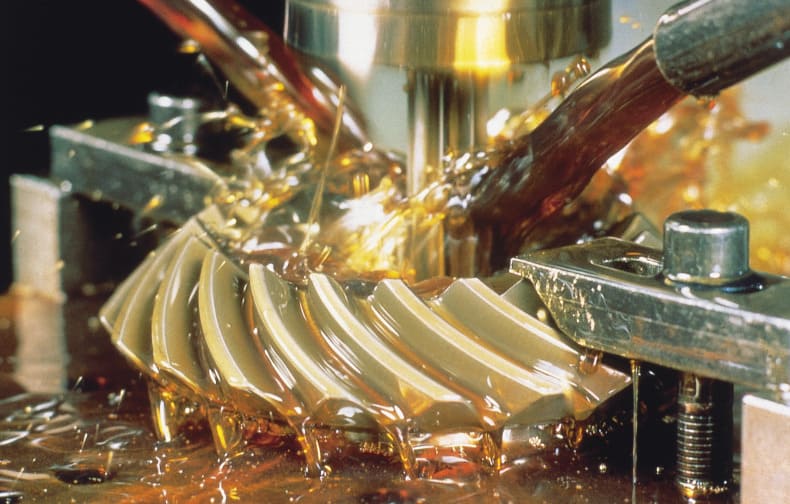

Why Oil Stains Remain after CNC Machining
Oil chemistry and composition
Coolants and cutting oils are necessary items in CNC machining. Many of these fluids have complicated chemical formulas. These oils have additives which can oxidize with the passage of time. Such oxidized additives leave sticky material on metal parts.
Surface quirks that trap the oil
Some surface details like tiny pores, rough spots or threads also trap oil in small spaces. If your coolant tubes are not clean or there are damaged seals then this will be a bigger problem.
Other factors that tip the scales
Dirty fluid nozzles, improper cleaning as well as damaged filtration all make oil stains worse. If cleaning is not thorough pollutants remain there and can affect precision. This is specially important in industrial fields like medical and aerospace where cleanliness is key.
Methods for Removing Residual Oil
1. Degreasing options
Dip tanks or Cold solvent spray
Cold washing works with alcohol or other oil based fluids. These fluids are sprayed on large sized parts. Whereas small sized parts can be dipped in these fluids to clear surface oil quickly. It’s a go to choice if you have to clean simple shapes or when cleaning many parts at once.
Vapor degreasing—steaming the oil away
Here warmed vapors of fluid are condensed over the surface of parts. These vapors bind with grease and clear it. In this way you got an even clean. As vapors are small in size therefore they can clean hard to reach spaces too. Examples of these cleaners are trichloroethylene and Simple Green.
Stay safe and dispose of solvent right
Combustible storage, adequate aeration and personal safety equipment are needed for fluid washing. Safe waste disposal is also necessary; and if you have to use dangerous chemicals then EPA & OSHA rules are here to help.
2. Elbow-grease and abrasives
- Pressure washers with hot water can also quickly clean enclosures, jigs and other large parts. Its wide coverage easily removes surface oil from tight assemblies. Industrial fields therefore mostly use this method for better results.
- Moreover you can also use a Scotch-Brite or an abrasive brush to remove oil out from particular areas. It is mostly used for on‐spot cleaning at the time of final inspection.
- Tumbling or deburring is another method in which a tumbler full of abrasive material holds bulk parts. You have to rotate the tumbler to clean burrs and oil from the parts. It’s not only used to clean small sized metals but you can clean machining debris too.

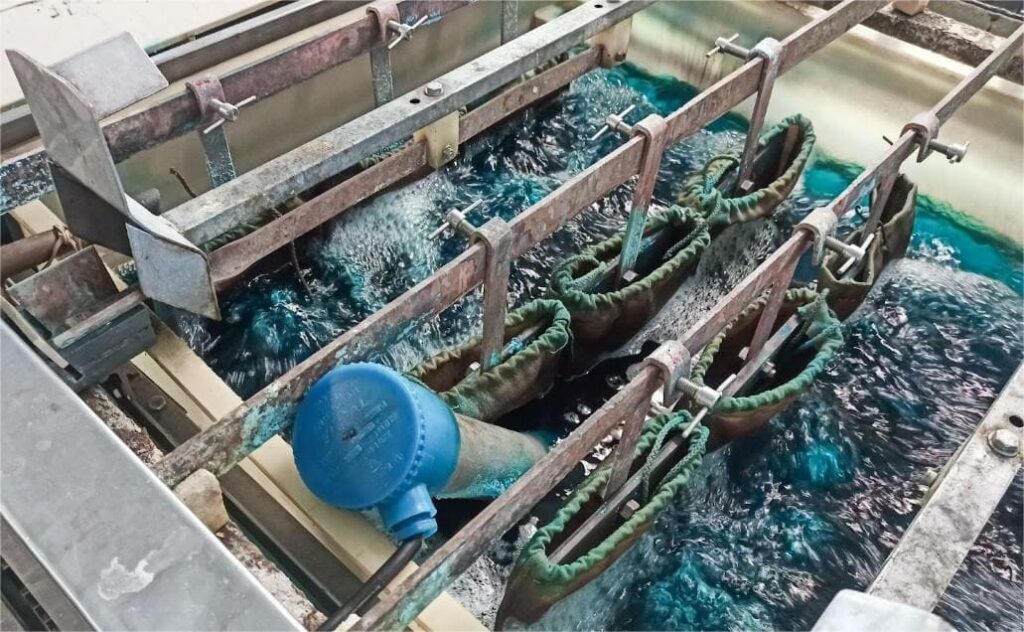

3. Aqueous Cleaning
Hot alkaline baths
Hot alkaline detergent baths like Simple Green, Dawn, etc, are used to clean parts. These detergents are eco friendly and break down grease layers easily to remove it.
Coolant filtration and skimming tricks
Tramp cleaners and fluid skimmers work continuously to clean oil. Its in‐time cleaning lowers your rework and extends lubricant life.
High pressure spray wash
Detergent‐added water is sprayed at high pressure directly over parts. It’s a good method to clean oil because no chemicals are used here. Moreover it is cheaper so you can clean large items as well.
4. Ultrasonic and Vibration Cleaning
Parts shakers (vibration)
They use detergents in a shaker to clean parts. This not only increases lubricant contact but works best for uneven surfaces too.
Ultrasonic tanks
Here a liquid container with high frequency waves of sound creates cavity bubbles. When these bubbles burst, they remove oil from hard to reach areas such as threads, blind holes as well as recesses.
Best Practices by Application
Pre-plating/coating
Parts must be oil free before any coating or plating. You can use a “water break test” to check if the surface is clean or not. If water forms beads on the surface then oil is still present; and to clean it use ultrasonic technique and then grease removal through solvent after it to clean all areas and to get to deep surfaces.
Aerospace and medical parts
Aerospace & medical parts need extraordinarily clean surfaces. Their cleaning protocols mostly use multiple steps with proper solvent or aqueous media first. Then ultrasonic cleaning and particle less drying is performed. Here controlled atmosphere and cleanrooms are necessary and certification steps like ISO AS9100 or 13485 must be followed. Moreover there should be no cross contamination in that area.
General manufacturing
For most machining jobs a simple solution is to join hot water cleaning and lubricant skimmers. This lowers fluid carryover. It’s a good balance of cost, speed as well as level of cleanliness for a number of mechanical works.
Preventative and Process-Level Controls
Check Lube System Regularly
Leaky nozzles can spray or drip oil where it’s not needed. Therefore stop extra drip, clean nozzles as well as regulate the flow to minimize the chance of oil leaks on surfaces. Moreover if you set the right cutting criteria then it also keeps coolant usage in check.
Oil Leaks
Oil can come from any part. If it is not cleaned then it can pollute the coolant and part. This will also affect machining work. Therefore coolant skimmers are used to clean unnecessary oils and they not only helps in cleaning but they increases the life of the fluid as well. Moreover in‐time change of coolant and periodic filtration also save your parts from damage.
Train Operators Well
Thorough cleaning starts with shop‐floor habits. Workers should clean parts with brushes first and then use air under pressure to dry surfaces right after machining; and they should keep clean and dirty areas apart. These steps not only help prevent buildup but help in better initial cleaning as well.
Advanced and Emerging Technologies

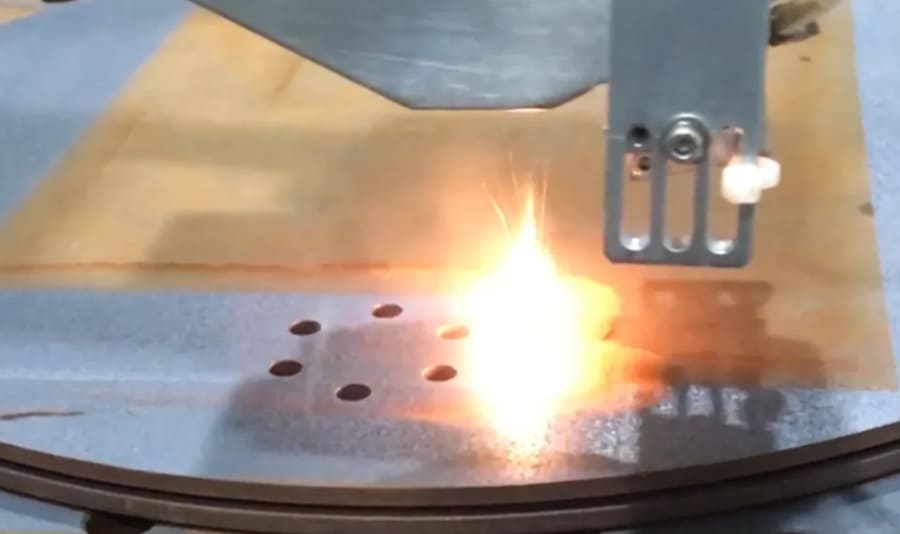

Plasma and laser cleaning—no chemicals needed
Laser & Plasma cleaning uses a focused beam of light or gas in ionic form to clean oil. This works well for parts which should be particle free and need precise cleaning. They don’t use chemicals so they can work continuously and help decrease waste.
Bio-based surfactants that actually cut oil
Green surfactants such as DDAO or SME clean oil through its breakdown but they are not harmful. Moreover they are perfect for industrial usage and do not badly affect the environment as well. If you want an alternative of harmful chemicals then you can definitely use them.
CO₂ (dry-ice) blasting
Blasting with dry ice cleans the surface through pellets of frozen CO₂. These pellets hit the surface and clean away fluid & other particles. This procedure doesn’t cause abrasion and is good for sensitive exteriors. It is precise & safe therefore it’s great for cleanrooms and other high stake parts.
To Sum Up
It is important to keep your parts clean after CNC machining because it will help you maintain product quality as well as meet industrial standards. Your selection of right cleaning method will not only reduce defects but will boost performance too.
For expert help regarding custom manufacturing and precision parts cleaning you can contact Richconn anytime.
Related Questions
Dish soap will remove light oil but not thick industrial oil or parts with tight tolerances.
Yes sequencing these methods gives better results. Start with solvent cleaning then use aqueous or ultrasonic. And in the end finish with rinsing and drying．
Medical parts as well as aircraft components need vapor degreasing but for general machining other cleaning methods are mostly enough．
You can use a coalescing filter or an oil skimmer for this. These tools can easily clean tramp oil from coolant systems on a continuous basis．
Boiling with soap will break-down oil to some degree; however it cannot clean parts with complicated shapes. Moreover this cleaning will not be up to the mark of industrial standard.
