Overcutting is a common problem in CNC milling. This defect causes size errors, waste material and increases production costs. To prevent these problems, operators must understand its main causes.
This blog post covers the main causes of overcutting, how to identify them as well as modern technologies for prevention.
What is Overcutting in CNC Milling?

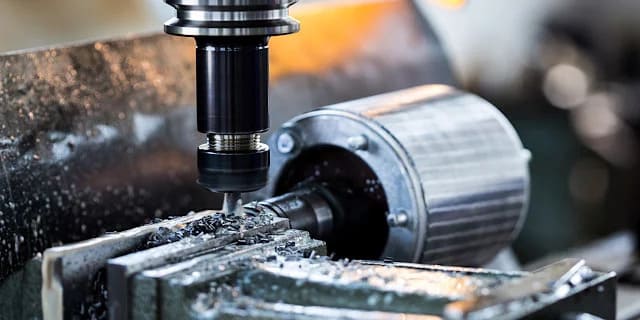

Overcutting takes place when a CNC milling tool cuts more material than desired. This problem usually affects edges, corners and complex parts. It results in size errors, poor surface finishing and part rejection.
Main Causes of Overcutting
Tool Selection & Condition
Picking wrong tool directly causes overcutting. The material, geometry as well as size of the tools must match the workpiece. Inconsistencies can lead to deflection & rapid tool wear.
Moreover, worn or damaged tools produce high cutting forces. These forces create vibration & cause more cutting than desired.
Incorrect Toolpath Strategy
Poor toolpath planning also creates overcutting problems. Linear entry paths can damage the entry point; helical paths give better results here. For 3D surfaces, constant Z-level toolpaths often remove too much material, specially at different depths.
Incorrect Feed Rate & Cutting Speed
Feed rates have a great effect on tool performance. Extreme feed rates cause the tool to vibrate as well as deflect especially on contours & corners whereas elevated cutting speeds cause tool wear. Both problems cause the cutting tool to deviate from its intended route which results in overcutting.
See Also: Effect of Feed Rate and Cutting Speed in CNC Machining
Machining Parameters

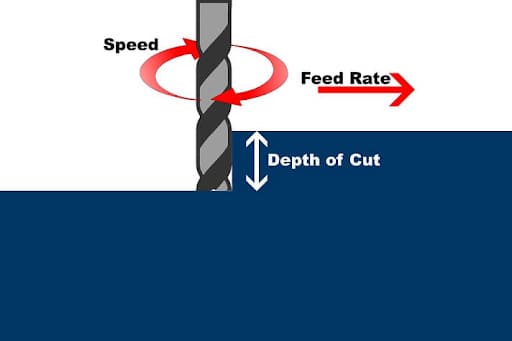

Tool engagement angle and depth of cut performs an important role in preventing overcutting. Deeper cuts place additional loads on tools which cause vibration & deflection. These problems cause overcutting in complex shapes as well as corners. Tool engagement angles must be accurate. Too shallow or too sharp angles create uneven cutting forces which remove excess material during contour operations.
Tool Deflection
Tools bend when cutting forces exceed the tool’s stiffness limit. This bending/deflection causes overcutting. Tool diameter, tool overhang as well as material properties affect the risk of deflection. Excessive overhang makes tools more likely to bend because of leverage effects.
Material Properties
The physical properties of the material directly affect the accuracy of CNC milling.
Changes in material hardness cause irregular material removal as well as unpredictable tool deflections.
Materials with low thermal conductivity trap heat during machining processes. This trapped heat causes both the workpiece & tool to thermally expand which results in overcutting and dimensional inaccuracies.
Programming Errors
Overcutting in CNC milling is often caused by incorrect programming settings. The most common problems are invalid G-code commands as well as inaccurate interpolation settings.
On curved surfaces, inaccurate interpolation creates chord errors which result in excess material removal. Errors in G code syntax, like invalid coordinate values or decimal points, push the tool over its intended cutting limits.
Machine Calibration & Maintenance
Damaged spindle bearings & misaligned axes affect machine calibration that create positioning errors. These errors force the cutting tool to remove unnecessary material.
Regular maintenance performs an important role in preventing overcutting. Operators must take care of backlash problems in machine elements and use proper lubrication in machine parts. Failure to conduct these maintenance tasks decreases machining precision & increases wear.
Inspection Techniques for Overcutting
Visual Inspection
Operators must perform a detailed visual inspection to detect overcutting in CNC milling. This process includes checking for missing features, surface irregularities as well as dimensional errors.
Latest manufacturing facilities use high resolution cameras & automatic visual inspection systems. These advanced tools detect minor defects such as burrs, tool marks and geometric deviations especially in parts with complex features.
Also See: What is First Article Inspection in CNC Machining
Simulation & Modeling
Software such as VERICUT creates digital simulations of the machining process to identify possible overcutting problems. These programs simulate toolpaths using real NC program data to identify potential collisions.
CAD packages such as SolidWorks use Boolean subtraction techniques for exact material removal modeling. Ray tracing algorithms complement these tools with calculations of scallop heights at micron level.
Measurement Equipments
Accurate measuring tools are important tools used to identify overcutting.

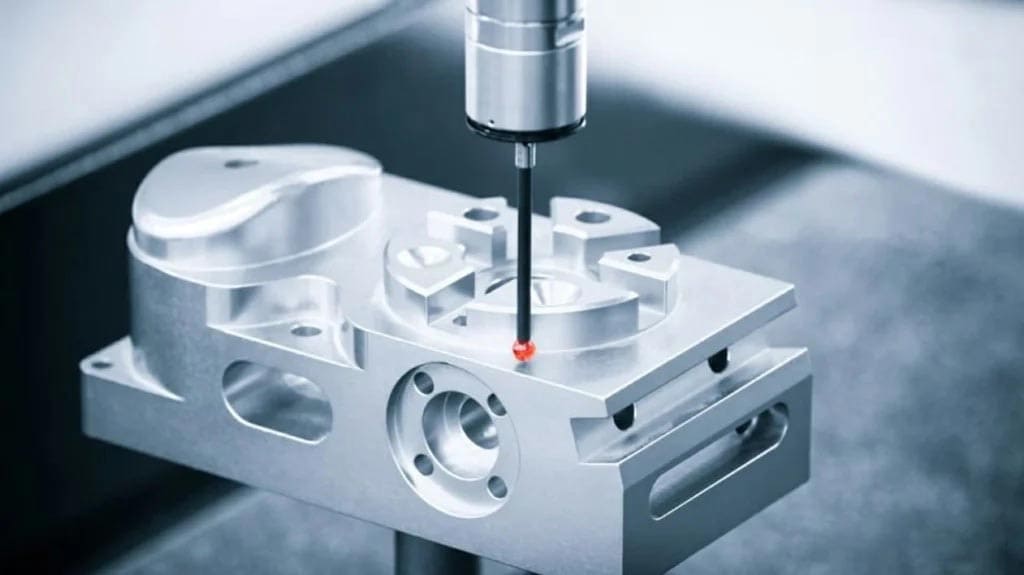

Coordinate Measuring Machines (CMMs) capture irregularities as low as 0.1 microns through 3D measurement. Moreover on-machine probing systems & touch probes permit instant tool offset accuracy.
These systems verify part accuracy during machining and identify overcutting problems in real time.
Modern Technologies & Innovations
Adaptive Control Systems
Real time sensor data in CNC milling operations drives adaptive control systems. These systems collect data on spindle power, cutting forces and tool deflection. The collected information allows quick adjustments to cutting & feeds speeds. This dynamic adaptation extends tool life, prevents overcutting and provides best surface finish quality.
High Precision Machining Techniques
Two advanced approaches are widely used to reduce overcutting in CNC milling that are high speed machining (HSM) & 5 axis machining.
HSM works with a maximized tool path at high spindle speeds. These features reduce cutting forces which decrease risks of overcutting & tool deflection. On the other hand, 5 axis approach greatly reduces tool deflection and gives better access to complex geometry.
Tool Condition Monitoring
Modern Tool Condition Monitoring (TCM) systems integrate IoT & AI capabilities for better performance. Sensors continuously measure vibrations, cutting forces and acoustic emissions to inspect tool capability. Machine learning algorithms use this information to identify particular wear patterns. The algorithm then calculates and recommends best times for tool changes.
To Sum Up
The process of controlling overcutting in CNC milling depends on different integrated strategies. Some main elements are selection of appropriate tools, setting of optimal parameters as well as implementation of advanced technologies. Proper maintenance & regular monitoring complete this comprehensive strategy．
