The best result in CNC machining greatly depends on your choice of tool. Two main options dominate in this field which are high speed steel (HSS) & carbide tools.
In this blogpost we will review their features, uses as well as their benefits to assist you in selection process.

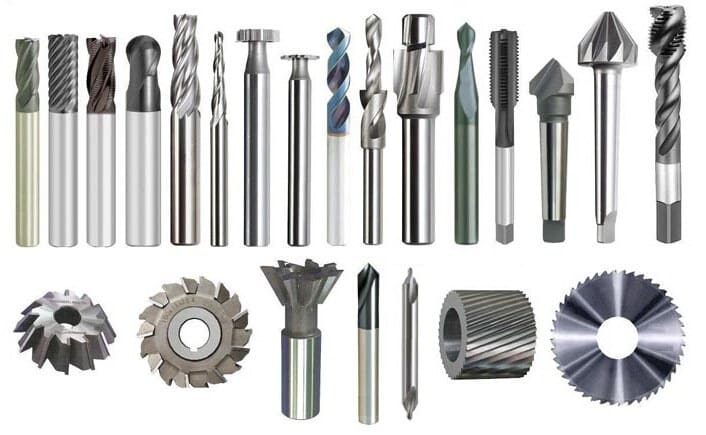

What are High‐Speed Steel (HSS) Tools?
HSS tools are cutting tools that are made from a range of alloys. They consist of molybdenum, tungsten, vanadium and chromium. These tools retain their cutting edges at temperatures up to 600°C and also achieve hardness up to 64 HRC.
Their combination of affordability & strength make them perfect for processing wood, soft metals and plastics. Small to medium‐sized productions especially benefit from the cost‐effectiveness and versatility of HSS tools.

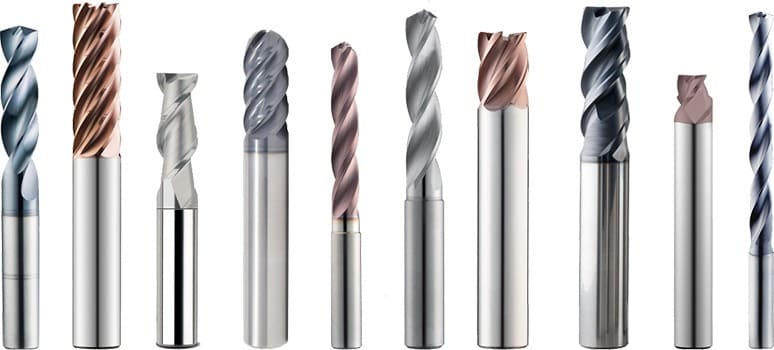

What are Carbide Tools?
Carbide tools are cutting tools that are made of tungsten carbide which combines carbon & tungsten with cobalt as a binding agent. These tools are second only to diamond in hardness and also can withstand temperatures up to 1000°C.
Their great performance permits accurate machining of tough materials like stainless steel & titanium. The long life and high cutting speed of carbide tools make them indispensable for complex CNC operations.
Comparison of HSS vs. Carbide Tools
The choice between HSS and carbide tools affects many aspects of machining operations. Each option gives particular advantages & limitations in cost, performance as well as range of use. Keep in mind the following factors when making your decision.
Material Properties
Wear Resistance and Hardness
Carbide tools show great hardness with a Rockwell rating of 90 to 94; likewise HSS tools are rated at 62 to 64.
This higher hardness permits carbide tools to better resist wear when cutting tough or abrasive materials such as cast iron and hardened steel. HSS tools offset this with their better toughness which makes them less vulnerable to vibration and shock damage.
Brittleness
Carbide tools’ excellent hardness also brings high brittleness. Interference cuts or unstable machining conditions can cause these tools to break or chip. On the other hand HSS tools give greater durability during repeated tool engagement & disengagement. Their strength permits them to withstand impact and vibration more easily.
Key Performance Factors
Tool Life
Carbide tools have longer life than HSS tools in high‐temperature and high‐speed applications. With proper use, a carbide tap can last 5 to 20 times longer than an HSS tap.
HSS tools also give many advantages such as that users can sharpen them many times and the sharpening process needs less skill. This makes HSS tools more practical for less demanding applications.
Feeds & Cutting Speeds
Carbide tools work 4 to 12 times faster than HSS tools under the same conditions. This benefit of speed makes them great for high‐volume production where minimizing cycle time is very important.
HSS tools, on the other hand, work efficiently with soft materials such as wood or aluminum and also give the best results at medium speeds.
Cost Considerations
Operational Costs
Carbide tools need less tool changes and they also decrease operational downtime. Even so their brittle nature can lead to expensive replacement costs due to chipping or breakage.
On the opposite HSS tools demand constant sharpening but are more budget‐friendly in applications where tools lower initial cost and flexibility are required.
Initial Investment
The initial cost of carbide tools is 3 to 5 times higher than that of HSS tools. Precision or high‐volume applications justify this cost through longer tool life and increased productivity. Even so basic jobs and small‐scale operations benefit more from the lower initial investment of HSS tools.
Application Suitability
Operational Settings
High‐precision as well as high‐speed CNC operations need carbide tools particularly for deep drilling or milling of hardened materials. HSS tools are suitable for interrupted cuts, hand operations as well as less robust setups because of their easy sharpening capabilities & shock resistance.
Material Compatibility
Carbide tools are needed for abrasive & hard materials such as titanium, stainless steel as well as hardened alloys. These tools keep their sharp edge even at extreme temperatures. HSS tools perform best with soft materials such as brass, aluminum and wood because of their flexibility & strength.
CNC Operations: A Detailed Comparison

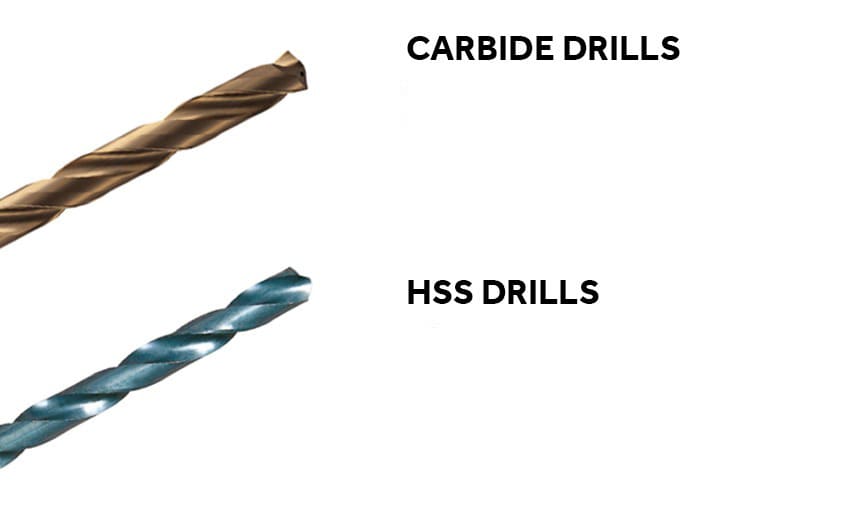

Drilling
Carbide drill bits are dominant in large scale production due to their longer life span and better cutting speed. These bits have internal coolant ducts used for deeper holes (>3xD) & better chip removal. They perform best on hard materials such as titanium and stainless steel.
HSS drills perform well in less robust setups and low‐volume operations. They give low cost & better results with wood, soft metals and plastics.

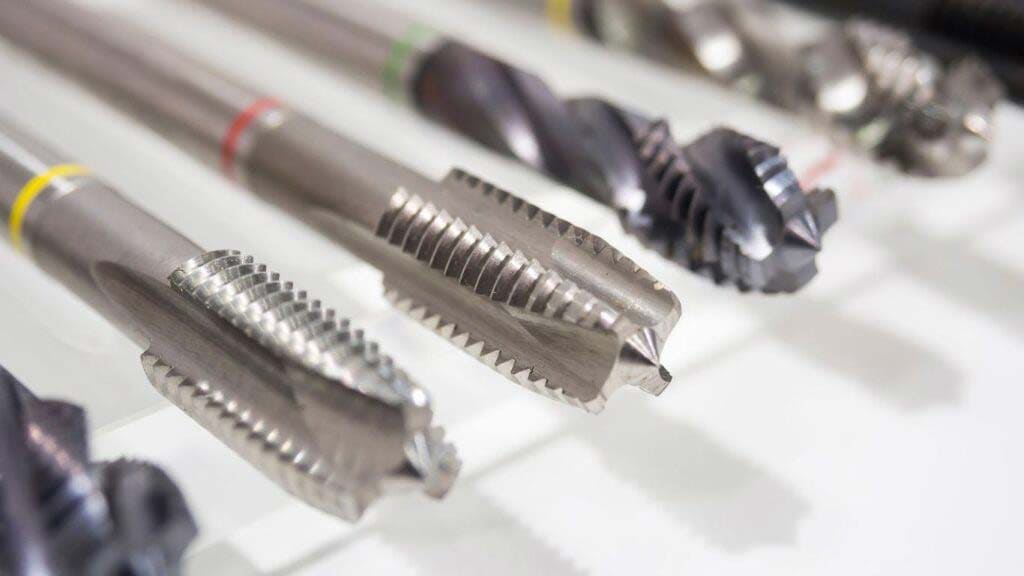

Tapping
For tapping in materials harder than HRC 35, carbide taps last longer and also produce excellent thread quality than other tools. These tools demand a robust setup to protect them from damage.
For general tapping in soft materials, HSS taps remain the preferred choice. Their built‐in strength makes them perfect for low-speed tapping and manual operations particularly in less stable settings.
See Also: Drilling vs Tapping_ What Are The Differences
Milling
For machining hard materials such as steel alloys or cast iron, carbide end mills excel in three key areas－surface finish, precision as well as productivity. These tools perform best at higher speeds.
On the other hand HSS tools are suitable for low power machines and perform better at lower speeds. HSS tools also perform well during interrupted cuts because their flexible nature decreases the risk of chipping.
Also See: What is CNC Milling
Tool Maintenance & Re‐sharpening
Both HSS and carbide tools need specific maintenance to increase their life span and maximize their performance. The maintenance processes for these two types of tools are very different.
HSS Tools
Maintenance requirements for HSS tools are simple. Users can maintain sharp cutting edges with advanced instruments or bench grinders. The ability to resharpen these tools many times increases their cost‐effectiveness.
To increase tool life users must follow correct cutting parameters with proper selection of coolants. Moreover regular inspections help detect dullness or damage at early stage. Also sharp tools decrease stress on the machine and guarantee precision.
Carbide Tools
Carbide tools need special care due to their extreme hardness. These tools demand professional sharpening services or diamond grinding wheels. Hand‐operated reshaping is hard to do because of characteristics of material.
Users can increase tool life up to 10 times by recoating with materials such as titanium nitride. This process increases wear resistance and restores cutting geometry as well. Use of proper coolant and regular cleaning will prevent early wear.
Making the Selection－HSS vs. Carbide
Factors to Consider
The choice between HSS & carbide tools depends on multiple important factors.
Machine Capabilities
The condition of your equipment directly affects the choice of tool. Carbide tools demand a stable setup due to their abrasive nature. On the other hand, for machines with inadequate clamping or poor spindle condition, HSS tools are a better option despite the lower cutting speed.
Application Standards
Choose a tool that suits your particular material and operation. Use carbide tools for high‐speed machining of hard materials like titanium or stainless steel. Pick HSS tools for more flexible materials like wood or aluminum. HSS also works well for less robust setups and interrupted cuts.
Budget Limitations
The initial cost of carbide tools is 3 to 5 times higher than HSS tools. Although in high‐production operations this cost difference becomes less important due to the better stability of carbide. Smaller operations benefit from the lower purchase price of HSS tools. HSS tools are also cost‐effective due to their better performance and easy resharpening process in basic operations.
Production Scale
Carbide tools are best in batch‐size manufacturing projects. Their fast cutting speeds and long life increase overall performance and decrease manufacturing interruptions. HSS tools are better for small‐batch work or personalized projects. Customers can effortlessly resharpen these tools. In addition their low starting cost makes them the practical choice.

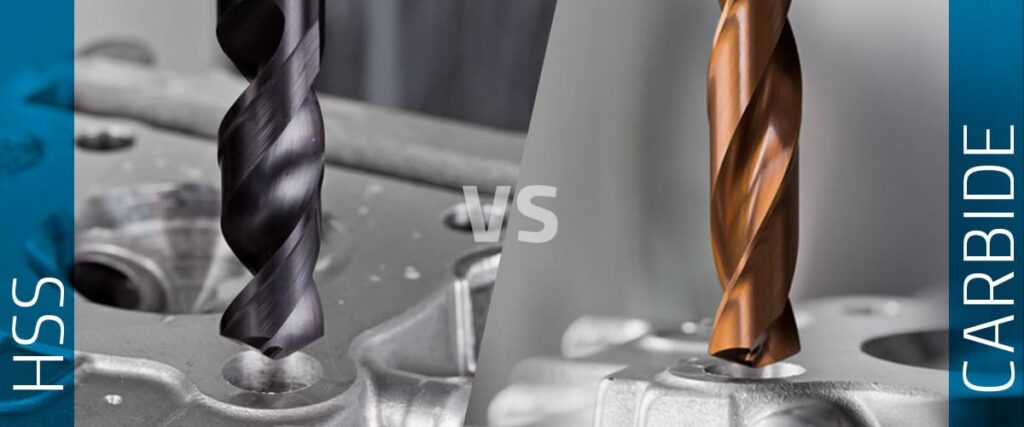

When Should You Choose HSS or Carbide?
Your particular machining needs should guide you to make the choice between HSS & carbide tools.
When Should You Choose HSS
HSS tools work best in a number of specific situations. These include low‐speed applications, manual setups as well as older CNC tools where frequent tool changes are needed. These tools efficiently handle interrupted cuts such as unstable setup operations or rough machining of cast iron. HSS tools also give good results with soft materials which includes plastics & aluminum.
Small‐scale projects and production with limited budgets benefit from HSS tools. Their easy resharpening process and low cost give clear advantages in these situations.
When Should You Choose Carbide?
Modern CNC mostly benefit from carbide tools specially in precision‐oriented and high‐speed operations. These tools maintain their effectiveness during mass production and continuous cutting operations. Their wear resistance & hardness make this possible.
Carbide tools efficiently handle hard materials which include heat‐resistant alloys & stainless steel. Large‐scale operations justify their higher initial cost. The tools’ long service life and their ability to sharpen at high temperatures create long‐term cost benefits.
To Sum Up
The demands of your particular CNC application will determine the best choice between HSS & carbide tools. Pick carbide tools when you need precision machining of hard materials and high‐speed operations. But if you need a less expensive solution for simple use then HSS tools will be perfect choice．
For expert guidance and high-quality CNC machining services, contact Richconn today to discuss your specific requirements.
Related Questions
Can carbide tools be used for all types of metals or are they only suited for certain materials?
Harder as well as more abrasive metals like stainless steel & titanium work better with carbide tools. These tools are less effective on sticky or soft materials.
Which CNC machining tasks get the most benefit from carbide tools?
Carbide tools are important for high‐speed cutting of hard materials such as titanium & stainless steel. These tools also give excellent surface finish in precision work.
How does the durability of carbide tools compare to HSS in machining hard materials?
On hard materials, carbide tools show long life and high wear resistance as compared to HSS tools. Even so carbide tools can easily chip under unstable conditions.
How do carbide and HSS tools perform in high speed CNC applications?
Carbide tools are a better choice for high‐speed applications due to better heat resistance and hardness. These properties give longer tool life and permit faster cutting speeds than HSS tools.
Can carbide tools be re‐sharpened and how does this influence their overall cost‐effectiveness?
Yes they can be re‐sharpened. A number of re‐tapping or resharpening sessions increase the life of a carbide tool. This feature improves their cost effectiveness.
What are the general maintenance demands of carbide tools in CNC machining?
Carbide tools need periodic resharpening, safe storage as well as careful handling to avoid damage.
Are carbide tools more prone to chipping than HSS tools?
Yes carbide tools are more prone to chipping than HSS tools due to vibration & shock during machining.
Which one is more suitable for precision work－HSS tool or Carbide tool?
The superior hardness of carbide tools makes them perfect for precision work. These tools create a streamlined finish as opposited to HSS machining.
