An IC socket connects an integrated circuit (IC) to a printed circuit board. This design lets you insert and remove ICs for testing, replacement or prototyping. Most people choose sockets over soldering. Sockets protect delicate chips from heat, make repairs faster and allow for quick part swaps. As a result downtime drops and the risk of damaging the board goes down.
Selection Criteria
You need to consider some factors to choose the right socket for your needs.
- IC package compatibility: The socket must fit your IC’s package type—DIP, BGA, PLCC or others. If not, connection failures will occur.
- Pin count & pitch: Your socket must match the IC’s pin count which is mostly 8 to over 1,000 pins. The pin pitch must align exactly for a perfect fit.
- Mounting method: Through‐hole mounting is sturdy and good for prototypes; surface-mount is smaller and good for high volume production.
- Test cycle durability, insertion force, signal integrity: Look for sockets with high durability for many test cycles, low insertion force and low contact resistance. These features assure reliable operation.
- Environmental factors: Socket must handle your application’s vibration, temperature and compliance requirements.
For tough or special environments, custom socket housings are used; like those manufactured by RICHCONN. These sockets can add extra protection & reliability.
Through Hole Standard IC Sockets
Through‐hole standard IC sockets provide strong, serviceable connections for PCBs. Designers use them for legacy systems and prototyping because they are easy to install and work very well.

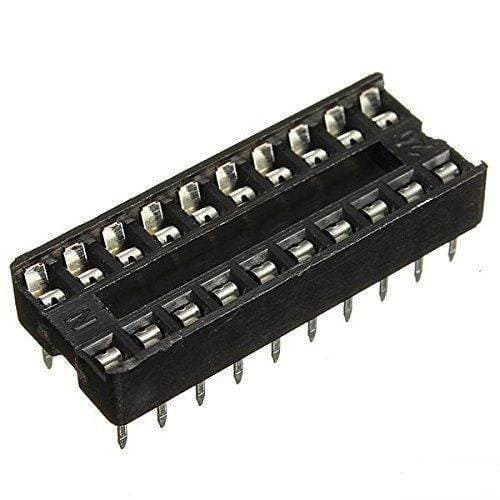

DIP Socket
Dual In‐Line Package or DIP sockets mount through holes using two straight rows of pins. Their standard versions support 8 to 40 pins.
Both ceramic (CERDIP) and plastic materials are available with a typical pitch of 2.54 mm. Test boards and breadboards mostly use these sockets.

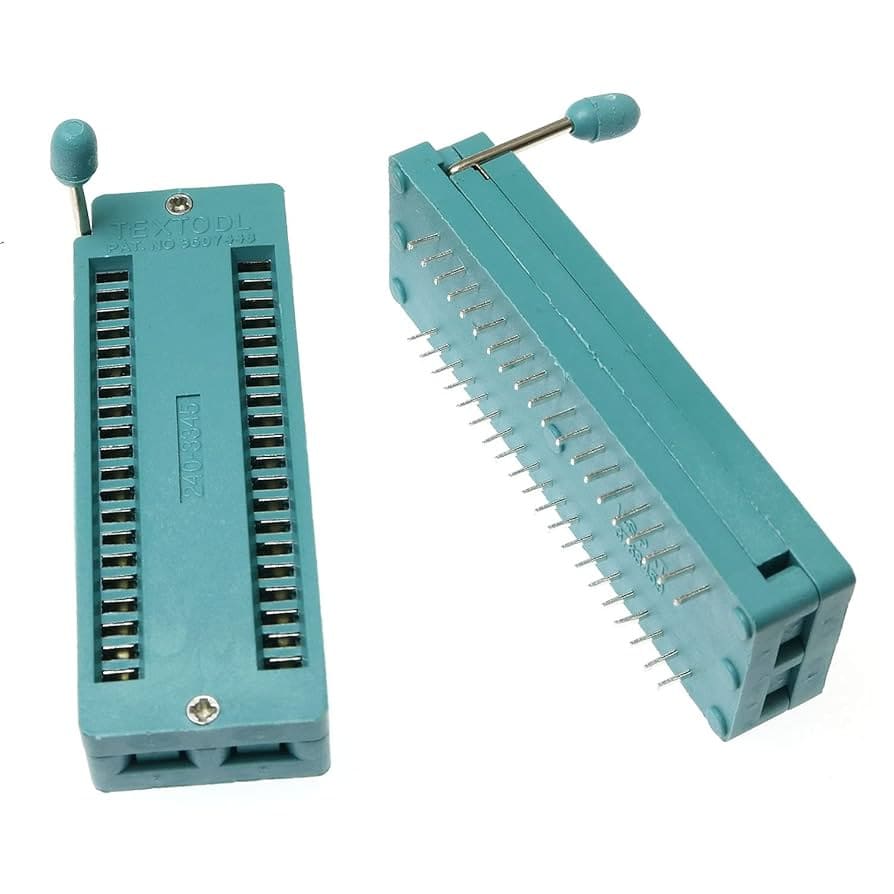

ZIF (Zero Insertion Force) DIP Socket
ZIF DIP sockets have a lever that locks or releases the IC. This mechanism lets you insert or remove chips with minimal effort. This design prevents pin damage and is suitable for applications that need frequent chip changes. Test and programming setups commonly use ZIF sockets.
Related Blogpost: What are Semiconductor Test Sockets
Surface Mount & Miniature IC Sockets
Surface‐mount and miniature IC sockets are an important part of compact layouts with high component density. By using these sockets you can perform chip replacement without damaging the board, even in tight spaces.
SOIC/TSSOP/SSOP Sockets
These sockets accept gull‐wing lead packages and support 0.65mm pitch. They are good for logic chips, op‐amps and memory in devices where space is tight. TSSOP sockets can handle up to 64 pins therefore they are suitable for diverse use cases.

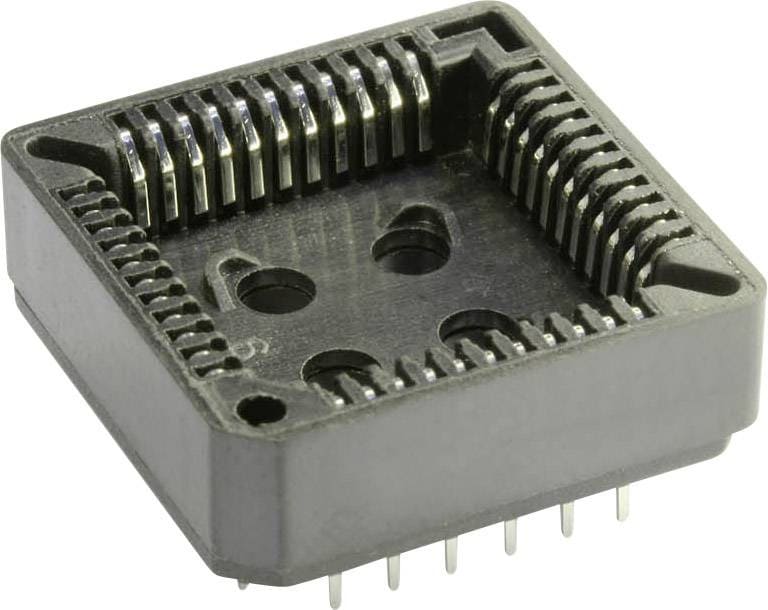

PLCC Socket
PLCC sockets hold square chips with J‐shaped leads which are typical for microcontrollers and memory. Both through‐hole and SMD versions of PLCC are available. They can support up to 84 pins and are good for assembly & repair.
High precision machining is critical when working with miniature sockets and fine pitches. At RICHCONN, our team manufactures these parts to your exact design requirements.
High Density/ Grid Array Sockets
Designers use high density and grid array sockets to connect powerful chips in complicated systems. These sockets are important for applications that need to handle large data and high pin counts. Three main types are widely used these days:
1. PGA (Pin Grid Array) Socket
A PGA socket has a grid of holes that line up with the pins on the IC. It can support hundreds of pins and is mostly found in DSPs & CPUs.

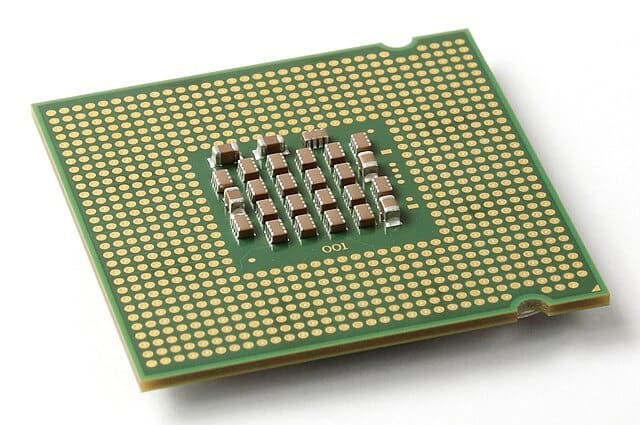

2. LGA (Land Grid Array) Socket
LGA sockets have flat contacts on the chip & pins on the socket itself. This means more pins are there in a smaller space. These sockets also improve heat management and power delivery. This makes them good for desktop and server CPUs.

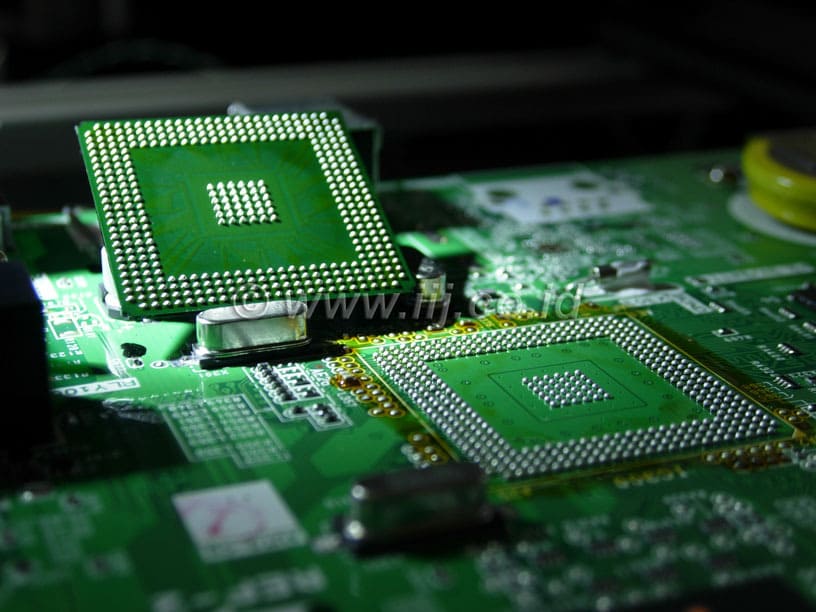

3. BGA (Ball Grid Array) Socket
BGA sockets use solder balls to connect to the chip. These support thousands of connections in a small area. They are also good for prototyping and testing while keeping signal integrity high.
Related Blogpost: What Are Connector Pins?
Specialized/ Test & Burn‐In Sockets
Specialized sockets are used by engineers to test ICs in real world and extreme environments. Two main types of these sockets are especially important.

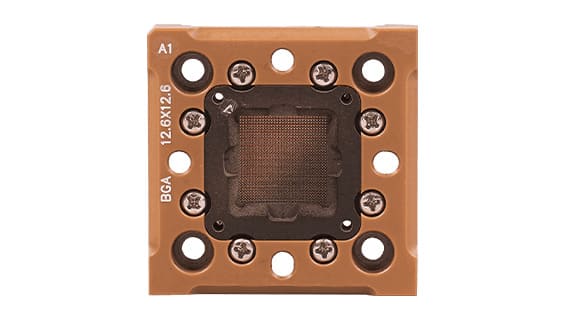

Test Socket (BGA/PGA/QFN etc.)
Test sockets use elastomer contacts or spring pins to assure electrical testing. They can bear up to 100,000 insertions. They also support high frequency signals with very low loss. Many models can handle temperatures between –55°C & 200°C and up to 5A of current per pin.

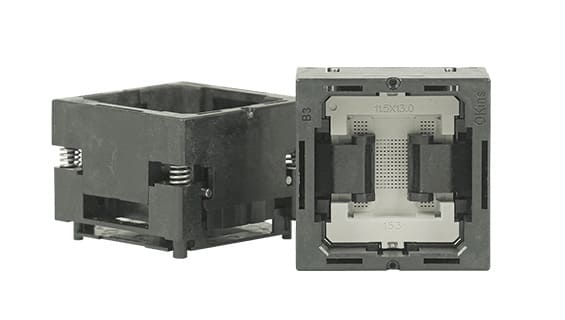

Burn In Socket
Burn‐in sockets are best for stress testing. These sockets can withstand high temperatures between 125°C and 180°C for long periods. They are usually made from high performance plastics and copper alloys. These sockets are very durable (up to 10,000+ cycles) and have insulation resistance above 1000 MΩ.
Other Formats of IC Sockets
Some IC sockets don’t fit into main categories but serve important purposes.

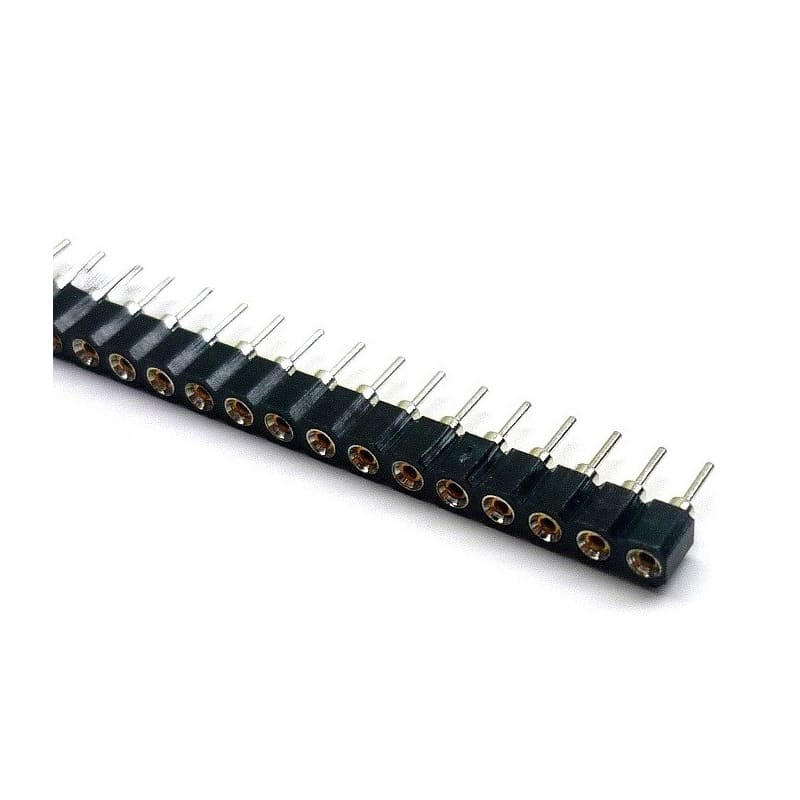

SIP Socket
Single In‐Line Package (SIP) sockets have one row of pins. These work well for modules and resistor arrays. They are very compact, mostly with a 2.54 mm pitch. Gold‐plated SIP sockets can handle up to 500 insertion cycles.

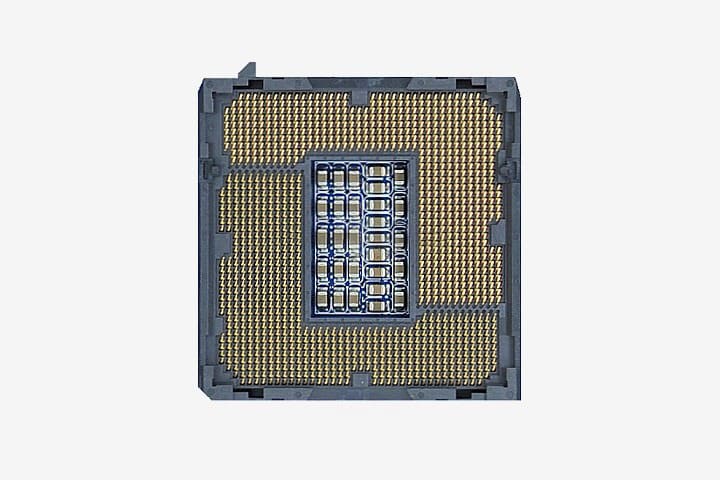

CPU Sockets
Desktop & server processors use CPU sockets. These sockets support complicated layouts like PGA or LGA. Advanced versions can have hundreds or thousands of pins. Most of these sockets have retention hardware to keep the processor secure.
Comparison Table
| Socket Type | IC Package(s) | Mounting | Insertion Force | Typical Use Cases |
|---|---|---|---|---|
| DIP | DIPn | Through‐hole | Medium | Prototyping, legacy |
| ZIF | DIP, PGA, BGA | TH/SMD | Very low | Frequent swapping |
| SOIC | SOIC, TSSOP | SMD | High | Compact designs |
| PLCC | PLCC | TH/SMD | Medium | DSPs, memories |
| PGA | PGA | Through‐hole | High | CPUs, DSP testing |
| LGA | LGA | SMD | Low | Servers, motherboards |
| BGA | BGA | SMD | Variable | High‐density ICs |
| Test socket | PGA/BGA/QFN | Customized | Depends | Verification labs |
| Burn‐in | Multiple | Custom | Depends | Reliability testing |
| SIP | SIP | Through-hole | Medium | Modules, simple components |
Design & Integration Tips for IC Sockets
Plan carefully when designing and integrating IC sockets. Good planning helps teams avoid mistakes and build reliable products.
1. PCB Footprint vs Socket Outline
Make sure the socket’s footprint matches the IC’s size and pin arrangement. Verify pad size, pitch as well as silkscreen outline. Follow IPC 7351 guidelines to get strong solder joints and a good fit.
If you have difficult footprint or outline issues, RICHCONN’s engineering team can help design and machine custom sockets for your board.
2. Signal Integrity
Route high speed signals with controlled impedance and limit the number of layer changes. Place ground planes close to signal traces to reduce noise and crosstalk. Keep differential pairs tightly coupled and avoid sharp turns. For critical signal paths, choose sockets with contact resistance below 30 milliohms.
3. Thermal & Mechanical
Choose socket materials that match your application’s temperature needs. Use high temperature thermoplastics, such as LCP or PPS, for reflow soldering. For high power ICs, select sockets with heat sinks or special pin layouts to improve heat dissipation. Also make sure the socket can handle mechanical stress and vibration without losing electrical contact.
4. Lifecycle & Compliance
Select sockets rated for many insertion cycles; some sockets can support 500 to 1,000 cycles or even more. Check for UL and RoHS certifications to meet safety and environmental standards.
Which IC Socket Should I Choose?
Consider your package type, pin count as well as application requirements when choosing an IC socket. If you plan to swap or test chips often, choose ZIF or spring‐pin sockets. For harsh or high reliability environments, gold plated contacts are best. Always make sure the socket’s footprint and pin arrangement match your IC for best results.
To Sum Up
IC sockets are essential in electronics for flexibility, protection and cost savings for many applications. Simple DIP sockets are good for prototyping while BGA sockets are for high density designs. Your needs will determine the best socket. High quality sockets mean more reliability, less downtime and the ability to handle thousands of insertions.
Whether you need standard or custom IC sockets, RICHCONN provides CNC precision manufacturing and rapid prototyping to help bring your designs to life. You can contact us anytime.
Related Questions
Elastomer sockets need less insertion force and have better high frequency performance. They also handle misalignment well and apply even contact pressure. Moreover they are better for fragile parts and high speed applications than pogo‐pin sockets.
Use LIF socket if you want easier insertion and removal as compared to standard sockets. But if you prefer a simpler, smaller and more affordable option then use ZIF.
Look for manufacturers with a good reputation, industry certifications (like ISO or RoHS), advanced production capabilities, short lead times and strict quality control. Richconn meets these criteria and is a reliable source for both standard and custom IC sockets.
