Inconel performs an important role in industries like chemical processing and aerospace because of its resistance to extreme conditions as well as outstanding strength. But its extraordinary properties make machining difficult without the right techniques & tools.
In this blogpost we will cover properties, best practices and challenges of inconel machining along with its practical applications.

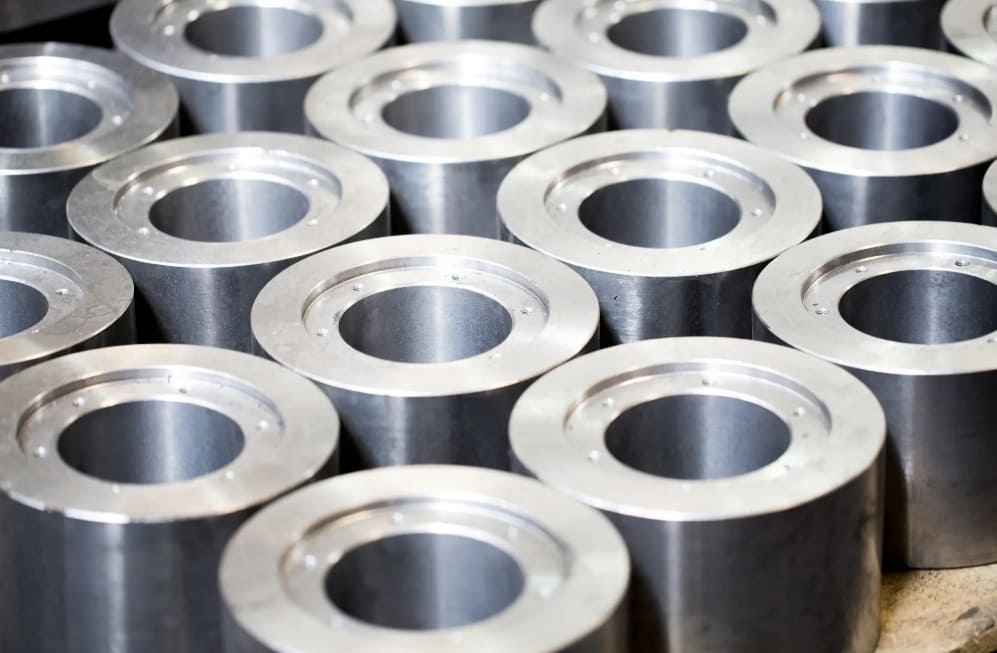

What is Inconel Machining?
In simple terms Inconel machining is a special process in which components are shaped and fabricated from Inconel.
This material is basically a family of nickel‐chromium‐based superalloys that are well‐known for their impressive corrosion resistance as well as strength and ability to withstand high temperatures. These qualities make Inconel important in industries like automotive, chemical processing, aerospace etc.
Also See: CNC Machining of Nickel Alloys
Composition of Inconel
Inconel alloys are composed primarily of nickel and chromium. They also contain some additional elements, like iron, molybdenum and niobium. Such elements improve their properties like thermal stability, strength and resistance to corrosion.
The exact composition varies by grade. But the table below shows ranges of some of main elements.
| Element | Composition (%) |
|---|---|
| Nickel | 50‐72 |
| Chromium | 14‐31 |
| Iron | 6‐10 |
| Aluminum | 0.35 |
| Carbon | ≤0.10 |
| Titanium | 0.15‐1.70 |
| Molybdenum | 0‐10 |
| Niobium | 2.75‐4 |
Properties of Inconel Relevant to Machining
Mechanical Properties
Hardness
Inconel alloys show very high hardness values which are usually above 300 Brinell hardness (HB). This makes them resistant to deformation during machining.
Fatigue Resistance
These alloys keep outstanding fatigue resistance even under aggressive temperatures & constant loads. Hence they are perfect for aerospace and turbine applications.
High Strength
Inconel has a yield strength of around 1036 MPa & a tensile strength of 1240 MPa.
Physical Properties
Thermal Conductivity
Inconel has low thermal conductivity which leads to heat concentration during machining. Thus it requires optimal cooling strategies.
Expansion Characteristics
Inconel has a thermal expansion coefficient of 12.8 to 13.3 µm/m·K which assures dimensional stability at elevated temperatures. But it requires accurate machining techniques to avoid thermal deformation.
Density
Inconel has density of almost 8.44 g/cm³.

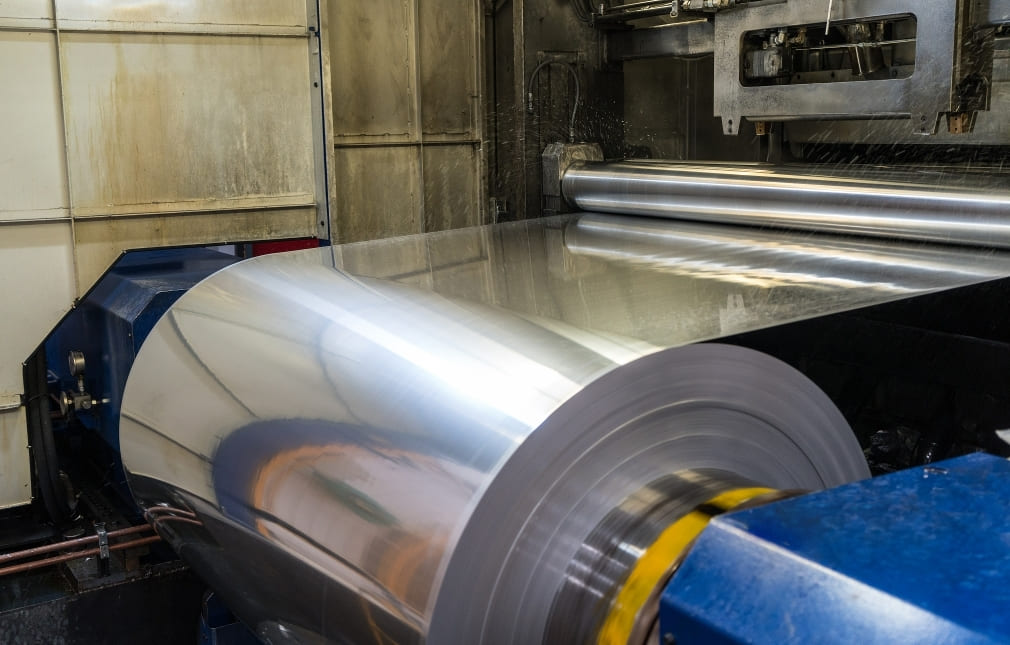

Challenges in Machining Inconel
Heat Generation and Management
Inconel generates a lot of heat during machining. This is because of its low thermal conductivity and cutting temperatures which cause the cutting temperature to exceed 1200°C. This high heat not only compromises surface integrity but tool life too.
On the other hand its poor heat dissipation is what makes temperature management even more difficult. This in turn poses risks such as decreased machining precision & thermal distortion.
Work Hardening Tendency
Inconel hardens rapidly when subjected to machining stresses because it forms hardened layer under cutting surface. This in turn not only accelerates tool wear but also complicates subsequent machining operations and increases cutting resistance too.
Furthermore the depth of this hardened layer can even exceed 60 µm which can cause difficulties in making highly‐precise cuts.
Surface Integrity and Tool Wear
Both hardness and abrasive nature of inconel accelerate tool wear which includes notching & edge chipping. This wear increases the costs and compromises machining proficiency as well.
In addition worn tools cause rough finishes, sub‐surface damage and micro‐cracks which makes it a challenge to maintain surface integrity. This in turn affects the performance of machined components.

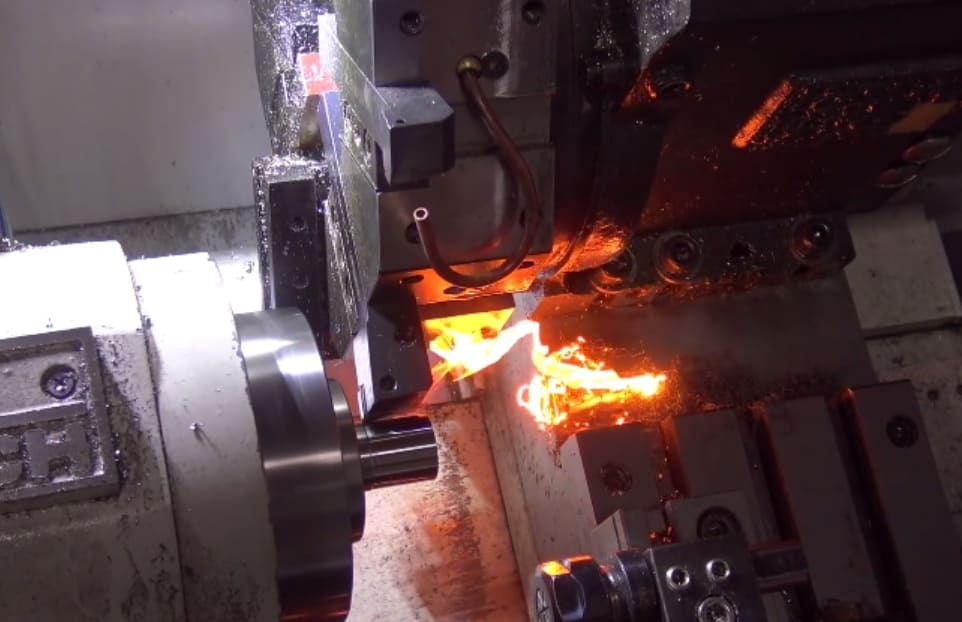

Machining Techniques and Best Practices
Tool Selection
You will need high‐performance tools in order to handle the toughness of inconel. For general machining carbide tools are best because of their heat resistance & longevity.
Likewise ceramic tools are suitable for high‐speed applications and coated tools such as those that are coated with titanium aluminum nitride (TiAlN) decrease friction & increase tool life in tough conditions.
Cutting Parameters Optimization
You should use cutting speeds between 60‐70 m/min to balance surface quality as well as heat generation. Use feed rates of 0.1‐0.2 mm/rev to minimize surface roughness & assure consistent chip formation. Besides that maintain the depth of cut between 0.2‐0.3 mm to avoid excessive cutting forces and tool wear.
Also See: Feed Rate and Cutting Speed in CNC Machining
Coolant Application
In Inconel‐machining effective coolant application is important to prevent work hardening and manage heat. High‐pressure systems assure proficient dissipation of heat. On the other hand flood or oil‐based coolants provide outstanding lubrication to decrease friction.
Additionally correct coolant flow during high‐temperature operations helps in chip evacuation as well as in protecting tools and maintaining surface integrity.
Advanced Machining Strategies
Two advanced machining strategies that are used for Inconel are–plunge milling & high‐feed milling.
High‐feed milling enables greater material removal rates and minimizes tool wear. Therefore it is suitable for roughing operations.
Plunge milling, on the other hand, reduces axial forces which in turn increases stability and machining accuracy specially in deep cuts or challenging geometries.
Non-Traditional Machining Methods for Inconel

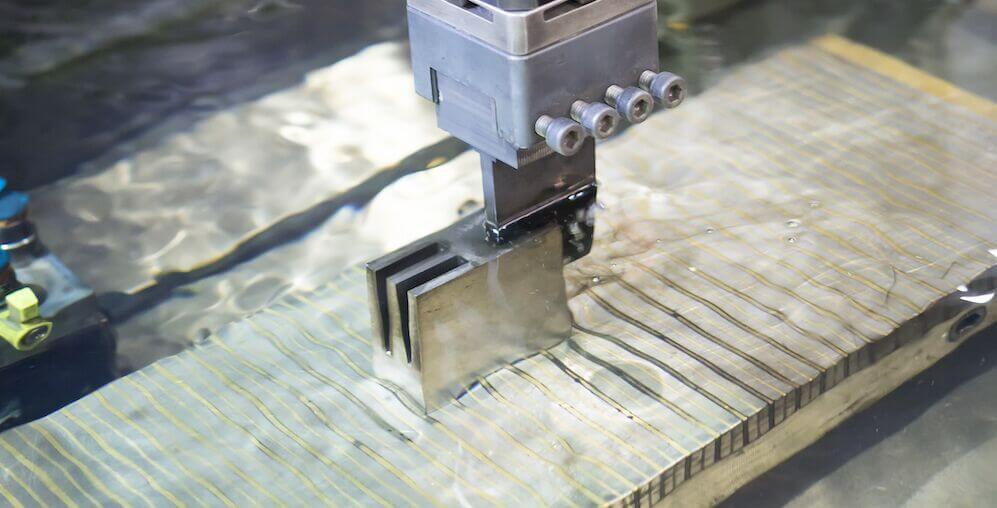

Electrical Discharge Machining
EDM is capable of handling hard, heat‐resistant materials without physical contact which makes it suitable for inconel machining. It uses dielectric fluids and controlled electrical discharges to remove material precisely and obtain smooth finishes as well as high accuracy. Thus it is effective for complicated components and shapes like turbine blades.
See Also: Sinker EDM vs Wire EDM

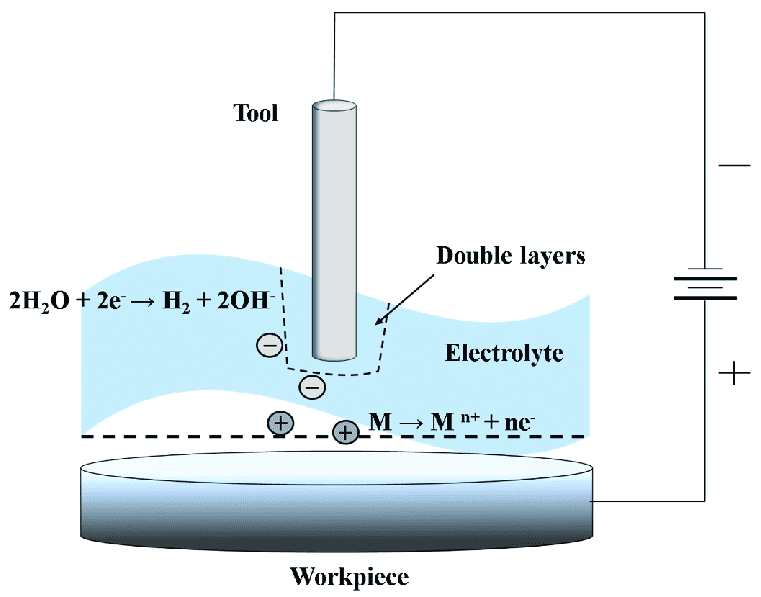

Electrochemical Machining
In ECM electrochemical reactions are used to dissolve inconel materials without heat generation or mechanical stress.
ECM uses a negatively charged tool i.e cathode and a positively charged workpiece i.e anode to achieve accurate cuts & intricate geometries. This technique is broadly used for aerospace applications that require smooth surface finishes.
Photochemical Machining
PCM uses chemical etching along with photoresist techniques in order to fabricate complicated components with fine details.
It is highly effective for thin‐gauge Inconel components because it maintains tight dimensional tolerances and provides burr‐free processing as well. Hence it is commonly applied in precision engineering & electronics industries.

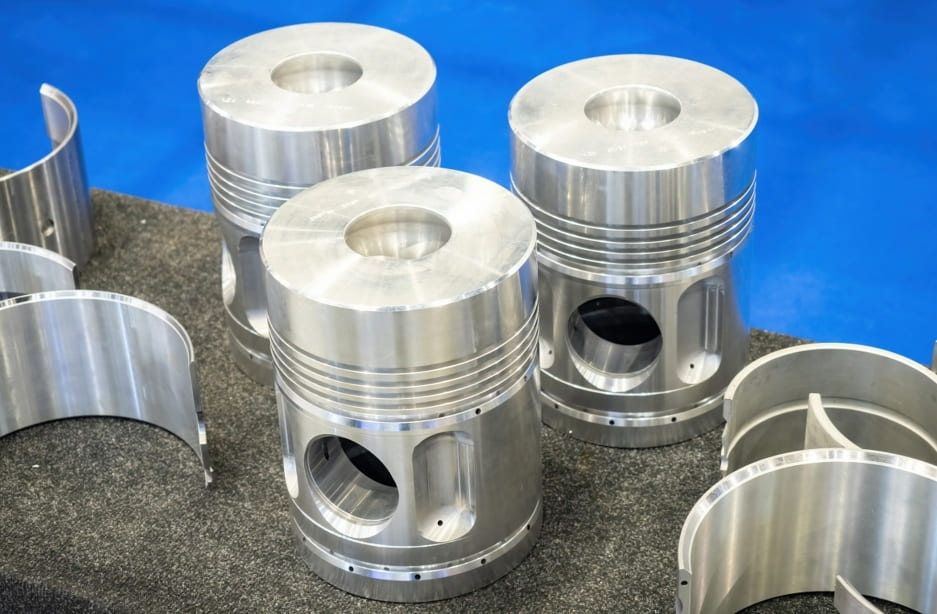

Applications of Inconel Machining
Aerospace Industry
Inconel is greatly used for jet engines, exhaust systems, turbine blades etc. This is because of its ability to endure high pressure and temperatures. Furthermore its oxidation resistance guarantees reliability in important components like heat shields and combustion cans.
Turbine Blades
Gas turbine blades in power plants and aircraft need materials that can not only withstand high temperatures but also mechanical loads. Therefore Inconel’s ability to resist oxidation as well as thermal fatigue and creep deformation makes it a preferred choice there.
Besides that its high‐temperature strength assures better energy conversion & extended service life.
Heat Exchangers
Nuclear power, chemical processing and marine applications—all these industries use inconel for heat exchangers. It can also withstand highly‐corrosive and thermal environments which guarantees proficient heat transfer and that too without material degradation.
Marine and Chemical Processing
Inconel resists seawater corrosion in marine applications. This makes it suitable for valves, fasteners, propeller shafts etc. Similarly in chemical processing it is used for reactors as well as pumps that are exposed to aggressive chemicals.
To Sum Up
In short inconel machining requires special tools and techniques to overcome its challenges. Inconel’s distinct properties make it suitable for different industries such as chemical processing & aerospace despite its machining challenges.
If you require outstanding inconel machining services then RICHCONN is best option. You can contact us anytime.
Related Questions
What makes Inconel a challenging material to machine?
Inconel’s high work hardening rate as well as low thermal conductivity and toughness lead to high cutting forces, considerable tool wear and heat build‐up during machining.
What are the most effective machining techniques for cutting Inconel alloys?
Some effective techniques are improving cutting parameters (moderate feed rate, low speed), using ceramic or carbide tools as well as electrical discharge machining (EDM) for complicated features.
Can Inconel be machined using traditional CNC machines or are specialized tools required?
Yes inconel can be machined by conventional CNC machines. But special tools like ceramic or carbide inserts are necessary for durability & proficiency.
How do high cutting temperatures during Inconel machining impact tool life?
High temperatures accelerate tool wear through abrasion and adhesion mechanisms. This decreases tool life greatly which then leads to frequent replacements and need for special coolant systems or coatings.
What role does coolant play in improving the efficiency of Inconel machining?
During inconel machining coolant reduces work‐hardening, improves tool life, dissipates heat effectively and assures consistent cutting engagement in order to improve proficiency.
How can work hardening in Inconel be prevented during machining?
There are three important strategies for minimizing work hardening–avoiding pecking, using lowcutting speeds with optimal feed rates as well as keeping constant cutting engagement.
What types of cutting tools are best suited for machining Inconel?
Ceramic tools & carbide tools with positive rake angles are best because of their heat resistance & their ability to handle greater cutting forces.
How can surface integrity be maintained when machining Inconel alloys?
During machining optimize feed rates & cutting speeds, use fresh tools and moreover assure proper cooling in order to avoid deformation as well as residual stress.
