To maintain a competitive edge it is essential to attain both precision & accuracy in automotive manufacturing. Jigs & fixtures are critical instruments for this target. They give stable support and positioning which assists to maintain quality during manufacturing．
This blog post covers their functions, types, manufacturing techniques as well as industry standards to enhance your manufacturing procedure.

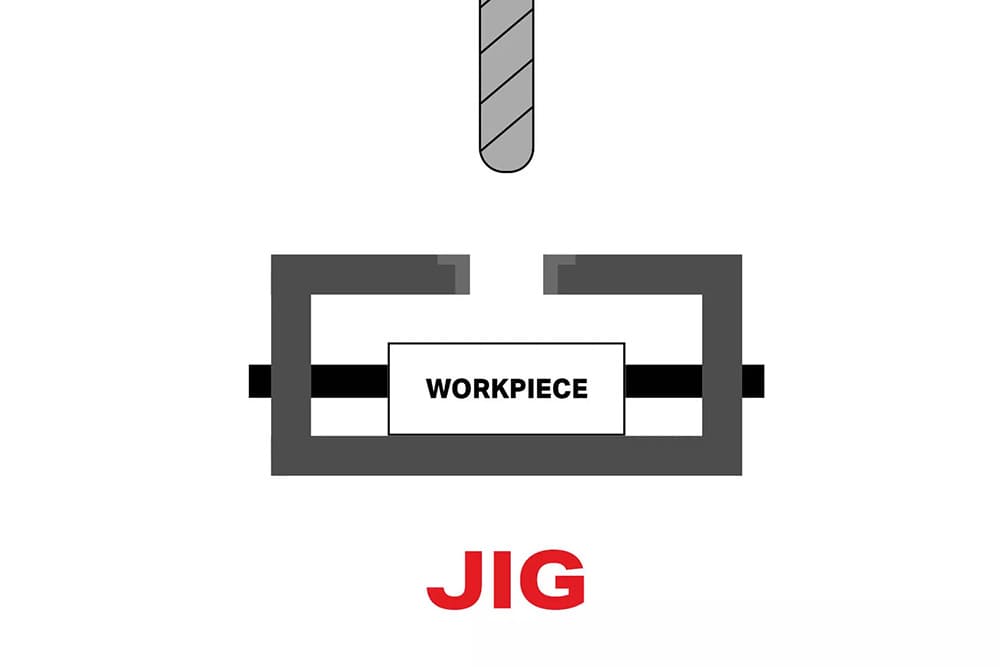

What is a Jig?
In simple terms, jig is a special instrument that is used in manufacturing. It holds the workpiece & leads machining or cutting tools – like tips or drills – with accuracy. This guidance guarantees precision and process integrity in automotive manufacturing. Jigs simplify intricate jobs and help in making uniform quality components.

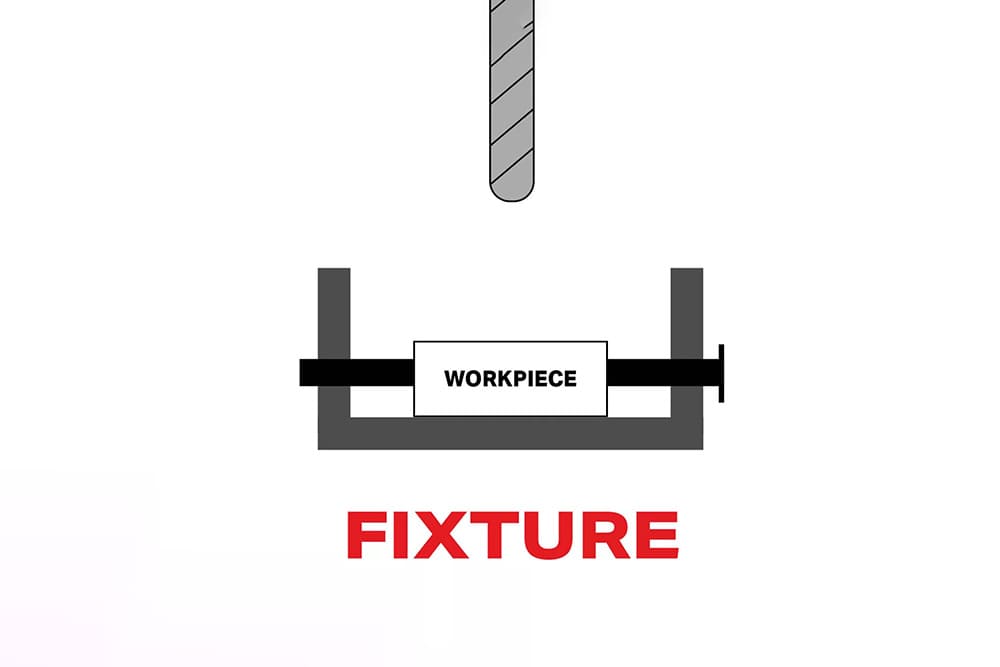

What is a Fixture?
Basically, fixture is a special assisting device that firmly controls & positions a workpiece during assembly, machining or inspection. Fixtures are different from jigs as they do not direct the cutting tool. Rather they hold the workpiece in a precise and steady position throughout machining process.
Functions of Jigs and Fixtures in Automotive Manufacturing
Increasing Productivity and Efficiency
Jigs and fixtures simplify the setup and reduce requirements for non‐automated adjustments. They can lower manufacturing time by up to 30%. Accelerated manufacturing rate and elevated production volume become feasible and their repeatability preserves uniform quality in large‐scale manufacturing.
Improving Accuracy and Precision
Jigs and fixtures play a very important part in automotive manufacturing by holding components firmly and by guiding cutting tools. This mechanism permits engineers to attain strict tolerances (as close as ±0.01 mm). Thus each part is manufactured according to precise requirements which guarantees components substitutability and minimizes errors.
Supporting Automation
Engineers manufacture jigs & fixtures to operate seamlessly with automated systems like CNC machine & robotic arms. Their continuous performance and precise placement enable self‐regulated operations. This helps mass, automated manufacturing lines in the automotive industry.
Assuring Ergonomics and Safety
These instruments give a firm foundation for assembly tasks. They assist lower operator exhaustion and reduce danger of accidents. Fixtures manufactured with operator‐friendly design also enhance protection and comfort which makes the workforce more effective and reduces injuries.
Decreasing Rework and Waste
Jigs and fixtures help avoid misalignment and mistakes. This reduces the rework rate and lessens material waste. Therefore manufacturing becomes highly eco‐friendly. Some manufacturers have attained notable cost savings per cycle and reported up to 20% less scarp.
Different Types of Jigs and Fixtures in Automotive Uses
Most Common Jigs

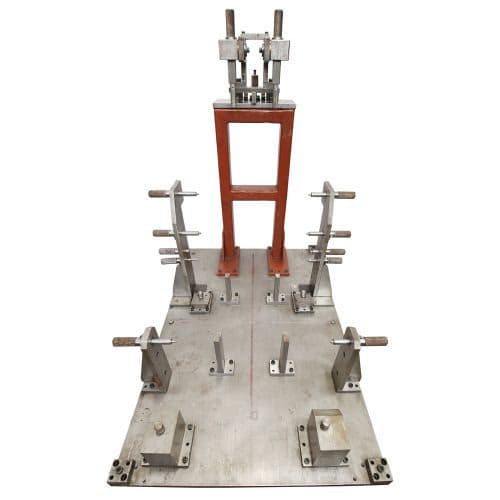

Welding Jigs
Welding jigs hold metal components in correct position during welding. By preventing deformation or movement, they assist in producing accurate and sturdy welds. These welds are critical for assembling automotive bodies & frames.

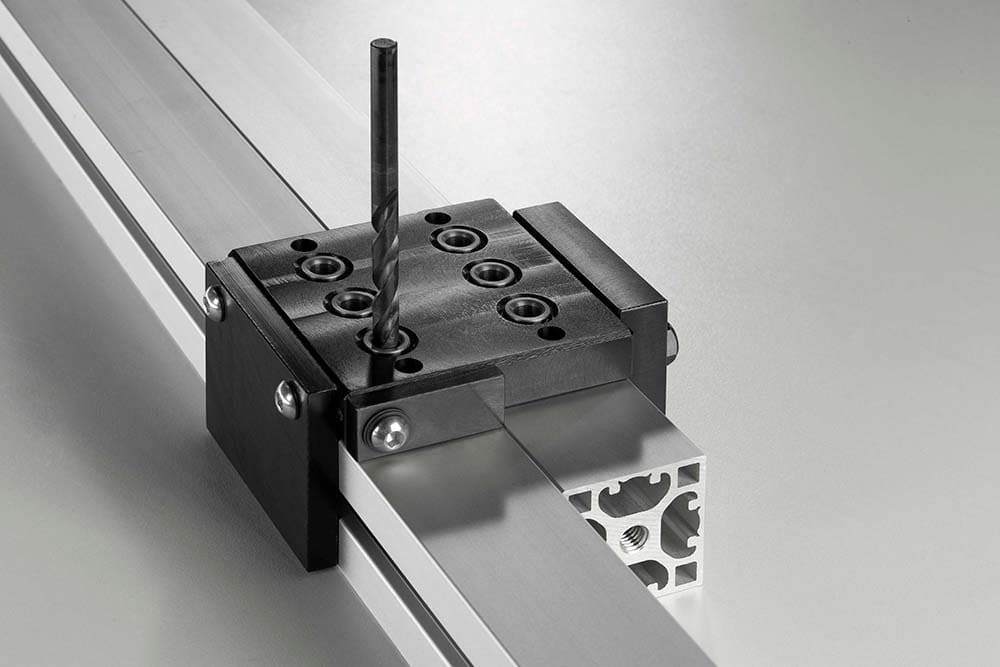

Drill Jigs
Drill jigs lead the drills to drill holes in automotive components with steadiness and precision. They enable large‐scale, repeatable drilling and help minimize errors.

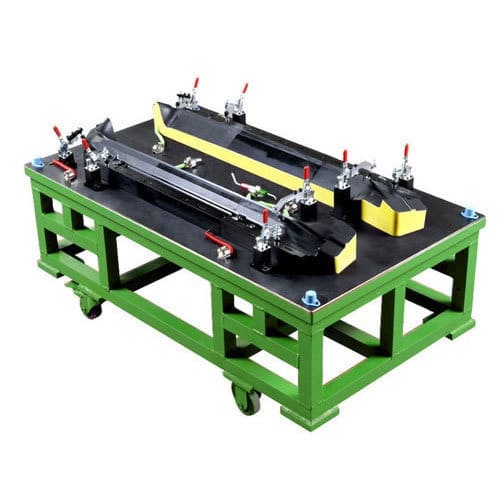

Inspection Jigs
Inspection jigs stabilized components for measurements & quality assurance. They operate with probes or gauges to help repeatable and fast checking. This reduces the possibility of flaws and assists preserve stern automotive quality standards.
Most Common Fixtures

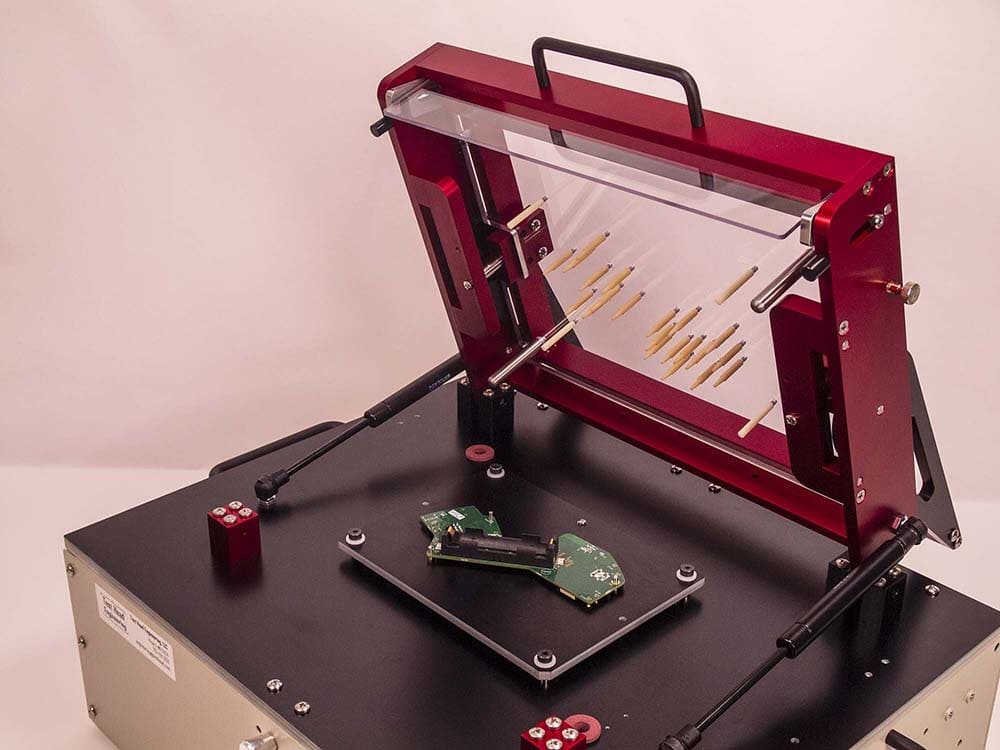

Testing Fixtures
Testing fixtures strongly hold assemblies or components for quality & functional checks. Most testing fixtures also include measurement instruments and sensors. This system permits for precise and rapid verification of essential dimension and performance prior to final assembly or shipping.

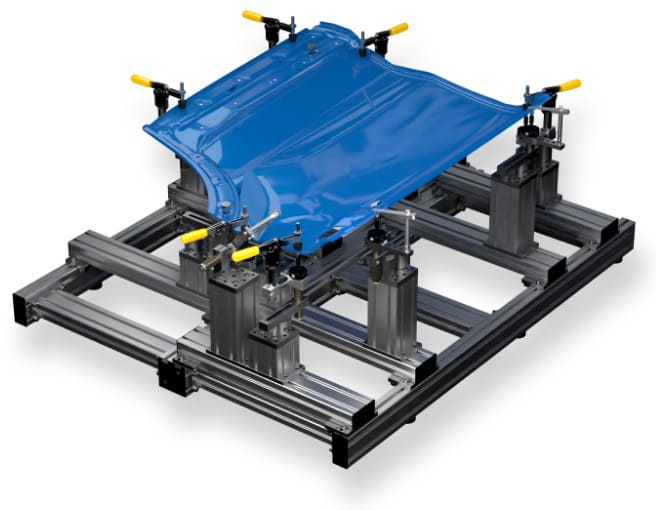

Assembly Fixtures
Assembly fixtures hold automotive parts in right orientation and position during assembly. These instruments assist in easy fitting of chassis, body panels and engine components. They also guarantee dimensional precision during manufacturing.

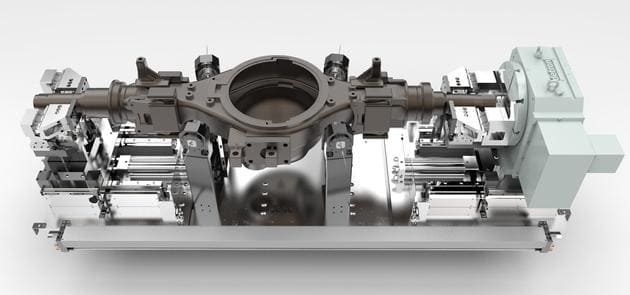

Machining Fixtures
Machining fixtures hold workpieces during drilling, milling or turning. By decreasing movement and vibration they support CNC machines to achieve strict tolerances. This dependability is critical for large‐scale manufacturing of intricate automotive components.
Special Fixtures
Automotive production also employs special fixtures – like modular BIW (body‐in‐white) fixtures – which adjust to different automotive models.
Configurable fixtures can implicitly change their configurations according to the workpiece.
Robot‐assisted fixtures combined with robotic arms, robotize positioning & clamping which significantly increases manufacturing efficiency.
Most Advanced fixtures use lightweight material & intelligent mechanisms with sensors that give live monitoring.
Production Techniques for Jigs and Fixtures
Conventional Manufacturing Methods

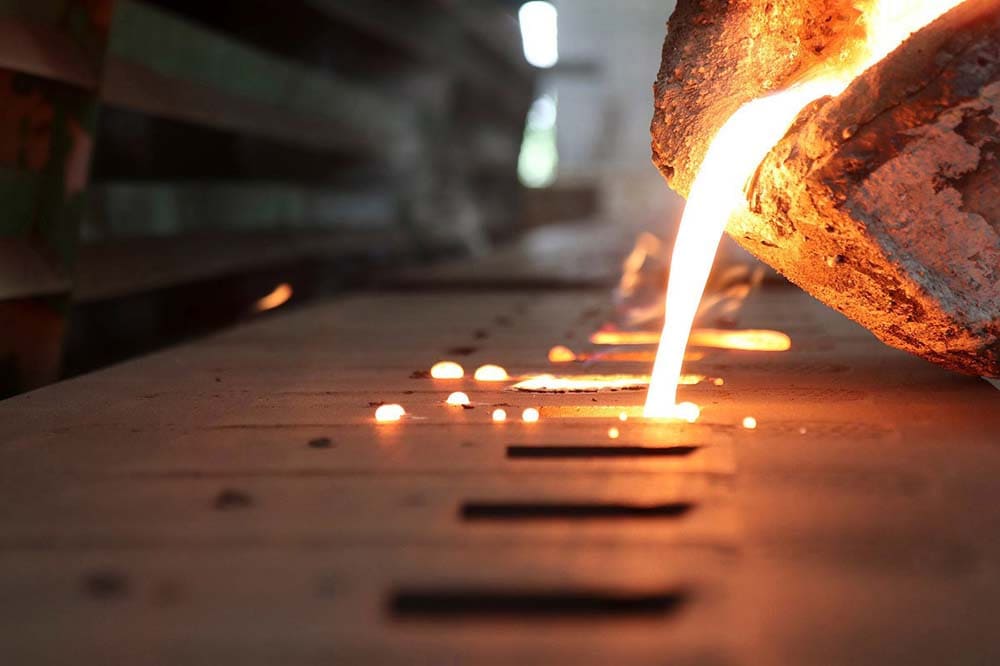

Casting and Forging
Casting & forging are employed to create heavy duty jigs and fixtures that need to be extremely tough. These techniques create solid metal components that can withstand great forces during vehicle assembly. However they take longer than other manufacturing methods.
Also See: Forging vs Casting vs CNC Machining
CNC Machining
CNC machining plays a crucial role in manufacturing jigs & fixtures with repeatability & precision. Modern turning, milling or drilling techniques produce sturdy jigs & fixtures from aluminum or steel which attain tolerances up to ±0.01 mm.
At Richconn we employ our tooling expertise along with 5‐axis CNC machines to create intricate, precise tolerance fixtures for automotive needs. These extend from lightweight aluminum alignment tools to strong steel frames for manufacturing.
See Also: What is CNC Precision Machining
Manual Fabrication
Personalized jigs and fixtures are created by joining metal components in manual fabrication. Methods like arc welding, MIG welding and TIG welding are used depending on design requirements and material. This method is beneficial for vehicle fixtures that require unique shapes or additional firmness.
Also See: MIG vs TIG Welding
Advanced Approaches
Additive Manufacturing (3D Printing)
Additive manufacturing facilitates rapid creation of personalized as well as intricate jigs & fixtures at low price. Processing times can be reduced by up to 90%. Hybrid designs are also achievable by integrating conventional parts with printed ones to attain adaptability and integrity.
E.g. RICHCONN utilizes commercial‐grade SLS 3D printers to produce corrosion‐resistant and lightweight jigs for EV battery manufacturing in only 5 to 7 days. These jigs involve threaded metal inserts which provide hybrid strength.
CAD/CAM Integration
CAD/CAM integration connects manufacturing & design through transferring fixture’s digital design straight to manufacturing tools. This procedure accelerates revision and gives better precision. It guarantees that production runs are continuous which is essential in automated automotive field.
Agile Tooling
Agile tooling uses digital design & manufacturing methods, such as CNC and 3d printing to rapidly create or modify jigs & fixtures. This approach decreases expenses as well as time‐to‐market. Moreover It facilitates fast prototyping which aids automotive engineers to stay updated on changing client requirements.
Best Materials

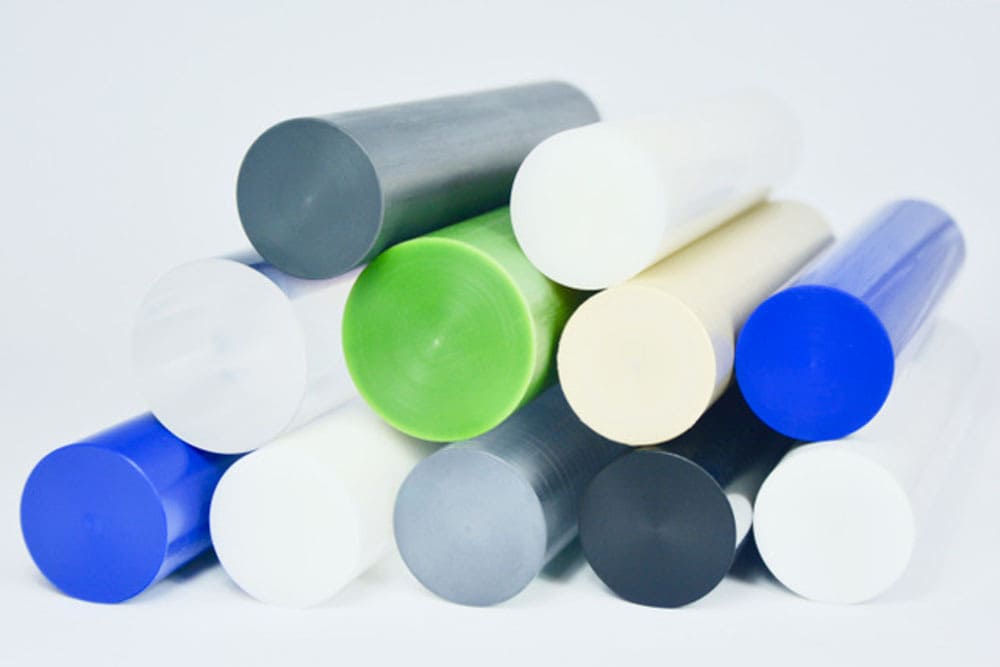

Polymers and Composites
Advanced plastics such as Nylon, Delrin and ABS combined with high‐performance polymers such as ULTEM & PEEK are utilized for fixtures that require to be user‐friendly, lightweight or non‐marring. These materials are highly effective in low to medium stress conditions. They can be 3D printed as well which enables fast prototyping & production of intricate designs.
Metals
Engineers usually pick top‐quality aluminum and steel alloys for jigs & fixtures as they provide stability, integrity and resistance to rust. Hardened steel is best for high‐volume and heavy‐duty work. Aluminum is lightweight and easy to machine which makes it a good option for less demanding or portable applications.
Design Factors and Best Practices
Design Principles
Flexibility
Incorporate adaptable options to jigs and fixtures like replaceable parts, sliding sections or modular units. These are suitable for components of various sizes and fulfill dynamic manufacturing requirements.
Simplicity
When designing jigs & fixtures, employ minimum components. Keep the operation simple so that its production & maintenance become easy. Basic designs are easier to repair, more reliable and generally less expensive in automotive manufacturing.
Durability
Select materials suitable for frequent use in automotive environments. Incorporate reinforcement to increase durability. Strengthen jigs & fixtures to ensure that they require lesser replacements and maintain their precision for thousands of cycles.
Incorporation with Automation
Automation
Generate fixtures that adapt and attach to IoT systems for on‐the‐spot inspection of temperature, alignment as well as pressure. These features help automated manufacturing by improving quality control and reducing manual tasks during production.
Robotics
Add typical interfaces as well as alignment elements to jigs and fixtures to cooperate with robots. Incorporate guide points and sensors for precise positioning. These considerations help to easily fit into automated assembly lines and robotic arms.
Compliance and Industry Standards
Certification and Compliance
Documentation
Certification demands complete documentation like verification results, design files and maintenance records. Having correct records assures compliance with ISO & industry standards. These documents facilitate support in audits and traceability in automotive production.
Testing
Operators must frequently test jigs & fixtures to maintain compliance. These inspections verify that the tools comply with tight automotive tolerances. Certification services evaluate function, validity as well as compliance with industry guidelines for duration of the tool’s life cycle.
International Standards
ISO/TS 16949
ISO/TS 16949 extends ISO 9001 with additional demands particular to automotive production. It concentrates on decreasing variation, avoiding defects and minimizing waste. The standard also guarantees that tooling fulfills exact dimensional accuracies for use in international supply chains.
By partnering with licensed companies like RICHCONN, manufacturers can get fixtures that comply with ISO/TS 16949 standards. This ensures fault prevention as well as compatibility with global supply chains.
ISO 9001
Jigs and fixtures designed & manufactured under ISO 9001 certification adheres to a rigorous quality assurance system. This standard requires regular calibration, documented processes and continuous development. These measures help uphold uniformity and accuracy in automotive production equipment.
To Sum Up
Automotive manufacturing relies on jigs and fixtures to gain high levels of performance, accuracy and quality. These instruments also reduce waste and support automated procedures. Perfectly built jigs and fixtures that meet industry standards have a big impact on manufacturing outcome as well as company’s credibility．
Richconn manufactures personalized & robust jigs and fixtures to enhance your automotive production capabilities. You can contact us any time.
Related Questions
Why is operator friendly structure necessary for jigs and fixtures in automotive component integration?
When jigs and fixtures are ergonomically developed they cause less stress and fatigue. This permits engineers to handle recurrent assembly tasks smoothly and also makes working environment secure.
How do interchangeable jigs and fixtures increase operational versatility of vehicle fabrication systems?
The utilization of interchangeable jigs and fixtures allows manufacturing lines to promptly adapt to emerging shapes and components updates. These instruments permit for rapid system modification which enhances adaptability and performance simultaneously.
What important part do jigs and fixtures perform in decreasing manufacturing expenses in automotive field?
Through using jigs and fixtures engineers can create more components & assemblies with minimum reprocessing and lesser errors. Production becomes more uniform and quicker, labor expenses are decreased and expenses are optimized.
Is it practicable to attach jigs and fixtures in automotive field to digital monitoring setups?
Several advanced jigs and fixers can be attached to digital monitoring and IoT systems. This attachment permits better quality control by remote operation, live data tracking & data analysis.
How do jigs and fixtures assist automation in automated production?
By correctly positioning & holding workpieces jigs permit automated machines and robots to execute the same task again and again. This makes automation feasible and removes the requirement for physical changes.
