What is Large Diameter Gear Machining?

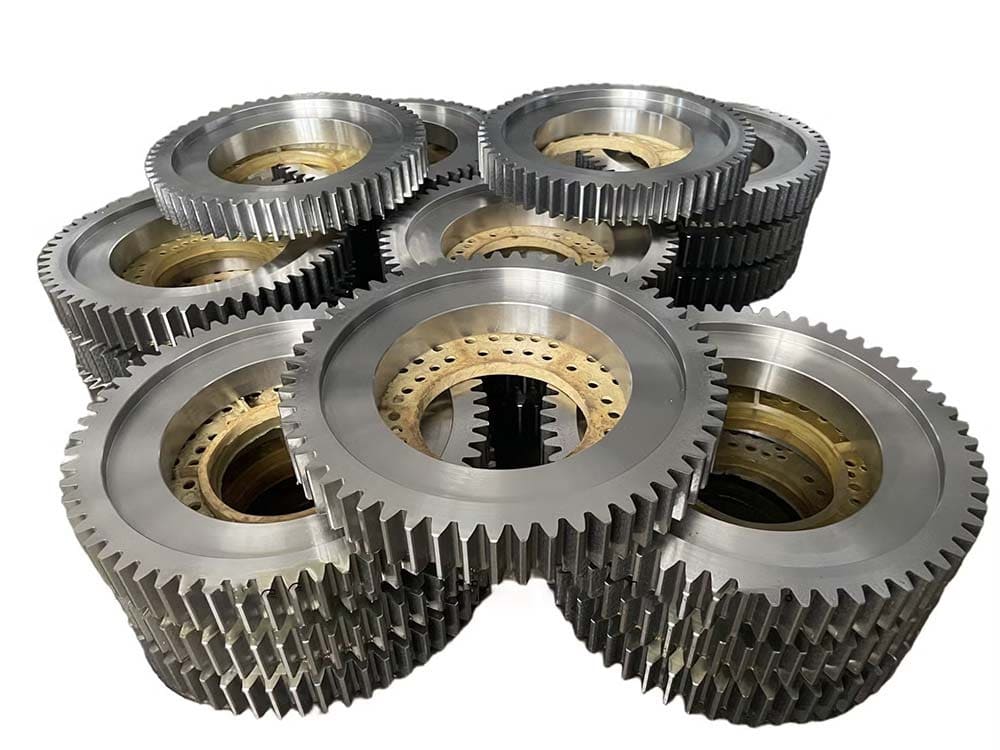

In simple terms large diameter gear machining is a special process that involves manufacturing gears with 12 or more modules and diameters between two meters & 18 feet (5.5 meters). Moreover these large components have tooth profiles between 3 to ¾ Diametral Pitch (DP).
Materials Used in Large Diameter Gear Machining
Alloy-Enhanced Forgings

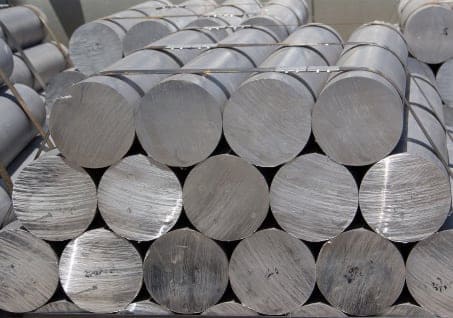

Alloy enhanced forgings are such materials that are made by combining elements like molybdenum, nickel and chromium to steel. These alloys improve toughness as well as strength and resist against fatigue and wear. Moreover they are used in large diameter gear machining because of their ability to withstand cyclic stresses & extreme loads.
Forgings & Steel Plate
Steel plates and forging are important for machining large diameter gears. They provide outstanding machinability, dimensional stability and strength.

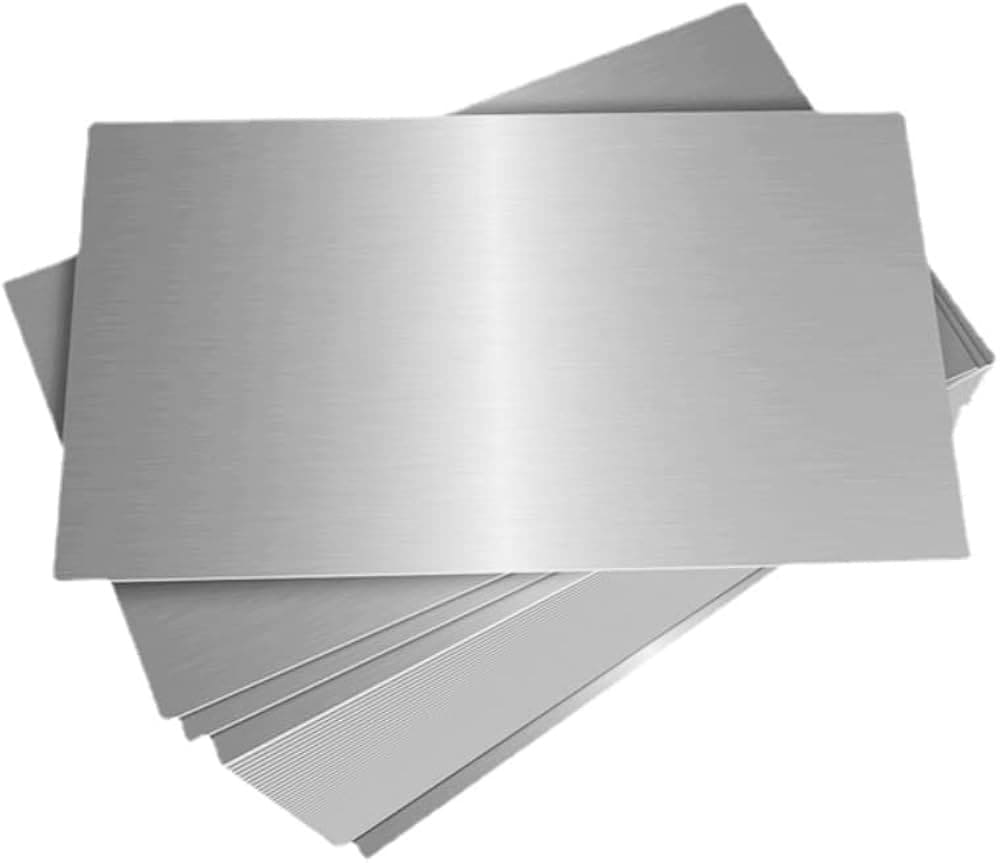

Steel plates are easy to process and have consistent material properties. Forgings, on the other hand, provide outstanding fatigue resistance as well as grain alignment. Both these materials assure longevity under high loads & harsh industrial conditions.
Also See: Alloy Steel vs Stainlesss Steel
Machining Processes for Large Diameter Gears
Hobbing
Hobbing is a continuous gear cutting process in which teeth are formed on gear blanks using rotating hob tool. It provides fast production rates, outstanding accuracy and is suitable for a variety of gear types. Such types are helical, worm, spur gears etc.
This process is good for large diameter gears, but it cannot work with limited adjacent shoulders or produce internal gears.
Shaping

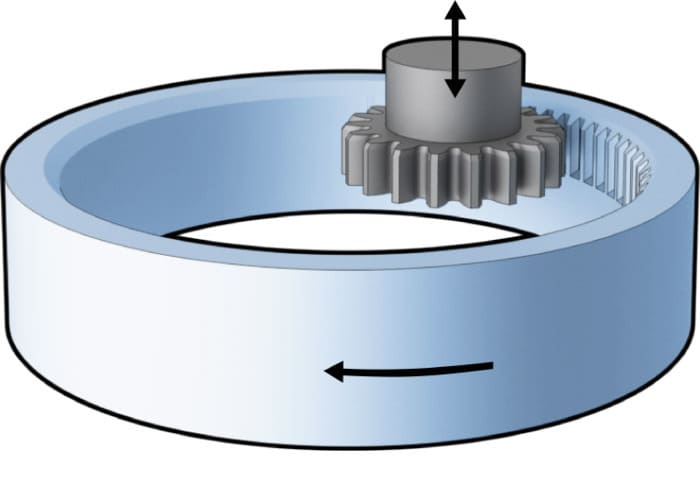

Gear shaping uses a reciprocating cutter that matches the tooth profile of gear. This cutter gradually cuts teeth while at the same time the cutter and workpiece rotate in synchronous motion. This technique is perfect for making splines as well as internal gears and parts with shoulder restrictions. Moreover it is normally used for small batches or gears that have complicated profiles.
Gashing

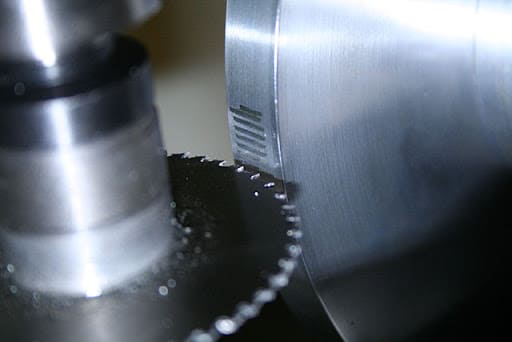

Gashing is a special machining process in which coarse pitch gears and sprockets are roughened on heavy duty machines. In this process a rotating cutter is plunged into the gear blank to quickly remove material. This process is best for hard materials and is mostly used for final finishing after hobbing & shaping.
CNC Machining

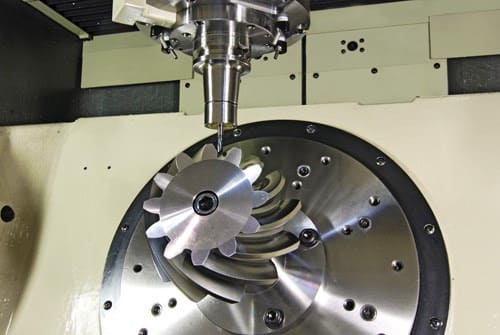

CNC machining produces large diameter gears with high repeatability and accuracy using computer controlled tools. It permits the production of complicated geometries such as bevels, hypoids, helical gears and that too with tight tolerances.
This method is perfect for manufacturing large diameter gears in different industries such as mining, energy and aerospace.
See Also: What is CNC Precision Machining
Flame Machining

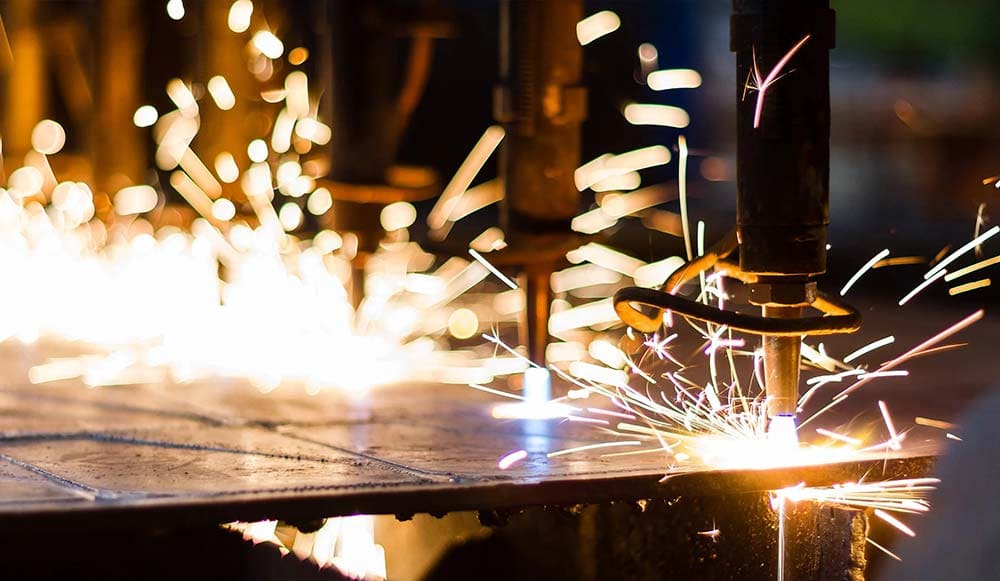

Flame machining is used to create large diameter gears in single pass using high pressure oxy propane cutting setups with precise dual axis control.
This proprietary technology makes tooth profiles with 125 micro finishes & accuracy within 0.005”-0.010” which in turn eliminates tolerance stack up issues.
This process is best for making straight faced gears in rock crushing and trenching industries.
Heat Treatment Processes of Large Diameter Gears
After the cutting and shaping process, heating methods are used to improve the properties of gear materials. These methods increase surface hardness and wear resistance so that gears can perform well in high stress applications.
Induction Hardening

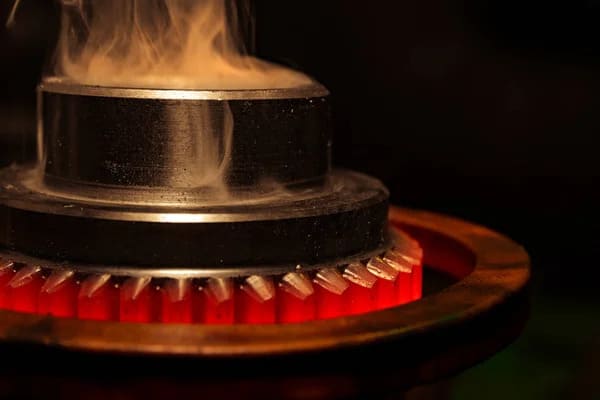

In induction hardening, the tooth surface is rapidly heated using electromagnetic fields before quenching. It forms a hard wear resistant outer layer & keeps tough core too. This process provides precise control over hardening depth, better fatigue resistance and minimal distortion.
Moreover tooth by tooth technique on large gears assures even hardness pattern across overall component.
Through-Hardening
Through hardening is a conventional heat treatment process in which large gears are heated between 815-900°C in protected atmosphere to prevent decarburization. This process produces uniform hardness not only on the gear surface but on the entire gear. It can be done before & after cutting the teeth. But its hardness depends on quenching severity and carbon content of steel.
Applications of Large Diameter Gear Machining
Mining Industry
Large diameter gears are used in grinding mills, crushers and draglines. These precision machined components transmit massive torques and withstand shear loads during mineral extraction operations.
Cement & Aggregate Industry
Large diameter girth gears provide power to ball mills and rotary kilns during cement production. These special components have segmented designs for easy maintenance. Moreover they use high strength steel alloys to avoid harsh & dusty environments during clinker processing.
Power Generation
Generators, mechanical drive systems, and turbines all use large gear diameters. They are important to convert mechanical power into electrical energy. These gears require precise machining to minimize vibration and assure stable operations due to intense forces and high speed rotation.
Marine Applications
Large diameter gears are used in steering mechanisms, winches, propulsion systems etc. These gears handle high torque as well as resist corrosion in saltwater environments. Additionally bevel gears are commonly used to transfer power between engine and propeller shafts in marine propulsion setups.
Material Handling Equipment
Large diameter gears are used to provide power to cranes, conveyors as well as hoists. They permit precise handling and movement of heavy loads to assure reliable operation in warehouses, industrial facilities and ports.
Aerospace Industry
Large diameter gears are also used in landing gear systems, flight control mechanisms, aircraft engines etc. Their high contact ratio design improves vibration performance & decreases bending stress which is important for reliable and accurate flight operations.
Challenges in Machining Large Diameter Gears
Material Handling & Workpiece Stability
The handling of large diameter gears during machining poses considerable difficulties due to their large size & heavy weight.
These large components require special lifting equipment and precise positioning systems. Therefore stability of workpiece becomes important during machining as even small vibrations or deflections can affect the profile accuracy of tooth.
Achieving Tolerances and Precision
Large diameter gear machining faces challenges in obtaining accuracy due to material deflection and thermal expansion.
Thermal fluctuations can affect the dimensional accuracy of different points of gear surface whereas cutting forces can cause workpiece flexing during machining. This phenomena creates micron-level distortion which in turn affects gear performance & tool profile accuracy.
Also See: Tolerances in CNC Machining
Tool Wear & Heat Dissipation
Machining large diameter gears requires prolonged tool engagement and long cutting paths which cause heat buildup. This prolonged engagement produces so much friction that the tool wears out quickly. Furthermore these components are large which affects cooling strategies. So as a result heat dissipation becomes very difficult across their wide surface.
To Sum Up
In short large diameter gear machining is a special field that requires great skills in cutting techniques and material selection. Different industries depend on these gears for their important operations such as mining, aerospace and power generation.
If you require large diameter gear machining services, then RICHCONN is best option. You can contact us anytime.
Related Questions
How does the size of gear impact its machining process?
Larger gears require special machining equipment to handle heavier parts and different cutting strategies for heat dissipation. Moreover they usually need longer machining time with multiple setups to reach correct surface finishes & tolerances.
How are gear teeth profiles designed for large diameter gears?
Gear teeth profiles are designed using involute shapes and higher module. This design guarantees smooth torque transfer and outstanding strength.
Can large diameter gears be produced through casting?
Yes casting can produce gears from 2 to 40 feet in diameter that can weigh up to 100 tons.
What inspection methods are used to ensure the quality of large gears?
Some common quality assurance methods are coordinate measuring machines (CMM), gear roll testing, visual inspection etc. These methods detect defects & verify specifications.
What safety considerations are there in large gear machining?
Shut off motors before making adjustments or measurements and avoid contact with moving belts and gear. Also secure all workpieces and tools before operation and beware of sharps burrs that can cause injuries.
