Many machining problems—such as uneven surfaces, unexpected flaws or incorrect dimensions—mostly have a single root cause, that is, using the wrong machining allowance. Although the concept is straightforward, it has a major impact on manufacturing results.
This guide will help you understand machining allowance, show why it is important and walk you through the correct way to calculate it.

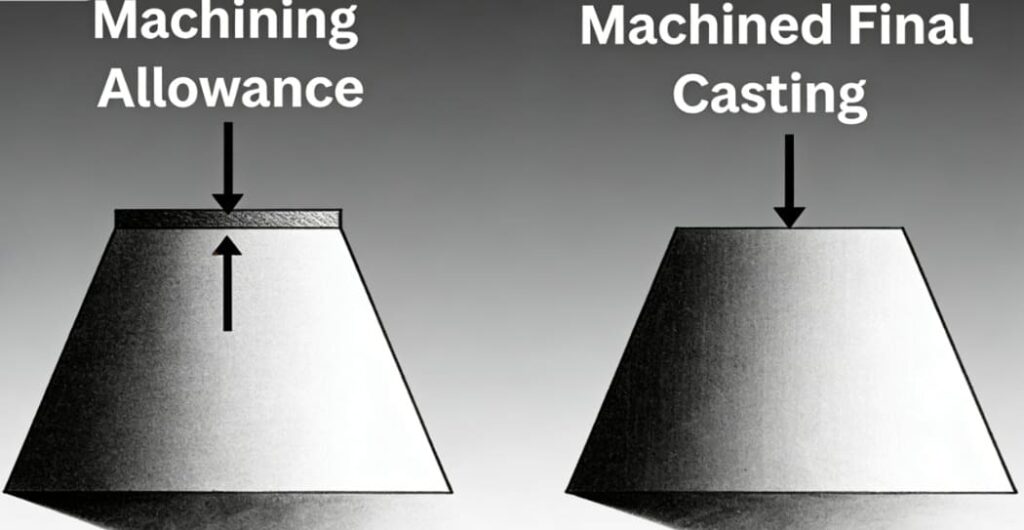

What Is Machining Allowance
Basically machining allowance means leaving extra material on a workpiece so it can be removed later during finishing. For instance if a shaft must end up at 10 mm in diameter, it might begin at 10.5 mm. The 0.5 mm difference is the machining allowance. This extra material helps the finished part reach its exact size and surface quality, making up for any errors from earlier steps like casting.
Why Is Machining Allowance Important
Assures Dimensional Accuracy
Leaving extra stock helps correct shape errors from earlier processes such as casting or forging. It makes sure there is enough material to machine the part to its exact size and tolerance.
Also See: What is Tolerance in Machining
Helps Achieve Surface Finish
Allowance also enables finishing passes that establish the required texture. Those light cuts strip away earlier roughness, delivering surfaces as smooth as Ra 1.6 μm or finer.
Cutting away Defects
Having enough allowance allows you to machine away surface flaws. This includes getting rid of defects like porosity, scale or small cracks that may exist on the unfinished workpiece.
Process Reliability
Keeping a consistent and sufficient allowance provides a buffer for process changes. This buffer helps offset warping caused by heat treatment or size differences from casting. As a result manufacturing reliability improves.
Fit & Assembly Quality
With the right allowance, machinists reach tight dimensional and geometric accuracy, so components fit together properly. This correct fit underpins both performance and reliability in multi-part assemblies.
Main Types of Machining Allowance
Machining allowance falls into two main categories, based on where they apply in the manufacturing process. Each type performs an important part in planning and carrying out machining steps.
Process Machining Allowance
Process machining allowance refers to the amount of material a single machining operation removes from a surface. For example roughing might strip 2–4 mm whereas finishing typically takes only 0.5–1 mm. Manufacturers define this allowance separately for every machining step.
Overall or Total Allowance
Total machining allowance is the sum of all material removed to bring a rough part to its final size. This total comes from adding up the allowances for every step in the machining process.

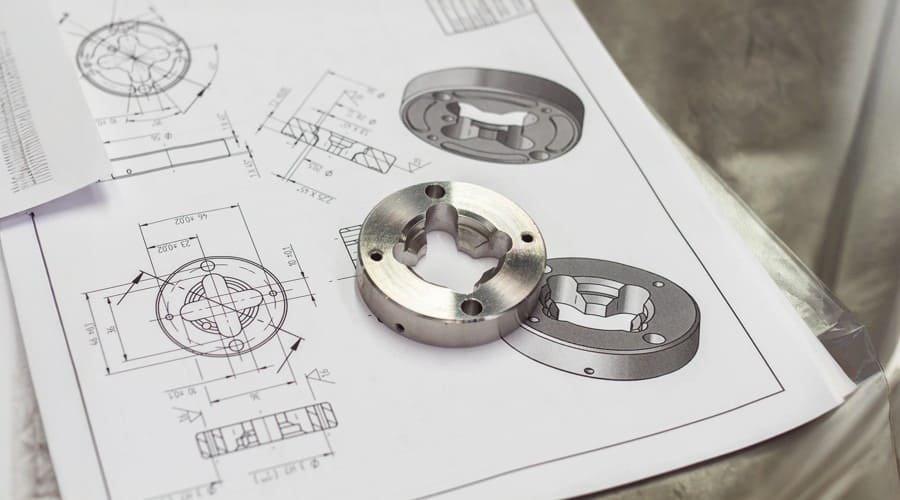

How to Calculate Machining Allowance
To calculate machining allowance you must look at both part requirements and process limits. This ensures enough material remains for every machining stage but avoids unnecessary waste.
Main Factors That Drive Machining Allowance Decision
Several important factors affect how much machining allowance is needed.
Material type
Harder materials such as high-carbon steel need more allowance than softer ones like aluminum. This extra allowance accounts for the higher cutting forces involved.
Size & Complexity of the part
Parts that are bigger or have more complex shapes can distort more easily. These parts need a greater allowance to make sure all features are machined to the correct size.
Chosen Machining Process
The amount of allowance required also depends on the machining process selected. Rough methods such as forging need more extra material. In contrast finishing processes—like grinding—require less stock.
Variation from Upstream Process
The first manufacturing step for a part also affects how much allowance is necessary. Sand casting, for instance, produces parts with greater variability. Because of this, it needs a larger machining allowance compared to processes like forging or die casting which are more consistent.
Thumb Rule Tables & Standards You Can Lean on
Industry standards serve as a dependable reference when setting machining allowances. JIS B 0418 and ISO 8062 for example, define tolerance grades and recommended allowance values for both forgings and castings.
These standards include tables that list the required allowance according to part dimensions, material type and the chosen manufacturing process. By following these guidelines, manufacturers make sure there is enough material for final machining while avoiding unnecessary waste.
At RICHCONN, we start with ISO and JIS standards, then check them against our inspection data and previous projects. This way we confirm each part gets the correct machining allowance.
Advanced Calculation Methods
Advanced methods give more precise results for high-precision needs. Engineers can use Finite Element Analysis (FEA) to model material behavior and predict how thermal stress and clamping forces might distort a part. This helps them set a smaller, more accurate allowance.
CAM software also suggests allowances by analyzing cutting details and toolpaths. In addition statistical process control data and 3D scans of near-net shapes help fine-tune the allowance as well. These tools reduce waste and shorten cycle times.
Challenges of Incorrect Machining Allowance
Too Little Stock Left
When the allowance is too small, surface flaws or shape errors from earlier steps may stay on the part. Consequently the finished component can miss dimensional or geometric targets, forcing expensive rework or outright scrap.
Too Much Stock — The Hidden Costs
Using too much allowance means you spend more on materials and the machining process takes longer. Tools wear out faster as well. The extra cutting also produces more heat which can bend the workpiece and lower the part’s final quality.
Coping with Variability & Uncertainty
Unpredictable changes from earlier processes such as forging or casting create a key challenge. You must balance these uncertainties to keep enough stock for cleanup. At the same time, you need to avoid the problems that come with too much allowance.
If you want help with these uncertainties for a future project, you can send your drawings or models to the RICHCONN team. We will check your process and recommend machining allowances that fit your requirements.
Common Mistakes & How to Avoid Them
Accurately specifying the machining allowance is very important to keep production efficient and economical. By recognizing frequent missteps, teams can avoid expensive rework and unnecessary material loss.

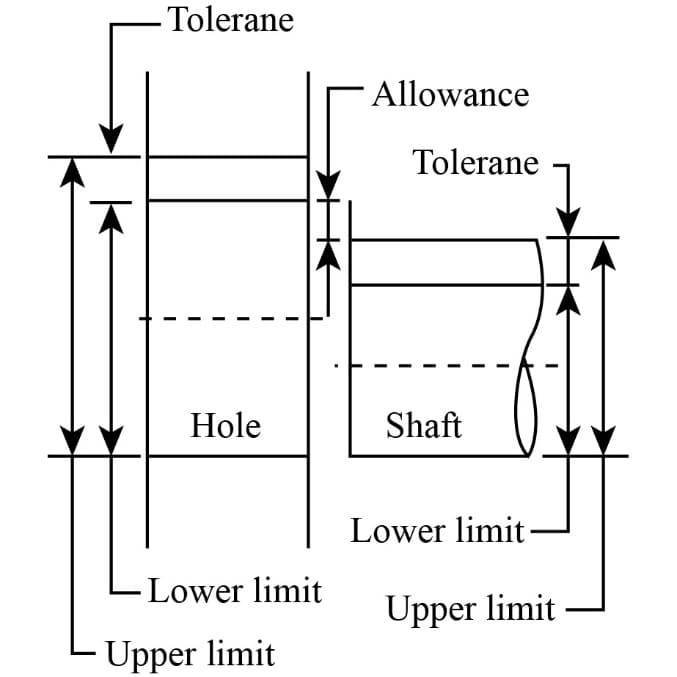

Mixing up Allowance with Tolerance
Allowance means extra material set aside for removal. Tolerance is the allowed variation in final size. Mixing these up changes the design intent and affects process control.
To prevent this, always separate them during drawing reviews– put allowance in 3D models & process sheets, and put tolerances in the GD&T block.
Also See: The Difference between Allowance and Tolerance
Under allowancing
Most of the time, leaving very little material isn’t enough to clear draft angles, surface flaws or heat changes. This often results in more rework or scrapped parts.
Apply practical ranges such as 3-5 mm for most cast-iron parts and consult past dimensional reports to pick allowances that reliably clean the surface.
Over allowancing
When allowances are too large, more material must be removed. This leads to higher tool wear, increased heat and longer machining times. Removing extra stock can also reveal deeper casting flaws. To avoid these issues, follow process-based guidelines and keep finishing allowance within a controlled range—typically 0.2–0.5 mm. This approach helps maintain part accuracy, stability and machining efficiency.
Assuming One Allowance Fits Every Job
Applying a single rule for all allowances does not work well. Large steel castings often require bigger allowances, usually between 10–16 mm. In contrast additive manufacturing (AM) parts need much smaller allowances, often just 0.1–0.3 mm. For this reason, it is best to create separate tables for forging, casting, bar stock and AM. This approach helps ensure accuracy.
At RICHCONN, we prepare different allowance guides for cast parts, 3D-printed components and machined bar stock. This lets us recommend allowances that match your process—instead of using a general rule for every case.
To Sum Up
Knowing how to set machining allowance correctly drives precision and optimizes cost. It forms the essential link between a rough workpiece and a finished component that satisfies every spec.
If you need any kind of precision CNC machining services then Richconn is your best option. You can contact us at any time.
Related Questions
No if the CNC-machined bar stock already meets the design’s surface requirements, you can often reduce or skip machining allowance.
For cast iron, the usual machining allowance is 2 to 5 mm per machined surface. On very large surfaces, it increases to 5 to 10 mm.
Machining allowance refers to the extra material left on a part for later removal. Machining tolerance defines the permitted range of variation in the final dimension.
For additive and machining process chains, calculate allowance as– surface variation plus tool access margin plus finish buffer. For near-net AM parts, typical values range from 0.2–0.6 mm.
Without stated allowances, machinists might leave too much or too little stock. This can cause higher costs, surface flaws or even scraping of the part.
