Connectors have a vital role in today’s cooling systems. They do more than simply link hoses; they help the system run smoothly and proficiently. To prevent leaks and maintain steady flow, manufacturers must machine every detail of the connector—such as its size, sealing surfaces and finish—with high precision.
In this blog post we will explore the qualities of a top-tier liquid cooling connector and highlight why machining accuracy is key to reliable operation.

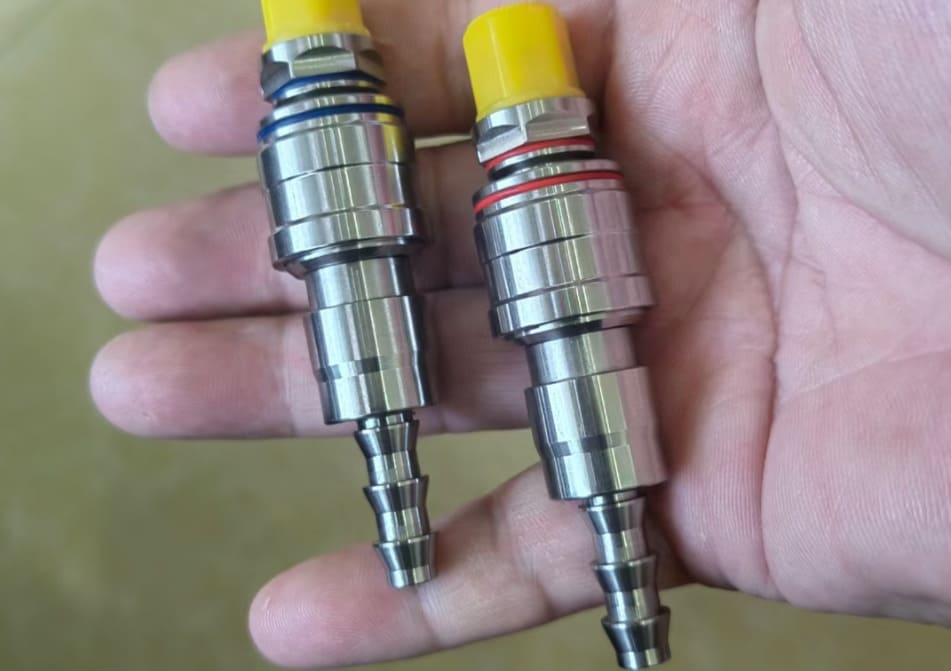

What is a Liquid Cooling Connector
A liquid cooling connector is a specialized fitting that forms a tight, leak‐free seal for coolant. These components join hoses and tubes and make sure that fluid moves without interruption. By preventing leaks, they protect valuable equipment and help the system in keeping a steady thermal performance.
Why Machining and Precision Matter in Connectors
Reliability and performance of a connector directly depend on precise machining. CNC turning and similar methods are used to create parts with very tight tolerances. These tight tolerances are necessary for a perfect seal which in turn is critical to preventing leaks that could harm expensive electronics. A smooth, accurate internal surface also lowers fluid resistance. This makes the flow more efficient and improves cooling.
High quality machining also leads to long lasting durability. For example connectors on cold plates in data centers must work for years without failing. Precision machining keeps important features like threads and O ring grooves in good condition over time. This reduces wear and tear and helps the cooling system last longer.

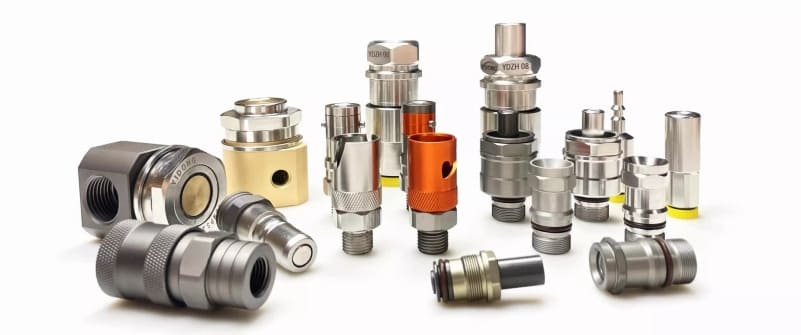

Key Types & Configurations of Liquid Cooling Connectors
Liquid cooling connectors come in different forms. Every type addresses particular needs for flow, pressure as well as maintenance.
1. Fittings vs Couplings vs Quick‐Disconnects (QDs)
- Fittings are basic connectors. They include elbows, tees and also adapters. These join tubing inside a system and use either threaded or barbed ends.
- Couplings join two fluid lines in a more permanent way. Most of them use threaded ends to create a strong seal.
- Quick‐disconnects (QDs) are specialized couplings. They let users connect or disconnect fluid lines quickly and without tools.
2. Quick‐Disconnect (QD) Couplers
QDs improve serviceability and safety, which is particularly important in electronic environments. Many QDs use “non‐spill” or “dry‐break” designs. These also have internal valves that shut off flow automatically when disconnected; therefore leaks do not occur. QDs initial cost is higher but their dripless function is vital to protect sensitive hardware.
3. Barbed & Threaded Terminations
Barbed fittings work well with flexible tubing. They grip the inside wall of the tube to form a seal. A clamp is tightened around the hose to hold the connection.
Threaded terminations, such as NPT or BSPP, are used with rigid piping. They depend on O rings or thread sealants for a leak proof seal and need careful tightening.
4. Connectors for Cold Plate Assemblies
Cold‐plate assemblies mostly rely on blind‐mate liquid connectors. These connectors allow dripless, hot‐swap changes without draining the system. They are built into rack manifolds and connect directly to IT equipment.
5. Industrial vs Data Centre Connectors
Connector requirements change with the environment. Industrial applications use heavy duty metal connectors to handle vibration and high coolant flow. Data centre and HPC cooling loops, on the other hand, use clean‐break and corrosion resistant QDs.
Connectors can also be classified by their mechanical design:
- Male/ Female: The typical plug‐and‐socket arrangement.
- Push-to-Connect: Lets easy, one‐handed locking.
- Blind‐Mate: Connects and aligns automatically in confined spaces.
- Double Shut‐Off/ Non‐Spill: Both sides have valves to stop fluid loss when disconnected.

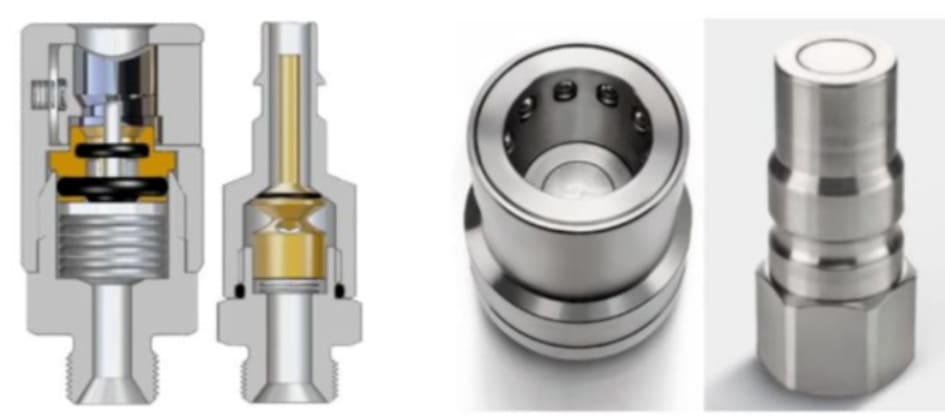

Technical Requirements & Performance Criteria
In any liquid cooling system, a connector’s role is vital. It assures that coolant flows smoothly and safely through the loop. Flow path and the machining finish both influence a connector’s efficiency, leak prevention as well as its reliability.
Flow & Pressure Drop
A connector must support high flow rates with very little resistance. This keeps the pump running proficiently. If a blockage occurs, pressure drop rises. The pump then works harder and the system’s cooling ability drops.
Sealing/ Leak Proof Design
A connector’s main function is to form a secure, leak proof seal. High quality connectors rely on durable elastomeric O rings, such as those made from EPDM or FKM, which resist wear. The design must keep the seal tight through repeated connections and constant vibration. This protects sensitive electronics.
Material Compatibility
Connector materials must match the coolant, tubing as well as cold plates. The right choice stops corrosion and galling. This assures a leak free, secure connection and extends system life.
At Richconn, our team often helps clients pick between stainless steel, brass and PPSU. We base this on coolant chemistry & service life needs; this helps clients avoid costly redesigns.
Thermal & Mechanical Durability
Connectors must withstand their working environment. For example those in data centers face continuous high flow and coolant temperatures up to 50°C. Sufficient durability keeps performance stable and prevents failures.

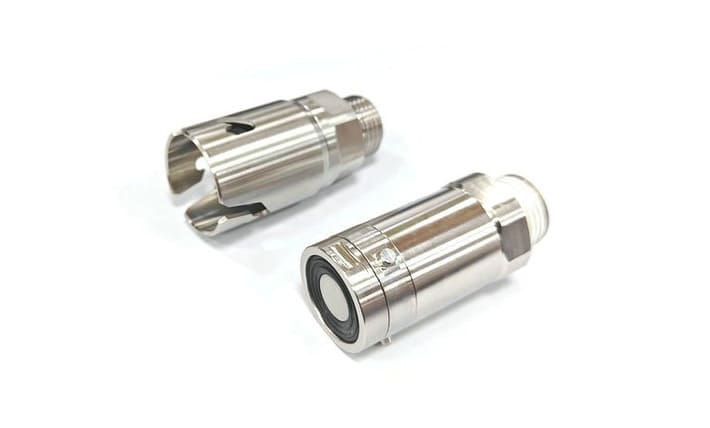

Manufacturing Tolerances/ Machining Quality
Connector performance depends on machining quality. Precision manufacturing with tight tolerances, often within ±0.01 mm for key dimensions, is essential. This level of accuracy assures a perfect fit, reliable sealing as well as minimal flow restriction.

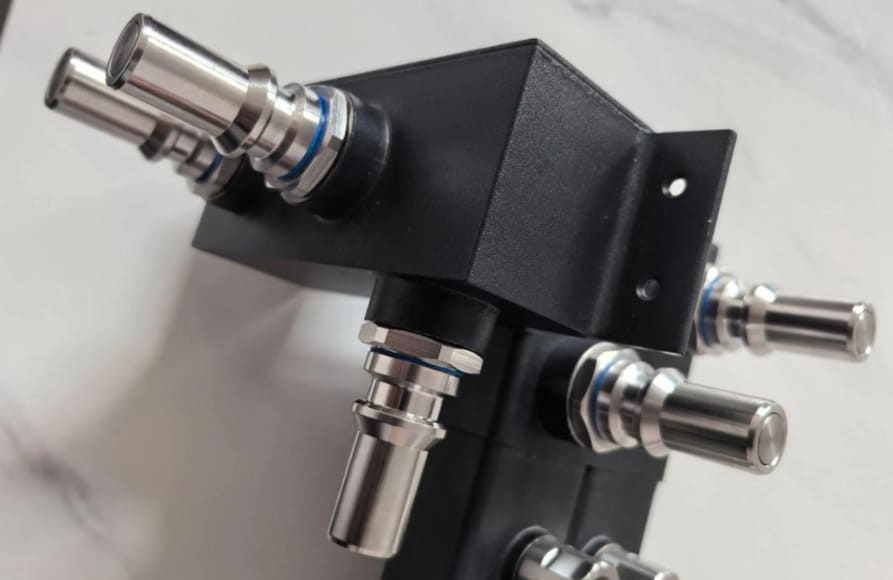

Design Considerations for Machined Liquid Cooling Connectors
Designing a liquid cooling connector needs to balance accuracy, durability and ease of use. Every design choice affects how well the cooling system will perform over time.
1. Machining Process Choices
Choice of the right machining process is essential. Use CNC turning to make round features, such as barbs and threads. For shapes that are more complicated, CNC milling is the better option. If you need very detailed internal features, Electrical Discharge Machining (EDM) can deliver high precision.
Richconn offers all these processes at one facility. This allows engineers to create complicated internal shapes and achieve smooth surface finishes without sending work elsewhere.
2. Material Choices
Material you select impacts both how well the connector works and how long it lasts. Aluminum provides extraordinary heat transfer. Stainless steel stands out for its corrosion resistance. Brass is also a reliable choice. Always check that the material matches the coolant in your system to prevent unwanted chemical reactions.
3. Surface Finish, Thread Quality & Sealing Features
Leaks prevention depends on careful attention to detail. You need a smooth surface finish and threads that are clean and precise to assure a tight connection. Additional features like O ring grooves or gasket seats are also necessary. These features help stop leaks—particularly when the system runs at high pressure.
4. Connector Interface With Other Parts
Connectors must fit exactly with other system parts such as hoses, cold plates as well as manifolds. A good interface lets coolant move smoothly between components. This prevents leaks and blockages and keeps the cooling loop working proficiently.
5. Standardization vs Custom Design
You have to decide between using standard connectors for easy replacement or choosing a custom design for a perfect match. Standard parts are convenient and can be swapped easily. But a custom‐machined connector is made for your particular needs. This option improves flow and fits well in complicated assemblies.
If off-the-shelf parts do not work, RICHCONN’s engineers partner with clients to design custom connectors.
6. Installation & Maintenance Considerations
Designers should always consider the end‐user from the start. Connectors need to allow for easy installation and removal, preferably without requiring special tools. This approach makes the initial assembly simpler. It also speeds up future maintenance or upgrades for all users.

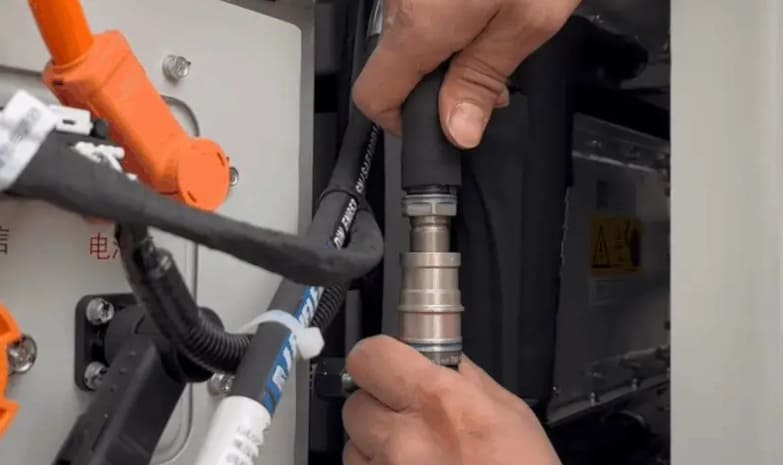

Main Applications & Use Cases
Industrial Machining/ CNC Systems
Liquid cooling connectors have a key role in industrial settings. They cool CNC machine spindles, lasers as well as welding equipment. Even with constant vibration and high coolant flow, they provide reliable, leak‐free performance. This reliability helps keep manufacturing quality steady and increases the lifespan of critical machines.
Data Center/ HPC Cold Plates & Liquid Cooling Loops
Modern data centers and super‐computers generate significant heat. Liquid cooling connectors link cold plates and cooling loops in tightly packed server racks. They keep coolant moving without interruption. This prevents system failures and also maintains their performance.
Other High Performance Systems
Other advanced applications also rely on liquid cooling connectors. Fast EV charging stations, high powered telecom equipment as well as sensitive medical electronics like MRI machines all use them. In these cases effective heat control is necessary for safe and dependable operation.
Benefits in Each Scenario
Advantages of these connectors appear in every application. They provide strong heat removal, allow for smaller & more powerful system designs and also deliver the reliability needed to avoid leaks. This assures steady operation in tough conditions.
Installation, Machining & Best Practices
A reliable, leak‐free liquid cooling system depends on correct installation and machining. Following best practices–from manufacturing to maintenance–helps the system work well and last longer.
Step‐By‐Step Guide to Connector Installation & Machining
- Machining the Connector: Select a material that is compatible with your coolant such as stainless steel or PPSU. Use CNC machining to cut threads and create sealing surfaces with tight tolerances. This step is important for preventing leaks.
- Pre-Assembly Checks: Inspect every connector for defects before you install it. Check the dimensions, clean the surfaces and also remove any burrs that could affect the seal. Additionally running a preliminary pressure test at this stage can prevent problems later.
- System Integration: Match connectors to the correct tubing size to avoid leaks. Secure barbed fittings with clamps but do not overtighten the threaded connections as this can harm seals. Also arrange hoses carefully to prevent kinks that might block flow.
- Start-up & Leak Testing: After assembling the system, fill the loop and run the pump with other components off to check for leaks safely. Remove trapped air, since bubbles can cause hotspots and lower cooling efficiency.
Maintenance Tips
- Check the system every three months for bulges, worn seals or loose clamps.
- Change the coolant once a year to keep performance high.
- Tighten fittings as needed and clean cooling surfaces often to stop dust from building up.
- Track & schedule replacements for all parts that wear out, including seals.
Avoid Pitfalls
- Never use mismatched materials as this can lead to corrosion or seal failure.
- Do not overtighten or misalign connectors since this can damage threads & seals.
- Always perform a leak test after installing the system and before any major service or upgrade.
- Keep line layouts straightforward; because simple designs make the system more reliable and easier to maintain.
Troubleshooting & Common Issues
Liquid cooling systems, even the best ones, can still develop problems. Therefore recognizing frequent issues helps maintain their efficiency & reliability.
Leakages
Leaks present a major concern. A poor machining finish on a sealing surface or fittings that do not match in size often cause leakage.
Incompatible coolants can harm O rings and seals. This damage can result in drips and may eventually lead to system failure.
Pressure Drop or Poor Flow
A performance drop mostly points to restricted flow. Narrow connector passages or rough surface finishes can create turbulence and limit flow. Moreover corrosion byproducts may also form particles. These particles can clog filters or block channels inside cold plates which further reduces flow.
Corrosion & Material Degradation
Corrosion can shorten a system’s lifespan without obvious signs. Galvanic reactions between metals like aluminum & copper often cause this problem. Moreover using the wrong coolant such as tap water also accelerates material breakdown and may lead to leaks.
Vibration Induced Loosening
Industrial and automotive settings expose connectors to constant vibration. This movement can loosen threaded connectors and cause leaks. To prevent this, threads must be machined precisely and locking mechanisms should be strong to keep connections secure over time.
Example Scenario & How to Address It
Suppose you find a slow drip coming from a connector. Begin by turning off your system. Check the fitting to see if it is loose and tighten it if needed. If the leak does not stop, disassemble the connector and inspect the seal or O ring for any debris or damage.
To Sum Up
Precision machined liquid cooling connectors have a vital role in managing heat in complicated systems. To prevent leaks and assure long service life, you must focus on the right design, select suitable materials as well as install them correctly. Every factor affects both the efficiency and the lifespan of the system.
If you need connectors tailored to your specifications with high precision, Richconn offers the expertise you require. You can contact us at any time.
Related Questions
No. Hydraulic connectors are built for different fluids and pressure levels. If you use them in a liquid cooling loop, leaks may occur because the materials might not match the cooling fluid’s requirements.
In CNC machining, connectors must resist vibration, temperature swings and pulsation. They also need to keep a tight seal to maintain steady and dependable machining results.
Top quality connectors use double shut‐off valves, drip‐free designs and multi lobed seals. These features stop leaks and make clean disconnections possible.
This feature uses flush‐face valves to stop fluid from escaping when disconnecting. It helps protect sensitive electronics and keeps the system safe.
Yes it matters. CNC machined connector bodies offer higher precision and tighter tolerances than cast connectors. These qualities are crucial for a strong, leak‐free seal and for the connector’s overall performance.
