Machining Teflon/PTFE: Methods and Best Practices

Quite often, manufacturers use Teflon (PTFE) for tough jobs; but its low friction and softness are a challenge for precision machining. If done wrong then parts can deform or scratch and become scrap.

Therefore in this blog post we will show you the techniques and practices that let your machine PTFE accurately and consistently.

What is PTFE?

PTFE means polytetrafluoroethylene, a synthetic fluoropolymer that Roy Plunkett discovered in 1938.  “Teflon” is just the trade name of PTFE. This white plastic is made up of only fluorine & carbon atoms. It shows extraordinary chemical resistance and is also thermally stable up to 327 °C.

PTFE Material’s Nature

• Thermal Stability: PTFE is a material that can bear a temperature range between -200 °C and 260 °C and melts at 327 °C.
• Mechanical Behavior: Although its tensile strength is lower as compared to a number of plastics but PTFE is very flexible & fatigue resistant – even in extreme cold.
• Chemical Stability: This polymer is almost inert to most chemicals such as aggressive acids or other solvents. Only molten alkali metals can affect it.
• Electrical Insulation: Since it’s an electrical insulator therefore PTFE shows high dielectric strength. Moreover its dielectric constant is very low i.e., around 2.0.
• Surface Qualities: PTFE shows non sticking nature because it has a very low friction coefficient. That’s because of its low surface energy of about 18 dynes/cm.

Best Machining Procedures for PTFE

PTFE’s extraordinary properties let machinists choose from a number of processes. Every process has its own advantages. Therefore to choose one over the other depends on the geometry & complexity of the final part.

CNC Milling

In CNC‐milling multi axis cutters remove material from a fixed PTFE block to form complicated shapes. Their tolerances can be very tight, usually as small as ±0.001 inches. Because PTFE is soft therefore you need to fit the machine with very sharp cutters. Their sharp edges create clean chips & do not leave burrs on the surface.

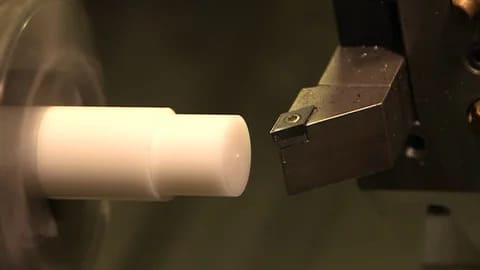

CNC Turning

For cylindrical parts such as shafts, seals and rings, CNC turning is the way to go. In turning, the PTFE blank spins and at the same time a fixed tool removes extra material from it. Keep the speed low and the depth of the cut shallow to minimize heat and to maintain dimensional accuracy as well.

Drilling and Tapping

Drilling makes holes but tapping makes threads. If you use a PTFE then a high spindle speed with less feed rate is the best for drilling. Moreover it prevents the soft polymer from deforming or even splitting. If threads are needed then machinists normally use form taps that flow the material rather than cutting it.

Grinding for an Extra Smooth Finish

Grinding is used when a very fine finish is needed for a PTFE part. Centerless machines can polish tubes, rods as well as other shapes to a uniform diameter and surface; a combination necessary for low friction applications.

Laser and Waterjet Cutting

Laser cutting is a very precise and clean way to shape PTFE. During this process a beam vaporizes the polymer – a sublimation process – leaving edges that rarely need secondary finishing.

Waterjet systems are another non traditional option which cut PTFE with a high pressure water stream and can even produce fine fibers from sintered films.

Tools and Shop Gear You’ll Need

PTFE machining success is largely dependent on the right tooling. Proper tool materials, geometries as well as lubrication stop deformation and also keep tolerances tight.

Carbide and Stellite Tools

Machinists should equip their machines with carbide or stellite tips. Basically these materials combine high hardness with strong wear resistance. Therefore they stay sharp when cutting abrasive filled PTFE. High speed steel is also a good option for short prototype runs but its edge dulls quickly.

Getting Right Geometry

Sharp Edges

To prevent cracks or tears, the cutting edge must be extremely sharp and for this purpose sometimes a tiny radius is added. A rake angle of 0‐15° promotes smooth chips and also reduces friction.

Tool Wear Checks

Even a soft polymer like PTFE can wear tools; the filled grades do so more rapidly. Polished carbide and regular cleaning minimize this wear and prolong tool life.

Cooling and Lubrication for Smarter Work

Coolant Choice

Because PTFE sheds heat poorly therefore use of coolant is a must. Moreover a continuous flow of coolant– air, fog or water soluble fluid – will be a plus because it will cool the cutting zone and will also maintain dimensions.

At RICHCONN we use mist coolant systems calibrated for soft plastics, such as PTFE, to protect edge sharpness and deliver clean surfaces.

Lubricants for Perfection

Although PTFE naturally has low friction but if you add a lubricant then it will further reduce friction. Plus this extra slip improves surface finish and extends cutter life.

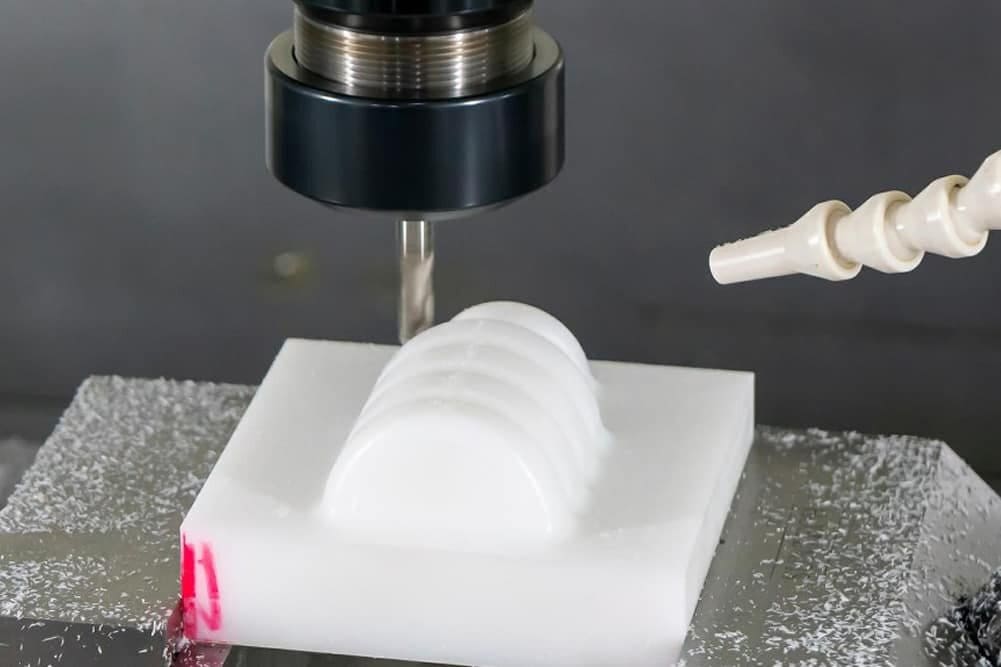

Difficulties in Machining PTFE

Machining PTFE has a set of issues because of its nature. If you know every challenge beforehand then it will be a plus for you.

Maintaining Dimensions

PTFE expands a lot when heated and can deform under pressure through cold flow or “creep”. In addition parts may warp or shift in size both during and post machining.

Tool Life

Tools can dig into PTFE rather than slice through it. Moreover fillers such as carbon or glass make the material abrasive. All these speed up tool wear.

Smoother Surfaces

The soft nature of PTFE can cause it to tear or smear instead of cutting cleanly. You may see burrs and rough finishes; therefore sharp tools and careful methods are needed to get a smooth surface.

Temperature Control

Temperature changes affect PTFE’s size therefore if your working environment is not proper then final tolerances will drift out of your needs.

Holding Workpiece

PTFE shows a slippery and deformable nature which makes firm yet non marring clamping difficult. In addition if too much force is applied then it will leave marks but if you use too little force then it will allow movement.

Best Tips to Get Clean Cuts in PTFE

One should follow these guidelines to eliminate the issues above and to get accurate, high quality parts.

Pick a Right Tool

Use very sharp cutters made from carbide or high speed steel. High rake and generous clearance angles promote shearing instead of pushing which not only reduces burrs but the material distortion as well.

Coolant Application

PTFE machines well without fluids but coolant is helpful at high speeds or when tight tolerances matter. Pressurized air, fog or water soluble coolants remove heat and reduce thermal warping.

Clamping Tricks

Use soft jaws, custom fixtures or vacuum chucks in order to distribute holding pressure. Only apply enough pressure to keep the part stable; because too much pressure compresses or changes the shape of soft polymer.

Annealing Advantages

Anneal stock before and post machining to release internal stresses. This reduces warping, cracking as well as chances of early failure and also assures long term dimensional stability.

RICHCONN offers both pre and post machining annealing to assure stress free & dimensionally consistent PTFE parts.

Storage of Parts

Store PTFE flat in a dry, clean & temperature controlled area out of sunlight. Actually the reason is that proper storage preserves material integrity right up to the moment it hits the machine.

Surface Treatments

Adhesion is not an easy job because PTFE’s surface shows repulsion towards most materials. Therefore a dedicated surface treatment must precede any bonding or coating step. These treatments modify the outer layer for a strong bond.

How to Modify Surfaces

Chemical etching is what most factories use. In this process a sodium naphthalene bath strips away fluorine atoms and leaves a carbon rich layer that accepts adhesive. Plasma treatment is another option; here ionized gas raises the surface energy and primes the part for bonding.

Bonding with Other Materials

After modification you can go for bonding. The strongest bond comes from applying adhesive to an etched part. Pressure sensitive tapes are good for light service but their grip is limited. For higher strength, epoxy or cyanoacrylate systems with a primer gives good results on treated PTFE.

If you need PTFE parts that arrive bond ready RICHCONN can ship parts that are already etched or plasma treated to make assembly easier for you.

Coating Benefits

PTFE is also used as a coating a lot. If sprayed or baked onto other substrates it provides a non stick, low friction as well as a corrosion resistant barrier. Plants, cookware makers and medical device companies specify these coatings for long life.

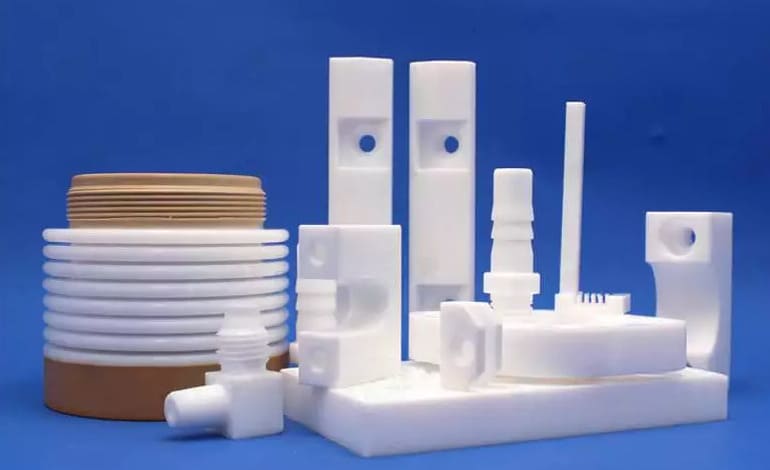

Where PTFE Machined Parts Get Used

Aerospace Field

Aerospace fuel lines, seals and other electrical insulations mostly use PTFE. This unbelievable material withstands aviation fuels, handles 260 °C temperatures and decreases weight &  maintenance as well. Moreover its low friction lets gaskets and bushings work smoothly even under altitude stress.

Medical

Engineers use PTFE for implants, surgical instruments as well as catheters because the polymer is biocompatible and inert. Its stable chemistry not only protects patients but withstands multiple sterilization cycles as well.

Food Industry

Food processors love PTFE because it is non toxic as well as non stick. It can be machined into conveyor guides, seals and also in pump or mixer parts because it keeps products pure and avoids contamination.

Chemical Plant Uses

Harsh solvents and acids rarely attack PTFE therefore it’s perfect for chemical plant hardware. Pump parts, vessel linings as well as piping made from this polymer resist corrosion, protect product purity and also enhance workplace safety during constant chemical exposure.

Role in Electronics

For electrical insulation PTFE is unbeatable. Designers embed it in connectors, PCBs, high frequency cables as well as capacitor dielectrics. Its extraordinary heat tolerance and low dielectric constant mean smaller, lighter and even more powerful devices – from phones to satellites.

To Sum Up

To machine PTFE (Teflon) you need to account for its softness, low friction and heat‐pressure sensitivity. If you have plenty of coolant, sharp carbide tools and purpose built fixtures you can produce precise high quality PTFE parts for a number of demanding applications. If you need professional PTFE or general CNC machining then contact Richconn; we will review your requirements and advise the best way forward.
