Why do standard machining methods mostly fail with manganese steel? You need to look at its unusual work hardening property and extraordinary toughness to find the answer. In this blog post we’ll cover the specialized techniques you can use, from preheating to advanced cutting; so you can handle the challenges of machining this tough but valuable material.
Overview of Manganese Steel
Manganese steel, which you might also know as mangalloy or Hadfield steel, is an alloy made mainly of carbon & manganese. This combination gives this steel its well-known toughness and wear resistance and makes it different from ordinary steels.
Composition Table
| Element | Typical Content (%) |
|---|---|
| Manganese | 11–15 |
| Carbon | 0.8– 1.25 |
| Silicon | <1 |
| Iron | Balance |
| Others | Trace |
Main Properties
Manganese steel stands out for its outstanding toughness and high impact strength. When you apply stress, the surface can become three times harder, reaching up to 550 BHN. But the core stays ductile & tough. The steel resists wear and does not attract magnets so it fits well in demanding industrial applications.
What is Manganese Steel Machining?
Machining manganese steel means you shape or cut this hard alloy into parts you need. To do this, you must use special methods and tools which work with this steel’s extraordinary features.
Also See: What is CNC Precision Machining
Notable Challenges
Machining manganese steel is much more difficult than working with regular steel.
- The surface of manganese steel hardens quickly when stressed. This causes poor surface finish and problems with dimensions.
- Standard cutting tools wear out fast—sometimes in just a few minutes. This leads to higher costs and more downtime.
- Because the steel does not conduct heat well so heat builds up during machining. This extra heat reduces accuracy and damages tools.
These problems make manganese steel one of the hardest alloys to machine.
Methods for CNC Machining Manganese Steel
CNC machining of manganese steel presents many challenges. However, you can get smoother and more efficient results by applying right techniques. Below are the most effective approaches for working with manganese steel.
1. Preheating
Start by preheating manganese steel before you begin machining. Heating the material to a range of 300°C to 420°C temporarily lowers its hardness. This step makes cutting easier and helps your tools last longer. Preheating also reduces the chance of work hardening at the surface. As a result you get a better finish and experience less tool wear.
At RICHCONN we rely on precise induction preheating. This method gives us consistent results & protects tool life – especially when machining complicated or large parts.
2. Tool Material Selection
After preheating, focus on the right tool for the job.
Carbide Tipped Tools
For most jobs, carbide tipped tools are best. Coated carbide inserts (TiAlN or TiN) extend tool life and reduce friction.

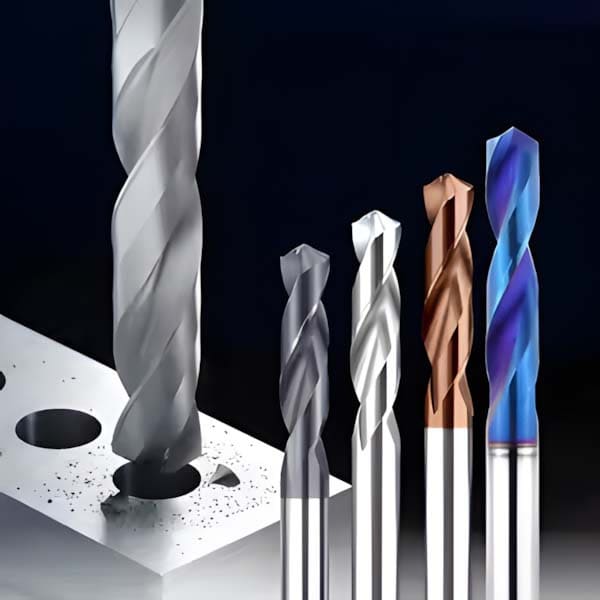

Cobalt Alloy Tools
HSS‐Co (High Speed Steel with cobalt) tools are good for finishing passes or lighter cuts. They handle heat well but not heavy duty machining.

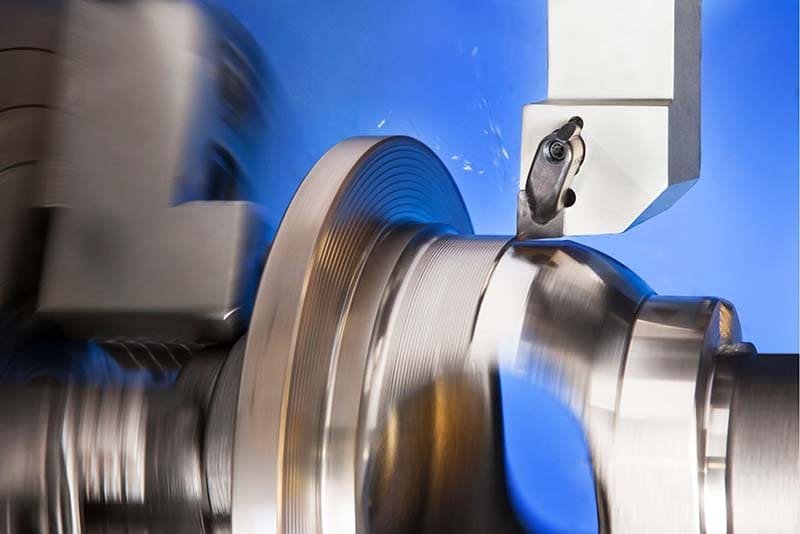

Ceramic Based Tools
Ceramic inserts are good for finishing work. They deliver high precision and can tolerate heat during machining. But they are brittle and should only be used in stable conditions.
3. Advanced Cutting Methods
CNC Turning and Milling
You can get both accuracy & efficiency for most shapes with CNC turning & milling with ceramic or carbide tools. To prevent work hardening, keep feed rates moderate – about 0.005 to 0.010 in/rev. Moreover make shallow cuts of 0.020 to 0.050 inches.
Also See: A Complete Guide to CNC Milling

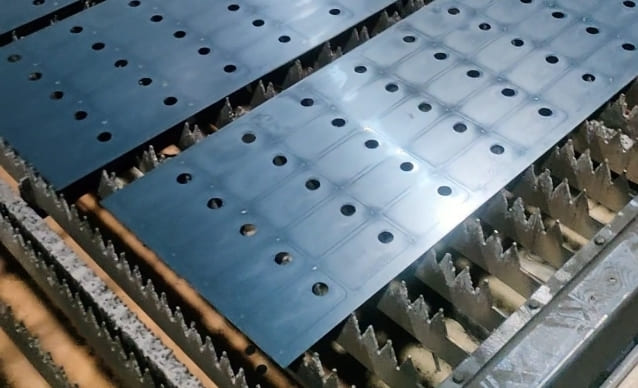

Plasma Arc Cutting
Plasma arc cutting is best for thick sections of manganese steel. This method uses ionized gas at high temperatures to melt & cut through the material fast. Tool wear decreases and the procedure gets faster.
Laser Cutting
Laser cutting delivers high precision which is good for detailed designs. It produces a narrow heat affected zone with clean edges. However laser cutting may not work well on very thick sections.
4. Cooling and Lubrication
Cooling is important when machining manganese steel as heat can build up fast because of its low thermal conductivity. Using high performance lubricants and coolants reduces friction, removes heat and increases tool life. For best results use oil based, synthetic or semi-synthetic coolants. Apply them through high pressure systems to remove heat & chip evacuation.
Machining Parameters and Tool Selection for Manganese Steel
You need to choose the right machining parameters & machine tools when machining manganese steel. Every decision you make will affect surface finish, tool life and how fast you can machine the material.
Feed Rate
Keep feed rate steady and moderate. For turning use 0.005 to 0.010 in/rev. And for milling use 0.004 to 0.008 in/rev. This will not only control work hardening but will avoid major tool wear too.
Cutting Speed
Use lower cutting speeds for manganese steel. For turning use 50 to 100 surface feet per minute (SFM) & for milling use 40 to 90 SFM. Slower speeds keep heat down and is compulsory for manganese steel because it heats up fast and doesn’t conduct heat well.
Also See: Feed Rate and Cutting Speed in CNC Machining
Depth of Cut
Keep your cuts shallow; 0.020 to 0.050 inches per pass is enough. As shallow cuts stop the surface from hardening too much and makes it easier to get a good finish.
Tool Geometry
Use tools with negative rake angles. This shape helps your tools last longer and cut better on hardening materials.
Machine Rigidity
Make sure your machine is rigid. Use secure fixturing and sturdy machines to reduce vibrations. This way cutting is consistent and prevents tool breakage.
Best Practices for Machining Manganese Steel
You need to follow established best practices to get the best out of manganese steel machining. These methods help you extend tool life, manage work hardening as well as maximize surface finish quality.
Tool Inspection
Inspect your cutting tools regularly. Manganese steel wears down tool edges fast so replace tools when you see wear.
At Richconn, our team uses real time monitoring to detect tool wear early. We adjust machining parameters automatically so we can maintain high quality and minimize downtime.
Controlled Cutting Conditions
Don’t make aggressive cuts or sudden changes to machining parameters. Use moderate feed rates and shallow depth of cut. In this way you can control work hardening and avoid surface damage.
Coolants and Lubricants Usage
Apply coolants & lubricants all the time; as manganese steel generates a lot of heat during machining. You can use Minimum Quantity Lubrication (MQL) or cryogenic cooling to extend tool life & surface finish.
Workpiece Handling
Always secure the workpiece firmly. Fixturing limits vibration, stops movement and preserves dimensional accuracy during machining.
For custom or complicated shapes, Richconn’s team creates dedicated fixtures for each project. This way we can deliver repeatable results and tight tolerances even for the most demanding parts.
Industrial Uses of CNC Machined Manganese Steel Parts
Many industrial fields use manganese steel because of its extraordinary properties. You will find these parts in applications which need high impact strength & extreme wear resistance.
Mining and Quarrying

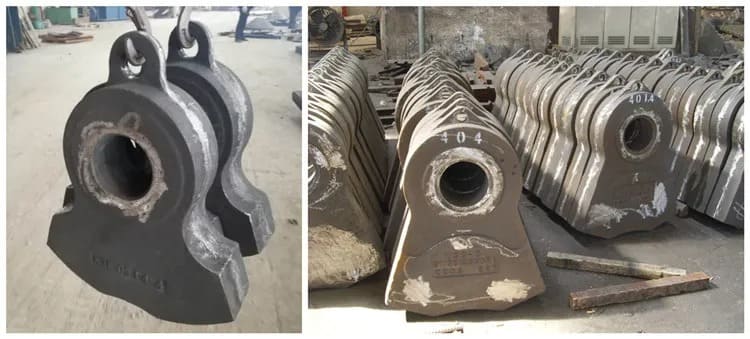

Mining operations use manganese steel for hammer mills, crusher jaws and shovel buckets. These parts face constant abrasion and impact from minerals and rocks. When stressed, manganese steel hardens so these parts last longer. Thus you have to spend less time & money on maintenance and repairs.
Construction

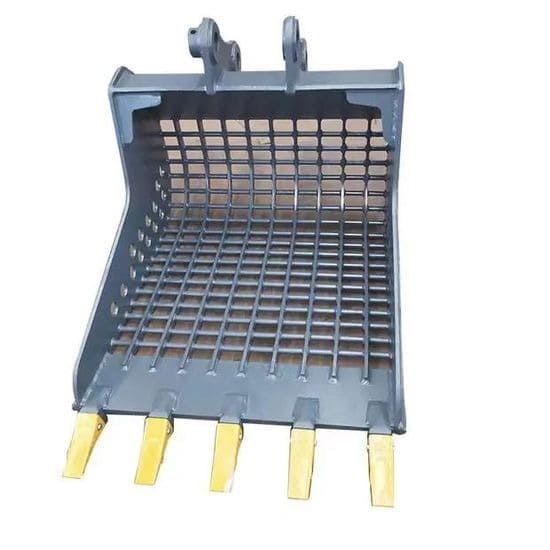

Construction equipment uses manganese steel in high impact parts like loader buckets and excavator teeth. Steel can handle abrasive materials and repeated shocks. Its failures become less frequent so your machines are more productive.

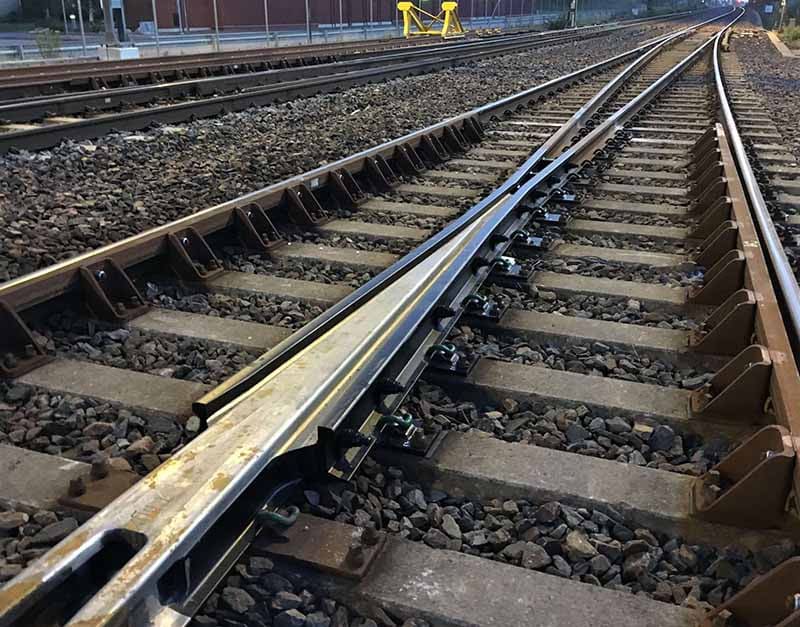

Railway
Railways use manganese steel for track and crossings. Toughness of this steel absorbs heavy loads and repeated impacts from trains. This means longer life for rail infrastructure and more reasonable maintenance schedules.
Military and Defense
Defense applications use manganese steel for protective barriers and armor plating. The steel’s toughness and hardness combine to protect against blasts and ballistic threats.
Metal Recycling

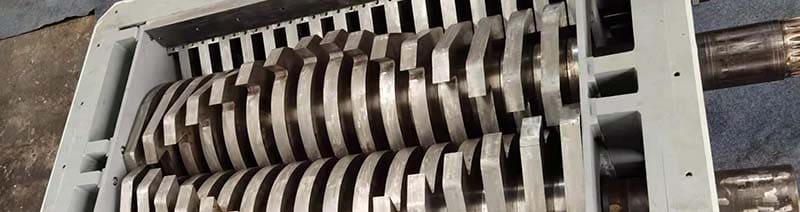

Manganese steel is used in processing machines and shredders in metal recycling plants. Its work hardening property lets these machines process scrap metal proficiently. Moreover the equipment works well in harsh environments and does not damage even after continuous use.

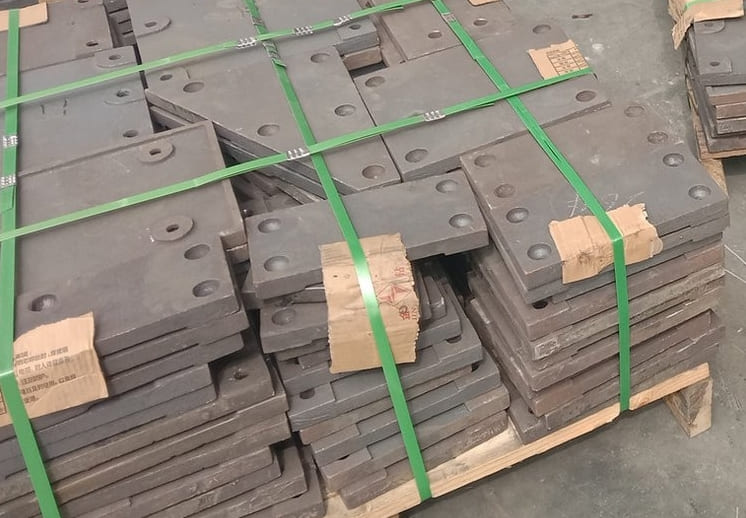

RICHCONN supplies manganese steel parts to railway, mining, defense as well as recycling sectors. Whether you need a prototype or a full production batch you can count on us for fast & reliable delivery of custom parts.
Why Choose Manganese Steel Parts?
Manganese steel parts have many strong benefits for tough applications.
Extraordinary Wear Resistance
Manganese steel can withstand abrasion & wear even in most extreme conditions. It’s good for heavy duty use where surfaces get hit and rubbed constantly.
Work Hardening Capability
The more you use manganese steel the harder it gets. This work hardening makes parts last longer and more durable. So you spend less time and money on replacements and repairs.
High Impact Strength
This material is strong & tough. It takes heavy impacts without bending or cracking. That’s why you mostly see it in equipment like rail crossings and crusher jaws where shocks happen all the time.
Affordable
Manganese steel may cost more at first but its long life and low maintenance needs save you money in the long run. At RICHCONN our lean manufacturing methods help reduce part costs even further. As a result high performance manganese steel components become available to many industries.
To Sum Up
To machine manganese steel successfully you need to plan every step, choose the right tools & control the entire procedure closely. After understanding the material’s special characteristics and following proven methods you can produce durable parts with high quality.
If you need any kind of CNC machining services then Richconn is your best option. You can contact us anytime.
Related Questions
Which inserts work best for CNC milling manganese steel?
For best results use coated carbide inserts like TiCN, TiAlN or CBN inserts. These will withstand wear and work hardening of manganese steel.
What post processing is normally used for manganese steel?
Typical post processing is solution annealing followed by water quench. Laser or plasma cutting is also common. Welding is another possibility but you have to control heat.
Can you fabricate manganese steel easily?
No manganese steel is not easy to fabricate. It hardens fast while being machined so you need skilled operators and special tools to handle it.
What happens if you use high cutting speeds & feed rates when machining manganese steel?
Using high speeds & feed rates will generate more heat and cause more tool wear. This will make work hardening worse, shorten tool life and will also damage surface finish quality.
