The manufacturing process of intramedullary nails is very complicated. If an error occurs during manufacturing, it can compromise patient safety or may result in products that do not perform reliably.
This blog post is a simple guide. It aims to help manufacturers avoid problems by detailing manufacturing steps, suitable materials, quality assurance and latest technologies that relate to intramedullary nails.
Understanding Intramedullary Nails
Basically, intramedullary nails (IM nails) are thin metal rods which surgeons insert into the central canal of long bones like tibia, femur and humerus. These implants provide fracture stabilization and facilitate early weight bearing capabilities for patients. Medical professionals often consider IM nails to be the gold standard for treating diaphyseal fractures. Using these nails results in smaller incisions and faster patient recovery.
Main Types
IM nails are manufactured in several designs to meet different clinical needs. For example salt nails reduce the risk of infection whereas channeled nails permit wire guided placement.

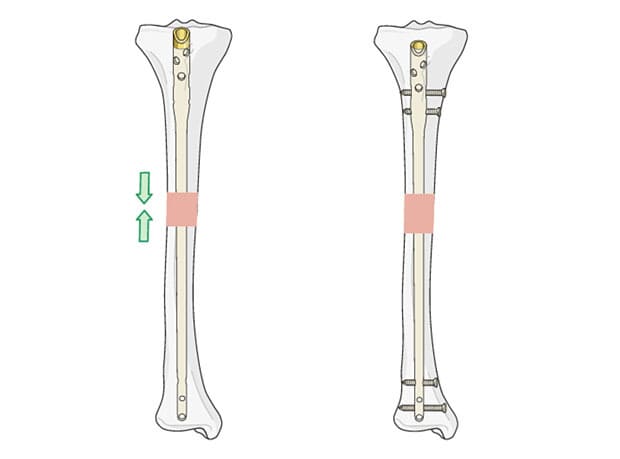

Furthermore interlocking nails use locking screws which improve both rotational & axial stability. Some special types such as retrograde or expandable nails are also designed for complex fractures or difficult anatomical positions.
Material Selection for Intramedullary Nails
The selection of appropriate materials for intramedullary nails perform an important part in fracture management. The selected material must resist high mechanical stress and be safe for use inside the human body.
Common Materials

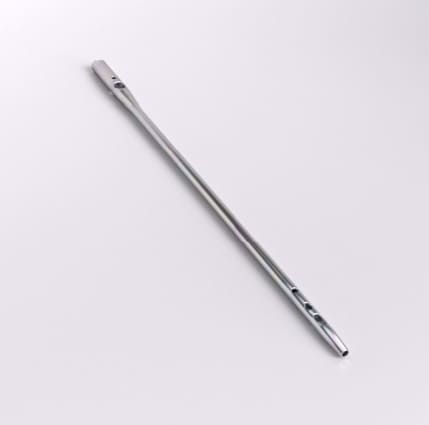

Surgical Grade Stainless Steel
In IM nails production, 316L stainless steel is widely used because it provides outstanding strength and long term durability. This material is best option for load bearing applications because it offers firm stabilization.
Titanium Alloys (e.g. Ti-6Al-4V ELI)
Titanium alloys such as Ti-6Al-4V have become more popular due to their lightweight nature, strong resistance to corrosion and excellent compatibility with body tissues. Young modulus of titanium is approximately 110 GPa which is close to that of bone. This similarity helps reduce ‐ stress shielding.
Furthermore titanium nails are MRI compatible which makes them useful for implants that need to stay in the body for long periods.
Emerging Materials

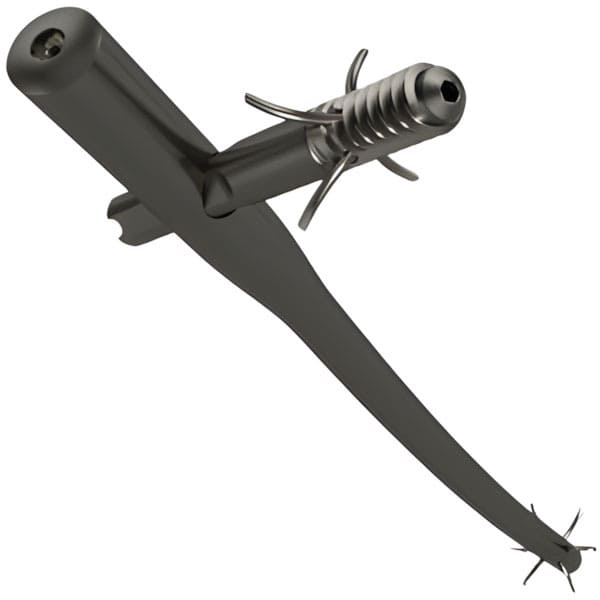

The field of implant design is undergoing a major transformation due to new materials like carbon fiber composites. When carbon fiber is combined with poly‐ether‐ether‐ketone (PEEK), the resulting material exhibits bone like elastic properties. Due to this property stress is better distributed, thus supporting faster healing. There are also promising materials like cobalt-chromium alloys as well as metals like Tantalum and Niobium.
Material Properties
Material you pick must have these properties:
Biocompatibility
Preventing inflammation or rejection is very important. Titanium performs particularly well in this area. Stainless steel, on the other hand, can sometimes release nickel ions in some patients.
Corrosion resistance
Corrosion resistance is very necessary to avoid the implant from breaking. Stainless steel’s chromium and oxide layer of titanium both help protect against corrosion.
Mechanical strength
It is important for IM nails to be both strong and flexible. This balance helps them avoid failure and fatigue even after enduring a million cycles of loading.
Material Standards and Certifications
In IM nails production, adherence with international standards is very important. Manufacturers are required to use ASTM standards for implant materials and follow ISO 13485 for quality management. These standards guarantee traceability & patient protection throughout implementation. Paying careful attention to material selection leads to IM nails which are reliable and perform well in many orthopedic situations.
Design and Engineering Considerations
To properly design intramedullary nails, several important factors must be considered. This is because clinical success depends on finding the right balance between mechanical performance and anatomical fit.
Anatomical Compatibility
It is very important to select IM nails according to the patient’s bone shape and anatomy. The nail needs to fit tightly inside the medullary canal but must not harm the bone. Nowadays with the help of imaging and digital planning tools, the best entry points and alignment can be determined for the patient. Surgeons can greatly lower the risk of bone deformity and minimize complications, both during and after surgery, by matching the nail to patient anatomy.
Mechanical Requirements
In order to stabilize the fractured bone throughout healing process, the IM nail must possess adequate strength. It must hold bone fragments in place and withstand twisting, bending and compression forces. Acting as an internal splint, the nail shares the mechanical load with the bone itself. If the nail is not strong enough, it may fail or break before healing is complete. By choosing the right diameter and material, long term structural support can be guaranteed.
Features
Modern IM nails have some special features to improve healing and stability. A locking screw is common at both ends of the nail which prevents the bone from shortening or rotating. Some nails also have self-locking systems or expandable sections which make the surgical procedure easier and reduce the need for additional screws. Newer nails also have coatings to prevent infection or promote bone growth which further improves patient health.
Manufacturing Process for Intramedullary Nails
1. Raw Material Preparation

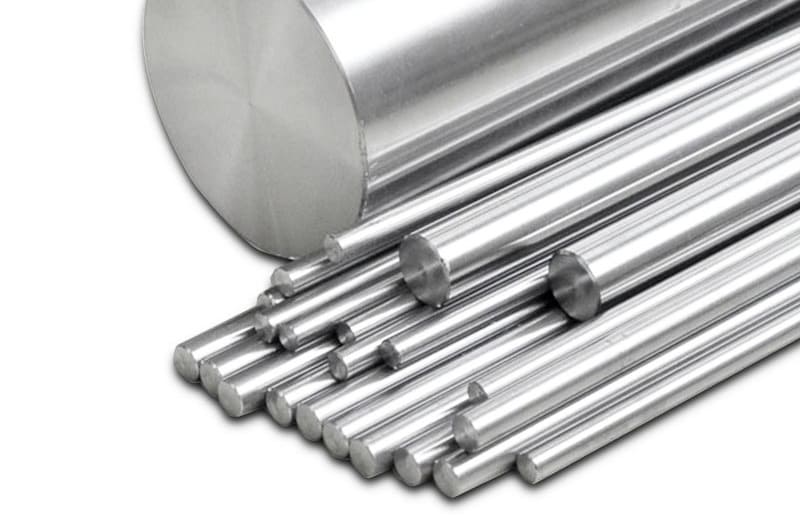

Manufacturers start by sourcing high purity materials which include titanium alloys, surgical grade stainless steel and newer metals such as tantalum and niobium.
When working with niobium or tantalum, the process begins by extruding or rolling a sintered body into a sheet. This sheet is then shaped into a slotted tube and welded to form a closed cylinder.
The usual approach for stainless steel and titanium is to obtain rods or tubes and then cut them to the required length.
2. Initial Processing
After the preparation of raw material, the next step is to give the initial shape. At this stage drawing, forging and pressing are used to reach the target wall thickness and diameter.
It is very important to achieve uniformity during this stage. It helps reduce internal stresses and guarantees consistent mechanical properties throughout the nail.
3. Machining and Shaping
Machining and Shaping
To achieve accurate shaping of nails, manufacturers depend on CNC (Computer Numerical Control) lathes. These machines cut and form the metal to meet the desired geometry and dimensions. As a result every nail fits as intended and performs reliably.
Also See: What is CNC Precision Machining
Drilling and Boring
For interlocking screws, technicians drill precise holes. They bore a central canal to fit guide wires. Due to this feature insertion during surgery becomes easier.
Also See: CNC Drilling vs CNC Boring
Threading
The nail may have threads cut into it to allow surgical instruments or locking screws to be attached. This step is necessary for secure fixation and proper insertion during surgical procedures.
Also See: A Complete Guide to Thread Machining
4. Surface Treatment
Polishing

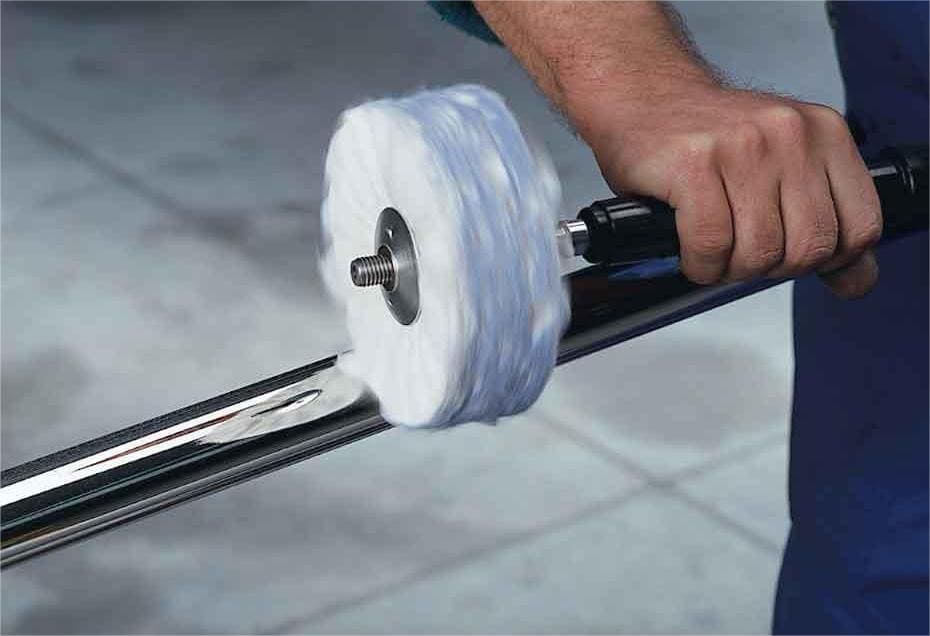

After machining is complete, the nails go through a polishing step. This step removes rough edges and produces a smooth surface. Due to this step a polished nail slides easily when inserted and lowers the risk of tissue irritation inside the body.
Anodizing
Anodizing is used on some nails as an electrochemical method. This process causes a layer of oxide to thicken on the metal surface. This added layer increases corrosion resistance and makes the nail more biocompatible.
Coating
To give the nail extra protection or special features such as antibacterial properties, additional coatings may be applied in certain cases. These coatings help the implant last longer and keep the patient safe.
At Richconn we offer in-house surface finishing options such as anodizing, electropolishing and PVD coatings for intramedullary nails . Due to these processes both biocompatibility and corrosion resistance improve. Furthermore our coatings contribute to patient safety and help implants perform well over time.
5. Heat Treatment
Stress Relieving

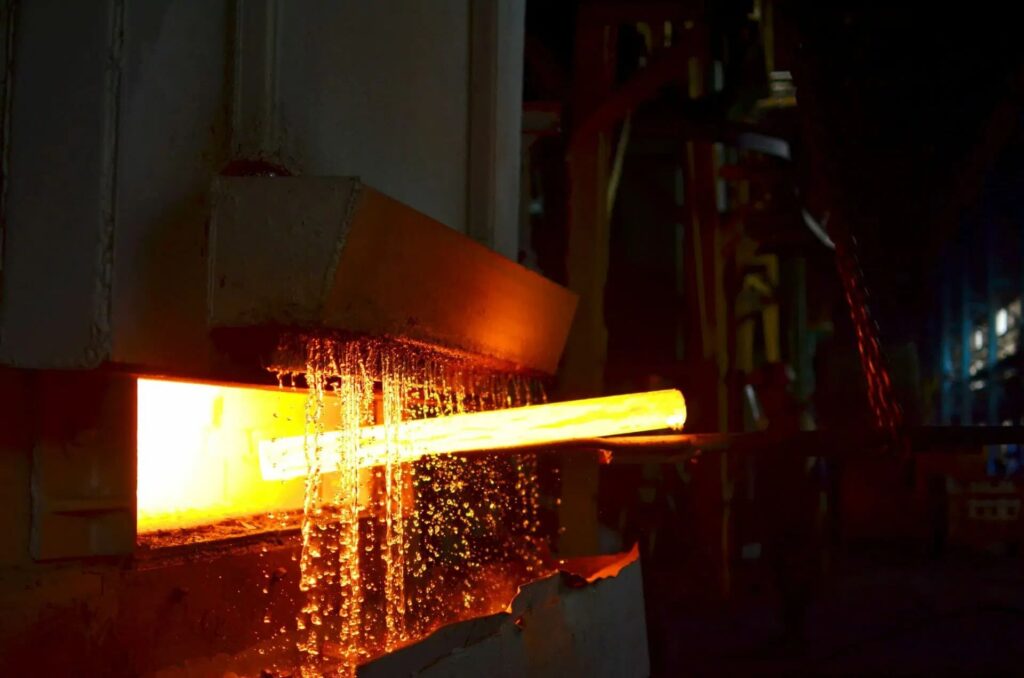

The nails are first heated and then cooled slowly. Due to this process internal stresses are relieved which were formed during shaping and machining. By eliminating these stresses, the nail is less likely to crack in the future and stays strong & dependable.
Hardening
In the final heat treatment step, nail is hardened. This increases both its durability and strength. Careful control at this stage is important because it ensures that the nail is stiff enough to support bone healing but still flexible to prevent breakage.
6. Testing and Quality Control
Thorough testing and strict quality control is necessary at every stage because it make intramedullary nails reliable and safe

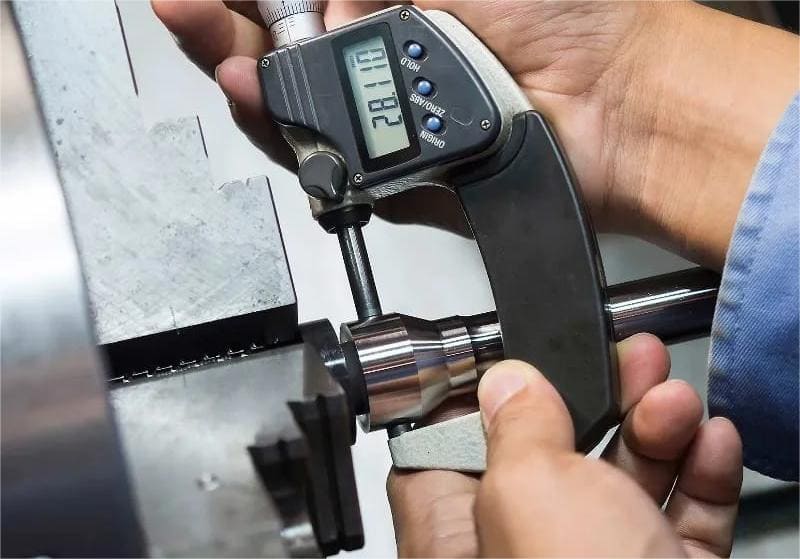

The first step is dimensional inspection. Here technicians measure each nail with accurate instruments and check strict tolerances for screw hole placement and geometry. For example at RICHCONN we use advanced metrology systems to confirm critical dimensions on medical components. This step is necessary to ensure that the nails fit and function properly in orthopedic procedures.

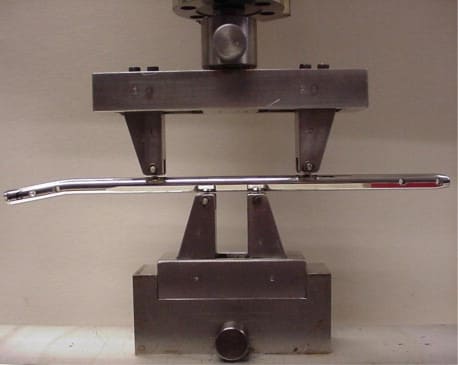

After dimensional checks, the process moves to mechanical testing. At this phase nails undergo torsion, fatigue and bending tests. In these tests, standards like ASTM F1264-03 are followed. These tests confirm that the nails can resist failure.
Next come non destructive methods. These include ultrasonic, radiographic and liquid penetrant testing which reveal any internal cracks, voids or surface defects. These techniques do not harm the nail during inspection.
By combining these steps, manufacturers guarantee that only flawless, high performance nails reach the operating room. Through this approach patient safety is protected.
Also See: What Is Non-Destructive Testing
7. Sterilization and Packaging
Cleaning
Before sterilization, there is a cleaning stage. During this phase nails are cleaned thoroughly to get rid of any residues left from manufacturing. This step eliminates contaminants that could pose a risk to patient safety.
Sterilization Methods
- Gamma Irradiation: Manufacturers often use gamma radiation at doses of 25 kGy or higher. This technique reaches a sterility assurance level of SAL 10⁻⁶. It works well for sealed packages and does not need heat.
- Autoclaving: Autoclaving or steam sterilization uses 121 °C temperatures for 15 to 20 minutes at 15 psi. Mostly this method is chosen for reprocessing instruments instead of for the initial sterilization.
- Ethylene Oxide Gas: This method is suitable for components which cannot handle heat. Ethylene oxide gas can move through packaging and keeps the product intact.
Packaging
Packaging performs an important part in keeping the nail sterile and physically protected. In modern packaging, sterile barrier systems and foam inserts are used for extra protection. Materials for packaging must meet ISO 11607 standards. By meeting these requirements, a barrier against microbes and strong mechanical protection is guaranteed.
Advanced Manufacturing Techniques
Additive Manufacturing (3D Printing)
For creating Intramedullary nail designs that match patient anatomy or suit preclinical research models, 3D printing is used. Manufacturers rely on CAD software and resin based printers to quickly develop prototypes and adjust nail curvature, geometry and locking screw placement.
Biodegradable IM Nails
High strength bioceramics or magnesium based materials now act as the basis for biodegradable Intramedullary Nails which are becoming alternatives to metal nails. The specialty of these nails is that they provide strong fixation and gradually dissolve in the body, so patients do not need removal surgery.
Recent bioceramic nails reach bending strengths above 41 MPa. Moreover they enhance bone healing and preserve structural stability throughout recovery.
Smart Implants
Smart Intramedullary Nails incorporate sensors or telemetry systems that allow you to track fracture healing and load distribution in real time. These instruments measure nail strain and monitor healing, thus providing important data to clinicians.
Considerations and Challenges
Clinical Considerations
- Do not use nailing if severe bacterial contamination is present as it may spread infection through medullary canal.
- Assess patient weight, bone quality and occupation, since these factors greatly influence stability of implant and healing process.
- Some nail types are inappropriate for use in certain types of bone conditions or in certain fractures; for example in brittle bones and in high bone fragmentation.
Manufacturing Challenges
- It is difficult to achieve consistent quality across all production batches because medical implants need high precision.
- To address these issues, partnering with experienced precision manufacturers such as RICHCONN who hold ISO 13485 certification for medical device production proves very helpful.
- There are also material limitations because some biocompatible metals like tantalum are hard to shape.
To Sum Up
The manufacturing process of intramedullary nails depend on precise engineering, advanced materials and thorough testing to meet clinical requirements. New developments such as smart implants and titanium alloys help patients recover faster and achieve better outcomes.
If you need CNC machining services for custom IM nails or any other component then Richconn is your best option. You can contact us anytime.
Related Questions
What is the role of CNC machining in Intramedullary Nails production?
CNC machining provides high precision needed for the manufacturing of intramedullary nails. This precision is necessary to meet medical standards and ensure uniform implants.
Why is titanium preferred over stainless steel in some cases?
Compared to stainless steel, titanium provides better biocompatibility, lowers the risk of allergic reactions and promotes stronger bone bonding (osseointegration). These qualities increase long term stability for implants.
Are there different designs of Intramedullary Nails for various bones?
Yes Intramedullary Nails nail designs differ depending on the bone such as femur, tibia or humerus and the type of fracture. Common options are antegrade or retrograde insertion and expandable nails.
What advancements are being made in Intramedullary Nails materials?
Carbon fiber composites, corrosion resistant coatings and biodegradable polymers constitute recent developments. These materials help reduce complications.
What is the role of additive manufacturing in Intramedullary Nails production?
3D printing gives the opportunity to create custom, patient specific nails with complex shapes. This approach leads to improved surgical results, better anatomical fit and less material waste.
