It is very important to make sputtering targets correctly for device performance and getting quality thin films. If targets are not made properly then contamination, uneven coatings and material waste can occur. In this blog post we will cover materials, manufacturing steps, applications as well as quality control methods to help you get the best results in sputtering target production.
What is Sputtering?

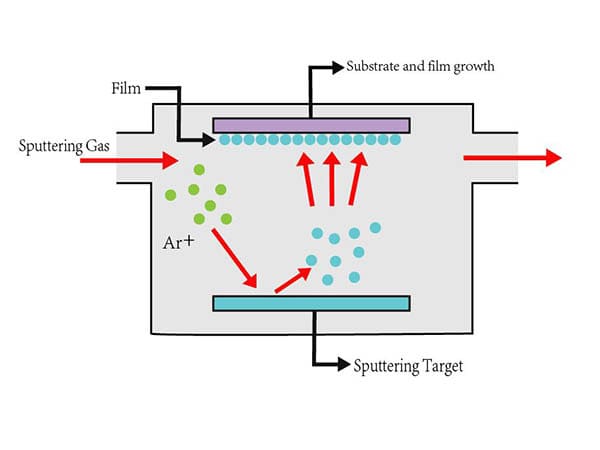

A procedure known as sputtering uses energetic ions (mostly from a plasma) to hit a solid target. This impact knocks atoms off the target surface. These atoms then settle as a thin film on another surface named as substrate. Many industries use this method to apply precise coatings in optics, electronics and nanotechnology.
Materials Used in Sputtering Targets
Choice of right material for sputtering targets affects both thin film performance & quality. Different materials have different properties, so each one is appropriate for particular uses in electronics, energy or optics.

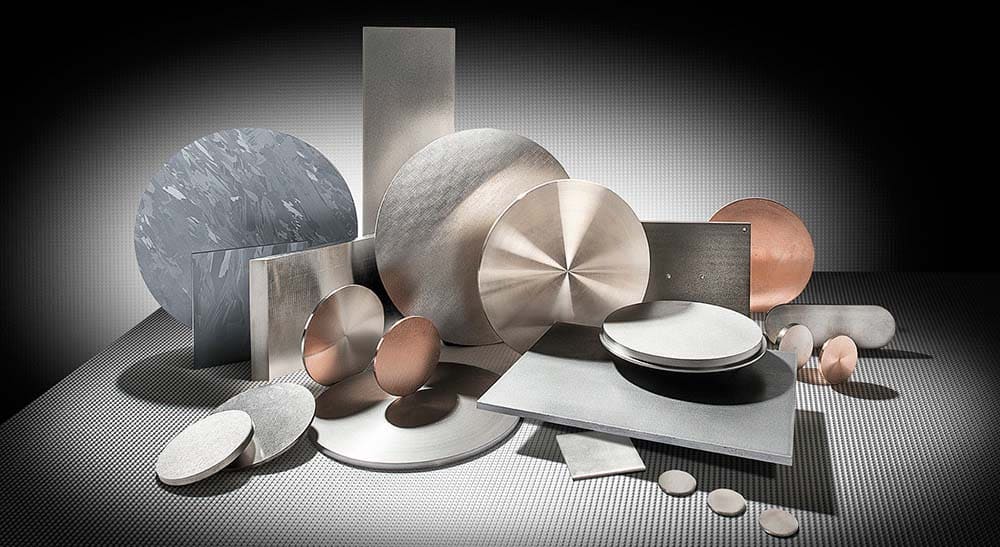

Pure Metals
Manufacturers mostly choose pure metals as sputtering targets such as aluminum, copper, gold, silver as well as titanium. These metals have good sputtering rates and give high purity. As stable film quality depends on these two.

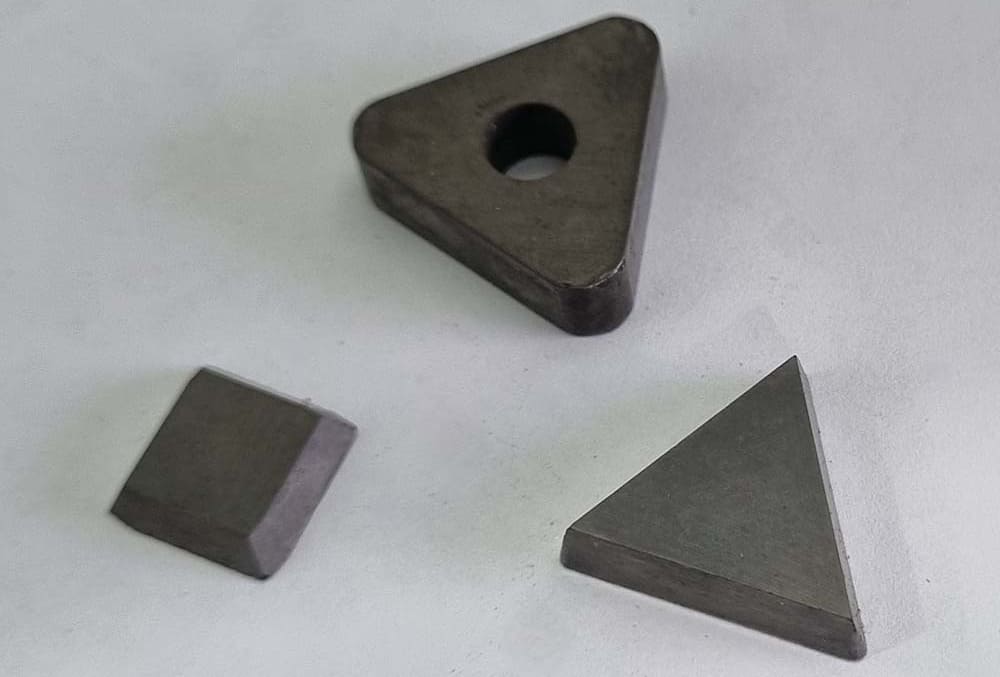

Compounds
Carbides, nitrides and oxides are examples of compounds used for their chemical stability and hardness. These materials are important for coatings which need to be both functional and durable.
Alloys

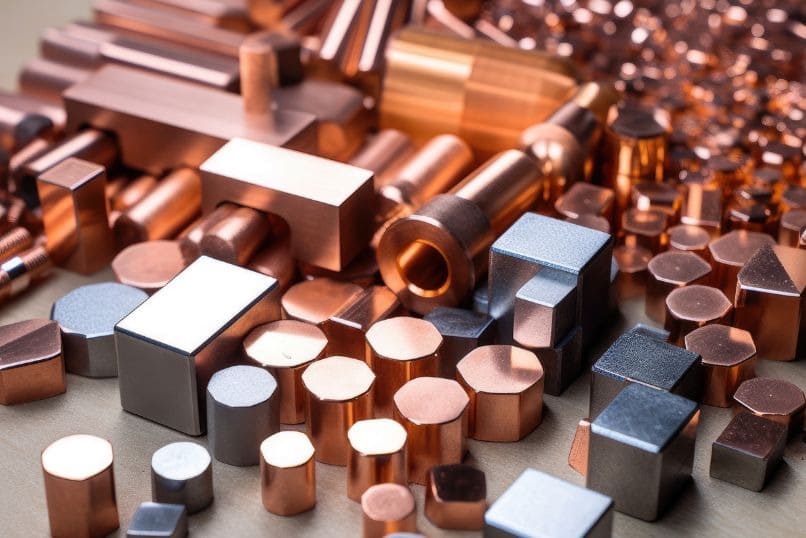

Alloys like nickel‐chromium, stainless steel and titanium are chosen when corrosion resistance or extra strength is required. These alloys allow manufacturers to adjust properties for particular needs.

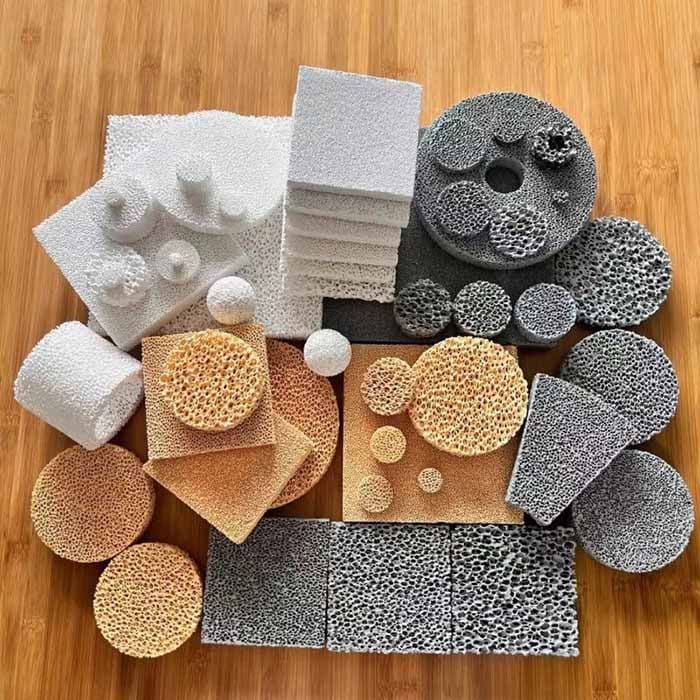

Ceramics and Other Materials
Ceramics such as silicon carbide (SiC) and alumina (Al₂O₃) are valued for their heat resistance and hardness. These materials have a main role in protective and optical coatings where long lasting durability is required.
High Entropy Alloys (HEAs)
High entropy alloys mix five or more elements in nearly equal amounts. These alloys give strong corrosion resistance and high hardness. So they work well in harsh environments.

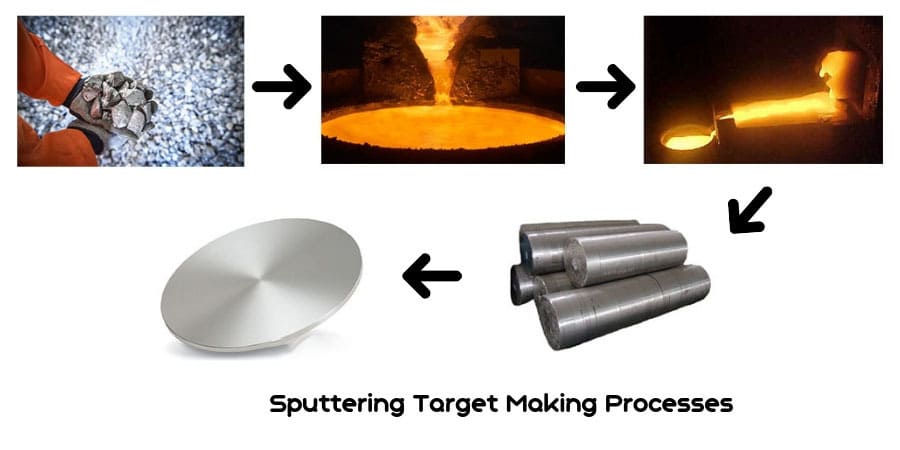

Sputtering Targets’ Manufacturing Procedure
1. Raw Material Selection
Sputtering target manufacturing starts with raw material selection. We choose metals and compounds with 99.99% purity to assure high film quality and limit defects. Strict physical and chemical standards must be met by the chosen material.
At RICHCONN we source only ultra high purity compounds and metals. This guarantees that our customers get products which meet the industry’s highest standards.
2. Melting and Alloying
After material selection the next step is melting and mixing to form a target. This is done by arc melting or vacuum induction melting at a temperature of above 1500°C. Proper alloying at this stage increases corrosion resistance and strength.
3. Target Forming
Once melting and alloying is done it’s time to shape the material into sputtering targets. You can use different methods and every method has its own advantages.
a. Powder Metallurgy

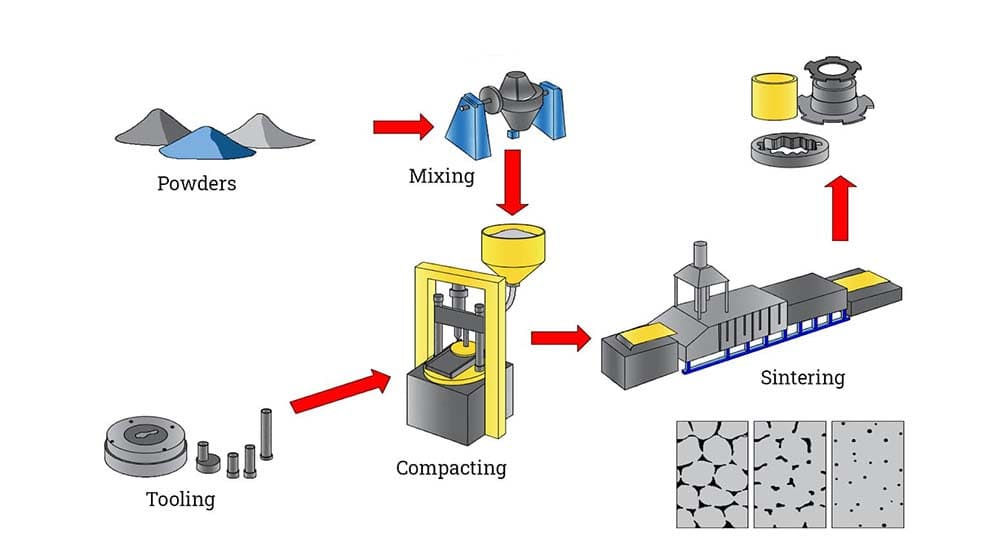

In powder metallurgy metal powders are pressed into the intended shape and then heated below their melting point. This gives us precise control over density and composition. It is important for those sputtering targets which need high performance.
b. Casting

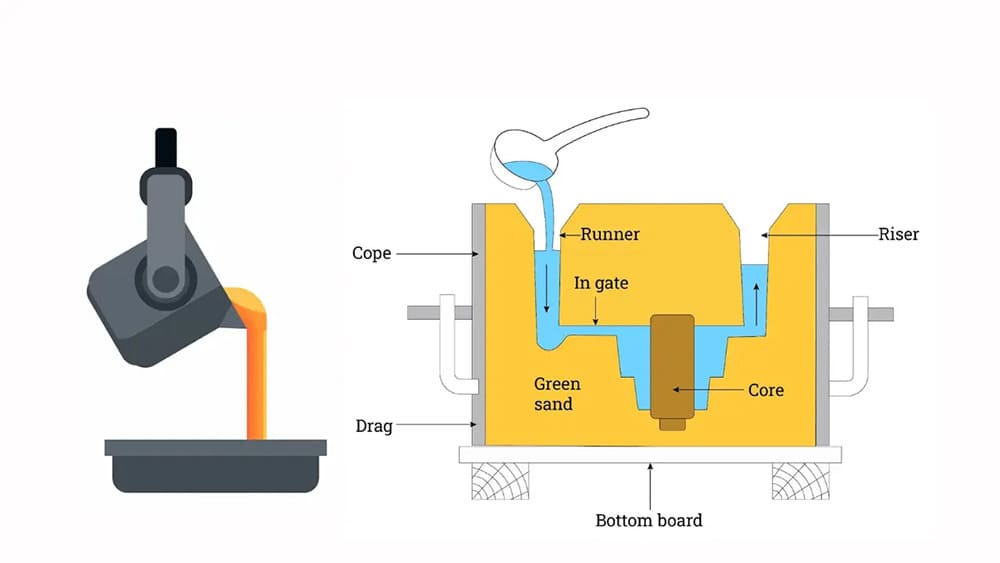

Casting makes targets by pouring molten metal into molds. It is appropriate for large targets. But it can sometimes cause uneven composition or porosity which can affect performance.
To solve this problem our team machines cast blanks with precision CNC equipment. This step gives higher tolerances and assures more stable quality for demanding applications.
c. Hot Pressing

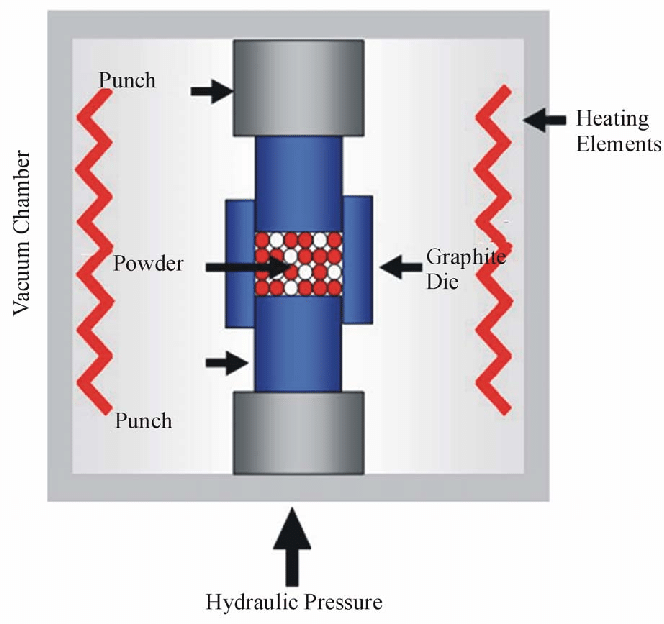

Hot pressing uses both heat & pressure to turn powders into solid targets. This reduces defects and increases mechanical strength. So the targets become more reliable for harsh applications.

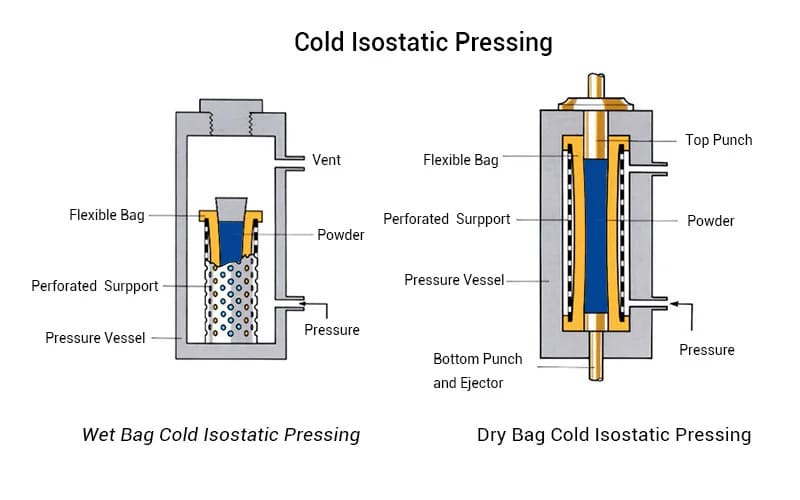

d. Cold Isostatic Pressing (CIP)
CIP forms uniform and dense targets by applying equal pressure from all sides to powder‐filled molds at normal temperature. This reduces weak spots and produces targets which are good for stable thin film deposition.

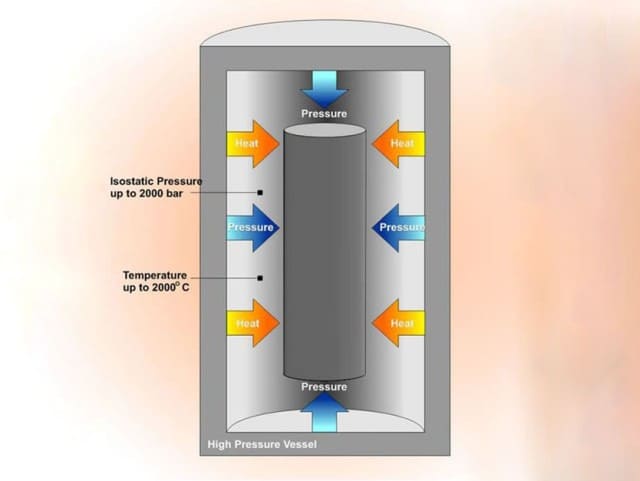

e. Hot Isostatic Pressing (HIP)
HIP removes internal voids by using high pressure & temperature in a gaseous environment. This produces targets with high strength and density. These are particularly important for applications where reliability is key.
4. Heat Treatment
The target is heat treated after forming. Technician’s heat and cool this material at 400 to 1200°C in a controlled manner. This relieves internal stresses and refines the grain structure. As a result target gets stronger and performs better during sputtering.
5. Machining and Surface Finishing
Machining and finishing comes after heat treatment. At this point the target is machined to precise dimensions and surface is finished to get smoothness. Procedures like grinding, polishing & lapping are used to remove any defects and to keep uniform thickness. Moreover target’s surface roughness is kept very low (about <0.1 micrometers) to support high quality film creation.
Also See: What is Precision Grinding
6. Quality Control and Testing
Quality control and testing is the last step. Every target is inspected for uniformity and defects. These tests are chemical composition analysis, density measurement and ultrasonic inspection. They identify problems like cracks or porosity. Only those targets which meet industry standards move forward for thin film deposition.
Types of Sputtering Targets
Manufacturers make different types of sputtering targets to meet different equipment & application needs. Every type has its own benefits for thin film development.

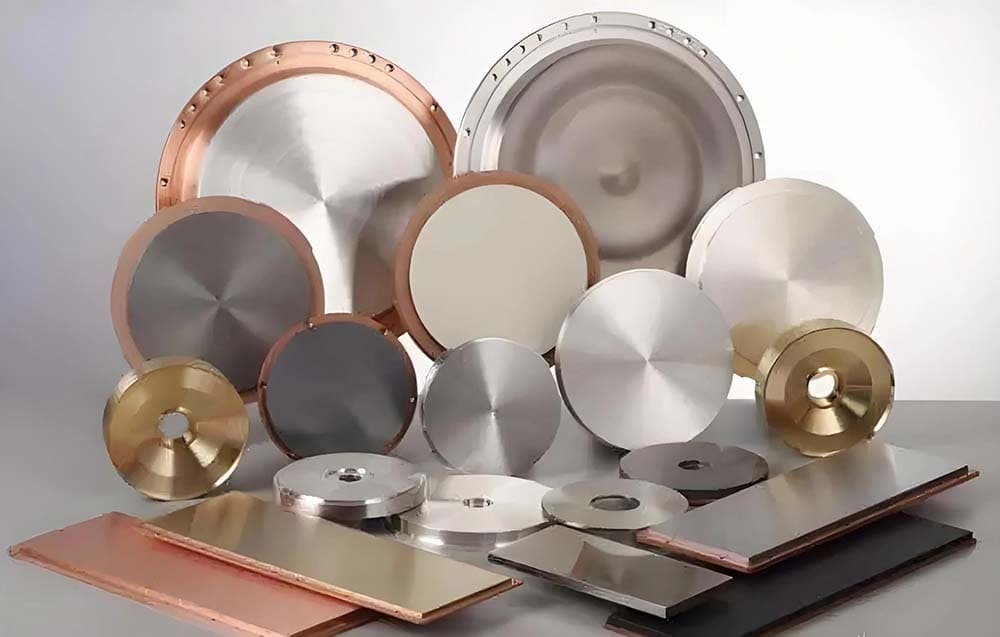

Planar Targets
Planar targets are the most used targets. These have flat, circular or rectangular shapes. They are affordable & simple. Moreover they are easy to manufacture so they are good for prototypes.
Bonded Targets

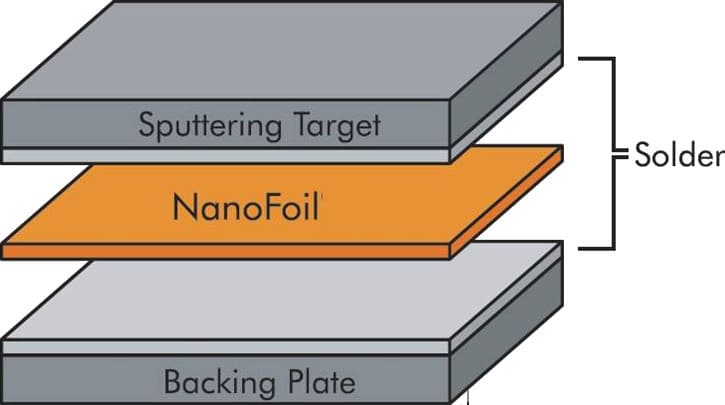

Bonded targets have a thin sputtering layer bonded to a backing plate mostly aluminum or copper. This not only reduces material cost but simplifies handling too. It’s particularly useful for expensive or fragile materials.
Rotary Targets

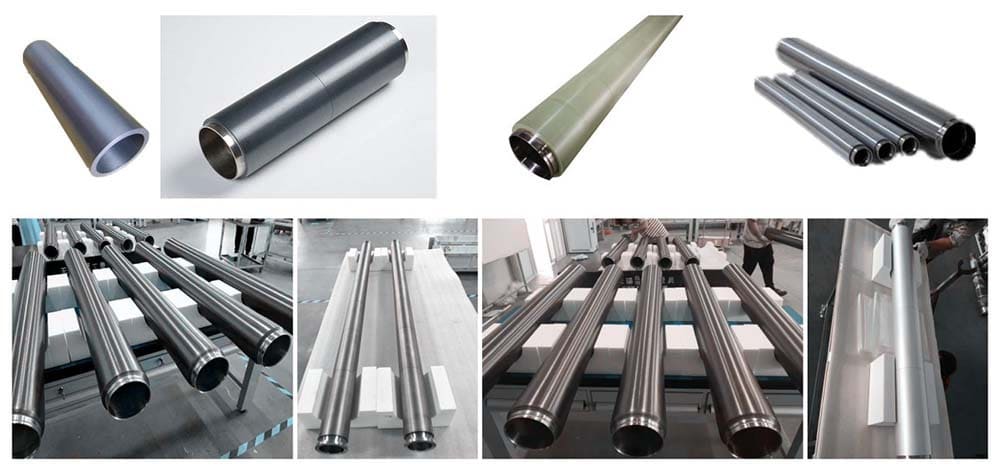

Rotary targets have a cylindrical shape & rotate during sputtering. This rotation cools the target, increases its life & uses the material more proficiently. Therefore large scale production mostly uses this design.

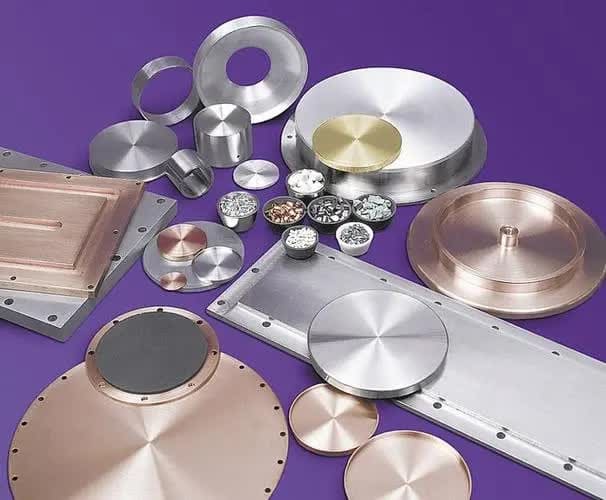

Custom Targets
Custom targets cater to particular manufacturing needs. They can have unusual materials, shapes or sizes which gives more adaptability in advanced applications.
RICHCONN produces custom targets for clients with particular needs. These can be complicated alloys or irregular shapes made with the help of EDM, CNC machining as well as additive manufacturing. For example RICHCONN recently supplied a semiconductor company with a batch of Mo‐Ti alloy targets. These targets were able to bear ±0.05 mm tolerances for the sake of modern device fabrication.
Uses of Sputtering Targets
Semiconductor Device Fabrication
Manufacturers use sputtering targets to make memory chips, microchips & flat panel displays. They choose high purity materials such as tantalum to get uniform conductive layers. These layers are key to device speed and reliability.
Solar Cell Production
Solar panel makers use sputtering targets to deposit materials such as cadmium telluride and silicon. The resulting thin films not only increase durability of panel but energy conversion proficiency too.
Optical Coatings for Mirrors and Lenses
Sputtering targets help apply protective and anti reflectives coatings to items like eyeglasses, sunglasses, mirrors as well as optical filters. These coatings improve durability and clarity. So they are well known in laser technology and consumer optics.
Architectural Glass Coatings
Sputtering targets make low emissivity (Low E) coatings for architectural glass. These coatings help buildings save energy by controlling light and heat transmission. They also improve the look of glass and are affordable.
Data Storage Devices
Thin films from sputtering targets are important for magnetic storage media and hard drives. These films support long term storage & data recording.
Challenges in Sputtering Target Manufacturing
A number of issues occur during manufacturing sputtering targets and they affect both cost & quality. Some main problems are given as under.
Material Purity
Getting high purity i.e., mostly above 99.99% is difficult. Tiny impurities can cause defects in thin films & lower device functionality.
Dimensional Accuracy
It’s not easy to keep flatness and dimensions accurate– particularly for complicated or large targets. Minor mistakes can cause uneven coatings or poor tool fit.
Supply Chain and Cost Issues
High quality raw materials are very pricey and sometimes it is hard to obtain them. So it can increase cost of manufacturing and lead time.
Homogeneity
Uniform density and composition is hard to guarantee. Any changes can not only cause uneven sputtering but poor film quality too.
To Sum Up
Sputtering targets are needed for high quality thin films in optics, energy as well as electronics market. Their processing demands control of uniformity, purity & exact dimensions for applications such as solar cells or semiconductors.
If you need precisely engineered sputtering targets or any other CNC machining work then Richconn is your best option. You can contact us anytime.
Related Questions
Why is material purity important in sputtering?
High purity material limits impurities in the film. This results in better coating & prevents film failure.
How does vacuum hot pressing increase sputtering target durability?
When you apply pressure and heat together in vacuum hot pressing, it densifies the target. This makes the target more durable and lowers its porosity.
What is the role of backing plates in sputtering targets?
Backing plates support target, secure it to the tool & also increase its electrical & heat conductivity.
What are some main aspects which affect sputtering targets?
Main factors are density, grain size, purity, porosity and uniformity which affects the target.
Why are sputtering targets needed for semiconductors?
Sputtering targets allows thin film deposition. These films are needed for integrated circuits & electronic devices.
