Silicone injection molding has brought about great changes in advanced manufacturing sectors. These sectors include healthcare, automotive and consumer goods which depend on this procedure to create high‐quality & accurate components.
This blogpost provides you with detailed information about silicone injection molding. It comprehensively explains the process, materials, advantages as well as design factors.

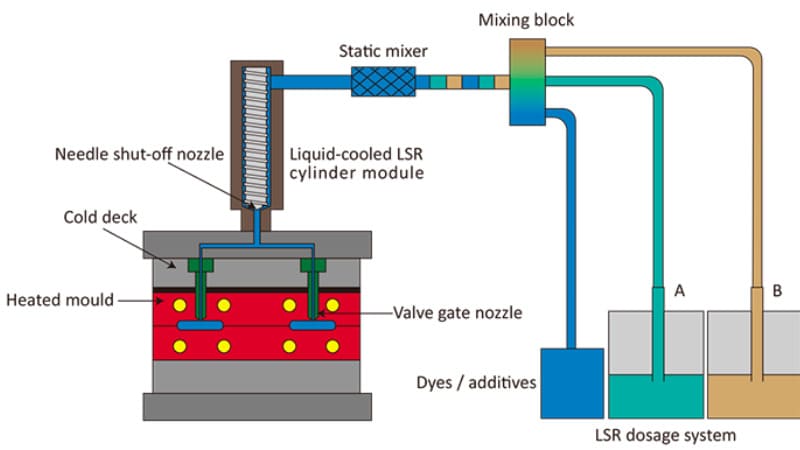

What is Silicone Injection Molding?
Basically silicone injection molding is a manufacturing technique that utilizes heat‐curable or liquid silicone materials. These materials are poured into pre‐designed molds to produce high‐quality & accurate parts.
In contrast to other molding procedures – such as plastic compression molding or injection molding – it offers better weather resistance, durability as well as flexibility to make intricate shapes. Moreover silicone injection molding is highly valued for its biocompatibility & its stability at very high temperatures.
Process of Silicone Injection Molding
A. Material Preparation
In the beginning you need to prepare the silicone material. Usually this involves mixing a two‐part silicone compound. This mixture includes the silicone curing agents, base material as well as additives. You need to mix all of these ingredients well so that the coolants, catalysts, fillers and any performance‐enhancing additives are evenly distributed.
B. Mold Design and Fabrication
Accurate mold fabrication is crucial in silicone injection molding. Typically molds are made of aluminum or steel. These materials can withstand extreme pressures & temperatures without compromising dimensional precision. During mold design you need to pay attention to all the details such as small features and surface textures so that final product meets your specifications precisely.
C. Injection and Curing
In the next step silicone material is filled into the mold cavity. High‐pressure machines do this task. You need to control the temperature & pressure according to the design requirements and silicone material. Curing occurs either during injection or immediately after that (depends on the type of silicone). Factors like thickness of the component as well as composition of material determine the curing period.
D. Demolding and Post‐Processing
After curing is complete you will need to gently remove the component from the mold to protect it from damage. Post‐processing comprises of removing unnecessary flash and carefully checking the component for flaws. If needed you can also apply extra surface treatments like coatings to improve the final product.
Different Types of Silicone Used in Injection Molding
Liquid Silicone Rubber (LSR)
LSR has a low viscosity which makes it very good for precision molding uses. Its easy flowability & great thermal stability permits you to obtain detailed and accurate components. Common uses for LSR include medical devices, consumer electronics as well as children’s products.
High Consistency Rubber (HCR)
Unlike LSR, HCR has higher viscosity and is thicker as well. Because of this thickness it is more suitable for transfer molding or compression molding processes. You should pick HCR when your part needs better resilience or higher tensile strength.
Main Differences
Applications
LSR is often picked to be used in healthcare & electronics sectors. Whereas HCR is best for automotive and heavy industrial uses.
Flowability
If your design needs detailed moldings then LSR’s improved flow properties make it an excellent choice. On the other hand HCR works better for less complex and thicker parts.
Material Handling
LSR comes in liquid form consisting of two parts. Whereas HCR comes in the form of a solid material that has to be prepared by hand before use.
Consistency
LSR is perfect for mass production that needs continuous accuracy. However HCR is good for personalized projects manufactured in small batches.
Curing Process
LSR cures quickly during the injection molding process. In contrast HCR cures slowly and usually involves extra compression molding stages.
Advantages of Silicone Injection Molding
Flexibility and Durability
Injection molded silicone components combine flexibility with strength. These parts can withstand mechanical stress without cracking or deforming. This is why they are good for demanding fields such as automotive & aerospace.
High Precision and Repeatability
By using silicone injection molding you can obtain great accuracy. This procedure permits you to uniformly make detailed & intricate components even in mass production. This repeatability is important in sectors such as medical equipment and electronics where strict tolerances and consistency are very important.
Best for Intricate Geometries
You can utilize silicone injection molding to create intricate dimensions without affecting performance or structural integrity. These qualities allow for sophisticated designs with detailed features, thin walls or undercuts. These complex geometries are usually required in medical, industrial and consumer uses.
Resistance to Chemicals and High Temperature
Silicone is very resistant to different chemicals such as acids, solvents & oils. Due to this resistance, silicone parts work well even in harsh conditions. Moreover silicone maintains its physical properties at very high temperatures, i.e. from ‐60°C to 200°C or more.
Design Tips for Better Molding
Draft Angles and Undercuts
Draft angles of at least 1 to 2 degrees are essential in silicone molding. They allow molded components to be easily removed from the mold which can avoid damage or cracking. However intricate designs often need undercuts but still you should keep them to a minimum.
Doing this will decrease cost as well as tooling complexity. By properly planning draft angles & undercuts you can simplify your manufacturing process.
Wall Thickness and Uniformity
In silicone injection molding, uniform wall thickness performs an important role. It guarantees proper curing, material flow and uniform cooling. If there are changes in thickness then problems such as uneven curing, internal stresses or defects can occur. For excellent results your wall thickness should be between 1 to 3 millimeters.
Material Choice
Picking the right silicone grade is crucial for better silicone injection molding. You must keep in mind aspects such as biocompatibility, mechanical properties as well as mandatory certifications like ISO or FDA compliance. They all are particularly essential for food‐grade or medical uses. This gives safety, durability and compliance with industry standards.
Gate and Vent Placement
You have to thoughtfully place gates to ensure smooth & uniform flow of material within the mold cavity. This decreases the possibility of insufficient fills.
Vents should also be designed correctly. They allow built‐up air to escape during molding. Appropriate venting avoids bubbles, defects or even voids in your manufactured component.

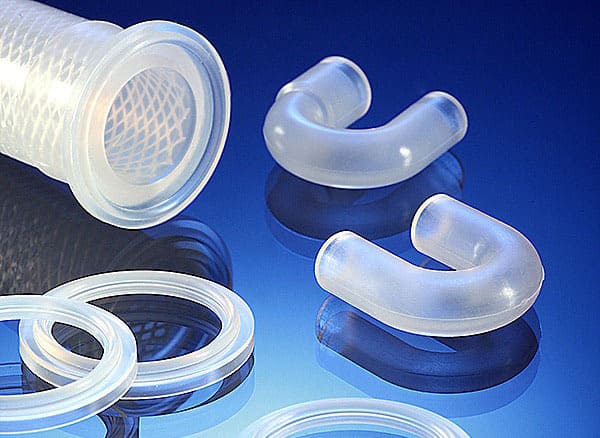

Common Uses of Silicone Injection Molding
Automotive Industry
The automotive industry prefers silicone due to its flexibility, chemical stability as well as heat resistance. Parts like gaskets, hoses & seals frequently utilize silicone because they have to withstand extreme temperatures & conditions.
Medical Parts and Devices
Silicone is picked for medical uses because of its biocompatibility & non‐reactive nature. Products such as prosthetics, surgical tubing and catheters mostly use silicone. This material gives necessary durability, flexibility and resistance to bodily fluids.
Baby Products and Kitchenware
Silicone is perfect for baby products and kitchenware because of its non‐toxic, food‐grade properties & heat resistance. Goods such as baking mats, spatulas, bottle nipples as well as pacifiers frequently use silicone. Its capability to endure very high temperatures as well as versatility guarantee dependably.
Medical Sector
In medical sector silicone is specifically valuable due to its durability, flexibility and biocompatibility. It is mostly used in implants, wound dressings, medical tubing and catheters. Silicone easily resists bacterial growth and tolerates sterilization procedures. These qualities make it very good for retaining patient safety and hygiene in healthcare environments.
Consumer Electronics
Silicone is very important in consumer electronics due to its durability, insulating properties as well as accuracy.
Flexible keypads, high‐performance connectors and protective cases often contain silicone. It resists breakage and absorbs shocks well. These properties ensure lasting functionality which makes silicone a necessary material for electronic equipment that need durability & protection.
Limitations and Solutions
Minimizing Flash
Flash is the thin & unwanted edges that form on molded components. It occurs when unwanted material leaks through the mold’s parting line. To prevent flash you need to make sure that the mold’s clamping force is maximized. Proper clamping force gives a strong seal which stops material from escaping.
Handling Material Shrinkage
During molding the material often shrinks which leads to deterioration of the final product. This shrinkage badly affects the functionality and dimensional precision of components. Therefore mold designers must precisely design molds taking into account the rate of material shrinkage. To obtain this goal you must completely test the properties of material.
Thermal contraction & expansion analysis provides precise information. With this information you can accurately estimate shrinkage and make necessary adjustments in production.
Preserving Mold Integrity
Mold integrity is important for cost‐effective manufacturing and uniform quality. You can maintain mold quality by periodically checking and cleaning all mold parts. Periodical maintenance avoids mold damage from normal wear.
An additional good strategy is to use a coating that is particularly suitable for molding material. Wear‐resistant or anti‐corrosion coatings assist in protecting molds from chemically reactive or abrasive materials.
