Mastering Swiss Screw Machining is very important for manufacturers who are trying to make intricate and fine tuned parts. This all comprehensive guide describes the mechanics, types, materials, machines and advantages of Swiss Screw Machining. By analyzing these aspects, you’ll gain wisdom to perfect your manufacturing and lower waste.
What is Swiss Screw Machining?
Swiss Screw Machining is a subtractive machining method to make intricate and little cylindrical parts. This procedure uses specialized lathes with a sliding headstock and guide bushing to hold the material near the cutting tools. Originally created for watchmaking, Swiss screw machining greatly decreases deflection in machining. Today’s CNC Swiss machines can handle bar stock up to 1.5″ in diameter and acquire remarkable tolerances of ±0.0002 inches.
How Swiss Screw Machining Works

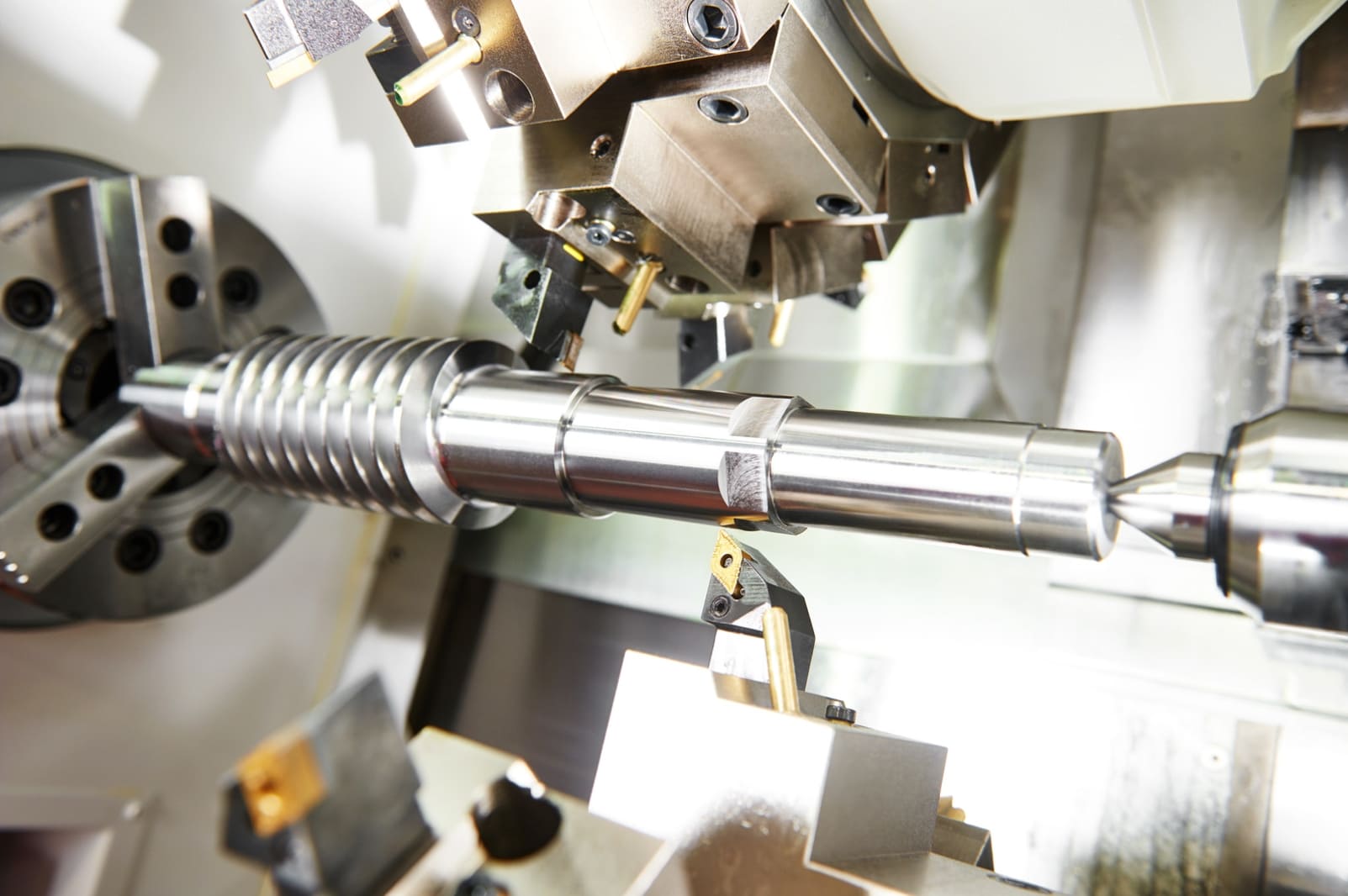

The method starts with bar stock fed by a guide bushing. The substance is clamped and rotated while cutting tools come near from different angles. A sliding headstock moves the workpiece forward to facilitate continuous cutting through its length. Swiss screw machining uses multiple tools that work together and perform different functions such as drilling, turning and milling. This distinctive approach helps in the development of complicated parts.
Types of Swiss Screw Machines
Manual Swiss Screw Machines
High qualified operators play a necessary part in controlling part production and tool movements of these manual machines. These depend on mechanical levers and cams for part movement and tool positioning. Despite being less accurate than the latest CNC alternatives, manual machines remain valuable for certain tasks and small batches where machinist’s proficiency is important.
CNC Swiss Machines
Computer numerical control greatly increases Swiss machines’ accuracy and automation. CNC Swiss machines can work with nearly 13 axes which helps in the production of complicated parts. They can reach impressive speeds of more than 10,000 RPM and preserve tolerances as narrow as ±0.0002 inches.
Materials Used in Swiss Screw Machining

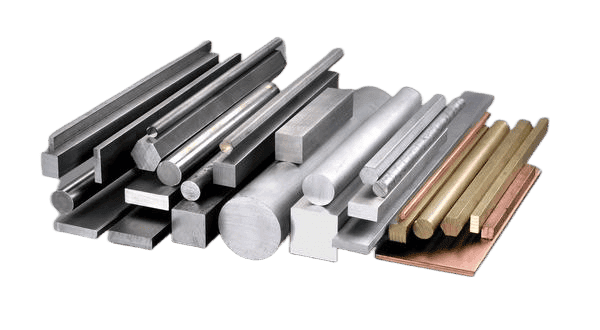

Metals
In Swiss screw machining, a variety of metals such as aluminum, brass, stainless steel and copper are used. Each of the metals has special properties for particular work needs. Medical devices mostly rely on stainless steel because of its strength and corrosion resistance. Aerospace parts, on the other hand, use aluminum’s low weight characteristics.
Plastics and Composites
The multifunctionality of Swiss screw machining goes as far as composites and plastics. Acrylic, Acetal, ABS and PEEK are mostly used in this process. These substances boast characteristic qualities such as low friction, chemical resistance and remarkable weight-to-strength ratios. Therefore, these are used in different fields like automotive, medical and electronics.
What Tools are used in Swiss Screw Machining?
Swiss screw machining depends on an array of specially crafted equipment. Drilling, turning and threading tools form the core of this toolset. For accuracy and durability, many manufacturers opt for carbide-tipped cutting tools. Smooth curved edges are made using chamfering tools that are also known as “lark’s tongues”. To isolate finished parts from bar stock, high-strength steel parting tools are used.
Main Benefits of Swiss Screw Machining
Greater Accuracy and Precision
One benefit of Swiss machining is its incredible precision. Tolerances can be as low as ±0.0001″. This accuracy is necessary in fields where part reliability is non-negotiable. Aerospace and medical fields, in particular, depend a lot on this exceptional precision.
Mass Production
The ability of Swiss machines in bulk production is impressive. Complicated parts can be made in one setup and this leads to big reductions in cycle times. Compared to old-school CNC lathes, these machines can cut production times by up to 50%. This better productivity means lower costs and faster production.
Low Waste Production and Sustainability
Swiss screw machining shines for its minimal waste creation. Material use rates mostly cross 90% which shows this process’s effectiveness. This approach not only lowers raw material expenses but it also follows green manufacturing practices. Industries focused on the environment find this aspect very appealing.
Uses of Swiss Screw Machining
Medical Industry
In healthcare, Swiss screw machining shines at creating complicated medical parts. Dental implants, surgical tools and bone screws are some examples of parts produced with this method. Following FDA rules, Swiss machining can get low tolerances of ±0.0001”.
Aerospace and Defense
The aerospace sector depends on Swiss machining for manufacturing complex parts. Hydraulic fittings, Fuel injector nozzles and electrical connectors are among the components created using this method. It gives outstanding surface finishes as low as 4 Ra microinches. These tight tolerances are very important for the safety of any aircraft.
Automotive Industry

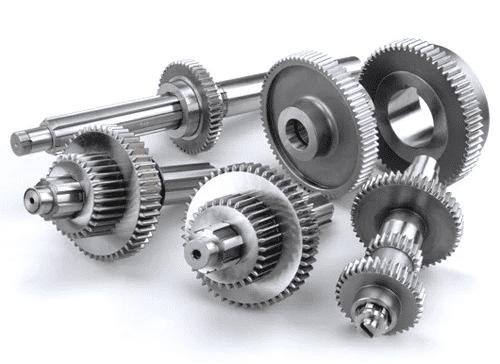

Swiss screw machining plays a necessary part in car manufacturing. It is used to create sensors, fuel system items and transmission parts. Modern car’s electronics specially benefit from this process because it is extraordinary at making tiny components.
Electronics

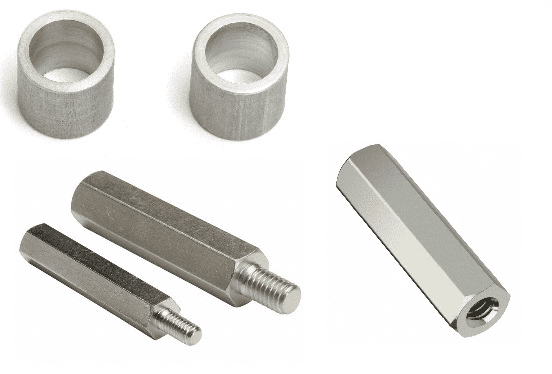

For electronics, Swiss machining is central in producing accurate parts. Spacers, connectors and pins are simple examples of components manufactured using this method. The process can handle materials as small as 0.3mm in diameter which makes it perfectly suited to manufacture parts used in computers, smartphones and other small electronic devices.
Challenges and Limitations
Size and Complexity of Parts
Swiss screw machining has particular size constraints. In general, parts must not exceed 12” in length and 1.25” in diameter. For complicated parts with larger than these dimensions, producers will need to use a different production process. Such alternatives could result in longer processing times and greater production costs.
Limited Material
Some materials are simply difficult to machine using Swiss machining. For example, nickel and titanium alloys can cause chip control issues and rapid tool wear because of their less thermal conductivity and high-temperature strength. Plastics pose a different problem as they risk deforming or melting from the heat generated during machining.
Final Thoughts
Swiss screw machining gives unmatched speed, accuracy and flexibility for making intricate and small parts. From aerospace parts to medical devices, this machining shines in multiple industries and delivers premium quality results with less waste.
For best Swiss screw machining and other CNC services, choose RICHCONN. Our skilled team can produce precision parts to your exact needs. Contact us today to improve your manufacturing.
FAQs
1. Why is swiss screw machining best for making high-precision small part?
The guide bushing system in Swiss screw machining decreases vibration and deflection by a large amount and this makes it best for crafting small and highly accurate parts. This technology outshines in manufacturing items such as dental implants, bone screws, watch parts and electronic connectors.
2. How do multi-axis capabilities and live tooling increase the capabilities of Swiss screw machines?
Swiss screw machines benefit greatly from multi-axis and live tooling abilities. These facilitate ongoing complex operations which results in shorter cycle times and increased precision. Manufacturers can now perform drilling, milling and turning in a single setup and this boosts productivity.
3. How does Swiss screw machining guarantee minimal waste and high precision in manufacturing?
The Swiss guide bushing system supports the workpiece near the cutting tool. This decreases deflection and facilitates super-fine tolerances of ±0.0001 inches and proficient material use. This also cuts scrap by up to 90%.
