Decoding Tolerance in Press Fit: Key Concepts and Principles
Tolerance in press fits is defined as acceptable range of variation in dimensions of mating parts that still allows for proper interference fit. It makes sure components in an assembly meet functional requirements without compromising joint integrity. This is very important for engineering fits to ensure mechanical stability and best performance when parts get assembled.
Two main approaches in press fit system are used to define limits and fits for press fit assemblies:
Shaft basis and Hole basis: Shaft basis system which keeps shaft diameter fixed and changes hole size to get desired fit. On the other hand, Hole basis system maintains constant hole size and adjusts shaft diameter.
The hole basis system is usually preferred by engineers due to its practicality. As in hole basis system, drill sizes produce consistent holes while shaft dimensions can be precisely machined. For both methods, tolerances are indicated by using codes such as H7/p6. Uppercase is used to represent holes while shafts are written in lower case.
The choice between them depends on manufacturing capabilities, costs and needs of application.

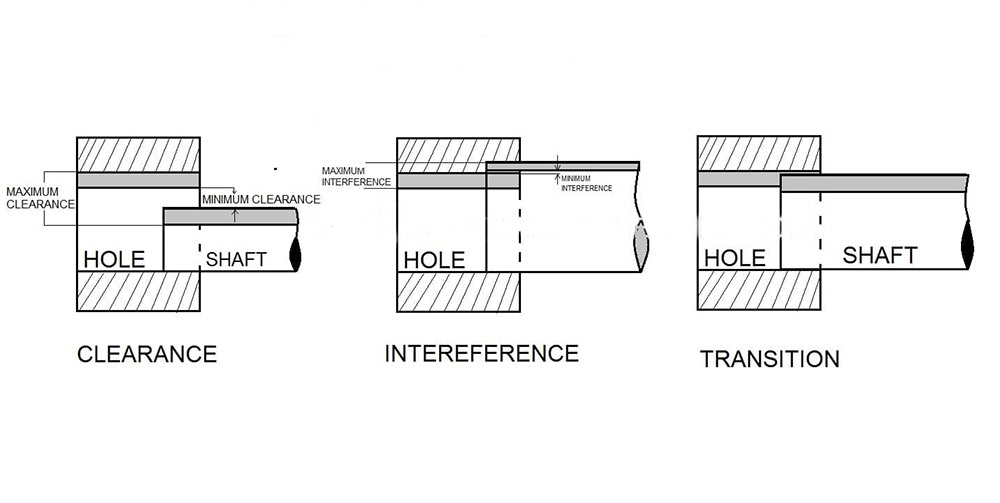

Comparing Interference Fits To Other Fit Types:
It is important to learn how interference fits are compared to other fit classification in mechanical engineering.
- Clearance fits let parts move freely with a gap between mating surfaces which makes it ideal in different applications for ease of assembly and disassembly.
- Transition fits provide a balance of interference and clearance which is essential for precise alignment.
- Interference fits form a tight connection between mating parts leaving no gaps. These fits typically require force for assembly and suitable for permanent assemblies when strength and rigidity are important in design.
| Fit Type | Definition | Typical Applications | Key Characteristics |
| Clearance | Parts can move or rotate freely | Bearings, shafts in bushings | Positive clearance, easy assembly |
| Transition | Can be either clearance or interference | Machinery components | Tight fit, minimal movement |
| Interference | Parts are pressed together | Gears on shafts, bearings in housings | Negative clearance, strong hold |
Tolerance Grades and Classes
Standard tolerance classes such as H7/h6 and P7/h6 define specific limits for shaft and hole dimensions.
Choosing the right tolerance grade depends on factors like application requirements, material properties and manufacturing capabilities. This includes functional needs of assembly, precision of manufacturing process, and environmental operating conditions the assembly will face.
Main Factors that Influence Tolerance In Press Fits
Achieving optimal tolerance in press fits is important to guarantee reliability and performance of mechanical assemblies.
In this section, we will discuss factors like material properties, temperature, manufacturing processes and others that Influence tolerance In press fits.
The Role of Material Characteristics in Tolerance
| Material | Elasticity (GPa) | Thermal Expansion (µm/m°C) | Hardness (Rockwell) | Yield Strength (MPa) |
| Steel | 200 | 11.0 | HRC 50-60 | 250 |
| Aluminum | 70 | 23.6 | HRA 85-95 | 300 |
| Copper | 110 | 16.5 | HRC 30-40 | 210 |
| Titanium | 120 | 8.6 | HRC 36-40 | 900 |
| Plastic | 3 | 80.0 | R100-110 | 40 |
1. Elasticity and Young’s Modulus
The elasticity and Young’s modulus values of different materials has impact on press fit tolerances. For example, steel with a Young’s modulus of 200 GPa can hold higher interference pressures than aluminum at 70 GPa which results in tighter fits. Materials with higher elasticity can take up to 0.2% strain without deforming permanently.
2. Hardness and Yield Strength
Hardness and yield strength is important for evaluating resistance to plastic deformation. The yield strength is maximum stress a material can take before it deforms permanently.
For example, high-strength steel with over 1000 MPa yield strength maintains press fits up to 300 MPa of interference pressure, while softer material may deform at just 50 MPa. Harder materials can take more interference pressures without deforming that enables tighter tolerances.
3. Coefficient of Thermal Expansion (CTE)
The Coefficient of Thermal Expansion (CTE) measures how much a material’s dimensions change per degree of temperature change. It’s usually Expressed in units of microstrain per degree Celsius (typically 10^-6/°C or ppm/°C). CTE is vital for predicting thermal stress and size stability in precision engineering uses.
Different materials have different CTEs which can cause variations in fit tightness with increases or decrease in temperature.
For example, aluminum expands twice than steel for same temperature. This could alter fit tightness up to 0.01 mm of diameter per 100°C temperature change. Engineers must account for these CTE differences to keep good tolerances across operating temperature ranges.
4. Surface Finish and Roughness
Surface finish and roughness significantly impact friction and holding force in press fits. Smoother surfaces generally allow tighter tolerances, while rougher surfaces may need looser fits to accommodate irregularities. As the actual part dimensions can be different from nominal values due to surface variations.
The Impact of Temperature and Environmental Conditions
1. Thermal Expansion and Contraction
Thermal expansion and contraction have a huge impact in press fit tolerances. Temperature changes cause materials to expand or contract at different rates which can affect the interference fit. For instance, an aluminum housing holding a steel shaft can see the fit loosen up to 0.03 mm per 100 mm diameter for every 50°C the temperature rises. Engineers have to consider about the full operating temperature range when specifying tolerances.
2. Assembly Environment Considerations
Keeping tight control of the assembly environment helps in maintaining precise fits. Clean room conditions might be required for accurate assemblies to avoid contamination that could impact tolerances. Managing humidity is also very important as moisture has an impact on material properties and dimensional stability.
3. Corrosion and Chemical Reactions
Corrosion and chemical interactions can really change press fit tolerances over time. Galvanic corrosion between different metals can cause press fits to lose up to 0.1 mm per year in harsh environments which will affect the interference fit. Using protective coatings can reduce these effects but the impacts still need to be evaluated during the tolerance calculations.
Manufacturing Processes And Their Effects On Tolerances
Press fit tolerances of part components are directly effected by the way parts are manufactured. Now let’s talk about some processes that may have an impact on tolerances used in manufacturing process.
1. Machining Methods and Their Precision Limits
Precison Machining methods like turning, grinding and honing are often needed for cylindrical fits. Tool wear can impact dimension consistency, so close monitoring is important to keep tight tolerances.
2. Heat Treatment Effects
Heat treatment can cause dimensional changes because of phase transformations in materials. These changes must be predicted and evaluated in design stage. Residual stresses from manufacturing can also alter final dimensions and fit of components.
3. Surface Treatments And Coatings
Surface treatments and coatings further complicate tolerance control. Variations in plating thickness can significantly affect the final dimensions of parts. Processes like nitriding and carburizing can alter surface properties and dimensions which will then require adjustments to tolerance specs.
Design And Assembly Considerations
Geometry and Stress Concentration:
- Proper use of chamfers and fillets helps spread stress more evenly which lowers the risk of compoinents failure.
- Getting optimal length-to-width ratios for press fits is important and gives desired holding force without overstressing components.
Assembly Methods and Their impacts:
- Press-fitting requires carefully controlled insertion speeds typically under 50 mm/s to prevent any damage.
- Using Lubricants can reduce needed interference by 30%, so tolerance specs can be adjusted.
Dynamic Loading Consideration:
Evaluating fatigue resistance under cyclic loads ensures reliability over time. Some designs need safety factors 2 or higher against fatigue failure.
Measurement and Quality Control Factors:
Metrology Equipment Precision and Calibration:
Achieving and verifying the strict tolerances of press fits requires precise measurement equipment and calibration. Gauge R\&R (repeatability and reproducibility) studies are also very important to guarantee that measurement systems can accurately assess part dimensions. Temperature compensation during measurements is also essential because a 1°C change can result in 0.000012 mm/mm expansion in steel.
Statistical Process Control (SPC) In Manufacturing:
Statistical Process Control (SPC) in manufacturing is a powerful tool for maintaining consistent tolerances. Implementation of process capability indices shows how well a process meets specified tolerance limits. The tolerance limit of cpk 1.33 or higher is generally acceptable for most applications.
Measuring and Calculating Tolerances for Press Fits
Calculation of tolerances and accurate measurements is important for successful assembly of press fit. This section will discuss the important aspects of tolerance measurement, calculation for predicting press fit tolerance and industry standards
Fundamentals of Press Fit Tolerance Measurement
Precise measurements is important in press fit applications for proper assembly and functionality. accurate measurements prevent problems like too much interference or weak holding force. Some of essential dimensions to measure include:
- Bore diameter – inner diameter of hole or component receiving the shaft.
- Shaft diameter – outer diameter of inserted part.
- Surface finish – the smoothness and texture of mating surfaces.
Tools and Techniques for Accurate Measurement
Various tools and techniques are used to achieve precise measurements in press fit applications. The methods discuss in this section include contact measurements methods, non-contact measurements methods and some advance measurements techniques Here is some tools and measurements in tabulated form
Measurement Tools Comparison:
| Tool | Accuracy Range | Typical Applications in Press Fits |
| Micrometers | ±0.001 mm | Measuring shaft diameters |
| Bore Gauges | ±0.002 mm | Measuring internal diameters |
| CMM | ±0.001 mm | Complex part geometries |
| Laser Scanners | ±0.01 mm | Non-contact measurement of large part |
Contact Measurement Methods:
- Coordinate measuring machines (CMM) are high-accuracy tools that measure critical tolerances and complex dimensions in interference fits. They give precise 3D measurements of a part’s geometry to 0.1 μm resolution.
- Gauges and plug gauges are used to measure hole tolerances. Go/no-go gauges verify quickly if hole sizes are within specified tolerance ranges.
- Micrometers and calipers are tools to accurately measure lengths, diameters and depths of press-fit parts. They offer high precision up to ±0.001 mm for important dimensions.
Non-Contact Measurement Methods:
- Optical measurement systems use light and cameras to measure dimensions without touching them directly. They are used for delicate or parts that can deformed easily.
- Laser scanning makes detailed 3D models of parts. This method lets you fully analyse dimensions and compare it to CAD models.
- Ultrasonic thickness measurement uses sound waves to check material thickness. It helps find deformations in press fit parts during assembly.
Advanced Measurement Techniques:
- Interferometry: Interferometry uses light wave interference patterns to measure distances and surface profiles precisely. It is used to detect minute variations down to nanometer levels in press-fit parts.
- X-ray and CT scan: X-ray and CT scanning show inside views of press-fit assemblies so you can check for defects or misalignments without disassembly. Modern industrial CT scanners can achieve resolutions of 5 μm or better.
Tolerance Press Fit:
| Fit Type | Typical Tolerance Range | Application Examples |
| Loose | +0.05 to +0.15 mm | Easily assembled/disassembled parts |
| Light | +0.01 to +0.05 mm | Bearings with light loads |
| Medium | -0.01 to +0.01 mm | General machinery, gears |
| Tight | -0.03 to -0.01 mm | High-load bearings, precision shafts |
| Force | -0.05 to -0.03 mm | Permanent assemblies, high torque transmission |
Calculation For Predicting Press Fit Tolerances:
Calculating press fit tolerances is important for establishing good assembly and performance. Let’s discuss some important calculation methods and factors for predicting press fit tolerance:
Basic press fit tolerance formulas:
The core interference (I) formula is:
I = D_s – D_h
Where D_s is shaft diameter and D_h is hole diameter.
Factors Affecting Press Fit Calculations:
- Material Properties: The elastic modulus and yield strength has a significant impact on the calculation. Different materials act differently under stress which affect the effectiveness of fits components.
- Temperature Effects: Thermal expansion should be considered in application that involves temperatures variations. Dimensional changes from temperature can be calculated with:
ΔL = α · L_0 · ΔT
Where α is the coefficient of thermal expansion, L_0 is the original length, and ΔT is the temperature change.
Interference Calculation methods:
Engineers use worst-case and statistical approaches to calculate interference fit. Worst-case adds up all tolerances, while statistical (like RSS) looks at probability distributions. For example, the RSS method:
T_total = √T_1^2 + T_2^2 + … + T_n^2
Where T represents individual tolerances.
Tolerance stack-up analysis:
This method examines cumulative effects of part tolerances on assembly fit. It helps identify critical dimensions and optimize tolerances. For a shaft-bearing-housing assembly, total stack-up might be:
T_total = T_shaft + T_bearing + T_housing
Software tools:
Specialized software tools like CETOL 6σ and CAD software tools like SolidWorks offer advanced capabilities for calculations. These tools can run Monte Carlo simulations and sensitivity analysis for more accurate predictions in complex assemblies.
Overcoming Press Fit Tolerance Obstacles:
Achieving the optimal possible tolerance in press fits comes with challenges that can affect performance and quality. Let’s look at these challenges and their solutions:
Inaccurate measuring tools can really mislead during tolerance measurements. As studies show 20% of errors are from picking wrong or bad calibrated tools. To overcome this, manufacturers need to use high precision tools like Coordinate Measuring Machines (CMMs) and follow strict calibration schedules.
Poor material analysis frequently leads to unexpected behaviour in press fit. The interference fit performance can be affected by material properties that differ by 15% even within the same batch. Thorough material testing which includes hardness and elasticity measurements is important for using advanced techniques like X-ray diffraction and residual stress analysis. These techniques can improve material predictions by up to 30%.
Not analyzing tolerances well enough is a common pitfall. Tolerance stack-up in assemblies can result in variations exceeding acceptable ranges by 200-300%. Comprehensive statistical stack-up analysis such as Monte Carlo simulation reduces this risk substantially. Studies show such analysis can raise first-time assembly success rates by 40%.
Manufacturing process variations can significantly impact press fit tolerances. Inconsistencies in machining and heat treatment can cause dimension variations of up to ±0.05mm in critical features. Strict process controls like statistical process control (SPC) charts can reduce dimension variations by 60%.
Environmental factors especially changes in temperature can cause dimensional changes to press fit tolerances. A 10°C change can alter steel component dimensions up to 0.01mm.
Best Practices for Tolerance In Press Fit Design:
Using tolerance in press fit design is important for product reliability, manufacturability, and performance. Here are top 4 best practices that industry experts recommend for achieving precision in press fit assemblies:
1. Material Selection and Compatibility:
Choosing compatible materials is important for press fit designs. Compatible materials with similar elasticity, thermal properties and hardness guarantee tight tolerances and long-term stability. For example, materials that have thermal expansion coefficient difference below 5 x 10^-6 /°C can prevent stress buildup in assembly. Avoid high interference fits in plastic assemblies which can lead to creep and stress relaxation over time.
2. Precise Tolerance Control and Calculations:
Implement tolerance stack up analysis method to evaluate cumulative variations in multi-part assemblies. Target IT7 to IT8 grades for critical applications as they offer dimensional accuracy within ±0.025 mm in diameters up to 30 mm.
3. Design Optimization
Optimize your design to minimize stress concentrations and to make assembly easy. Add gradual tapers or radii to reduce peak stresses which can be up to 3 times lower than in sharp cornered design. Add chamfers (typically 15° to 45°) and lead-in tapers to ease assembly and prevent damage during insertion.
4. Quality Control and Testing
Implement robust quality checks to ensure consistent press fit tolerance. Use real-time process monitoring with in process measurements capable of catching 0.001 mm deviations during manufacturing. Implement thorough post assembly inspections using non-destructive ultrasonic scanning to verify proper fit. Perform iterative design improvements and prototype testing for minimum three design iterations before final production.
Following these tips can cut assembly failures by 40% and extend product lifespan by 25% or more.
