Swiss-style multi-spindle lathes excel at turning intricate parts with a maximum diameter of 1¼ inches, especially when the length-to-diameter ratio is high. Parts up to 24 inches long are well within reach. But your material selection strategy determines whether the process runs smoothly or burns through tooling and shop time.
Bar stock pricing is just the starting point. The real cost impact shows up in tool wear rates, chip control issues, and how long a machine can run unattended. Choosing the right Swiss lathe materials — whether stainless steel, titanium, or free-machining brass — shapes every line item on your quote.
This guide walks you through how specific material grades and forms affect Swiss machining cost optimization. You’ll learn which alloys machine efficiently, where hidden expenses lurk, and how to align your material picks with true production economics — not just catalog prices.

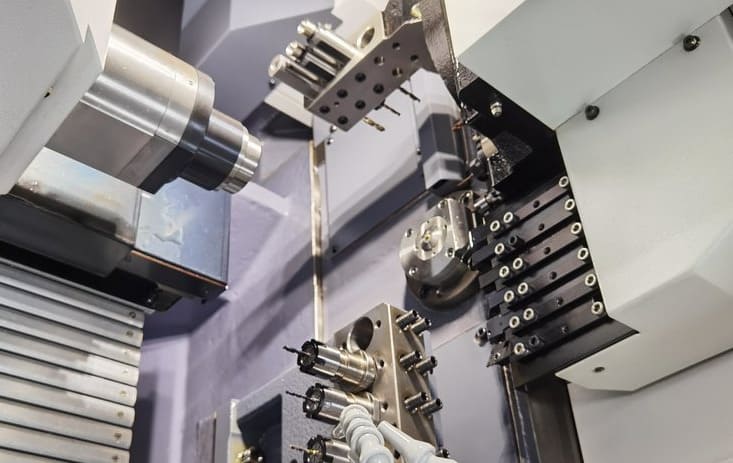

Understanding Swiss Machining and Its Material Requirements
Before you select a material for your next project, it’s critical to understand how the Swiss turning process works — and why it places unique demands on the raw material you feed into the machine. The relationship between the machine’s design and your material choice directly shapes part quality, cycle time, and cost.
The Swiss Machining Process and Bar Stock Requirements
Swiss-type lathes feed long lengths of bar stock through the spindle and cut parts one after another. When a finished part is parted off, the cut face becomes the front face of the next piece. This means material waste stays remarkably low — the only scrap is a short remnant too small to reach past the support.
Meeting the right bar stock specifications is essential. You need to match the bar diameter and form to your part design. Choosing standard diameters keeps costs down and gives you more sourcing options. High-end CAM software can optimize the Swiss turning process around these standard sizes.
Guide Bushing Technology and Material Form Considerations
The guide bushing mechanism is what sets Swiss machines apart from conventional lathes. It acts as a precision workholding point right next to the cutting tool, stabilizing the bar while the headstock slides back and forth. This setup delivers exceptional accuracy — especially on slender or intricate parts that would deflect on a standard lathe.
Because the bar rotates inside this tight-fitting bushing, your material form requirements are strict:
- The bar must be round and straight with minimal runout
- Surface finish on the raw bar must be smooth and consistent
- Diameter tolerance must fall within the bushing’s working range
Why Ground Bar Stock Is Essential for Precision
Any imperfection or out-of-roundness in your bar will transfer directly to the finished part. You’ll see concentricity errors, roundness faults, and inconsistent surface finishes. Ground bar stock eliminates these risks by providing a tightly controlled diameter and a smooth, uniform surface that works in harmony with the precision workholding of the guide bushing mechanism.
Investing in ground bar that meets strict material form requirements may cost more upfront — but it protects part quality and reduces scrap across every production run.
Common Materials Used in Swiss Screw Machining
Swiss screw machining produces a wide range of precision parts — from valve spools and couplings to connectors, shafts, sleeves, and fasteners. The choice of Swiss machining materials depends on where the finished part will perform. Each application demands specific physical and chemical properties.
Stainless Steel Grades for Corrosion-Resistant Applications
When parts face moisture, chemicals, or harsh environments, stainless steel grades are the go-to option. Grades like 303, 304, and 316 offer excellent corrosion resistance for medical devices, hydraulic fittings, and marine hardware. Hexagonal bar stock in stainless steel is popular for couplings that need wrench flats — such as hydraulic or fuel system connectors.
Aluminum and Titanium for Weight-Sensitive Components
Weight matters in aerospace and portable medical equipment. Aluminum parts deliver a strong strength-to-weight ratio at a lower cost, making them ideal for high-volume production runs. Titanium components serve applications where you need both light weight and superior strength — think orthopedic implants and aerospace fasteners. Titanium resists corrosion in bodily fluids, which makes it a preferred choice in surgical instruments.
Carbon Steels for Sliding Contact Parts
Parts that involve sliding contact — like pins, bushings, and shafts — benefit from carbon steels. Grades such as 12L14 and 1215 machine quickly and accept heat treatment well. These steels offer good wear resistance at a fraction of the cost of specialty alloys.
Copper and Non-Metallic Materials for Electrical Applications
Electrical spacers require specific conductivity or insulation properties. Copper and brass deliver excellent conductivity for connectors and terminals. Non-metallic materials — including PEEK and Delrin — serve as electrical spacers in applications where insulation and chemical resistance are critical. These engineered plastics maintain consistent surface finishes and perform reliably in demanding environments.
| Material | Key Property | Typical Applications |
|---|---|---|
| 303 Stainless Steel | Corrosion resistance, free-machining | Fittings, valve components |
| 6061 Aluminum | Lightweight, good machinability | Aerospace brackets, housings |
| Grade 5 Titanium | High strength-to-weight ratio | Implants, aerospace fasteners |
| 12L14 Carbon Steel | Excellent machinability, wear resistance | Pins, shafts, bushings |
| C36000 Brass | Electrical conductivity | Connectors, terminals |
| PEEK | Insulation, chemical resistance | Electrical spacers, insulators |

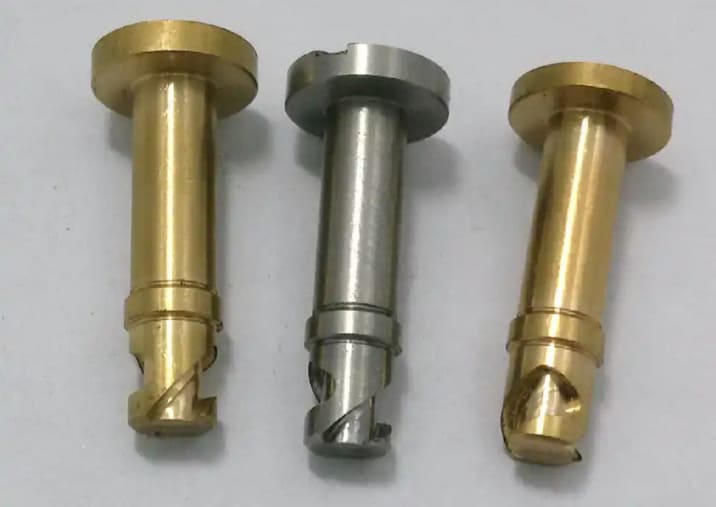

How Material Choice Affects Cost in Swiss Machining
Understanding the material cost impact on your project starts with a simple question — what does your application truly demand? If corrosion resistance is non-negotiable, a low-carbon steel won’t cut it. But exploring surface finishing options — like plating or passivation — can sometimes open the door to more affordable base materials.
Smart material selection criteria go beyond just raw stock price. The alloy grade and bar stock form you choose directly shape Swiss machining economics. A free-machining grade can dramatically boost machining efficiency, reducing cycle times and extending tool life. A difficult-to-cut alloy, on the other hand, drives up labor, tooling, and scrap expenses — even if the raw bar costs less per pound.
Swiss-type lathes can hold tolerances as tight as ±0.0001 inches (±2.5 microns). That precision is critical for implantable medical devices, aerospace sensing hardware, and defense guidance systems — fields where even tiny dimensional errors can cause system failures. The material you select must be stable enough to achieve and maintain those tolerances throughout a production run.
Here’s a quick breakdown of key production cost factors tied to material choice:
- Raw bar stock price per pound or per foot
- Machinability rating and its effect on cycle time
- Tool wear rate and replacement frequency
- Chip control behavior during unattended operation
- Scrap rate driven by dimensional instability
| Cost Factor | Free-Machining Alloy (e.g., 303 SS) | Standard Alloy (e.g., 304 SS) |
|---|---|---|
| Raw Material Cost | Moderate | Moderate |
| Cycle Time | Shorter | 15–20% Longer |
| Tool Life | Extended | Reduced |
| Chip Control | Excellent | Problematic |
| Overall Machining Efficiency | High | Lower |
Balancing application needs with process economics during part design gives you the best chance to control costs without sacrificing performance. The right material — paired with the right grade — makes all the difference in your bottom line.
Machinability Factors That Impact Production Costs
The machinability index of your chosen material plays a direct role in how much you spend per part. This rating reflects three core elements — the cutting forces required, how easily chips break into fragments, and the rate of tool wear. When you understand these factors, you can make smarter material choices that keep production costs in check.
Chip Formation and Stringy Chip Problems
Effective chip control is one of the biggest challenges in Swiss machining. Ductile alloys — such as aluminum, low-carbon steels, nickel alloys, and titanium — tend to form long, stringy chips. These chips wrap around tooling and workpieces, causing machine stoppages and surface finish defects.
Materials often described as “gummy” stick to cutting edges and clog chip evacuation paths. Dialing in the right cutting parameters — feed rate, speed, and depth of cut — helps break chips into manageable fragments and reduces downtime.
Tool Wear and Built-Up Edge Considerations
Built-up edge prevention is critical for maintaining part quality and reducing scrap. When workpiece material welds itself onto the cutting edge, it changes the tool geometry and degrades surface finish. Titanium is especially notorious for this behavior.
You can reduce built-up edge risk by:
- Selecting materials with a higher machinability index when design requirements allow
- Using coated carbide inserts optimized for the specific alloy
- Applying proper coolant pressure and concentration
Prioritizing tool life optimization in this way extends insert life and lowers your cost per part across long production runs.
Cutting Forces and Material Ductility
Higher ductility means greater cutting forces, more heat generation, and faster tool degradation. The comparison below shows how common Swiss-machined materials differ in these areas.
| Material | Relative Machinability Index | Chip Type | Built-Up Edge Risk | Cutting Force Level |
|---|---|---|---|---|
| 303 Stainless Steel | 78% | Short, broken | Low | Moderate |
| 304 Stainless Steel | 45% | Long, stringy | Moderate | High |
| 6061 Aluminum | 90% | Stringy | Moderate | Low |
| Ti-6Al-4V Titanium | 22% | Stringy, gummy | High | Very High |
| 12L14 Carbon Steel | 100% (baseline) | Short, broken | Low | Low |
Choosing a free-machining grade — where your application permits — is one of the most effective ways to reduce production costs before a single part is cut.

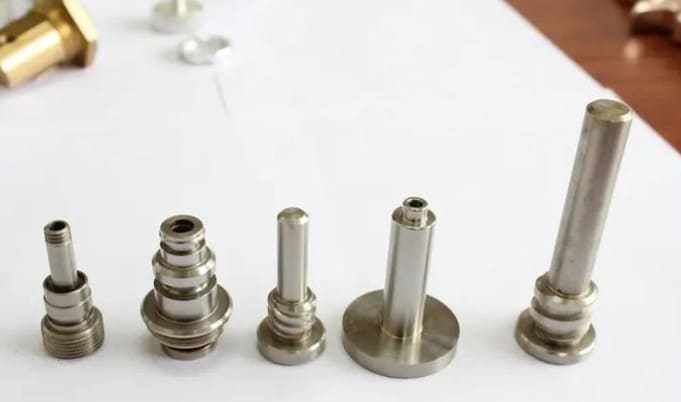

Material-Specific Challenges in Swiss Machining Operations
Every material you feed into a Swiss screw machine brings its own set of material challenges. Since these machines often run unattended for long stretches, a small problem can snowball before anyone catches it. Understanding what can go wrong — and why — is the first step toward preventing costly downtime.
Some of the most common Swiss machining problems during unattended runs include:
- Stringy chips wrapping around tooling and jamming the machine
- Chip buildup generating enough friction heat to ignite — a real thermal stability concern
- Unexpected tool breakage that goes undetected for multiple cycles
- Dimensional drift caused by work hardening issues in austenitic stainless steels
Take 304 stainless steel as an example. This grade is prone to rapid work hardening during cutting. As the material hardens at the cut zone, it produces long, stringy chips that resist breaking. Those chips wrap around spindles and tools, causing jams that halt production. The hardened surface wears tooling faster, driving up replacement costs and slowing cycle times.
| Challenge | Affected Materials | Material-Specific Solutions |
|---|---|---|
| Work hardening | 304 Stainless, Inconel | Switch to free-machining grades like 303 Stainless |
| Chip ignition risk | Magnesium, Titanium | Use proper coolant flow and chip evacuation systems |
| Stringy chip formation | Copper, Low-carbon steel | Adjust feed rates and use chip-breaking inserts |
| Rapid tool wear | Hardened alloys, Titanium | Select coated carbide or PCD tooling |
The good news is that Swiss machines feature 12 or more axes. This lets operators perform milling, drilling, threading, knurling, and slotting in a single continuous cycle. Fewer setups mean less risk of dimensional shift — and choosing the right material-specific solutions from the start keeps those multi-axis operations running smoothly through every shift.
Comparing Material Grades for Cost Optimization
A thorough material grade comparison helps you spot savings you might be missing. The key is to weigh part performance against production efficiency — and that starts with understanding how specific grades behave on the machine.
304 vs 303 Stainless Steel Trade-offs
The debate around 303 vs 304 stainless is one of the most common in Swiss machining shops. Grade 304 offers excellent corrosion resistance but tends to work-harden quickly. It produces stringy chips that can wrap around tooling and cause machine stoppages.
Grade 303 was engineered to solve this exact problem. The added sulfur content improves chip breakage and reduces tool wear. A straightforward cost-benefit analysis often reveals that 303 cuts cycle times by 25–40% compared to 304. The trade-off? Slightly lower yield strength and reduced corrosion resistance.
| Property | 303 Stainless | 304 Stainless |
|---|---|---|
| Machinability Rating (AISI) | 78% | 45% |
| Tensile Strength (ksi) | 85 | 90 |
| Corrosion Resistance | Good | Excellent |
| Chip Formation | Short, broken chips | Stringy, problematic chips |
| Relative Bar Stock Cost | Moderate | Moderate |
Standard Diameter Selection for Cost Reduction
Designing parts around standard bar stock diameters is a simple yet powerful material optimization strategy. Non-standard sizes require special mill orders with minimum quantity requirements and longer lead times. Sticking to common diameters — such as 1/4″, 3/8″, or 1/2″ — keeps your raw material costs low and supply chains reliable.
Balancing Performance Requirements with Machinability
Not every part needs the highest-performing alloy. Before selecting a grade, ask yourself: does this component truly require premium corrosion resistance? In many cases, a post-machining finish — like passivation or plating — delivers comparable protection at a fraction of the cost. Reviewing machinability ratings early in the design phase gives you room to explore alternatives that reduce cycle time without sacrificing quality.
Production Efficiency and Material Selection
Swiss machines perform multiple operations in a single cycle. This eliminates extra setups, cuts scrap rates, and boosts output — but only when you pair the right material with the right process. Your production efficiency metrics shift dramatically based on the alloy running through the guide bushing.
Let’s break down how material choice shapes your ability to run lights-out, minimize downtime, and push parts per hour higher.
Unattended Operation Risks with Different Materials
Reliable unattended machining is the goal of every Swiss shop. Certain materials make that goal much harder to reach. Stringy chip formers — like 304 stainless steel and pure copper — can wrap around tooling, jam chip conveyors, or create dangerous buildup near the spindle. Magnesium and titanium chips pose fire hazards if they accumulate without proper management.
Free-machining grades such as 303 stainless and 12L14 steel produce short, broken chips. These materials let you run overnight with far less risk to your machine utilization rates.
Material Impact on Machine Downtime
Tool wear is one of the biggest drivers of unplanned stops. Abrasive materials like titanium and Inconel wear inserts fast, forcing frequent tool changes. Each tool swap interrupts your cycle time reduction efforts and eats into productive hours.
| Material | Relative Tool Life | Chip Control | Downtime Risk |
|---|---|---|---|
| 12L14 Carbon Steel | Excellent | Short, broken chips | Low |
| 303 Stainless Steel | Good | Manageable chips | Low |
| 304 Stainless Steel | Moderate | Stringy chips | Medium |
| 6061 Aluminum | Excellent | Built-up edge risk | Low–Medium |
| Ti-6Al-4V Titanium | Poor | Moderate chips | High |
Throughput Rates Based on Material Properties
Throughput optimization depends on how fast you can cut without sacrificing quality. Softer, free-machining alloys allow aggressive feeds and speeds. Harder alloys demand slower parameters, which directly reduce your parts-per-hour count.
- Aluminum alloys can run at spindle speeds 3–5× faster than stainless steel
- Free-machining steels support tighter cycle times with consistent part-to-part quality
- Exotic alloys like Inconel may cut throughput by 50% or more compared to carbon steel
Choosing the right material before production begins gives you predictable quality, low scrap rates, and reduced inspection overhead — all critical for OEM programs at scale.

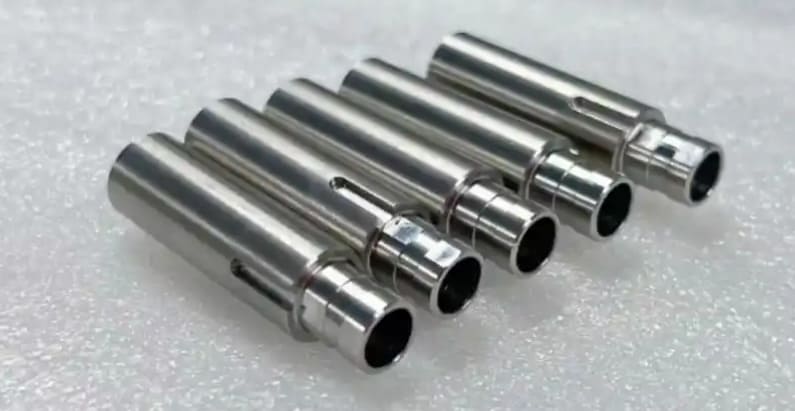

Surface Finish Requirements and Material Considerations
The material you choose for Swiss machining directly impacts the surface roughness you can achieve — and the cost to get there. Some materials machine to mirror-like finishes straight off the lathe. Others demand extra finishing operations that add time and expense to your project.
Swiss turning excels at producing tight surface finish specifications because of its guide bushing design. The bushing supports the workpiece close to the cutting zone, reducing deflection and vibration. This setup delivers exceptional material surface quality across a wide range of metals and plastics — from stainless steel and titanium to aluminum and engineered polymers.
For applications like medical implants, optical hardware, and fluidic components, Ra values matter. A smoother finish reduces friction, improves sealing, and extends part life. Here’s how typical materials compare when machined on Swiss-type lathes:
| Material | Achievable Ra Values (μin) | Secondary Finishing Needed |
|---|---|---|
| 303 Stainless Steel | 8–16 | Rarely |
| 6061 Aluminum | 8–16 | Rarely |
| Grade 5 Titanium | 16–32 | Sometimes |
| 304 Stainless Steel | 16–32 | Often |
| C360 Brass | 8–16 | Rarely |
Free-machining grades like 303 stainless and C360 brass achieve excellent surface roughness right from the machine. You can skip secondary polishing or grinding in many cases. Gummy materials like 304 stainless tend to produce built-up edge on cutting tools, degrading the finish and forcing extra finishing operations.
Selecting a material that machines to your required surface finish specifications on the first pass saves real money. You eliminate secondary steps, reduce handling, and maintain faster cycle times — all factors that tie directly into the production efficiency we explored in the previous section and the volume cost analysis ahead.
Volume Production and Material Cost Analysis
When you scale from prototypes to full production runs, your choice of material becomes a major cost driver. A thorough material cost analysis helps you understand how raw stock prices, cycle times, and reject rates interact across thousands or millions of parts. Swiss machining is built for high-volume, repeatable work — once a program is dialed in, the machine runs with very little adjustment needed.
Understanding volume production economics early in your design phase gives you the best chance to control per-part costs over multi-year programs.
High-Volume Run Considerations for Material Selection
Production scalability depends on picking the right material before you commit to an annual program. Free-machining grades — like 303 stainless or 12L14 carbon steel — allow faster cycle times and fewer tool changes. That translates to more parts per shift with less operator intervention.
For complex, high length-to-diameter ratio parts, Swiss machining is often very cost-competitive. The key is matching your material to the volume target:
| Annual Volume | Recommended Approach | Best Material Strategy |
|---|---|---|
| 1,000–10,000 | Short-run optimization | Standard free-machining grades |
| 10,000–100,000 | Dedicated tooling setup | Pre-ground bar stock in standard diameters |
| 100,000+ | Lights-out capable programs | Highest machinability grade that meets specs |
Scrap Rate Reduction Through Optimal Material Choice
Scrap rate reduction starts with selecting materials that machine predictably. Difficult alloys cause stringy chips, tool breakage, and dimensional drift — all of which increase non-conformance reports. Easier-to-machine materials hold tighter tolerances with greater consistency, keeping your reject rate low.
- Free-machining alloys reduce dimensional variation by up to 40%
- Consistent chip breaking prevents machine stoppages
- Stable tool wear patterns mean fewer out-of-spec parts
Long-Term Cost Benefits of Better Machinability
The long-term savings from choosing a more machinable grade compound over time. You spend less on tooling replacement, reduce downtime, and maintain steady throughput across multi-year contracts. Even a small per-part cost reduction — say $0.02 — adds up to $20,000 on a million-piece run.
Investing time in upfront material selection pays dividends through every phase of your production lifecycle. This thinking connects directly to the compliance and specification requirements we’ll explore in industry-specific applications next.
Industry-Specific Material Requirements and Cost Implications
Regulated industries demand more than just tight tolerances — they require full traceability, certified material sources, and strict documentation. When you machine parts for medical, aerospace, or defense applications, the material itself carries a premium tied to compliance. Your choice of material directly impacts both unit cost and the administrative burden of production.
Medical Device Material Standards and Compliance Costs
Swiss machining plays a critical role in producing implants, surgical tools, and diagnostic instruments. These components require medical grade materials — typically 316L stainless steel or titanium alloys — with full lot traceability and mill certifications. Shops working with FDA compliance materials must maintain ISO 13485 certification and support validation protocols (IQ, OQ, PQ). This documentation overhead adds real cost to every production run.
Aerospace Material Specifications and Premium Pricing
Aircraft systems rely on Swiss-machined parts like sensor housings, lightweight brackets, and small structural components. Meeting aerospace specifications means sourcing materials to standards such as AMS 5643 or AMS 4928. These certified alloys cost significantly more than commercial equivalents. Tight tolerances are non-negotiable — even minor vibration or part drift in flight can be catastrophic.
Defense and ITAR-Controlled Material Considerations
Producing parts for weapon subsystems, guidance components, and connector bodies introduces another cost layer. ITAR requirements restrict who can handle technical data and where materials are sourced. Shops must comply with DFARS clauses and maintain defense standards throughout the supply chain. This limits your vendor options and increases lead times.
| Industry | Key Certification | Typical Material | Cost Impact |
|---|---|---|---|
| Medical | ISO 13485 | 316L Stainless, Ti-6Al-4V | 20–40% premium |
| Aerospace | AS9100D | Inconel 718, 15-5 PH | 30–60% premium |
| Defense | ITAR / DFARS | 4340 Steel, A286 | 25–50% premium |
Understanding these compliance-driven costs upfront helps you budget accurately and choose the right manufacturing partner for your project.
Conclusion
Material selection stands as one of the most critical factors in Swiss machining optimization. Every choice you make — from alloy grade to bar stock form — ripples through the entire production process. It affects tool life, cycle times, scrap rates, and the bottom line. Following material selection best practices means weighing your application needs against real-world machinability data before committing to a grade.
Effective cost reduction strategies start at the design phase. Choosing a free-machining grade where specs allow, selecting standard bar diameters, and planning for unattended operation can cut per-part costs significantly. These decisions become even more important at high volumes, where small efficiency gains multiply across thousands of parts. Precision manufacturing solutions depend on getting this balance right from the start.
Richconn brings deep expertise in Swiss screw machining, backed by cutting-edge equipment and industry certifications. Our engineering team specializes in optimizing each job for quality and economy — ensuring every turned component meets strict performance and compliance standards. As future considerations push designs toward tighter tolerances and more demanding materials, partnering with an experienced Swiss machining shop gives you a clear edge in today’s competitive manufacturing landscape.
