Have you ever wondered why some metals bend while others snap when force is applied? This explanation comes down to their mechanical properties.
If you know these properties then this will help you choose the right material for any job. Therefore in this blog post we will cover the main mechanical properties, explain common testing methods and show why they matter in different industries.
What are the Mechanical Properties of Materials
Mechanical properties show how materials respond to outside forces. These properties include strength, hardness as well as ductility. Engineers rely on this information to predict how materials will behave under stress. With this knowledge, they can select the right material and assure both reliability & safety in products.
Key Mechanical Properties
Now, let’s look at some important mechanical properties that help engineers pick the best material for each application.

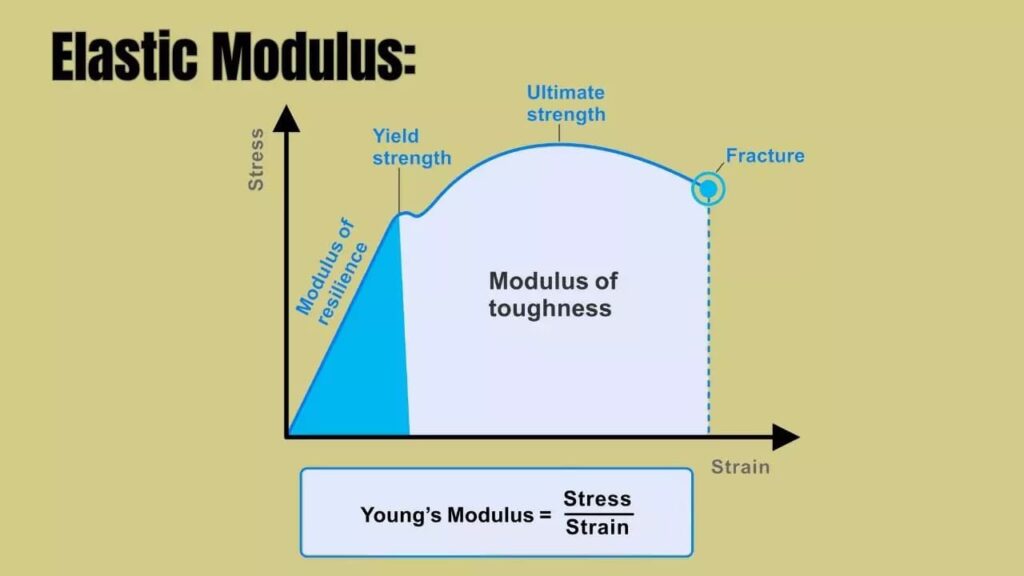

1. Elastic Modulus
Elastic modulus, also called Young’s modulus, tells us how stiff a material is. It measures how much a material resists to change shape when stressed. For example steel’s modulus is about 200 GPa which means it is very stiff.

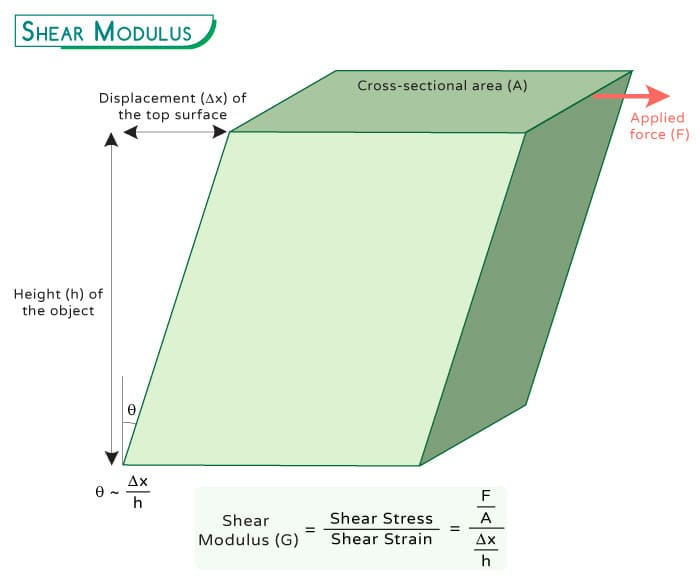

2. Shear Modulus
Shear modulus measures how well a material stands up to forces that try to twist or shear it. This property, also known as the modulus of rigidity, describes how a material changes shape sideways when a force acts parallel to its surface.
3. Yield Strength
Yield strength shows the highest stress a material can take before it changes shape permanently. This value marks the end of elastic behavior. If you go past this point, the material will not go back to its original form after removing the load.

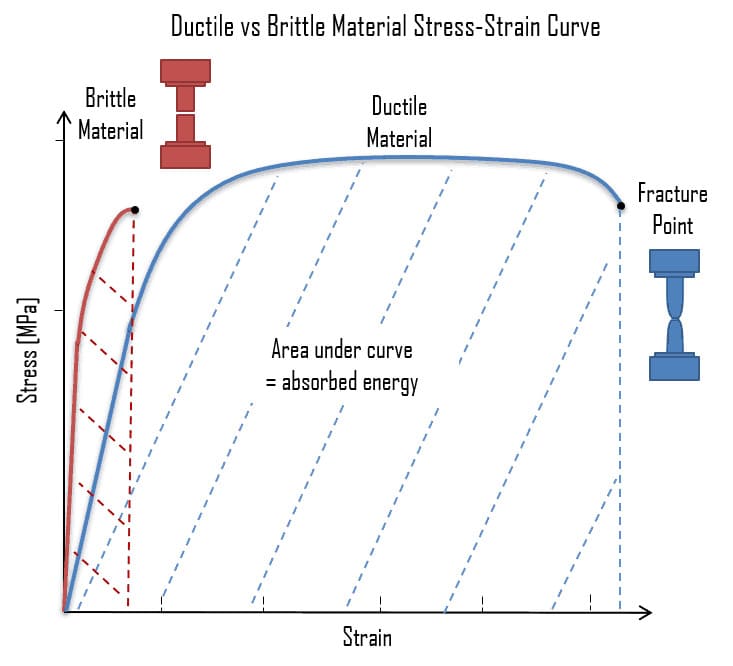

4. Fracture Strength
Fracture strength is the amount of stress that causes a material to break apart. This property shows how well a material can avoid breaking from cracks when a load is applied.

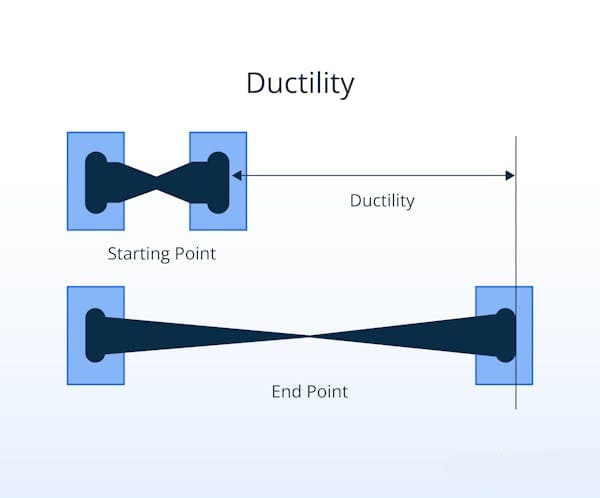

5. Ductility & Elongation
Ductility shows how much a material can plastically deform before it breaks. Elongation measures this property as a percentage increase in length. If a material stretches more than 15%, it is considered ductile. Whereas materials with less than 5% elongation are classified as brittle.

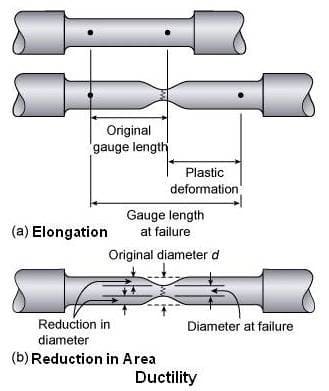

6. Reduction of Area
Reduction of area gives another way to assess ductility. It calculates the percentage decrease in cross‐sectional area at the fracture point. This measurement helps predict how a material will respond to concentrated stress.

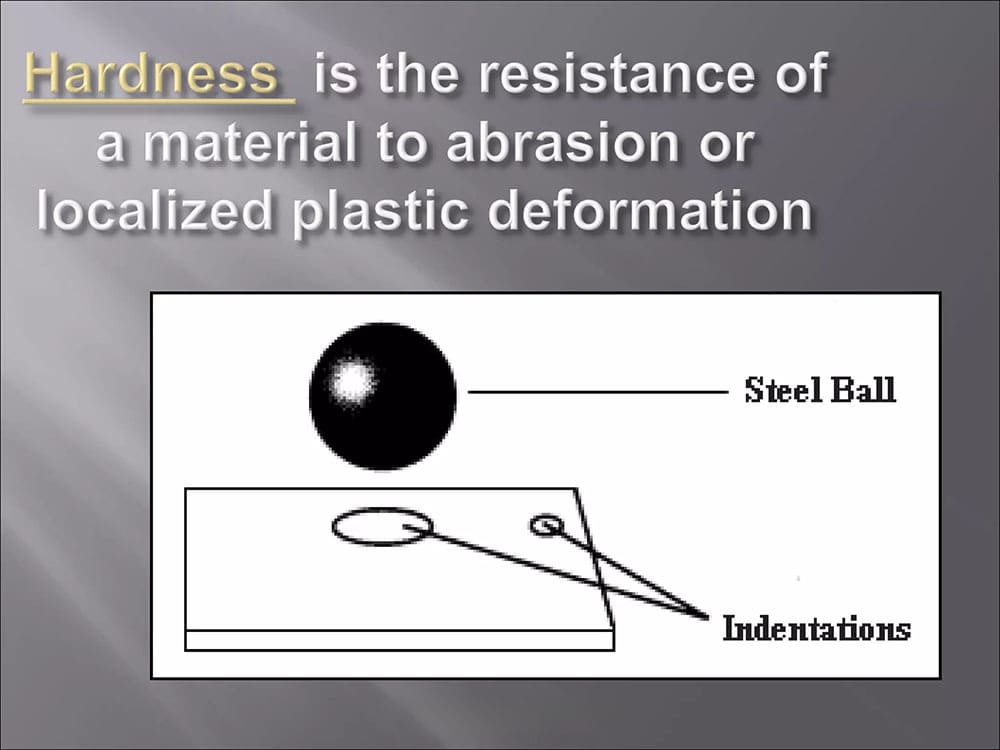

7. Hardness
Hardness describes how well a material resists localized plastic deformation or indentation. The Rockwell, Vickers and Brinell tests are used to measure this property. A higher hardness value means the material is more resistant to wear and surface scratches.

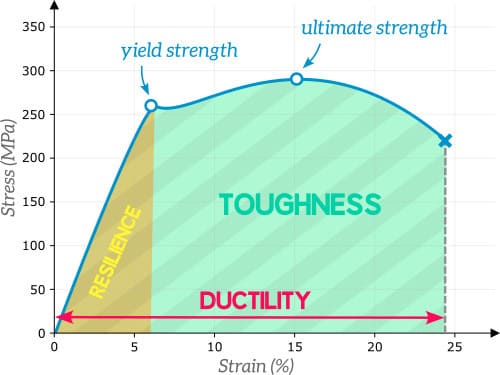

8. Toughness
Toughness indicates how much energy a material can absorb and how much it can deform before breaking. Both strength & ductility must be present for high toughness. This property matters most for parts that must handle sudden impacts.

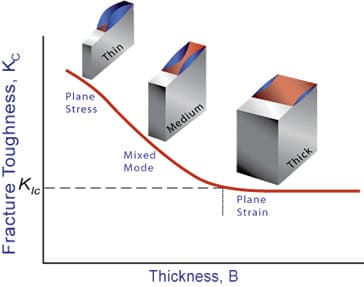

9. Fracture Toughness
Fracture toughness evaluates how well a material resists crack growth when flaws exist. This value, labeled as K_IC, shows the stress intensity needed to cause catastrophic failure.

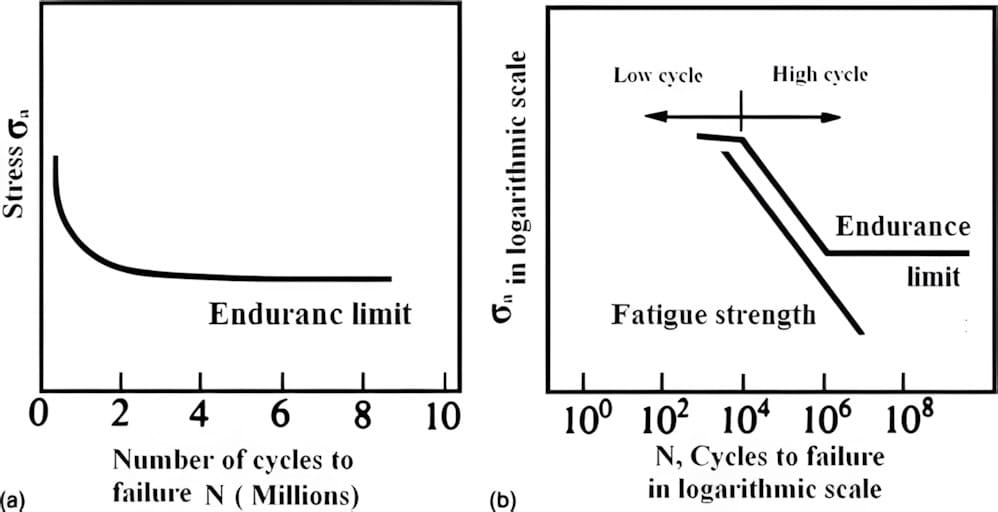

10. Fatigue Strength
Fatigue strength or endurance limit shows how well a material can avoid failure under repeated cyclic loading. This property is vital for parts like springs, bearings and aircraft wings that face constant stress cycles.

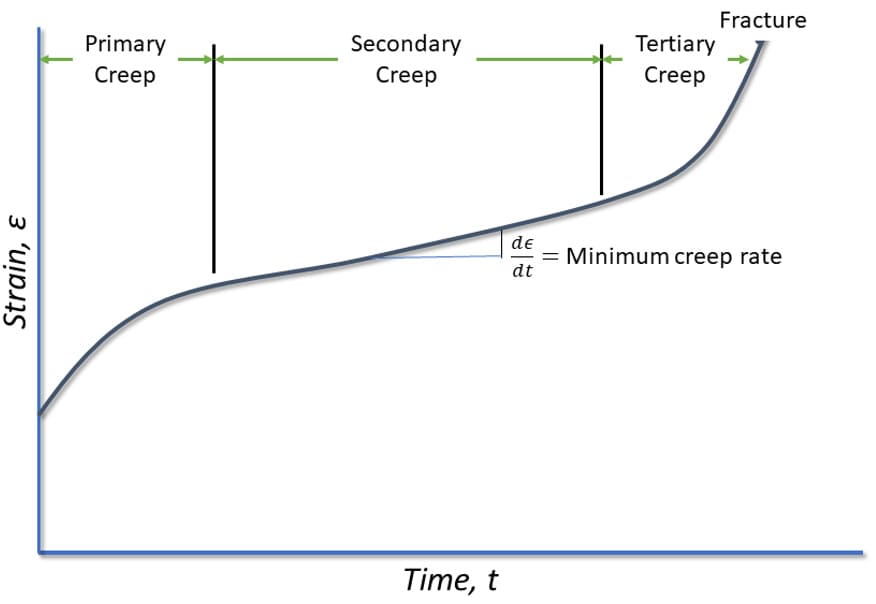

11. Creep Resistance
Creep resistance tells how well a material can resist slow, permanent deformation over long periods. This property becomes important when materials face steady stress and high temperatures such as in jet engines.

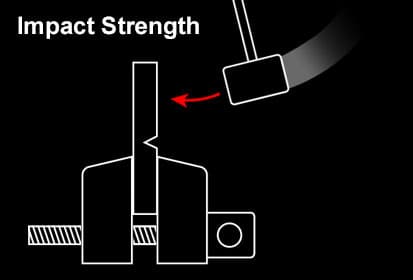

12. Impact Strength
Impact strength measures how much energy a material can absorb from a sudden blow or shock without breaking. Materials like natural rubber which have high impact strength can handle dynamic forces very well.

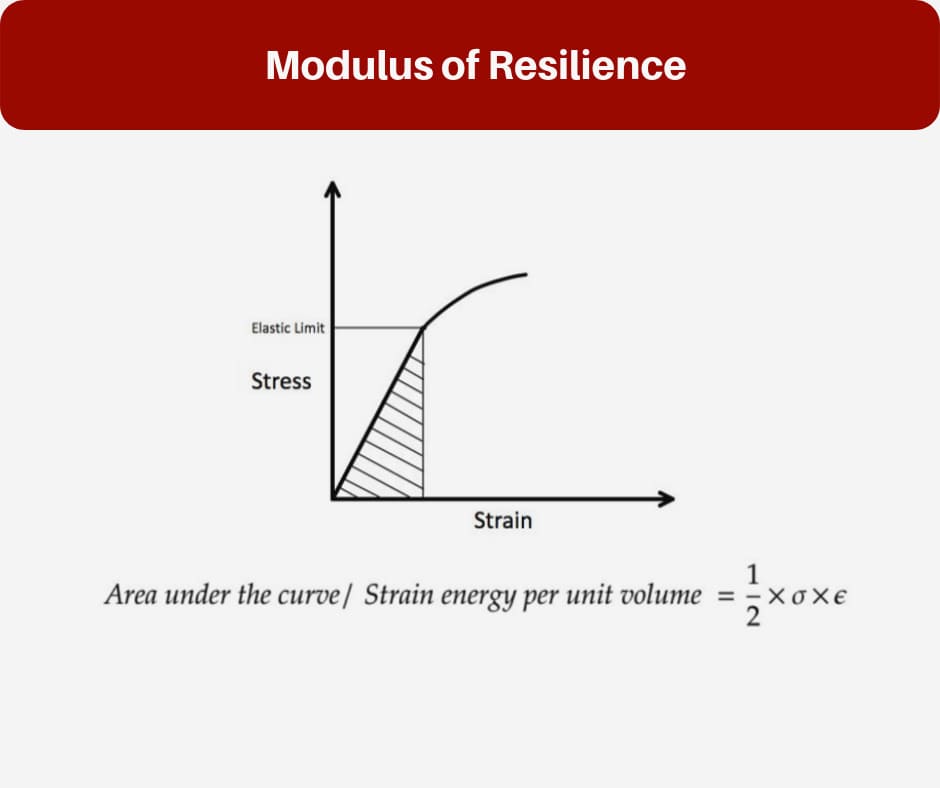

13. Resilience
Resilience describes how a material takes in energy during elastic deformation and then gives that energy back when the load is removed. This property does not involve any permanent change in shape, unlike toughness. Additionally springs and similar parts rely on resilience.
Factors Influencing Mechanical Properties
Material Composition
A material’s chemical makeup has a direct effect on its mechanical properties. Alloying elements and impurities have a key role in this matter. For example steel’s strength & hardness depend heavily on its carbon content. Even small shifts in element percentages can change properties like toughness or resistance to corrosion.
Microstructure
Grain structure inside a material shapes how it behaves. Finer grains mostly make a material stronger because they block dislocation movement. This effect is called the Hall‐Petch relationship.
Processing History
Manufacturing methods change a material’s behavior in important ways. Forging can align grains to boost toughness; whereas heat treatments such as quenching and tempering help balance hardness and ductility.
At RICHCONN, we often adjust machining settings and use post‐finishes—like anodization, passivation or electropolishing—to reach the needed hardness or surface quality for the end use.

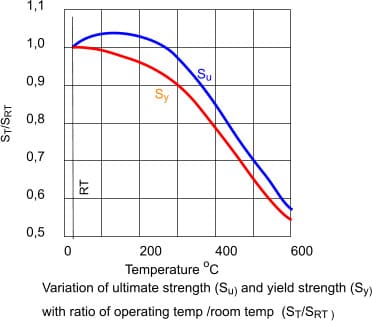

Temperature
Mechanical properties shift a lot with temperature changes. Higher temperatures tend to lower strength but raise ductility. In contrast, very low temperatures can make some materials brittle.
Environment
The conditions a material faces during use matter greatly. Contact with corrosive chemicals, moisture or radiation can break down materials over time. This leads to a drop in strength and a shorter service life.
Loading rate
How quickly a load is applied changes a material’s response. A faster load can make the material seem stronger and harder. However, this can also reduce ductility and make sudden fractures more likely.
Mechanical Testing Methods & Techniques
Standardized tests let engineers measure mechanical properties with accuracy. These techniques supply vital information for choosing materials, checking designs as well as maintaining quality.
1. Tensile/ Uniaxial Testing
Tensile testing is a destructive process. It pulls a “dogbone” specimen apart until it breaks. This test generates a stress‐strain curve. This curve reveals key properties like yield strength, ultimate tensile strength and ductility.

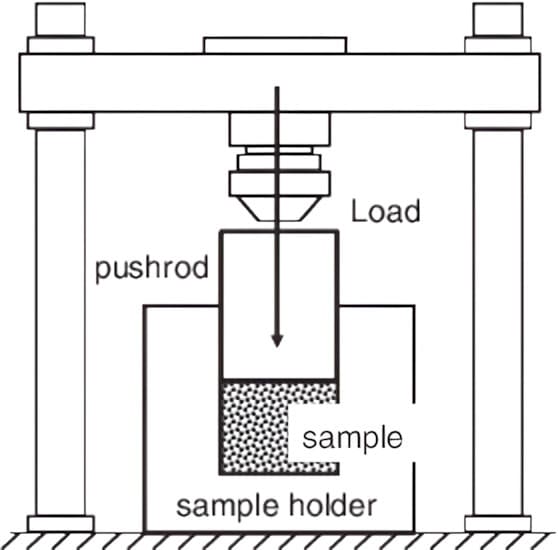

2. Compression & Buckling Tests
Compression tests show how materials behave under crushing forces. Buckling tests focus on long, slender objects and are a special form of compression testing. These tests find the critical load—where a structure suddenly becomes unstable and deforms.

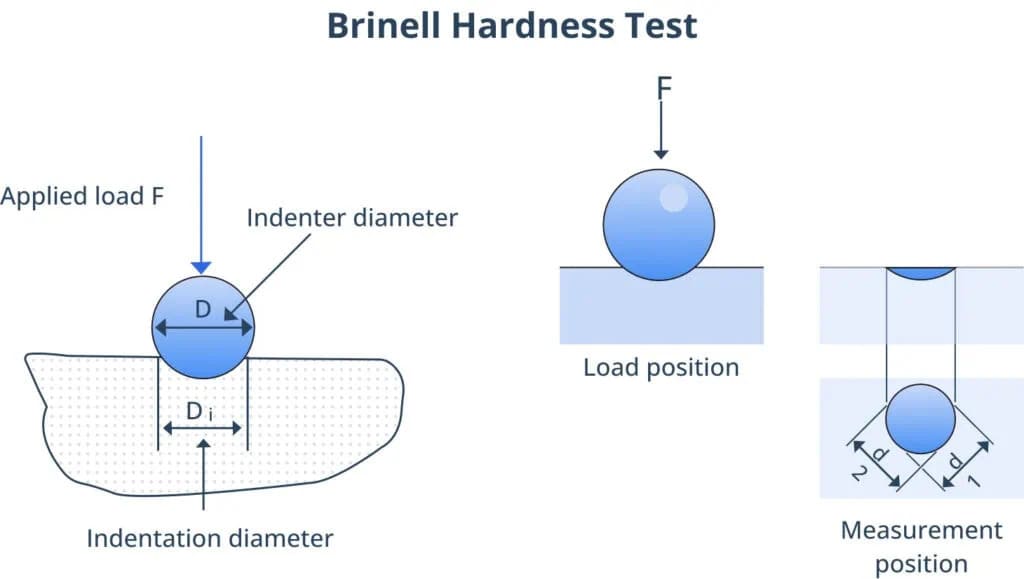

3. Hardness Testing Methods
Hardness tests, such as Rockwell, Brinell and Vickers, check how well a material resists surface indentation. Each method uses a unique indenter and load. The results are quick, non‐destructive and relate to the material’s strength.

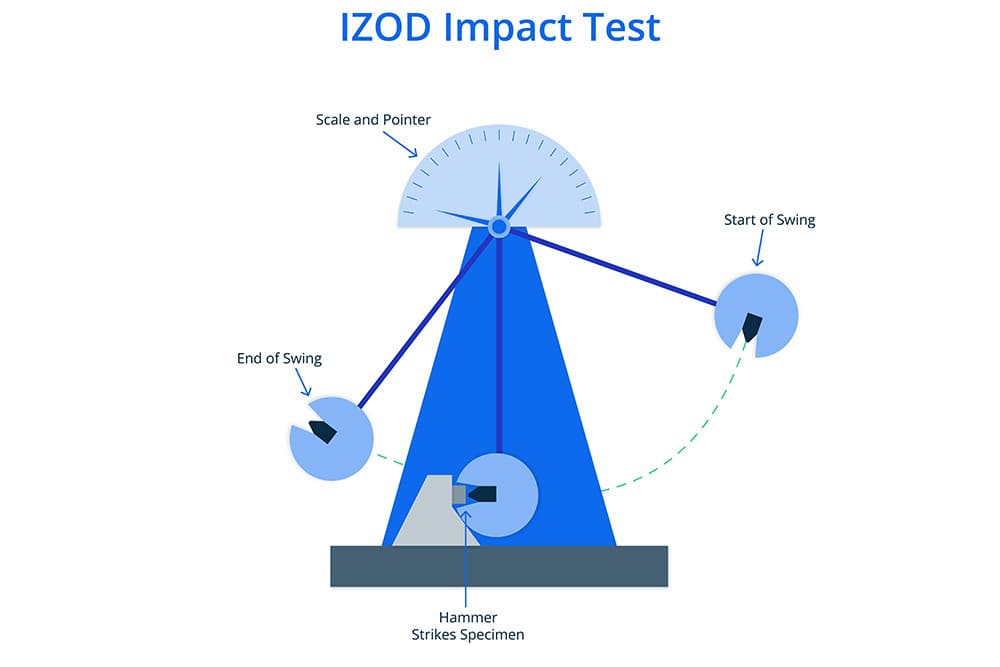

4. Impact Testing
Impact testing, mainly with the Charpy and Izod methods, measures how much energy a material absorbs when it fractures from a sudden blow. This property is important for parts that face dynamic loads.

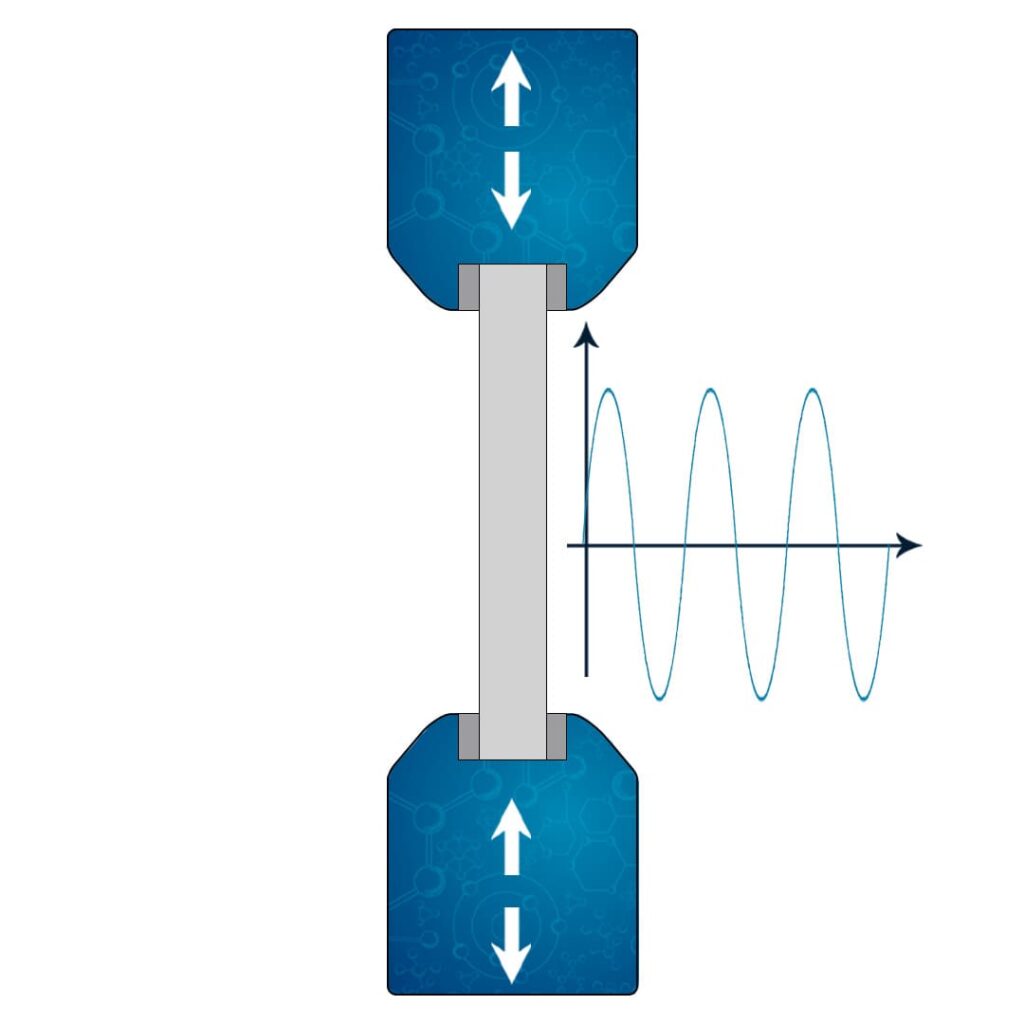

5. Fatigue Testing
Fatigue testing puts a specimen through repeated cycles of loading. The goal is to find its fatigue life or endurance limit. This information predicts how parts will perform under changing stresses during use.

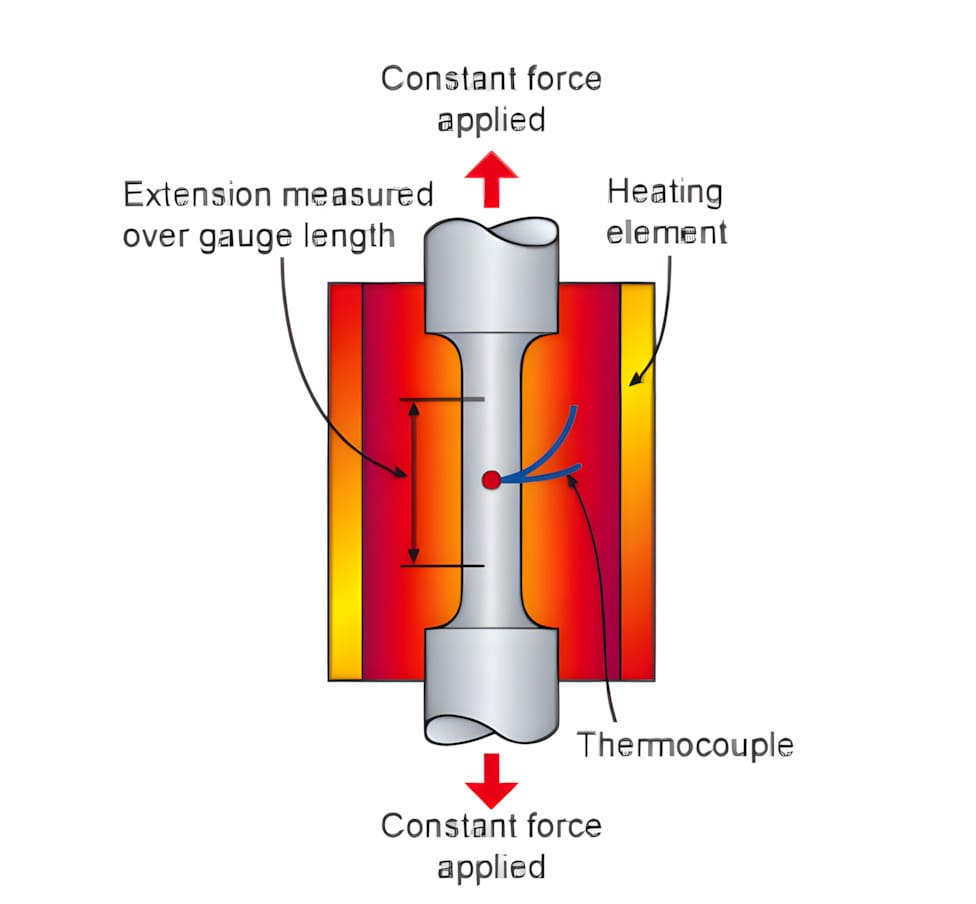

6. Creep Testing
Creep testing examines how a material slowly deforms under a constant load at high temperatures over time. This test is vital for designing parts like jet engine’s turbine blades that must work at elevated temperatures.

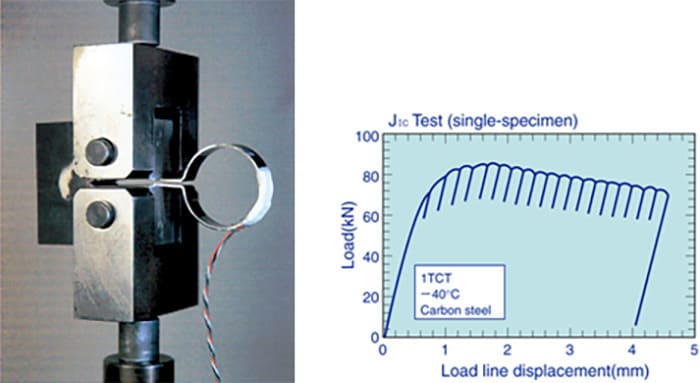

7. Fracture Toughness Testing
Fracture toughness testing checks how well a material resists crack growth. This test uses a specimen with a pre‐made fatigue crack. It gives important data (KIC, CTOD) for understanding fracture mechanics.

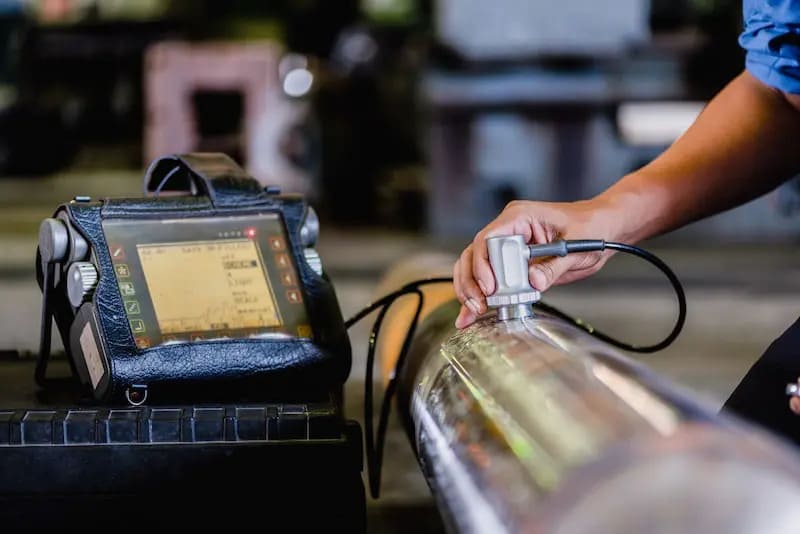

8. Non Destructive/ Specialized Tests
Ultrasonic, magnetic particle and radiographic tests can find flaws without harming the material. These methods have a key role in quality assurance and help inspect parts that are already in service.
RICHCONN includes these inspections in its manufacturing process. This approach finds even the smallest defects early and helps components work reliably.
Also See: A Detailed Guide on Non Destructive Testing
9. Test Standards
ASTM and ISO are organizations that set standard procedures for mechanical testing. By following these standards, test results stay reliable, repeatable as well as easy to compare across labs and industries worldwide.
Interpretation & Use of Mechanical Property Data
Engineers must interpret raw mechanical property data to make sound decisions. Following methods turn complicated test results into useful insights for design & analysis.

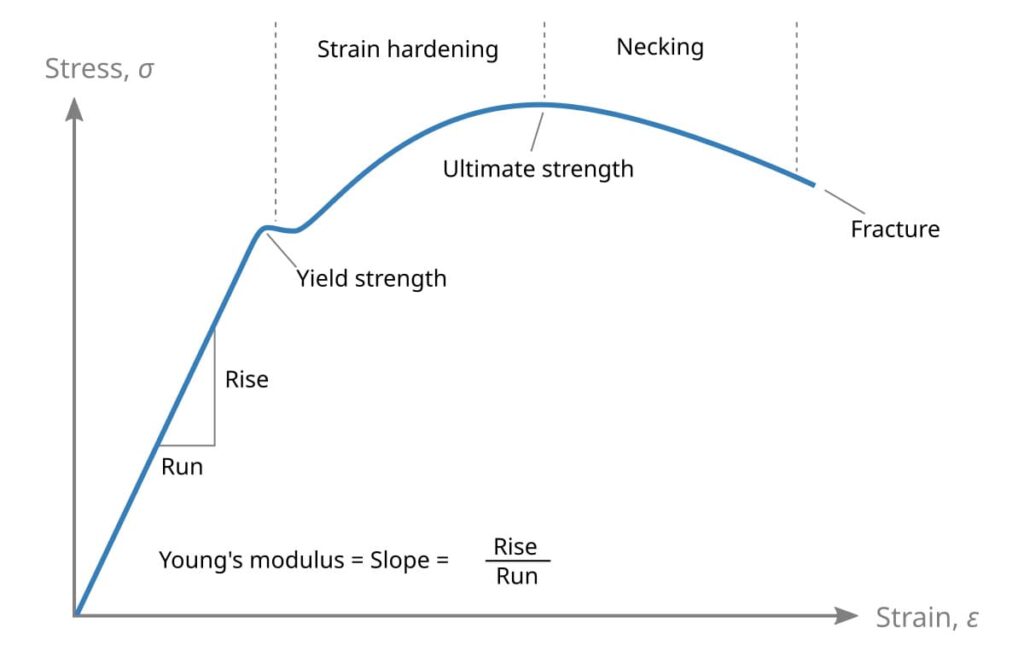

Stress–Strain Curve Interpretation
A stress‐strain curve is a basic graph that displays how a material reacts to a load. It points out important values like the elastic limit, yield strength and ultimate tensile strength. These values describe how the material behaves.
Conversion
Engineers often convert test data by changing units or switching between hardness scales. This step makes it possible to compare materials tested under different standards. As a result, design and analysis remain consistent.

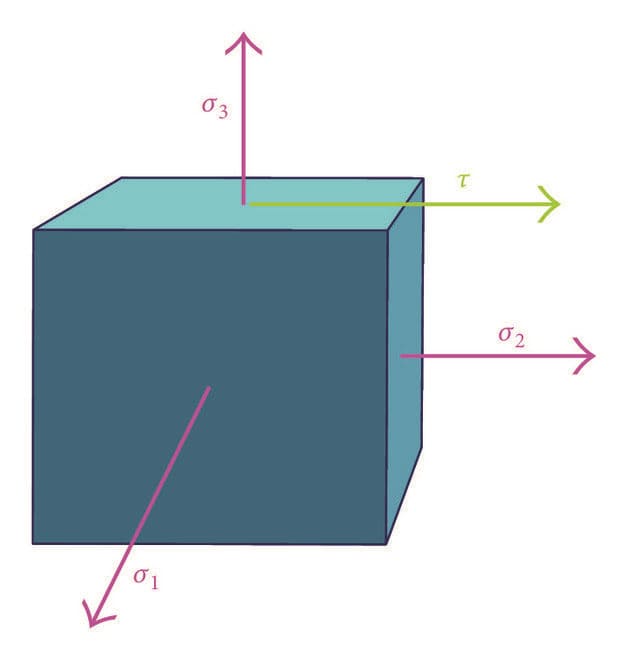

Multiaxial
Simple uniaxial tests, where force acts in one direction, provide most standard material data. In real applications, though, components face complex, multiaxial stresses from several directions at once. Therefore accurate design must take these forces into account.
Temperature
Material performance changes a lot with operating temperature. High temperatures normally lower strength and stiffness because thermal energy lets internal structures move more freely. On the other hand, some materials like certain copper alloys get stronger and tougher at very low cryogenic temperatures.
Uses in Different Industries
- Creep in Power Plants: Power plants rely on creep‐resistant steels for critical components like pipes and turbines. These materials let equipment operate reliably at temperatures up to 625°C. As a result fuel efficiency improves significantly.
- Automotive: The automotive sector uses lightweight materials such as aluminum and high strength steels to reduce vehicle mass. Lower weight leads to better fuel efficiency. At the same time, these materials maintain strict safety and impact resistance standards.
- Jet Engines: Jet engine parts must withstand high tensile strength, toughness and fatigue. Manufacturers often use nickel based superalloys for turbine blades. These alloys keep their strength constant even at extreme temperatures.
- Turbines: Turbine blades in both power plants and jet engines face heavy centrifugal forces and thermal stress. To assure long term reliability, these blades need materials with strong creep, fatigue as well as tensile properties.
Challenges & Solutions
Determining a material’s mechanical properties comes with several major challenges. However, proven solutions exist to achieve reliable test results.
- Sample Preparation & Quality: Test specimens may not always reflect the properties of the bulk material. Internal voids or surface finish can influence the outcome. Strict, standardized specimen preparation assures consistency and accuracy.
At RICHCONN, we machine samples and production parts using ISO‐compliant processes. This approach assures that performance data closely matches the final product. - Environmental & Test Conditions: Laboratory environments can differ from real‐world conditions. Factors like temperature, humidity as well as loading speed may change a material’s behavior. The best way to address this is by testing in controlled chambers that mimic actual service environments. This method provides data that is both reliable and relevant to real applications.
- Data Accuracy & Interpretation: Errors in equipment calibration or test setup can lead to incorrect data. Following standards from organizations such as ASTM and ISO assures accuracy, repeatability and comparability of results across the industry.
To Sum Up
Engineers and designers must understand mechanical properties to make better choices. This understanding helps them pick materials that keep products safe and reliable in real‐world use. Properties like strength and toughness show how parts react to different forces.
If you need CNC machining services that consider the right material properties, Richconn stands out as the top option. You can contact us anytime.
Related Questions
Young’s modulus describes the relationship between stress and strain in a material’s elastic range. It indicates how stiff a material is and how much it resists shape changes when stretched or compressed.
Fatigue strength refers to the highest stress a material can handle for a set number of cycles before it breaks. Whereas endurance limit is the maximum stress level where the material can survive unlimited cycles without failing.
Tests like Rockwell, Vickers and Brinell measure how well a material’s surface resists indentation. These results give an indirect measure of the material’s overall strength.
When the strain or loading rate increases, a material’s tensile strength and hardness usually go up. However, this can also lower ductility and this makes the material less able to deform without breaking.
Creep is the slow, ongoing deformation of a solid under constant mechanical load. It becomes a major concern at high temperatures and under significant stress, even if the stress is below the yield point.
Engineers use machine learning algorithms to study large datasets about material composition and processing. These tools help predict mechanical properties and speed up the process of finding and choosing new materials for engineering projects.
