Modern healthcare depends on CNC finishing machining for the production of medical implants. This technology allows companies to produce implants that meet the tough requirements of precision, biocompatibility and durability.
In this blog post we will cover main materials, techniques as well as applications of medical implant machining & finishing.
What is Medical Implant CNC Finishing Machining?
To put it simply, in this process, computer controlled tools perform precision machining to refine & polish medical implants. This innovative method gives precise features for different medical devices.
This process guarantees excellent smooth surfaces & biocompatibility for dental prosthetics, orthopedic joints as well as cardiovascular devices.
Role of CNC Machining in Medical Implants
The medical industry depends on CNC machining for its great precision capabilities. This technology produces implants that meet tight tolerance requirements, which directly affect device functionality as well as patient safety. The process also permits personalization to particular patient anatomy.
CNC machining specializes in manufacturing complex medical parts like joint replacements & spinal cages. It supports both mass production as well as rapid prototyping without compromising quality standards. Its ability to work well with biocompatible materials guarantees long term durability & compliance with medical regulations.
Materials Used in CNC Machining of Medical Implants
Metals
Stainless Steel
The non-porous nature & high tensile strength of stainless steel supports efficient bone healing in trauma implants. Moreover its great machinability permits accurate production of surgical instruments & temporary implants such as bone screws. The material also stops bacteria from adhering to surfaces.
Titanium and its Alloys
Ti-6Al-4V & other titanium alloys are great in medical implant uses. These materials offer excellent corrosion resistance, great biocompatibility as well as perfect strength to weight ratios.

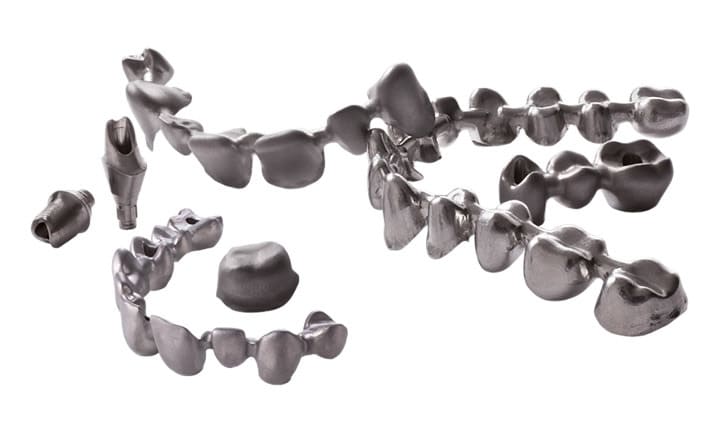

Cobalt-Chromium Alloys
These alloys are prominent in medical implants because of their excellent fatigue resistance. They effectively maintain structural integrity under frequent stress cycles.
Polymers
UHMWPE (Ultra-High-Molecular-Weight Polyethylene)
UHMWPA is used in joint replacements because of its remarkable abrasion resistance. Its self lubricating properties make it perfect for knee & hip replacements.

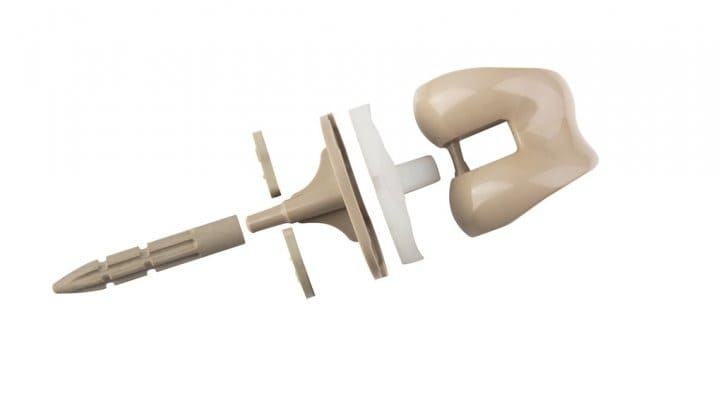

PEEK (Polyether Ether Ketone)
This high performance thermoplastic matches the properties of human bone that includes 110 MPa flexural strength as well as 3 GPa flexural modulus. Spinal implants particularly benefit from these properties.
Ceramics and Composites
Zirconia & alumina ceramics effectively replicate the properties of porcelain. Their hardness makes them suitable for dental implants & joint replacements.
Carbon fiber reinforced polymers and other components give excellent strength to weight ratios. These materials also provide the flexibility needed for load bearing devices and prosthetics as well.
Different CNC Machining Techniques
CNC Turning
In CNC turning the workpiece rotates while fixed cutting tools shape it to produce cylindrical medical implants. This process produces components with smooth surfaces & accurate dimensions. These characteristics make CNC turning particularly effective for production of micro-components to be used in minimally invasive surgical tools.
CNC Milling
During CNC milling operations, rotating cutting tools remove material in a controlled manner. This process produces medical implants with precise specifications. Manufacturers can create complex anatomical shapes, such as dental implants & knee joints, with a high degree of accuracy. The generality of CNC milling makes it perfect for mass production as well as prototype manufacturing of orthopedic parts.

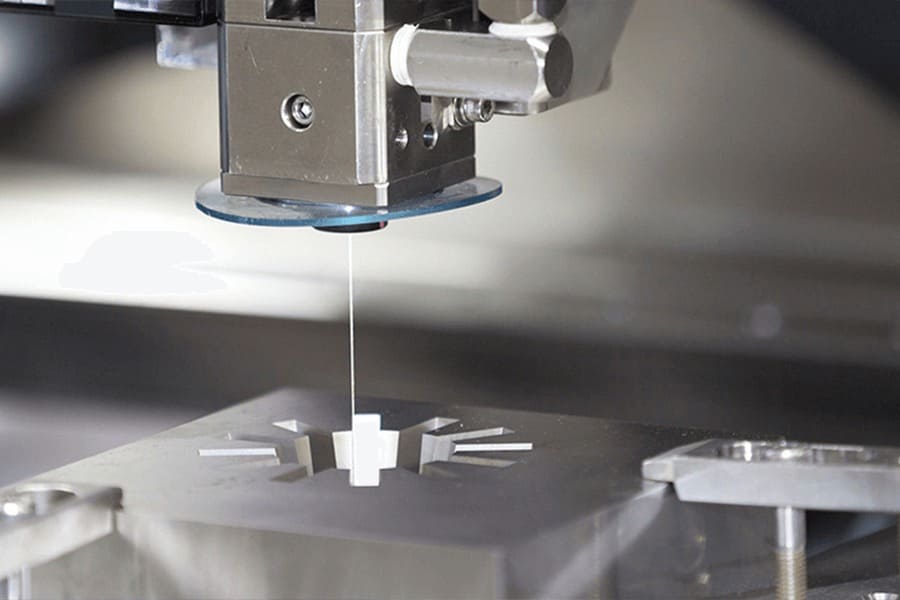

Wire EDM (Electrical Discharge Machining)
Wire EDM cuts conductive materials using an electric-powered wire. This technique creates accurate medical implants without physical contact. The process is particularly effective for medical implants such as stents, cardiovascular devices as well as orthopedic components. The absence of physical contact during machining prevents material distortion & stress in fragile or very hard materials.
Also See: Sinker EDM vs Wire EDM
5 Axis CNC Machining
Modern 5 axis CNC machines work synchronously on 2 rotational axes & 3 linear axes X, Y and Z. This advanced technology achieves exceptional accuracy with a tolerance of ±0.001 millimeter. Complex medical parts such as spinal implants & hip cups benefit from this accuracy. The system completes all operations in a single setup which decreases production time. This minimal handling helps maintain strict sterilization standards.
Importance of Surface Finish in Medical Implants
Effect on Implant Longevity
Surface finish directly affects implant life. Correct finish reduces wear rates & prevents material fatigue as well.
Articulating joints require a surface finish of less than 0.2 Ra to decrease friction.
On the other hand, in load bearing implants, specific micro textures prevent debris formation as well as increase wear resistance.
These features help to stop unexpected implant failure, thus reducing the need for revision surgeries.
Impact on Biocompatibility
A high quality service finish creates flawless & smooth implant surfaces. These surfaces decrease inflammation & immune reactions in patients. The improved finish also reduces bacterial adhesion & promotes tissue integration. Moreover it prevents ion release which guarantees long term compatibility with biological tissues.
Regulatory Standards & Requirements
Medical implants must meet stringent surface finish requirements under the ISO 7207 & ASTM F86 standards. These regulations prohibit burrs, tool marks as well as contamination on implant surfaces. Articulating surfaces must achieve and document RA values of less than 0.02 µm. Moreover validation of all surface treatment processes is needed to meet these standards.
See Also: Complete Guide to Surface Finish
CNC Finishing Techniques for Medical Implants

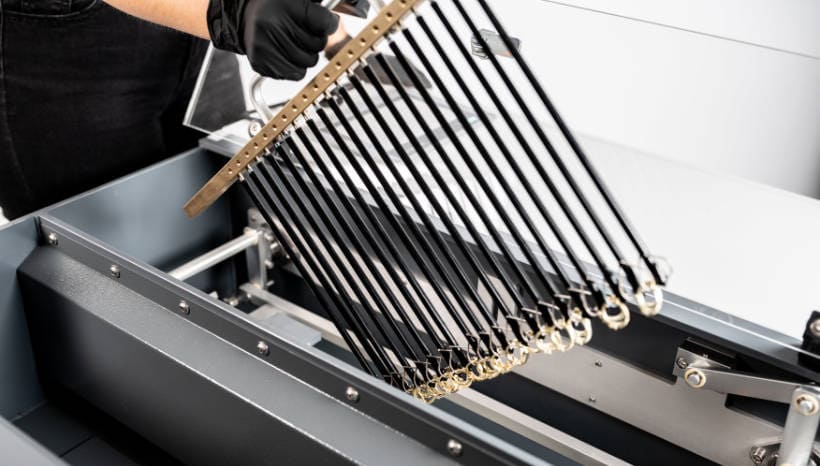

Electropolishing
Electrolyte solutions are combined with direct current to remove a specific microscopic layer of surface material. This electrochemical process effectively removes surface imperfections as well as micro burrs. The resulting surfaces resist pathogens & give better biocompatibility.
Surgical instruments & cardiovascular stents are usually electro polished to get these beneficial surface properties.

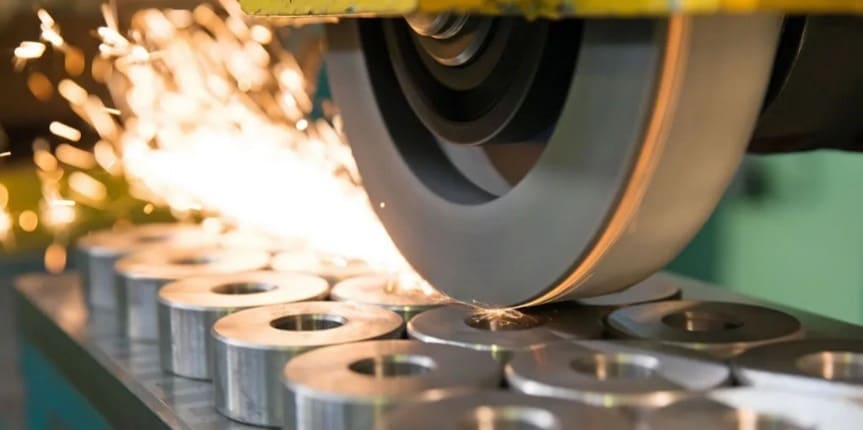

Grinding
Abrasive wheels remove material with extreme accuracy during the grinding process. This technique achieves surface roughness values of Ra 0.02 μm through carefully controlled material removal.
Surgical instruments & orthopedic parts require this ultra-fine finish for best performance. Knee replacements specially benefit from great surface quality achieved by this process.
Also See: What is Precision Grinding

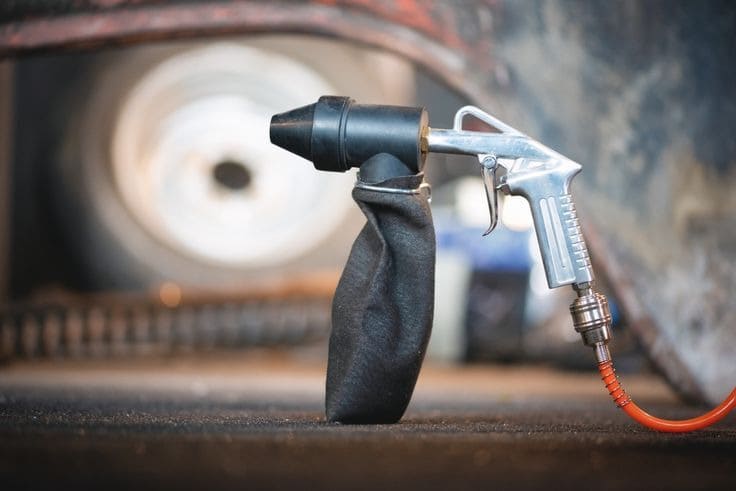

Blasting (e.g., Sandblasting, Bead Blasting)
In blasting, high pressure jets create specific surface textures through different abrasive media. Tricalcium phosphate or aluminum oxide are used in sandblasting operations for intensive surface modification. Glass beads create a smooth finish in bead blasting applications.
These surface treatments improve osseointegration & tissue bonding in implantable equipment.
Also See: What is Bead Blast Finish

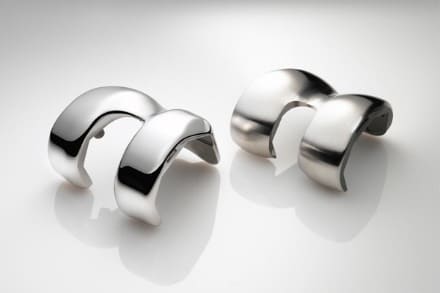

Polishing
Medical implants achieve mirror like finishes through a systematic polishing process. Technicians apply fine abrasive materials on flexible belts or wheels in a sequence from coarse to fine grit. This method can achieve a surface roughness of Ra 0.1 µm or less.
These smooth surfaces are very important to increase wear resistance in articulating parts of joint replacements.

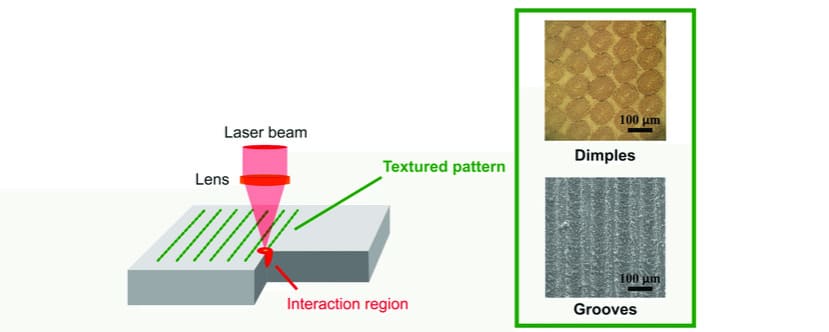

Laser Surface Texturing
In this process, ultra short pulse lasers create nano & micro scale precise patterns on implant surfaces. This process simultaneously changes surface chemistry & topography. Operators have full digital control over texture geometry, depth, size as well as distribution. This innovative method achieves burr free texturing of intricate implant geometries.
Magnetic Field-Assisted Finishing
This method uses magnetorheological fluids that contain abrasive particles that react to controlled magnetic fields. This technique achieves a surface finish of up to 20 nm Ra.
The complex geometries of cardiovascular stents as well as femoral knee implants benefit from this method. Traditional finishing methods often cannot access the confined areas where magnetic field-assisted finishing can be reached.
Applications of CNC Machined Medical Implants
Orthopedic Implants
The precision of CNC machining allows creation of complex orthopedic implants. These components meet demanding tolerance requirements and give optimal anatomical fit & articulation to improve patient mobility. Some important uses are mentioned below.
Spinal implants
This technology makes complex components such as pedicle screws systems, intervertebral cages and rods.
Knee & hip replacements
CNC machining creates accurate acetabular cups, femoral heads and tibial parts.
Bone screws & plates
Locking plates, cortical screws as well as cancellous screws are manufactured by CNC machining with accurate thread diameters & patterns.
Cardiovascular Implants
Heart valve components
This technology produces important elements of heart that include commissure supports, support rings & leaflets.
Stents
Vascular, coronary as well as biliary stents require support member dimensions between 80 to 125 microns. CNC machining achieves these specifications to increase blood flow.
Dental Implants & Prosthetics
Zirconia & titanium are used as base materials for CNC machined dental parts. This process achieves micron level accuracy for manufacturing implant posts, crowns, abutments as well as bridges. These parts have fine details & complex geometries that guarantee biological compatibility as well as optimal fit for long term oral integration.

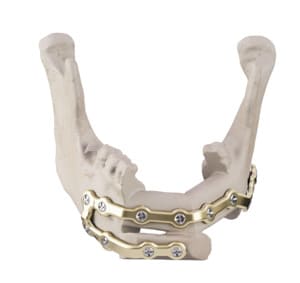

Craniofacial and Maxillofacial Implants
Multi axis toolpath control permits CNC machines to create patient-specific implants. This technology produces zygomatic plates, orbital floor implants, mandibular reconstruction as well as temporal bone implants. Each component conforms to exact anatomical requirements by creating precise contours.
Accuracy & Quality Control in CNC Machining
Inspection & Testing
Multiple inspection methods guarantee quality of CNC machined medical implants.
- Optical scanning validates geometric specifications and on the other hand, visual inspection identifies surface defects.
- Coordinate Measuring Machine (CMM) technology confirms precise measurements.
- Further testing uses X ray scan to verify structural integrity & ultrasonic analysis to identify internal flaws.
These comprehensive measures make sure that all parts meet intended specifications.
Standards & Certification
Adherence to ISO 9001 & ISO 13485 standards is very important for medical implant manufacturing. ISO 9001 deals with quality systems, on the other hand, ISO 13485 governs medical device manufacturing. These standards mandate risk management measures, thorough documentation as well as strict quality control during production.
Traceability and Documentation
Every medical implant requires complete documentation from raw materials to final inspection. This includes detailed recording of process parameters as well as tooling calibration to meet requirements of ISO 13485. RFID tags link batch numbers to specific production runs which permits quick product recall if needed. Such comprehensive documentation guarantees full compliance with regulatory standards in implant manufacturing.
Challenges in CNC Finishing of Medical Implants
Complex Structure
Medical implants often have internal voids, curved surfaces and undercuts. These complex design elements limit tool access during CNC finishing operations. Manufacturers must use advanced 5 axis machining systems & personalized tooling to achieve the desired surface finish accuracy on these complex features.
Material Strength
The hardness of the materials used in medical implants creates significant difficulties during CNC finishing operations. Cobalt-chrome & titanium exhibit high abrasion resistance as well as low thermal conductivity. These properties make it difficult to polish these materials & achieve biocompatible as well as smooth surfaces required for medical use.
Governmental Compliance
CNC finishing operations must meet strict requirements of ISO 13485 standards & FDA guidelines. These regulations need comprehensive risk management guidelines, thorough documentation for process standardization as well as well-defined quality control protocols.
Maintaining Sterility
The CNC finishing process creates a number of contamination risks for medical implants. Tool lubricants, machine residue and airborne particles can affect sterile condition of the implant. The finishing process requires strict controls to prevent even slightest contamination as any disturbance to the sterile condition can render the implant unsafe for medical use.
To Sum Up
CNC finishing machining makes sure that medical implants meet the requirements of biocompatibility, precision as well as durability. The combination of modern CNC techniques & strict quality controls allows manufacturers to create components that meet strict standards of medical industry.
If you require any kind of CNC machining services for medical implants, then RICHCONN is best option. You can contact us anytime.
Related Questions
How does CNC machining meet the need for rapid prototyping in medical implant development?
CNC machines swiftly turn digital designs into working models. This speed permits design modifications & rapid testing which accelerates the development progression as well as governmental approval process.
What is the role of software in CNC machining of medical implants?
Software performs three main functions in medical implant CNC machining—optimization of tool paths for accurate cuts, conversion of CAD designs to G-code and prevention of errors through virtual stimulation.
What future trends in CNC machining can affect medical implant manufacturing?
These include advanced 5 axis machining, AI-based automation, integrated CNC & 3D printing processes as well as IoT integration for continuous monitoring.
What is the impact of CNC machining on cost of medical implant production?
CNC machining decreases production costs through decreased labor requirement, automation, efficient use of material as well as fewer defects.
What are environmental considerations in CNC machining of medical implants?
Important environmental factors are increasing energy efficiency, reducing material wastage as well as guaranteeing proper disposal of lubricants & coolants.
