The melting point of aluminum sits at exactly 660.32°C (1220.58°F) for 99.99% pure metal under standard atmospheric pressure. This number is not just a textbook figure — it shapes every decision you make when casting, welding, or designing with this versatile material.
The pure aluminum melting point acts as a baseline that guides real-world engineering. At this precise aluminum melting temperature, atoms break free from their crystalline arrangement and shift into a liquid state. This aluminum phase transformation defines the boundaries for equipment selection, crucible ratings, and safe operating procedures across the manufacturing floor.
Most engineering projects don’t rely on 99.99% pure aluminum. Common alloys from companies like Alcoa and Novelis can push the melting range down by more than 100°C depending on their chemical makeup. Understanding aluminum thermal properties helps you set accurate casting parameters, pick the right welding technique, calculate recycling energy costs, and predict structural limits in high-heat environments.
Whether you’re running a foundry or specifying materials for aerospace components, the melting point of aluminum is the starting point for getting it right.
Understanding the Melting Point of Aluminum

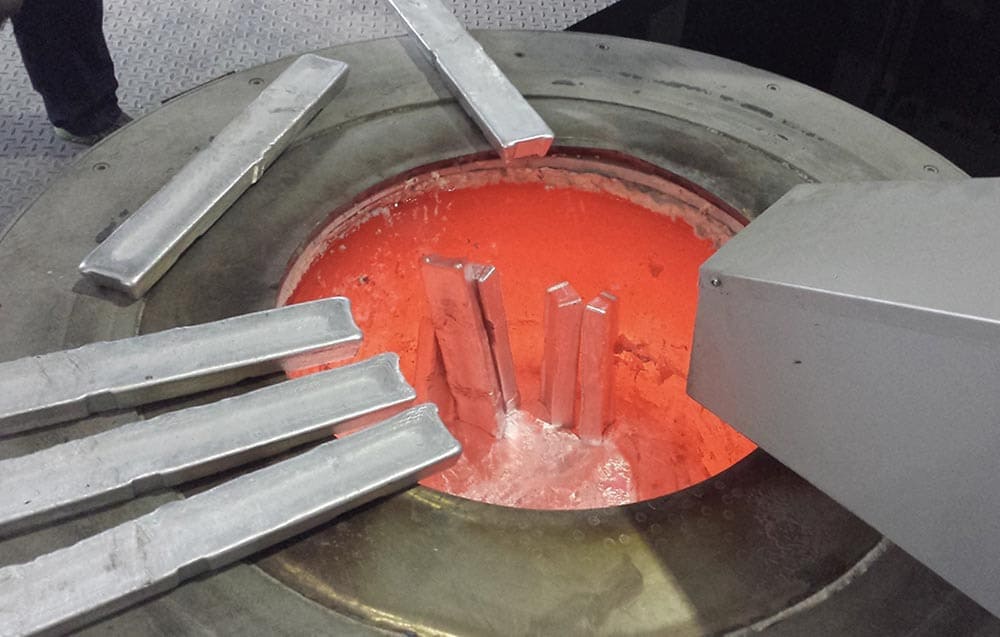

Before you can cast, weld, or recycle aluminum, you need to know exactly when it transitions from solid to liquid. The aluminum melting point definition is straightforward — it’s the precise temperature where the metal changes phase under standard atmospheric pressure. Getting this number wrong in a real-world process can lead to wasted material, defective parts, and serious safety risks.
What Is Melting Temperature and Why It Matters
In melting temperature science, this value acts as a physical constant for pure substances. It tells you the exact energy threshold needed to break the bonds holding atoms in their solid arrangement. For engineers working on engine blocks, beverage cans, or window frames, this number drives every thermal process decision you make.
The latent heat of fusion aluminum requires — 396 kJ/kg — represents energy that must be absorbed even after the metal reaches its melting temperature. You’re essentially feeding energy into breaking atomic bonds rather than raising the temperature further.
Pure Aluminum: The Baseline at 660.32°C
Pure aluminum melts at exactly 660.32°C (1220.58°F). This is a sharp melting point, meaning the entire phase change happens at one single temperature. Think of it like ice melting at 0°C — there’s no gradual softening range. The transition is clean and predictable.
Sharp Melting Point vs. Melting Range Explained
Pure metals exhibit a sharp melting point, but the melting range aluminum alloys display is quite different. Alloys contain multiple elements, so they soften at a lower “solidus” temperature and become fully liquid at a higher “liquidus” temperature. Between these two points lies a “mushy zone” — a semi-solid state critical to casting and welding operations.
| Characteristic | Pure Aluminum | Aluminum Alloys |
|---|---|---|
| Melting Behavior | Sharp melting point | Melting range (solidus to liquidus) |
| Temperature | 660.32°C | 475°C–660°C (varies by series) |
| Mushy Zone | None | Present between solidus and liquidus |
| Process Predictability | Highly predictable | Requires tighter process control |
Understanding these distinctions sets the stage for exploring how aluminum’s atomic structure and alloying elements shape its thermal properties in practice.
The Science Behind Aluminum’s Thermal Properties
To truly understand why aluminum melts at 660.32°C, you need to look at what happens at the atomic level. The aluminum atomic structure and the way its atoms bond together dictate every thermal property — from melting point to energy demands during casting.
Atomic Structure and Metallic Bonding in Aluminum
Aluminum has three valence electrons in its outer shell. These electrons break free from individual atoms and form a shared “sea” of negative charge. This is the essence of metallic bonding aluminum relies on — electrostatic attraction between positive ion cores and that delocalized electron cloud. Because aluminum contributes only three valence electrons, its bonds are weaker than metals like iron or tungsten, which have more electrons available for bonding.
Face-Centered Cubic Crystal Structure
Aluminum atoms arrange themselves in a face-centered cubic (FCC) lattice. This means atoms sit at each corner and at the center of each face of a cube-shaped unit cell. It’s one of nature’s most tightly packed configurations. At 660.32°C, thermal energy overwhelms the bonds holding this orderly lattice together, and atoms begin to slip past each other freely.
Latent Heat of Fusion: 396 kJ/kg
During melting, aluminum absorbs 396 kJ/kg of energy without any temperature increase. This is the latent heat of fusion — the energy needed purely for phase transformation. The sublimation heat aluminum exhibits is about 325 kJ/mol, much lower than titanium’s 475 kJ/mol. This confirms aluminum’s weaker interatomic forces.
Why Aluminum Melts at Lower Temperatures Than Steel
When comparing aluminum vs steel melting, the gap is dramatic. Consider these key differences:
| Property | Aluminum | Carbon Steel | Tungsten |
|---|---|---|---|
| Melting Point | 660°C | 1,370–1,540°C | 3,422°C |
| Valence Electrons | 3 | 2–3 (iron) | 2 |
| Crystal Structure | FCC | BCC / FCC | BCC |
| Casting Energy Savings | 30–50% less | Baseline | N/A |
This moderate melting point gives you a real advantage in manufacturing. Die-casting aluminum consumes 30–50% less energy than steel processes, reducing both cost and environmental impact. As we explore in the next section, alloying elements shift these thermal properties even further.
How Alloying Elements Change Melting Behavior
When you add elements like copper, silicon, magnesium, zinc, or manganese to pure aluminum, you change its melting behavior. Instead of a sharp melting point at 660.32°C, you get a temperature range. Understanding alloying elements effects is essential for selecting the right material for your project.
Each element disrupts aluminum’s uniform crystal structure in a distinct way. This shifts the aluminum alloy melting point — sometimes dramatically. Here’s how the most common additions affect thermal behavior:
- Copper: Copper aluminum alloys — like the 2024 grade used in aerospace — gain impressive strength. The tradeoff is a lower melting range, dropping to roughly 500–638°C.
- Silicon: Silicon aluminum melting behavior shifts significantly downward, making 4000-series alloys perfect for casting and welding filler rods. Silicon improves fluidity during the pour.
- Magnesium: Magnesium aluminum alloys in the 5000 series offer excellent corrosion resistance with moderate melting range changes — ideal for marine and automotive uses.
- Zinc: Zinc delivers the highest strength levels in the 7000 series but reduces the melting range considerably, down to as low as 475°C on the solidus side.
- Manganese: This element boosts corrosion resistance in 3000-series alloys while keeping melting range shifts relatively modest.
| Alloying Element | Primary Benefit | Typical Melting Range Impact | Common Alloy Series |
|---|---|---|---|
| Copper | High strength | Lowers significantly (500–638°C) | 2xxx |
| Silicon | Castability | Lowers notably (577–632°C) | 4xxx |
| Magnesium | Corrosion resistance | Moderate reduction (570–640°C) | 5xxx |
| Zinc | Ultra-high strength | Wide reduction (475–635°C) | 7xxx |
| Manganese | Corrosion resistance | Mild reduction (630–655°C) | 3xxx |
Matching the right alloy composition to your application ensures both performance and safety — especially in transportation and construction where thermal margins matter. As we explore in the next section, each alloy series carries its own solidus and liquidus temperatures that you need to track carefully.

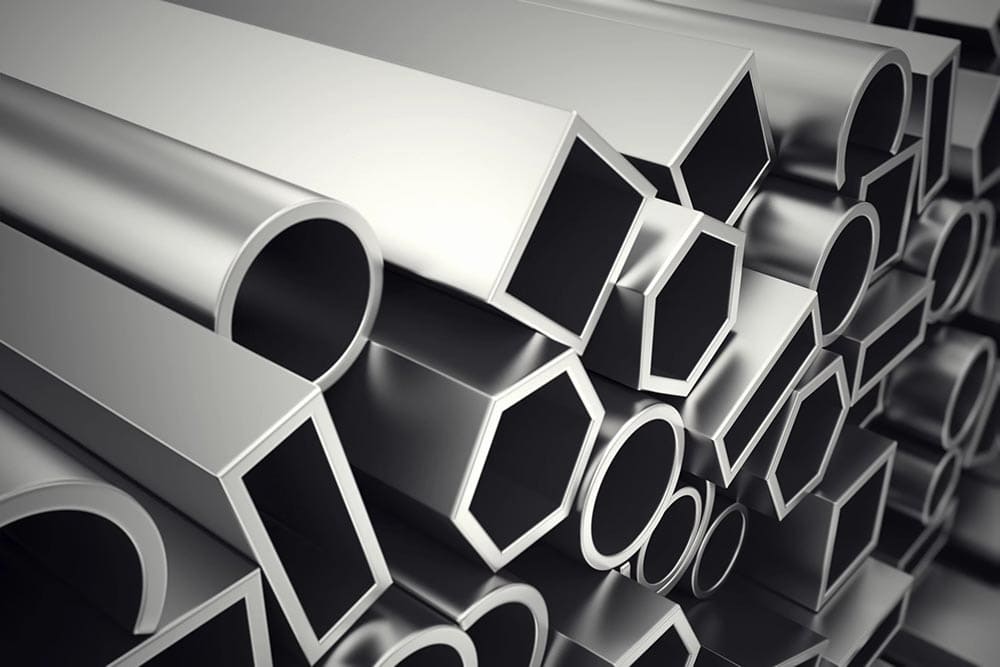

Common Aluminum Alloy Series and Their Melting Ranges
Each aluminum alloy series behaves differently when exposed to heat. Knowing the exact temperature range for your specific alloy is essential for welding, casting, and heat treatment. This aluminum alloy reference covers the key series — from 1xxx through 7xxx — so you can plan your processes with confidence.
Understanding Solidus and Liquidus Temperatures
Unlike pure aluminum, alloys don’t melt at a single fixed point. You need to track solidus liquidus temperatures to understand the full picture. The solidus marks where melting begins — the first liquid phase forms. The liquidus is the point where the entire material becomes liquid.
Between these two points lies the “mushy zone.” This region contains both solid and liquid phases at the same time. It plays a critical role in welding and casting quality, making it a key factor in process control.
Series 1xxx to 7xxx: Complete Temperature Reference
The table below gives you a quick aluminum alloy reference for all major series and their typical melting ranges.
| Alloy Series | Primary Alloying Element | Solidus (°C) | Liquidus (°C) | Common Application |
|---|---|---|---|---|
| 1xxx | None (99%+ pure) | 645 | 660 | Electrical conductors |
| 2xxx | Copper | 500 | 650 | Aerospace structures |
| 3xxx | Manganese | 640 | 660 | Beverage cans |
| 4xxx | Silicon | 575 | 650 | Welding filler wire |
| 5xxx | Magnesium | 565 | 650 | Marine components |
| 6xxx | Magnesium + Silicon | 580 | 650 | Structural extrusions |
| 7xxx | Zinc | 475 | 635 | Aerospace parts |
6061 Aluminum: 580–650°C Melting Range
The 6061 melting range spans just 70°C — from 580°C to 650°C. This narrow window makes 6061 forgiving during fabrication. You can achieve T6 temper through solution treatment at around 530°C, giving you excellent control over mechanical properties.
7075 Aluminum: Wide 475–635°C Temperature Span
The 7075 melting temperature range is far broader at 160°C. Its 5.1–6.1% zinc content creates this wide gap between solidus liquidus temperatures. This characteristic increases hot cracking risk during welding. You’ll need to keep solution treatment within a tight 465–480°C window to avoid defects in this high-strength aluminum alloy series.
Environmental Factors Affecting Real-World Melting
Textbook melting points represent ideal lab conditions. In real-world applications, several environmental factors shift when and how aluminum actually melts. Understanding these variables helps you predict material behavior in casting, welding, and high-temperature service.
Impact of Impurities and Trace Elements
The aluminum impurities effects on melting behavior are significant — even at trace levels. Iron at just 0.1% can lower the liquidus temperature by 2–3°C through the formation of Al₃Fe intermetallic compounds. High-purity aluminum (99.99%) melts at a precise 660.32°C, while commercial-grade 99% purity starts softening several degrees earlier. Silicon and iron are the most common culprits responsible for depressing melting points in standard-grade stock.
Atmospheric Pressure Variations
Pressure aluminum melting behavior follows a straightforward principle. Higher atmospheric pressure compresses the atomic lattice, raising the melting point slightly. Reduced pressure environments — such as vacuum furnaces or high-altitude facilities — lower the melting temperature by a marginal degree. For most standard operations, this shift is small but worth tracking in precision casting.
Heating Rate and Thermal Gradients
Rapid heating rate effects create thermal lag in aluminum components. The surface can reach melting temperature while the core remains solid. These thermal gradients aluminum engineers encounter depend on part geometry, grain size, and internal stress. Key factors include:
- Smaller grain sizes increase boundary area, causing earlier thermal softening
- Cold-worked aluminum carries residual stress that affects melting initiation
- Thicker cross-sections amplify uneven heat distribution
The Protective Aluminum Oxide Layer Effect
An aluminum oxide layer forms instantly on exposure to air — measuring just 2–3 nanometers thick. This oxide melts at 2,072°C (3,762°F), roughly three times higher than the base metal. This protective shell is why aluminum foil can survive 300°C oven temperatures without degrading.
| Environmental Factor | Effect on Melting Point | Typical Magnitude |
|---|---|---|
| Iron impurity (0.1%) | Lowers liquidus | 2–3°C decrease |
| High atmospheric pressure | Raises melting point | Less than 1°C increase |
| Rapid heating rate | Creates thermal lag | Varies by geometry |
| Oxide layer (Al₂O₃) | Shields base metal | Melts at 2,072°C |
| Cold-worked microstructure | Earlier softening onset | 5–10°C earlier softening |
Industrial Applications and Process Temperature Control
Every major aluminum manufacturing process depends on precise temperature management. From casting to recycling, understanding thermal boundaries helps you avoid costly defects and produce reliable parts. Let’s walk through how different industrial processes leverage aluminum’s thermal properties.

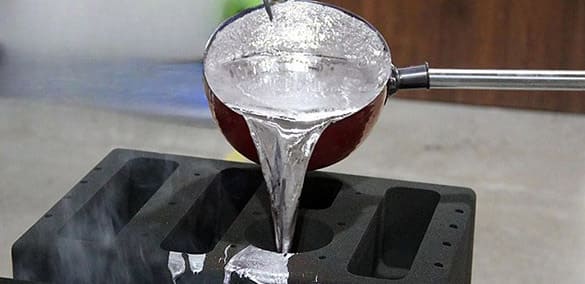

The aluminum casting temperature typically ranges from 660°C to 750°C, depending on the alloy used. Foundries producing automotive engine blocks and electronic housings must ensure complete mold filling while keeping porosity defects to a minimum. Casting demands less energy than steel — a clear advantage for high-volume production.

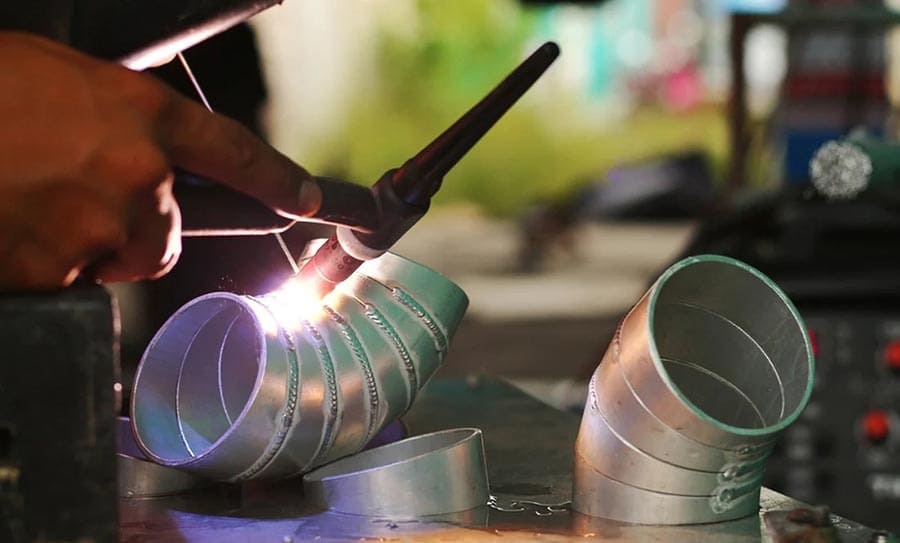

Controlling welding aluminum temperature is just as critical. Too much heat causes burn-through or weakens the joint. Too little heat prevents proper fusion. MIG and TIG techniques require careful adjustments to current, voltage, and travel speed — especially on thin-gauge sheets where the margin for error is razor-thin.

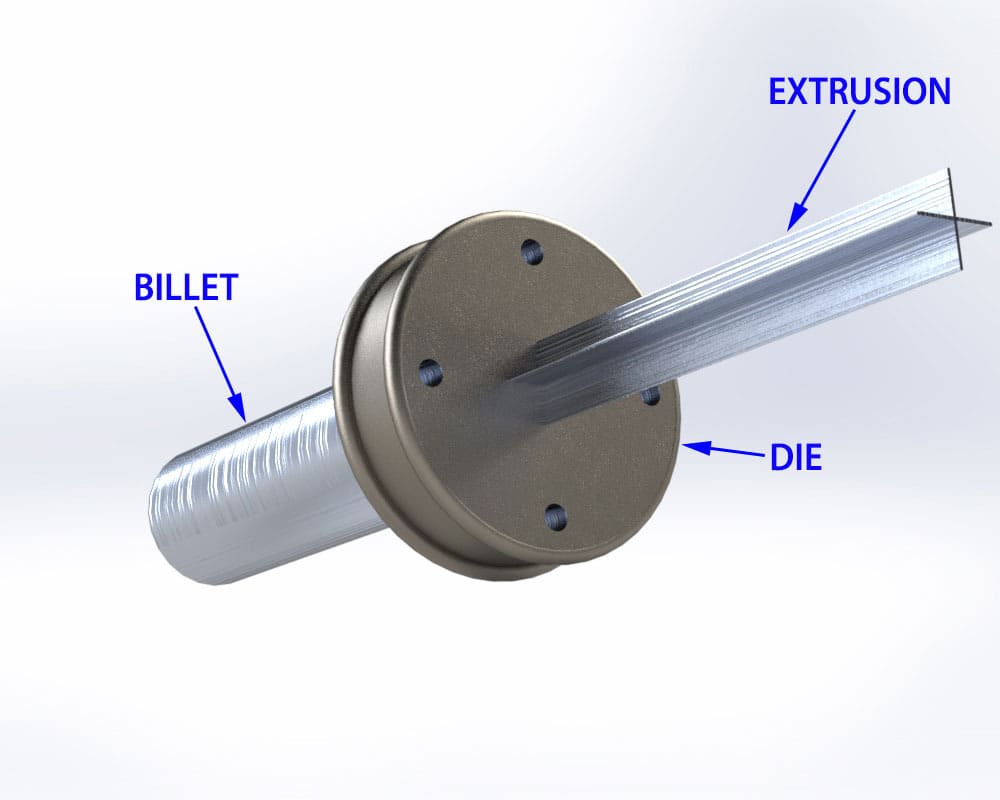

Extrusion process heat keeps the billet just below melting — typically between 400°C and 500°C for most alloys. This range allows plastic flow without liquefaction. Temperatures that creep too high cause die sticking, while temperatures too low create excessive resistance and poor surface finish.
Heat treatment aluminum processes like solution treatment and aging rely on precise thermal windows. A 6061-T6 temper, for example, requires heating to about 530°C — safely below its 580°C solidus — to achieve optimal strength properties.

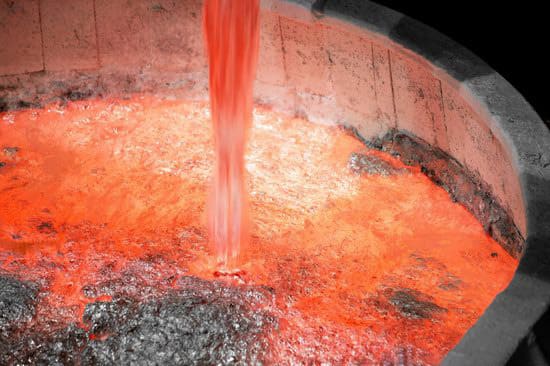

Aluminum recycling energy savings are remarkable. Remelting scrap uses roughly 95% less energy than primary smelting, making it one of the most efficient recycling processes for any engineering metal.
| Industrial Process | Typical Temperature Range | Key Challenge |
|---|---|---|
| Die Casting | 660–750°C | Minimizing porosity and ensuring mold fill |
| MIG/TIG Welding | 570–660°C (weld pool) | Preventing burn-through on thin sheets |
| Extrusion | 400–500°C | Avoiding die sticking and surface defects |
| Solution Heat Treatment | 460–530°C | Staying below solidus while dissolving precipitates |
| Scrap Recycling | 660–700°C | Contaminant removal and alloy sorting |
Comparing Aluminum to Other Engineering Metals
Choosing the right metal for your project starts with understanding how each material behaves under heat. A thorough metal comparison reveals that melting temperature drives equipment costs, energy use, and application range. Let’s break down how aluminum stacks up against steel, copper, and titanium.
Aluminum vs. Steel: 660°C vs. 1370–1540°C
The aluminum vs steel melting point gap is striking. Aluminum melts at just 660°C, while carbon steel requires 1,370–1,540°C. Stainless steel pushes even higher — around 1,510°C. This difference means you can process aluminum using propane-fired furnaces and graphite crucibles at a fraction of steel foundry costs. Die-casting aluminum uses 30–50% less energy than equivalent steel processes.
Aluminum suits applications below 400°C. Steel handles high-heat environments where aluminum would lose structural integrity.
Aluminum vs. Copper: Energy and Cost Implications
The copper melting temperature sits at 1,084°C — roughly 424°C above aluminum. That gap demands industrial-grade furnaces and specialized refractory linings. Brass falls between the two at about 930°C. For engineering materials selection, aluminum’s accessible temperature requirements open the door to hobbyist foundries and small workshops that copper simply can’t match.
Titanium and High-Temperature Alternatives

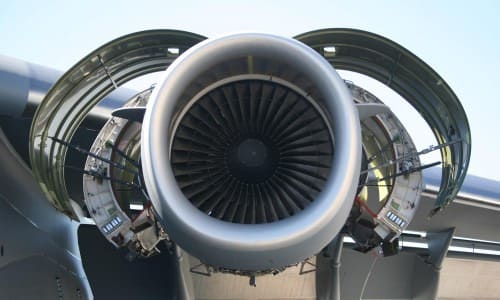

The titanium melting point reaches 1,670°C, making it ideal for aerospace parts exposed to extreme heat. Where aluminum’s thermal ceiling falls short, titanium delivers an exceptional strength-to-weight ratio under demanding conditions.
| Metal | Melting Point (°C) | Typical Furnace Type | Relative Energy Cost | Best Use Case |
|---|---|---|---|---|
| Aluminum | 660 | Propane / Electric | Low | Automotive, consumer goods |
| Brass | 930 | Gas-fired crucible | Moderate | Plumbing, decorative fittings |
| Copper | 1,084 | Industrial induction | High | Electrical, heat exchangers |
| Carbon Steel | 1,370–1,540 | Arc / induction furnace | High | Structural, heavy machinery |
| Stainless Steel | 1,510 | Electric arc furnace | High | Medical, food processing |
| Titanium | 1,670 | Vacuum arc remelting | Very High | Aerospace, military |
Understanding these thermal thresholds is essential before you move into safety considerations — the topic we cover next.
Critical Safety Considerations for Engineers
Working with aluminum near elevated temperatures demands careful attention to safety at every stage. Whether you’re designing structures, welding assemblies, or running a recycling line, understanding thermal limits can prevent catastrophic failures and protect lives.
Structural Integrity Near Melting Temperatures
Aluminum structural integrity degrades long before the metal reaches its 660°C melting point. At just 400°C, aluminum retains only about 50% of its room-temperature strength. Engineers must apply derating factors when designing components exposed to sustained heat. Ignoring this reality puts equipment and personnel at risk.
Fire Resistance and Building Code Requirements
Fire resistance aluminum ratings are a serious concern in construction. The International Building Code (IBC) restricts aluminum in load-bearing elements exposed to fire because structural collapse occurs well below the melting point. Steel maintains its integrity past 1,000°C — giving occupants far more evacuation time. You should always consult local fire codes before specifying aluminum in any fire-rated assembly.
Welding and Casting Temperature Margins
Tight welding safety margins make certain alloys extremely difficult to join. Alloy 7075, with a solidus temperature of just 475°C, is prone to hot cracking during fusion welding. Most fabricators avoid fusion welding it entirely, opting for mechanical fastening instead.
Casting temperature control is equally critical. Foundries typically superheat molten aluminum 50–100°C above the liquidus to ensure complete mold filling. Exceeding that window causes gas absorption and oxide defects.
| Process | Target Range (°C) | Key Risk |
|---|---|---|
| 7075 Solution Heat Treatment | 465–480 | Incipient melting above 480°C |
| 6061 Fusion Welding | 580–650 | Distortion and HAZ softening |
| General Casting Superheat | Liquidus + 50–100 | Gas porosity and oxide inclusions |
Recycling Process Energy Requirements
Aluminum recycling safety starts with proper preparation. Organic coatings and contaminants must be removed before melting to prevent toxic fume generation. The good news? Recycling uses roughly 95% less energy than primary smelting — making it both safer and far more sustainable when protocols are followed.
Conclusion
This aluminum melting point summary highlights one key fact — pure aluminum melts at a precise 660.32°C (1220.58°F). That single number serves as the baseline for every thermal decision you make with this metal. Once alloying elements enter the picture, that sharp point becomes a range. Alloy 6061 melts between 580–650°C, while 7075 stretches from 475–635°C. Knowing the solidus and liquidus temperatures for your specific alloy is essential for sound engineering material selection.
Safety cannot be overlooked. Aluminum loses structural strength well before it reaches its melting point, and fire resistance ratings in building codes reflect that limitation. Precise manufacturing temperature control protects both product quality and worker safety during heat treatment and joining operations. Leading producers like Shengxin Aluminum rely on deep thermal knowledge to deliver profiles that meet strict specifications across transportation, construction, and technology markets.
By mastering these principles, you position yourself to make better alloy choices, set tighter process windows, and design structures that perform reliably under thermal stress. The data covered in this guide gives you the foundation to approach every aluminum project with confidence and precision.
