When metal parts wear out quickly or struggle under heavy loads, the issue is often a surface that’s too soft to handle stress and friction. Case hardening solves this by strengthening the outer layer of metal while leaving the inner core durable and tough. In this blog post we’ll break down the main methods of case hardening, how they work and practical tips for consistent results.
What is Metal Case Hardening
Basically, case hardening is a heat treatment that strengthens metal surfaces while preserving a softer, ductile core. This process uses high temperatures to introduce nitrogen or carbon into the outer layer; this creates a wear resistant “case” that is typically 0.1 to 2.5 mm deep. This duality prevents brittle fractures in low‐carbon steel parts.
The Science behind Case Hardening
Metallurgical Fundamentals
Case hardening relies on transforming the surface microstructure while preserving the core’s ductility. By diffusing hardening agents like carbon into the surface layer, the lattice structure shifts from austenite to hard, needle‐like martensite upon quenching. This creates a wear‐resistant “case” that protects the softer, shock‐absorbing interior from cracking under impact.
Thermodynamics & Diffusion Basics
Atomic movement follows Fick’s Second Law and drives carbon or nitrogen from external high‐concentration sources into the metal lattice. Elevated temperatures substantially increase the diffusion coefficient which significantly accelerates atomic penetration. Controlling exposure time and heat precisely dictates the final effective case depth.
Materials Suitable for Case Hardening
Low‐carbon steels (under 0.3% C) like 1018 are best process candidates because they inherently lack sufficient carbon to harden. In contrast, high‐carbon steels are generally unsuitable candidates. They already possess enough carbon for uniform through‐hardening and become excessively brittle if surface treated.
At Richconn our engineers regularly help customers choose the right material—like 1018 or 8620—based on the needed case depth, machining requirements and target hardness.
Core Case Hardening Methods
Manufacturers use several distinct methods to achieve particular surface properties. It ranges from deep diffusion techniques to low‐temperature treatments.
Carburizing
Carburizing diffuses carbon into low‐carbon steel surfaces at high temperatures between 850°C and 950°C. This process utilizes gas, liquid (salt bath) or solid (pack) carbon sources to achieve significant case depths, often reaching 2 mm or more.
It produces extraordinary wear resistance after quenching. However the intense heat sometimes leads to distortion, so additional machining may be necessary afterward.
Nitriding
This process introduces nitrogen into the steel surface at much lower temperatures, normally 500°C to 550°C, while the material remains ferritic. Because no phase transformation or subsequent quenching is needed, nitriding produces minimal distortion. This makes it ideal for precision gears and complex shapes.
This resulting case is hard and corrosion‐resistant but relatively shallow (under 0.5 mm) as compared to carburizing.
At RICHCONN we often combine nitriding with suitable surface‐finishing steps for intricate parts. It helps improve corrosion resistance while keeping distortion to a minimum.

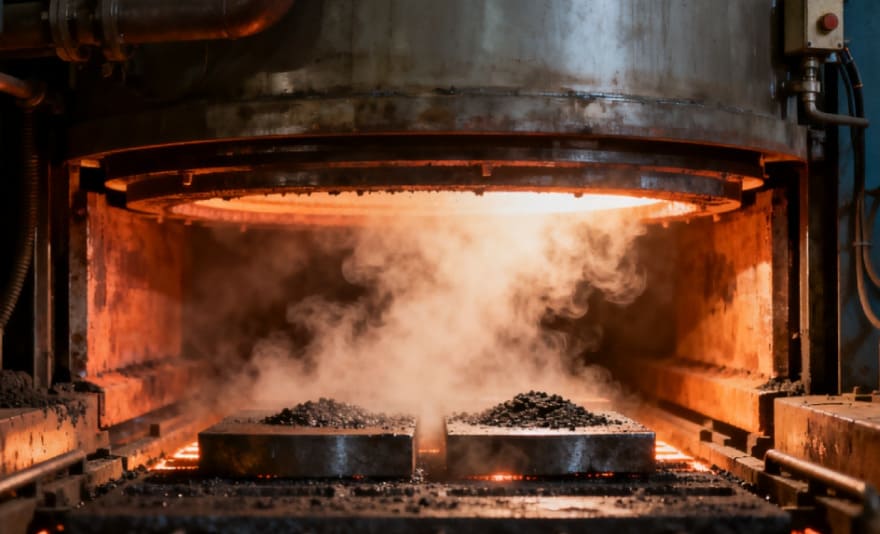

Carbonitriding
Carbonitriding is a hybrid method that diffuses both nitrogen and carbon simultaneously at approximately 850°C, slightly lower than standard carburizing
The added nitrogen stabilizes austenite which allows for milder quenching rates (like oil) that reduce distortion risks while still hardening plain carbon steels. This technique is particularly effective for mass‐producing small, stamped parts where a thinner, consistent case (0.07 to 0.75 mm) is needed.

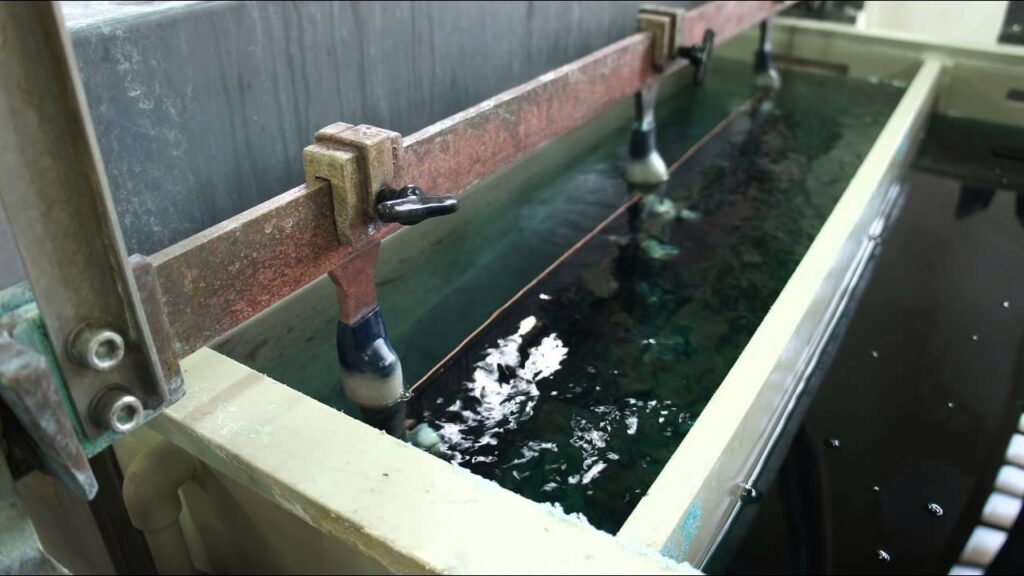

Cyaniding & Alternatives
Cyaniding rapidly diffuses nitrogen and carbon into steel by immersing parts in liquid sodium cyanide baths at 760 to 870°C. This method offers faster processing times (0.5 to 6 hours) than gas carburizing and this makes it efficient for small components like screws.
However, highly toxic cyanide salts pose severe safety risks and need costly waste disposal. Safer alternatives like ferritic nitrocarburizing (FNC) now largely replace traditional cyaniding to meet strict environmental standards.
Flame & Induction Hardening
These thermal methods harden surfaces rapidly without altering chemical composition. Flame hardening uses oxy‐acetylene torches to heat specific areas, followed immediately by quenching. This method is best for large gears or shafts.

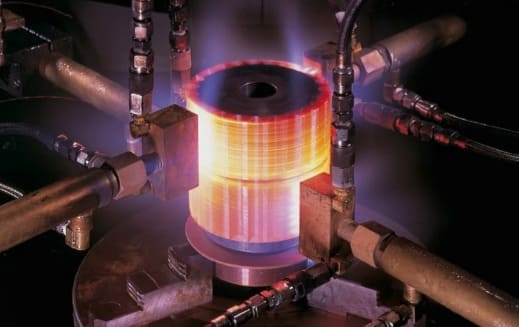

Induction hardening, on the other hand, uses electromagnetic fields and copper coils to heat parts in seconds. This offers precise depth control (up to 8 mm). Both techniques preserve the core’s ductility while hardening the critical wear zones only.
Modern & Specialized Techniques (Optional)
Advanced methods now offer superior precision and performance enhancement. Laser shock peening (LSP) uses high‐energy pulses to create deep compressive stresses. This significantly improves fatigue life beyond conventional shot peening.
Another key technique, QPQ (Quench‐Polish‐Quench), involves salt bath nitrocarburizing followed by polishing and re‐oxidizing. This process creates a sleek black magnetite finish that reduces friction and boosts corrosion resistance and often outperforms hard chrome plating.
Step‐by‐Step Case Hardening Workflow
Case hardening involves a precisely controlled sequence that transforms a soft surface into a durable shell.
Preparation & Cleaning
Thorough cleaning is critical; operators must remove all oils, oxides and scale to prevent uneven hardening. Contaminants like fingerprints can block carbon diffusion which then causes soft spots or flaking. Moreover some processes also need surface roughening to increase the effective surface area for better atomic absorption.
Carburization/ Diffusion Stage
The clean parts enter a furnace heated at 850°C to 950°C where a carbon‐rich atmosphere surrounds them. Operators strictly control gas flow and time to dictate how deep carbon atoms diffuse into the steel lattice. For nitrogen‐based processes, ammonia is introduced at lower temperatures (500 to 600°C) to form the hard case.
Quenching
Immediately after diffusion, parts undergo rapid cooling to lock in the hard martensitic structure. Oil quenching is common for minimizing distortion in alloy steels while water provides aggressive cooling for maximum hardness. Air or gas quenching offers the slowest rate which reduces thermal shock for complicated components.
Tempering
Quenched parts are often too brittle; therefore they are reheated to between 160°C and 400°C. This vital step relieves internal stresses and restores ductility without significantly sacrificing the newly acquired surface hardness.
Inspection & Testing
Quality control verifies success using microhardness testers to plot hardness profiles from surface to core. Technicians measure the “effective case depth”—the distance to a specific hardness level—and examine microstructures to assure a proper martensitic transformation.
At Richconn we record detailed hardness profiles and micrographs for each batch. This lets you trace every part back to its exact case hardening parameters whenever needed.
Benefits of Metal Case Hardening
Case hardening delivers multiple performance advantages that extend component service life across demanding industrial applications.
Increased Wear Resistance
Primary advantage is a dramatically harder surface that resists abrasion, galling and seizure during metal‐to‐metal contact. By increasing surface hardness—often exceeding 60 HRC—components like bearings and gears can withstand constant friction without rapidly losing material or dimension.
Tough Core Prevents Failure
Unlike through‐hardened parts that are brittle throughout, case‐hardened components retain a soft, ductile core that absorbs shock loads. This dual structure ensures that sudden impacts or high‐pressure spikes deform the material slightly rather than causing catastrophic shattering or snapping.
Cost‐Efficiency
Case hardening lets manufacturers use inexpensive low‐carbon steels (like 1018 or 8620) instead of costly high‐alloy tool steels. Additionally, because only the surface requires transformation, the process often consumes less energy and processing time than through‐hardening thick cross‐sections.
Extended Fatigue Life
The process introduces beneficial compressive residual stresses into the surface layer which actively oppose the initiation of cracks. This significantly improves the component’s ability to endure millions of cyclic load repetitions without failing from fatigue.
Uses & Industrial Applications
Automotive Sector
This process is critical for camshafts, crankshafts as well as transmission gears as they face constant friction. Manufacturers typically use carburizing to achieve surface hardness around 62 HRC. This hard shell prevents premature wear while the tough core handles heavy torque loads without snapping.
Aerospace & Heavy Machinery
In aviation, safety‐critical parts like landing gear bushings and actuator shafts are case hardened to assure they survive extreme impact loads during takeoff and landing. Similarly, heavy machinery relies on hardened wear parts and fasteners to resist abrasive environments in mining and construction without snapping under pressure.
Tools & Consumer Hardware
Manufacturers also use case hardening for everyday hardware. High‐strength bolts, screws as well as coupling parts are case hardened to prevent thread stripping during assembly. Cutting tools and shear blades also benefit from it to maintain sharp, wear‐resistant edges while retaining enough flexibility to avoid shattering during use.
Tips to Achieve Optimal Case Hardening Results
Achieving superior durability requires balancing material selection with precise process controls to minimize defects.
Choosing the Right Method
Select a technique based on steel grade, part geometry and needed depth. Carburizing works best for heavy‐duty gears that need deep cases (over 1mm); while nitriding is superior for precision parts where minimizing distortion is critical.
Controlling Case Depth & Hardness
Regulate furnace time and temperature precisely to define the effective case depth. Industry standards often define this depth as the distance from the surface to where hardness drops to 50 HRC. Aim for surface carbon levels around 0.8% to assure optimal hardness without excessive brittleness.
Avoiding Distortion & Cracks
Minimizing thermal shock is essential. Use slower quench media like polymer or oil instead of water for complicated shapes and ensure fixtures support thin parts evenly during heating. Immediate tempering after quenching is crucial to relieve internal stresses before cracks can initiate.
Safety & Environmental Tips
When using cyanide salts, strictly maintain pH levels to prevent deadly hydrogen cyanide gas formation and ensure ventilation systems are fully operational. Always wear appropriate PPE, including neoprene gloves, and keep antidote kits accessible in the facility.
Maintenance & After‐Treatment
After case hardening, use grinding to correct any minor size changes that result from thermal expansion. Apply protective oxide coatings if the hardened surface will face corrosive environments during operation. Additionally, clean regularly to prevent debris buildup that could accelerate wear on the new surface.
Conclusion
Case hardening transforms low‐carbon steels into high‐performance components with wear‐resistant surfaces up to 62 HRC and tough cores. This balance extends part life in demanding applications while cutting costs versus through‐hardening.
If you need carburizing and precision CNC machining services tailored to your manufacturing needs, then Richconn is your best option. You can contact us anytime.
Frequently Asked Questions
Case hardening hardens only the surface layer for wear resistance while keeping a tough core; through hardening makes the entire part hard and strong uniformly.
The case hardening layer’s depth is normally between 0.1 mm and 2.5 mm. It depends on the part’s use and the needed strength.
Low‐carbon steels like C1018 and 8620 respond best to case hardening as they let the surface harden while the core stays ductile.
Yes. Some methods like nitriding do not need quenching; but most case hardening processes do use quenching to achieve final hardness.
Case hardening creates a hard surface that resists cracks while the soft core absorbs shocks and vibrations. This helps parts last longer under repeated loads.
Yes. Precise atmosphere control prevents oxidation, ensures carbon diffusion and avoids defects in carburizing or nitriding.
