Have you ever noticed a bolt suddenly lock up during tightening, refusing to move no matter how much force you apply? This frustrating situation is normally called metal galling—a type of cold‐welding failure that can cost manufacturers thousands. In this blog post we will reveal why this happens and more importantly, how you can prevent it.
What is Metal Galling

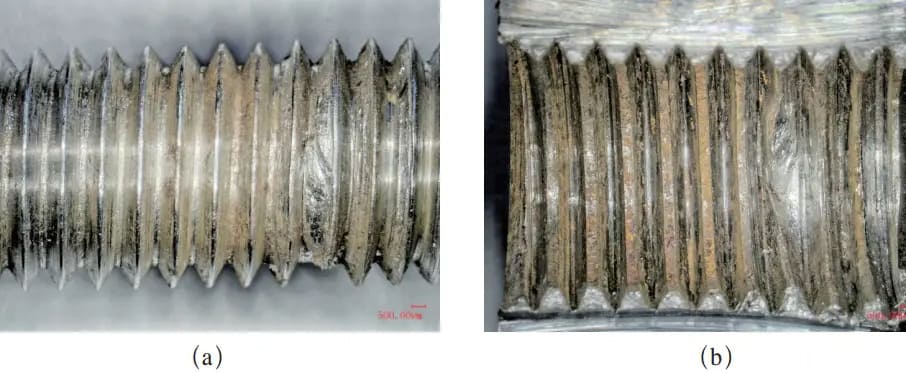

Metal galling is a form of adhesive wear that occurs when two metal surfaces slide against each other under pressure. During this process, microscopic high points stick together and material transfers from one surface to the other. This results in raised lumps and surface damage and can ultimately cause parts to seize or cold weld.
Mechanics & How Galling Occurs
Basic Mechanism
Galling begins when high contact pressure and sliding motion break the passive oxide layer that normally protects metals. This pressure concentrates on microscopic surface peaks (asperities). Once the protective layer disappears, bare metal becomes exposed. This lets atomic bonding occur between the two surfaces.
How Galling Happens
When oxide layers fail, galling accelerates quickly. Many key factors push this destructive cycle forward:
Role of Adhesion + Friction + Plastic Deformation
Friction generates heat that forces microscopic asperities to weld together. As movement continues, these welded points break apart. This causes plastic deformation and forms rough protrusions that lead to seizure.
Effect of Material Properties
Metals with high ductility or particular crystal structures are more susceptible. Austenitic stainless steels (such as 304/ 316), aluminum and titanium are particularly prone because they work-harden quickly and their oxide layers shear easily.
Stress, Load & Surface Contact Conditions
Higher contact pressure forces the surfaces closer together. This increases the chances of atomic bonding. Even slow but high load sliding—common during bolt tightening—can generate enough stress to break surface protection and initiate galling.
Environmental & Contextual Factors
External conditions significantly increase the galling risk. Poor lubrication, high operating temperatures or debris on the surface can quickly break protective layers. This makes adhesion inevitable.
Common Situations & Examples of Galling
Galling occurs across different industrial environments. Understanding where it can appear helps engineers design better systems and processes.
1. Threaded Fasteners

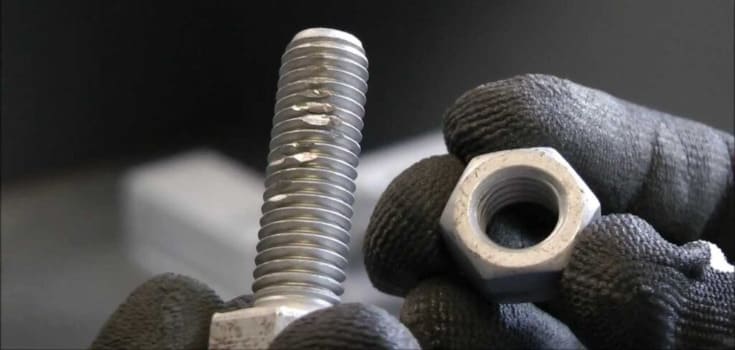

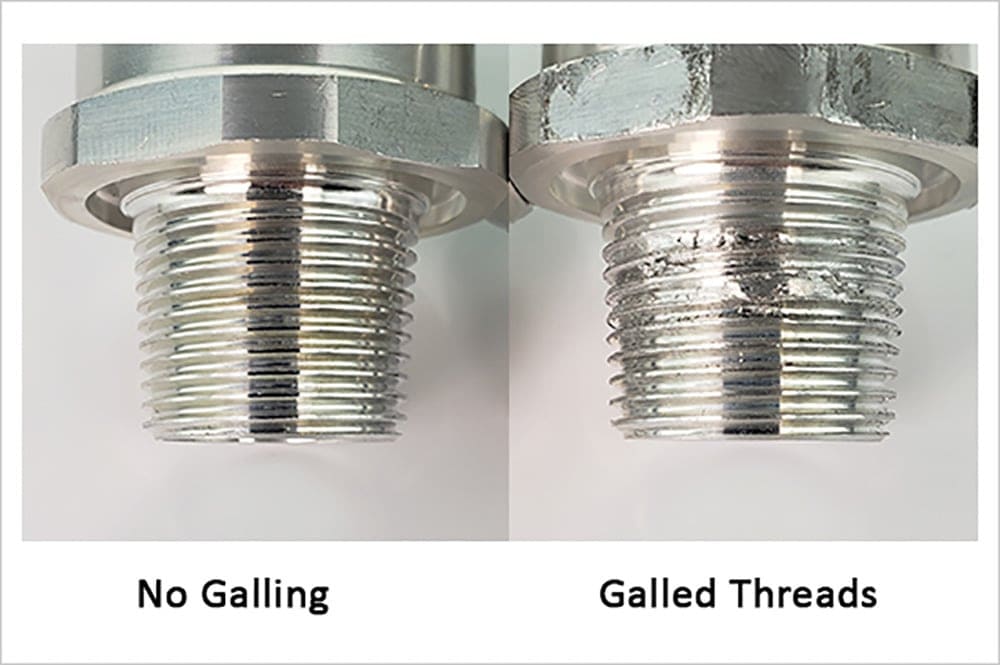

Aluminum, titanium and stainless steel fasteners are the most affected. When you tighten a stainless bolt into a matching nut, excessive friction removes the oxide layer. This causes the threads to “cold weld” instantly. This locks the fastener so tightly that it often breaks during removal.
2. Bearings, Pistons & Sliding Contacts

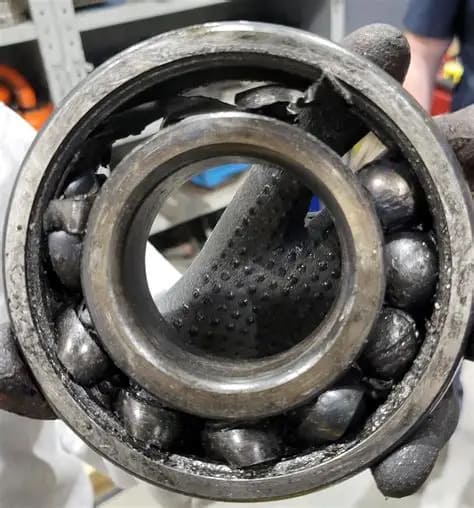

Galling also affects parts with sliding contacts, such as engine pistons, bearings as well as hydraulic components. When these parts move under heavy load, material can tear away from their surfaces which reduces performance and eventually causes seizure.
3. Metal Forming

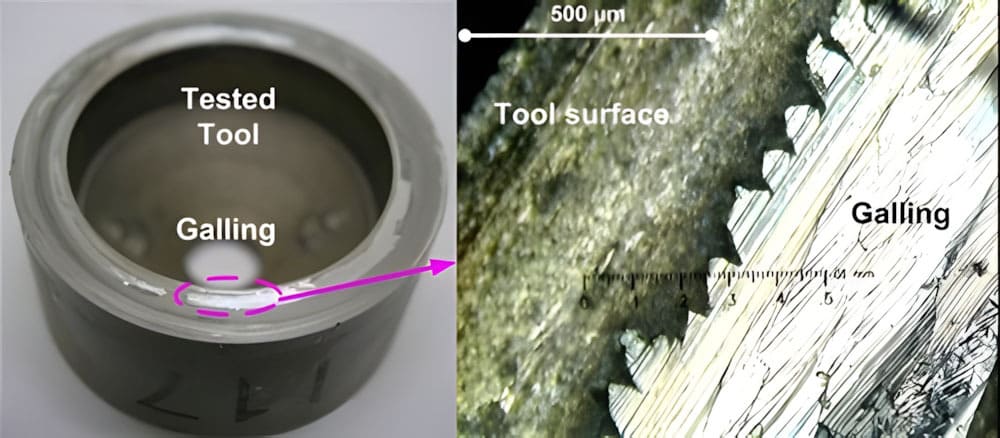

In metal forming operations, galling is a major issue. It occurs at the interface between the tool and the workpiece, especially during extrusion or stamping. Material from the workpiece sticks to the tool which then ruins the surface finish of the part and causes the tool to fail prematurely.
4. High Temperature or Cyclic Applications
In high‐temperature environments, the risk of galling increases significantly. Heat weakens protective oxide layers and this increases adhesion. Cyclic loads caused by vibration generate fretting wear which exposes fresh reactive metal that can lead to seizure in critical applications.
Causes & Risk Factors
Galling rarely occurs because of a single issue. It typically results from a combination of different material properties. Understanding these particular triggers is the first step toward preventing failure.
Material Related Factors
Soft and ductile metals are the most responsible. Materials like aluminum and austenitic stainless steel are naturally “sticky”—they deform easily under pressure instead of sliding. Using identical metals, such as pairing a stainless nut with a stainless bolt, doubles the risk because their atomic structures bond very quickly.
Surface Condition & Finish
Both extremely rough and overly smooth surfaces can cause problems. Rough finishes create friction points that tear apart while very smooth surfaces increase the contact area. This makes adhesion more likely. Moreover defects such as burrs or damaged threads create localized pressure spikes that also trigger seizing.
This is why, at RICHCONN, we prioritize precision deburring and controlled surface roughness (Ra) on every part—to remove the microscopic imperfections that often initiate galling.
Contact Pressure & Load
High contact pressure directly leads to galling. Overtightening bolts or placing heavy loads on sliding parts can push stress above 200 MPa. This intense pressure breaks the protective oxide layer that brings raw metal into direct contact and causes it to weld.
Lack or Failure of Lubrication/ Coating
Lubricants provide a crucial barrier that keeps sliding surfaces separated. When this film fails—because of misuse, evaporation or excessive heat—bare metal comes into direct contact with bare metal. Without anti-seize compounds, friction doesn’t decrease and under load galling begins almost immediately.
Environmental & Operational Conditions
Even with the right materials, the operating environment matters as well. High temperatures expand metals, increase joint pressure and break protective films. Contaminants like dirt or metal chips create abrasive friction that quickly triggers galling in sliding systems.
Consequences & Risks of Galling
Once galling begins, the damage escalates quickly and leads to serious operational issues.
1. Seized or Welded Fasteners

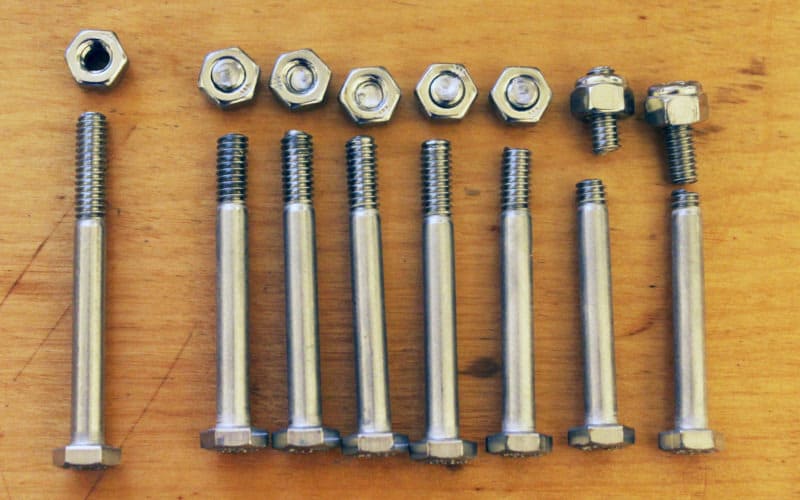

Galling often results in “cold welding,” where the mating surfaces fuse completely under pressure. Once a fastener seizes, it becomes permanently locked and cannot be loosened. Maintenance teams often have to use destructive methods such as cutting, drilling or torching to remove these fused parts.
2. Component Damage

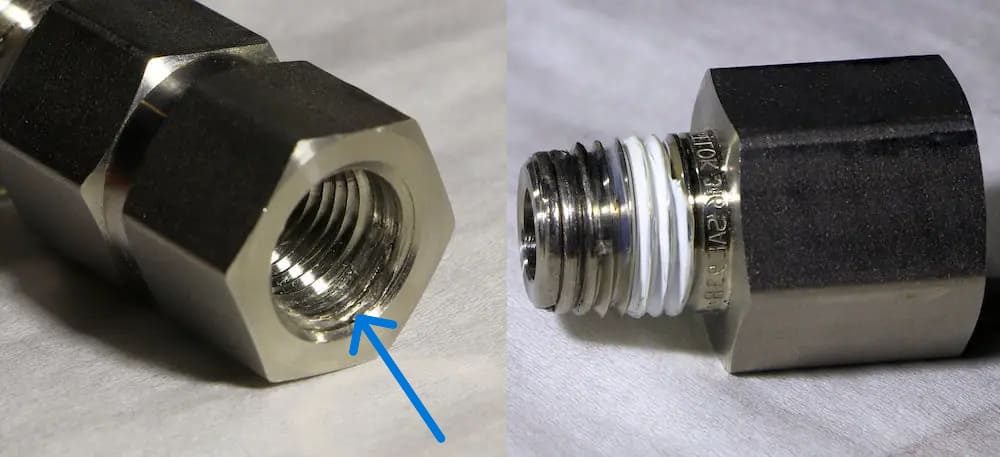

Beyond fasteners, galling also destroys critical mating surfaces. It strips threads, damages expensive machined holes as well as ruins metal forming tools. This damage affects fit and sealing. This often forces entire complicated assemblies to be scrapped rather than simply replacing one bolt.
3. Production Downtime, Maintenance Costs, Safety Hazards
Galling leads to costly and unexpected downtime. The expense of cutting seized bolts or replacing damaged machinery adds up quickly. A sudden failure inside a moving assembly also creates serious safety hazards for operators and the integrity of the equipment.
4. Reduced Service Life of Components
Even minor galling produces rough spots that increase friction and accelerate wear. This damage creates stress concentrations that reduce a part’s fatigue life. It causes premature failure in dynamic applications such as bearings or hydraulic fittings.
Prevention Strategies & Best Practices
Preventing galling needs a structured approach, spanning design, materials, surface treatment and assembly. Following strategies can be used together to reduce galling risk.
Material Selection & Design Considerations
Choose materials with differing hardness levels to reduce the risk of adhesion. A common guideline is to maintain at least a 50 Brinell hardness difference between mating components. This prevents both parts from work-hardening at the same rate. You can also use dissimilar alloys, such as pairing 304 stainless bolts with harder 400 series nuts, to further reduce atomic compatibility.
If you’re unsure which material pair suits your load requirements, our engineering team can help simulate and select the right alloys during the prototyping stage.
Surface Preparation & Finish
The condition of metal surfaces also has a major role. Always use properly finished and deburred threads to eliminate local pressure spikes where galling typically begins. Additionally keeping the surfaces clean is equally important; as dirt, dust or metal shavings can contaminate lubricants or create abrasion that destroys protective oxide layers and initiates galling.
Lubrication & Coatings

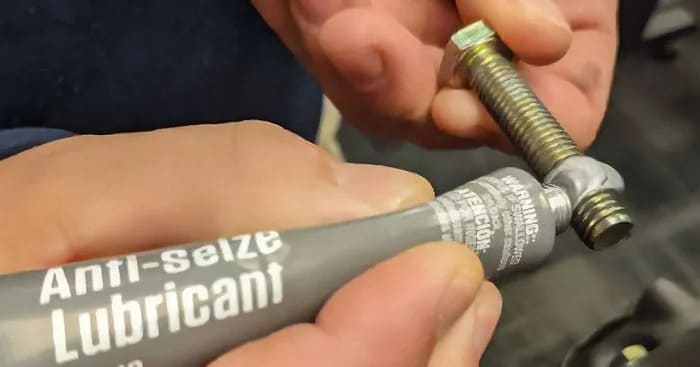

Lubricants are the primary defense against adhesion. For high load applications, use anti‐seize compounds containing molybdenum disulfide (“moly”), as they perform better than nickel‐based pastes.
For tight tolerances where pastes may be too thick, apply dry film lubricants such as tungsten disulfide (Dicronite) or PTFE. Ensure the lubricant fills the entire thread valley so it can fully distribute during tightening.
Proper Assembly Practices
Installation speed directly affects friction and heat. Always tighten stainless steel fasteners slowly and avoid the use of impact wrenches that generate rapid heat spikes. Instead use a calibrated torque wrench to prevent over tightening, as over tightening can damage the threads. For large diameter critical bolts, use hydraulic tensioning instead of torque; it pulls the bolt axially without the twisting friction that leads to galling.
Design & Process Controls in Metal Forming Applications
In metal forming, strong process control is the best prevention strategy. Improve the tool–workpiece interface by using hardened and coated tool steels and by maintaining proper die clearances to reduce friction.
Carefully control temperature and apply suitable lubricants. Use process monitoring to detect rising force or torque. This signals the onset of galling and allows early intervention before tools are damaged.
Conclusion
Understanding metal galling is very important to prevent sudden fastener failure, surface damage and costly downtime in critical applications. By using the right material pairings, proper assembly techniques and regular inspections you can significantly reduce the risk of galling. To get expert guidance on designing galling‐resistant metal parts, contact Richconn’s expert engineering team today.
Related Questions
No. Rust and corrosion are chemical processes caused by oxidation. Galling is a physical adhesive wear phenomenon that occurs on sliding surfaces under pressure because of friction and cold‐welding.
Some metals—like aluminum, titanium and austenitic stainless steel— are naturally ductile. As a result their oxide layers break easily and their internal crystal structure allows atoms to bond (cold‐weld) quickly under load.
No. Although common in fasteners, galling can affect any metal system with sliding contact under load, including bearings, pistons, hydraulic cylinders and metal forming tools (dies and punches).
Yes. Galling can occur immediately during the first installation if tightening speed is too high, lubrication is absent or the threads have minor defects.
Yes. Stainless steel is actually more prone than regular steel. Its passive oxide layer is thinner and breaks easily under load while the soft underlying metal bonds quickly.
Not always, but it is the most effective preventative measure. In extreme heat or vacuum environments where liquid lubricants fail, specialized dry‐film coatings or plating are needed.
Yes. By using gall‐resistant alloys (such as Nitronic 60), applying dry‐film lubricants and controlling surface roughness, galling can be prevented.
