Micro CNC Machining: Techniques, Application and Advantages

Micro CNC machining has become such an important procedure for making small, fine and highly-accurate parts. It provides strict tolerance, improved surface finish and flexibility for different materials. In this blog post we will cover the process and techniques of micro CNC machining with their wide ranging applications in industries such as aerospace and automotive.

What is Micro CNC Machining?

It is a manufacturing process in which computer numerically controlled machines produce parts with microscale features. This method is carried out with special equipment and tools that are specifically designed for manufacturing of parts that are as tiny as 1 μm in size.

How does Micro Machining Work?

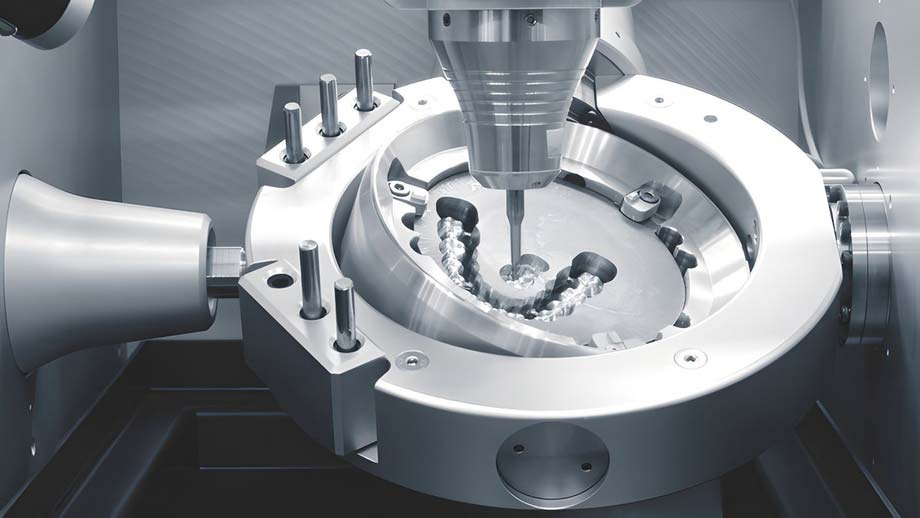

The first step of the process is to create a fully detailed CAD model. Then special CAM software changes this design into understandable instructions (G-code) for the CNC machine. The machine will then execute these instructions using precise spindles and very small cutting tools. The setup also has latest feedback and sub micron positioning mechanisms that involve laser sensors to regulate and supervise the process in real-time. The process is capable of producing complicated features with close tolerances in a broad range of materials such as ceramics, metal and plastics.

Materials Suitable for Micro CNC Machining

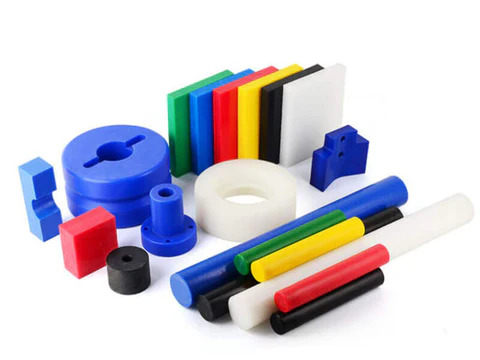

Plastics

A few plastics like POM, nylon and PEEK, are good for micro CNC machining processes. At temperatures up to 260°C, PEEK is chemically resistant and very strong. As for POM, it has low friction properties and is very good at preserving its shape.

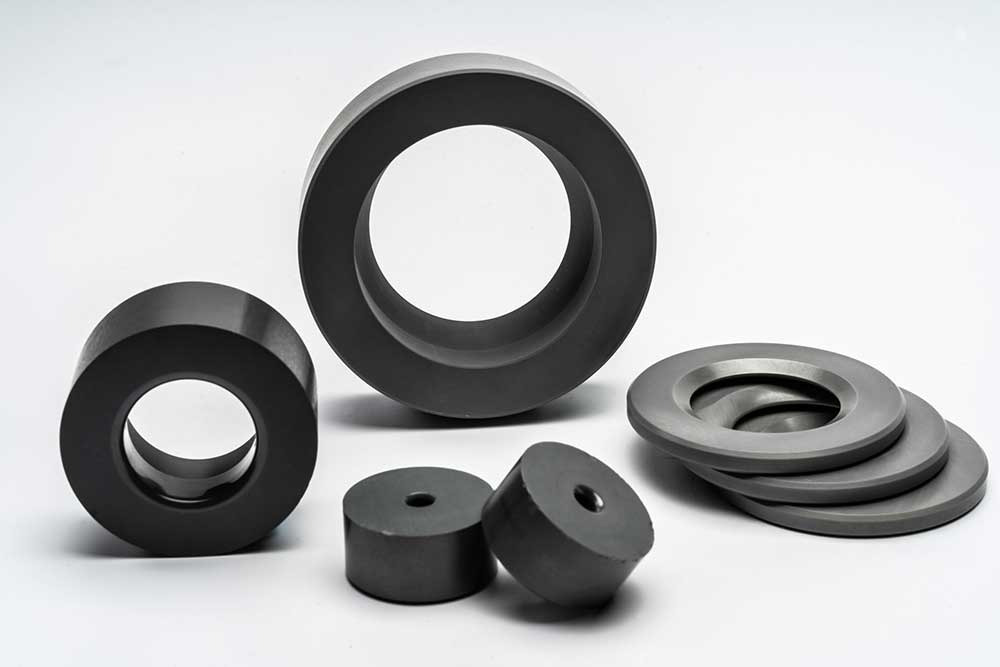

Ceramics

The ceramic materials used in micro CNC machining are zirconia and silicon carbide. Zirconia is well known for possessing outstanding toughness and strength. Silicon carbide has good thermal conductivity. Nonetheless, ceramics are very brittle. So special techniques and tools are needed to gain the desired precision when machining them.

Metals and Alloys

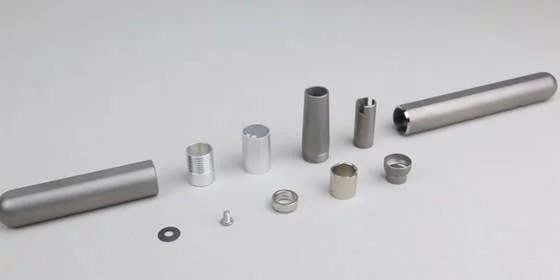

Primary micro CNC machining material choices are titanium, aluminum and stainless steel. For instance, stainless steel has excellent corrosion resistance. It makes it good for parts operating in harsh environments. Titanium is biocompatible and lightweight in nature. In many industries, aluminum is a go-to option because of its easy machinability.

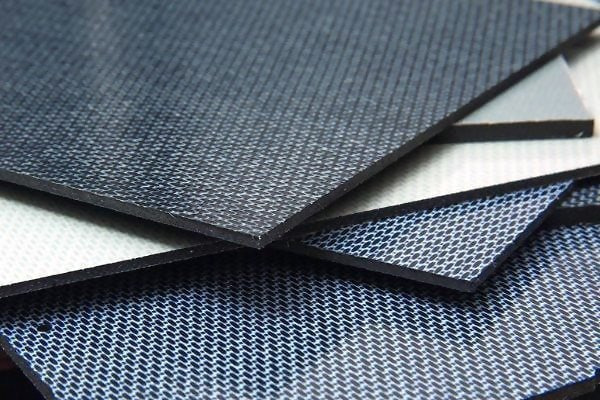

Composites

CFRP, GFRP and CMC are advanced composites suitable for micro CNC machining. Carbon fiber reinforced polymer (CFRP) gives high strength to weight ratio for aerospace parts. Glass fiber reinforced polymer (GFRP) is an excellent electrical insulator used in precision electronics. In addition to that, ceramic matrix composites (CMC) are capable of withstanding extreme temperatures in turbine blades.

Techniques of Micro CNC Machining

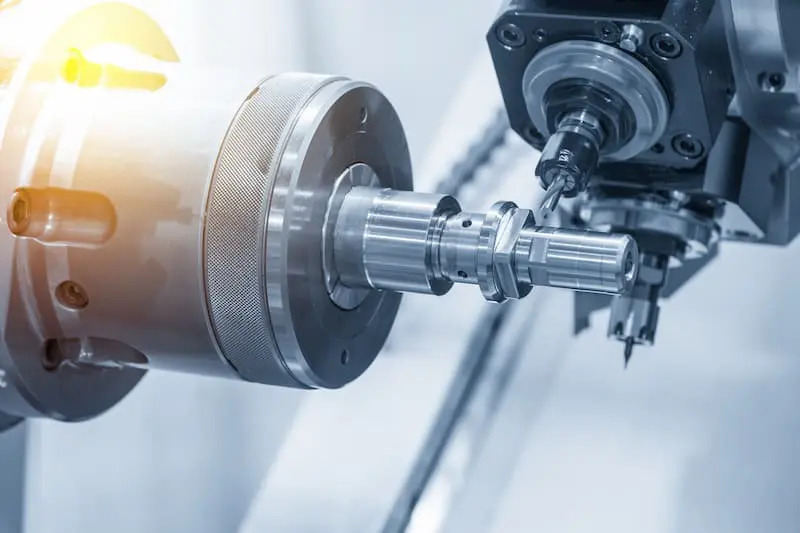

Micro CNC Turning

Micro CNC turning is sometimes referred to as micro lathe machining. In this process the workpiece spins and at the same time cutting tool cuts material to shape the part into rotational or cylindrical shapes. This approach makes accurate miniature parts, such as pins, tubes and small shafts with rigid tolerances.

Micro CNC Drilling

In different materials micro CNC drilling is used to drill tiny and precise holes. This is done with high-speed spindles which can rotate up to 160,000 RPM as well as tiny drill bits. It can achieve tolerances of ±1, which is the most important factor for making medical devices, microfluidic channels and circuit boards.

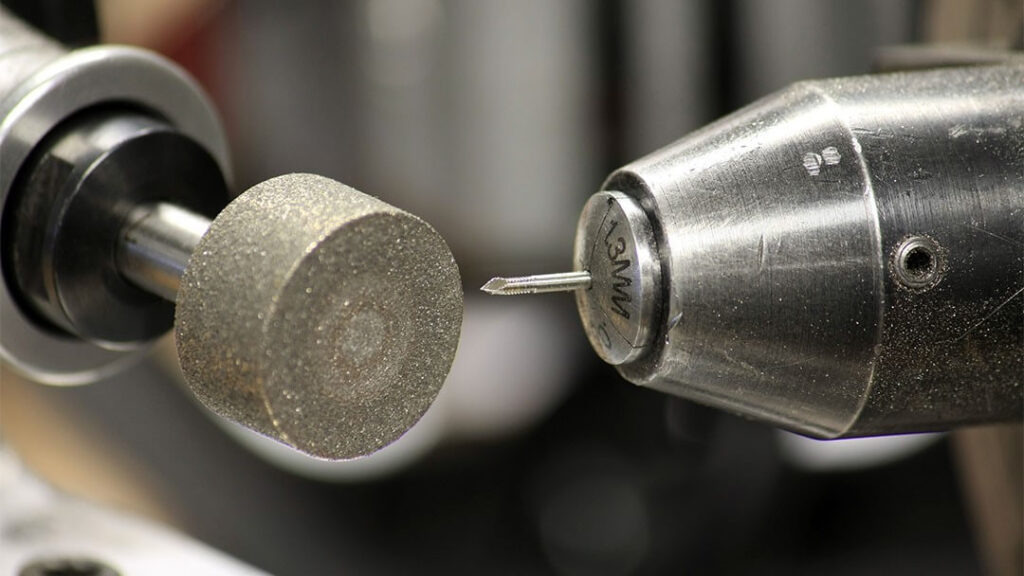

Micro CNC Grinding

Micro CNC grinding involves removing super thin layer of metal by utilizing very fine abrasive particles to achieve ultra precision surface finishes on ultra small parts. However, this technique works very well for hard to machine materials such as glasses and ceramics. It can produce optical parts and micro lenses of surface roughness as low as 0.01 μm Ra.

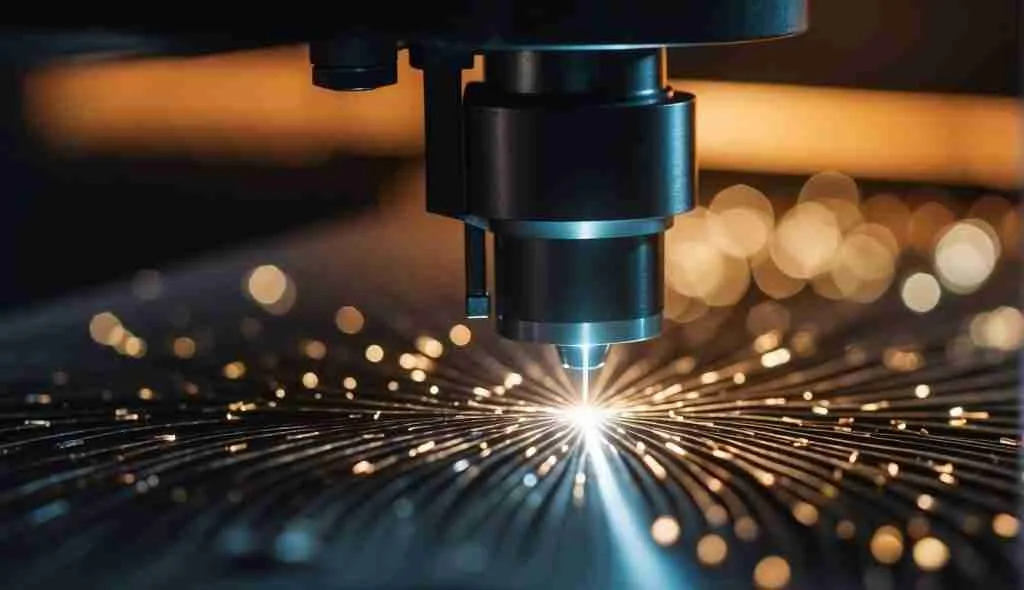

Micro CNC Laser Machining

In micro CNC laser machining a focused laser-beam is directed to cut, etch or engrave very fine features onto the material surface. A CNC system controls this laser and makes very fine adjustments to get micron level precision. This technology is regularly used to create detailed designs particularly those that require fine patterns, cuts and holes.

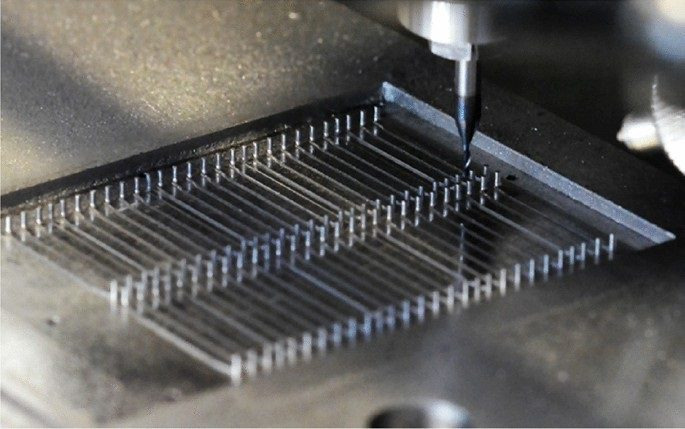

Micro CNC Milling

Micro CNC milling is a machining procedure by which intricate features and shapes are made on small components. It is done by using cutter or end mill which spins around the workpiece to remove material in small quantities. This method is most effective in making microfluidic devices, miniature electronic parts and complicated micro-molds.

Advantages of Micro CNC Machining

• It is an exceptional precision process with tolerances of ±1 micron. Unlike manual machining processes, the parts produced through this method keep the consistency in quality throughout the production run.
• Micro CNC machining is capable of processing all kinds of materials such as metal, plastics, ceramics and composites. It can work with materials that are relatively soft, such as silicon for semi conductors as well as titanium which is used for medical implants.
• Automation in micro CNC machining improves proficiency as the process requires no human intervention and can be run constantly, 24/7. It decreases labor costs and errors, and increases output.
• Micro CNC machining’s optimal tool paths and precision cutting decrease the amount of material waste. This efficiency also lowers raw material costs and removes the expensive tooling requirement.
• The process is able to machine complex geometrical shapes that are too complex for traditional machining methods. Besides that, engineers can now make small scale parts with smooth curved surfaces, detailed 3D contours and undercuts.

Applications of Micro CNC Machining

Aerospace Industry

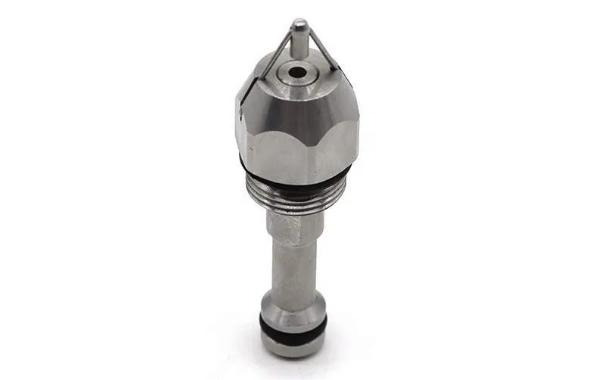

Micro CNC machining is used by aerospace manufacturers for critical flight components. The process makes fuel nozzles and turbine blades, as well as navigation systems. Now these accurately machined parts help decrease fuel consumption, and improve aircraft performance.

Photonics Industry

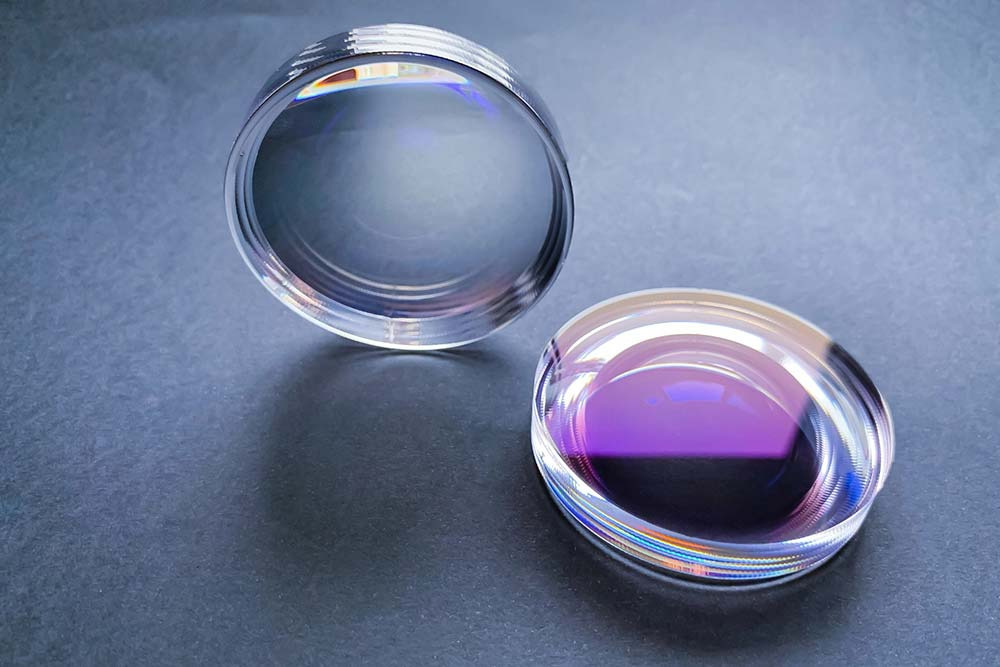

Micro CNC machining is very good at making optical components in the photonics sector. It produces mirrors, waveguides and lenses with submicron tolerances. These components are then used for different applications in imaging setups, lasers and fiber optics.

Electronics Industry

Most modern electronics rely on micro CNC machining. It makes high precision parts like connectors, sensors, PCB components and microfluidic channels. So these parts must meet strict micrometer accuracy requirements.

Medical Industry

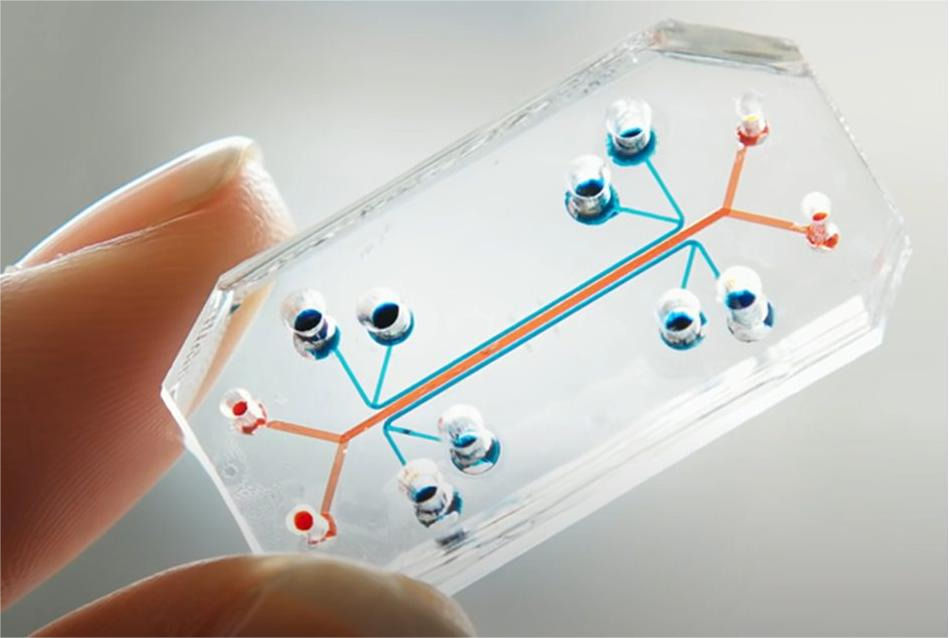

In the medical industry micro CNC machining is used to make very accurate microfluidic devices, implants, biosensors, prosthetics and surgical instruments. Its ability to work with biocompatible material (titanium, PEEK) and to achieve high accuracy makes it ideal for the creation of intricate, patient specific designs.

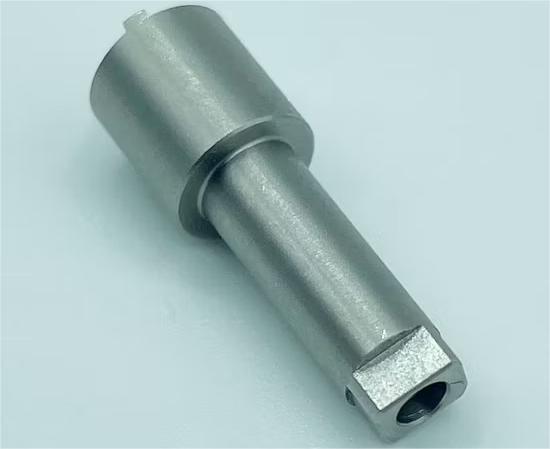

Automotive Industry

Micro CNC machining is essential to the manufacture of critical vehicle components. It generates sensors, valve parts and fuel injectors with close tolerances. These parts are important for reliable performance in both vehicle engine operations, and in vehicle electronic systems — which are essential to vehicle proficiency and safety.

Important Considerations for Effective Micro CNC Machining

Maintenance and Tool Selection

Micro CNC machining is much more effective with right tools. So you must pick up tools that are meant to operate in fine detail work, such as diamond or carbide, coated with TiAlN or DLC. The tools must be regularly serviced because the damaged tools can impact your cuts and shorten the life of your equipment.

Quality Control Measures

You can use real time feedback setups such as laser interferometer and even precision measuring tools to regularly monitor the machining process. By doing these checks you can catch any deviations early, and make adjustments. This way, you can maintain a certain level of performance and avoid defects.

Accuracy and Precision

Precision and accuracy are highly important in micro CNC machining to get high quality results. You should check that the CNC system is set correctly and that the tools used can keep very strict ± 0.0254 mm tolerances. That way you can make parts with precise sizes.

Thermal Management

Thermal management is another important part of micro CNC machining. If you machine materials at the microscale, then your cutting process will produce heat that can warp your parts or make them less accurate. You can control this only if you use methods like minimum quality lubrication (MQL) or more sophisticated cooling systems that dissipate the heat.

Material Choice

Another most important factor is the machinability of materials and their response to the cutting tools. For example, ceramics and metals may need special methods and tools because of their hardness. On the opposite, softer materials like plastics are easily machined but they may result in unwanted deformation.

To Sum Up

How we make tiny, precise parts has been changed by micro CNC machining. Now manufacturers can make very fine microscale parts with great deal of detail. This technique will further open up new possibilities for making complicated small scale products as technology improves.

If you need any kind of micro CNC machining services -milling, turning, grinding, etc- then RICHCONN is your best option. You can contact us any time.

Related Questions

How does micro CNC machining differ from traditional CNC machining？

The main difference between them is in precision and scale. Micro CNC machining operates at extremely small feature sizes—down to 1 μm. So this level of detail requires more precise controls and special tools than standard CNC machines.

Can micro CNC machines handle complex 3D geometries？

Yes modern micro CNC machines work with advanced CAM/CAD software and multiple axes to make detailed 3D shapes. This capability is critical for manufacturing of complicated microfluidic parts.

What are the typical tolerances achievable with micro CNC machining？

The tolerances most micro CNC machines can achieve are between ±1 and ±5 microns. But it depends on part complexity and material.

What types of coatings are applied to micro tools to enhance performance？

The two main coatings that protect micro tools are titanium aluminum nitride (TiAlN) and diamond like carbon (DLC).

What are big challenges in micro CNC machining？

Some of the biggest problems are keeping heat under control when machining，preventing vibrations，maintaining close tolerances and managing tool wear.
