Highly precise micro screws have a vital role in the functionality of many modern-day products. Creating these components requires careful planning, expert execution and strict process control. In this blog post we will walk you through every stage of micro screw machining. You’ll see how design, machining, tooling and finishing come together to produce consistent, high quality screws.

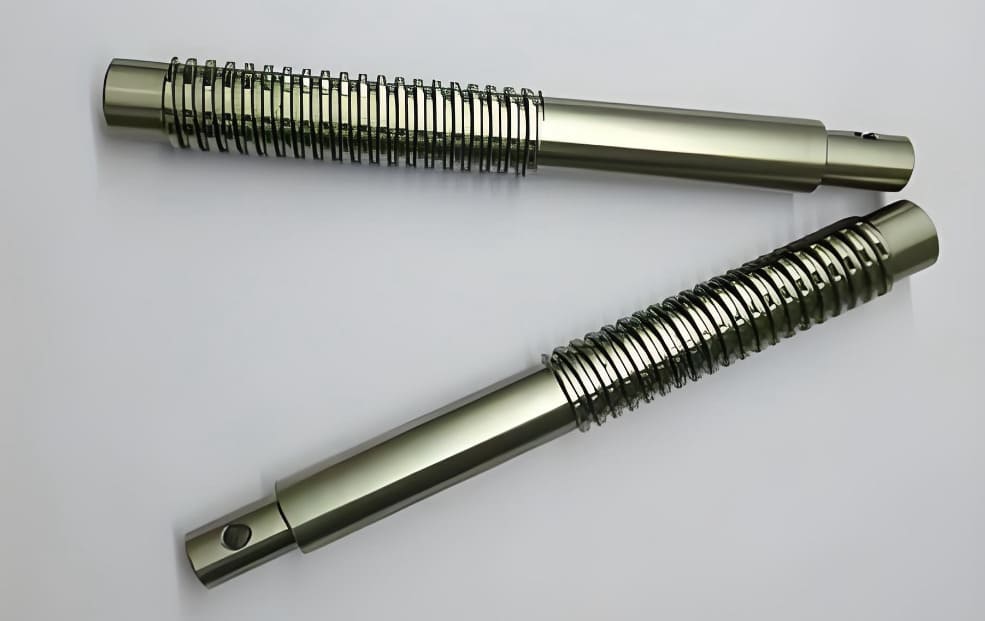

What Are Micro Screws

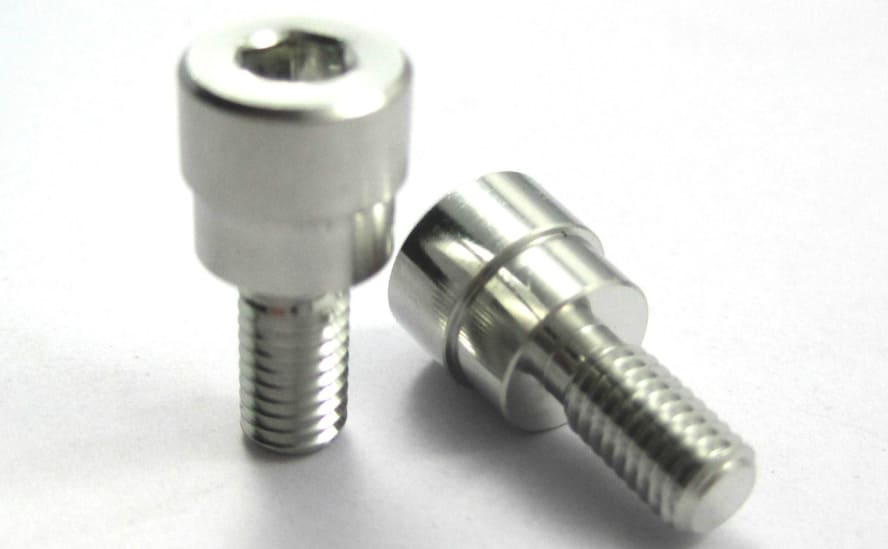

Micro screws are extremely small fasteners, typically less than 3 mm in diameter. They’re used to join miniature parts in medical equipment, electronics as well as aerospace devices. Their fine threads distinguish them from regular screws. This makes them ideal for delicate or confined assemblies.
1. Design Stage⟶The Starting Phase of Micro Screw Machining
The first step in any micro screw machining project is planning. Decisions made during the design phase impact the screw’s performance, cost as well as its manufacturability. Here’s how to make effective choices before machining begins.
Material Selection
Choice of the right material is the most crucial step.
- Stainless steel provides strong corrosion resistance therefore it is suitable for marine and medical applications.
- For lightweight electronics, aluminum or plastics like PEEK and nylon are good options.
- Brass, on the other hand, is best for electrical use because it conducts electricity proficiently.
Geometry & Thread Design
After selecting the material, you have to determine the screw’s geometry and thread pattern. You can decide on driver type, head shape and thread characteristics such as diameter and pitch. The design should make sure that the screw grips firmly, installs easily into delicate or small parts and prevents damage during assembly.
DFM in Micro Screw Machining
Applying Design for Manufacturability (DFM) helps make screws simpler and more affordable to produce. DFM lets you identify potential issues during the design stage—rather than during production. Since design choices influence over 70% of total cost, DFM saves both time and money.Partnering with an expert manufacturer like RICHCONN provides essential DFM feedback to optimize your design from the start.
Tolerance & Surface Finish Specifications
To produce smooth and reliable micro screws, select precise tolerances and appropriate surface finishes. Aim for a precision of ±0.005 mm and a surface roughness between 0.8 μm Ra and 1.6 μm Ra. Accurate specifications help prevent fitting issues and increase performance—particularly in sensitive medical or aerospace applications.
2. Preparation & Setup
After design phase, the preparation for micro screw manufacturing begins. This stage transforms your design into a practical production process.
CAD/ CAM Modelling

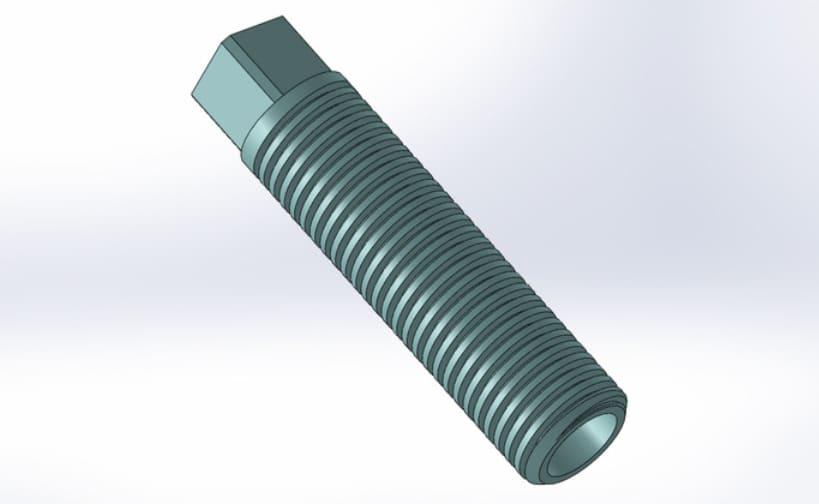

Start with detailed CAD models that define every measurement of the micro screw. CAM software then converts these digital designs into instructions for CNC machines. These programs manages tool paths, feed rates as well as speeds without any manual input. Such a setup allows for rapid prototyping and maintains consistent part accuracy.
Choosing the Right Machining Approach

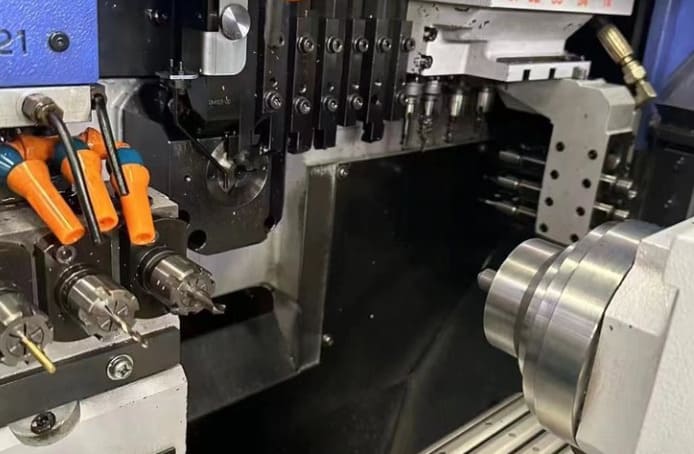

Select a machining method that matches your screw’s geometry and production volume. CNC Swiss screw machines are ideal for producing small and complicated parts. They offer tight tolerances with high repeatability.
You should prefer Swiss machining for screws under 2 mm. For larger screws or custom shapes, CNC lathes or micro milling may be better options.
At RICHCONN, we rely on Swiss-type CNC machines to achieve tight tolerances and consistent quality—even with complicated shapes smaller than 1.5 mm.
Tooling & Machine Setup
Choose micro tools with sharp cutting edges and hard coatings to assure clean cuts on small screws. Use specialized holders and small diameter collets to keep the setup stable and to maintain tolerances close to ±0.005 mm. With a solid setup, even 1 mm screws remain accurate and free of burrs.
Workholding & Fixturing
Securing micro parts during machining is very important to prevent any movement. For small screws, vices and collets are common choices. Magnetic fixture plates and custom fixtures are also used to support delicate pieces without causing damage.
Material Preparation
The final step before machining is material preparation. Inspect raw bar stock for cleanliness and quality. Cut it to the correct length so it fits properly in the machine. These steps assure that the material is ready and suitable for processing.
3. Machining Process
At this stage, the cutting phase begins. Raw bar stock is shaped into precision screws. Every machining step builds on the previous one to achieve the desired dimensions and surface finish.
Initial Rough Machining
Start by rough turning and facing the blank at higher speeds. These rough cuts remove most of the excess material and help detect any defects early on. Use carbide tools and set feed rates up to 0.4 mm/r, particularly for blanks with diameters under 2 mm.
Micro Finishing Operations
After roughing, perform finishing passes to achieve the final geometry and smooth surface. Reduce the feed rate to around 0.05 mm/r and use ultrafine tools to maintain tight tolerances. Finishing at this stage minimizes scallop marks and increases both the appearance and accuracy of the screw.
Thread Creation
The next step is creating the threads which can be done through tapping, rolling or milling. For micro screws, thread rolling is preferred because it forms stronger threads by pressing rather than cutting. Typical thread sizes range from M0.6 to M2.6 and rolled threads offer better load resistance.
Also See: What is Thread Machining
RICHCONN specializes in thread rolling for micro screws. We produce threads as small as M0.8 that consistently pass pull-out strength tests for aerospace and medical applications.
Secondary Operations
Once the basic shape is complete, secondary operations are performed to add the final features. These may include drilling holes, milling slots for screwdriver tips or incorporating other custom features. These steps complete the screw and assure it meets all design requirements before the final phase.
Quality Control During Machining
Quality checks are conducted at every stage of machining. Sensors and Probes measure dimensions in real time during in-process inspection. If any error appears, immediate adjustments are made to correct it. Moreover, Statistical Process Control (SPC) tracks its consistency and helps prevent defects before they occur.
4. Surface Finishing & Treatments
After machining is complete, the micro screw enters the finishing phase. These treatments increase its durability, strength as well as resistance to environmental challenges.
Heat Treatment
Heat treatment is the first step here. The screw is heated up to 870°C and then rapidly cooled to increase its hardness and strength. Tempering and quenching are often part of this process. These steps improve durability and increase the screw’s resistance to wear.
Surface Finish & Coatings
The next step is applying a protective coating to prevent corrosion and improve performance. Zinc plating provides a thin protective layer for general use. For stainless steel screws, passivation removes surface contaminants and forms a non-reactive layer that boosts corrosion resistance.
Polishing
After coating, polishing is performed.
- In vibratory polishing, plastic or ceramic media are used to polish many small screws simultaneously.
- Electro polishing, an electrochemical process, removes micro-debris to achieve an exceptionally smooth finish and better biocompatibility.
Cleaning & Packaging
Ultrasonic cleaning removes remaining polishing compounds and fine metal particles. This stage uses sound waves between 25–40 kHz to reach tiny crevices. Every batch takes about 5 to 20 minutes to clean. After cleaning, the screws are carefully packaged to prevent damage during shipping.
5. Quality Assurance & Inspection
After finishing is complete, every micro screw undergoes rigorous quality checks. This final inspection stage assures that every screw perfectly meets the design needs.
Dimensional Verification
Technicians measure each micro screw to verify its diameter, length as well as thread pitch. They use precision instruments such as micrometers and optical machines. These tools can detect extraordinarily small deviations—often as fine as ±0.005 mm. Any parts that don’t meet the needed specifications are separated at this stage.
Surface Integrity Checks
Inspectors then check for surface flaws. They use non-destructive testing (NDT) methods to detect defects or micro cracks without damaging the screw. High magnification visual inspections are also performed to assure the surface is smooth and free from imperfections.
Material/ Traceability Certification
In the next step, inspectors review material certifications to verify compliance with the source and industry standards. Complete traceability lets every screw be tracked from raw material to finished product. This process strengthens both quality control and accountability.
Process Documentation
After inspection, all manufacturing steps are recorded. This documentation includes tooling details, machining parameters and quality check results. These records have a complete production history for every batch and are vital to improve future processes.
Common Defects
Finally, a visual check is performed to identify common defects. Technicians look for damaged threads, stripped heads or corrosion. Removing such screws prevents them from reaching final assembly.
Cost, Lead Time & Production Considerations
In micro screw projects, practical business factors are just as important as technical details. Understanding these trade-offs helps you strike the right balance between speed, quality and cost.
Balancing Cost vs Quality
You must balance cost & quality. Using higher grade materials and tighter tolerances increases cost but improves performance. For non-critical parts, you can save money by choosing standard materials and looser tolerances.
At RICHCONN, we guide clients through early DFM reviews which often lead to tolerance adjustments. This reduces costs by 15 to 25% while maintaining part performance.
Batch Size & Production Volume
Order size has a key role in determining cost. Producing small batches of 20 or 50 screws increases per piece price because of setup and manual labor. When the batch size reaches 1,000 or more, automation becomes feasible which potentially reduces both cost and lead time by up to 70%.
Lead Time Drivers
Lead time—the period from placing an order to receiving the finished product—is influenced by several factors. Machine setup, material availability as well as part complexity all affect this timeline. Using standard materials and simple designs can shorten the process to about a week. In contrast addition of custom alloys or complicated threads can extend lead time to 3 weeks or even more.
Material vs Process Trade-offs
Material selection has a significant impact on both the manufacturing process and its cost. Titanium and other hard materials provide extraordinary strength but need more time and effort to machine. Aluminum and other softer materials are easier to machine, though they tend to be less durable.
Uses Across Industries
Medical Devices
Micro screws have a crucial role in medical technology. They are used in surgical instruments, dental implants and orthopedic fixation devices. Their biocompatibility and small size allow minimally invasive procedures and precise bone repairs.
Electronics & Micro-devices
Micro screws secure essential components inside laptops, smartphones as well as wearables. With head sizes as small as 1.4 mm, they connect batteries, displays and circuit boards. These fasteners make electronics smaller, lighter and more durable while maintaining structural strength.
Aerospace/ Defense
In defense and aerospace systems, micro screws are used to secure avionics, join lightweight composites and assemble satellite components. High strength alloys and specialized designs assure these fasteners perform reliably. They keep aircraft, drones and military equipment stable under stress, vibration and extreme temperatures.
To Sum Up
Every stage of micro screw machining demands precision—from material selection to final inspection. Manufacturers who focus on tight tolerances, choose the right tools and enforce strict quality control can deliver reliable parts for electronics, medical and aerospace industries. For accurate results, consider partnering with Richconn for specialized services. You can contact us anytime.
Related Questions
Micro screws perform best when made from stainless steel, aluminum or titanium. Stainless steel offers corrosion resistance, aluminum helps reduce overall weight and titanium is lightweight and biocompatible.
By simplifying the design, DFM reduces extra material and shortens machining time. These adjustments can lower production costs by up to 20% and help prevent defects, improving overall quality.
CNC machining and Swiss turning are the primary methods to produce micro screws. Swiss machines deliver the precision needed for complicated parts while CNC machines offer flexibility and are suitable for smaller batch production.
Manufacturers create micro threads through rolling, cutting or grinding. Rolled threads, formed through cold forming, are the strongest ones because they realign the grain structure and increase fatigue resistance.
As batch sizes increase, both the cost per screw and lead time decrease. This is because machines operate more efficiently and setup costs are distributed across a larger number of units.
