Miniature parts machining is a special manufacturing process. It ensures the accurate production of micro‐scale parts which are important for those fields that need extreme precision. This process allows progress in fields such as aerospace, medical, automotive as well as electronics．
In this blog post you will know about materials, common techniques, practical uses, common challenges as well as best practices related to miniature parts machining.
What is Miniature Parts Machining?

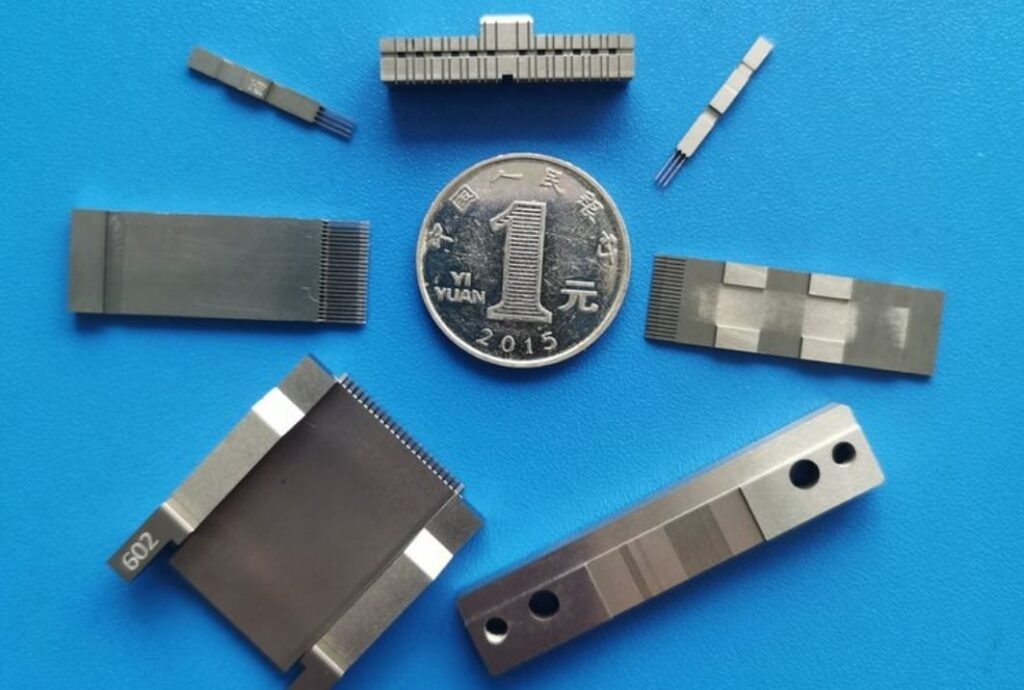

In simple terms, miniature parts machining means the production of very small parts, usually only a few millimeters or even less. This process gives sub‐micron tolerances by utilizing accurately controlled machinery and micro-sized equipment.
Industrial fields that need high‐performance and compact parts depend on this process; for instance microelectronics, medical implants as well as precision instrumentation where tight requirements must be met.
Processes in Miniature Parts Machining

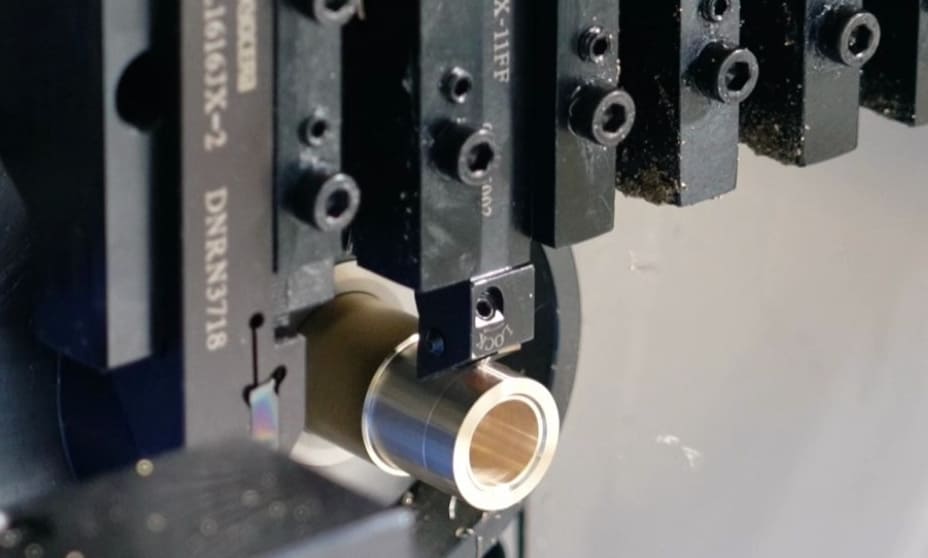

Micro‐Turning

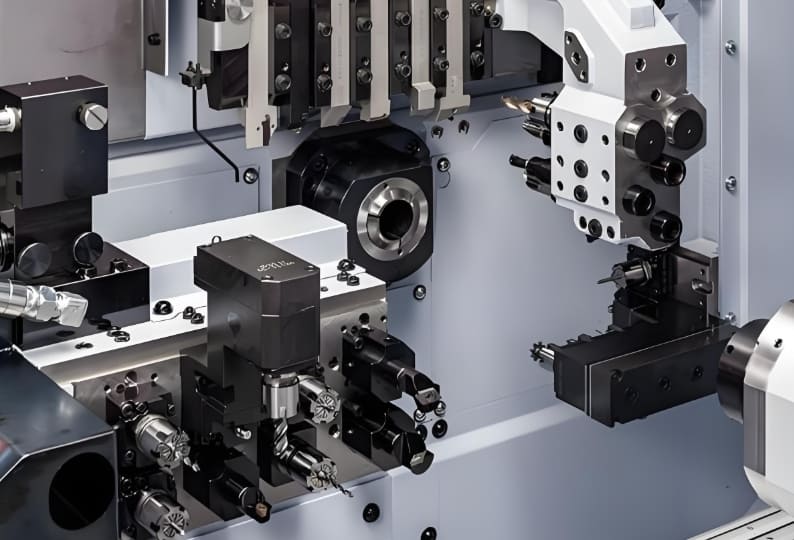

- Process and equipment used: In micro‐turning small cylindrical components are shaped with very fine tools on scaled‐down lathe machines. CNC systems give nano‐scale resolution which guarantees precise control during machining.

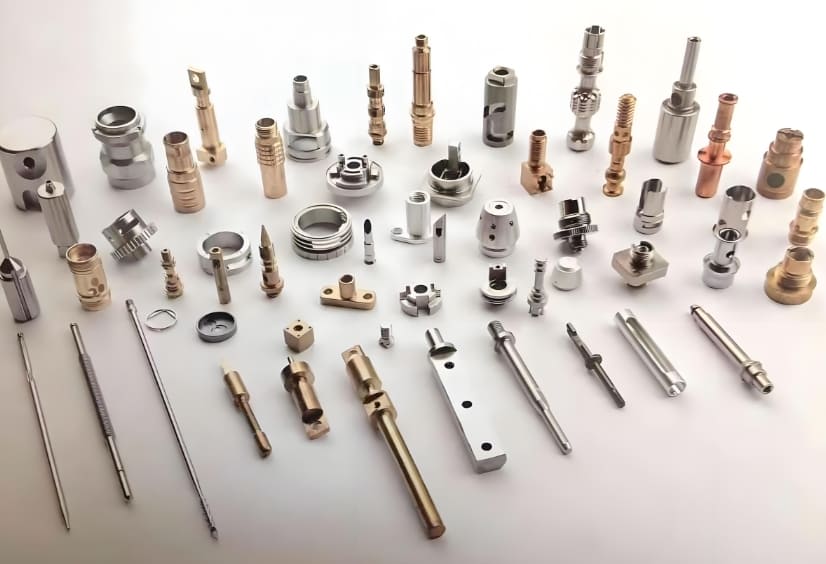

- Uses and Benefits: Micro‐turning is often used in production of miniature pins, fasteners as well as shafts for the medical, electronic and automotive sectors. It provides great dimensional accuracy, concentricity and surface finish quality.
Micro‐Milling
- Process and equipment used: Micro‐milling uses small cutting tools, typically less than 0.5 mm in diameter, with high‐speed spindles. CNC technology accurately guides the tool path to make complex three‐dimensional shapes. This guarantees that the manufactured product has an excellent surface finish and meets strict tolerances.
- Uses and Benefits: You will find micro‐milling used in the medical, aerospace and watchmaking industries. It is especially good for making cavities, detailed channels as well as textures on surfaces. Its versatility with different materials make it indispensable in precision engineering.

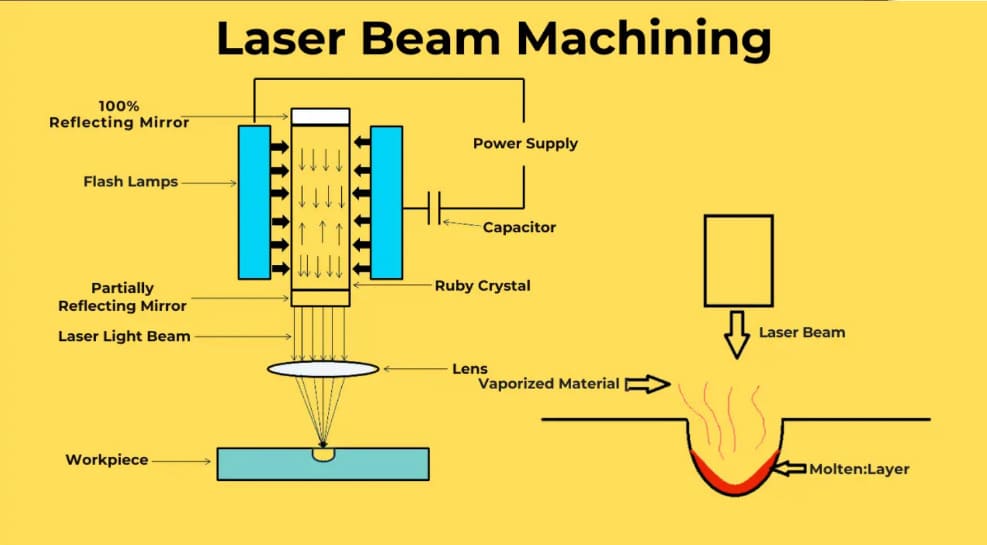

Laser Machining
- Process and equipment used: Laser machining utilizes focused laser beams which are digitally controlled to precisely engrave or cut materials. The laser beam quickly melts or evaporates material without direct contact.
- Uses and Benefits: Laser machining is very efficient for cutting plastics, thin metals and ceramics. It is broadly used in medical & electronics device manufacturing for operations such as micro‐hole drilling in printed circuit boards. It offers flexibility, speed and accuracy especially for heat‐sensitive or delicate materials that demand less distortion.
Electrical Discharge Machining (EDM)
- Process and equipment used: EDM shapes the workpiece by cutting material by electrical discharges in a dielectric fluid. Both the part & electrode are submerged in liquid during the procedure. Since EDM is a non‐contact machining method it is good for hard or delicate materials.
- Uses and Benefits: EDM is good in making detailed slots, cavities & profiles in strong metals such as Inconel & titanium. The medical and aerospace sectors often use EDM because it can produce burr‐free finish as well as accurate geometries.
Photochemical Machining
- Process and equipment used: Photochemical machining (PCM) combines chemical etching & photolithography to create detailed flat components. First, patterns are created using a photoresist mask. After that alkaline or acidic solutions etch these patterns into the intended material.
- Uses and Benefits: PCM is mostly used for producing precise components such as filters, encoder wheels & shims. It is perfect for intricate geometries & thin materials that cannot be easily fabricated by physical processes. Its benefits are stress‐free manufacturing, excellent suitability for large‐scale manufacturing and no tool breakage.
Common Materials Used in Miniature Machining
Plastics
In miniature components you will usually find high‐performance plastics such as PTFE, polycarbonate as well as PEEK. These plastics give chemical resistance, lightweight properties and better insulation.
Metals
Manufacturers pick metals such as brass, aluminum, titanium & stainless steel for miniature components. These materials provide great thermal stability, strength and corrosion resistance.
In the medical & aerospace sector stainless steel and titanium are specifically preferred because of their mechanical strength and biocompatibility.
Ceramics and Composites
Modern ceramics and composites i.e. zirconia & alumina are selected because of their electrical insulation, hardness and extreme temperature resistance. Precision instrumentation as well as semiconductor production largely depend on these materials. They guarantee wear resistance and dimensional stability which are important properties for these sectors.
Limitations in Miniature Parts Machining
Tooling Limitations
Micro‐tools can easily corrode or break due to their structurally weak form. This is why right tool management, which includes regular checking and scheduled replacement, is necessary. Also picking right coatings & tool geometry can increase tool life.
Tolerance and Accuracy Issues
Machining parts with sub‐micron tolerances requires a controlled environment and highly accurate equipment. Slight temperature changes or vibrations can cause measurement errors. Inconsistencies like these usually create components that do not fulfill desired requirements.
Mechanical and Thermal Damage
During machining, excessive heat or mechanical stress can cause surface warping, deformation or microcracks. Brittle materials & polymers are specifically susceptible to these problems.
To protect the integrity of components you must control cutting speeds, use appropriate coolant & also refine cutting forces.
Material Management and Fixturing
Because of their small size, miniature parts are difficult to handle without automation. Without special fixtures, part damage and errors are normal.
Personalized fixture systems, vacuum chucks as well as robotic automation help prevent these problems by assuring safe handling & precise alignment.
Uses of Miniature Machined Components
Defense and Aerospace
In defense & aerospace sectors, gyroscopes, micro‐valves and fuel system parts are extremely important. These small components have a profound impact on performance of navigation & propulsion systems. Manufacturing these components using lightweight but strong materials decreases weight and maintains functionality.
Healthcare and Medical Industry
Machining small parts is crucial in production of surgical equipment, dental implants as well as endoscopic parts. These parts have to rigorously comply with accuracy requirements, hygiene protocols and biocompatibility guidelines.
Consumer Electronics
Miniature part machining permits manufacturers to add intricate features to compact electronic equipment like smartphone cameras & earbuds. Precision‐machined lens housings, brackets and connectors maintain structural strength and performance of these products.
Motorsports and Automotive
Micro‐sized sensors and control valves are important in automotive safety systems. These components help in fuel economy and driving safety. Precision‐machined lightweight parts increase speed of a vehicle & improve its performance, especially in motorsports.
Luxury Goods and Watchmaking
Flawless small parts such as bezels, springs and gears are critical in luxury jewelry & watches. Precision machining guarantees aesthetic excellence as well as best functionality which are very important qualities in luxury artistry.
Robotics and Industrial Equipment
Accurate small parts are very important for consistent performance of automation equipment, robotic arms and micro‐actuators. Less downtime & high repeatability are essential requirements in factory automation systems.
Best Strategies in Miniature Parts Machining
Procedure Optimization
Use adaptive control systems, advanced CAM software and real‐time monitoring to enhance your machining process. You can optimize feeds, toolpath precision and speeds with the help of pre‐simulation of machining procedure.
Design Considerations
When machining small parts you should favor manufacturability in your design. Make sure tolerances are appropriate, geometries are simple and materials are carefully chosen. These considerations allow successful manufacturing and maintains the designed function of the part at the same time.
Quality Control Approaches
Utilize inspection procedures such as coordinate measuring machines (CMMs), laser scanning as well as 3D optical metrology to verify surface finish & dimensional standards of small components.
To Sum Up
Miniature components manufacturing encourages advancement by allowing accuracy, miniaturization as well as better efficiency in different fields. With a thorough knowledge of machining techniques, materials and quality you can efficiently meet the needs of modern manufacturing.
Related Questions
Are there special tools available for machining small parts?
Yes, special tools with diameters up to 0.05 mm are available. They usually use diamond coating, carbide or PCD to increase their wear resistance.
What is smallest feature size that can be obtained in machining of small parts?
Depending on type of material and accuracy of tool, features down to 1 micron can be obtained by utilizing laser techniques & micro‐milling.
How do environmental conditions affect the machining of small parts?
Environmental conditions – i.e. temperature, humidity as well as vibration – can badly influence machining precision. To maintain accurate tolerances you must isolate vibrations, control the environment and apply air filtration systems.
Can machining of small parts be automated?
Yes, automation is possible by closed‐loop control systems, robotic loading as well as by using in‐process measurements.
Can additive manufacturing replace machining of small parts?
Not entirely. But micro 3D printing technology is progressing. Even so, at this time, it cannot compete with the material selection & accuracy offered by conventional machining methods in most industrial applications.
