Molybdenum machining is important in different industries to manufacture high performance parts. Molybdenum, with its distinct properties including low expansion and high thermal conductivity, can actually make a big difference in machining outcome.
In this blogpost we are going to cover important techniques, applications, advantages and best practices for molybdenum machining.
What is Molybdenum Machining？
Molybdenum machining is specialized manufacturing process that uses computer controlled equipment and precision cutting tools to form and shape molybdenum metal. In this process, different techniques such as turning, milling and drilling are used to manufacture complicated electronics and high temperature components.
Molybdenum Material Properties
| Property | Value |
|---|---|
| Hardness | 5.5 Mohs |
| Density at 20°C | 10.22 g/cm³ |
| Thermal Conductivity | 138 W/m·K |
| Young’s Modulus | 329 GPa |
| Thermal Expansion | 5.1 × 10⁻⁶ /K |
| Tensile Strength (20°C) | 800 MPa |
| Melting Point | 2623°C |
| Crystal Structure | Body-centered cubic |
Techniques Used for Machining Molybdenum
CNC Turning
CNC turning uses stationary cutting tool and rotating workpiece configuration to produce cylindrical molybdenum components. For best cutting performance, the process requires cubic boron nitride (CBN) or high speed steel tools.
Additionally integrated cooling setups help avoid thermal damage and precise control setups keep clean cuts. This method gives outstanding surface finishes on cylindrical components.
CNC Drilling
In CNC drilling, molybdenum components are drilled with special carbide drills or high speed steel with split point design to create accurate holes. It needs rigid fixturing and constant flood coolant application during process to manage heat.
Besides that the use of high cutting speeds and controlled feed rates helps decrease tool wear during the drilling process whereas the split point design guarantees smoother cuts and prevents chipping.
CNC Wire EDM
CNC Wire EDM cuts through conductive materials with precision by using thin molybdenum wire (0.18–0.20 mm diameter) as an electrode. This non contact process is good in terms of making complicated geometries with tight tolerances.
In molybdenum applications, the technique uses dielectric fluid for cooling and debris removal to assure better dimensional accuracy and surface finish.

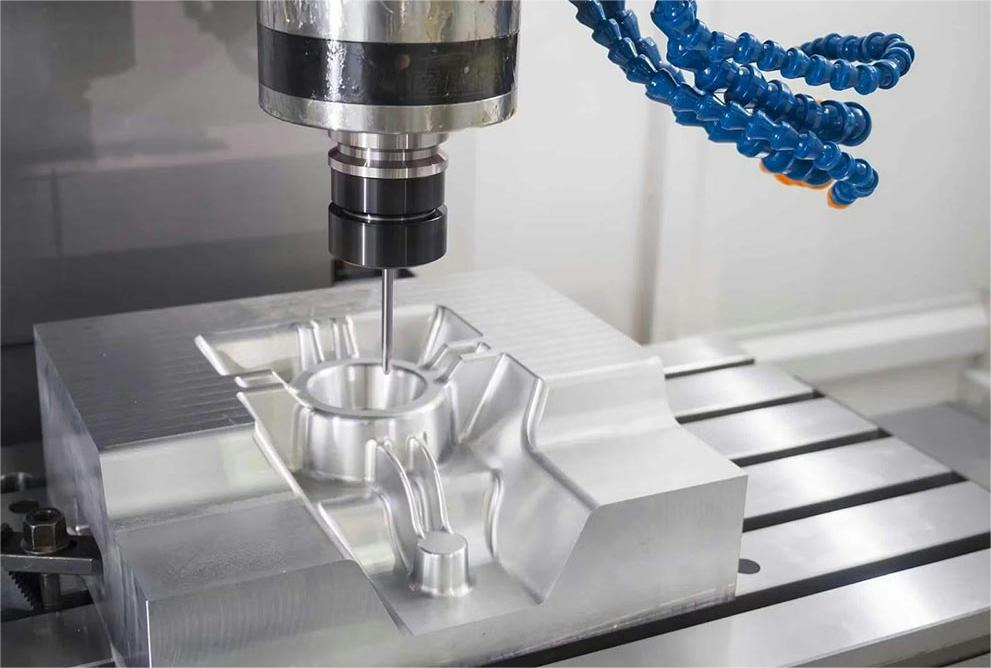

CNC Milling
CNC milling is used to make complicated geometries on molybdenum components by using rotating carbide or polycrystalline diamond (PCD) cutting tool. The process requires low cutting speeds as well as accurate fixturing to decrease heat buildup. The depths of cut and feed rates must be controlled very tightly to obtain outstanding surface finishes and increase tool life.

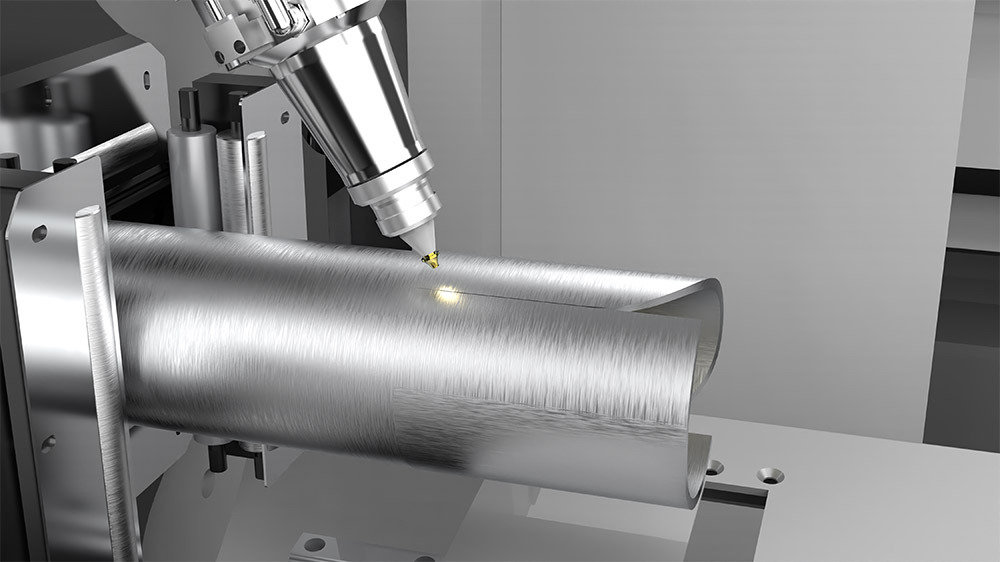

CNC Laser Cutting
CNC laser cutting precisely cuts molybdenum sheets with minimal heat affected zones by using focused laser beams. The process uses ultraviolet laser technology to create fine detail as well as intricate patterns specially in thin sheets between 0.0254 mm and 0.254 mm. Apart from this, high pressure argon or nitrogen assist gases guarantee clean, burr free edges and maintain strict tolerances.
Additional Machining Techniques

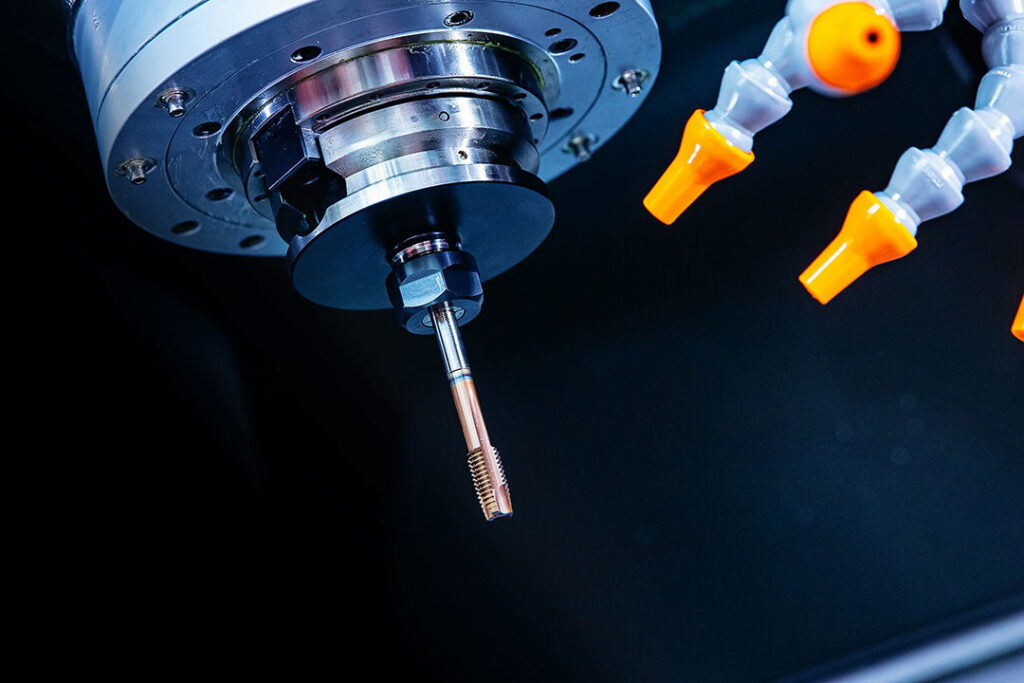

CNC Threading
CNC threading uses special thread milling cutters or taps to make threads into molybdenum parts. However the process requires careful control of feed rates to prevent deformation of the material and tool wear. The molybdenum dies and stock are heated to 325°F to minimize brittleness and rigid tapping spindles assure accurate thread formation.

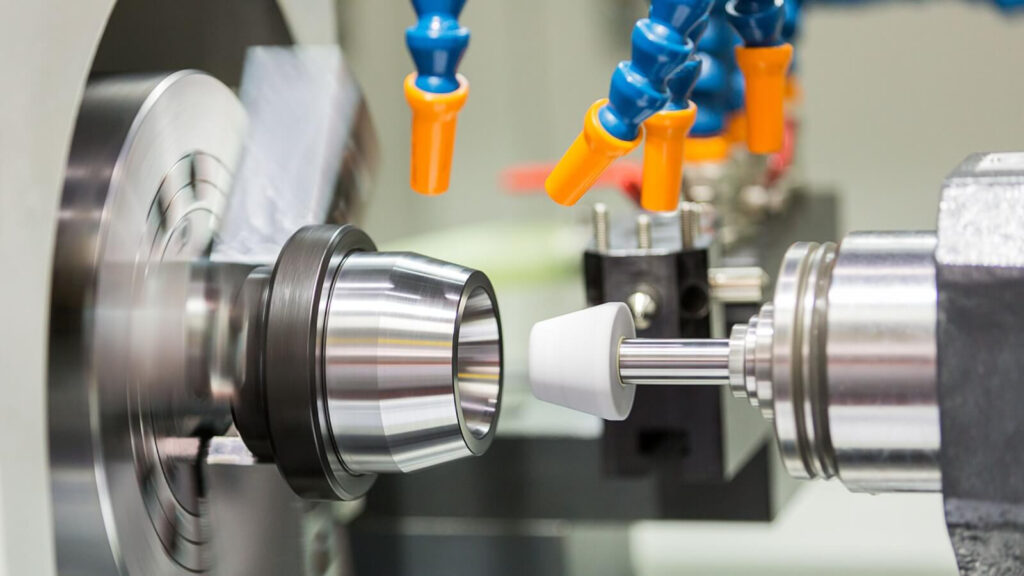

CNC Grinding & Buffing
Molybdenum components are machined by CNC grinding and buffing using precision controlled abrasive wheels and buffs. They use high performance coolants and low cutting speeds in order to avoid thermal damage.
In grinding wheels, aluminum oxide or silicon carbide abrasives can reach surface finishes down to 0.4 μm Ra along with narrow tolerances. Similarly diamond compounds are used for buffing to improve surface quality of semiconductor and aerospace applications.
Applications of Molybdenum Machined Part

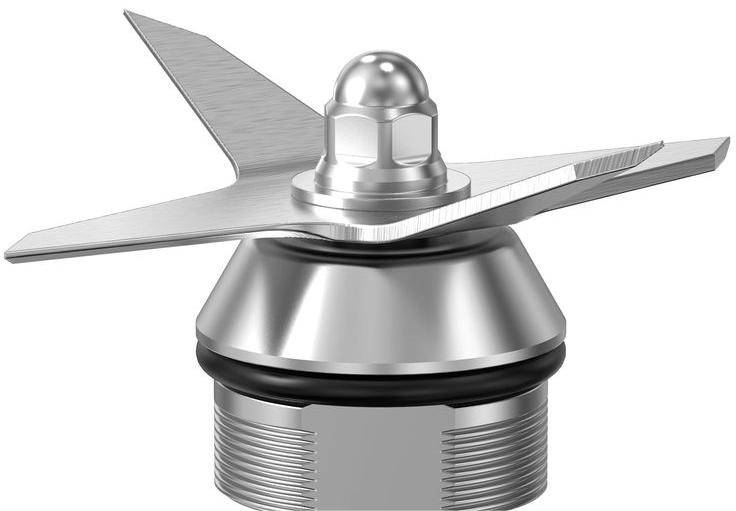

Chemical Processing Industry
Molybdenum is highly resistant to corrosion and is suitable for chemical processing equipment such as reactors, stirring blades, heat exchangers, pipelines etc. It can endure tough acids and alkalis which assure reliability and durability.

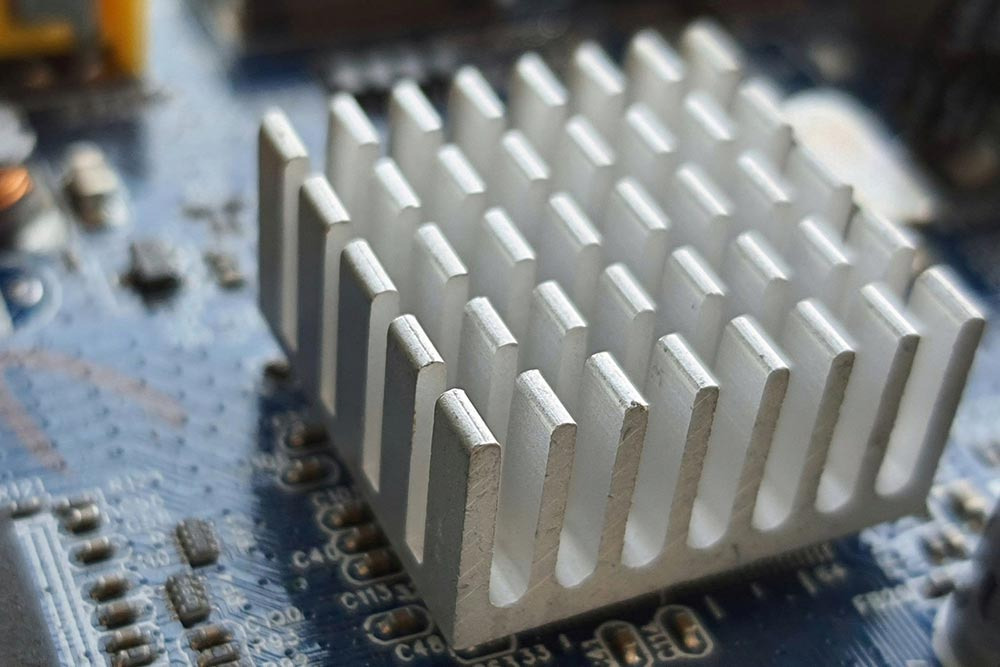

Semiconductor Manufacturing
In semiconductor manufacturing molybdenum machined parts are important because of their high purity and low resistivity. Heat sinks and sputtering targets are among these parts. They allow for precise thin film deposition as well as effective heat dissipation for microchip fabrication procedures.

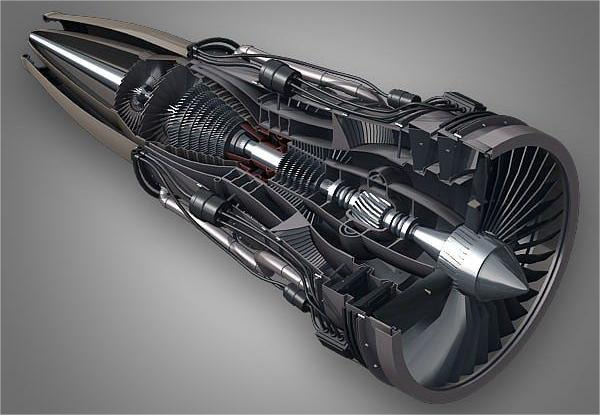

Aerospace Industry
In aerospace, molybdenum machined parts are important for high temperature structural components as well as for propulsion systems and heat shields. Their corrosion resistance and strength to weight ratio in extreme conditions improve the longevity of rocket nozzles, spacecraft and aircraft engines.

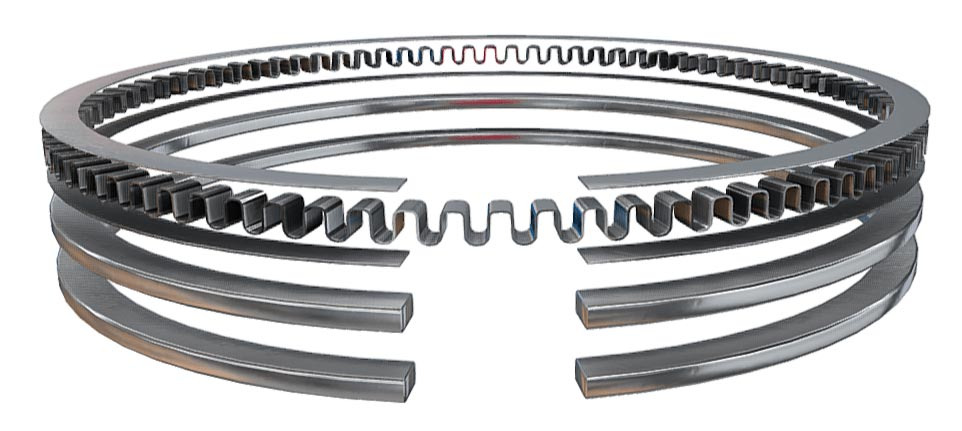

Wear-Resistant Components
Molybdenum has good mechanical properties and high hardness. So it is widely used for wear resistant parts like bearings, piston rings, roller chains and cutting tools.

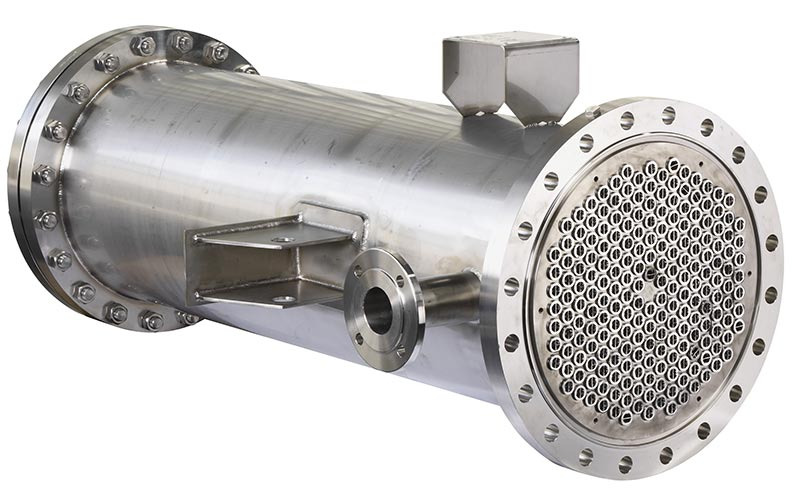

High-Temperature Equipment
Molybdenum is a good material for components in heat exchangers, refractory liners, gas turbines and furnaces because of its thermal stability and high melting point. In extreme conditions its resistance to oxidation and deformation guarantees good performance.
Benefits of Molybdenum Machining
Strength
At room temperature molybdenum shows high elastic modulus of 329 GPa and tensile strength of 800 MPa. Such an extraordinary mechanical strength allows the production of parts that preserve structural integrity at heavy mechanical loads.
High Melting Point
Molybdenum has high melting point of 2623°C and therefore remains stable even at extreme temperatures. Since molybdenum does not deform upon heating, it is suitable for high temperature operation such as in industrial furnaces.
Dimensional Stability
Molybdenum guarantees outstanding dimensional stability during temperature fluctuations because of its low coefficient of thermal expansion (5.1 × 10⁻⁶/K). This property allows precise machining of components. So that they keep strict tolerance in high temperature environments.
Thermal Conductivity
Molybdenum has thermal conductivity of 138 W/m·K which allows it to dissipate heat in high temperature operations. So it is perfect for precise temperature control in applications such as thermal management systems and semiconductor components.
Corrosion Resistance
Molybdenum has better corrosion resistance under conditions that involve seawater, acids or salts. It does not pit or corrode because of its ability to form protective oxide layer.
Main Difficulties & Best Practices in Molybdenum Machining
Challenges
- Because of molybdenum’s extremely high melting point its machining is very difficult. Traditional cooling methods are inadequate for heat dissipation and result in poor surface finishes and tool wear.
- Molybdenum is very brittle and presents machining problems particularly at lower temperatures. It has a body centered cubic crystal structure which limits independent slip setups and then leads to grain boundary fractures.
Best Practices
Machining Settings
You have to find the best cutting speeds, feed rates, and depths of cut for better results. You should use cutting speeds from 50–120 m/min and feed rates from 0.15–0.5 mm/rev depending on operation type. Besides that you can decrease tool wear and heat generation by maintaining shallow depths of cut.
Tool Choice
You should pick tools with minimum rake angles and sharp edges such as ceramic or carbide cutting tools. Use cubic boron nitride (CBN) or polycrystalline diamond (PCD) tools for high precision applications. These materials decrease tool wear and withstand molybdenum’s hardness, thereby maximizing tool life and surface finish.
Heat management
When machining you should implement lubrication techniques and high performance coolants to manage heat. You can use Minimum Quantity Lubrication techniques to produce fine lubricant mist. Apart from that you should monitor the cutting zone temperature as well as coolant flow to avoid thermal damage.
Surface Finishing
You should use diamond dressed grinding wheels with continuous coolant flow if you want to achieve surface roughness of 0.4 μm Ra. After the grinding process, you can improve corrosion resistance and surface quality of critical applications by using electrochemical passivation and diamond paste polishing.
Molybdenum Grades in Machining
Molybdenum Lanthanum Alloy
The molybdenum—lanthanum alloy has distinct stacked fiber microstructure that remains stable up to 2000°C. It shows greater recrystallization temperature as well as outstanding creep resistance and ductility.

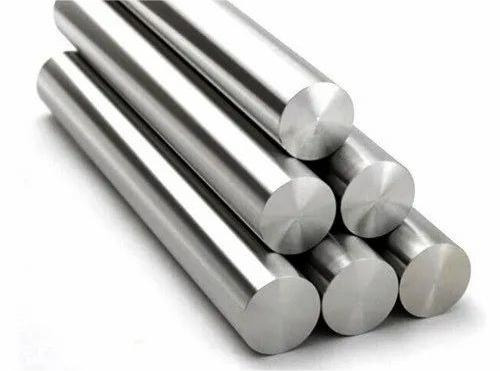

Pure Molybdenum
Molybdenum shows very little impurities in its pure form and has tensile strength of 324 MPa. In high temperature applications such as crucibles, electron beam welding electrodes and furnace components, this grade performs very well because of its thermal stability.

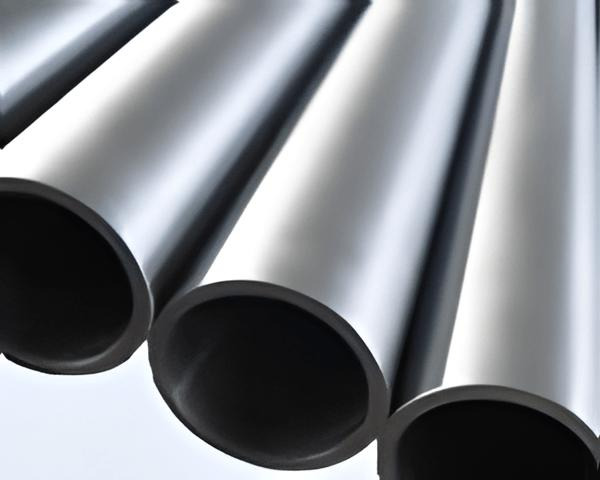

TZM Molybdenum Alloy
Zirconium, titanium and carbon constitute TZM alloys. They have impressive machinability and dimensional stability at temperatures above 1400°C. Thus they are suitable for die casting molds, high temperature furnace parts and aerospace components.
Suitable Surface Finishes for Molybdenum Machined Parts

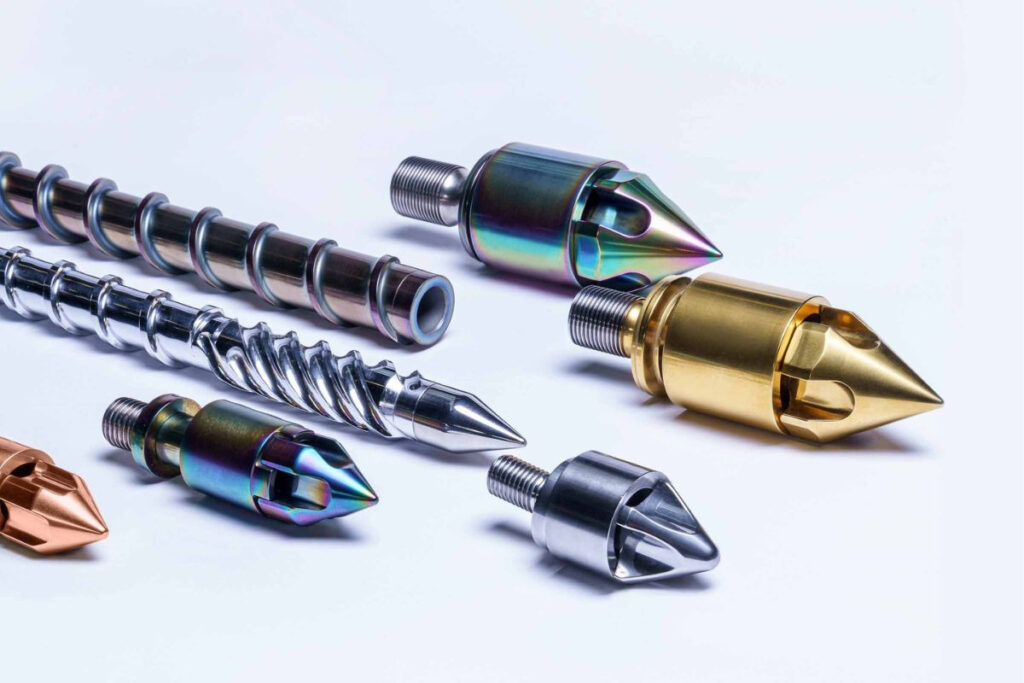

Coating
Molybdenum surface properties are improved by advanced coating techniques such as physical vapor deposition (PVD) and chemical vapor deposition (CVD). In severe operating environments, these methods produce protective layers that maintain dimensional stability and increase corrosion resistance as well as wear resistance.

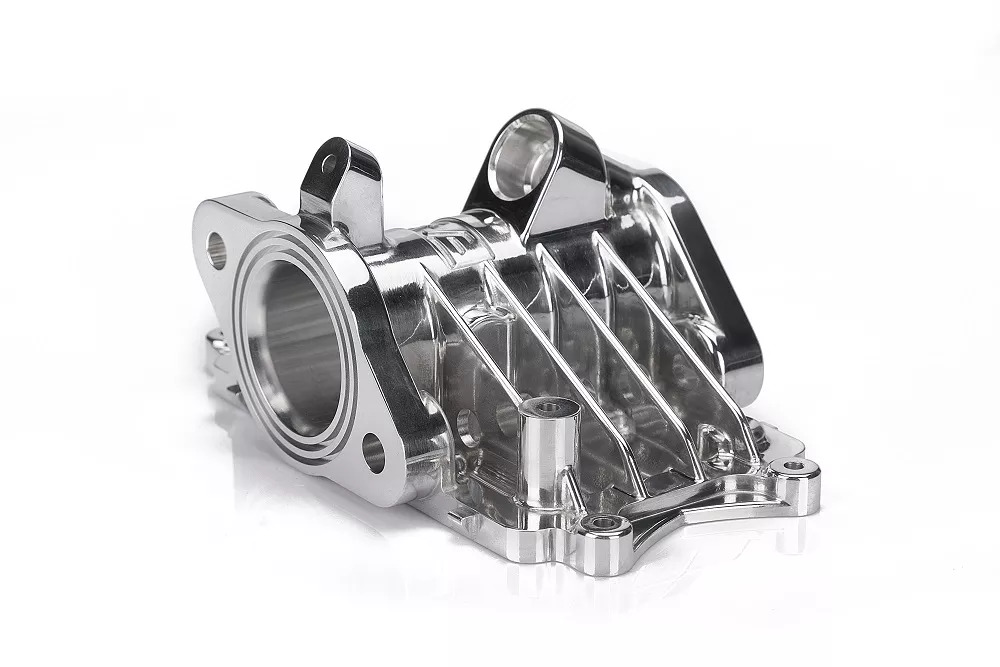

Polishing
Polishing of molybdenum components results in very smooth surface finishes with roughness values less than 0.02 μm Ra. In this two stage process, pre polishing and final polishing steps are combined to produce mirror like surfaces for optical and semiconductor applications.

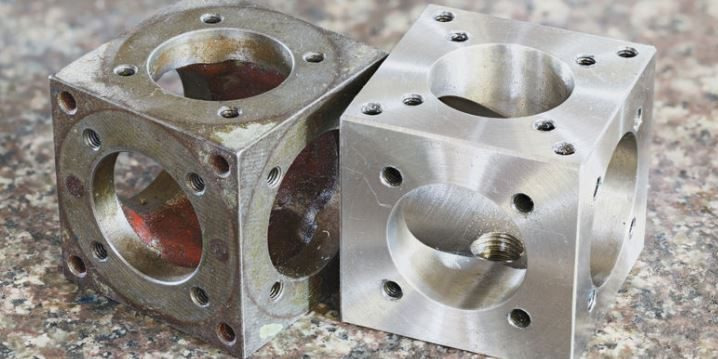

Passivation
Passivation treatment involves using acidic solution to create protective oxide layer on molybdenum surfaces. The formation of a stable passive film is induced by this process to improve corrosion resistance and remove surface contaminants.

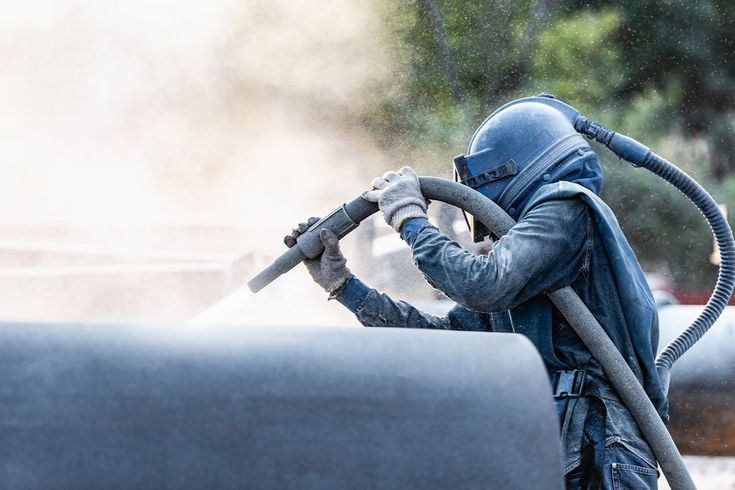

Sand Blasting
In sand blasting molybdenum surfaces are cleaned and textured by high pressure abrasive materials such as glass beads or white corundum. This process not only removes contaminants but also produces even surface roughness and improves coating adhesion for further treatments.

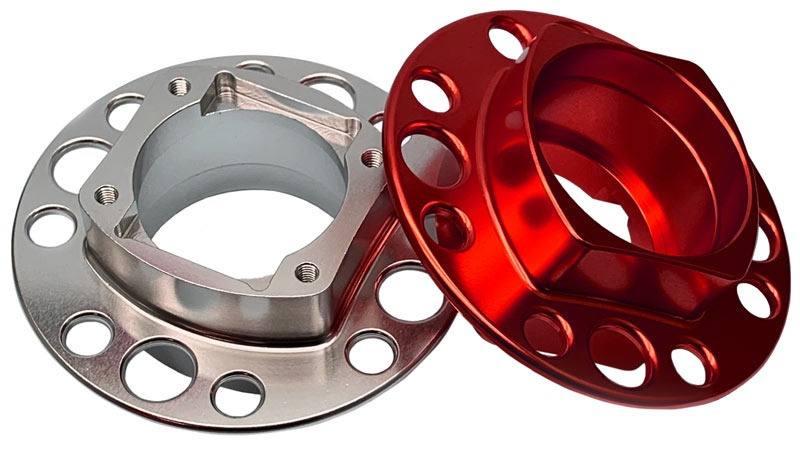

Anodizing
Molybdenum surfaces are anodized to form a durable oxide layer by an electrochemical process. This finish improves wear resistance, thermal stability as well as corrosion resistance. Moreover it is good for applications that need long life in harsh environments.

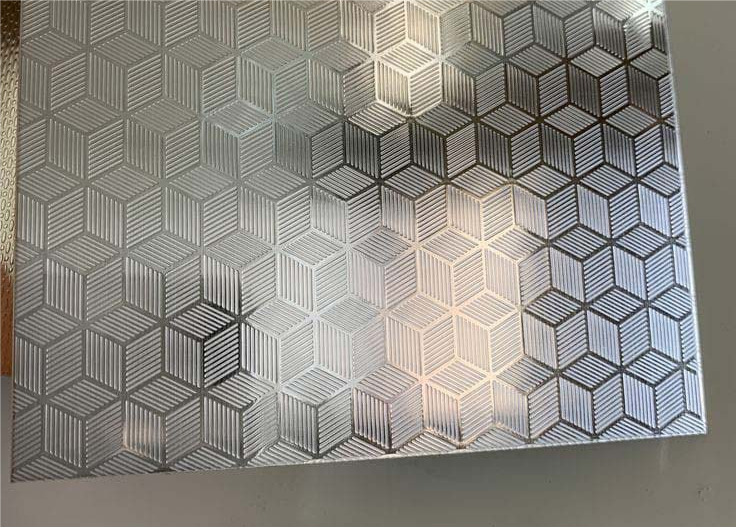

Chemical Etching
Chemical etching uses specialized etchants (potassium hydroxide or ferric chloride) to selectively remove material from molybdenum surfaces. Besides that this process preserves material properties and produces complicated patterns with high precision. The process is particularly well suited to applications which demand fine, clean surface finishes and complex features.
Conclusion
In short molybdenum machining provides good corrosion resistance and strength to different industries. CNC machining and surface treatments make possible the production of highly-precise, durable parts for demanding applications.
If you require any kind of CNC machining services for molybdenum or any other material, then RICHCONN is best option. You can contact us at any time.
Related questions
1. How does molybdenum machinability compare with other refractory metals?
Compared to tungsten, molybdenum provides improved machinability but is more difficult than tantalum and niobium. Because of its thermal stability and hardness, it needs particular tools, cooling methods and controlled cutting speeds.
2. What is cost of machining molybdenum compared to other materials?
Machining costs for molybdenum are greater in comparison to standard materials because of short tool life and special tooling needs. Although the material has abrasive nature which increases tool wear, it is cost effective compared to tungsten.
3. What are the recommended cutting speeds and feed rates for machining molybdenum?
General machining can be performed at feed rates in range of 0.15-0.5 mm/rev and cutting speeds varying between 50-120 m/min. Recommended speeds for drilling are 30-50 ft/min, with 0.003 in/rev feed rate.
4. Is molybdenum stronger than stainless?
Yes tensile strength of molybdenum is higher than standard stainless steel. The yield strength of molybdenum is 530 MPa compared to stainless steel which is between 230–860 MPa.
