A shaft is the fundamental machine element to transmit power. A motor shaft transfers the motor’s electrical energy to perform a mechanical function. Electric vehicles, fans, industrial pumps, and motors –  all rely on motor shafts for their operation.

This blog post uncovers all the key elements behind motor machining. You will learn about different shaft types, construction materials, and the machining processes.

What is Motor Shaft?

What is Motor Shaft

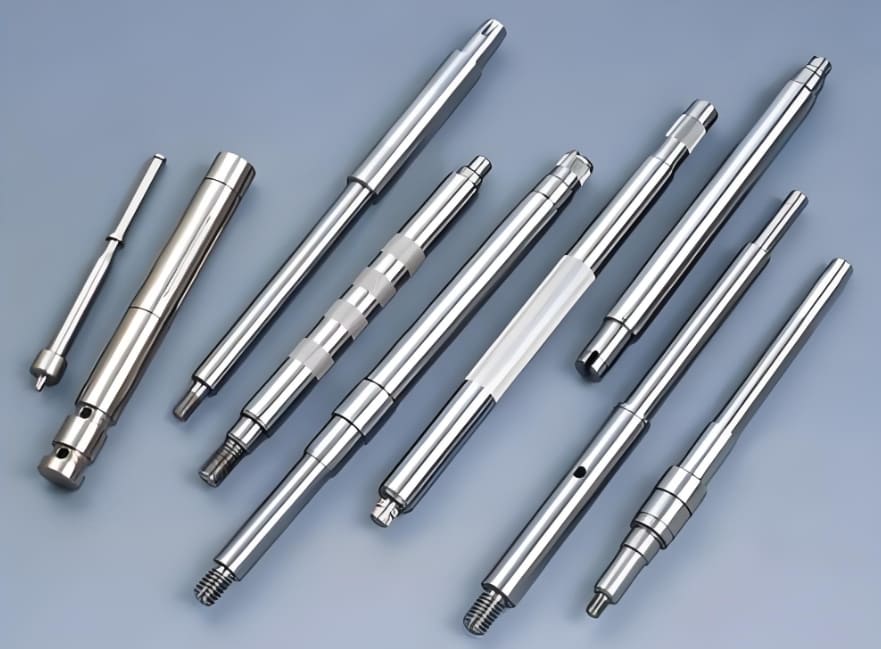

Motor shafts are critical components in various machines, such as electric motors, gearboxes, and pumps. They transmit torque and rotation, making their precision essential for efficient and reliable operation. A small deviation in a motor shaft’s dimensions can lead to significant performance issues, such as vibration, noise, and premature wear. That’s why mastering the techniques of motor shaft machining is vital for any manufacturer.

Motor Shaft Design and Types

Power transfer is necessary in all motorized machines and the shaft makes it happen. In its simple configuration, a shaft is a solid cylindrical rod of uniform thickness that extends from the motor and ends at other components i.e. gears, pulleys, or couplings.

Generally, solid motor shafts are uniform in diameter but can have variations along their length to accommodate specific operational requirements. For instance, some shafts may need to be threaded or have splines.

Based on that geometric profile, here are a few types of motor shafts:

Hollow Shafts

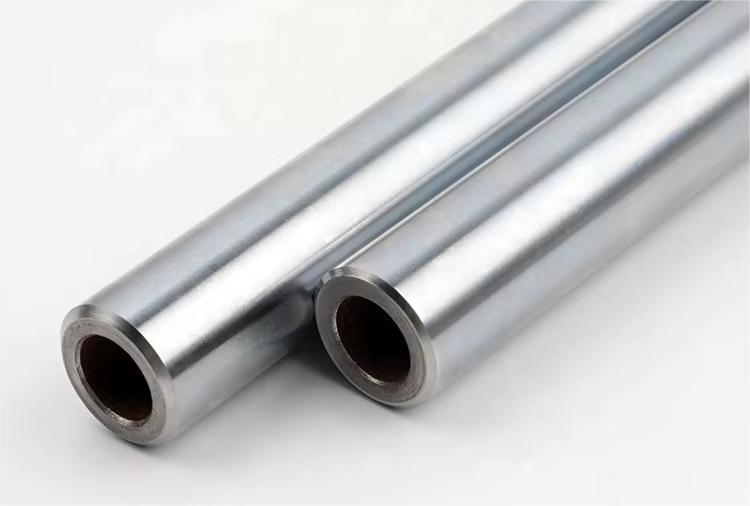

Hollow shafts are similar to standard ones but are internally hollow. That may be a passage for fluid movements, wiring, or weight reduction. Racing vehicles and aircraft often employ them for reduced weight. They are also seen in medical devices and conveyor systems.

Tapered Shafts

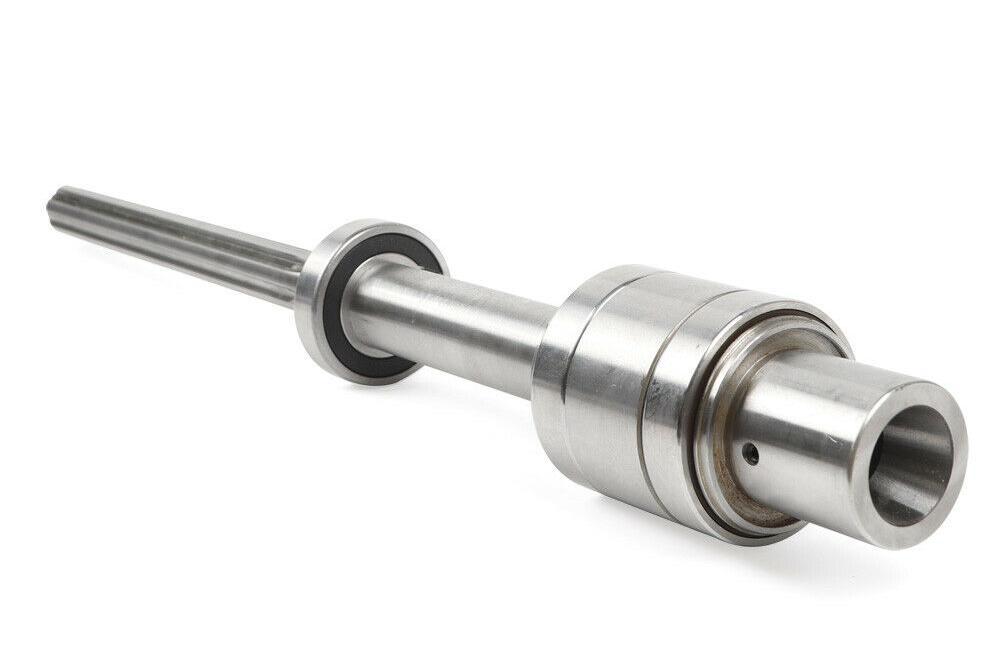

Tapered shafts have a gradual reduction in diameter along their length. This design helps mounting components (pulleys or gears), which can be easily slid onto the shaft, to get locked in place. These shafts are used in applications that require a snug fit without fasteners, such as automotive wheel hubs.

Threaded Shafts

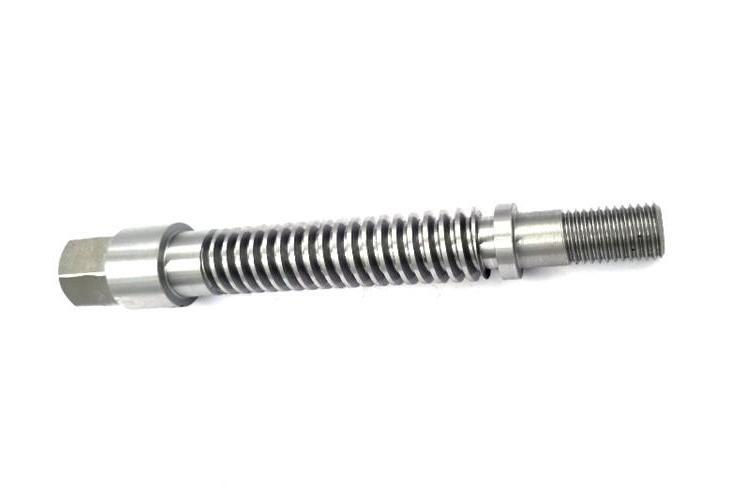

Threads could be internal or external, similar to bolts and screws. These shafts are common in scenarios where the parts to be detached or attached frequently. Plain hollow threaded shafts are common in plumbing systems, whereas threaded motor shafts are often used with DC motors in automation systems.

Keyed Shafts

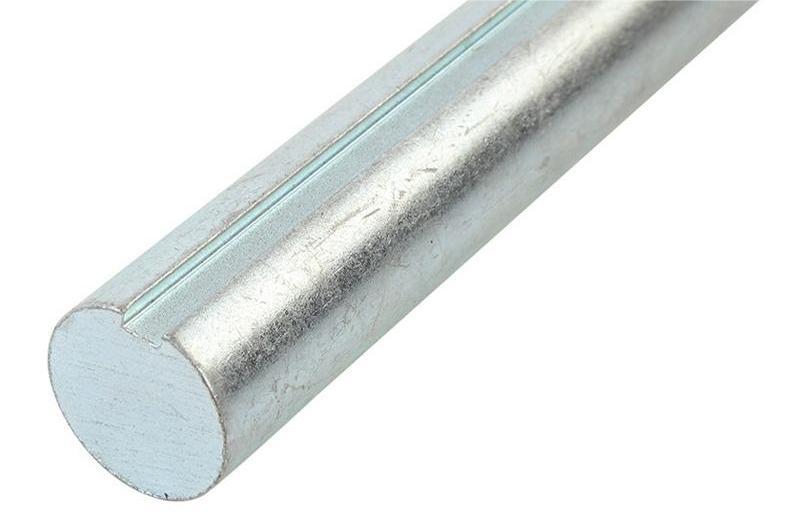

Keyed shafts have a groove, or keyway along their length to hold a key that fits into both the shaft and matching groove, in the component it drives. This design prevents slippage and transfers torque more efficiently. High torque applications like pumps, conveyors, and industrial machinery, use keyed shafts.

Splined Shafts

Splined Shafts

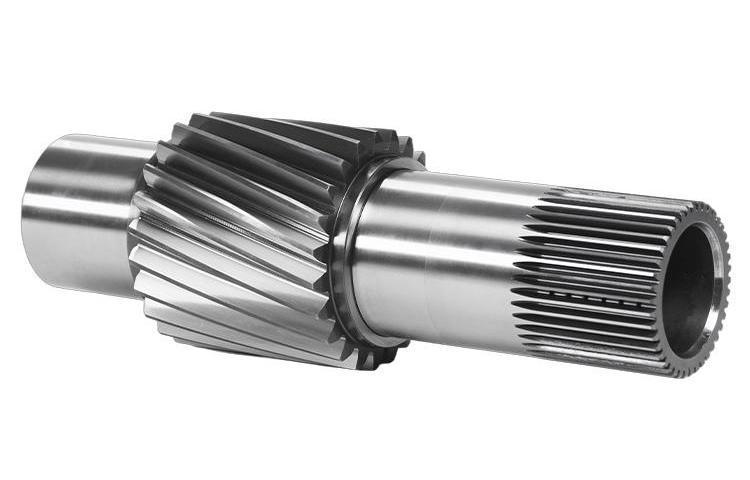

Splined shafts have a series of longitudinal grooves (splines) that fit into the matching grooves of connected components, such as a gear or pulley. This design provides a slip-free connection for seamless power transmission. Splined shafts are often used in automotive transmissions and gear couplings.

How Motor Shaft Machining is Done: Step by Step

When developing a new application, you often need customized parts, like motor shafts, that fit specific specifications. Here’s a simplified procedure of how that goes in the industry:

Step 1: Load and Torque Calculation

It starts by determining the load and torque the shaft will handle. All the operational requirements are analyzed, such as rotational speed and forces acting on the shaft. And then the size of the shaft is calculated based on standard formulas.

Step 2: Design on CAD

Next, these calculations are turned into a 3D design model using CAD software. This lets you visualize the design and apply material properties. Finite Element Analysis (FEA) can also be run to see if the shaft will meet performance needs. The CAD software can help generate the machining parameters as well.

Step 3: Motor Shaft Machining

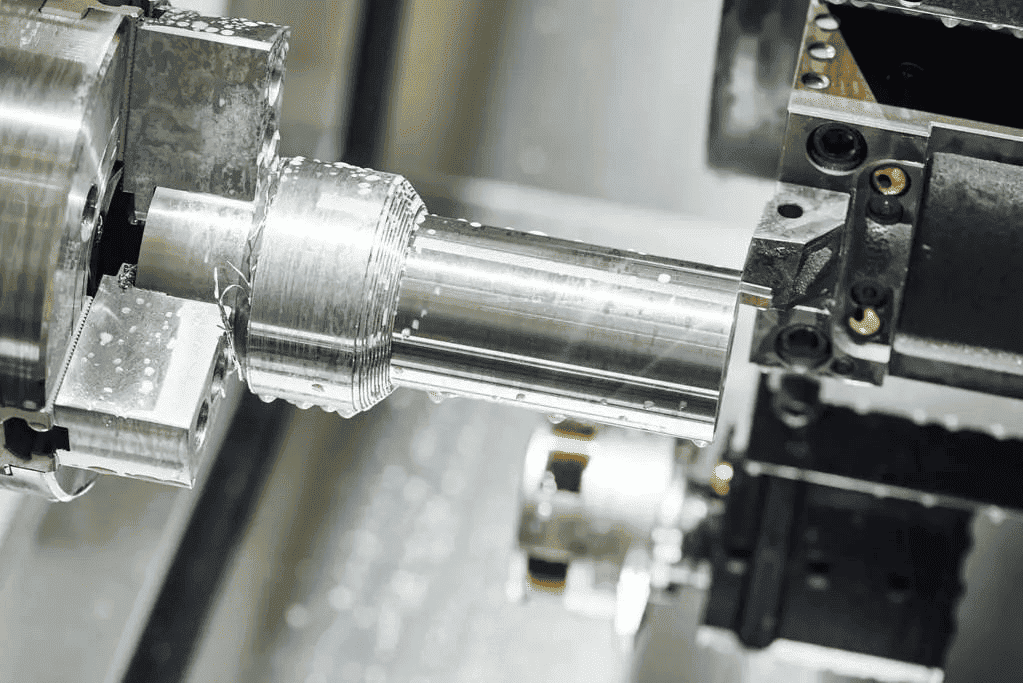

Now, the shaft goes through machining processes based on the design. Typically, CNC turning is used first to give the shaft its cylindrical shape. Milling or drilling may follow to add features, as per the shaft’s specific requirements.

Step 4: Surface Finish

The final step is to achieve the required tolerances and surface quality. This is done through grinding to refine the shaft and ensure it meets all specifications. Surface finishing methods may also be applied.

CNC Techniques for Motor Shaft Machining

Motor Shaft may undergo a combination of these CNC machining processes to get into the desired profile:

CNC Turning

Turning is the key process to shape motor shafts to their required length and diameter. During CNC turning, a rotating shaft is cut on a lathe with precision tools to achieve accurate dimensions. Turning gives the shaft, its basic cylindrical profile.

CNC Milling

CNC milling is used to create specific design elements such as keyways, splines, or grooves so that the shaft fits well with other components. In milling, a rotating tool moves across the shaft’s length or circumference and removes the material to give it specific features.

CNC Drilling

Some shafts may require drilling holes for lubrication channels or mounting points to secure them.

Wire EDM

In instances, where you need very precise cutting of intricate internal (keys, spline, or any nontraditional geometry), wire EDM is the best option. It uses an electrical discharge to cut, which is much more precise than conventional cutting tools.

CNC Grinding

CNC grinding is the final process, used to achieve the desired surface finish and high dimensional accuracy. It provides the shaft with a smooth finish that meets tight tolerances.

Materials for Constructing Motor Shafts

Materials for Constructing Motor Shafts

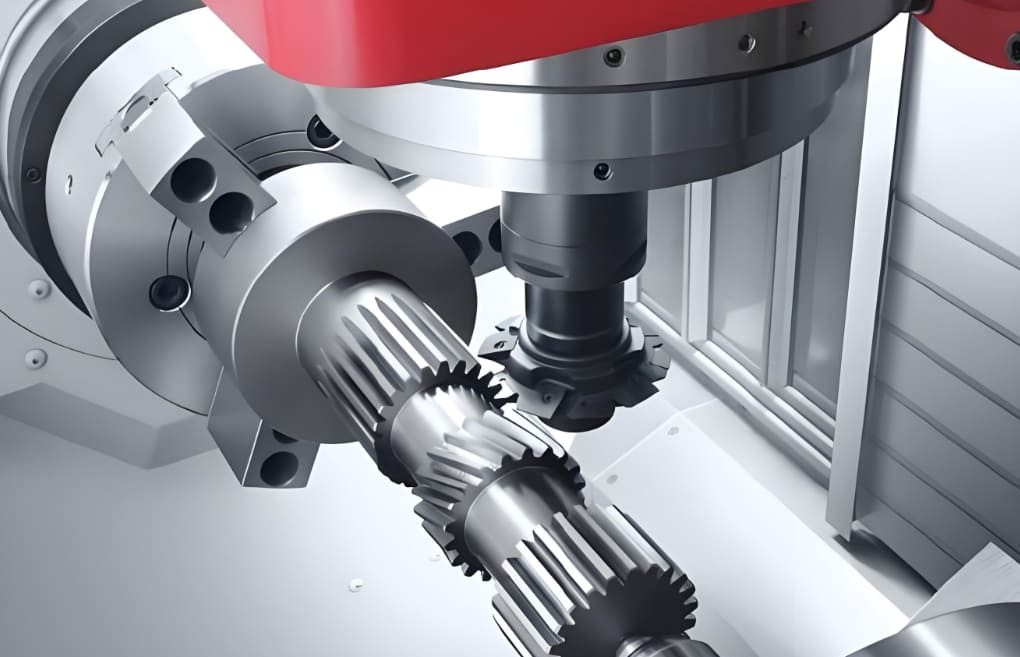

Motor shafts can be made from various materials based on the weight and load requirements. Choices include:

Steel

Three types of steel, carbon steel, alloy steel, and stainless steel, are most popular for making shafts. Carbon steel grade 1045 has good machinability and is often chosen for medium-strength applications.

Stainless steel grades 304 and 316 are another best choice due to their excellent corrosion resistance. They are best for shafts that may experience moist environments, for instance, marine applications.

Alloy steels like 4140 and 4340 are common. These steels are heat-treatable and provide excellent wear resistance which makes them suitable for heavy-duty industrial use.

Brass

Brass offers excellent machinability but not as much strength as steel. So, brass shafts are used for lightweight applications, probably medical devices, where you need precise machining or parts.

Aluminum

Aluminum is lightweight and corrosion-resistant, which makes it ideal for shafts in applications where weight reduction is important. Small motor shafts in drones, robotics, and lightweight machinery often utilize aluminum.

Titanium

Titanium has a high strength-to-weight ratio and outstanding corrosion resistance. That is why it’s used in high-performance applications, such as aerospace motor shafts.

Nickel Alloys

Nickel-based alloys, such as Inconel, provide excellent resistance to both high temperatures and corrosion. They are used in extreme environments, such as turbines and high-temperature industrial settings.

Finishing Processes for Motor Shafts

The machined shafts often need a finishing process that improves their surface finish and enhances their wear and corrosion resistance. Some popular options are:

Passivation

Passivation is used mainly for stainless steel shafts. The shaft gets treated with an acid solution to remove free iron from the surface and a protective oxide layer for corrosion resistance.

Anodizing

Anodizing is typically applied to aluminum shafts. This electrochemical process forms a tough, corrosion-resistant layer on the surface, which can also be dyed for aesthetic purposes.

Electroplating

In electroplating, a thin metal layer, such as zinc or nickel, is deposited onto the shaft’s surface. The layer improves wear and corrosion resistance, making it more durable.

Bead Blasting

In bead blasting, the shaft surface is held with steel beads at high pressure. This technique cleans the surface and provides a uniform, matte finish.

Quality Control in Motor Shaft Machining

Quality control is at the heart of motor shaft machining, ensuring that each part meets the required specifications and functions as intended. Rigorous quality control practices help maintain consistent production standards and minimize defects. Here are some of the key aspects of quality control in motor shaft machining:

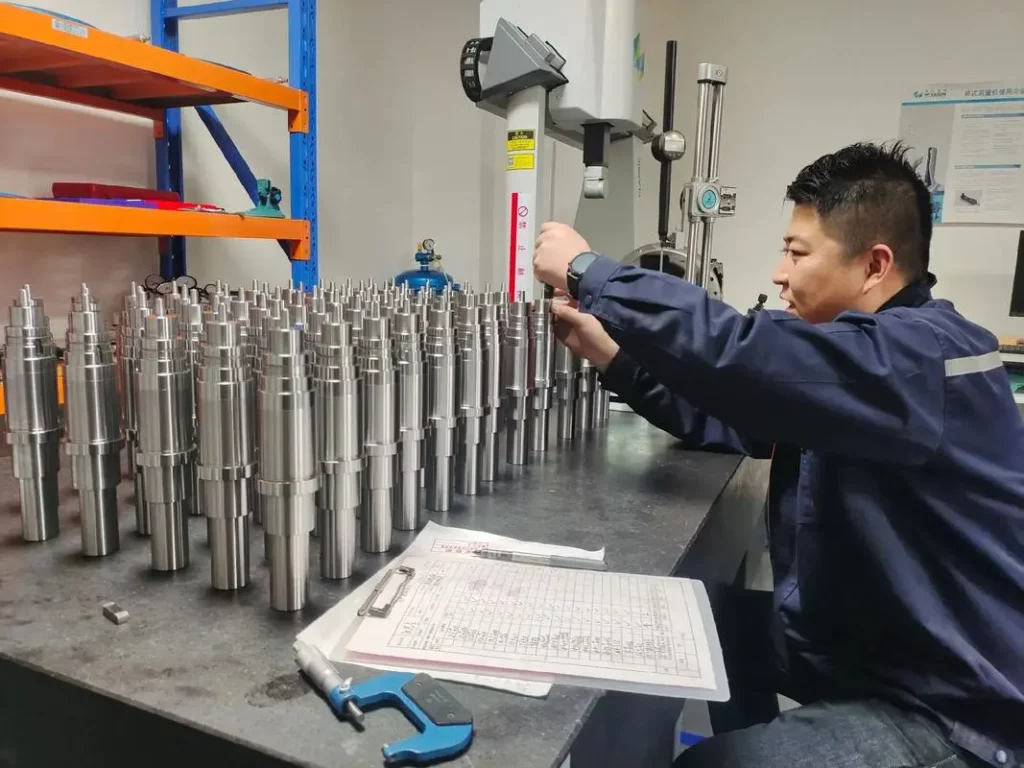

  1. Dimensional Accuracy Checks: Measuring the shaft’s diameter, length, and other critical dimensions is essential to ensure they fall within the specified tolerances. Precision measuring tools like micrometers, coordinate measuring machines (CMM), and laser measurement systems are commonly used for these checks.
  2. Surface Finish Inspection: The surface quality of the shaft plays a significant role in performance, particularly in applications where the shaft comes in contact with bearings or seals. Surface roughness is assessed using specialized instruments to ensure the finish meets the necessary standards.
  3. Material Testing: Verifying the material’s properties, such as hardness, tensile strength, and chemical composition, ensures that the shaft will perform under the intended operating conditions. Non-destructive testing methods, like ultrasonic and magnetic particle inspection, are used to detect internal defects.
  4. Balancing Tests: For motor shafts, maintaining proper balance is crucial to avoid vibration during operation. Dynamic balancing tests can detect and correct any imbalance in the shaft, ensuring smooth and stable rotation.
  5. Heat Treatment Verification: For shafts that undergo heat treatment, hardness testing is performed to confirm that the process has achieved the desired properties.
  6. Statistical Process Control (SPC): Using statistical methods to monitor the manufacturing process can detect any variations that could lead to defects. By analyzing data from production runs, manufacturers can identify trends, maintain quality consistency, and implement corrective measures if needed.
  7. Documentation and Traceability: Maintaining detailed records of each manufacturing batch, including material certifications, inspection reports, and process parameters, helps ensure traceability and provides customers with assurance regarding the quality of the parts.
