Nickel stands out in the industry because of its unique chemistry. It resists corrosion by forming a stable passive oxide layer. However this layer can fail under stress such as chloride exposure, abrasive wear or high humidity.
In this blog post, you will learn how nickel’s protective film works, what causes it to break down and the best ways to prevent nickel rusting in tough environments.

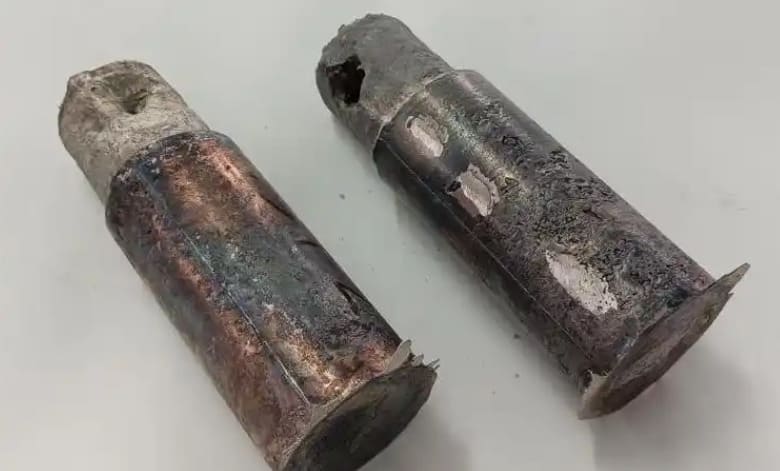

The Science behind Nickel and Its Corrosion Behavior
Nickel’s Chemical Properties
Nickel is a naturally noble transition metal that contains absolutely no iron. Because of this unique chemical makeup, it technically cannot form red rust like steel does. Instead nickel shows strong electrochemical stability. It naturally resists the fast oxidation that damages the iron-containing metals.
Passive Oxide Layer — The Metal’s Built-In Shield
When exposed to air, nickel instantly builds a tough Nickel Oxide (NiO) barrier. This invisible film is roughly 1 to 2 nanometers thick yet effectively blocks oxygen. Unlike iron’s flaky rust, this passive layer is self-healing and remains tightly adhered to the surface.
Main Types of Rusting That Nickel can Experience
Nickel is durable but certain environments can still cause damage in specific areas. Knowing these corrosion types helps you predict how long nickel will last and how to prevent problems.
Pitting Corrosion
This localized attack occurs when chloride ions like those in seawater penetrate the passive film. These ions create tiny, deep cavities that undermine structural integrity while the surface often appears undamaged. High temperatures, specifically above 50°C, significantly accelerate this hidden decay.
Stress Corrosion Cracking (SCC)
SCC is a sudden failure caused by the combined effects of tensile stress and a corrosive environment. In nickel alloys, triggers often include high-temperature water or hot caustic solutions. The material cracks unexpectedly, even under loads that are normally considered safe.
Crevice Corrosion
This occurs in stagnant gaps like under gaskets where oxygen cannot reach. Without fresh oxygen, the protective passive film breaks down and cannot repair itself. Acidic conditions then develop within these tiny spaces sometimes only micrometers wide which speeds up local corrosion.
Tarnish and Surface Oxides
Often mistaken for rust, tarnish is merely a cosmetic dulling of the surface. It occurs when nickel reacts with airborne sulfur or humidity and creates a yellowish or gray film. Unlike destructive red rust, this discoloration does not weaken the metal’s structure.
What Causes Nickel Rusting?
Corrosion in nickel isn’t random. It results from specific triggers attacking its defensive shield. Identifying these primary enemies is the first step toward effective prevention.
Environmental Factors
Moisture and oxygen are the primary catalysts for oxidation. In marine environments, chloride ions break through the passive film, even at moderate temperatures. Additionally strong acids like sulfuric acid also dissolve this protective layer rapidly especially when heated.
Material-Specific Factors
Internal composition matters just as much as the environment. Impurities like iron or sulfur can weaken the structure and may double the rate of corrosion. Additionally rough surfaces above 1.00 Ra trap corrosive salts which stops the passive layer from forming evenly.
Galvanic Corrosion with Dissimilar Metals
Nickel corrodes quickly when it touches more “noble” metals such as platinum or gold in a conductive liquid. This contact creates an electrical circuit, making nickel act as the anode. As a result nickel breaks down while the other metal remains protected.
Testing & Assessing Nickel Rusting
Predicting how nickel performs in the real world requires rigorous validation. Manufacturers rely on standardized testing methods to quantify resistance and confirm material reliability before putting it into use.
Salt Spray Test (ASTM B117)
This industry-standard method exposes nickel samples to a dense, continuous 5% saline fog. This harsh environment reveals defects rapidly, often within 24 to 1,000 hours. Engineers rely on this test to compare coating durability in harsh marine-like environments.
Also See: A Complete Guide to Salt Spray Test in Manufacturing
Electrochemical Impedance Spectroscopy (EIS)
EIS offers a non-destructive way to check the condition of nickel’s thin oxide layer. Engineers send small alternating currents through the sample and record resistance values. These measurements uncover tiny coating flaws or signs of oxide failure, all without harming the part.
At Richconn we always take initial EIS readings before shipping custom nickel parts. This process records the state of the oxide layer and provides clients with proof of corrosion resistance.
Weight Loss & Immersion Tests
This quantitative method calculates corrosion rates by measuring mass lost over time (ASTM G31). Engineers immerse weighted nickel coupons in corrosive solutions, then clean and re-weigh them. The resulting data, expressed in mils per year (mpy), provides precise lifespan estimates for real-world applications.
Best Practices for Preventing Nickel Corrosion
Preventing corrosion from the start costs less than fixing damaged equipment later. By following these proven best practices, you can make nickel components last much longer.
Material Selection & Design Considerations
Designers must match the alloy to the specific environment. For example Inconel 625 offers superior resistance for marine applications whereas Monel 400 excels in acidic conditions. Furthermore Engineers should avoid stagnant crevices by using continuous welds instead of bolts. This design step keeps corrosive fluids from getting trapped.
Surface Preparation & Finishing
A microscopically smooth surface offers fewer initiation sites for rust. Electropolishing to a roughness average (Ra) below 0.5 µm significantly enhances corrosion resistance by removing surface impurities. Always rigorously degrease and passivate parts to fully restore their passive layer before service.
At RICHCONN, we rely on precise CNC machining and carefully controlled electropolishing. This process allows us to reach Ra values of 0.4 µm or less on nickel parts. As a result the passive layer forms optimally every time.
Protective Coatings — What Works
High-phosphorus electroless nickel plating is the industry standard for severe conditions. By creating a uniform, pore-free barrier, it resists acidic environments better than traditional electroplating. For maximum durability, manufacturers often heat-treat these coatings to increase hardness.
Environmental Controls
Controlling the environment is essential for both storage and use over time. Keeping relative humidity below 40 to 50% prevents moisture condensation that fuels oxidation. In industrial settings, filtered ventilation systems can also reduce the accumulation of corrosive airborne pollutants like sulfur dioxide.
Regular Inspection & Maintenance
Consistent monitoring prevents catastrophic failures. Experts recommend visual inspections every three to six months to catch early tarnish. For critical assets, ultrasonic testing effectively identifies hidden subsurface pitting. This approach significantly reduces unexpected downtime and extends equipment life.
Conclusion
In short, nickel resists rust thanks to its protective oxide layer but it can still face localized corrosion under harsh conditions. Knowing the causes and following best practices will help nickel last longer.If you need precise nickel machining and protective finishes then Richconn is your best option. You can contact us anytime.
FAQs
If the plating is 20 to 25 µm thick, nickel can last outside for 5 to 15 years. However in tough industrial settings the surface may develop tarnish over time.
Nickel resists general corrosion but in stagnant seawater it can suffer from pitting and crevice corrosion. Chloride ions attack its passive film in these conditions.
No nickel does not form flaky red rust like iron. Instead it develops a thin, stable protective oxide layer that shields the underlying metal from further degradation.
For light tarnish, use a soft cloth and warm soapy water. Heavier oxidation can be removed with a mild vinegar solution or ammonia followed by thorough rinsing.
Nickel alloys perform better in high-temperature and reducing acid conditions. Stainless steel on the other hand, is usually more affordable and works well in most oxidizing environments.
