Nylon is a versatile engineering plastic but its heat sensitivity makes it tricky to CNC machine. Improper tooling or cooling can cause melting and poor surface finishes.
In this blog post we will cover nylon CNC machining processes, its common grades as well as its applications. We’ll also go through the best practices to machine this material so you can reliably produce precise, high quality parts.

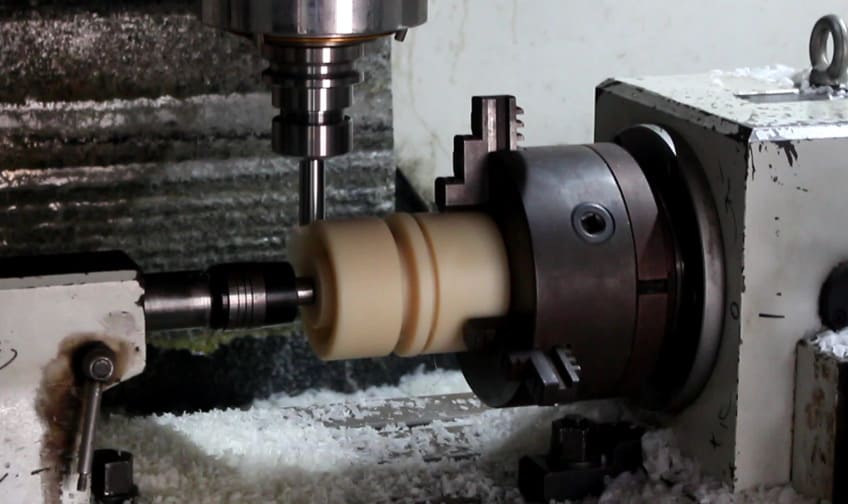

What is Nylon CNC Machining
Nylon CNC machining is a subtractive manufacturing process in which computer‐controlled cutters carve solid polyamide stock into precision parts. It creates durable, low‐friction components (like gears) that are capable of holding tolerances around ±0.005″ (0.13 mm) despite the plastic’s natural heat sensitivity.

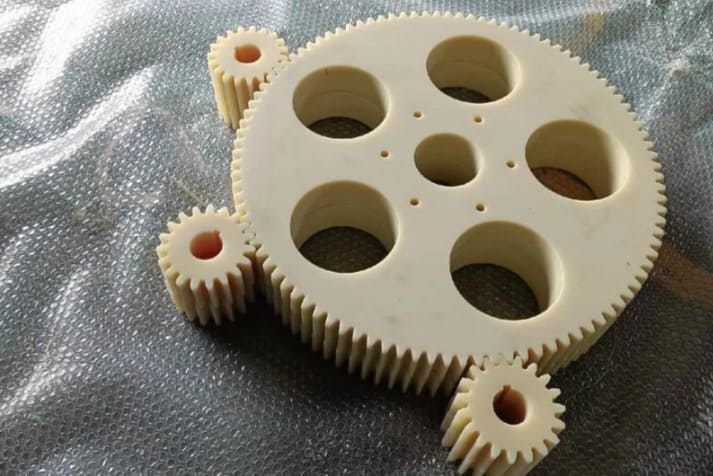

Common Nylon Grades Used in CNC Machining
Choice of the right nylon grade is crucial for your project’s success. Different types offer unique properties; therefore understanding their strengths helps in selecting the best material for your specific application.
1. Nylon 6
This is the standard “workhorse” grade for general machining. It offers extraordinary toughness and high impact resistance (56 J/m). This makes it durable yet affordable. While easy to machine, it absorbs moisture faster than other grades which can affect dimensional stability.
2. Nylon 66
Nylon 66 provides superior stiffness and heat resistance as compared to standard Nylon 6. It melts at approximately 265°C. This is ideal for high‐temperature environments. Its denser structure also offers 33% better abrasion resistance for heavy‐duty wear parts.
3. Glass‐Filled Nylon
Adding glass fibers to nylon increases its strength, stiffness as well as heat resistance. This reinforced option provides up to 70% greater tensile strength and enhanced dimensional stability which is suitable for structural parts. However, the abrasive nature of glass makes it harder on cutting tools.
4. Cast Nylon vs Extruded Nylon
Cast and extruded nylons are manufactured differently and these differences affect their properties. Cast nylon has less internal stress which leads to better dimensional stability and easier machining. In contrast extruded nylon can be more prone to warping but is a common and affordable choice for many applications.
5. Other Specialty Nylons (Nylon 12, Low Moisture Variants)
Beyond standard grades, specialized options also exist for niche needs.
- Nylon 12 offers minimal moisture absorption. This ensures excellent dimensional stability in humid environments.
- For high‐wear applications, oil‐filled or MoS₂‐filled nylons provide self‐lubricating properties that reduce friction and extend part life significantly.
At RICHCONN, we regularly stock and machine diverse grades—from standard Nylon 6 to specialized glass‐filled variants. This helps clients match the exact material to their performance needs.

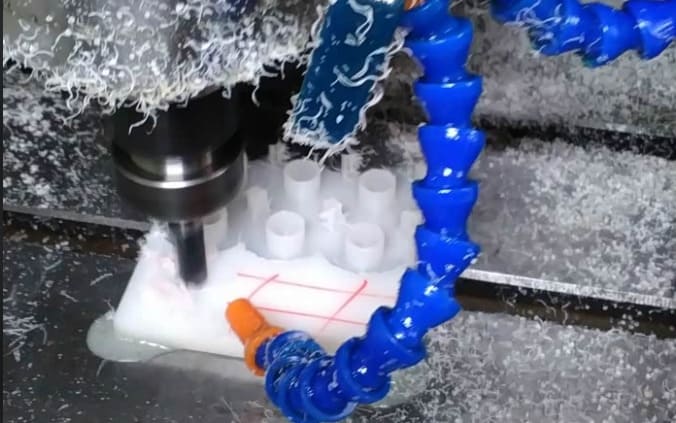

CNC Machining Process for Nylon
Achieving high‐quality results with nylon requires a systematic approach. The CNC machining process involves several key stages, each contributing to the success of the finished part.
Pre‐Machining Preparation
Successful machining starts with stabilizing the material. Because nylon absorbs up to 2.5% moisture, drying stock at 80°C for 8 to 12 hours is critical to prevent dimensional changes. Annealing at 300 to 350°F for 4 hours further reduces internal stresses. This ensures the part won’t warp during cutting.
Design & CAD/ CAM Setup
Next, a digital model is created in CAD software where designers refine features such as larger corner radii and wall thicknesses above 1.5 mm to reduce stress and thermal distortion. The design is then imported into CAM software which generates smooth, continuous toolpaths to minimize heat during machining.
CNC Setup
With the design complete, the CNC machine is prepared. This involves selection of the right cutting tools; sharp carbide or high‐speed steel (HSS) tools are mostly recommended to minimize heat. Operators then set precise cutting speeds (600–1200 SFM) and feed rates (0.005–0.015 IPR) to assure a clean cut without melting the material.
Also See: What is Feed Rate and Cutting Speed in CNC Machining
Machining Steps
Now, the actual cutting begins. Fast roughing passes are used to remove bulk material. This ensures the tool never dwells to prevent melting. For the final surface, a light finishing cut with a depth of 0.005″ to 0.010″ is applied in conjunction with heavy flood coolant. This washes away sticky chips and guarantees a smooth, precise finish.
Post‐Machining Operations
After machining, final steps ensure the part meets specifications. Burrs and sharp edges, including stringy nylon fibers, are carefully removed through proper deburring. The part is cleaned to remove chips and coolant, then inspected promptly to verify accurate dimensions before moisture absorption affects tolerances.
Our finishing team at Richconn uses specialized cryogenic deburring and hand‐trimming techniques to assure that every nylon part arrives smooth and ready for assembly. This eliminates the ‘fuzzy’ edges common in standard machining.

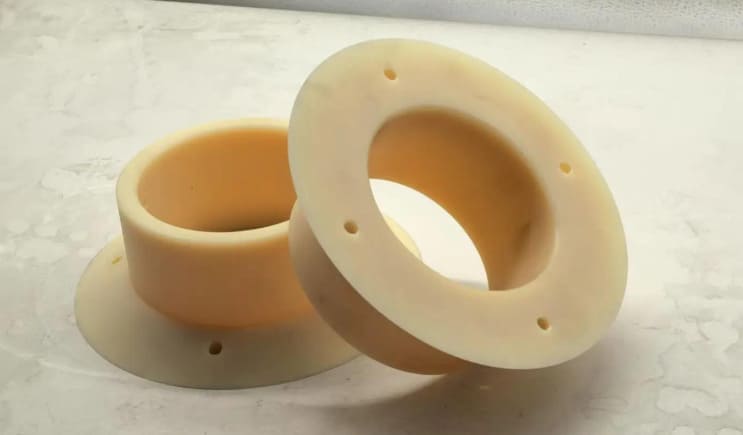

Why Choose Nylon for CNC Machining (Advantages & Material Benefits)
Engineers often swap metal for nylon to cut costs and improve performance. This versatile thermoplastic offers a unique mix of durability and efficiency that few materials can match.
1. High Machinability & Tool Friendliness
Nylon is known for being highly machinable which allows for precise and smooth cuts. Its medium hardness and low friction properties reduce tool wear which can lower production costs. This ease of machining makes it ideal for creating custom components with tight tolerances.
2. Strength‐To‐Weight Ratio & Impact Resistance
With a density of just 1.14 g/cm³, nylon is 80% lighter than steel yet offers tensile strength up to 80 MPa. It absorbs shock exceptionally well. This makes it ideal for high‐impact components like gears that must endure sudden loads without fracturing.
3. Low Friction & Wear‐Resistant Surface
Nylon acts as a self‐lubricating material, often eliminating the need for external grease. With a dynamic friction coefficient of around 0.2 to 0.3 against steel, it minimizes heat buildup. This extends the lifespan of moving components like bushings, gears and rollers significantly.
4. Dimensional Stability & Chemical Resistance
While nylon absorbs moisture, it remains structurally stable in harsh chemical environments where metals fail. It resists alkalis, hydrocarbons as well as oils without degradation. This makes it reliable for under‐hood automotive components exposed to fuels and greases.
5. Acoustic Dampening Properties
Nylon acts as a natural noise barrier in mechanical assemblies. Its molecular structure absorbs vibrations that metal would transmit. This reduces operating noise by up to 25% in gear applications. This makes it essential for quiet‐running office equipment, medical devices and automotive interiors.
Applications of Nylon CNC Machined Parts
Automotive
Nylon’s durability makes it perfect for high‐wear automotive components like suspension bushings and speedometer gears. These parts resist oil and reduce cabin noise which outlast metal alternatives in harsh under‐hood environments while operating without external lubrication.
Aerospace
In aerospace, weight reduction directly boosts fuel economy. Engineers specify machined nylon for avionics housings and cable clamps because they offer high tensile strength at just 15% of steel’s weight. Additionally, these components meet strict flammability standards for interior cabin use.
Electrical & Electronics
Nylon’s high dielectric strength (20 to 30 kV/mm) makes it an extraordinary insulator for high‐voltage environments. It effectively prevents electrical arcing in components like circuit board mounts, high‐voltage switchgear housings as well as cable connectors while simultaneously providing mechanical protection against impact.
Medical Devices
Manufacturers use medical‐grade nylon for surgical instrument handles and diagnostic equipment housings. This material meets strict FDA and ISO 10993 biocompatibility standards for safe patient contact. Furthermore, it withstands repeated chemical sterilization cycles without degrading and thus ensuring consistent hygiene and reliability.
Industrial Machinery
Industrial conveyors and cranes use machined nylon wear pads to prevent metal‐on‐metal grinding. This sacrificial barrier protects expensive shafts which extend equipment life significantly. Furthermore, nylon’s high load‐bearing capacity handles heavy abrasive stress without requiring messy external lubricants.
Best Practices & Troubleshooting Tips
Machining nylon needs particular techniques to assure precision. Let’s explore essential tips to avoid common pitfalls like deformation and melting.
Moisture Mitigation
Nylon is hygroscopic, meaning it absorbs atmospheric moisture which causes parts to swell and warp. To prevent this, pre‐dry raw stock at roughly 180°F (80°C) for 8 to 12 hours before machining. Additionally, let roughed parts “rest” for 24 hours before the final finishing pass to stabilize dimensions.
At RICHCONN, we strictly adhere to this 24‐hour ‘rest period’ protocol before our final CMM inspection to guarantee the dimensions on your drawing match the part you receive.
Tool Wear Management
Dull tools are a major problem when machining nylon, as they increase heat and friction. This leads to poor surface finish and dimensional inaccuracies. Regularly inspect and replace worn cutters to maintain consistent results. For best performance, use sharp high‐speed steel (HSS) or carbide tools which provide excellent durability and machining precision.
Also See: HSS vs Carbide Tools
Heat & Chip Control
Nylon acts as a thermal insulator which traps heat at the cutting edge where temperatures can quickly exceed its 220°C melting point. Use sharp, positive‐rake tools and aggressive air blasts to evacuate chips instantly. If chips linger, they will re‐weld to the workpiece and this ruining surface finish.
Surface Finish Optimization
Nylon frequently develops “fuzzy” edges when tools tear the soft material rather than slicing it. To fix this, use sharp, polished carbide cutters with high relief angles. Furthermore, cryogenic deburring effectively removes remaining imperfections without altering critical part geometry.
Quality Control & Inspection
Freshly machined nylon remains unstable, as heat and stress cause temporary dimensional fluctuation. Solve this by allowing parts to stabilize for 24 hours before final inspection. Additionally, use non‐contact optical systems to prevent the deformation often caused by standard calipers.
Nylon CNC Machining Compared with Other Manufacturing Methods
Choice of the right manufacturing method is key to a successful project. While CNC machining is versatile, it’s helpful to see how it compares to other common options for producing nylon parts.
Injection Molding
Injection molding excels in mass production (1,000+ units) because of incredibly low per‐part costs. However, it needs expensive molds upfront. On the other hand, CNC machining eliminates tooling costs and this makes it far more economical for prototypes and small production runs under 500 parts.
3D Printing (Nylon)
3D Printing excels at creating complicated interior geometries impossible for cutting tools. However, CNC machining delivers superior isotropic strength and surface finishes. For functional parts requiring tight tolerances like ±0.005 inches, machining consistently outperforms printed alternatives.
Other Plastics (e.g., POM, PEEK)
Beyond manufacturing methods, selection of the right plastic stock is critical. While nylon offers exceptional impact strength, POM (Acetal) ensures superior dimensional stability in wet environments. Moreover for extreme heat or chemical resistance, PEEK is the definitive choice, despite its significantly higher cost.
| Feature | Nylon 6/66 | POM (Acetal) | PEEK |
| Cost | Low | Low–Medium | Very High |
| Moisture Absorption | High (Swells) | Low (Stable) | Very Low |
| Heat Resistance | Moderate (~210°F) | Moderate (~185°F) | Extreme (~480°F) |
| Machinability | Good (Stringy chips) | Excellent (Short chips) | Fair (Requires skill) |
| Best Use | Gears, Impact Parts | Precision, Wet Use | Aerospace, Medical |
Conclusion
Mastering nylon CNC machining needs balancing heat control, moisture management and tool selection. By choosing the right grade and optimizing cutting parameters, you can produce durable, low‐friction components for any industry.
Contact Richconn today for expert nylon machining services and precision parts.
Related Questions
Yes. Most standard CNC machines work but success needs high spindle speeds, sharp carbide tooling and flood coolant to prevent melting and ensure clean cuts.
Dry raw stock before machining and store it in sealed containers with desiccants. During machining, use air blasts or non‐aqueous coolants to prevent immediate water absorption.
Standard commercial tolerances are ±0.005” (0.13 mm). With controlled environments and stress‐relieved stock, precision shops can achieve tighter aerospace tolerances of ±0.001” (0.025 mm).
Glass fibers are highly abrasive. This causes rapid wear on standard tools. Machinists must use carbide or diamond‐coated cutters and adjust feed rates to maintain precision.
Yes, specifically for gears and bushings. Nylon provides superior noise reduction, self‐lubrication and corrosion resistance. This often outlasts metal in low‐load, high‐wear applications.
Use annealed (stress‐relieved) stock and employ symmetrical material removal strategies. Flood coolant is also essential to minimize heat buildup that triggers deformation.
