PEEK CNC Machining Guide: Parameters, Process & Applications

PEEK can perform incredibly well in tough environments but only if you machine it the right way. This material doesn’t conduct heat well and reacts quickly to temperature changes. Therefore typical machining methods can fall short.

In this blog post we’ll break down how PEEK behaves and shares practical parameters and proven methods for machining it with confidence.

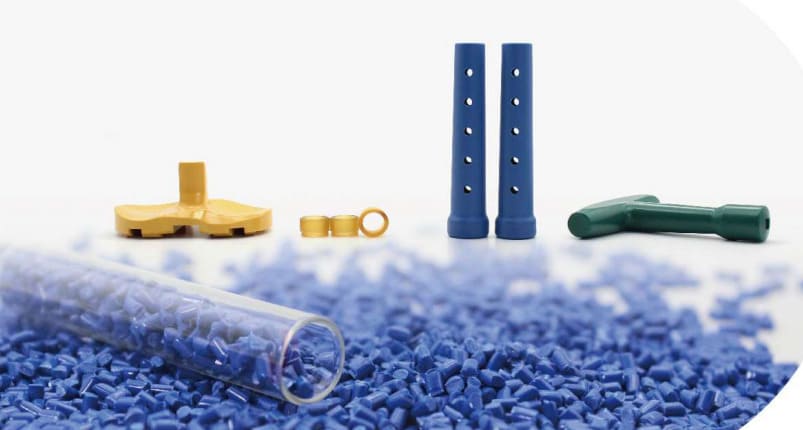

Overview of PEEK Material & Its Properties

PEEK (polyetheretherketone) is a high performance thermoplastic in the PAEK family. Its semi crystalline structure ensures predictable machining behavior; crystalline regions provide dimensional stability while amorphous zones absorb cutting forces. This dual phase structure directly impacts how PEEK responds to heat generation and tool engagement during CNC operations.

Properties of PEEK Material

Property	Typical Value
Density	1.30 to 1.32 g/cm³
Tensile Strength	90 to 110 MPa
Flexural Strength	170 MPa
Glass Transition Temperature	143°C
Melting Point	343°C
Thermal Conductivity	0.25 W/m·K
Chemical Resistance	Excellent
UV Resistance	Good
Creep Resistance	Excellent

Common PEEK Grades You’ll See In CNC Jobs

Unfilled (virgin) PEEK

It offers the highest ductility and the best surface finish. It machines cleanly with standard sharp carbide tools and supports tight tolerance medical and fluid handling parts.

Glass Filled PEEK

Containing 10 to 30% glass fiber, this grade boosts stiffness up to ~10 GPa modulus. It suits structural housings. However it contains abrasive fibers that can shorten a tool’s life. Therefore it needs wear resistant cutters.

Carbon Filled PEEK

This grade combines higher strength, wear resistance as well as thermal conductivity to dissipate heat from bearing tracks. However its high abrasiveness usually necessitates carbide or PCD tools for production.

---

If you’re unsure which PEEK grade fits your part, RICHCONN’s engineers can review your requirements for load, temperature as well as durability needs. They will suggest a grade and machining method that keeps performance high without pushing costs up.

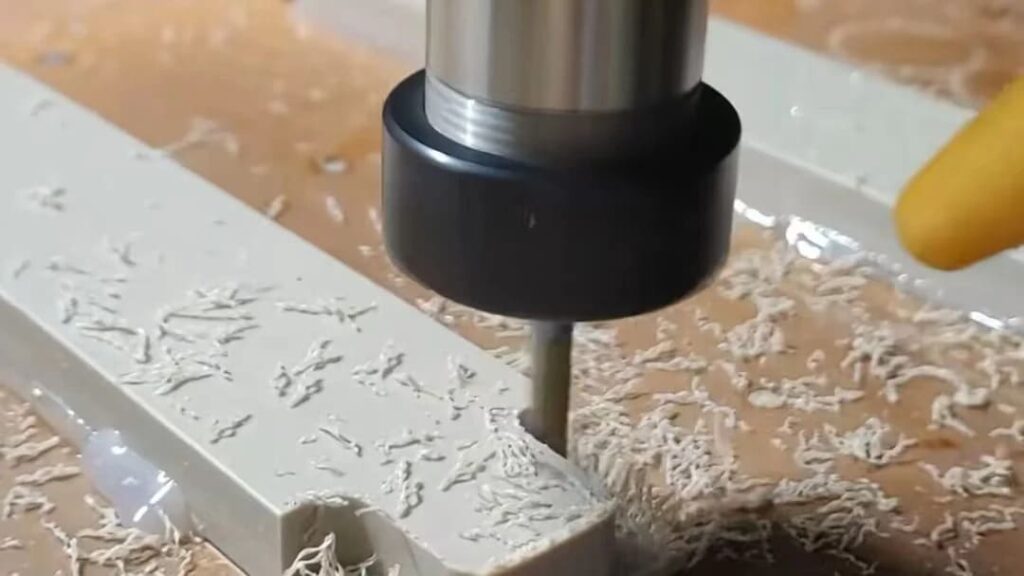

Recommended CNC PEEK Machining Parameters

PEEK demands tighter control of machining parameters as compared to most metals or common plastics because it holds heat at the cutting edge instead of carrying it away through chips or the workpiece. As a result small changes in surface feed, speed or depth of cut can shift a clean cut into smeared, warped or out‐of‐tolerance parts.

Thoughtful parameter selection keeps heat down, protects tool edges and also preserves the polymer’s mechanical properties. Therefore always start machining with the recommended starting feeds and speed ranges and slowly fine tune these parameters with short test cuts on the actual grade and geometry.

1. Milling Parameters for Unfilled PEEK

Parameter	Recommended Range
Surface speed	150 to  300 m/min
Feed per tooth	0.05 to 0.15 mm/tooth
Axial depth of cut	0.5 to 2.0 mm
Radial step-over	10 to 40% of tool diameter

These values are a solid starting point for milling unfilled PEEK plates and rods on modern VMCs. Use sharp, 2 to 3 flute carbide tools and clear chips with an air blast. Also if you notice a dull finish or smearing, adjust the feed rate before changing the speed.

2. Milling Parameters for Glass-Filled or Carbon-Filled PEEK

Parameter	Recommended Range
Surface speed	100 to 200 m/min
Feed per tooth	0.03 to 0.10 mm/tooth
Depth of cut	0.3 to 1.5 mm
Coolant/ air	Compressed air or minimal mist

Filled PEEK grades are significantly more abrasive as compared to unfilled variants. This causes rapid tool wear if standard carbide is used. Therefore it’s wise to use polished carbide or PCD tools for production. Moreover avoid rubbing at low chip loads and watch edges closely for rounding because finish quality usually crashes before tools visibly fail.

3. Turning Parameters for PEEK

Parameter	Unfilled PEEK	Glass / carbon-filled PEEK
Cutting speed	200–400 m/min	100–250 m/min
Feed rate	0.10–0.30 mm/rev	0.05–0.20 mm/rev
Depth of cut (roughing)	0.5–3.0 mm	0.3–2.0 mm
Depth of cut (finishing)	≤0.5 mm	≤0.3–0.4 mm

For turning, use sharp, positive rake inserts with polished edges and avoid aggressive nose radii that push material instead of shearing it. Also keep tool overhang short, use air to clear chips and also confirm stability with a trial pass before tight tolerance runs.

4. Drilling, Tapping & Hole Making Setup

Operation	Key Recommendation
Cutting speed (Drilling)	50–100 m/min (unfilled). Reduce 20–30% for filled grades
Feed (Drilling)	0.05–0.15 mm/rev
Drill geometry	twist drills having high helix angle (30 to 40°)and around 90° to 118° point angle

Heat buildup is critical in confined holes. Use peck cycles to retract the drill and clear chips. This will prevent them from fusing to the walls. For threading, prefer thread milling over tapping to reduce cutting pressure, improve chip evacuation as well as avoid broken taps that can scrap expensive PEEK parts.

Also See: Drilling vs Tapping – How They Differ

CNC Machine Setup for PEEK Machining

A proper machine setup is crucial for successfully machining PEEK and avoiding common pitfalls related to heat, stress and part finish.

Tooling Setup

Your tooling choice is fundamental. Always use razor sharp cutting tools as even minor edge rounding increases heat and friction. Tools should also feature a positive rake angle to reduce cutting forces by creating a sharper edge. Additionally limiting the tool to two or three flutes improves chip evacuation. This prevents melting in the cut.

Fixturing & Workholding

PEEK deforms easily therefore it’s wise to use minimal, evenly distributed clamping force to prevent inaccuracies. It is best to use custom fixtures or soft jaws to hold the material without marring its surface. For balanced results, machine features symmetrically and leaves a small amount of material for a final finishing pass.

Also See: A Complete Guide to Workholding Methods in CNC Machining

Cooling & Chip Control

Proper cooling is critical because PEEK has low thermal conductivity (around 0.25 W/m·K). A compressed air blast or mist is often preferred to clear chips and cool the tool without part contamination. While flood coolant can be used for aggressive roughing, ensure it is compatible with the PEEK grade and any downstream processes.

Optimal Toolpath Strategy for PEEK

The right toolpath minimizes heat and stress on the material. Use climb milling to reduce friction and achieve a better surface finish. It is often effective to rough out the part in stages. This lets it cool before the final finishing pass. Always program a dedicated finish pass with a low depth of cut to assure dimensional stability.

Signs Your PEEK Machining Setup Is Incorrect

An unoptimized setup will show several warning signs. Recognizing these issues early prevents scrap and ensures part quality. Key indicators include:

• The machined surface appears glossy, smeared or has melted sections.
• There is brownish or yellowing discoloration which indicates excessive heat.
• The part warps or changes shape after it is unclamped.
• You find dimensional variations between identical parts in the same production run.

Expert Tip: If tolerances shift after machining, pause production and let the part thermally stabilize before inspection—PEEK moves more than metals.

When To Choose CNC Machined PEEK Instead of Metal or Other Plastics

Best-Fit Use Cases

CNC machined PEEK excels in components that demand performance under extreme conditions. It is particularly suitable for applications that need:

High Temperatures

It maintains performance at continuous service temperatures up to 260°C (500°F).

Chemical Resistance

The material resists a wide range of chemicals. This also includes acids and solvents, even at elevated temperatures.

Wear Resistance

Its low friction and high abrasion resistance suit unlubricated bearings and bushings, especially in filled grades.

Electrical Insulation

It provides high performance electrical insulation for connectors and sensor housings.

PEEK Vs PTFE, PEI, PPS, Nylon

Now let’s see how PEEK compares against common alternatives in machining contexts.

Material	Durability & wear	Chemical resistance	Temp resistance (℃)	Electrical insulation	Machinability	Relative cost
PEEK	Very high wear & fatigue strength.	Excellent, near PTFE.	250-260	Excellent; heat-stable.	Good	Very high
PTFE	Low strength, very low friction.	Excellent.	200-260	Outstanding.	Difficult; deforms.	High
PEI	Moderate; brittle than PEEK.	Good.	~200	Very good.	Good	Medium-high
PPS	Good stiffness, lower toughness.	Very good.	~220-240	Good.	Good	Medium
Nylon	Low wear resistance at heat.	Moderate to poor.	<120-150	Good; affected by humidity.	Very good	Low

If you are unsure whether PEEK is the right choice over metals or other plastics, RICHCONN’s application engineers can review your temperature, load as well as chemical exposure requirements and suggest the most affordable option for your project.

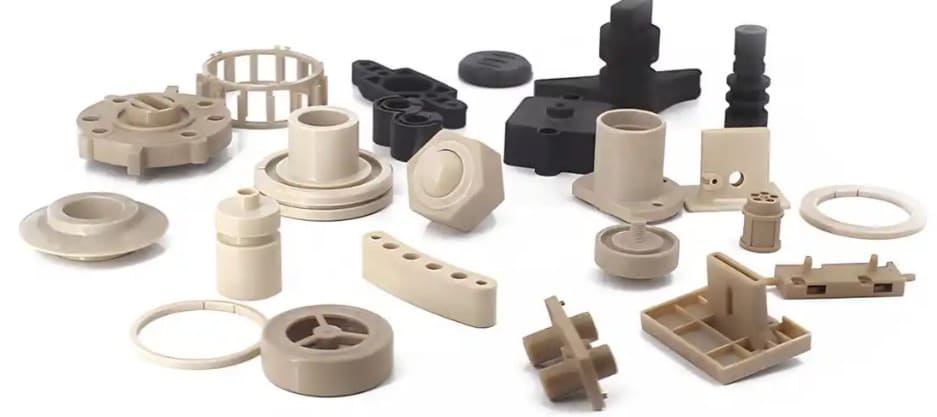

PEEK Machining Fundamentals You Must Understand First

Good PEEK parts start with understanding how this polymer behaves under a cutter.

1. Heat Buildup & Low Thermal Conductivity

PEEK’s low thermal conductivity (approx. 0.25 W/m·K) concentrates heat at the cutting edge rather than dissipating it in the surrounding. So if surface speed or stepover is too high, this heat concentration overheats contact zone and softens the polymer. This then causes smearing rather than clean shearing. Therefore stable speeds, generous chip loads as well as strong chip evacuation are vital for machining PEEK.

2. Internal Stress, Crystallinity & Dimensional Movement

Since PEEK is semi crystalline, cooling history and annealing state strongly affect residual stress. Uneven roughing or aggressive clamping locks in stress that can relax hours after machining and moves features by several tenths. Balanced material removal, stress relief cycles as well as stable shop temperatures can help reduce this post machining drift.

3. Chip Formation; Stringy Chips, Burrs & Smearing

PEEK forms long, stringy chips and burrs when tools are dull or feeds are too light. These chips can get recut, trap heat and scratch surfaces. To produce clean edged parts, always use sharp, high‐positive‐rake tools, adequate feed and effective chip evacuation with air or vacuum.

4. The Two Golden Rules

To avoid common pitfalls, follow two fundamental rules. First, keep cutting tools exceptionally sharp to assure a clean shear. Second, actively control heat and stress with a repeatable, validated process from start to finish.

Selection of the Right PEEK Grade & Stock Form

Choice of the right material grade and starting form is the first step toward a successful and affordable project.

Unfilled PEEK vs Reinforced PEEK

Unfilled PEEK provides the highest toughness and purity which makes it easy to machine and ideal for medical or food contact parts. In contrast reinforced grades (filled with glass or carbon fibers) offer significantly higher strength and stiffness but are very abrasive. This increases tool wear and demands more rigid setups and particular machining parameters.

Medical or Implant-Adjacent Considerations

For medical devices, you must use certified, biocompatible grades that meet standards like ISO 10993. Full material traceability and process documentation are non negotiable to assure safety and regulatory compliance. Additionally, machining must be performed in a clean environment to prevent any contamination of the final parts.

Stock Shape Choices

PEEK is available in rod, plate and tube forms and your selection impacts both waste and machining time. Rods are efficient for cylindrical parts while plates are suited for flat or blocky designs. Using tube stock for components with a central bore can significantly reduce material waste and drilling operations.

Shop Setup, Safety & Handling Practices

Beyond the machine itself, proper shop practices are essential for ensuring part quality, traceability and operator safety.

Dust, Chips & Housekeeping

Machining PEEK generates fine dust and chips that must be controlled. Though not highly toxic, the dust is an inhalation hazard, therefore effective dust collection is critical for air quality.

Regular housekeeping to clean up chips also prevents slip‐and‐fall hazards on the shop floor.

Coolant Compatibility & Contamination Control

Coolant selection is critical as some fluids leave residues that interfere with bonding or coating. For medical grade PEEK, liquid coolants are often avoided to protect biocompatibility; compressed air is preferred in most cases. For industrial parts, ensure any coolant used is compatible with PEEK and fully removable.

Storage & Moisture Considerations

Although PEEK has low moisture absorption, even minor amounts can affect high precision jobs. If the material was stored in a humid environment, it should be oven dried before machining to guarantee dimensional consistency and accuracy.

Process Notes for Regulated Industries

In regulated industries like aerospace and medical, rigorous documentation is essential. Capture material certificates, lot numbers and detailed inspection records for each part to provide a chain of custody and verify that every step was controlled.

Tooling & Cutter Geometry for PEEK Machining

The right cutter geometry is essential for cleanly shearing PEEK rather than pushing material which generates excessive heat.

Best Tool Materials

For unfilled PEEK, sharp & uncoated carbide tools offer a great balance of performance and cost. However glass or carbon filled grades are extremely abrasive and will wear carbide tools quickly. For these reinforced materials, Polycrystalline Diamond (PCD) tooling is necessary to resist abrasion and maintain a sharp cutting edge.

Recommended Tool Geometry

Always use cutters designed specifically for plastics. These tools feature a high positive rake angle to shear the material cleanly. They should also have polished flutes to reduce friction and prevent melted PEEK chips from sticking to the tool, a common failure cause.

Flute Count & Chip Evacuation Choices

A low flute count, typically 2 flutes, provides maximum space for chip evacuation. This is critical for preventing chips from packing into the cut and generating heat. For light finishing passes where chip load is smaller, 3 or 4 flute cutters can be used to achieve a higher quality surface finish.

Tool Wear Signals & Replacement Strategy

A worn tool generates excess heat therefore replace it immediately if you notice these signals on your PEEK parts:

• A decline in surface finish quality or smearing.
• Increased burr formation on part edges.
• Loss of dimensional accuracy or instability.

Workholding & Fixturing Strategies That Prevent Warp

Because PEEK is flexible and contains internal stresses, your workholding strategy is critical to preventing warped parts.

1. Clamping Pressure & Part Distortion

PEEK has a low elastic modulus, meaning it deforms easily. Always use minimal clamping pressure—just enough to hold the part securely. Overtightening will distort the workpiece and it will spring out of tolerance once released from the fixture.

2. Thin Walls, Long Parts & Large Flat Plates

These geometries are especially prone to distortion and vibration. Support thin walls from behind to counteract cutting forces. For long or large PEEK parts, use multiple, evenly spaced clamping points to distribute pressure and prevent material lifting or chatter.

At RICHCONN we often create custom soft jaws and modular fixtures for thin walled PEEK components. This approach helps keep clamping pressure low while still giving the part enough support to maintain accuracy during tight tolerance machining.

3. Machining Symmetry & Balanced Material Removal

Internal stresses are a primary cause of warp. To manage them, remove material symmetrically. A common strategy is to rough one side, flip the part, rough the other side before proceeding to finishing operations. This balances stress release and improves final PEEK part stability.

4. Soft Jaws, Vacuum Fixtures & Support Fills

Standard serrated jaws will mar PEEK surfaces. Use soft jaws made of aluminum or plastic to distribute clamping force evenly. For flat plates, vacuum fixtures provide extraordinary stability without localized pressure points. For delicate internal features, low melt alloys can be used as a support fill.

Cooling, Chip Evacuation & Heat Control in PEEK CNC Machining

Managing heat is the most critical aspect of machining PEEK successfully.

Air Blast vs Flood Coolant

A strong air blast is preferred for clearing chips without causing thermal shock or contamination. Flood coolant can be used for aggressive roughing but it must be PEEK-compatible.

Avoiding Thermal Damage

Surface yellowing or smearing indicates excessive heat. If this occurs, immediately reduce your spindle speed or increase the feed rate to lower the temperature.

Chip Evacuation for Deep Cavities & Holes

Use peck drilling to clear deep holes and design toolpaths for easy chip exit from pockets. Never re‐cut chips—as this is a main cause of heat.

Temperature Driven Tolerance Drift

Because PEEK expands when hot and shrinks as it cools, always let PEEK parts return to room temperature before final inspection.

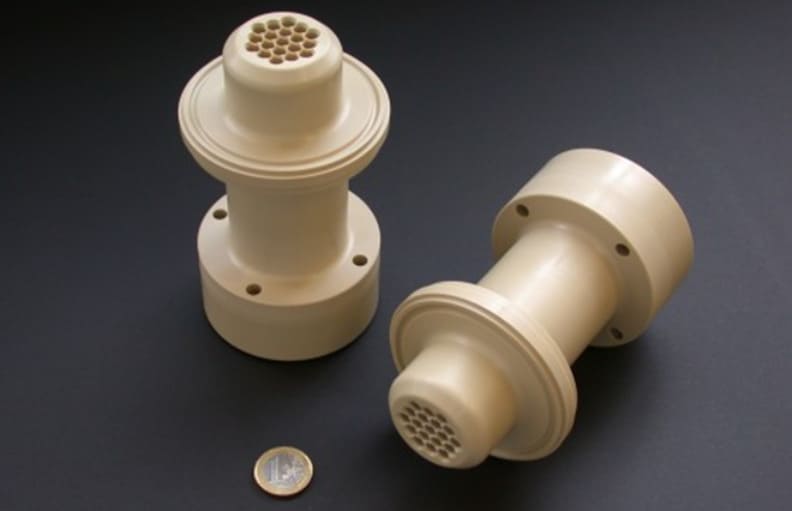

Achieving Tight Tolerances & Great Surface Finish in PEEK

With proper process control, PEEK can be machined to impressive accuracy and an extraordinary surface finish.

What Tolerances Are Realistic

With standard practices, PEEK can be machined to tolerances of around ±0.05mm. Achieving high precision tolerances of ±0.025 mm or better is possible but demands a fully controlled process. This includes sharp, specific tooling, thermal expansion management and often an annealing step to relieve internal stresses.

Surface Finish Targets & How To Hit Them

A standard machined PEEK surface finish is typically around 1.6 μm Ra suitable for most applications. Achieving 0.8 μm Ra or better requires all best practices; exceptionally sharp tools, controlled heat, stable fixturing as well as dedicated light finishing passes with optimized parameters.

Also See: A Complete Guide to Surface Roughness in CNC Machining

Threads, Inserts & Assembly Wear

For parts requiring frequent disassembly, avoid tapping directly into PEEK as threads wear out quickly this way. Use stainless steel threaded inserts (wire or press fit) to provide durable, reusable metal threads that won’t strip under repeated torque.

Inspection Strategy for Plastics

Always inspect PEEK parts after they have cooled and stabilized to room temperature to account for thermal contraction. Also use non contact methods or a low force CMM whenever possible. This is because standard calipers can deform the surface, causing inaccurate measurements.

Post Machining Processes for PEEK Machined Parts

Final processing steps are often necessary to meet the part’s functional and dimensional requirements.

Deburring Without Damaging Edges

PEEK is prone to developing burrs, especially around cross drilled holes and threaded features. For small quantities, careful manual deburring with a sharp blade is effective. In production settings, automated methods like cryogenic deburring or micro abrasive blasting with soft media like wheat starch remove burrs without damaging sharp edges or surface finish.

Stress Relief & Annealing After Roughing or Before Finishing

Annealing is crucial for maximum dimensional stability. This process involves heating PEEK to just below its glass transition temperature, holding it and cooling slowly. This relieves internal stresses from molding and rough machining stages which ensures long term stability.

For critical PEEK components, RICHCONN often runs controlled annealing between roughing and finishing so that the final cuts happen on a stable, stress relieved blank.

Cleaning for Functional Service

For medical or semiconductor applications, parts must be meticulously cleaned to remove residues. Ultrasonic cleaning using compatible solvents (like isopropyl alcohol) effectively removes machining chips, oils and contaminants from surfaces and internal channels.

Optional Finishing

While the as‐machined surface is often sufficient, some applications need additional finishing. Vapor polishing creates a smoother, glossier surface for fluid‐path components while bead blasting with non abrasive media produces a uniform matte texture. Both methods must be controlled to avoid altering critical dimensions.

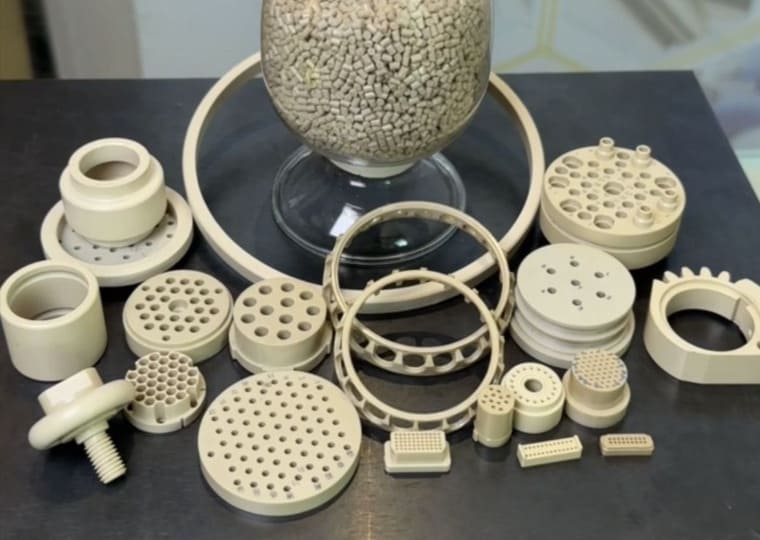

Uses of CNC Machined PEEK Parts

CNC machining unlocks PEEK’s capabilities across critical industries where precision and reliability matter most.

Aerospace & Defense Components

CNC machining produces low volume, high value PEEK parts with intricate geometries for defense and aerospace. This process delivers flight‐critical precision for components like high temperature seals, bearings, custom electrical connectors as well as lightweight structural parts. This ensures reliability in extreme conditions.

Oil & Gas and Downhole Equipment

PEEK’s resilience against corrosion and extreme temperatures makes it indispensable in harsh downhole environments. Components like back‐up rings and valve seats are machined to assure equipment reliability under intense pressure. Precision CNC machining achieves the tight tolerances and flawless sealing surfaces necessary to prevent leaks in these high‐stakes applications.

Medical Devices & Healthcare

Biocompatible PEEK is the standard for surgical instruments, orthopedic trial implants and MRI‐compatible fixtures. CNC machining is crucial here; it fabricates patient specific, organically shaped implants and ergonomic tools while holding the strict tolerances needed for clinical success.

Automotive & Electric Mobility

PEEK thrust washers and transmission seal rings are vital for durability and efficiency in modern vehicles. CNC milling and turning produce these high stress components with exacting precision. This ensures smooth operation and extends the service life of both electric and internal combustion systems.

Semiconductor & Electronics

PEEK’s chemical inertness and high purity are ideal for semiconductor manufacturing where preventing contamination is critical. The material is used for wafer handling tools, test sockets as well as insulators that often have delicate micro features requiring the meticulous control of high speed CNC machining.

Consumer & Industrial Equipment

CNC machining is frequently used to produce high wear PEEK components for specialized machinery. Custom parts like pump gears, high pressure valve seats and conveyor rollers are machined from PEEK. These parts fit perfectly and deliver reliable performance, even in tough industrial environments.

Common PEEK CNC Machining Problems & Troubleshooting

Even with a well prepared setup, issues can arise when machining PEEK. Here’s a quick guide to diagnosing and solving them.

Warping After Machining

This common issue is caused by internal stress release and machining heat. To prevent it, anneal the PEEK blank before final machining. Moreover machining both sides of a part symmetrically and leaving adequate stock for a light finishing pass also proves effective.

Poor Surface Finish or Smearing

A smeared surface indicates excess heat from a dull tool or incorrect parameters. Therefore immediately replace the cutting tool or reduce the temperature by lowering the spindle speed or increasing the feed rate.

Stringy Chips & Burrs

PEEK’s toughness can create long, stringy chips and heavy burrs. Resolve this by increasing your feed per tooth for a thicker, more brittle chip. Also ensure your toolpath allows chips a clear exit to avoid recutting.

Tool Wear Spikes On Reinforced Grades

The abrasive fibers in reinforced PEEK will quickly destroy standard carbide tools. For significant production, switch to Polycrystalline Diamond (PCD) tooling for far greater wear resistance. Also reduce cutting parameters and monitor tool edges for rounding to prevent dimensional drift.

Dimensional Variation Across Batches

Inconsistency between parts often points to material or process variations. Always verify that you are using the same PEEK grade from a consistent supplier. Additionally, store material in a dry place and let parts stabilize to room temperature before inspection.

Hand Over Your PEEK CNC Machining Project to Experts

PEEK CNC machining demands precise temperature control, sharp tooling and stable fixturing to avoid warping. Achieving this consistency requires skill with polymer behavior and controlled machining parameters. That’s why partnering with specialists matters a lot.

At Richconn we use advanced 5 axis CNC systems and diamond coated cutters for reinforced PEEK. Our controlled cooling and fixturing methods maintain ±0.01 mm tolerances across batches. This lets us deliver stable, high performance PEEK parts for medical, aerospace as well as industrial applications.

To Sum Up

CNC machined PEEK offers extraordinary performance but realizing its full potential needs a specialized approach. Success depends on carefully controlling heat, using sharp tools and maintaining process stability from start to finish. If you need an expert partner for your next PEEK project, contact Richconn today for a quote.
